Opel Corsa (2019 year). Manual - part 2

22

Keys, doors and windows

Key with foldaway key section

Press button to extend. To fold the

key, first press the button.

Radio remote control

Used to operate:

● central locking system
● anti-theft locking system
● anti-theft alarm system

The radio remote control has a range

of approx. 20 m. It can be restricted

by external influences. The hazard

warning flashers confirm operation.
Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

Fault

If the central locking system cannot

be operated with the radio remote

control, it may be due to the following:

● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of

the radio remote control while not

in range, which will require re-

synchronisation.

● Overload of the central locking

system by operating at frequent

intervals, the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

Unlocking 3 23.

Basic settings

Some settings can be changed in the

Info Display.
Vehicle personalisation 3 92.

Keys, doors and windows

23

Radio remote control battery

replacement

Replace the battery as soon as the

range reduces.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

Extend the key and open the unit

sideways. Replace the battery

(battery type CR 2032), paying

attention to the installation position.

Close the unit and synchronise.

Memorised settings

Whenever the ignition is switched off,

some functions of the following

settings may be automatically

memorised by the remote control unit:

● lighting
● electronic climate control
● presets for Infotainment system
● central locking system
● comfort settings

The saved settings are automatically

used the next time the memorised key

is inserted into the ignition switch and

turned to position 1 3 120.
A precondition is that Personalization

by driver is activated in the personal

settings of the Info Display. This must

be set for each key used.
Vehicle personalisation 3 92.

Central locking system

Unlocks and locks doors, load

compartment and fuel filler flap.
From inside the vehicle with the doors

locked, pull an interior door handle to

unlock the respective door.

Note

In the event of an accident in which

airbags or belt pretensioners are

deployed, the vehicle is

automatically unlocked.
Note

3 minutes after unlocking with the

remote control, the doors are

relocked automatically if no door has

been opened.

24

Keys, doors and windows

Unlocking

Press c.
Two settings are selectable in the

Info Display:

● To unlock only the driver's door

and fuel filler flap, press c once.

To unlock all doors and load

compartment, press c twice.

● Press c once to unlock all doors,

load compartment and fuel filler

flap.

Vehicle personalisation 3 92.
The setting can be saved for the key

being used.
Memorised settings 3 23.

Unlocking and opening the tailgate

3

 26.

Locking

Close doors, load compartment and

fuel filler flap.

Press e.
If the driver's door is not closed

properly, the central locking system

will not work.

Central locking buttons

Locks or unlocks doors, the load

compartment and fuel filler flap from

inside the passenger compartment.

Press e to lock.
Press c to unlock.

Delayed door lock

Switch off engine and remove key

from the lock. Press e with at least

one door opened and three chimes

will sound. When the last door is

closed, the vehicle will automatically

lock all doors after 5 seconds and

feedback is given.
After 10 minutes, the vehicle will

automatically lock all doors even if a

door is still open. This function may be

activated or deactivated in the Info

Display.
Vehicle personalisation 3 92.

Keys, doors and windows

25

Fault in radio remote control

system

Unlocking

Manually unlock the driver's door by

turning the key in the lock. Switch on

the ignition and press the central

locking button c to unlock the other

doors, load compartment and fuel

filler flap.
By switching on the ignition, the anti-

theft locking system is deactivated.

Locking

Manually lock the driver's door by

turning the key in the lock.

Fault in central locking system

Unlocking

Manually unlock the driver's door by

turning the key in the lock. The other

doors can be opened by pulling the

interior handle. The load

compartment and fuel filler flap

cannot be opened.
To deactivate the anti-theft locking

system, switch on the ignition 3 27.

Locking

Press inside locking knob of all doors

except driver's door. Then close the

driver's door and lock it from the

outside with the key.
The fuel filler flap and tailgate cannot

be locked.

Automatic locking

This security feature can be

configured to automatically lock

doors, load compartment and fuel

filler flap as soon as a certain speed

is exceeded.

Additionally, it is configurable to

unlock the driver's door or all doors

after the ignition is switched off and

the ignition key is removed (manual

transmission) or the selector lever is

moved to position P (automatic

transmission).
Settings can be changed in the

Info Display.
Vehicle personalisation 3 92.
The settings can be saved for the key

being used 3 23.

Child locks

9 Warning

Use the child locks whenever

children are occupying the rear

seats.

26

Keys, doors and windows

Using a key or suitable screwdriver,

turn switch on rear door lock to the

horizontal position. The door cannot

be opened from inside.

Doors

Load compartment

Tailgate

Opening

To open the tailgate, push the

touchpad switch below the brand

emblem.

Closing

Use interior handle.
Do not press the touchpad switch

whilst closing as this will unlock the

tailgate again.
Central locking system 3 23.

General hints for operating

tailgate

9 Danger

Do not drive with the tailgate open

or ajar, e.g. when transporting

bulky objects, since toxic exhaust

Keys, doors and windows

27

gases, which cannot be seen or

smelled, could enter the vehicle.

This can cause unconsciousness

and even death.

Caution

Before opening the tailgate, check

overhead obstructions, e.g. a

garage door, to avoid damage to

the tailgate. Always check the

moving area above and behind the

tailgate.

Note

The installation of certain heavy

accessories onto the tailgate may

affect its ability to remain open.

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are

people in the vehicle! The doors

cannot be unlocked from the

inside.

The system deadlocks all the doors.

All doors must be closed otherwise

the system cannot be activated.
If the ignition was on, the driver's door

must be opened and closed once so

that the vehicle can be secured.
Unlocking the vehicle disables the

mechanical anti-theft locking system.

This is not possible with the central

locking button.

Activating

Press e on the radio remote control

twice within 5 seconds.

Anti-theft alarm system

The anti-theft alarm system is

combined with the anti-theft locking

system.
It monitors:

● doors, tailgate, bonnet
● ignition

28

Keys, doors and windows

Activation

● Self-activated 30 seconds after

locking the vehicle by pressing e

once.

● Directly by pressing e twice

within 5 seconds.

Status LED

Status LED is integrated in the sensor

on top of the instrument panel.

Status during the first 30 seconds of

anti-theft alarm system activation:
LED illuminates : test, arming delay

LED flashes

quickly

: doors, tailgate or

bonnet not

completely closed,

or system fault

Status after system is armed:
LED flashes

slowly

: system is armed

Seek the assistance of a workshop in

the event of faults.

Deactivation

Unlocking the vehicle by pressing c

deactivates anti-theft alarm system.
The system is not deactivated by

unlocking the driver's door with the

key or with the central locking button

in the passenger compartment.

Alarm

When triggered, the alarm horn

sounds and the hazard warning lights

flash simultaneously. The number

and duration of alarm signals are

stipulated by legislation.

The alarm can be silenced by

pressing any button on the radio

remote control or by switching on the

ignition.
The anti-theft alarm system can only

be deactivated by pressing c on the

radio remote control or by switching

on the ignition.
A triggered alarm, which has not been

interrupted by the driver, will be

indicated by the hazard warning

lights. They will flash quickly three

times when the vehicle is unlocked

with the radio remote control.
Vehicle messages 3 89.
If the vehicle's battery is to be

disconnected (e.g. for maintenance

work), the alarm siren must be

deactivated as follows: Switch the

ignition on then off, then disconnect

the vehicle's battery within

15 seconds.

Immobiliser

The system is part of the ignition

switch and checks whether the

vehicle is allowed to be started with

the key being used.

Keys, doors and windows

29

The immobiliser is activated

automatically after the key has been

removed from the ignition switch.
If the control indicator d flashes when

the ignition is on, there is a fault in the

system; the engine cannot be started.

Switch off the ignition and repeat the

start attempt.
If the control indicator continues

flashing, attempt to start the engine

using the spare key and seek the

assistance of a workshop.

Note

The immobiliser does not lock the

doors. You should always lock the

vehicle after leaving it.
Switch on the anti-theft alarm

system 3 23, 3 27.

Control indicator d 3 82.

Exterior mirrors

Convex shape

The shape of the mirror makes

objects appear smaller, which will

affect the ability to estimate

distances.

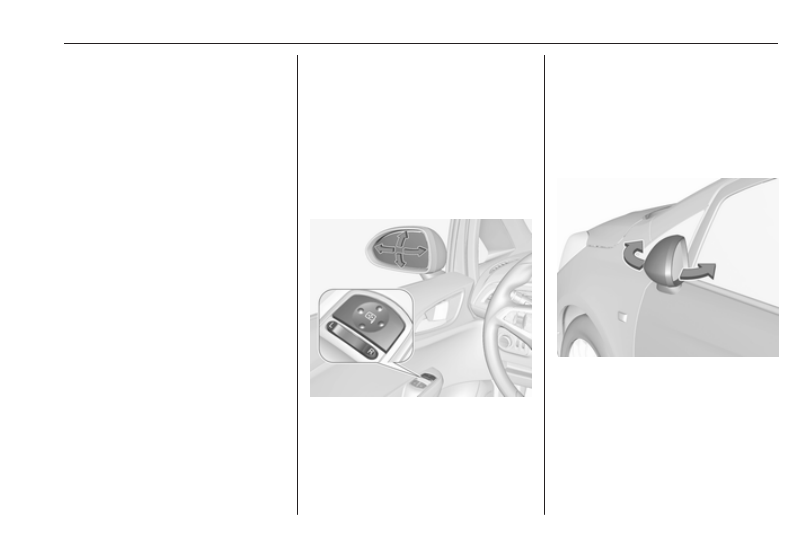

Electric adjustment

Select the relevant exterior mirror by

pressing the rocker switch to the left

(L) or right (R). Then swivel the

control : to adjust the mirror.
Rocker switch in center position: no

mirror is selected to be adjusted.

Folding mirrors

For pedestrian safety, the exterior

mirrors will swing out of their normal

mounting position if they are struck

with sufficient force. Reposition the

mirror by applying slight pressure to

the mirror housing.

Parking position

The exterior mirrors can be folded in

by pressing gently on the outer edge

of the housing, e.g. when in a

confined parking situation.

30

Keys, doors and windows

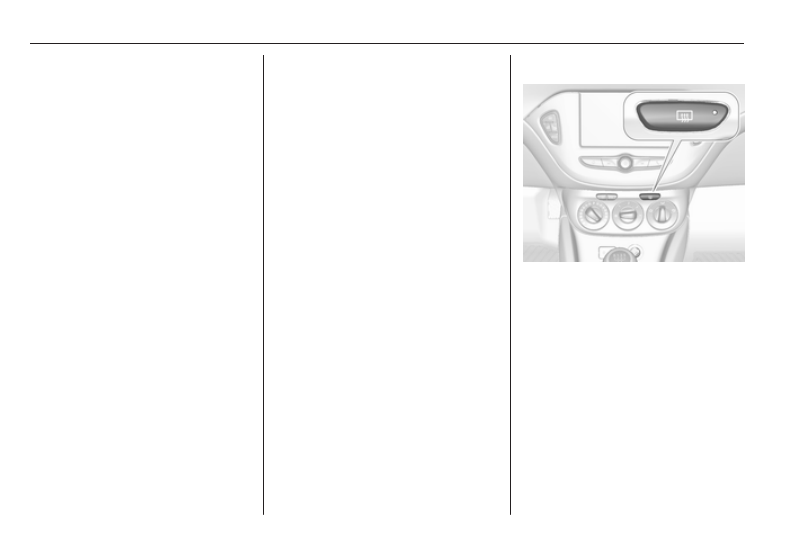

Heated mirrors

Operated by pressing Ü.
Mirror heating works with the engine

running.
It is switched off automatically after

6 minutes.
Pressing Ü once more during the

same ignition cycle allows the heating

to operate for another 3 minutes.

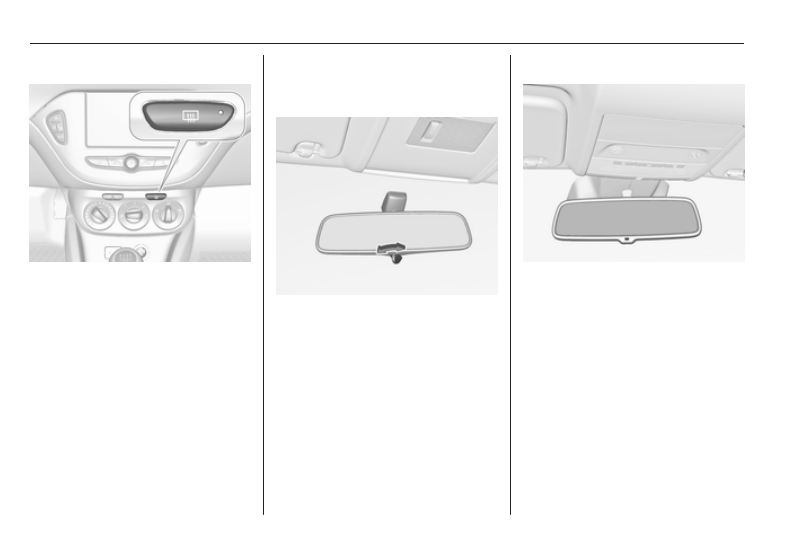

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on

the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles is

automatically reduced, when driving

in the dark.

Keys, doors and windows

31

Windows

Windscreen

Windscreen stickers

Do not attach stickers, e.g. toll road

stickers or similar, on the windscreen

in the area of the interior mirror.

Otherwise the detection zone of the

sensor in the mirror housing could be

restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking

camera sensor for the driver

assistance systems, it is very

important that any windscreen

replacement is performed

accurately according to Opel

specifications. Otherwise, these

systems may not work properly

and there is a risk of unexpected

behaviour and / or messages from

these systems.

Manual windows

The rear door windows can be

opened or closed manually with the

window cranks.

Power windows

9 Warning

Take care when operating the

power windows. Risk of injury,

particularly to children.
Be careful when closing the

windows. Ensure that nothing

becomes trapped in them as they

move.

Operable with ignition on (position 2)

3

 120.

Retained power off 3 121.

Operate the switch in the door trim for

the respective window. Push to open

or pull to close.

Open

Short push: window opens in stages.
Long push: window opens

automatically to end position. To stop

movement, operate switch once

more.

Close

Short pull: window closes in stages.

32

Keys, doors and windows

Longer pull: window closes

automatically to end position. To stop

movement, operate switch once

more.

Safety function

If the window glass encounters

resistance above the middle of the

window during automatic closing, it is

immediately stopped and opened

again.

Override safety function

In the event of closing difficulties due

to frost or the like, switch on the

ignition, then pull the switch several

times to close the windows in stages.

Overload

If the windows are repeatedly

operated at short intervals, the

window operation is disabled for

some time.

Fault

If the windows cannot be opened or

closed automatically, activate the

window electronics as follows:

1. Close the doors.
2. Switch on ignition.
3. Close the window completely and

operate the button for an

additional 5 seconds.

4. Open the window completely and

operate the button for 1 second

further.

5. Repeat this procedure for each

window.

Heated rear window

Operated by pressing Ü.
Rear window heating works with the

engine running.
It is switched off automatically after

6 minutes.
Pressing Ü once more during the

same ignition cycle allows the heating

to operate for another 3 minutes.

Keys, doors and windows

33

Heated windscreen

Operated by pressing Ü.
Windscreen heating works together

with heated rear window and engine

running.
It is switched off automatically after

6 minutes.
Pressing Ü once more during the

same ignition cycle allows the heating

to operate for another 3 minutes.

Sun visors

The sun visors can be folded down or

swivelled to the side to prevent

dazzling.

The cover of the mirrors should be

closed when driving.
A ticket holder is located on the

backside of the sun visor.

34

Seats, restraints

Seats, restraints

Head restraints ............................ 34
Front seats ................................... 35

Seat position .............................. 35

Seat adjustment ........................ 36

Seat folding ............................... 37

Heating ...................................... 38

Seat belts ..................................... 39

Three-point seat belt ................. 40

Airbag system .............................. 42

Front airbag system ................... 45

Side airbag system .................... 46

Curtain airbag system ............... 47

Airbag deactivation .................... 47

Child restraints ............................. 48

Child restraint systems .............. 48

Child restraint installation

locations ................................... 52

Head restraints

Position

9 Warning

Only drive with the head restraint

set to the proper position.

The upper edge of the head restraint

should be at upper head level. If this

is not possible for extremely tall

people, set to highest position, and

set to lowest position for small people.

Adjustment

Front head restraints, height

adjustment

Press release button, adjust height,

engage.

Seats, restraints

35

Rear head restraints, height

adjustment

Pull the head restraint upwards and

let engage. To move downwards,

press the catch to release and push

the head restraint downwards.

Removal of rear head restraint

E.g. when using a child restraint

system 3 48.

Press both catches, pull the head

restraint upwards and remove.
Place the head restraint in a net bag

and secure the underside of the bag

with Velcro

®

 fasteners to the load

compartment floor. A suitable net bag

is available from your workshop.

Front seats

Seat position

9 Warning

Only drive with the seat correctly

adjusted.

9 Danger

Do not sit closer than 25 cm to the

steering wheel, to permit safe

airbag deployment.

9 Warning

Never adjust seats while driving as

they could move uncontrollably.

36

Seats, restraints

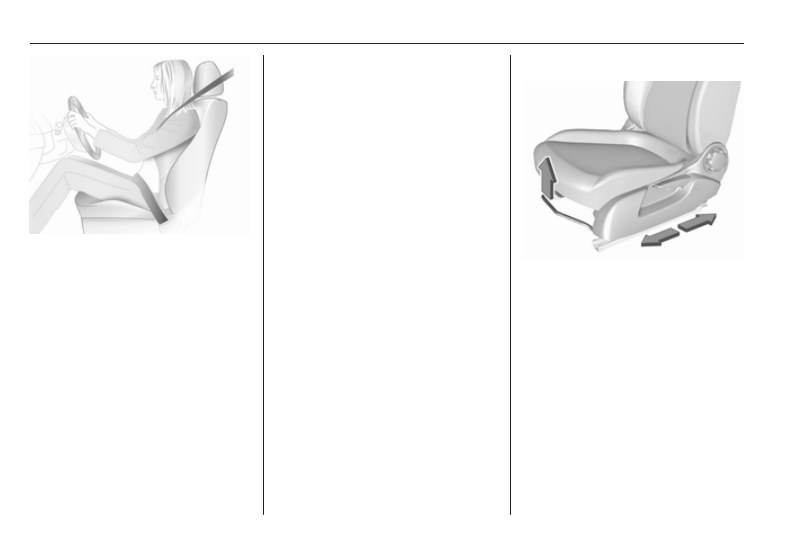

● Sit with buttocks as far back

against the backrest as possible.

Adjust the distance between the

seat and the pedals so that legs

are slightly angled when fully

pressing the pedals. Slide the

front passenger seat as far back

as possible.

● Set seat height high enough to

have a clear field of vision on all

sides and of all display

instruments. There should be at

least one hand of clearance

between head and the roof

frame. Your thighs should rest

lightly on the seat without

pressing into it.

● Sit with shoulders as far back

against the backrest as possible.

Set the backrest rake so that it is

possible to easily reach the

steering wheel with arms slightly

bent. Maintain contact between

shoulders and the backrest when

turning the steering wheel. Do

not angle the backrest too far

back. We recommend a

maximum rake of approx. 25°.

● Adjust seat and steering wheel in

a way that the wrist rests on top

of the steering wheel while the

arm is fully extended and

shoulders on the backrest.

● Adjust the steering wheel 3 64.
● Adjust the head restraint 3 34.
● Adjust the height of the seat belt

3

 40.

Seat adjustment

Drive only with engaged seats and

backrests.

Longitudinal adjustment

Pull handle, slide seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.

Seats, restraints

37

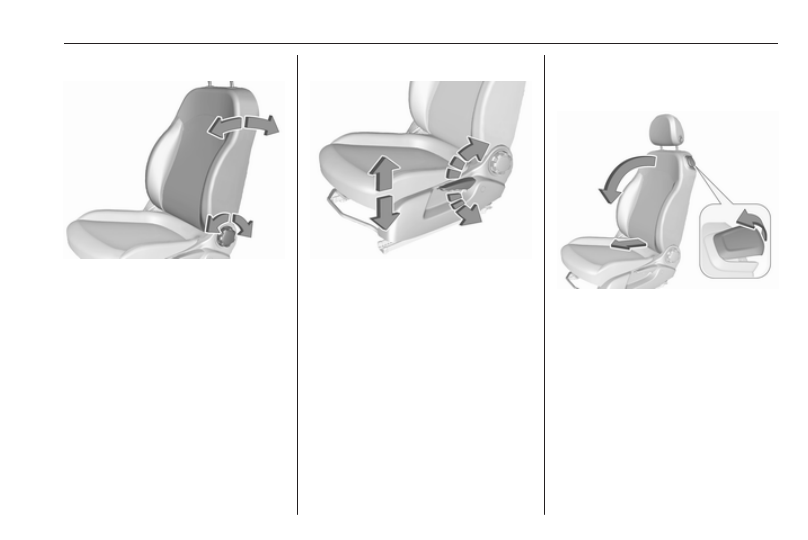

Backrest inclination

Turn handwheel to adjust inclination.

Do not lean on backrest while

adjusting.

Seat height

Lever pumping motion
up

: seat higher

down : seat lower

Seat folding

Standard seat folding

Pull release lever towards the front

and fold backrest forwards. Then

slide seat forwards to the stop.
To restore, slide the seat backwards

to the stop. Lift backrest to upright

position without operating the release

lever. Allow backrest to engage.
