Opel Corsa (2019 year). Manual - part 1

6

In brief

In brief

Initial drive information

Vehicle unlocking

Press c to unlock vehicle. Open the

doors by pulling the handles.

To open the tailgate, push the

touchpad switch below the brand

emblem.
Radio remote control 3 22.
Central locking system 3 23.
Load compartment 3 26.

In brief

7

Seat adjustment

Longitudinal adjustment

Pull handle, slide seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.
Seat position 3 35.
Seat adjustment 3 36.

Backrest inclination

Turn handwheel. Do not lean on

backrest while adjusting.
Seat position 3 35.
Seat adjustment 3 36.
Seat folding 3 37.
Sport seat 3 37.

Seat height

Lever pumping motion
up

: seat higher

down : seat lower
Seat position 3 35.
Seat adjustment 3 36.

8

In brief

Head restraint adjustment

Press release button, adjust height,

engage.
Head restraints 3 34.

Seat belt

Pull out the seat belt and fasten in belt

buckle. The seat belt must not be

twisted and must fit close against the

body. The backrest must not be tilted

back too far (maximum approx. 25°).
To unfasten belt, press red button on

belt buckle.
Seat position 3 35.
Seat belts 3 39.
Airbag system 3 42.

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror

housing in the desired direction.
Manual anti-dazzle interior mirror

3

 30.

Automatic anti-dazzle interior mirror

3

 30.

In brief

9

Exterior mirrors

Select the relevant exterior mirror with

the rocker switch and adjust the

mirror with the control :.
Convex exterior mirrors 3 29.
Electric adjustment 3 29.
Folding exterior mirrors 3 29.
Heated exterior mirrors 3 30.

Steering wheel adjustment

Unlock the lever, adjust the steering

wheel, then engage the lever and

ensure it is fully locked.
Do not adjust the steering wheel

unless the vehicle is stationary and

the steering wheel lock has been

released.
Airbag system 3 42.
Ignition positions 3 120.

10

In brief

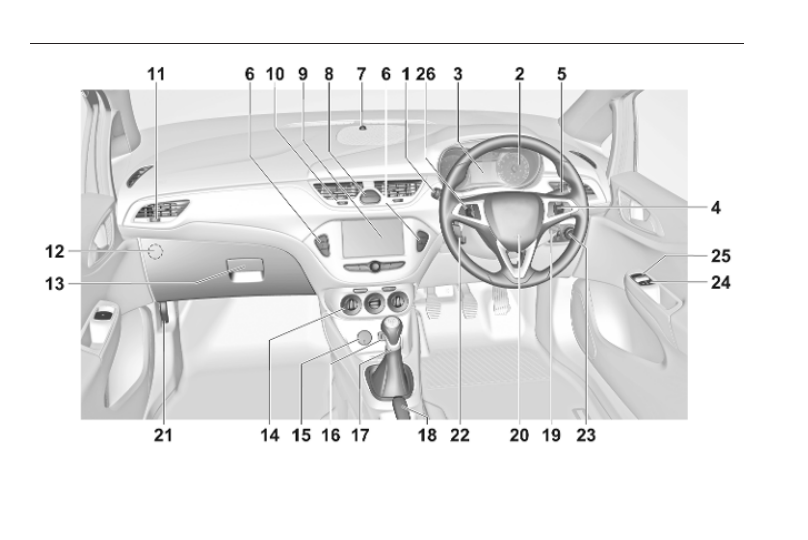

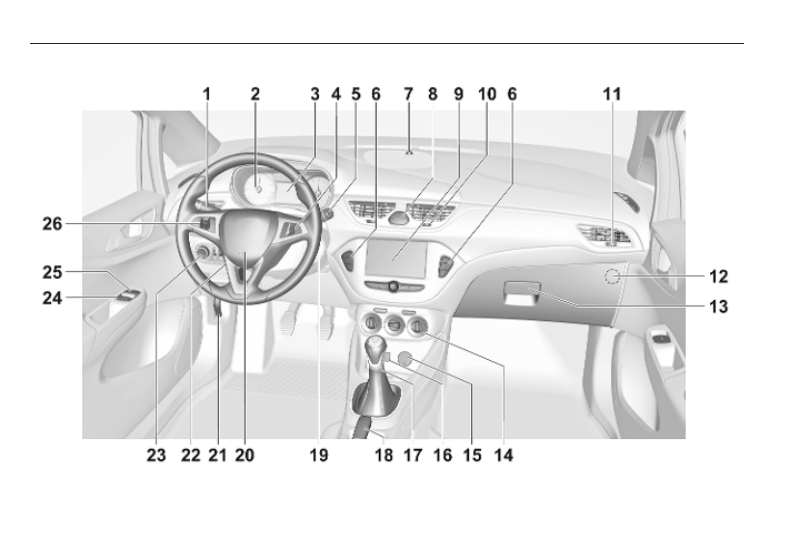

Instrument panel overview

In brief

11

1

Turn lights, headlight

flash, low beam and high

beam ................................... 104
Exit lighting  ......................... 108
Parking lights ...................... 105
Buttons for Driver

Information Centre ................ 83

2

Instruments  .......................... 71

3

Driver Information Centre ...... 83

4

Infotainment controls  ........... 64

5

Windscreen wiper,

windscreen washer

system, rear window

wiper, rear window washer

system ................................... 65

6

Central locking system .......... 23
City mode ............................ 134
Fuel selector ......................... 73
Eco button for stop-start

system ................................. 122
Traction Control system  ..... 133
Electronic Stability Control  . 133
Parking assist  ..................... 141
Lane departure warning ........ 64

Seat heating .......................... 38
Heated steering wheel .......... 64

7

Anti-theft alarm system

status LED  ........................... 27

8

Hazard warning flashers  .... 104
Control indicator for airbag

deactivation  .......................... 79
Control indicator for front

passenger seat belt  ............. 78

9

Info Display  .......................... 88

10 Centre air vents  .................. 117
11 Side air vents, passenger

side ..................................... 117

12 Airbag deactivation  .............. 47
13 Glovebox  .............................. 55
14 Climate control system ........ 110
15 Power outlet .......................... 69
16 USB input .............................. 10
17 Selector lever ...................... 127
18 Parking brake ...................... 132
19 Ignition switch with

steering wheel lock  ............ 120

20 Horn  ..................................... 65

Driver airbag  ........................ 45

21 Bonnet release lever  .......... 158
22 Steering wheel adjustment  . . 64
23 Light switch  ........................ 100

Headlight range

adjustment  ......................... 102
Rear fog light  ...................... 105
Front fog lights .................... 104
Brightness of instrument

panel illumination ................ 106
Fuse box  ............................ 175

24 Power windows ..................... 31
25 Exterior mirrors ..................... 29
26 Cruise control  ..................... 135

Speed limiter  ...................... 137
Forward collision alert  ........ 138

12

In brief

In brief

13

1

Turn lights, headlight

flash, low beam and high

beam ................................... 104
Exit lighting  ......................... 108
Parking lights ...................... 105
Buttons for Driver

Information Centre ................ 83

2

Instruments  .......................... 71

3

Driver Information Centre ...... 83

4

Infotainment controls  ........... 64

5

Windscreen wiper,

windscreen washer

system, rear window

wiper, rear window washer

system ................................... 65

6

Central locking system .......... 23
City mode ............................ 134
Fuel selector ......................... 73
Eco button for stop-start

system ................................. 122
Traction Control system  ..... 133
Electronic Stability Control  . 133
Parking assist  ..................... 141
Lane departure warning ........ 64

Seat heating .......................... 38
Heated steering wheel .......... 64

7

Anti-theft alarm system

status LED  ........................... 27

8

Hazard warning flashers  .... 104
Control indicator for airbag

deactivation  .......................... 79
Control indicator for front

passenger seat belt  ............. 78

9

Info Display  .......................... 88

10 Centre air vents  .................. 117
11 Side air vents, passenger

side ..................................... 117

12 Airbag deactivation  .............. 47
13 Glovebox  .............................. 55
14 Climate control system ........ 110
15 Power outlet .......................... 69
16 USB input .............................. 10
17 Selector lever ...................... 127
18 Parking brake ...................... 132
19 Ignition switch with

steering wheel lock  ............ 120

20 Horn  ..................................... 65

Driver airbag  ........................ 45

21 Bonnet release lever  .......... 158
22 Steering wheel adjustment  . . 64
23 Light switch  ........................ 100

Headlight range

adjustment  ......................... 102
Rear fog light  ...................... 105
Front fog lights .................... 104
Brightness of instrument

panel illumination ................ 106
Fuse box  ............................ 175

24 Power windows ..................... 31
25 Exterior mirrors ..................... 29
26 Cruise control  ..................... 135

Speed limiter  ...................... 137
Forward collision alert  ........ 138

14

In brief

Exterior lighting

Light switch

Turn light switch:
7

: lights off

8

: sidelights

9

: headlights

Light switch 3 100.

Light switch with automatic light

control

AUTO : automatic light control:

exterior lighting is switched

on and off automatically

m

: activation or deactivation of

the automatic light control

8

: sidelights

9

: headlights

Automatic light control 3 101.

Headlight flash, high beam and

low beam

headlight flash : pull stalk

high beam

: push stalk

low beam

: push or pull stalk

High beam 3 102.
Headlight flash 3 102.

In brief

15

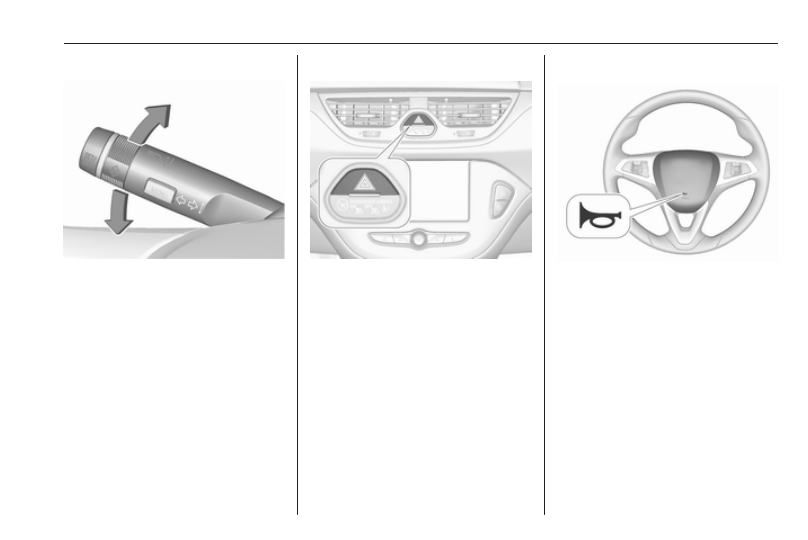

Turn lights

stalk up

: right turn light

stalk down : left turn light
Turn lights 3 104.
Parking lights 3 105.

Hazard warning flashers

Operated by pressing ¨.
Hazard warning flashers 3 104.

Horn

Press j.

16

In brief

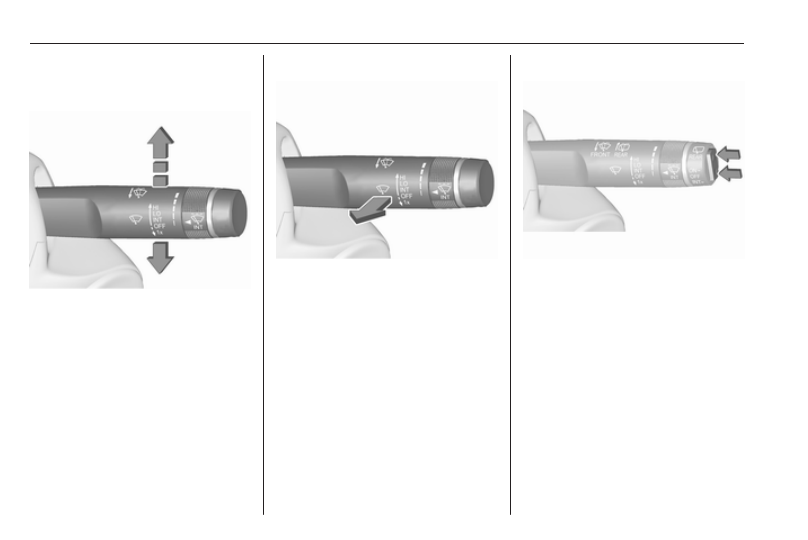

Washer and wiper systems

Windscreen wiper

HI

: fast

LO : slow

INT : interval wiping

or
automatic wiping with rain

sensor

OFF : off
For single wipe when the wiper is off,

press lever down to position 1x.
Windscreen wiper 3 65.

Windscreen washer

Pull lever.
Windscreen washer system 3 65.
Washer fluid 3 161.
Wiper blade replacement 3 163.

Rear window wiper

Press the rocker switch to activate the

rear window wiper:
ON : continuous operation

OFF : off

INT : intermittent operation

In brief

17

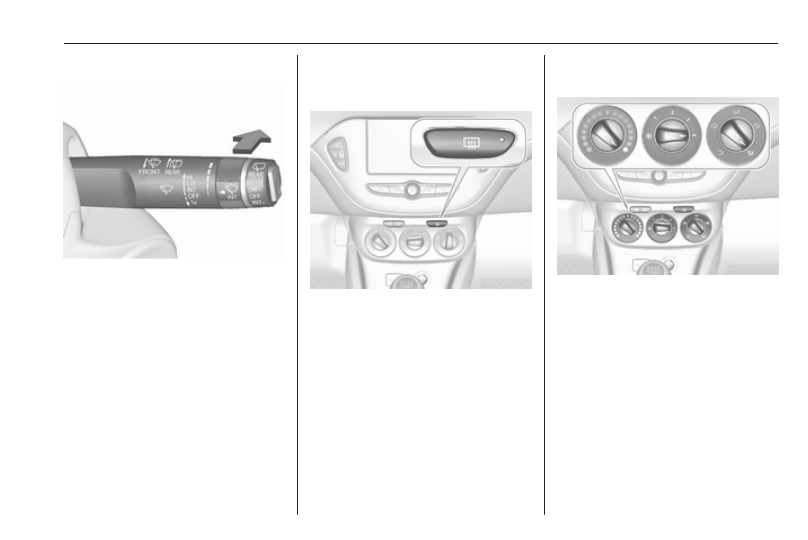

Rear window washer

Push lever.
Washer fluid is sprayed on the rear

window and the wiper wipes a few

times.
Rear window wiper and washer

3

 66.

Climate control

Heated rear window

The heating is operated by pressing

Ü

.

Heated rear window 3 32.
Heated windscreen 3 33.

Heated exterior mirrors

Pressing Ü also activates the heated

exterior mirrors.
Heated exterior mirrors 3 30.

Demisting and defrosting the

windows

● Set air distribution control to l.
● Press V.
● Set temperature control to

warmest level.

● Set fan speed to highest level.
● Switch on heated rear window Ü.
● Open side air vents as required

and direct them towards the door

windows.

Climate control system 3 110.

18

In brief

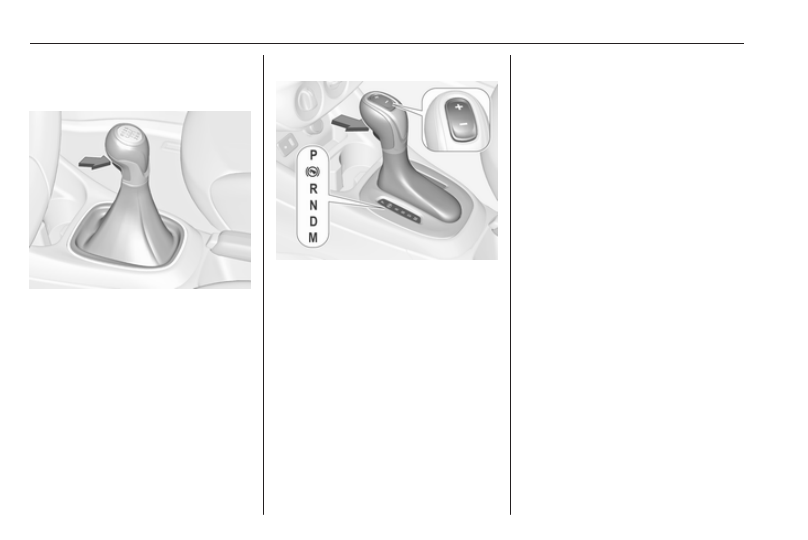

Transmission

Manual transmission

Reverse: with the vehicle stationary,

depress clutch pedal and press the

release button on the selector lever

and engage the gear.
If the gear does not engage, set the

lever to neutral, release the clutch

pedal and depress again; then repeat

gear selection.
Manual transmission 3 130.

Automatic transmission

P : park

R : reverse

N : neutral

D : drive

M : manual mode

<

: press to upshift in manual mode

]

: press to downshift in manual

mode

The selector lever can only be moved

out of P when the ignition is on and

the brake pedal is applied. To engage

P or R, press the release button.
Automatic transmission 3 127.

Starting off

Check before starting off

● Tyre pressure 3 179 and

condition 3 214.

● Engine oil level and fluid levels

3

 159.

● All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

● Proper position of mirrors 3 29,

seats 3 35 and seat belts

3

 40.

● Brake function at low speed,

particularly if the brakes are wet.

In brief

19

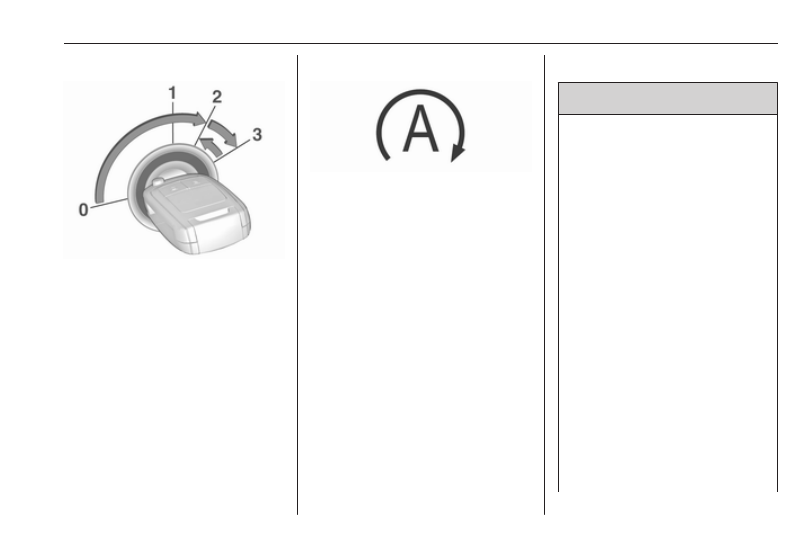

Starting the engine

● Turn key to position 1.
● Move the steering wheel slightly

to release the steering wheel

lock.

● Manual transmission: operate

clutch and brake pedal.
Automatic transmission: operate

brake pedal and move selector

lever to P or N.

● Do not operate accelerator pedal.
● Turn key to position 3 and

release.

Starting the engine 3 121.

Stop-start system

If the vehicle is at a low speed or at a

standstill and certain conditions are

fulfilled, activate an Autostop as

follows:

Vehicles with manual transmission:

● Depress the clutch pedal.
● Engage neutral gear.
● Release the clutch pedal.

An Autostop is indicated by control

indicator D.
To restart the engine, depress the

clutch pedal again. Control indicator

D

 extinguishes.

Parking

9 Warning

● Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

● Always apply the parking

brake. Activate the manual

parking brake without pressing

the release button. Apply as

firmly as possible on a downhill

slope or uphill slope. Depress

brake pedal at the same time to

reduce operating force.

● Switch off the engine.
● If the vehicle is on a level

surface or uphill slope, engage

first gear or set the selector

lever to position P before

removing the ignition key. On

an uphill slope, turn the front

wheels away from the kerb.
If the vehicle is on a downhill

slope, engage reverse gear or

20

In brief

set the selector lever to position

P before removing the ignition

key. Turn the front wheels

towards the kerb.

● Close the windows.
● Remove the ignition key from

the ignition switch. Turn the

steering wheel until the

steering wheel lock is felt to

engage.
For vehicles with automatic

transmission, the key can only

be removed when the selector

lever is in position P.

● Lock the vehicle by pressing e on

the radio remote control.
Activate the anti-theft alarm

system 3 27.

● The engine cooling fans may run

after the engine has been

switched off 3 158.

Caution

After running at high engine

speeds or with high engine loads,

operate the engine briefly at a low

load or run in neutral for

approx. 30 seconds before

switching off, in order to protect

the turbocharger.

Keys, locks 3 21.
Laying-up the vehicle for a long

period of time 3 157.

Keys, doors and windows

21

Keys, doors and

windows

Keys, locks ................................... 21

Keys .......................................... 21

Radio remote control ................. 22

Memorised settings ................... 23

Central locking system .............. 23

Automatic locking ...................... 25

Child locks ................................. 25

Doors ........................................... 26

Load compartment .................... 26

Vehicle security ............................ 27

Anti-theft locking system ........... 27

Anti-theft alarm system .............. 27

Immobiliser ................................ 28

Exterior mirrors ............................ 29

Convex shape ........................... 29

Electric adjustment .................... 29

Folding mirrors .......................... 29

Heated mirrors ........................... 30

Interior mirrors ............................. 30

Manual anti-dazzle .................... 30

Automatic anti-dazzle ................ 30

Windows ...................................... 31

Windscreen ............................... 31

Manual windows ........................ 31

Power windows ......................... 31

Heated rear window .................. 32

Heated windscreen .................... 33

Sun visors .................................. 33

Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Replacement keys

The key number is specified on a

detachable tag.
The key number must be quoted

when ordering replacement keys, as

it is a component of the immobiliser

system.
Locks 3 198.
The code number of the adapter for

the locking wheel bolts is specified on

a card. It must be quoted when

ordering a replacement adapter.
Wheel changing 3 191.
