Service and maintenance

199

increased air pollution, presence of

airborne sand and high dust content,

driving at high altitude and large

variations of temperature. Under

these severe operating conditions,

certain service work may be required

more frequently than the regular

service interval.
The international service intervals are

valid for the countries which are not

listed in the European service

intervals.
Service display 3 73.

Confirmations

Confirmation of service is recorded in

the Service and Warranty Booklet.

The date and mileage is completed

with the stamp and signature of the

servicing workshop.
Make sure that the Service and

Warranty Booklet is completed

correctly as continuous proof of

service is essential if any warranty or

goodwill claims are to be met, and is

also a benefit when selling the

vehicle.

Recommended fluids,

lubricants and parts

Recommended fluids and

lubricants

Only use products that meet the

recommended specifications.

9 Warning

Operating materials are

hazardous and could be

poisonous. Handle with care. Pay

attention to information given on

the containers.

Engine oil

Engine oil is identified by its quality

and its viscosity. Quality is more

important than viscosity when

selecting which engine oil to use. The

oil quality ensures e.g. engine

cleanliness, wear protection and oil

aging control, whereas viscosity

grade gives information on the oil's

thickness over a temperature range.

Dexos is the newest engine oil quality

that provides optimum protection for

petrol and diesel engines. If it is

unavailable, engine oils of other listed

qualities have to be used.

Recommendations for petrol engines

are also valid for Compressed Natural

Gas (CNG), Liquified Petroleum Gas

(LPG) and Ethanol (E85) fuelled

engines.
Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

3

 203.

Topping up engine oil

Caution

In case of any spilled oil, wipe it up

and dispose it properly.

Engine oils of different manufacturers

and brands can be mixed as long as

they comply with the required engine

oil quality and viscosity.

200

Service and maintenance

Use of engine oils for all petrol

engines with only ACEA quality is

prohibited, since it can cause engine

damage under certain operating

conditions.
Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

3

 203.

Additional engine oil additives

The use of additional engine oil

additives could cause damage and

invalidate the warranty.

Engine oil viscosity grades

The SAE viscosity grade gives

information of the thickness of the oil.
Multigrade oil is indicated by two

figures, e.g. SAE 5W-30. The first

figure, followed by a W, indicates the

low temperature viscosity and the

second figure the high temperature

viscosity.
Select the appropriate viscosity grade

depending on the minimum ambient

temperature 3 203.

All of the recommended viscosity

grades are suitable for high ambient

temperatures.

Coolant and antifreeze

Use only silicate-free long life coolant

(LLC) antifreeze. Consult a

workshop.
The system is factory filled with

coolant designed for excellent

corrosion protection and frost

protection down to approx. -28 °C. In

northern countries with very low

temperatures the factory filled coolant

provides frost protection down to

approx. -37 °C. This concentration

should be maintained all year round.

The use of additional coolant

additives that intend to give additional

corrosion protection or seal against

minor leaks can cause function

problems. Liability for consequences

resulting from the use of additional

coolant additives will be rejected.

Washer fluid

Use only washer fluid approved for

the vehicle to prevent damage of

wiper blades, paintwork, plastic and

rubber parts. Consult a workshop.

Brake and clutch fluid

Over time, brake fluid absorbs

moisture which will reduce braking

effectiveness. The brake fluid should

therefore be replaced at the specified

interval.

Technical data

201

Technical data

Vehicle identification .................. 201

Vehicle Identification Number .. 201

Identification plate ................... 202

Engine identification ................ 202

Vehicle data ............................... 203

Recommended fluids and

lubricants ................................ 203

Engine data ............................. 206

Vehicle dimensions ................. 208

Capacities ................................ 208

Tyre pressures ........................ 209

Vehicle identification

Vehicle Identification

Number

The Vehicle Identification Number is

stamped on the identification plate

and on the floor pan, under the floor

covering, visible under a cover.

The Vehicle Identification Number

may be embossed on the instrument

panel visible through the windscreen,

or in the engine compartment on the

right body panel.

202

Technical data

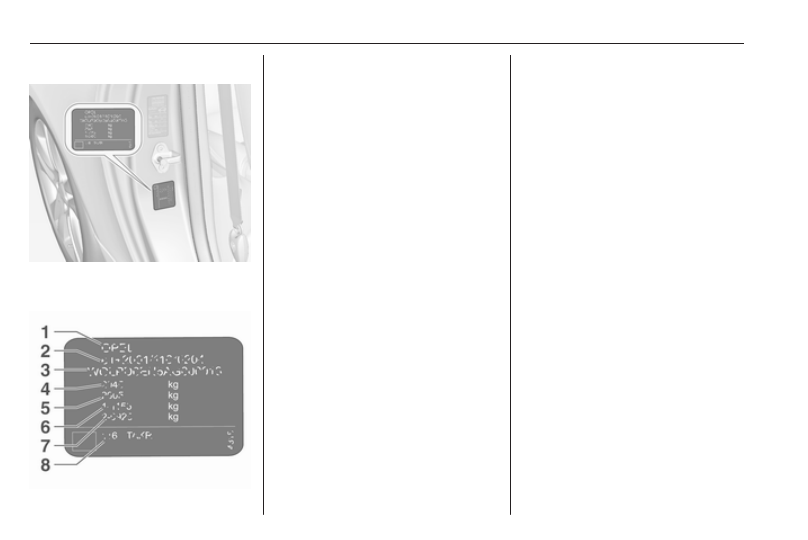

Identification plate

The identification plate is located on

the left or right front door frame.

Information on identification label:
1 : manufacturer

2 : type approval number

3 : Vehicle Identification Number

4 : permissible gross vehicle weight

rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

8 : vehicle-specific or country-

specific data

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight.
Vehicle's kerb weight depends on the

specification of the vehicle, e.g.

optional equipment and accessories.

Refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this manual.

Engine identification

The technical data tables use the

engine identifier code. The engine

data table additionally shows the

engineering code.
Engine data 3 206.
To identify the respective engine,

refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The Certificate of Conformity shows

the engine identifier code, other

national publications may show the

engineering code. Check piston

displacement and engine power to

identify the respective engine.

Technical data

203

Vehicle data

Recommended fluids and lubricants

European service schedule

Required engine oil quality

All European countries with European service interval 3 198

Engine oil quality

Petrol engines
B / D / F10XFT, D14NEH

All other petrol engines

(including LPG, E85)

dexos1 Gen2

✔

–

dexos2

–

✔

All engines except B / D / F10XFT and D14NEH: In case dexos quality is unavailable, you may use max. 1 l engine oil

quality ACEA C3 for topping up once between each oil change.

Engine oil viscosity grades

All European countries with European service interval 3 198

Ambient temperature

Petrol engines

down to -25 °C

SAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40

below -25 °C

SAE 0W-30 or SAE 0W-40

204

Technical data

International service schedule

Required engine oil quality

All countries with international service interval 3 198

Engine oil quality

Petrol engines
B / D / F10XFT, D14NEH

All other petrol engines

(including LPG, E85)

dexos1 Gen2

✔

–

dexos2

–

✔

In case dexos quality is unavailable, you may use the oil qualities listed below:

All countries with international service interval 3 198

Engine oil quality

Petrol engines
B / D / F10XFT, D14NEH

All other petrol engines

(including LPG, E85)

ACEA A3/B4

–

✔

ACEA C3

–

✔

Technical data

205

Engine oil viscosity grades

All countries with international service interval 3 198

Ambient temperature

Petrol engines

down to -25 °C

SAE 0W-30 or SAE 0W-40
SAE 5W-30 or SAE 5W-40

below -25 °C

SAE 0W-30 or SAE 0W-40

down to -20 °C

SAE 10W-30

1)

 or SAE 10W-40

1)

1)

Permitted, but usage of oils with dexos quality is recommended.

206

Technical data

Engine data

Engine identifier code

B / D / F10XFL

B / D / F10XFT

D12XEL

D14XEL

Sales designation

1.0

1.0

1.2

1.4

Engineering code

B10XFT

B10XFT

B12XER

B14XER

Piston displacement [cm

3

]

999

999

1229

1398

Engine power [kW]

66

85

51

64

at rpm

3700-6000

5000-6000

5600

6000

Torque [Nm]

170

170

115

130

at rpm

1800-3700

1800-4500

4000

4000

Fuel type

Petrol

Petrol

Petrol

Petrol

Octane rating RON

2)

recommended

95

95

95

95

possible

98

98

98

98

possible

91

91

91

91

Additional fuel type

–

–

–

–

2)

A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

Technical data

207

Engine identifier code

D14XEL

D14XER

D14NEH

Sales designation

1.4 LPG

1.4

Adam S

Engineering code

B14XER

B14XER

B14NET

Piston displacement [cm

3

]

1398

1398

1364

Engine power [kW]

64

74

110

at rpm

6000

6000

5000

Torque [Nm]

130

130

220

at rpm

4000

4000

3000-4500

Fuel type

Liquid gas / Petrol

Petrol

Petrol

Octane rating RON

2)

recommended

95

95

98

possible

98

98

95

possible

91

91

–

Additional fuel type

Liquid gas (LPG)

–

–

2)

A country-specific label at the fuel filler flap can supersede the engine-specific requirement.

208

Technical data

Vehicle dimensions

Length [mm]

3747

Width without exterior mirrors [mm]

1720

Width with two exterior mirrors [mm]

1966

Height (without antenna) [mm]

1475-1508

3)

Length of load compartment floor [mm]

462

Length of load compartment with folded rear seats [mm]

1041

Load compartment width [mm]

954

Load compartment height [mm]

874

Turning circle diameter [m]

10.17-11.06

3)

3)

Depending on equipment.

Capacities

Engine oil
including filter [l]

4.0

between MIN and MAX [l]

1.0

Technical data

209

Fuel tank
Petrol, refilling quantity [l]

35

LPG, refilling quantity [l]

35

Tyre pressures

Comfort with up to 3 people

ECO with up to 3 people

With full load

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

175/70 R14,
185/70 R14,
185/60 R15,
185/65 R15,
195/55 R16,
215/45 R17,
225/35 R18

220/2.2 (32)

200/2.0 (29)

290/2.9 (42)

270/2.7 (39)

260/2.6 (38)

320/3.2 (46)

Temporary spare wheel
115/70 R16

420/4.2 (61)

420/4.2 (61)

–

–

420/4.2 (61)

420/4.2 (61)

210

Customer information

Customer

information

Customer information ................ 210

Declaration of conformity ......... 210

REACH .................................... 213

Software acknowledgement .... 213

Registered trademarks ............ 215

Vehicle data recording and pri‐

vacy ........................................... 215

Event data recorders ............... 215

Radio Frequency Identification

(RFID) ..................................... 218

Customer information

Declaration of conformity

Transmission systems

This vehicle has systems that

transmit and / or receive radio waves

subject to Directive 2014/53/EU. The

manufacturers of the systems listed

below declare conformity with

Directive 2014/53/EU. The full text of

the EU declaration of conformity for

each system is available at the

following internet address:

www.opel.com/conformity.
Importer is

Opel / Vauxhall, Bahnhofsplatz,

65423 Ruesselsheim am Main,

Germany.

Antenna

Laird
Daimlerring 31, 31135 Hildesheim,

Germany
Operation frequency: N/A
Maximum output: N/A
Kathrein Automotive GmbH

Roemerring 1, 31137 Hildesheim,

Germany
Operation frequency: N/A
Maximum output: N/A

Immobiliser

Continental Automotive GmbH
Siemensstrasse 12, 93055

Regensburg, Germany
Operation frequency: 125 kHz
Maximum output:

5.1 dBµA/m @ 10 m

Infotainment system R 4.0 / Navi 4.0

LG Electronics
European Shared Service center

B.V., Krijgsman 1, 1186 DM

Amstelveen, The Netherlands
Operation

frequency (MHz)

Maximum output

(dBm)

2400.0 - 2483.5 4
2400.0 - 2483.5 13
5725.0 - 5850.0 13

Infotainment system R300 BT

Humax Automotive Co. Ltd.

Customer information

211

2, Yeongmun-ro, Cheoin-gu, Yong-

in-si, Gyeonggi-do, Korea
Operation frequency:

2402 - 2480 MHz
Maximum output: 4 dBm

OnStar module

LG Electronics
European Shared Service center

B.V., Krijgsman 1, 1186 DM

Amstelveen, The Netherlands
Operation

frequency (MHz)

Maximum output

(dBm)

2402 - 2480

4

2412 - 2462

18

880 - 915

33

1710 - 1785

24

1850 - 1910

24

1920 - 1980

24

2500 - 2570

23

Radio remote control transmitter

Continental Automotive GmbH

Siemensstraße 12, 93055

Regensburg, Germany
Operation frequency: 433.92 MHz
Maximum output: -5,7 dbm

Radio remote control receiver

Continental Automotive GmbH
Siemensstraße 12, 93055

Regensburg, Germany
Operation frequency: N/A
Maximum output: N/A

Tyre pressure sensors

Schrader Electronics Ltd.
11 Technology Park, Belfast Road,

Antrim BT41 1QS, Northern Ireland,

United Kingdom
Operation frequency: 433.92 MHz
Maximum output: 10 dBm

Customer information

213

Translation of the original declaration

of conformity

Declaration of conformity according

to EC Directive 2006/42/EC
We declare that the product:
Product designation: Jack
Type/GM part number: 13331922
is in compliance with the provisions of

Directive 2006/42/EC.
Applied technical standards:
GMN9737

: Jacking

GM 14337

: Standard

Equipment Jack –

Hardware Tests

GMN5127

: Vehicle Integrity –

Hoisting and

Service Station

Jacking

GMW15005

: Standard

Equipment Jack

and Spare Tyre,

Vehicle Test

ISO TS 16949 : Quality

management

systems

The signatory is authorised to

compile the technical documentation.
Rüsselsheim, 31st January 2014
signed by
Hans-Peter Metzger
Engineering Group Manager Chassis

& Structure
Adam Opel AG
D-65423 Rüsselsheim

REACH

Registration, Evaluation,

Authorisation and Restriction of

Chemicals (REACH) is a European

Union regulation adopted to improve

the protection of human health and

the environment from the risks that

can be posed by chemicals. Visit

www.opel.com/reach for further

information and for access to the

Article 33 communication.

Software acknowledgement

Certain OnStar components include

libcurl and unzip software and other

third party software. Below are the

notices and licenses associated with

libcurl and unzip and for other third

party software please see http://

www.lg.com/global/support/

opensource/index.

libcurl

Copyright and permission notice
Copyright (c) 1996 - 2010, Daniel

Stenberg, <daniel@haxx.se>.
All rights reserved.
Permission to use, copy, modify, and

distribute this software for any

purpose with or without fee is hereby

granted, provided that the above

copyright notice and this permission

notice appear in all copies.
The software is provided "as is",

without warranty of any kind, express

or implied, including but not limited to

the warranties of merchantability,

fitness for a particular purpose and

noninfringement of third party rights.

In no event shall the authors or

214

Customer information

copyright holders be liable for any

claim, damages or other liability,

whether in an action of contract, tort

or otherwise, arising from, out of or in

connection with the software or the

use or other dealings in the software.
Except as contained in this notice, the

name of a copyright holder shall not

be used in advertising or otherwise to

promote the sale, use or other

dealings in this Software without prior

written authorization of the copyright

holder.

unzip

This is version 2005-Feb-10 of the

Info-ZIP copyright and license. The

definitive version of this document

should be available at ftp://ftp.info-

zip.org/pub/infozip/license.html

indefinitely.
Copyright (c) 1990-2005 Info-ZIP. All

rights reserved.
For the purposes of this copyright and

license, “Info-ZIP” is defined as the

following set of individuals:
Mark Adler, John Bush, Karl Davis,

Harald Denker, Jean-Michel Dubois,

Jean-loup Gailly, Hunter Goatley, Ed

Gordon, Ian Gorman, Chris Herborth,

Dirk Haase, Greg Hartwig, Robert

Heath, Jonathan Hudson, Paul

Kienitz, David Kirschbaum, Johnny

Lee, Onno van der Linden, Igor

Mandrichenko, Steve P. Miller, Sergio

Monesi, Keith Owens, George

Petrov, Greg Roelofs, Kai Uwe

Rommel, Steve Salisbury, Dave

Smith, Steven M. Schweda, Christian

Spieler, Cosmin Truta, Antoine

Verheijen, Paul von Behren, Rich

Wales, Mike White.
This software is provided “as is,”

without warranty of any kind, express

or implied. In no event shall Info-ZIP

or its contributors be held liable for

any direct, indirect, incidental, special

or consequential damages arising out

of the use of or inability to use this

software.
Permission is granted to anyone to

use this software for any purpose,

including commercial applications,

and to alter it and redistribute it freely,

subject to the following restrictions:

1. Redistributions of source code

must retain the above copyright

notice, definition, disclaimer, and

this list of conditions.

2. Redistributions in binary form

(compiled executables) must

reproduce the above copyright

notice, definition, disclaimer, and

this list of conditions in

documentation and/or other

materials provided with the

distribution. The sole exception to

this condition is redistribution of a

standard UnZipSFX binary

(including SFXWiz) as part of a

self-extracting archive; that is

permitted without inclusion of this

license, as long as the normal

SFX banner has not been

removed from the binary or

disabled.

3. Altered versions--including, but

not limited to, ports to new

operating systems, existing ports

with new graphical interfaces, and

dynamic, shared, or static library

versions--must be plainly marked

as such and must not be

misrepresented as being the

Customer information

215

original source. Such altered

versions also must not be

misrepresented as being Info-ZIP

releases--including, but not

limited to, labeling of the altered

versions with the names “Info-

ZIP” (or any variation thereof,

including, but not limited to,

different capitalizations), “Pocket

UnZip,” “WiZ” or “MacZip” without

the explicit permission of Info-ZIP.

Such altered versions are further

prohibited from misrepresentative

use of the Zip-Bugs or Info-ZIP e-

mail addresses or of the Info-ZIP

URL(s).

4. Info-ZIP retains the right to use

the names “Info-ZIP,” “Zip,”

“UnZip,” “UnZipSFX,” “WiZ,”

“Pocket UnZip,” “Pocket Zip,” and

“MacZip” for its own source and

binary releases.

Registered trademarks

Apple Inc.

Apple CarPlay™ is a trademark of

Apple Inc.
App Store

®

 and iTunes Store

®

 are

registered trademarks of Apple Inc.

iPhone

®

, iPod

®

, iPod touch

®

, iPod

nano

®

, iPad

®

 and Siri

®

 are registered

trademarks of Apple Inc.
Bluetooth SIG, Inc.

Bluetooth

®

 is a registered trademark

of Bluetooth SIG, Inc.
DivX, LLC

DivX

®

 and DivX Certified

®

 are

registered trademarks of DivX, LLC.
EnGIS Technologies, Inc.

BringGo

®

 is a registered trademark of

EnGIS Technologies, Inc.
Google Inc.

Android™ and Google Play™ Store

are trademarks of Google Inc.
Stitcher Inc.

Stitcher™ is a trademark of Stitcher,

Inc.
Velcro Companies

Velcro

®

 is a registered trademark of

Velcro Companies.
Verband der Automobilindustrie e.V.

AdBlue

®

 is a registered trademark of

the VDA.

Vehicle data recording

and privacy

Event data recorders

Electronic control units are installed in

your vehicle. Control units process

data which is received by vehicle

sensors, for example, or which they

generate themselves or exchange

amongst themselves. Some control

units are necessary for the safe

functioning of your vehicle, others

assist you while you drive (driver

assistance systems), while others

provide comfort or infotainment

functions.
The following contains general

information about data processing in

the vehicle. You will find additional

information as to which specific data

is uploaded, stored and passed on to

third parties and for what purpose in

your vehicle under the key word Data

Protection closely linked to the

references for the affected functional

characteristics in the relevant owner's

manual or in the general terms of

sale. These are also available online.
