Jump starting procedure

Depending on model, the jump start

terminal may be located at the left-

hand or right-hand side of the engine

compartment.

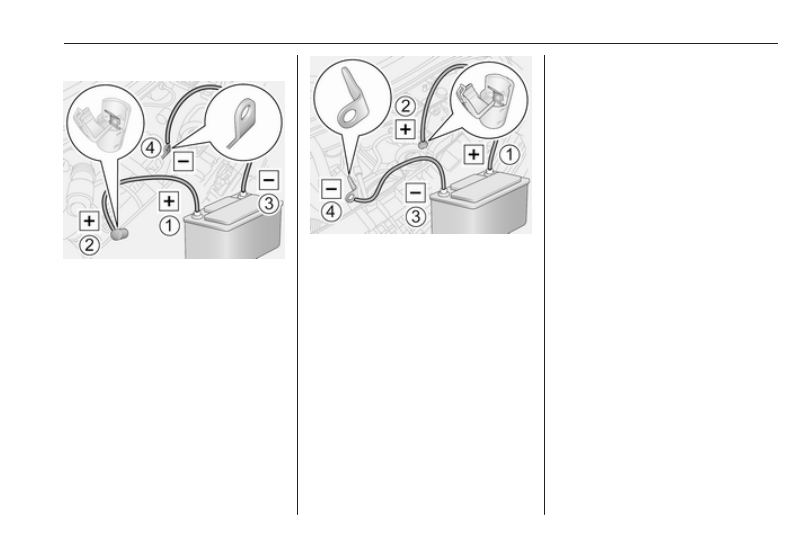

Lead connection order:

1. Connect the red lead to the

positive terminal (1) of the booster

battery.

2. Connect the other end of the red

lead to the jump start terminal (2)

of the vehicle with the discharged

vehicle battery.

3. Connect the black lead to the

negative terminal (3) of the

booster battery.

4. Connect the other end of the black

lead to a vehicle grounding point

(4), such as the engine block or an

engine mounting bolt. Connect as

far away from the discharged

vehicle battery as possible,

however at least 60 cm.

Route the leads so that they cannot

catch on rotating parts in the engine

compartment.
To start the engine:

1. Start the engine of the vehicle

providing the jump start.

2. After five minutes, start the other

engine. Start attempts should be

made for no longer than

15 seconds at an interval of

one minute.

3. Allow both engines to idle for

approx. three minutes with the

leads connected.

4. Switch on electrical consumers

(e.g. headlights, heated rear

window) of the vehicle receiving

the jump start.

5. Reverse above sequence exactly

when removing leads.

216

Vehicle care

Towing

Towing the vehicle

The towing eye and wheel wrench are

stowed with the vehicle tools 3 199.

Disengage the cover using a suitable

tool and remove.

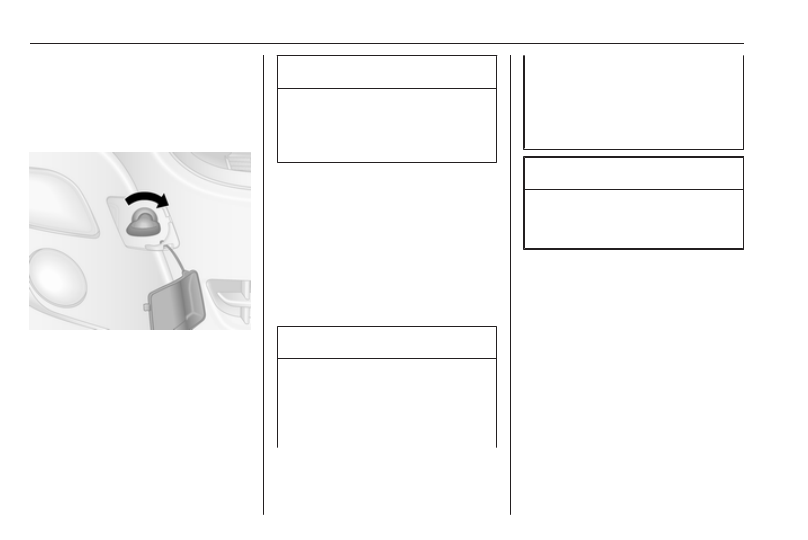

Screw the towing eye clockwise into

the front towing point and tighten fully

using the wheel wrench.
Attach a tow rope - or better still a tow

rod - to the towing eye, never to the

bumper or front suspension units.

Caution

Do not tow the vehicle from the

rear. The front towing eye must

only be used for towing and not

recovering a vehicle.

Switch on ignition to permit operation

of brake lights, horn and windscreen

wipers, and move the steering wheel

slightly to release the steering wheel

lock.
Switch off the air suspension system

3

 141.

Move the selector lever to neutral.
Release the parking brake.

Caution

Vehicles with manual

transmission automated: If neutral

cannot be selected, the vehicle

must only be towed with the drive

wheels raised off the ground.

The vehicle should always be

towed with the ignition switched

off.
Manual transmission automated

3

 151.

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

When the engine is not running,

considerably more force is needed to

brake and steer.
To prevent the entry of exhaust fumes

from the towing vehicle, switch on the

air recirculation system 3 118 and

close the windows.
Seek the assistance of a workshop.
After towing, unscrew the towing eye

and refit the cover.

Vehicle care

217

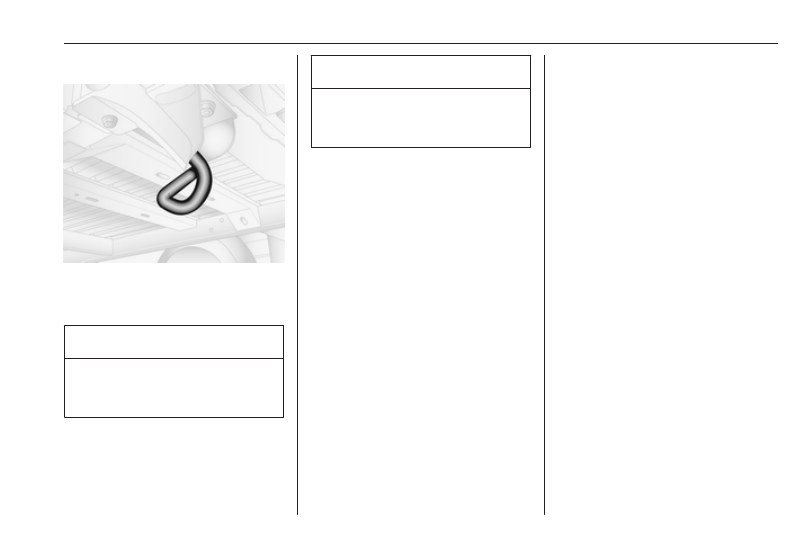

Towing another vehicle

Attach a tow rope - or better still a tow

rod - to the rear towing eye, never to

the rear axle and suspension units.

Caution

The rear towing eye must only be

used for towing and not recovering

a vehicle.

Caution

Drive slowly. Do not drive jerkily.

Excessive tractive force can

damage the vehicle.

Appearance care

Exterior care

Locks

The locks are lubricated at the factory

using a high quality lock cylinder

grease. Use de-icing agent only when

absolutely necessary, as this has a

degreasing effect and impairs lock

function. After using a de-icing agent,

have the locks regreased by a

workshop.

Washing

The paintwork of your vehicle is

exposed to environmental influences.

Wash and wax your vehicle regularly.

When using automatic vehicle

washes, select a programme that

includes waxing. Restrictions for

filmed or matt painted body parts or

decor tapes, see "Polishing and

waxing".
Bird droppings, dead insects, resin,

pollen and the like should be cleaned

off immediately, as they contain

aggressive constituents which can

cause paint damage.

218

Vehicle care

If using a vehicle wash, comply with

the vehicle wash manufacturer's

instructions. The windscreen wipers

must be switched off and the exterior

mirrors must be folded in. Remove

antenna and external accessories

such as roof racks etc.
If you wash your vehicle by hand,

make sure that the insides of the

wheel housings are also thoroughly

rinsed out.
Clean edges and folds on opened

doors and the bonnet as well as the

areas they cover.
Clean bright metal mouldings with a

cleaning solution approved for

aluminium to avoid damages.

Caution

Always use a cleaning agent with

a pH value of four to nine.
Do not use cleaning agents on hot

surfaces.

Have the door hinges of all doors

greased by a workshop.

Do not clean the engine compartment

with a steam-jet or high-pressure jet

cleaner.
Thoroughly rinse and leather-off the

vehicle. Rinse leather frequently. Use

separate leathers for painted and

glass surfaces: remnants of wax on

the windows will impair vision.
Do not use hard objects to remove

spots of tar. Use tar removal spray on

painted surfaces.

Exterior lights

Headlight and other light covers are

made of plastic. Do not use any

abrasive or caustic agents, do not use

an ice scraper, and do not clean them

dry.

Polishing and waxing

Wax the vehicle regularly (at the

latest when water no longer beads).

Otherwise, the paintwork will dry out.
Polishing is necessary only if the paint

has become dull or if solid deposits

have become attached to it.

Paintwork polish with silicone forms a

protective film, making waxing

unnecessary.
Unpainted plastic body parts must not

be treated with wax or polishing

agents.
Matt filmed body parts or decor tapes

must not be polished, to avoid

gleaming. Do not use hot wax

programmes in automatic car washes

if the vehicle is equipped with these

parts.
Matt painted decor parts, e.g. mirror

housing cover, must not be polished.

Otherwise these parts would become

agleam or the colour would be

dissolved.

Windows and windscreen wiper

blades

Use a soft lint-free cloth or chamois

leather together with window cleaner

and insect remover.
When cleaning the rear window from

inside, always wipe in parallel to the

heating element to prevent damage.

Vehicle care

219

For mechanical removal of ice, use a

sharp-edged ice scraper. Press the

scraper firmly against the glass so

that no dirt can get under it and

scratch the glass.
Remove dirt residues from smearing

wiper blades by using a soft cloth and

window cleaner. Also make sure to

remove any residues such as wax,

insect residues and similar from the

window.

Wheels and tyres

Do not use high-pressure jet

cleaners.
Clean rims with a pH-neutral wheel

cleaner.
Rims are painted and can be treated

with the same agents as the body.

Paintwork damage

Rectify minor paintwork damage with

a touch-up pen before rust forms.

Have more extensive damage or rust

areas repaired by a workshop.

Underbody

Some areas of the vehicle underbody

have a PVC undercoating while other

critical areas have a durable

protective wax coating.
After the underbody is washed, check

the underbody and have it waxed if

necessary.
Bitumen/rubber materials could

damage the PVC coating. Have

underbody work carried out by a

workshop.
Before and after winter, wash the

underbody and have the protective

wax coating checked.

Towing equipment

Do not clean the coupling ball bar with

a steam-jet or high-pressure jet

cleaner.

Interior care

Interior and upholstery

Only clean the vehicle interior,

including the instrument panel fascia

and panelling, with a dry cloth or

interior cleaner.
Clean leather upholstery with clear

water and a soft cloth. In case of

heavy soiling, use leather care.
The instrument cluster and the

displays should only be cleaned using

a soft damp cloth. If necessary use a

weak soap solution.
Clean fabric upholstery with a

vacuum cleaner and brush. Remove

stains with an upholstery cleaner.
Clothing fabrics may not be

colourfast. This could cause visible

discolourations, especially on light-

coloured upholstery. Removable

stains and discolourations should be

cleaned as soon as possible.
Clean seat belts with lukewarm water

or interior cleaner.

220

Vehicle care

Caution

Close Velcro fasteners as open

Velcro fasteners on clothing could

damage seat upholstery.
The same applies to clothing with

sharp-edged objects, like zips or

belts or studded jeans.

Plastic and rubber parts

Plastic and rubber parts can be

cleaned with the same cleaner as

used to clean the body. Use interior

cleaner if necessary. Do not use any

other agent. Avoid solvents and petrol

in particular. Do not use high-

pressure jet cleaners.

Service and maintenance

221

Service and

maintenance

General information ................... 221

Service information .................. 221

Recommended fluids, lubricants

and parts .................................... 223

Recommended fluids and

lubricants ................................ 223

General information

Service information

In order to ensure economical and

safe vehicle operation and to

maintain the value of your vehicle, it

is of vital importance that all

maintenance work is carried out at the

proper intervals as specified.
The detailed, up-to-date service

schedule for the vehicle is available at

the workshop.
Service display 3 93.
Engine identification 3 226.

European service intervals -

except Bus

Maintenance of your vehicle is

required every 40,000 km or after

two years, whichever occurs first,

unless otherwise indicated by the

service display.
A shorter service interval can be valid

for severe driving behaviour, e.g. for

taxis and police vehicles.

European service intervals - Bus

only

Maintenance of your vehicle is

required every 30,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.
The European service intervals are

valid for the following countries:
Andorra, Austria, Belgium, Croatia,

Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece,

Hungary, Iceland, Ireland, Italy,

Latvia, Liechtenstein, Lithuania,

Luxembourg, Netherlands, Norway,

Poland, Portugal, Slovakia, Slovenia,

Spain, Sweden, Switzerland, United

Kingdom.
Service display 3 93.

International service intervals

Israel:

Maintenance of your vehicle is

required every 40,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.

222

Service and maintenance

Albania, Bosnia-Herzegovina,

Kosovo, Macedonia, Montenegro,

Serbia:

Maintenance of your vehicle is

required every 30,000 km or after

two years, whichever occurs first,

unless otherwise indicated by the

service display.

Romania, Bulgaria, Moldova, Cyprus:

Maintenance of your vehicle is

required every 30,000 km or after

two years, whichever occurs first,

unless otherwise indicated by the

service display.

Australia, New Zealand:

Maintenance of your vehicle is

required every 30,000 km or after

two years, whichever occurs first,

unless otherwise indicated by the

service display.

Turkey:

Maintenance of your vehicle is

required every 20,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.

Morocco:

Maintenance of your vehicle is

required every 20,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.

South Africa:

Maintenance of your vehicle is

required every 15,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.

Russia, Ukraine, Belarus,

Kazakhstan:

Maintenance of your vehicle is

required every 15,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.

Algeria, Tunisia:

Maintenance of your vehicle is

required every 10,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.

International:

Maintenance of your vehicle is

required every 15,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.
International countries include:
Malta, Singapore.

International +:

Maintenance of your vehicle is

required every 10,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.
International + countries include: To

be defined.

International ++:

Maintenance of your vehicle is

required every 8,000 km or after

one year, whichever occurs first,

unless otherwise indicated by the

service display.
International ++ countries include:

Hong Kong.
Severe operating conditions exist if

one or more of the following

circumstances occur frequently: Cold

Service and maintenance

223

starting, stop and go operation, trailer

operation, mountain driving, driving

on poor and sandy road surfaces,

increased air pollution, presence of

airborne sand and high dust content,

driving at high altitude and large

variations of temperature. Under

these severe operating conditions,

certain service work may be required

more frequently than the regular

service interval.
Service display 3 93.

Confirmations

Confirmation of service is recorded in

the Service and warranty booklet.

The date and mileage is completed

with the stamp and signature of the

servicing workshop.
Make sure that the Service and

warranty booklet is completed

correctly as continuous proof of

service is essential if any warranty or

goodwill claims are to be met, and is

also a benefit when selling the

vehicle.

Service display

The service interval is based on

several parameters depending on

usage.
The service display, located in the

Driver Information Centre, indicates

when the next service is due. Seek

the assistance of a workshop.
Service display 3 93.
Engine oil lever monitor 3 93.

Recommended fluids,

lubricants and parts

Recommended fluids and

lubricants

Only use products that meet the

recommended specifications.

9 Warning

Operating materials are

hazardous and could be

poisonous. Handle with care. Pay

attention to information given on

the containers.

Engine oil

Engine oil is identified by its quality

and its viscosity. Quality is more

important than viscosity when

selecting which engine oil to use. The

oil quality ensures e.g. engine

cleanliness, wear protection and oil

aging control, whereas viscosity

grade gives information on the oil's

thickness over a temperature range.

224

Service and maintenance

Dexos is the newest engine oil quality

that provides optimum protection for

diesel engines. If it is unavailable,

engine oils of other listed qualities

must be used.
Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

3

 227.

Topping up engine oil

Caution

In case of any spilled oil, wipe it up

and dispose it properly.

Engine oils of different manufacturers

and brands can be mixed as long as

they comply with the required engine

oil quality and viscosity.
Select the appropriate engine oil

based on its quality and on the

minimum ambient temperature

3

 227.

Additional engine oil additives

The use of additional engine oil

additives could cause damage and

invalidate the warranty.

Engine oil viscosity grades

The SAE viscosity grade gives

information of the thickness of the oil.
Multigrade oil is indicated by two

figures, e.g. SAE 5W-30. The first

figure, followed by a W, indicates the

low temperature viscosity and the

second figure the high temperature

viscosity.
Select the appropriate viscosity grade

depending on the minimum ambient

temperature 3 227.
All of the recommended viscosity

grades are suitable for high ambient

temperatures.

Coolant and antifreeze

Use only silicate-free long life coolant

(LLC) antifreeze approved for the

vehicle. Consult a workshop.
The system is factory filled with

coolant designed for excellent

corrosion protection and frost

protection down to approx. -28 °C.

This concentration should be

maintained all year round. The use of

additional coolant additives that

intend to give additional corrosion

protection or seal against minor leaks

can cause function problems. Liability

for consequences resulting from the

use of additional coolant additives will

be rejected.

Washer fluid

Use only washer fluid approved for

the vehicle to prevent damage of

wiper blades, paintwork, plastic and

rubber parts. Consult a workshop.

Brake fluid

Over time, brake fluid absorbs

moisture which will reduce braking

effectiveness. The brake fluid should

therefore be replaced at the specified

interval.

AdBlue

Only use AdBlue to reduce the

nitrogen oxides in the exhaust

emission 3 144.

Technical data

225

Technical data

Vehicle identification .................. 225

Vehicle Identification Number .. 225

Identification plate ................... 226

Engine identification ................ 226

Vehicle data ............................... 227

Recommended fluids and

lubricants ................................ 227

Engine data ............................. 228

Vehicle weight ......................... 230

Vehicle dimensions ................. 237

Capacities ................................ 246

Tyre pressures ........................ 247

Vehicle identification

Vehicle Identification

Number

The Vehicle Identification Number

(VIN) is visible through the

windscreen.

The VIN is also displayed behind a

removable plastic cover on the front

right hand door step. Unclip the

covers using a flat blade screwdriver

to access.

226

Technical data

Identification plate

The identification plate is located on

the right hand door pillar.

Information on identification plate:
1 : manufacturer's name

2 : type approval number

3 : vehicle identification number

4 : permissible gross vehicle

weight rating in kg

5 : permissible gross train weight

in kg

6 : maximum permissible front axle

load in kg

7 : maximum permissible rear axle

load in kg

8 : engine type

9 : engine identification code

10 : fabrication number

11 : vehicle paint code

Note

The identification plate on your

vehicle may differ from the

illustration shown.

The combined total of front and rear

axle loads must not exceed the

permissible gross vehicle weight. For

example, if the front axle is bearing its

maximum permissible load, the rear

axle can only bear a load that is equal

to the gross vehicle weight minus the

front axle load.

The technical data is determined in

accordance with European

Community standards. We reserve

the right to make modifications.

Specifications in the vehicle

documents always have priority over

those given in this manual.

Engine identifier code and engine

number

Stamped on the engine cylinder block

and on a label attached to the timing

chain cover, depending on variant.

Engine identification

The technical data tables show the

engine identifier code. Engine data

3

 228.

To identify the respective engine,

refer to the engine power in the EEC

Certificate of Conformity provided

with your vehicle or other national

registration documents.

Technical data

227

Vehicle data

Recommended fluids and

lubricants

Required engine oil quality

Engine oil quality: Europe
dexos 2

✔

For countries with International

service interval 3 221, you may use

the oil qualities listed below:
Engine oil quality: International
dexos 2

✔

ACEA C3
diesel engines with DPF

✔

ACEA A3/B4
diesel engines without DPF

✔

Engine oil viscosity grades

Ambient temperature
down to

-25 °C

SAE 0W-30 or

SAE 0W-40
SAE 5W-30 or

SAE 5W-40

below

-25 °C

SAE 0W-30 or

SAE 0W-40

228

Technical data

Engine data

Sales designation

2.3 CDTI 125

2.3 CDTI 110,
2.3 CDTI 110

ecoFLEX

2.3 CDTI

BITURBO 135

2.3 CDTI 150 2.3 BITURBO 163

Engine identifier code

M9T (MH)

1)

, (MD)

2)

,

(MJ)

2)

M9T (MR)

2)

M9T (MN)

2)

M9T (MF)

2)

M9T (MP)

3)

, (MU)

4)

Number of cylinders 4

4

4

4

4

Piston displacement

[cm

3

]

2298

2298

2298

2298

2298

Engine power [kW]

92

81

100

110

120

at rpm

3500

3500

3500

3500

3500

Torque [Nm]

310

285

340/350

5)

350

360

3)

/380

4)

at rpm

1250-2000

1250-2000

1500-2500

1500

1500-2750

Fuel type

Diesel

Diesel

Diesel

Diesel

Diesel

1)

Euro 4.

2)

Euro 5.

3)

Euro 5.

4)

Euro VI with AdBlue.

5)

Front-wheel drive/Rear-wheel drive.

Technical data

229

Sales designation

2.3 CDTI 110 2.3 CDTI 130 2.3 BITURBO 130 2.3 BITURBO 145 2.3 BITURBO 170

Engine identifier code

M9T (MW)

6)

M9T (MY)

6)

M9T (M1)

7)

M9T (MS)

6)

, (MT)

7)

M9T (ML)

6)

Number of cylinders

4

4

4

4

4

Piston displacement [cm

3

] 2298

2298

2298

2298

2298

Engine power [kW] (PS)

81

96

96

107

125

at rpm

3500

3500

3500

3500

3500

Torque [Nm]

290

320

330

360

380

at rpm

1250

1500

1500

1500-2750

1500-2750

Fuel type

Diesel

Diesel

Diesel

Diesel

Diesel

6)

Euro 6 with AdBlue.

7)

Euro VI with AdBlue.

AdBlue 3 144.

230

Technical data

Vehicle weight

Kerb weight, basic model without any optional equipment

Optional equipment and accessories increase the kerb weight.

Van

Drive wheels

Length

Roof height

Gross vehicle weight
[kg]

Kerb weight
[kg]

Front-wheel drive

L1

H1

2800

1806

3300

1811

3500

1816

H2

2800

1834

3300

1839

3500

1844

L2

H2

3300

1885

3500

1890

H3

3300

1921

3500

1931

L3

H2

3500

1970

H3

3500

2010
