Opel Grandland X (2018 year). Manual - part 7





102

Instruments and controls

Turn the adjuster wheel to select a

page in the Trip/fuel information

menu.
Press SET/CLR to confirm or reset a

function.
Vehicle and service messages are

popped up in the Driver Information

Centre if required. Scroll messages

by turning the adjuster wheel.

Confirm messages by pressing

SET/CLR. Vehicle messages 3 105.

Trip/fuel information menu

Differerent pages with combined

information can be selected.
Turn the adjuster wheel to select a

page.

Information page:

Fuel range
Range is calculated from current fuel

level and current consumption. The

display shows average values.
After refuelling, the range is updated

automatically after a brief delay.

When the level in the fuel tank is low,

a message appears on the display

and the control indicator o in the fuel

gauge illuminates 3 100.
Instantaneous Fuel Consumption
Display of the instantaneous

consumption.

Trip 1 page:

Average speed
Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Distance travelled
Displays the current distance for trip

1 since the reset.
The values of trip 1 page can be reset

by pressing SET/CLR for a few

seconds.

Trip 2 page:

Average speed

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

103

Display of average speed. The

measurement can be reset at any

time.
Average fuel consumption
Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
Distance travelled
Displays the current distance for trip

2 since a certain reset.
The values of trip 2 page can be reset

by pressing SET/CLR for a few

seconds.

Digital speed page

Digital display of the instantaneous

speed.

Stop and Start time counter

A time counter calculates the time

spent in STOP mode during a

journey. It resets to zero every time

the ignition is switched on.

Compass page

Displays the geographic direction of

driving.

Blank page

No trip/fuel information is displayed.

Info display

The Info-Display is located in the

instrument panel near the instrument

cluster.
Depending on the vehicle

configuration the vehicle has a

● Graphic-Info-Display

or

● 7'' Colour-Info-Display with

touchscreen functionality
or

● 8'' Colour-Info-Display with

touchscreen functionality

The Info displays can indicate:

● time 3 85
● outside temperature 3 84
● date 3 85
● Infotainment system, see

description in the Infotainment

manual

● indication of rear view camera

3

 188

● indication of panoramic view

system 3 185

● indication of parking assist

instructions 3 176

● navigation, see description in the

Infotainment manual

● vehicle and system messages

3

 105

● settings for vehicle

personalisation 3 106

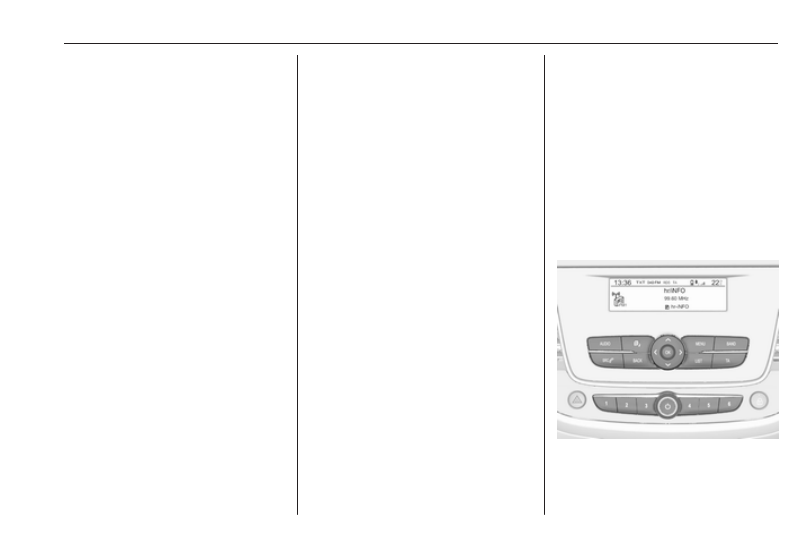

Graphic-Info-Display

Press X to switch on the display.
Press MENU to select main menu

page.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

104

Instruments and controls

Press èäåé to select a menu page.
Press OK to confirm a selection.
Press BACK to exit a menu without

changing a setting.

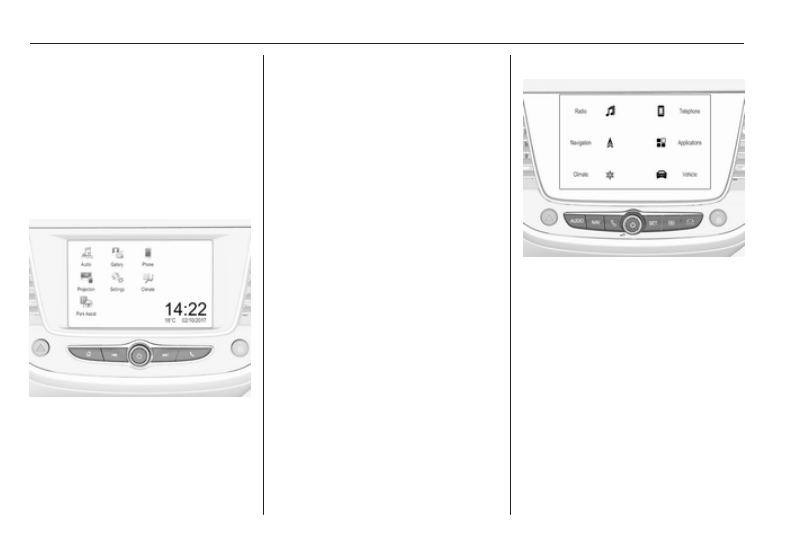

7'' Colour-Info-Display

Selecting menus and settings

Menus and settings are accessed via

the display.

Press X to switch on the display.
Press ; to display the homepage.
Touch required menu display icon

with the finger.
Touch a respective icon to confirm a

selection.

Touch 9 to return to the next higher

menu level.
Press ; to return to the homepage.
For further information, see

Infotainment manual.
Vehicle personalisation 3 106.

8'' Colour-Info-Display

Selecting menus and settings

There are three options to operate the

display:

● via buttons below the display
● by touching the touchscreen with

the finger

● via speech recognition

Button and touch operation

Press X to switch on the display.
Press SET to select system settings

(units, language, time and date).
Press Í to select vehicle settings or

driving functions.
Touch required menu display icon or

a function with the finger.
Confirm a required function or

selection by touching.
Touch r on the display to exit a

menu without changing a setting.
For further information, see

Infotainment manual.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

105

Speech recognition

Description see Infotainment manual.
Vehicle personalisation 3 106.

Vehicle messages

Messages are indicated in the Driver

Information Centre, in some cases

together with a warning and signal

chime.

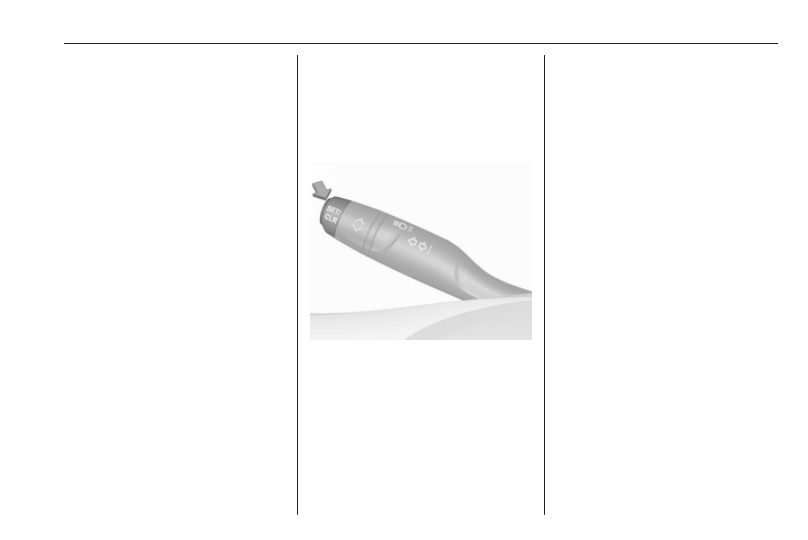

Press SET/CLR on the turn signal

lever to confirm a message.

Vehicle and service messages

The vehicle messages are displayed

as text. Follow the instructions given

in the messages.

Messages in the

Colour-Info-Display

Some important messages may

appear additionally in the

Info-Display. Some messages only

pop-up for a few seconds.

Warning chimes

When starting the engine or whilst

driving

Only one warning chime will sound at

a time.
The warning chime regarding not

fastened seat belts has priority over

any other warning chime.

● If a seat belt is not fastened.
● If a door or the tailgate is not fully

closed when starting off.

● If a certain speed is exceeded

with parking brake applied.

● If cruise control deactivates

automatically.

● If a programmed speed or speed

limit is exceeded.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

106

Instruments and controls

● If a warning message appears in

the Driver Information Centre.

● If the electronic key is not in the

passenger compartment.

● If the parking assist detects an

object.

● If an unintended lane change

occurs.

● If the diesel particle filter has

reached the maximum filling

level.

When the vehicle is parked and/or

the driver's door is opened

● With exterior lights on.

During an Autostop

● If the driver's door is opened.
● If any condition for an autostart is

not fulfilled.

Battery voltage

When the vehicle battery voltage is

running low, a warning message will

appear in the Driver Information

Centre.

When the vehicle is being driven, the

load reduction function temporarily

deactivates certain functions, such as

the air conditioning, the heated rear

screen, heated steering wheel, etc.
The deactivated functions are

reactivated automatically as soon as

conditions permit.

Vehicle personalisation

The vehicle's behaviour can be

personalised by changing the settings

in the Info-Display.
Depending on vehicle equipment and

country-specific regulations some of

the functions described below may

not be available.
Some functions are only displayed or

active when the engine is running.

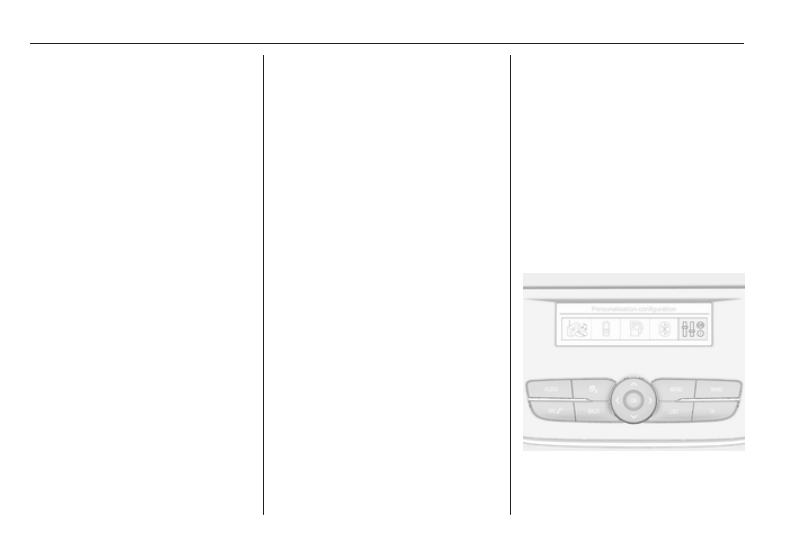

Graphic-Info-Display

Press MENU to open the menu page.
Use four-way button to operate the

display:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

107

Select ˆ Personalisation-

configuration, I OK.

Unit settings

Select Display configuration, I OK.
Select Choise of units, I OK.
Select desired settings, I OK.

Language settings

Select Display configuration, I OK.
Select Choise of language, I OK.
Select desired language, I OK.

Vehicle settings

Select Define vehicle parameters, I

OK.
In the corresponding submenus the

following settings can be changed:

● Lighting.

Follow me home headlamps:

Activation and setting duration

time.
Welcome lighting: Activation and

setting duration time.

● Comfort

Ambient lighting: Activation/

Deactivation.

Rear wiper in reverse gear:

Activation/Deactivation.

● Vehicle

Unlocking boot only: Activation/

Deactivation.
Plip action: Driver/all doors.

● Driving assistance

Fatigue Detection system:

Activation/Deactivation.
Speed recommendation:

Activation/Deactivation.

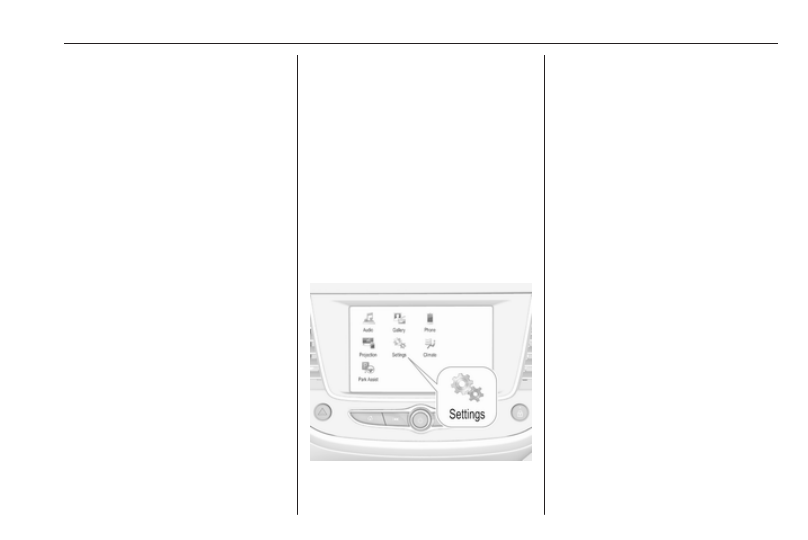

7" Colour-Info-Display

Press ; to open homepage.

Use touch buttons to operate the

display:
Select Settings.

Unit settings

Select Units
Change units for Consumption and

Distance and Temperature.
Touch 9 repeatedly to return to the

homepage.

Language settings

Select Language.
Change language by touching the

respective entry.
Touch 9 repeatedly to return to the

homepage.

Vehicle settings

Select Vehicle.
In the corresponding submenus the

following settings can be changed:

● Collision / Detection Systems

Side Blind Spot Alert: Activates

or deactivates side blind spot

alert.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

108

Instruments and controls

Drowsy Driver Alert : Activates or

deactivates the driver

drowsiness system.
Speed Limit Information:

Activates or deactivates the

speed limit information by traffic

sign recognition.
Rear View Camera Guidelines:

Activates or deactivates the rear

view camera guidelines on the

Info display.
Forward Collision Alert :

Activates or deactivates the

forward collision alert, adjusts the

alert sensitivity.

● Comfort and Convenience

Auto Wipe in Reverse Gear:

Activates or deactivates

automatic switching on of the

rear window wiper when reverse

gear is engaged.

● Lighting

Ambient Lighting: Activates or

deactivates the ambient lighting

and adjusts its brightness.
Welcome Lighting: Activates or

deactivates and changes the

duration of welcome lighting.

Exit Lighting: Activates or

deactivates and changes the

duration of exit lighting.

● Remote Lock, Unlock, Start

Remote Door Unlock: Changes

the configuration to unlock the

driver's door only or all doors

when pressing O on the remote

control.
Unlock boot only: Activates or

deactivates unlocking the tailgate

only when pressing T on the

remote control.

Touch 9 repeatedly to return to the

homepage.

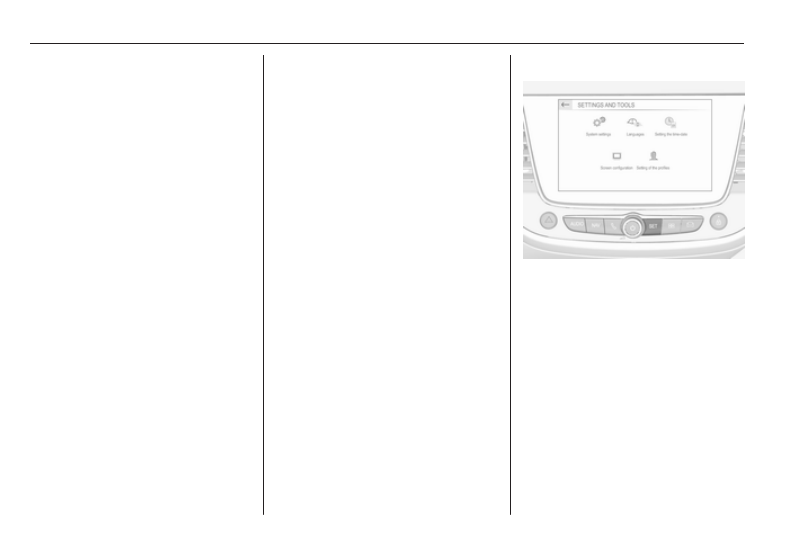

8" Colour-Info-Display

Press SET to open settings menu.
Use touch buttons to operate the

display.

Unit settings

Select System settings.
Change units for Consumption and

Distance and Temperature.
Confirm with G
Touch r repeatedly to exit the menu.

Language settings

Select Languages.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

109

Change language by touching the

respective entry.
Confirm with G
Touch r repeatedly to exit the menu.

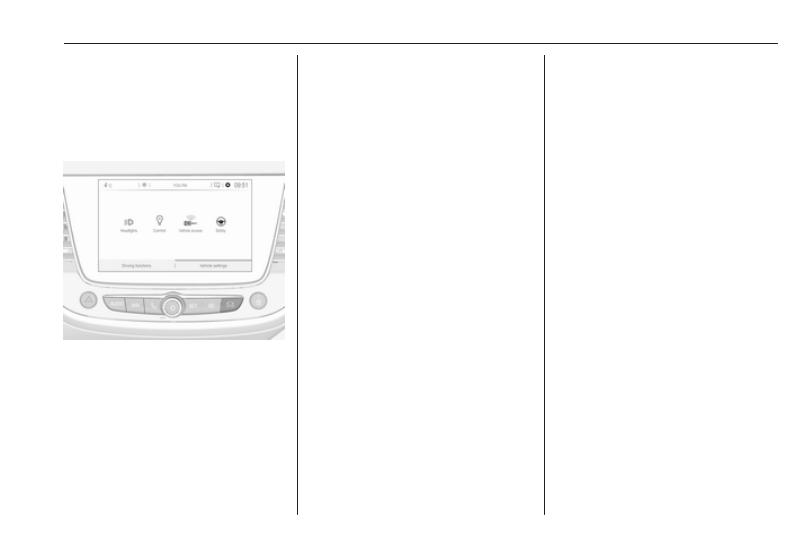

Vehicle settings

Press Í.
Select Vehicle settings.
In the corresponding submenus the

following settings can be changed:

● Vehicle access

Door unlock: Driver only:

Changes the configuration to

unlock the driver's door only or all

doors when pressing O on the

remote control.
Door unlock: Boot only: Activates

or deactivates unlocking the

tailgate only when pressing T

on the remote control.
Motorised tailgate/door:

Activates or deactivates the

opening or closing of the

motorised tailgate/door.
Hands-free tailgate access:

Activates or deactivates the

function.

● Safety

Recommended speed display:

Activates or deactivates the

speed limit information by traffic

sign recognition.
Active safety brake: Activates or

deactivates active emergency

braking, the alert sensitivity can

be selected.
Mirror adaptation:
Driver attention warning:

Activates or deactivates the

driver drowsiness system.

Rear wiper in reverse: Activates

or deactivates automatic

switching on of the rear window

wiper when reverse gear is

engaged.

● Driving lighting

Directional headlamps: Activates

or deactivates the function.

● Comfort lighting

Guide-me-home lighting:

Activates or deactivates the

function and adjusts its duration.
Welcome lighting: Activates or

deactivates the function and

adjusts its duration.
Mood lighting: Adjusts the

brightness of the ambient

lighting.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

110

Instruments and controls

Driving functions

Press Í.
Select Driving functions.
In the corresponding submenus the

following settings can be changed:

● Park Assist: Activates advanced

park assist, a parking maneuver

can be selected.

● Blind Spot Sensors: Activates or

deactivates side blind spot alert.

● Panoramic view system:

Activation/deactivation of the

function.

Telematics service

OnStar

OnStar is a personal connectivity and

service assistant with integrated

Wi-Fi hotspot. The OnStar service is

available 24 hours a day, seven days

a week.

Note

OnStar is not available for all

markets. For further information,

contact your workshop.
Note

In order to be available and

operational, OnStar needs a valid

OnStar subscription, functioning

vehicle electrics, ignition on, mobile

service and GPS satellite link.

To activate the OnStar services and

set up an account, press Z and speak

with an advisor.

Depending on the equipment of the

vehicle, the following services are

available:

● Emergency services and support

in the case of a vehicle

breakdown

● Wi-Fi hotspot
● Smartphone application
● Remote control, e.g. location of

the vehicle, activation of horn and

lights, control of central locking

system

● Stolen vehicle assistance
● Vehicle diagnostics

Note

The OnStar module of the vehicle is

deactivated after ten days without an

ignition cycle. Functions requiring a

data connection will be available

again after switching on the ignition.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

111

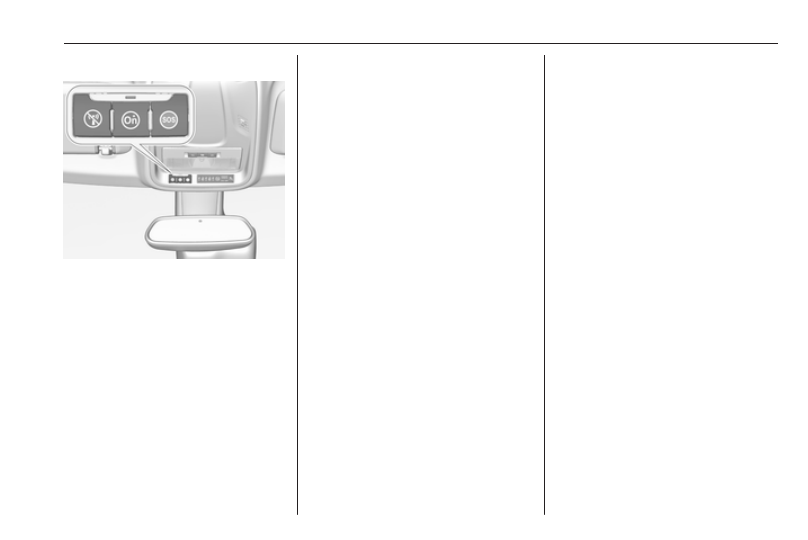

OnStar buttons

Privacy button

Press and hold j until a message is

heard to activate or deactivate the

transmission of the vehicle location.
Press j to answer a call or to end a

call to an advisor.
Press j to access the Wi-Fi settings.

Service button

Press Z to establish a connection to

an advisor.

SOS button

Press [ to establish a priority

emergency connection to a specially

trained emergency advisor.

Status LED

Green: The system is ready with

activated transmission of the vehicle

location.
Green flashing: The system is on a

call.
Red: A problem arose.
Off: The system is ready with

deactivated transmission of the

vehicle location or the system is in

standby mode.
Red / green flashing for a short period

of time: The transmission of the

vehicle location has been

deactivated.

OnStar services

General services

If you need any information e.g.

opening hours, points of interest and

destinations or if you need any

support e.g. in the case of a vehicle

breakdown, a flat tyre and empty fuel

tank, press Z to establish a

connection to an advisor.

Emergency services

In the case of an emergency situation,

press [ and talk to an advisor. The

advisor then contacts emergency or

assistance service providers and

directs them to your vehicle.
In the case of an accident with

activation of airbags or belt

tensioners, an automatic emergency

call is established. The advisor is

immediately connected to your

vehicle to see whether help is

needed.

Note

Establishing an emergency call may

not be possible in areas without

sufficient network availability or due

to hardware damage during an

accident.

Wi-Fi hotspot

The Wi-Fi hotspot of the vehicle

provides internet connectivity with a

maximum speed of 4G/LTE.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

112

Instruments and controls

Note

The Wi-Fi hotspot functionality is not

available for all markets.

Up to seven devices may be

connected.
To connect a mobile device with the

Wi-Fi hotspot:

1. Press j and then select Wi-Fi

settings on the Info-Display. The

settings displayed include the Wi-

Fi hotspot name (SSID),

password and connection type.

2. Start a Wi-Fi network search on

your mobile device.

3. Select your vehicle hotspot

(SSID) when listed.

4. When prompted, enter the

password on your mobile device.

Note

To change the SSID or password,

press Z and talk to an advisor or log

in to your account.

To switch off the Wi-Fi hotspot

functionality, press Z to call an

advisor.

Smartphone app

With the myOpel smartphone app,

some vehicle functions can be

operated remotely.
The following functions are available:

● Lock or unlock vehicle.
● Honk horn or flash lights.
● Check fuel level.
● Locate vehicle on a map.
● Manage Wi-Fi settings.

To operate these functions, download

the app from App Store

®

 or

Google Play™ Store.

Remote control

If desired, use any phone to call an

advisor, who can remotely operate

specific vehicle functions. Find the

respective OnStar phone number on

our country-specific website.
The following functions are available:

● Lock or unlock vehicle.
● Provide information on the

vehicle location.

● Honk horn or flash lights.

Stolen vehicle assistance

If the vehicle is stolen, report the theft

to the authorities and request OnStar

stolen vehicle assistance. Use any

phone to call an advisor. Find the

respective OnStar phone number on

our country-specific website.
OnStar can provide support in

locating and recovering the vehicle.
Theft alert

When the anti-theft alarm system is

triggered, a notification is sent to

OnStar. You are then informed about

this event by text message or email.
Restart prevention

By sending remote signals, OnStar

can prevent the vehicle from

restarting once it has been turned off.

On-demand diagnostics

At any time e.g. if the vehicle displays

a vehicle message, press Z to

contact an advisor and ask to

complete a real-time diagnostic check

to directly determine the issue.

Depending on the results, the advisor

will provide further support.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

113

Diagnostic report

The vehicle automatically transmits

diagnostic data to OnStar which

sends a monthly email report to you

and your preferred workshop.

Note

The workshop notification function

can be disabled in your account.

The report contains the status of key

operating systems of the vehicle like

engine, transmission, airbags, ABS,

and other major systems. It also

provides information on possible

maintenance items and tyre pressure

(only with tyre pressure monitoring

system).
To look at the information in greater

detail, select the link within the email

and log in to your account.

OnStar settings

OnStar PIN

To have full access to all OnStar

services, a four-digit PIN is required.

The PIN has to be personalised when

first talking to an advisor.
To change the PIN, press Z to call an

advisor.

Account data

An OnStar subscriber has an account

where all the data is stored. To

request a change of the account

information, press Z and talk to an

advisor or log in to your account.
If the OnStar service is used on

another vehicle, press Z and request

that the account be transferred to the

new vehicle.

Note

In any case, if the vehicle is disposed

of, sold or otherwise transferred,

immediately inform OnStar about

the changes and terminate the

OnStar service on this vehicle.

Vehicle location

The vehicle location is transmitted to

OnStar when service is requested or

triggered. A message on the Info-

Display informs about this

transmission.
To activate or deactivate the

transmission of the vehicle location,

press and hold j until an audio

message is heard.

The deactivation is indicated by the

status light flashing red and green for

a short period of time and each time

the vehicle is started.

Note

If the transmission of the vehicle

location is deactivated, some

services are no longer available.
Note

The vehicle location always remains

accessible to OnStar in the case of

an emergency.

Find the privacy policy in your

account.

Software updates

OnStar may remotely carry out

software updates without further

notice or consent. These updates are

to enhance or maintain safety and

security or the operation of the

vehicle.
These updates may concern privacy

issues. Find the privacy policy in your

account.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

114

Lighting

Lighting

Exterior lighting

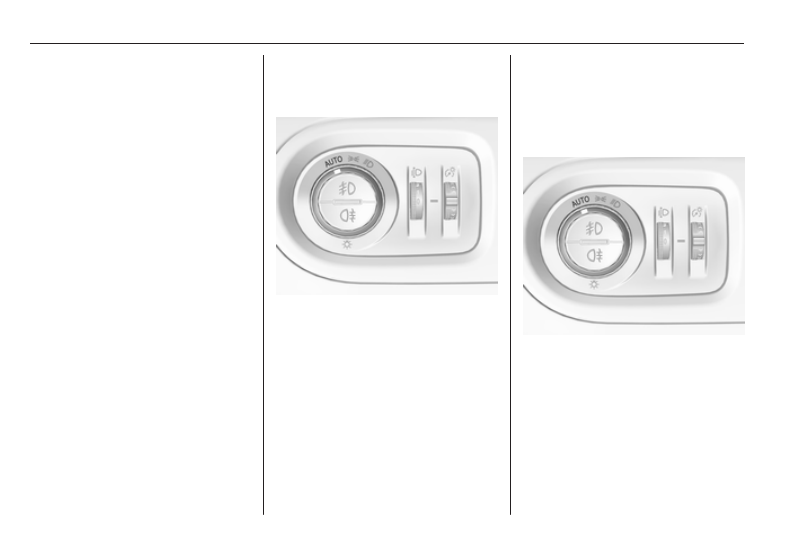

Light switch

Turn light switch:
AUTO : automatic light control

switches automatically

between daytime running

light and headlight

8

: sidelights

9

: headlights

When switching on the ignition,

automatic light control is active.
Control indicator 8 3 100.

Tail lights

Tail lights are illuminated together

with low/high beam and sidelights.

Automatic light control

When the automatic light control

function is switched on and the

engine is running, the system

switches between daytime running

lights and headlights automatically

depending on the external lighting

conditions and information given by

the rain sensor system.
Daytime running light 3 117.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lighting

115

Automatic headlight activation

During poor lighting conditions the

headlights are switched on.
Additionally, headlights are switched

on if the windscreen wipers have

been activated for several wipes.

Tunnel detection

When a tunnel is entered, headlights

are switched on immediately.

High beam

Push lever to switch from low to high

beam.
Pull lever to deactivate high beam.

High beam assist 3 117.

High beam assist

Description for version with halogen

headlights. High beam assist with

LED headlights 3 117.
This feature allows high beam to

function as the main driving light at

night and when vehicle speed

exceeds 25 km/h.
It switches automatically to low beam

when:

● The camera or a sensor in the

windscreen detects the lights of

oncoming or preceding vehicles.

● The vehicle speed drops below

15 km/h.

● It is foggy or snowy.
● Driving in urban areas.

If there are no restrictions detected,

the system switches back to high

beam.

Activation

The high beam assist can only be

activated with the light switch in

position AUTO.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

116

Lighting

Activate the high beam assist by

pressing f on the turn and lane

change lever. The LED of the button

illuminates if the high beam assist is

activated. High beam is switched on

automatically at a speed above

25 mph.
The green control indicator f

illuminates continuously when the

assist is activated, the blue one 7

illuminates when high beam is on.
Control indicator f 3 100.

Deactivation

Deactivate the high beam assist by

pressing f on the turn and lane

change lever
If a headlight flash is activated when

the high beam assist is activated and

low beam is on, the high beam assist

will be deactivated. The system

changes to high beam.
If a headlight flash is activated when

the high beam assist is activated and

high beam is on, the high beam assist

will be deactivated. The system

changes to low beam.

To reactivate the high beam assist,

flash the headlights again.

Headlight flash

To activate the headlight flash, pull

lever.
Pulling lever deactivates high beam.

Headlight range adjustment

Manual headlight range

adjustment

To adapt headlight range to the

vehicle load to prevent dazzling: turn

thumb wheel ? to required position.
0 : front seats occupied

1 : all seats occupied

2 : all seats occupied and load

compartment laden

3 : driver's seat occupied and load

compartment laden

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lighting

117

Daytime running lights

Daytime running light increases

visibility of the vehicle during daylight.
They are switched on automatically

when the engine is running.
The system switches between

daytime running lights and low beam

automatically, depending on the

lighting conditions.

LED headlights

9 Warning

Do not look directly into the LED

lights to avoid damage to your

eyes.

LED headlight system contains a

variety of particular LEDs in each

headlight which enables the control of

the Adaptive forward lighting

functions.
Light distribution and intensity of light

are variably triggered depending on

the lighting conditions, road type and

driving situation. The vehicle adapts

the headlights automatically to the

situation to enable optimal light

performance for the driver.
Some Adaptive forward lighting

functions of the LED headlights can

be deactivated or activated in the

vehicle personalisation menu. Select

the relevant setting in Settings, I

Vehicle in the Info-Display. Vehicle

personalisation 3 106.
The lighting functions are only

available with light switch in position

AUTO.

Country light

Activated automatically at a speed

between 55 km/h and 115 km/h when

driving in rural areas. The illumination

of the current lane and the side of the

road is improved. Oncoming and

preceding vehicles are not dazzled.

Motorway light

Activated automatically at a speed

above 115 km/h. Illumination is

adapted to the higher speed driven on

motorways. If there is no oncoming

traffic, the visibility on the side of the

vehicle is increased. The visibility

range raises from 70 m to 140 m

allowing distant objects to be

recognized across the entire width of

the road.

Town light

Activated automatically at a speed up

to approx. 55 km/h and in situations

with exterior ambient light. The light is

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
