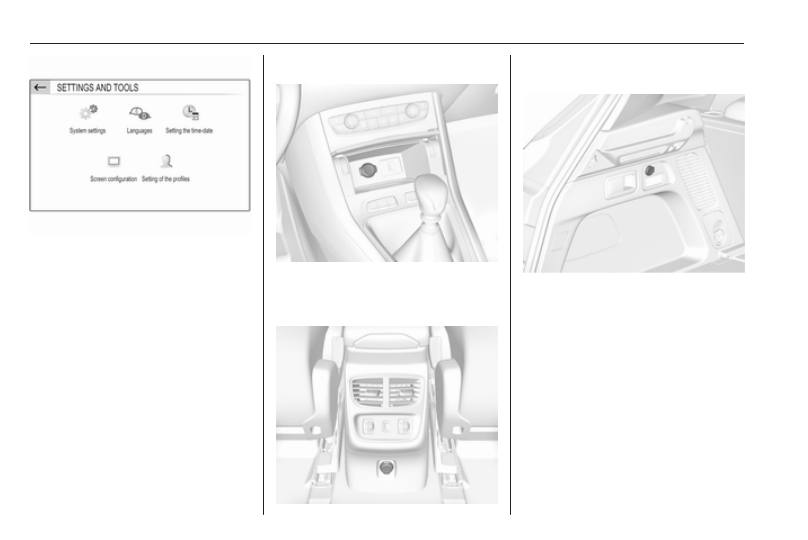

Select Setting the time-data.
To change the time and date formats,

select the respective tabs and then

select the desired formats.
By default the displayed time and

date is automatically adjusted by the

system.
To manually adjust the displayed time

and date:
Select the Time tab.
Set Synchronization with GPS

(UTC): to Micro OFF and then select

the Time field to set the desired time.
Select the Date tab and then select

the Date: field to set the desired date.

Power outlets

A 12 Volt power outlet is located

behind the storage cover below the

climate controls. Press cover to open.

Further 12 Volt power outlets are

located in the rear console

and at the left sidewall in the load

compartment.
Do not exceed the maximum power

consumption of 120 watts.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

87

A 230 Volt power outlet may also be

located in the rear console.
Do not exceed the maximum power

consumption of 150 watts.
With ignition off, the power outlets are

deactivated. Additionally the power

outlets are deactivated in the event of

low vehicle battery voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.
Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.

Do not damage the outlet by using

unsuitable plugs.
Stop-start system 3 141.

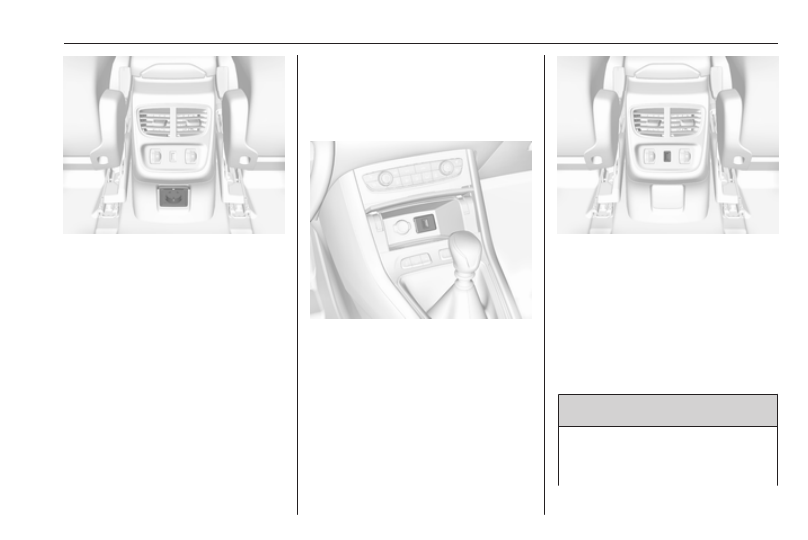

USB charging ports

An USB port is located behind the

storage cover below the climate

controls. Press cover to open.

A further USB port is located in the

rear console.
The USB ports are prepared for

charging devices.

Note

The sockets must always be kept

clean and dry.

Inductive charging

9 Warning

Inductive charging can affect the

operation of implanted

pacemakers or other medical

-------------------------------------------------------------------------------------------------------------------------------------------------------------

88

Instruments and controls

devices. If applicable, seek

medical advice before using the

inductive charging device.

9 Warning

Remove any metal objects from

the charging device before

charging a mobile phone, as these

objects could become very hot.

To charge a device, the ignition must

be switched on.

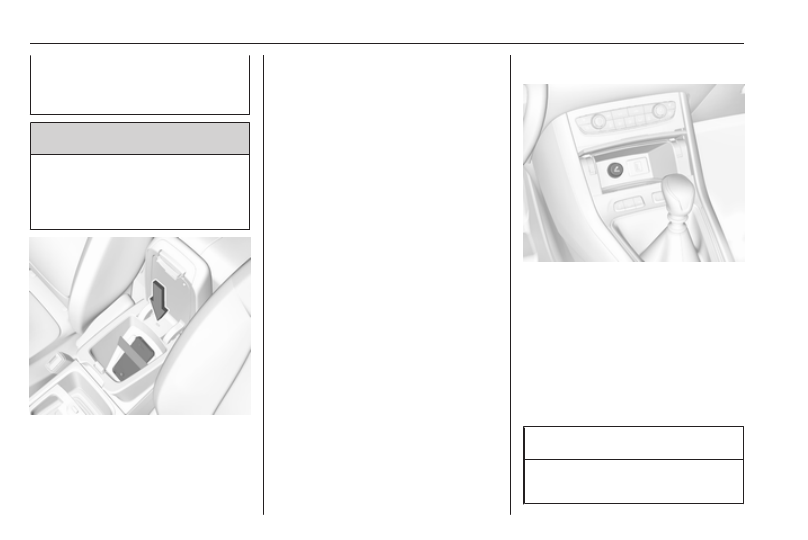

The charging area is located below

the armrest in the centre console.

To charge a mobile phone:

1. Remove all objects from the

charging device.

2. Place the mobile phone with the

display facing upwards on the

charging device in the storage.

Use the elastic band to secure the

mobile phone.

Charging status is indicated in the

LED: illuminates green, when mobile

phone is charging.
PMA or Qi compatible mobile phones

can be charged inductively.
A back cover with an integrated coil

(e.g. Samsung 4 and 5) or a jacket

(e.g. some iPhone models) may be

required to charge a mobile phone.
Protective cover for the mobile phone

could have impact on the inductive

charging.
In the event that the mobile device is

not charging properly, rotate it 180°

and place it on the charging device

again.

Cigarette lighter

The cigarette lighter is located is

located behind the storage cover

below the climate controls. Press

cover to open.
Press in cigarette lighter. It switches

off automatically once the element is

glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

89

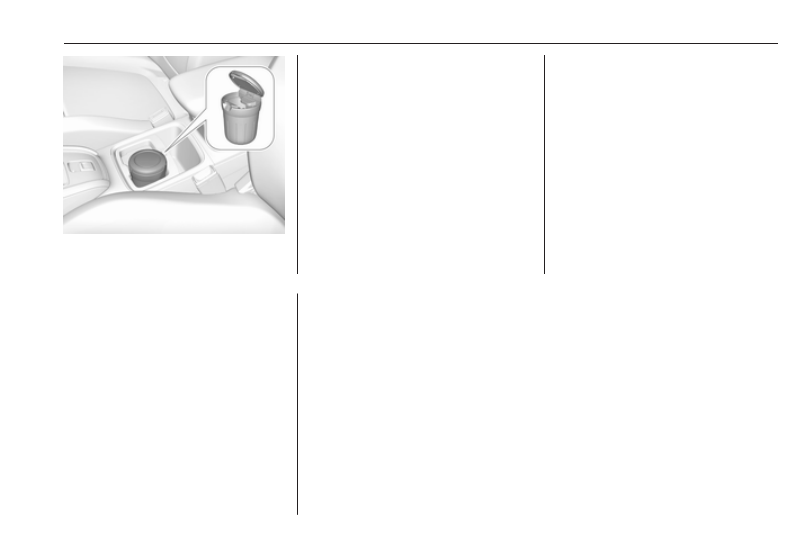

A portable ashtray can be placed in

the cupholders.

Warning lights, gauges

and indicators

Instrument cluster

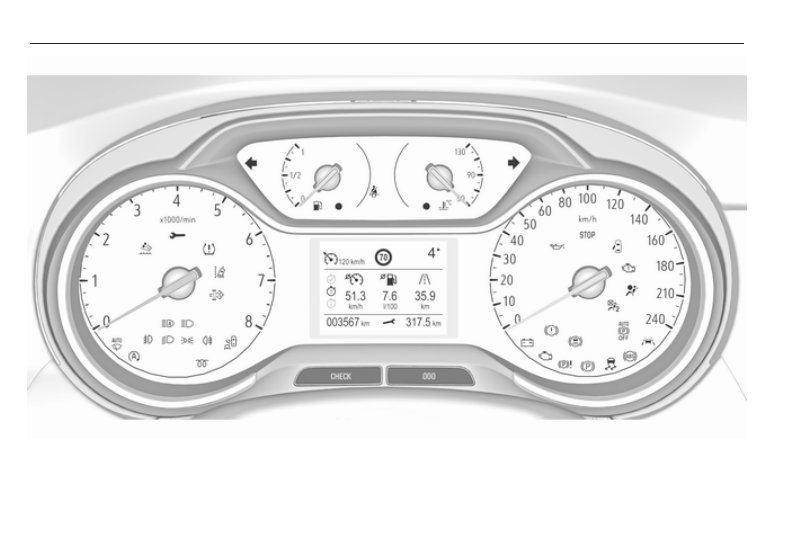

The following instrument cluster is

available:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

90

Instruments and controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

91

Overview

O

Turn signal 3 95

X

Seat belt reminder 3 95

v

Airbag and belt tensioners

3

 95

V

Airbag deactivation 3 96

p

Charging system 3 96

Z

Malfunction indicator light

3

 96

H

Service vehicle soon 3 93

STOP Stop engine 3 96
J

System check 3 97

R

Brake and clutch system

3

 97

u

Antilock brake system (ABS)

3

 97

R

Gear shifting 3 98

)

Lane departure warning

3

 98

L

Lane keep assist 3 98

b

Electronic Stability Control

and Traction Control system

3

 98

!

Preheating 3 99

%

Diesel particle filter 3 99

Y

AdBlue 3 99

w

Deflation detection system

3

 99

I

Engine oil pressure 3 99

Y

 o

Low fuel 3 100

W

 o Engine coolant temperature

high 3 98

D

Autostop 3 100

8

Exterior light 3 100

9

Low beam 3 114

C

High beam 3 100

f

High beam assist 3 100

>

Fog light 3 100

ø

Rear fog light 3 100

<

Rain sensor 3 100

B

Side blind spot alert 3 183

m

Cruise control 3 101

ß

Speed limiter 3 101

Ø

Forward collision allert

3

 170,

Active emergency braking

3

 172,

Front pedestrian protection

3

 175

h

Door open 3 101

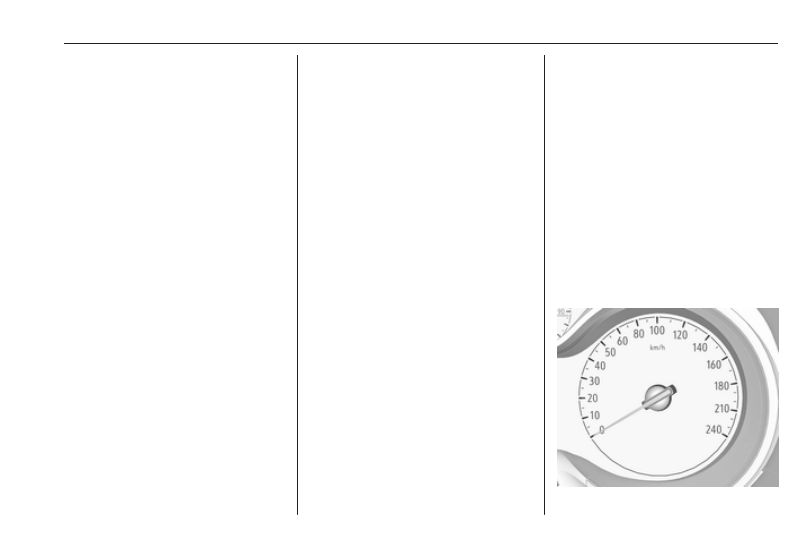

Speedometer

Indicates vehicle speed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

92

Instruments and controls

Odometer

The total recorded distance is

displayed in km.

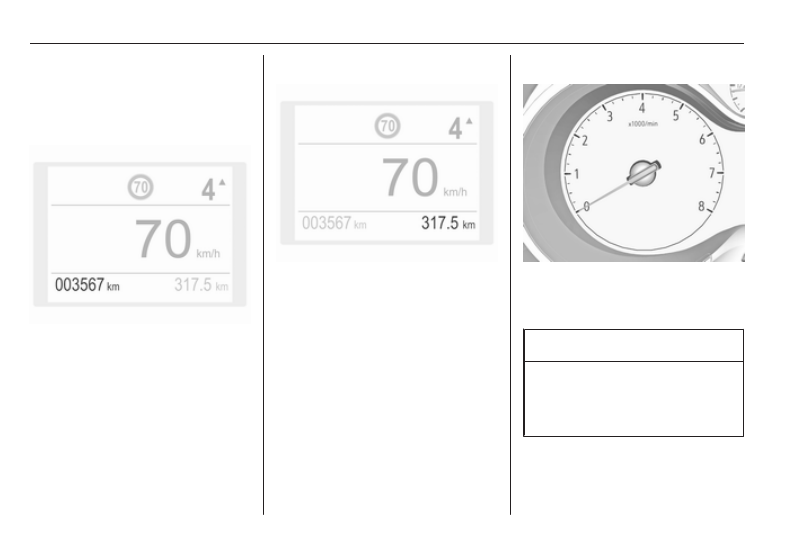

Driver Information Centre

Trip odometer

The recorded distance since the last

reset is displayed in the Driver

Information Centre.
Trip odometer counts up to

9,999 km and then restarts at 0.
Press L for 2 seconds to reset trip

odometer.
Two trip odometer pages are

selectable in the trip/fuel information

menu for different trips 3 101.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning

zone, the maximum permitted

engine speed is exceeded. Engine

at risk.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

93

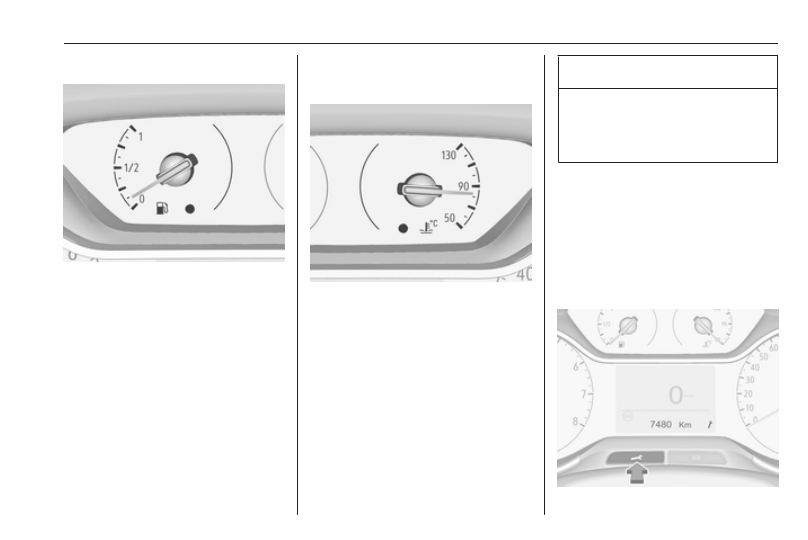

Fuel gauge

Displays the level in the fuel tank.
Control indicator o illuminates if the

level in the tank is low.
Never run the fuel tank dry.
Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified fuel tank capacity.

Engine coolant temperature

gauge

Displays the coolant temperature.
50 : engine operating temperature

not yet reached

90 : normal operating temperature

130 : temperature too high
Control indicator o illuminates if

coolant temperature is too high.

Switch off engine immediately.

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

Service display

The service system informs when to

change the engine oil and filter or a

vehicle service is required. Based on

driving conditions, the interval at

which an engine oil and filter change

is required can vary considerably.

Service information3 236

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94

Instruments and controls

A required service due is displayed in

the Driver Information Centre for

seven seconds after switching on the

ignition.

If no service is required for the next

3000 km or more no service

information appears in the display.
If service due is required within the

next 3000 km, the remaining distance

or time duration is indicated for

several seconds. Simultaneously

symbol F lights up permamently as

reminder.

If service due is less than 1000 km,

F

 flashes and then lights up

permanently. Remaining distance or

time duration is indicated for several

seconds.
Overdued service is indicated by a

message in the Driver Information

Centre which indicates the overdued

distance. F flashes and then lights up

permanently until service is executed.

Reset of service interval

After each service, the service

indicator must be reset to ensure

proper functionality. It is

recommended to seek the assistance

of a workshop.
If service is executed by yourself,

operate as following:

● switch off ignition
● press and hold button F or

CHECK.

● switch on ignition; the distance

indication begins a countdown

● when the display indicates "=0",

release the button. Symbol F

disappears

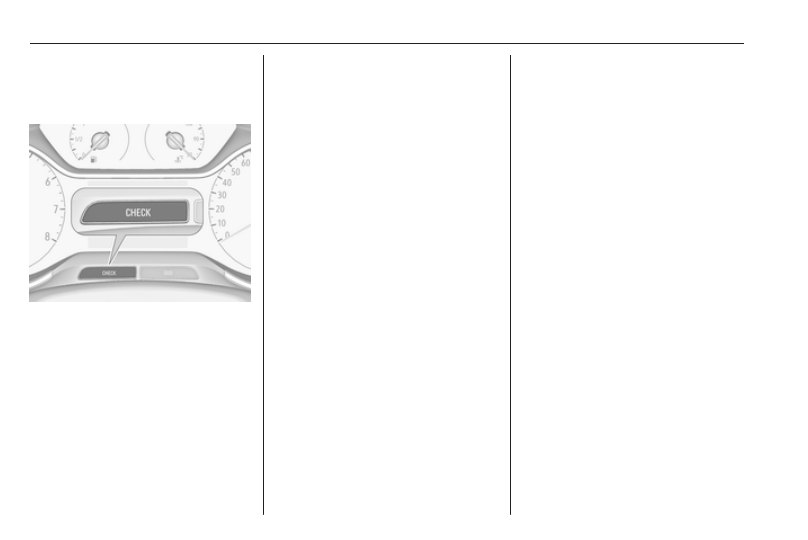

Retrieving service information

To retrieve the status of the service

information at any time press button

F

 or CHECK. The service information

is displayed for a few seconds.
Service information 3 236.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions. Depending on the

equipment, the position of the control

indicators may vary. When the

ignition is switched on, most control

indicators will illuminate briefly as a

functionality test.
The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation
See all control indicators on different

instrument clusters 3 89.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

95

Turn signal

O

 illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning

flashers are activated.
Rapid flashing: failure of a turn signal

light or associated fuse, failure of turn

signal light on trailer.
Bulb replacement 3 211.
Turn signals 3 120.

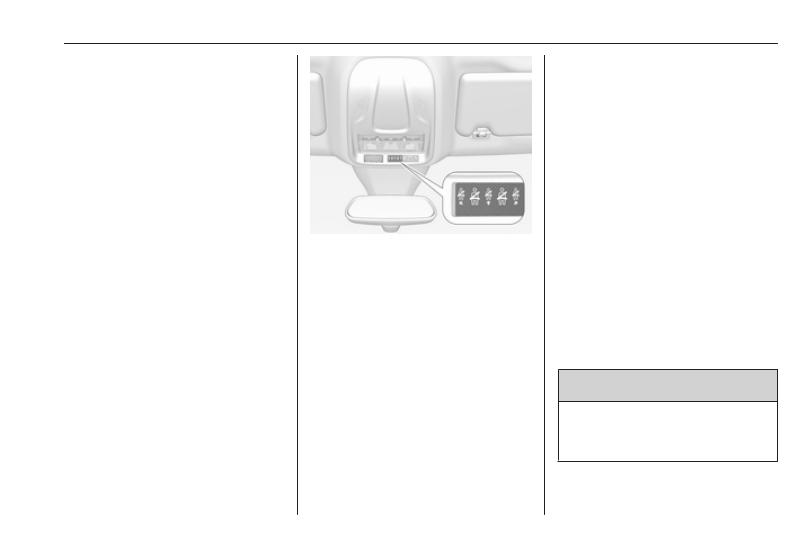

Seat belt reminder

Seat belt reminder on all seats

X

 illuminates or flashes red in the

instrument cluster together with the

indication in the roof console for each

seat belt.

● When the ignition is switched on,

X

 in the instrument cluster and

the symbol for the respective

seat in the roof console comes

on, if the seat belt of any

occupied seat has not been

fastened.

● After running up, X in the

instrument cluster and the

symbol for the respective seat in

the roof console flashes for a

certain time together with a

chime. After a certain time of

driving X illuminates constantly

until the seat belt of the

respective seat has been

fastened or if any passenger has

unfastened the seat belt.

Airbag and belt tensioners

v

 illuminates red.

When the ignition is switched on, the

control indicator illuminates for

approx. four seconds. If it does not

illuminate, does not extinguish after

four seconds or illuminates whilst

driving, there is a fault in the airbag

system. Seek the assistance of a

workshop. The airbags and belt

pretensioners may fail to trigger in the

event of an accident.
Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of v.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners, airbag system

3

 54, 3 57.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

96

Instruments and controls

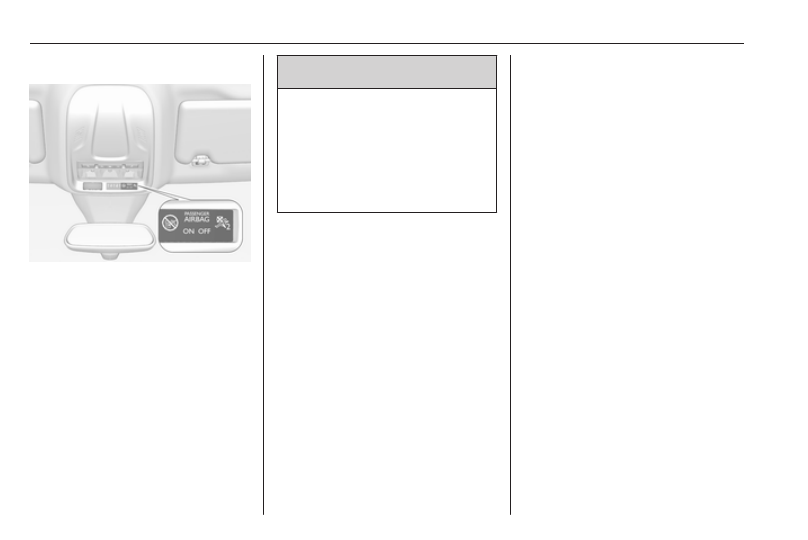

Airbag deactivation

Ó

ON illuminates yellow.

The front passenger airbag is

activated.
*OFF illuminates yellow.
The front passenger airbag is

deactivated.
Airbag deactivation 3 62.

9 Danger

Risk of fatal injury for a child using

a child restraint system together

with activated front passenger

airbag.
Risk of fatal injury for an adult

person with deactivated front

passenger airbag.

Charging system

p

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

Z

 illuminates or flashes yellow.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Stop engine

Y

 illuminates red.

Illuminates briefly when the ignition is

switched on.
Illuminates together with other control

indicators, accompanied by a warning

chime and a corresponding message

in the Driver Information Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

97

Stop engine immediately and seek

the assistance of a workshop.

System check

J

 illuminates yellow or red.

Illuminates yellow

A minor engine fault has been

detected.

Illuminates red

A major engine fault has been

detected.
Stop engine as soon as possible and

seek the assistance of a workshop.

Brake and clutch system

R

 illuminates red.

The brake and clutch fluid level is too

low.

9 Warning

Stop. Do not continue your

journey. Consult a workshop.

Electric parking brake

m

 illuminates or flashes red.

Illuminates

Electric parking brake is applied

3

 153.

Flashes

Electric parking brake is not fully

applied or released. Switch on

ignition, depress brake pedal and

attempt to reset the system by first

releasing and then applying the

electric parking brake. If m remains

flashing, do not drive and seek the

assistance of a workshop.

Electric parking brake fault

E

 illuminates or flashes yellow.

Illuminates

Electric parking brake is operating

with degraded performance 3 153.

Flashes

Electric parking brake is in service

mode. Stop vehicle, apply and

release the electric parking brake to

reset.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Antilock brake system

(ABS)

u

 illuminates yellow.

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not

extinguish after a few seconds, or if it

illuminates while driving, there is a

fault in the ABS. The brake system

remains operational but without ABS

regulation.
Antilock brake system 3 152.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98

Instruments and controls

Gear shifting

R

 with the number of a higher gear is

indicated, when upshifting is

recommended for fuel saving

reasons.

Lane departure warning

)

 illuminates green or flashes yellow.

Illuminates green

System is switched on and ready to

operate.

Flashes yellow

System recognizes an unintended

lane change.

Lane keep assist

a

 illuminates green or yellow, or

flashes yellow.

Illuminates green

The system is switched on and ready

to operate.

Illuminates yellow

The system approaches a detected

lane marking without using the turn

signal in that direction.

Flashes yellow

The system recognizes that the lane

is departed significantly.
Lane keep assist 3 191

Electronic Stability Control

and Traction Control system

b

 illuminates or flashes yellow.

Illuminates

A fault in the system is present.

Continued driving is possible. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.
Electronic Stability Control and

Traction Control system 3 155.
Selective ride control 3 156.

Engine coolant temperature

o

 illuminates red.

Illuminates when the engine is

running

Stop, switch off engine.

Caution

Coolant temperature too high.

Check coolant level immediately

3

 207.

If there is sufficient coolant, consult a

workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

99

Preheating

!

 illuminates yellow.

Preheating of Diesel engine is

activated. Only activates when

outside temperature is low. Start the

engine when control indicator

extinguishes.

Diesel particle filter

%

 or H illuminates yellow.

The diesel particle filter requires

cleaning.
Continue driving until the control

indicator extinguishes. .

Illuminates temporarily

Start of saturation of the particle filter.

Start cleaning process as soon as

possible by driving at a vehicle speed

of at least 60 km/h.

Illuminates constantly

Indication of a low additive level. Seek

the assistance of a workshop.
Diesel particle filter 3 144.

AdBlue

Y

 flashes or illuminates yellow.

Illuminates yellow

The remaining driving range is

between 600 km and 2400 km.
Have the AdBlue® topped-up as soon

as possible by a qualified workshop.

You can add up to 10 litres of

AdBlue® to its tank.

Flashes yellow

The remaining driving range is

between 0 and 600 km.
Top-up the AdBlue® as soon as

possible to avoid a breakdown by a

qualified workshop. You can add up

to 10 litres of AdBlue® to its tank.

Deflation detection system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss in one or more

wheels. Stop immediately and check

tyre pressure.

Flashes

Fault in system. Consult a workshop.
Deflation detection system 3 219.

Engine oil pressure

I

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and/or

locking of the drive wheels.

1. Depress clutch.
2. Select neutral gear, set selector

lever to N.

3. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

4. Switch off ignition.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

Instruments and controls

9 Warning

When the engine is off,

considerably more force is needed

to brake and steer. During an

Autostop the brake servo unit will

still be operational.
Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Check oil level before seeking the

assistance of a workshop 3 206.

Low fuel

o

 illuminates yellow.

Level in fuel tank is too low.
Refuelling 3 196.
Bleeding the diesel fuel system

3

 210.

Autostop

D

 illuminates or flashes green.

Illuminates green

Engine is in an Autostop.

Flashes green

Autostop is temporarily unavailable,

or Autostop mode is invoked

automatically.
Stop-start system 3 141.

Exterior light

8

 illuminates green.

The exterior lights are on 3 114.

High beam

C illuminates blue.
Illuminates when high beam is on,

during headlight flash 3 115, or when

high beam is on with high beam assist

3

 115.

High beam assist

f

 illuminates green.

The high beam assist is activated

3

 117.

LED headlights

H

 illuminates and a warning

message is displayed in the Driver

Information Centre.
Seek the assistance of a workshop.

Fog light

>

 illuminates green.

The front fog lights are on 3 121.

Rear fog light

r

 illuminates yellow.

The rear fog light is on 3 121.

Rain sensor

<

 illuminates green.

Illuminated when rain sensor position

on wiper stalk is selected.

Side blind spot alert

B

 illuminates green.

The system is active.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

101

Cruise control

m

 illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active. Set speed is

indicated in the Driver Information

Centre.
Cruise control 3 159.

Adaptive cruise control

m

 illuminates white or green.

C

 illuminates in the Driver

Information Centre.

m

 illuminates white

The system is on.

m

 illuminates green

Adaptive cruise control is active.
When Adaptive cruise control is on or

active, C with the set speed is

indicated in the Driver Information

Centre.

Adaptive cruise control 3 164.

Vehicle detected ahead

A

 illuminates green.

Illuminates green

A vehicle ahead is detected in the

same lane.
Adaptive cruise control 3 164,

Forward collision alert 3 170.

Speed limiter

ß

 illuminates in the Driver

Information Centre when Speed

limiter is active. Set speed is indicated

alongside ß symbol.
Speed limiter 3 162.

Door open

h

 illuminates red.

A door or the tailgate is open.

Information displays

Driver Information Centre

The Driver Information Centre is

located in the instrument cluster.
Driver Information Centre indicates:

● overall and trip odometer
● digital speed indication
● trip/fuel information menu
● gear shift indication
● service information
● vehicle and warning messages
● driver assistance messages
● pop-up messages

Selecting menus and functions

The menus and functions can be

selected via the buttons on the turn

signal lever.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
