Storage

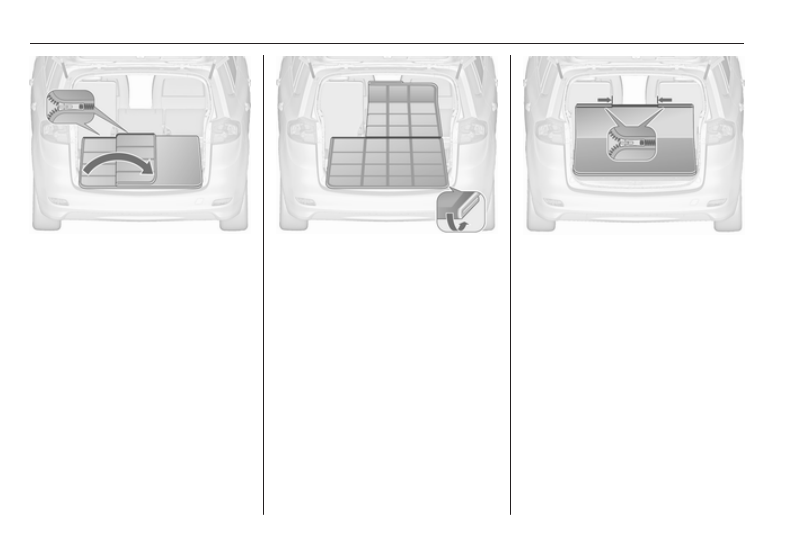

● Open the zipper behind the

raised up backrest.

● Pull out the mat until the first part

is flat on the load compartment

floor.

● Raise up lengthways the part that

is opened by the zipper, and fold

it to the centre.

● Expand the upper part of double

layer mat over the folded

backrests.

● Fold the overlaying rear part

under the mat before closing the

tailgate.

Proceed in the same way when one

outer backrest and the centre

backrest are not folded down.
e.g. only centre backrest is folded

down

Mat is expanded up to the second row

seats, as described in first section.

● Fold down centre backrest to be

covered.

● Open the zipper from both sides

behind the left and right backrest.

● Pull out the mat until the first part

is flat on the load compartment

floor.

● Raise up lengthways both parts

that are opened by the zipper,

and fold them to the centre.

Storage

87

● Then expand the small upper

part of double layer mat over the

centre backrest.

● Fold the overlaying rear part

under the mat before closing the

tailgate.

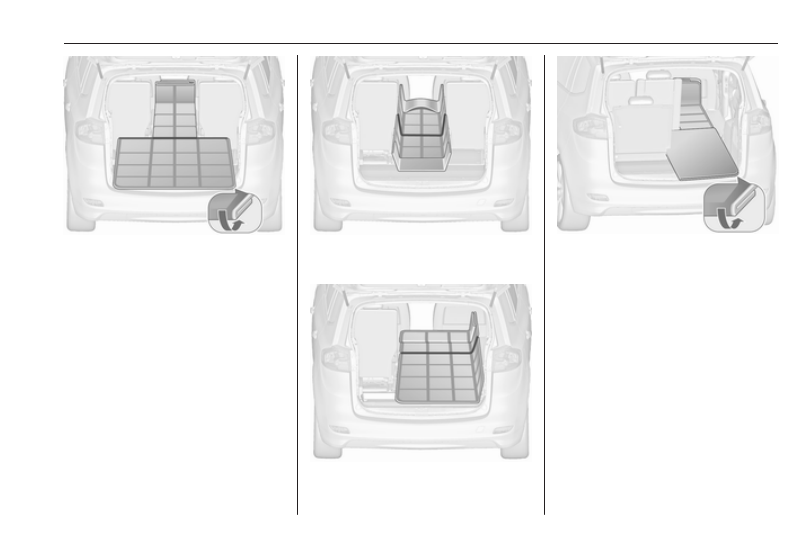

The following illustrations show some

further examples.

Example for long small objects, e.g.

skis.

Example for side cover protection.

Example for covering folded backrest

on second row and one folded seat on

third row.

88

Storage

Load rails and hooks

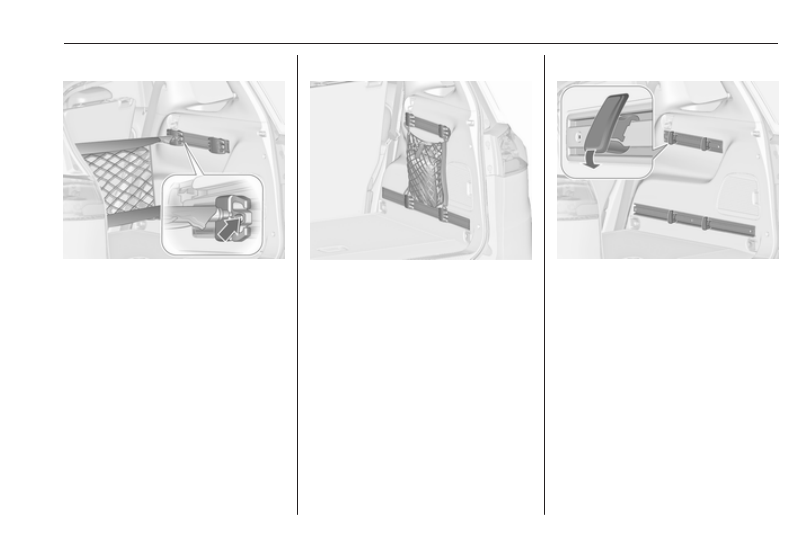

Install the hooks in the desired

position in the rails: insert the hook in

the upper groove on the rail and press

in the lower groove.

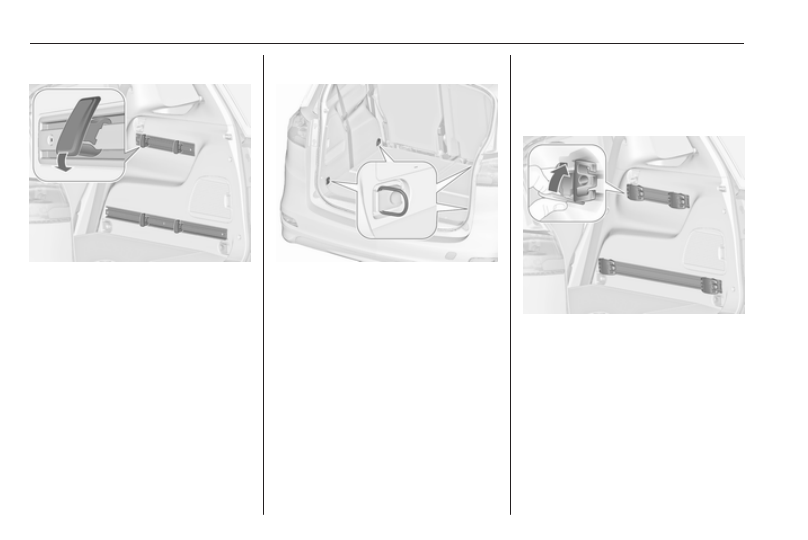

Lashing eyes

The lashing eyes are designed to

secure items against slippage, e.g.

using lashing straps or luggage net.

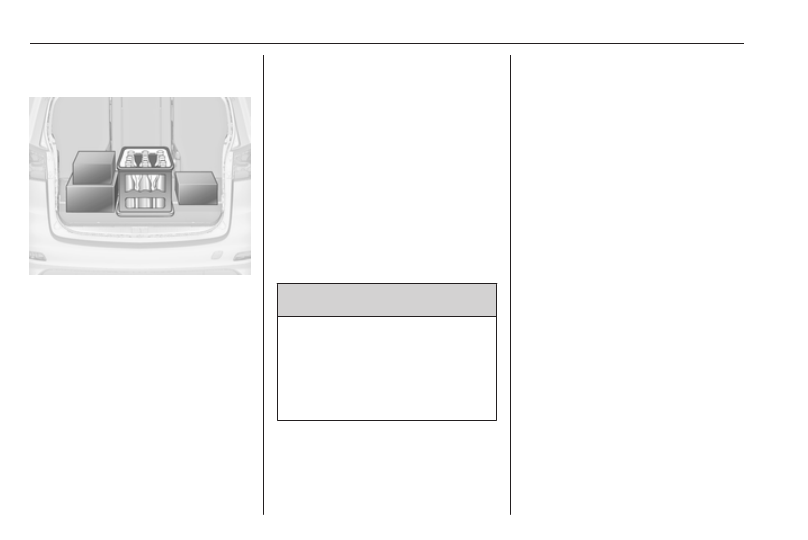

Cargo management system

The FlexOrganizer is a flexible

system for dividing up the load

compartment.
The system consists of:

● adapters
● mesh pockets
● hooks
● variable partition net

The components are fitted in rails on

both side panels using adapters and

hooks.

Installation of adapters in the rails

Fold open the handle plate, insert the

adapter into the upper and lower

groove of the rail and move to the

required position. Turn the handle

plate upwards to lock the adapter. To

remove, turn the handle plate down

and move out of the rail.

Storage

89

Variable partition net

Insert adapters into the required

position in the rails. Stick together the

halves of the net rods.
To install, push rods together a little

and insert into the relevant openings

in the adapters.
To remove, press the net rods

together and remove from the

adapters.

Net pocket

Insert adapters into the required

position in the rails. The net pocket

can be suspended from the adapters.

Installation of hooks in the rails

Insert the hook in the desired position

first in the upper groove of the rail and

then press in the lower groove. To

remove, first pull out of the upper

groove.

90

Storage

Partitioning net in front of tailgate

Install directly in front of the tailgate.
Before installation push in the four

end pieces of the net rod by rotating

each end piece anticlockwise.
To install, push the net rods together

and insert into the openings of the

tailgate frame. The longer rod must

be inserted at the top.
To remove, push the net rods

together and remove.

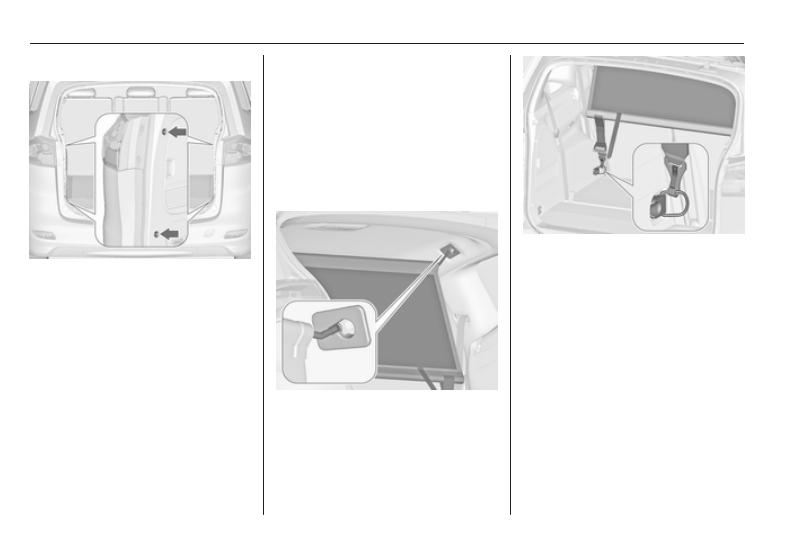

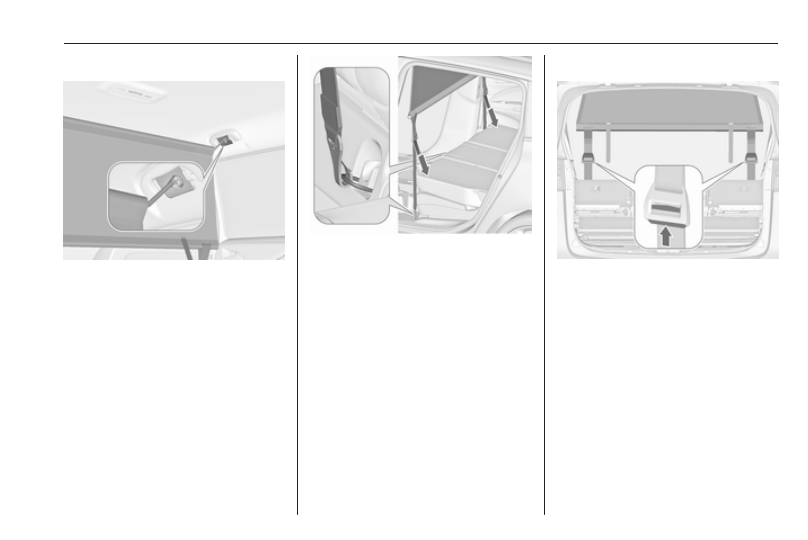

Safety net

The safety net can be installed behind

the seats of the second row or the

front seats.
Passengers must not be transported

behind the safety net.

Installation behind second row

seats

● There are installation openings

on both sides in the roof frame

above second row seats:

suspend and engage rod of net at

one side, compress rod and

suspend and engage at the other

side.

● Attach hooks of safety net straps

to front lashing eyes on both

sides in the load compartment.

● Tension both straps by pulling at

the loose end.

Storage

91

Installation behind front seats

● There are installation openings

on both sides in the roof frame

above the front seats: suspend

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

● Attach hooks of safety net straps

to the lashing eyes on both sides

in the floor in front of the seats.

● Tension both straps by pulling at

the loose end.

Removal

Push button on the tightener to

release the strap on both sides.

Detach hooks from the eyes. Unhook

the safety net rods from the brackets

in the roof frame. Roll up the net and

secure with a strap.

Stowing

Open the cover of the storage in the

load compartment floor in front of the

tailgate.

92

Storage

Insert the safety net in the storage

and close cover.

Folding tray

Located in the front seat backrests.
Open by pulling upwards until it

engages.
Fold away by pressing down past the

resistance point.
Do not place any heavy objects on the

folding tray.

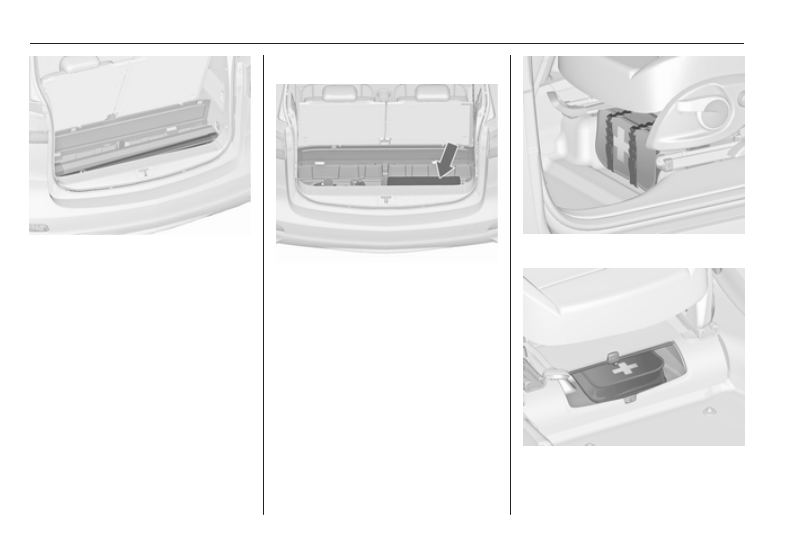

Warning triangle

Stow the warning triangle in the

storage of the load compartment floor

in front of the tailgate.

First aid kit

Stow the first aid kit and the high

visibility vest under the driver's seat.

Use the straps to fix.

Storage

93

On another version, first aid kit is

located in a storage box under the

driver's seat. Slide the rollo to open or

close the box.

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended. For further

information contact your workshop.
Follow the installation instructions

and remove the roof rack when not in

use.

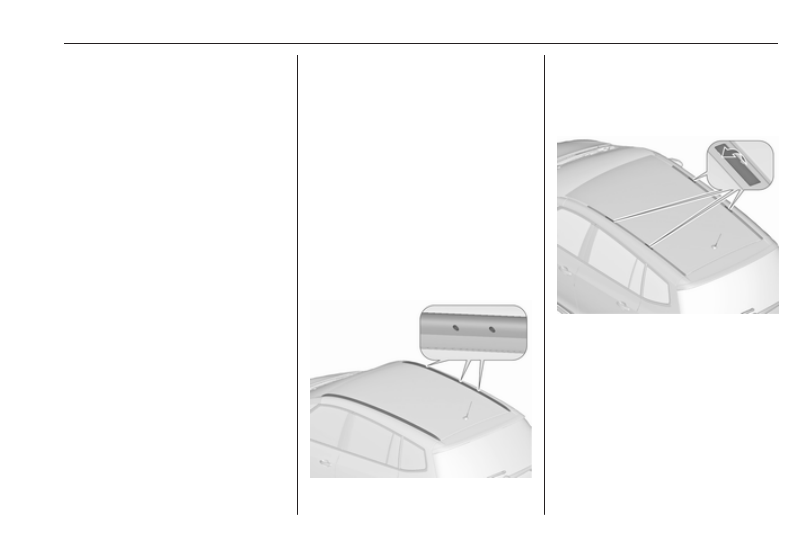

Mounting roof rack

Vehicles with roof railing

Fasten the roof rack in the area of the

holes, indicated by the arrows in the

illustration.

Vehicles without roof railing

To fasten a roof rack, open the caps

in the roof strips. Insert the mounting

provisions, as instructed, in the

retainer indicated in the illustration.

94

Storage

Loading information

● Heavy objects in the load

compartment should be placed

against the seat backrests.

Ensure the backrests are

securely engaged. If objects can

be stacked, the heavier objects

should be placed at the bottom.

● Secure objects with lashing

straps attached to lashing eyes

3

 88.

● Secure loose objects in load

compartment to prevent sliding.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector lever, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 262) and the EC kerb

weight.

To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than

120 km/h.
The permissible roof load is

75 kg for vehicles without roof

railing and 100 kg for vehicles

with roof railing. The roof load is

Storage

95

the combined weight of the roof

rack and the load.

96

Instruments and controls

Instruments and

controls

Controls ....................................... 97

Steering wheel adjustment ........ 97

Steering wheel controls ............. 97

Heated steering wheel ............... 97

Horn ........................................... 98

Windscreen wiper/washer ......... 98

Rear window wiper/washer ..... 100

Outside temperature ................ 100

Clock ....................................... 101

Power outlets ........................... 102

Cigarette lighter ....................... 103

Ashtrays .................................. 103

Warning lights, gauges and indi‐

cators ......................................... 104

Instrument cluster .................... 104

Speedometer ........................... 104

Odometer ................................ 104

Trip odometer .......................... 104

Tachometer ............................. 105

Fuel gauge .............................. 105

Fuel selector ............................ 106

Engine coolant temperature

gauge ..................................... 107

Service display ........................ 107

Control indicators .................... 108

Turn signal ............................... 110

Seat belt reminder ................... 111

Airbag and belt tensioners ....... 111

Airbag deactivation .................. 112

Charging system ..................... 112

Malfunction indicator light ........ 112

Brake and clutch system ......... 112

Operate pedal .......................... 113

Electric parking brake .............. 113

Electric parking brake fault ...... 113

Antilock brake system (ABS) ... 113

Gear shifting ............................ 114

Power steering ........................ 114

Following distance ................... 114

Lane departure warning .......... 114

Electronic Stability Control off . 114

Electronic Stability Control and

Traction Control system ......... 114

Traction Control system off ..... 114

Preheating ............................... 115

Diesel particle filter .................. 115

AdBlue ..................................... 115

Tyre pressure monitoring

system .................................... 115

Engine oil pressure .................. 115

Low fuel ................................... 116

Immobiliser .............................. 116

Exterior light ............................ 116

High beam ............................... 116

High beam assist ..................... 116

LED headlights ........................ 116

Fog light ................................... 116

Rear fog light ........................... 116

Cruise control .......................... 116

Adaptive cruise control ............ 117

Vehicle detected ahead ........... 117

Speed limiter ........................... 117

Traffic sign assistant ................ 117

Door open ................................ 117

Information displays ................... 117

Driver Information Centre ........ 117

Info display .............................. 121

Vehicle messages ...................... 123

Warning chimes ....................... 124

Battery voltage ........................ 124

Vehicle personalisation .............. 125
Telematics service ..................... 128

OnStar ..................................... 128

Instruments and controls

97

Controls

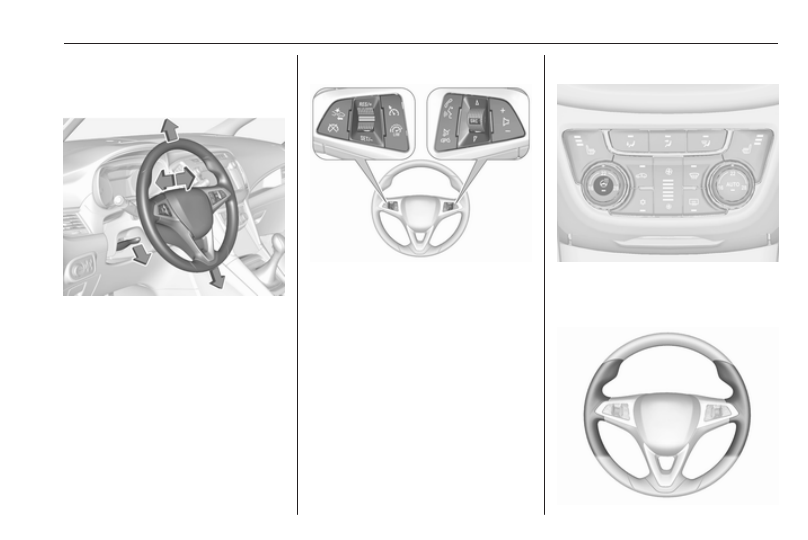

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

The Infotainment system, some driver

assistance systems and a connected

mobile phone can be operated via the

controls on the steering wheel.
Further information is available in the

Infotainment manual.
Driver assistance systems 3 173.

Heated steering wheel

Activate heating by pressing *.

Activation is indicated by the LED in

the button.

98

Instruments and controls

The recommended grip areas of the

steering wheel are heated quicker

and to a higher temperature than the

other areas.
Heating is operational when the

engine is running and during an

Autostop.
Stop-start system 3 154.

Horn

Press j.

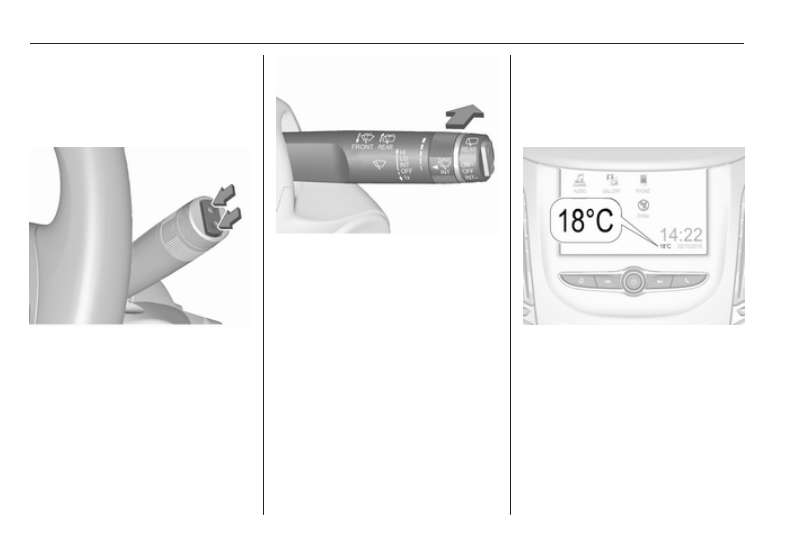

Windscreen wiper/washer

Windscreen wiper

HI

: fast

LO : slow

INT : interval wiping or automatic

wiping with rain sensor

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

desired wipe interval:
short interval

: turn adjuster

wheel upwards

long interval

: turn adjuster

wheel downwards

Instruments and controls

99

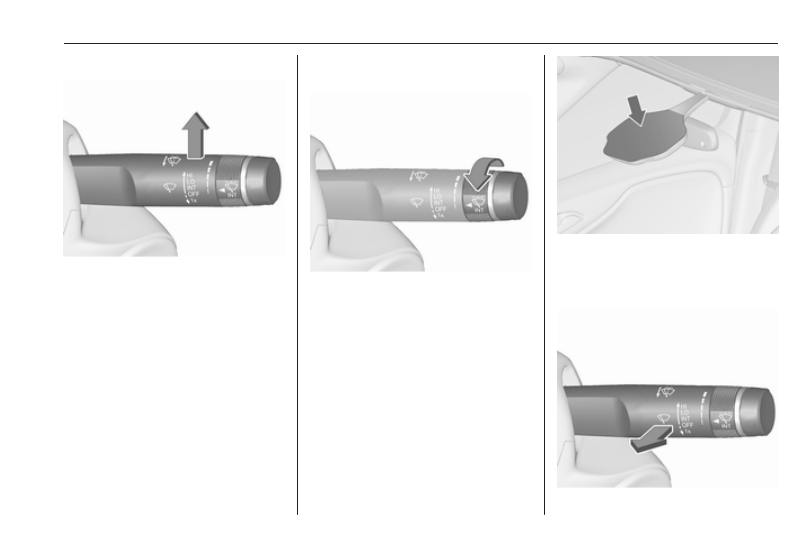

Automatic wiping with rain sensor

INT : automatic wiping with rain

sensor

The rain sensor detects the amount of

water on the windscreen and

automatically regulates the frequency

of the windscreen wiper.
If the wiper frequency is above

20 seconds, the wiper arm moves

slightly down to the park position.

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity:
low sensitivity : turn adjuster

wheel downwards

high sensitivity : turn adjuster

wheel upwards

Keep the sensor free from dust, dirt

and ice.

Windscreen washer

100

Instruments and controls

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.

Rear window wiper/washer

Press the rocker switch to activate the

rear window wiper:
upper position : continuous

operation

lower position : intermittent

operation

middle position : off

Push lever. Washer fluid is sprayed

onto the rear window and the wiper

wipes a few times.
Do not use if the rear window is

frozen.
Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.
Activation or deactivation of this

function can be changed in the

Settings menu in the Info-Display.
Vehicle personalisation 3 125.

The rear window washer system is

deactivated when the fluid level is too

low.

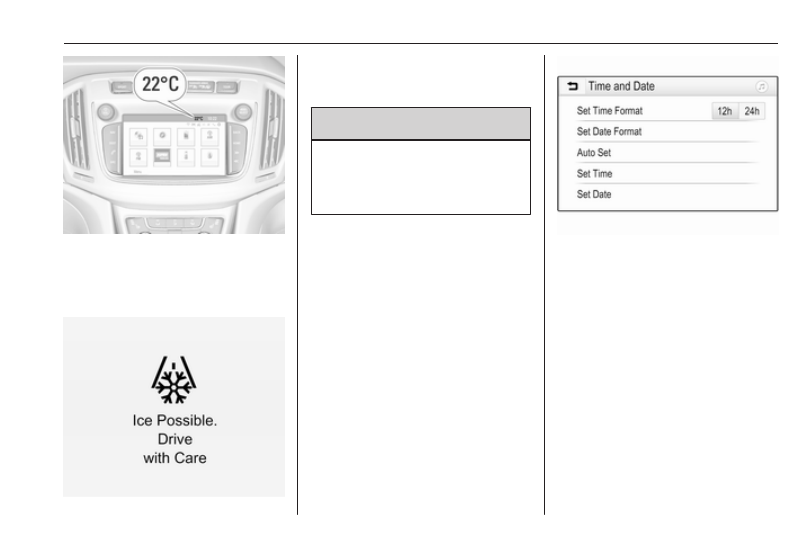

Outside temperature

Grafic shows R 4.0 IntelliLink display.

Instruments and controls

101

Grafic shows Navi 950 display.
A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

If outside temperature drops to 3 °C,

a warning message is displayed in the

Driver Information Centre.

9 Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

Clock

Date and time are shown in the

Info-Display.
Depending on the vehicle

configuration the

● R 4.0 IntelliLink display or
● Navi 950 display

is available.

R 4.0 IntelliLink

Press ; and then select Settings.
Select Time and Date to display the

respective submenu.

Set Time Format

To select the desired time format,

touch the screen buttons 12 h or 24 h.

Set Date Format

To select the desired date format,

select Set Date Format and choose

between the available options in the

submenu.

Auto Set

To choose whether time and date are

to be set automatically or manually,

select Auto Set.
For time and date to be set

automatically, select On - RDS.
