Opel Cascada (2017 year). Manual - part 13

198

Vehicle care

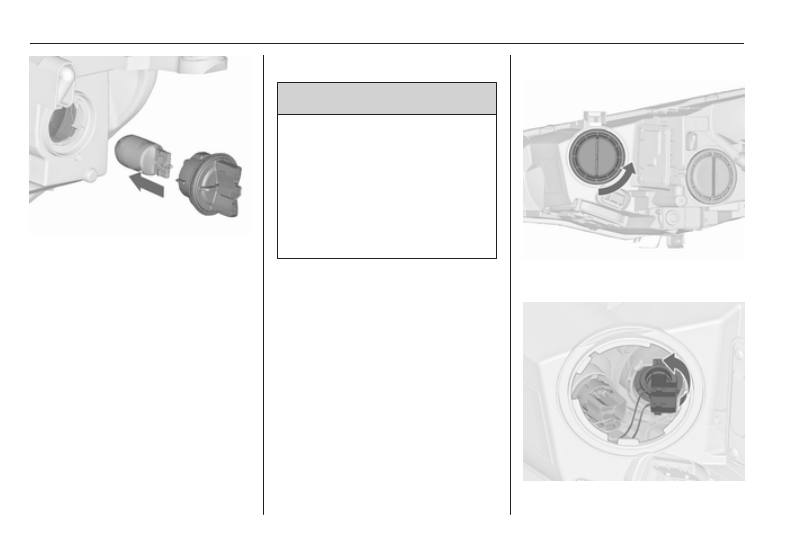

2. Remove the bulb from the socket

by pulling.

3. Replace and insert new bulb into

socket.

4. Insert the bulb socket into the

reflector and turn clockwise.

Adaptive forward lighting

9 Danger

Adaptive forward lighting system

uses Xenon headlights.
Xenon headlights work under

extremely high electrical voltage.

Do not touch. Have bulbs replaced

by a workshop.
Bulbs for front turn signal and

corner lighting can be changed.

Sidelight/Daytime running lights are

designed as Light Emitting Diodes

(LEDs) and cannot be changed.

Corner lighting

1. Rotate the cap anticlockwise and

remove it.

Vehicle care

199

2. Rotate the bulb holder

anticlockwise to disengage.

Withdraw the bulb holder from the

reflector.

3. Disengage the bulb from the plug

connector by pulling.

4. Replace the bulb and connect

bulb holder with the plug

connector.

5. Insert the bulb holder, engaging

the two lugs into the reflector and

rotate clockwise to secure.

6. Fit the cap and rotate clockwise.

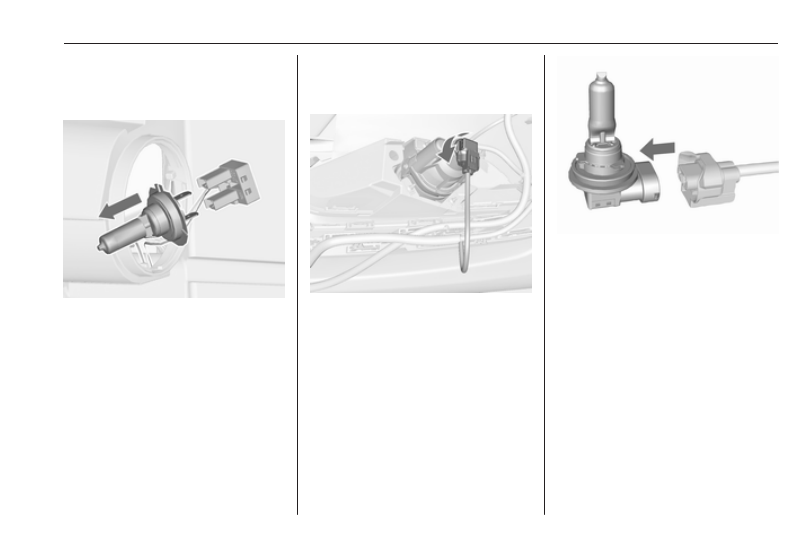

Fog lights

The bulbs are accessible from the

underside of the vehicle.

1. Turn the bulb holder anticlockwise

and remove it from the reflector.

2. Disengage the bulb socket from

the plug connector by pressing

the retaining lug.

3. Remove and replace the bulb

socket with bulb and attach the

plug connector.

4. Insert the bulb socket into the

reflector by turning clockwise and

engage.

200

Vehicle care

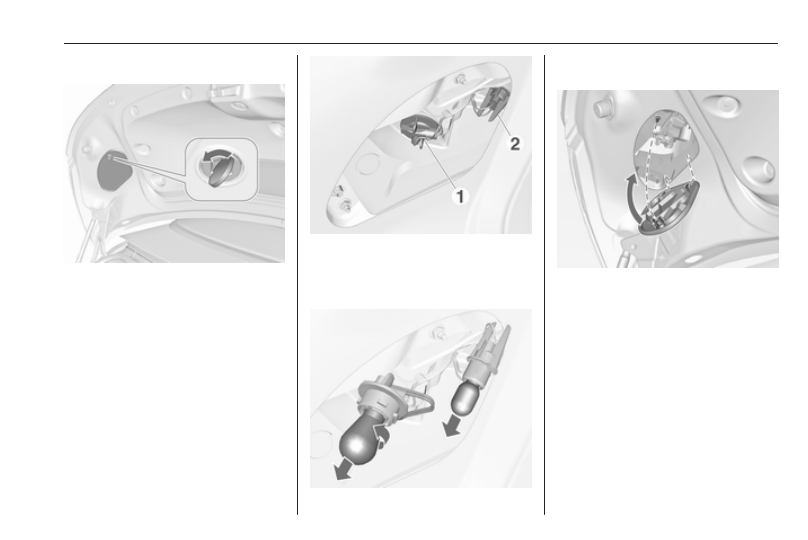

Front turn signal lights

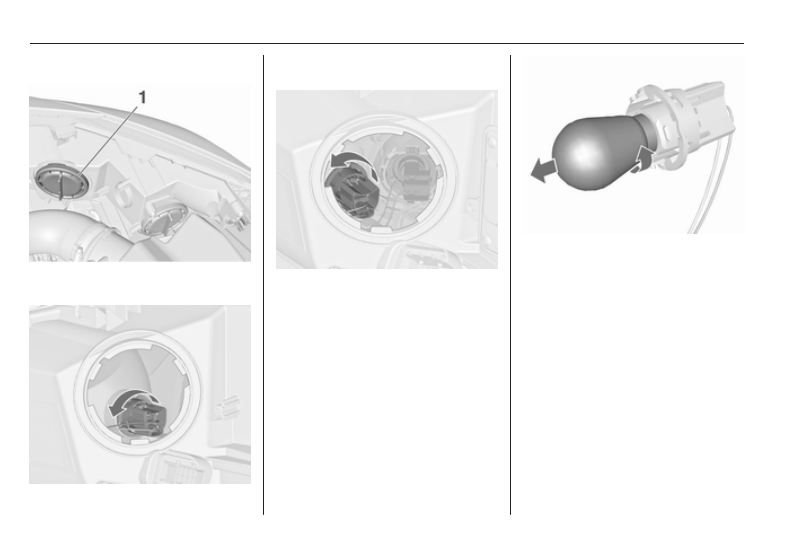

1. Rotate cap (1) anticlockwise and

remove it.

2. The illustration shows version

with halogen headlights.

The illustration shows version

with adaptive forward lighting

headlights.
Rotate bulb socket anticlockwise

to disengage and withdraw from

the reflector.

3. Remove the bulb from the socket

by turning anticlockwise.

4. Replace and insert new bulb into

socket by turning clockwise.

5. Insert the bulb socket into the

reflector and turn clockwise.

6. Fit the cap and rotate clockwise.

Vehicle care

201

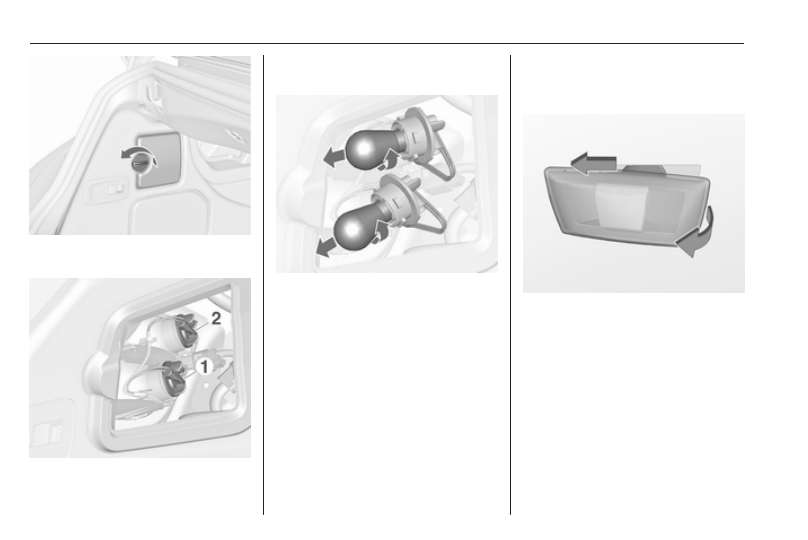

Tail lights

1. Open and remove the cover on

the inside of the boot lid by loosen

the screw with a coin.

2. Brake lights, tail lights and fog

light are designed as Light

Emitting Diodes (LEDs) and

cannot be changed.

Remove bulb holder by turning

anticlockwise.
Turn signal lights (1)
Reversing lights (2)

3. Remove and replace bulb

4. Insert bulb holder into tail light

assembly and turn clockwise.

5. Close the cover by inserting the

fastener clips first. Lock the cover

by turning the screw clockwise

with a coin.

Additional lights in the boot lid

frame

1. Open the boot lid.

202

Vehicle care

2. Release cover in side trim panel

and remove.

3. Remove bulb holder by turning

anticlockwise.

Turn signal lights (1)
Tail lights (2)

4. Remove and replace bulb.
5. Insert the bulb holder into housing

and turn clockwise.

6. Attach the side trim cover.

Side turn signal lights

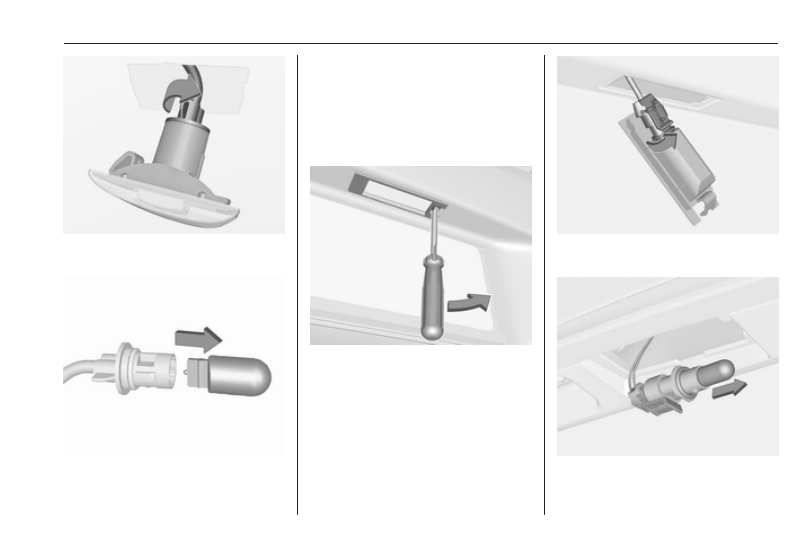

To replace bulb, remove lamp

housing:

1. Slide lamp to its left side and

remove with its right end.

Vehicle care

203

2. Turn bulb holder anticlockwise

and remove from housing.

3. Pull bulb from bulb holder and

replace it.

4. Insert bulb holder and turn

clockwise.

5. Insert left end of the lamp, slide to

the left and insert right end.

Number plate light

1. Insert screwdriver in recess of the

cover, press to the side and

release spring.

2. Remove lamp downwards, taking

care not to pull on the cable.

3. Remove bulb holder from lamp

housing by turning anticlockwise.

4. Pull bulb from bulb holder and

replace it.

204

Vehicle care

5. Insert bulb holder into lamp

housing and turn clockwise.

6. Insert lamp into bumper and let

engage.

Interior lights

Courtesy light, reading lights

Have bulbs replaced by a workshop.

Load compartment light

Have bulbs replaced by a workshop.

Instrument panel

illumination

Have bulbs replaced by a workshop.

Electrical system

Fuses

Data on the replacement fuse must

match the data on the defective fuse.
There are three fuse boxes in the

vehicle:

● In the front left of the engine

compartment,

● In left-hand drive vehicles, in the

interior behind the storage

compartment, or, in right-hand

drive vehicles, behind the

glovebox,

● Behind a cover on the left side of

the load compartment.

Before replacing a fuse, turn off the

respective switch and the ignition.
A blown fuse can be recognized by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.
Some functions are protected by

several fuses.
Fuses may also be inserted without

existence of a function.

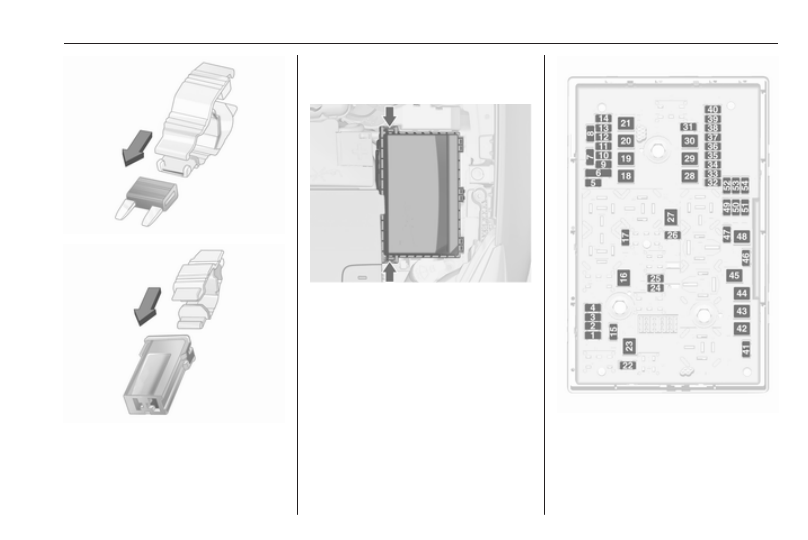

Fuse extractor

A fuse extractor may be located in the

fuse box in the engine compartment.

Vehicle care

205

Place the fuse extractor on the

various types of fuse from the top or

side, and withdraw fuse.

Engine compartment fuse

box

The fuse box is in the front left of the

engine compartment.
Disengage the cover and fold it

upwards until it stops. Remove the

cover vertically upwards.

206

Vehicle care

No. Circuit
1

Engine control module

2

Lambda sensor

3

Fuel injection, ignition system

4

Fuel injection, ignition system

5

–

6

Mirror heating

7

Fan control

8

Lambda sensor, engine cooling

9

Rear window sensor

10 Vehicle battery sensor
11 Trunk release
12 Adaptive forward lighting, auto‐

matic light control

13 ABS Valves
14 –
15 Engine control module
16 Starter
17 Transmission control module

No. Circuit
18 Heated rear window
19 Front power windows
20 Rear power windows
21 Rear electrical centre
22 Left high beam (Halogen)
23 Headlamp washer system
24 Right low beam (Xenon)
25 Left low beam (Xenon)
26 Front fog lights
27 Diesel fuel heating
28 Start stop system
29 Electric parking brake
30 ABS pump
31 –
32 Airbag
33 Adaptive forward lighting, auto‐

matic light control

34 Exhaust gas recirculation

No. Circuit
35 Power windows, rain sensor,

exterior mirror

36 Climate control
37 –
38 Vacuum pump
39 Fuel system control module
40 Windscreen washer system
41 Right high beam (Halogen)
42 Radiator fan
43 Windscreen wiper
44 –
45 Radiator fan
46 –
47 Horn
48 Radiator fan
49 Fuel pump
50 Headlamp levelling, adaptive

forward lighting

Vehicle care

207

No. Circuit
51 –
52 Auxiliary heater, diesel engine
53 Transmission control module,

Engine control module

54 Vacuum pump, instrument

panel cluster, heating ventila‐

tion, air conditioning system

After having changed defective fuses,

close the fuse box cover and press

until it engages.
If the fuse box cover is not closed

correctly, malfunctions may occur.

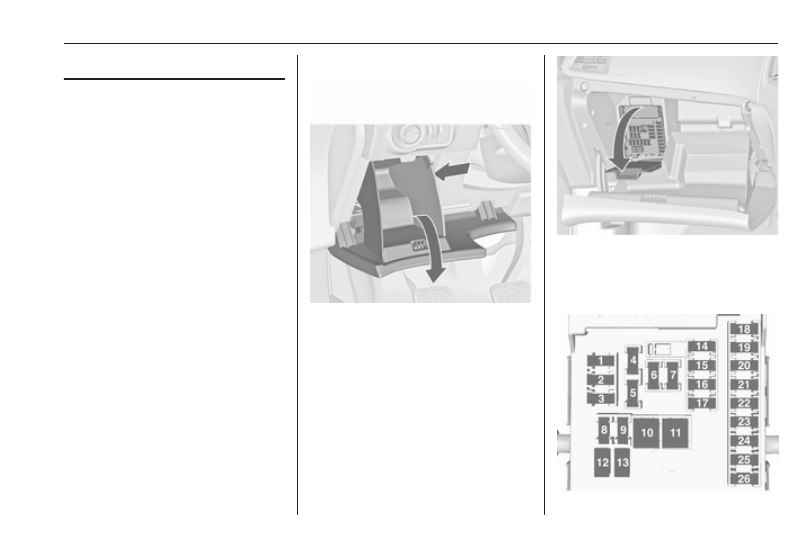

Instrument panel fuse box

In left-hand drive vehicles, the fuse

box is behind the storage

compartment in the instrument panel.
Open the compartment and push it to

the left to unlock. Fold the

compartment down and remove it.

In right-hand drive vehicles, the fuse

box is located behind a cover in the

glovebox. Open the glovebox, then

open the cover and fold it down.

208

Vehicle care

No. Circuit
1

Displays

2

Body control unit, exterior lights

3

Body control unit, exterior lights

4

Infotainment system

5

Infotainment system, instru‐

ment

6

Power outlet, cigarette lighter

7

Power outlet

8

Body control module, left low

beam

9

Body control module, right low

beam

10 Body control module, door locks
11 Interior fan
12 Driver power seat
13 Passenger power seat
14 Diagnostic connector
15 Airbag
16 Boot lid relay

No. Circuit
17 Air conditioning system
18 Service diagnose
19 Body control module, brake

lights, tail lights, interior lights

20 -
21 Instrument panel
22 Ignition system
23 Body control module
24 Body control module
25 –
26 Trunk power outlet accessory

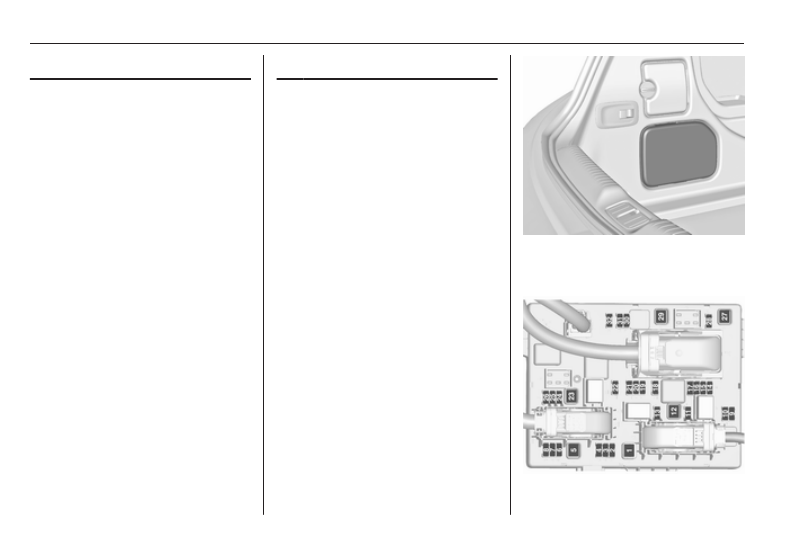

Load compartment fuse box

The fuse box is on the left side of the

load compartment behind a cover.

Remove the cover.

Fuse assignments

Vehicle care

209

No. Circuit
1

Soft top control module, power

rail right

2

–

3

Parking assist

4

Selective catalytic reduction

system

5

–

6

–

7

Power seat

8

Soft top control module

9

Selective catalytic reduction

system

10 Selective catalytic reduction

system

11 Trailer module, tyre pressure

monitor and rear view camera

12 Soft top control module, tail

lights

13 –

No. Circuit
14 Rear seat electrical folding
15 –
16 Seat ventilation, rear view

camera, soft top control module

17 –
18 –
19 Steering wheel heating
20 –
21 Seat heating
22 –
23 Soft top control module, power

rail left

24 Selective catalytic reduction

system

25 –
26 Jumper fuse for non logistic

mode

27 Passive entry
28 –

No. Circuit
29 Hydraulic unit
30 –
31 –
32 Flex Ride

210

Vehicle care

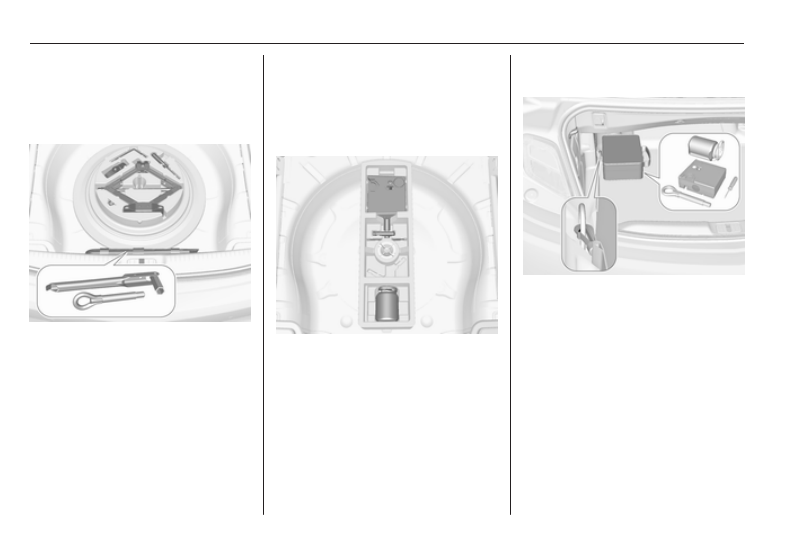

Vehicle tools

Tools

Vehicles with spare wheel

Open the load floor cover. The jack,

the tools and a strap for securing a

damaged wheel are in the tool box

below the spare wheel in the load

compartment.
The wheel wrench and the towing eye

are in the tool bag located in the spare

wheel well near the tool box. The tool

bag is fixated with a tether to the stow

rod. Remove tool box and tool bag

tether from the stow rod to access the

tools in the bag.
Spare wheel 3 223.

Vehicles with tyre repair kit

Some tools and the towing eye are

located together with the tyre repair

kit in a tool box in the load

compartment below the floor cover.

Vehicles with tyre repair kit and

flat load compartment floor

Some tools and the towing eye are

located together with the tyre repair

kit in a bag, which is fixed at the front

left lashing eye in the load

compartment.

Vehicle care

211

Wheels and tyres

Wheels

On vehicles with Diesel engines no

steel rims and only special, for this

vehicle approved alloy wheels are

permitted.

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
All tyre sizes are permitted as winter

tyres 3 247.

Use tyre size 225/55 R17 only as

winter tyres.
On vehicles with Diesel engines, no

steel rims and only special, vehicle-

approved alloy wheels are permitted.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view.

Tyre designations

E.g. 235/55 R 17 99 V
235 : Tyre width, mm

55 : Cross-section ratio (tyre height

to tyre width), %

R

: Belt type: Radial

RF : Type: RunFlat

17 : Wheel diameter, inches

99 : Load index e.g. 99 is

equivalent to 775 kg

V

: Speed code letter

Speed code letter:
Q : up to 160 km/h

S : up to 180 km/h

T : up to 190 km/h

H : up to 210 km/h

V : up to 240 km/h

W : up to 270 km/h

Choose a tyre appropriate for the

maximum speed of your vehicle.
The maximum speed is achievable at

kerb weight with driver (75 kg) plus

125 kg payload. Optional equipment

could reduce the maximum speed of

the vehicle.
Performance 3 242.

Directional tyres

Fit directional tyres such that they roll

in the direction of travel. The rolling

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure monitoring

system

The tyre pressure monitoring system

checks the pressure of all four tyres

once a minute when vehicle speed

exceeds a certain limit.

212

Vehicle care

Caution

Tyre pressure monitoring system

warns only about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

All wheels must be equipped with

pressure sensors and the tyres must

have the prescribed pressure.

Note

In countries where the tyre pressure

monitoring system is legally

required, the use of wheels without

pressure sensors will invalidate the

vehicle type approval.

The current tyre pressures can be

shown in the Vehicle Information

Menu in the Driver Information

Centre.
The menu can be selected by the

buttons on the turn signal lever.

Press MENU to select the Vehicle

Information MenuX.

Turn the adjuster wheel to select the

tyre pressure monitoring system.

System status and pressure warnings

are displayed by a message

indicating the corresponding tyre in

the Driver Information Centre.
The system considers the tyre

temperature for the warnings.
Temperature dependency 3 215.

A detected low tyre pressure

condition is indicated by control

indicator w 3 94.
If w illuminates, stop as soon as

possible and inflate the tyres as

recommended 3 247.

Vehicle care

213

If w flashes for 60-90 seconds then

illuminates continuously, there is a

fault in the system. Consult a

workshop.
After inflating, driving may be

required to update the tyre pressure

values in the Driver Information

Centre. During this time w may

illuminate.
If w illuminates at lower temperatures

and extinguishes after driving, this

could be an indicator for approaching

a low tyre pressure condition. Check

tyre pressure.
Vehicle messages 3 102.
If the tyre pressure must be reduced

or increased, switch off ignition.
Only mount wheels with pressure

sensors, otherwise the tyre pressure

will not be displayed and w

illuminates continuously.
A spare wheel or temporary spare

wheel is not equipped with pressure

sensors. The tyre pressure

monitoring system is not operational

for these tyres. Control indicator w

illuminates. For the further three

wheels the system remains

operational.
The use of commercially-available

liquid tyre repair kits can impair the

function of the system. Factory-

approved repair kits can be used.
Operating electronic devices or being

close to facilities using similar wave

frequencies could disrupt the tyre

pressure monitoring system.
Each time the tyres are replaced, tyre

pressure sensors must be

dismounted and serviced. For the

screwed sensor: replace valve core

and sealing ring. For clipped sensor:

replace complete valve stem.

Vehicle loading status

Adjust tyre pressure to load condition

according to the tyre information label

or tyre pressure chart 3 247, and

select the appropriate setting in the

Tyre load menu in the Driver

Information Centre 3 96. This setting

is the reference for the tyre pressure

warnings.

The menu Tyre Load only appears if

the vehicle is at a standstill and the

parking brake is applied. On vehicles

with automatic transmission, the

selector lever must be in P.

Select:

● Light for comfort pressure up to

3 people

● Eco for Eco pressure up to

3 people

● Max for full loading
