Vehicle care

1. Switch off the ignition and

headlight switch.

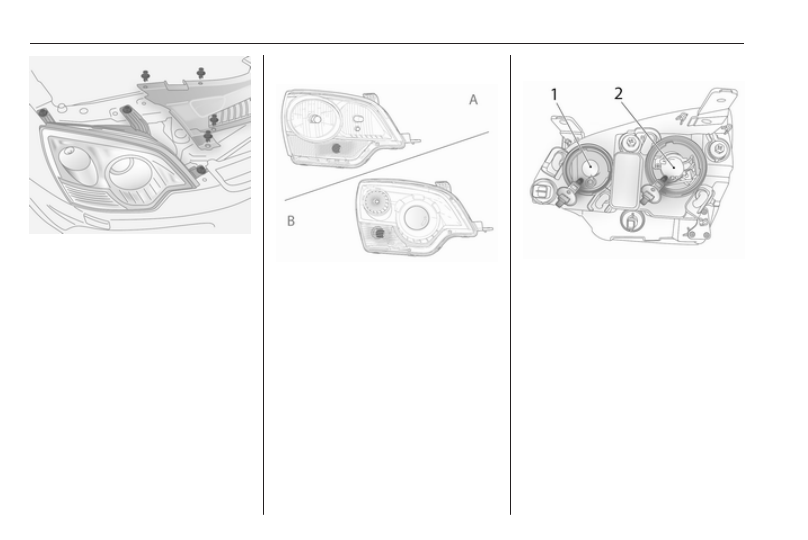

2. Open the bonnet, release the

11 retainers and remove the

radiator cover.

3. Remove 3 bolts and withdraw

headlamp.

4. Depress harness connector tags

and disconnect headlamp wiring.

5. Remove the headlamp assembly.

Headlamp assembly installation is the

reverse of removal - ensure locating

dowel aligns with its socket. Do not

overtighten bolts or retainers.

Halogen headlights

Halogen headlights A can be

identified from Xenon headlights B by

the different lens layout.

Low and high beam

Halogen headlights have separate

systems for high beam 1 (inner bulbs)

and low beam 2 (outer bulbs).

1. Remove headlamp assembly

3

 165.

2. Remove headlamp cap.
3. Release bulb retaining spring and

remove bulb from reflector

housing.

4. When inserting a new bulb,

ensure the lugs engage correctly

with the recesses on the reflector.

Vehicle care

167

5. Engage bulb retaining spring and

replace headlamp cap.

6. Reinstall headlamp assembly.

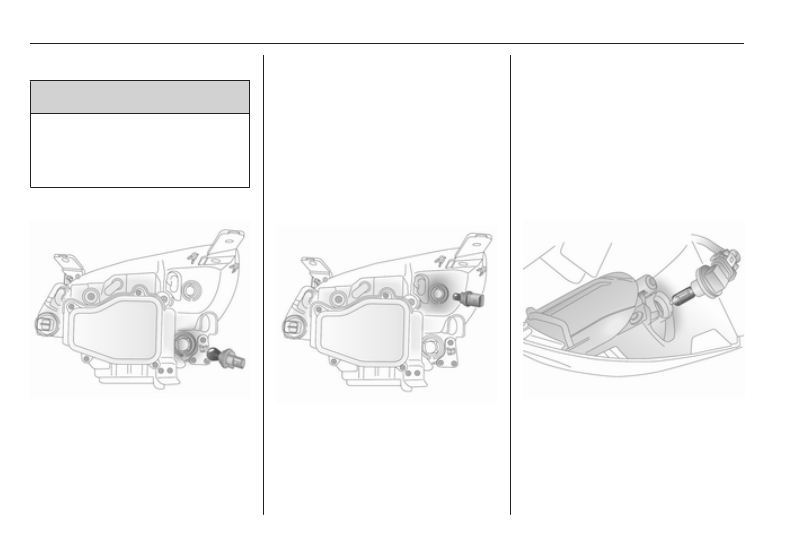

Front turn signal

1. Remove headlamp assembly

3

 165.

2. Rotate bulb holder anticlockwise

and withdraw bulb holder from

lamp assembly.

3. Press and rotate bulb

anticlockwise to remove it from

bulb holder.

4. Insert new bulb into bulb holder by

pressing and rotating it clockwise.

5. Reinstall bulb holder in lamp

assembly by rotating it clockwise.

6. Reinstall headlamp assembly.

Sidelights

1. Remove headlamp assembly

3

 165.

2. Remove headlamp cap and

withdraw bulb holder (located

next to high beam bulb) from lamp

assembly.

3. Remove bulb from bulb holder by

pulling it straight out.

4. Insert new bulb, using a lint-free

cloth to hold bulb.

5. Reinstall bulb holder in lamp

assembly and replace headlamp

cap.

6. Reinstall headlamp assembly.

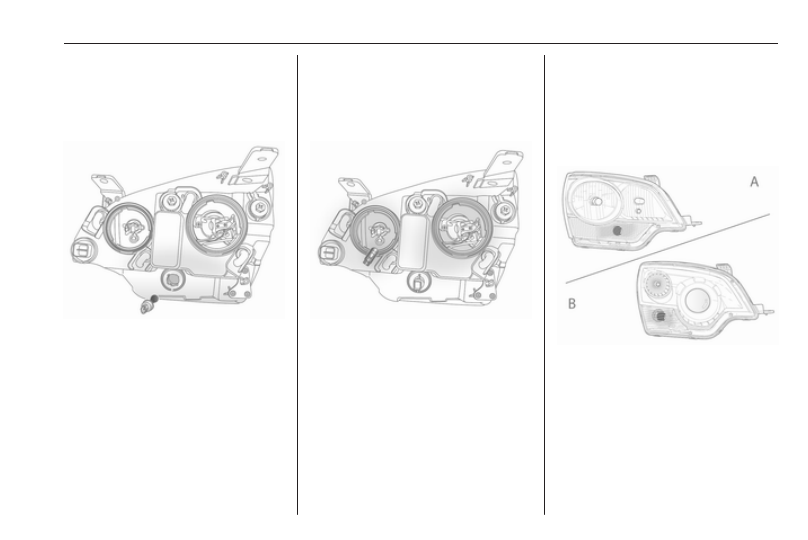

Xenon headlights

Xenon headlights B can be identified

from Halogen headlights A by the

different lens layout.

168

Vehicle care

Low and high beam

9 Danger

Xenon headlights work under

extremely high electrical voltage.

Do not touch. Have bulbs replaced

by a workshop.

Front turn signal

1. Remove headlamp assembly

3

 165.

2. Rotate bulb holder anticlockwise

and withdraw bulb holder from

lamp assembly.

3. Press and rotate bulb

anticlockwise to remove it from

bulb holder.

4. Insert new bulb into bulb holder by

pressing and rotating it clockwise.

5. Reinstall bulb holder in lamp

assembly by rotating it clockwise.

6. Reinstall headlamp assembly.

Sidelights

1. Remove headlamp assembly

3

 165.

2. Rotate bulb holder anticlockwise

and withdraw bulb holder from

lamp assembly.

3. Remove bulb from bulb holder by

pulling it straight out.

4. Insert new bulb, using a lint-free

cloth to hold bulb.

5. Reinstall bulb holder in lamp

assembly by rotating it clockwise.

6. Reinstall headlamp assembly.

Fog lights

1. Remove 2 screws from panel on

underside of vehicle below front

fog lights and remove panel.

2. Disconnect harness connector

from bulb holder and rotate bulb

holder anticlockwise.

Vehicle care

169

3. Remove bulb holder from lamp

assembly, rotate bulb

anticlockwise and remove from

bulb holder.

4. Insert new bulb into bulb holder

and rotate it clockwise.

5. Reinstall bulb holder in lamp

assembly and reconnect harness

connector.

6. Reinstall panel to underside of

vehicle using 2 screws removed

earlier.

Tail lights

Rear brake, tail, turn signal,

reverse and fog tail light

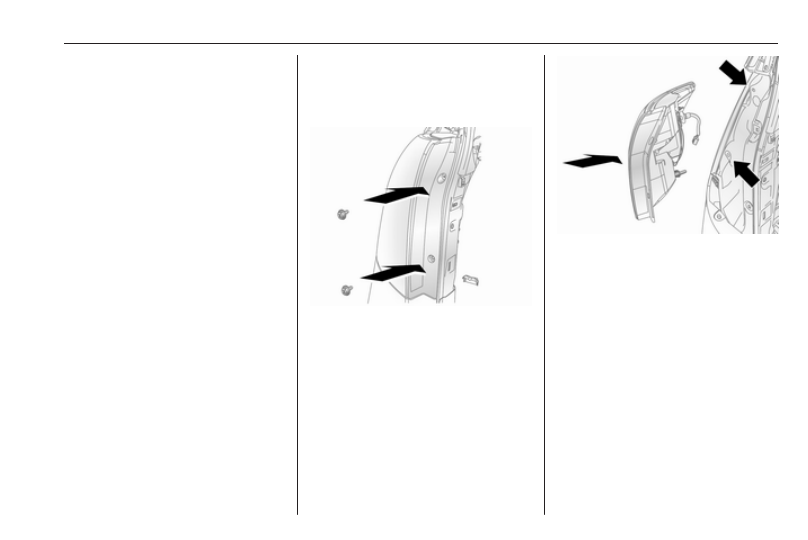

1. Open the tailgate and remove

2 screws and lamp assembly.

2. Remove bulb holder by rotating it

anticlockwise.

3. Remove bulb from bulb holder by

pressing the bulb in and rotating it

anticlockwise.

4. Insert new bulb into bulb holder.
5. Reinstall bulb holder into lamp

assembly. Rotate bulb holder

clockwise and ensure it is secure.

6. Replace lamp assembly by

guiding lugs on lamp assembly

into their corresponding

apertures.

7. Replace 2 screws removed earlier

and close the tailgate.

170

Vehicle care

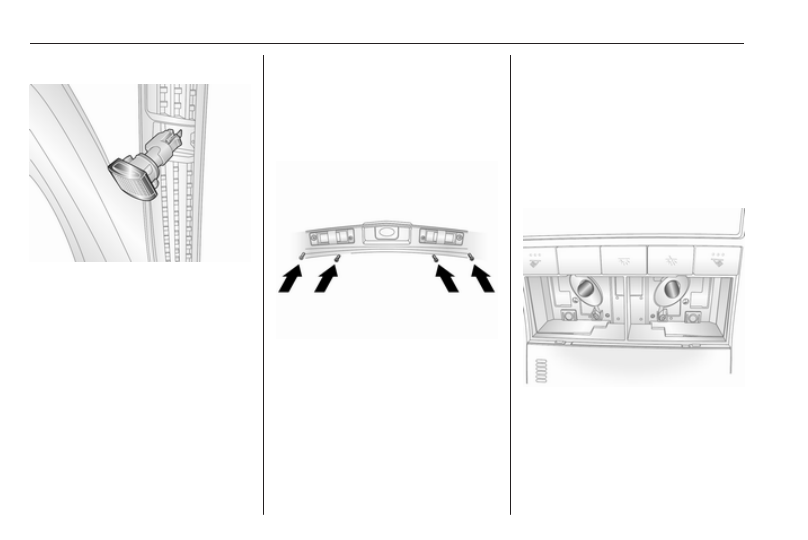

Side turn signal lights

1. Using a suitable screwdriver, pry

lamp assembly away from wing.

2. Rotate bulb holder anticlockwise.
3. Remove bulb from lamp assembly

by pulling bulb straight out of bulb

holder.

4. Insert new bulb into bulb holder by

pressing it in and rotating the bulb

holder clockwise.

5. Push lamp assembly back into

aperture.

Centre high-mounted brake

light

Have bulbs replaced by a workshop.

Number plate light

1. Remove 4 screws (arrowed) and

remove lamp covers.

2. Remove bulb holder from lamp

assembly by rotating it

anticlockwise.

3. Pull bulb straight out of bulb

holder.

4. Insert new bulb.

5. Reinstall bulb holder into lamp

assembly, rotate bulb holder

clockwise and ensure it is secure.

6. Replace lamp covers using the

4 screws removed earlier.

Interior lights

Front reading lights

1. Using a suitable screwdriver, pry

lamp lens away from roof console.

2. Remove bulb.
3. Insert new bulb.
4. Reinstall lamp lens in roof

console.

Vehicle care

171

Rear reading lights

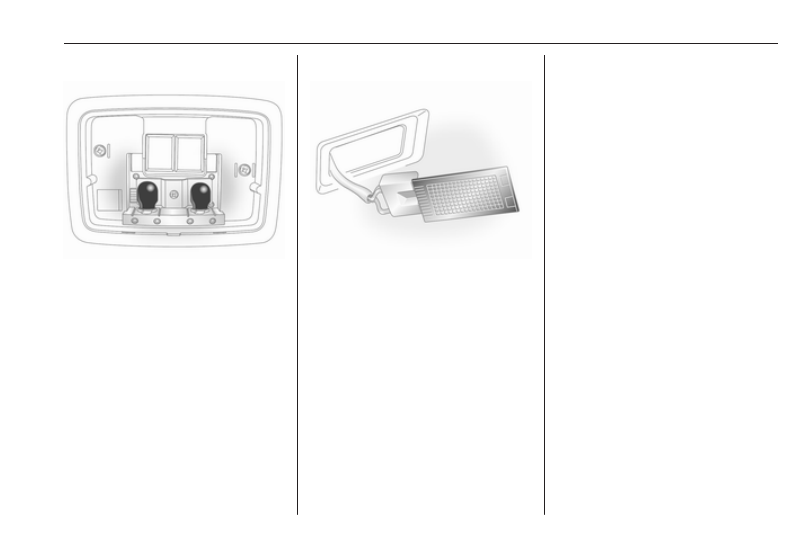

1. Using a suitable screwdriver, pry

lamp lens away from roof console.

2. Remove bulb.
3. Insert new bulb.
4. Reinstall lamp lens in roof

console.

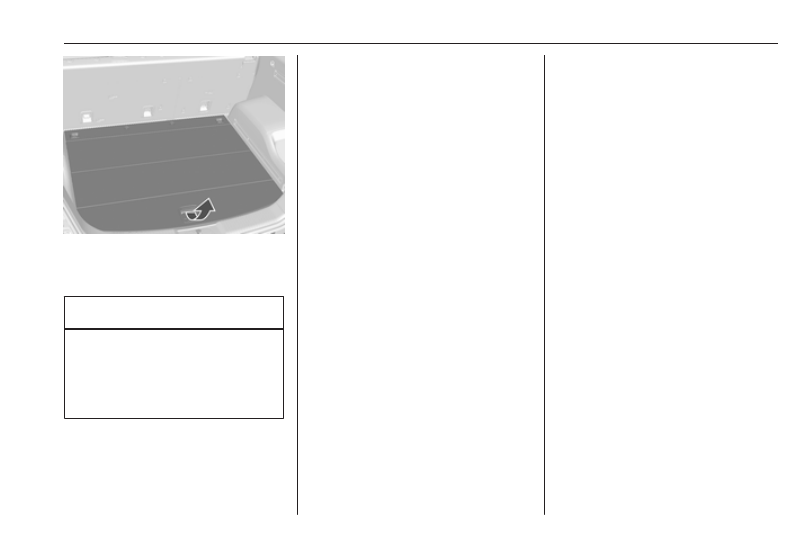

Load compartment light

1. Using a suitable screwdriver,

remove lens from lamp assembly.

2. Remove bulb.
3. Insert new bulb.
4. Reinstall lens to lamp assembly.

Glovebox light

Have bulbs replaced by a workshop.

Instrument panel

illumination

Have bulbs replaced by a workshop.

Electrical system

Fuses

Data on the replacement fuse must

match the data on the defective fuse.
There are two fuse boxes in the

vehicle:

● in the engine compartment next

to the coolant reservoir,

● in the instrument panel, on the

left-hand side of the front

passenger seat foot well, or, in

right-hand drive vehicles, on the

left-hand side of the driver's seat

foot well.

Before replacing a fuse, turn off the

respective switch and the ignition.
A blown fuse can be recognized by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.
Some functions are protected by

several fuses. Fuses may also be

inserted without existence of a

function.

172

Vehicle care

Note

Not all fuse box descriptions in this

manual may apply to your vehicle.
When inspecting the fuse box, refer

to the fuse box label.

It is advisable to carry a full set of

spare fuses. Spare fuses can be

stored in the engine compartment

fuse box.

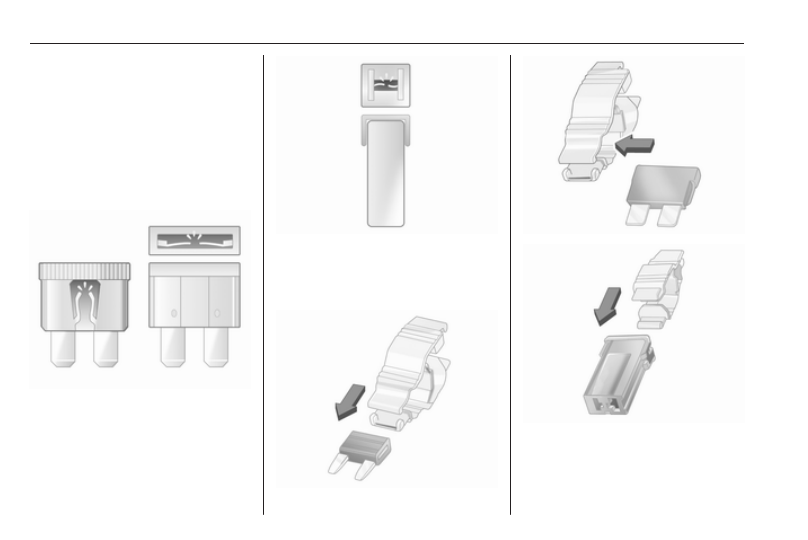

Fuse extractor

A fuse extractor may be located in the

engine compartment fuse box.

Place the fuse extractor on the

various types of fuse from the top or

side, and withdraw fuse.

Vehicle care

173

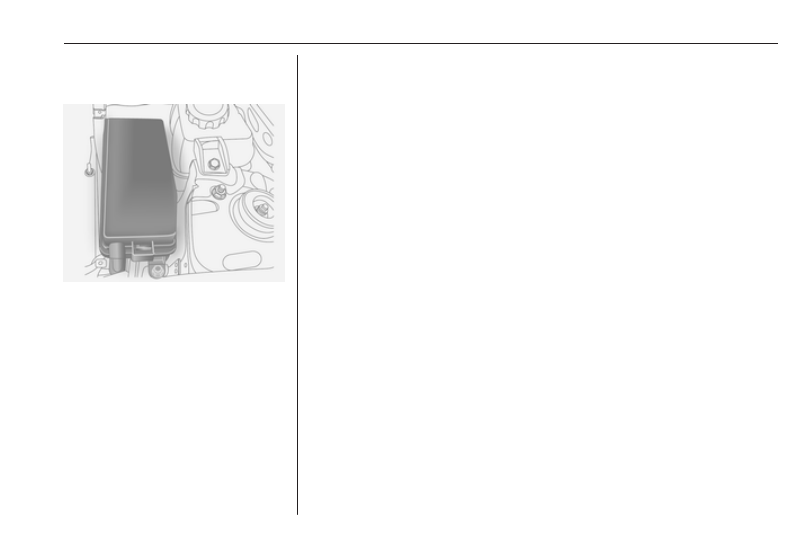

Engine compartment fuse

box

The fuse box is located next to the

coolant reservoir in the engine

compartment.
To open, disengage cover and tilt

upwards.

174

Vehicle care

Vehicle care

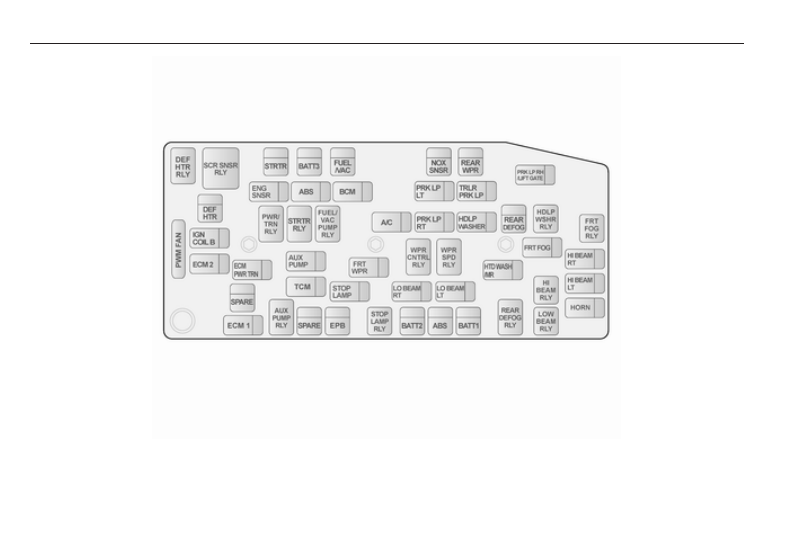

175

Fuse

Circuit

ABS

Anti-lock Brake

System

A/C

Climate control,

air conditioning

system

AUX PUMP

Auxiliary pump

BATT1

Instrument panel

fuse box

BATT2

Instrument panel

fuse box

BATT3

Instrument panel

fuse box

BCM

Body Control

Module

DEF HTR

Diesel Exhaust

Fluid Heater

ECM1

Engine Control

Module

ECM2

Engine Control

Module

Fuse

Circuit

ECM PWR TRN

Engine Control

Module, Power‐

train

ENG SNSR

Engine sensors

EPB

Electrical

parking brake

FRT FOG

Front fog lights

FRT WPR

Front wiper

FUEL/VAC

Fuel pump,

vacuum pump

HDLP WASHER Headlight

washer

HI BEAM LT

High beam (left-

hand)

HI BEAM RT

High beam

(right-hand)

HORN

Horn

HTD WASH/MIR Heated washer

fluid, heated

exterior mirrors

IGN COIL B

Ignition coil

Fuse

Circuit

LO BEAM LT

Low beam (left-

hand)

LO BEAM RT

Low beam (right-

hand)

NOX SNSR

NOX Sensor

PRK LP LT

Parking light

(left-hand)

PRK LP RT/LIFT

GATE

Parking light

(right-hand), tail‐

gate

PWM FAN

Pulse width

modulation fan

REAR DEFOG

Heated rear

window

REAR WPR

Rear wiper

SPARE

–

STOP LAMP

Brake lights

STRTR

Starter

176

Vehicle care

Fuse

Circuit

TCM

Transmission

Control Module

TRLR PRL LP

Trailer parking

lights

After changing of defective fuses

close the fuse box cover and press

until it engages.
If the fuse box cover is not closed

correctly, malfunctions may occur.

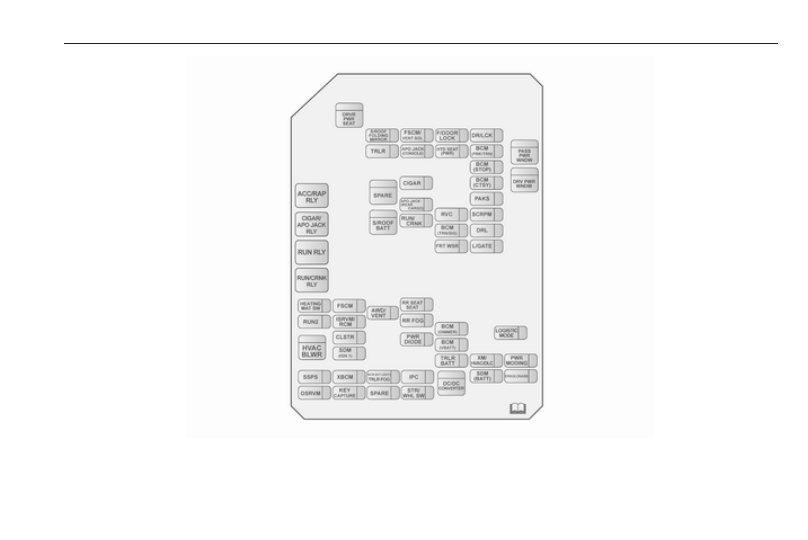

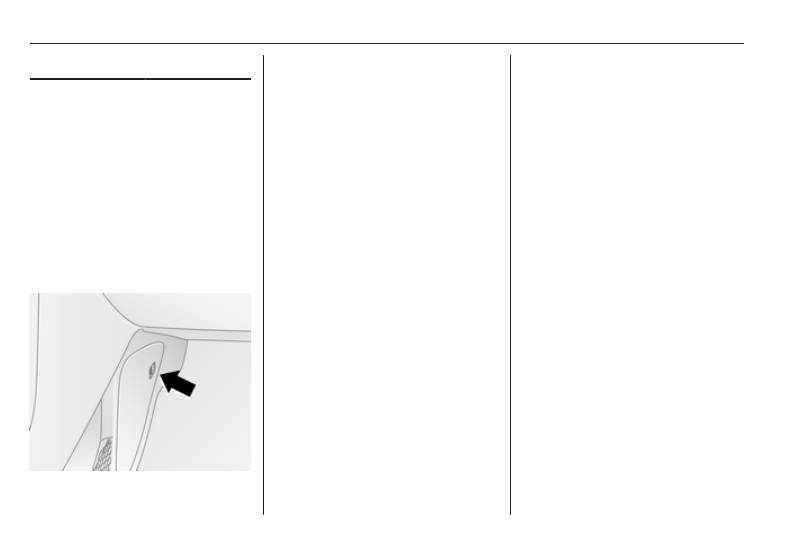

Instrument panel fuse box

The fuse box is located on the left-

hand side of the front passenger seat

foot well, or, in right-hand drive

vehicles, on the left-hand side of the

driver's seat foot well.
Release latch to open cover.

Vehicle care

177

178

Vehicle care

Fuse

Circuit

APO JACK

(CONSOLE)

Power outlet

(centre

console)

APO JACK (REAR

CARGO)

Power outlet

(load compart‐

ment)

AUDIO/KEY

CAPTURE

Audio, key

capture

AWD/VENT

All-wheel drive,

ventilation

BCM (CTSY)

Courtesy lights

BCM (DIMMER)

Instrument illu‐

mination

BCM (INT LIGHT

TRLR FOG)

Interior lights,

trailer fog light

BCM (PRK/TRN)

Parking lights,

turn signals

BCM (STOP)

Brake lights

BCM (TRN SIG)

Turn signals

BCM (VBATT)

Battery voltage

Fuse

Circuit

CLSTR

Instrument

cluster

DC/DC

CONVERTER

DC, DC

converter

DRL

Daytime

running lights

DR/LCK

Driver door lock

DRVR PWR SEAT Driver power

seat

DRV/PWR WNDW Driver power

window

ERAGLONASS

Emergency

road assistance

Glonass

F/DOOR LOCK

Fuel filler flap

FRT WSR

Front washer

FSCM

Fuel system

FSCM/VENT SOL Fuel system,

vent solenoid

HEATING MAT

SW

Heating mat

switch

Fuse

Circuit

HTD SEAT PWR

Seat heating

HVAC BLWR

Climate control,

air conditioning

fan

IPC

Instrument

panel cluster

ISRVM/RCM

Interior mirror,

remote

compass

module

L/GATE

Tailgate

LOGISTIC MODE Logistic mode
OSRVM

Exterior mirrors

PAKS

Passive active

keyless start

PASS PWR

WNDW

Passenger

power window

PWR DIODE

Power diode

PWR MODING

Power moding

RR FOG

Heated rear

window

Vehicle care

179

Fuse

Circuit

RR HEAT SEAT

Rear seat

heating

RUN 2

Power battery

key on run

RUN/CRNK

Run crank

RVC

Rear view

camera

RVS/HVAC/DLC

Exterior

mirrors, climate

control, data

link connection

SCRPM

Selective cata‐

lytic reduction

power module

SDM (BATT)

Safety Diag‐

nosis Module

(Battery)

SDM (IGN 1)

Safety Diag‐

nosis Module

(Ignition)

SPARE

-

Fuse

Circuit

S/ROOF/

FOLDING

MIRROR

Sunroof, folding

mirror

S/ROOF BATT

Sunroof battery

SSPS

Power steering

STR/WHL SW

Steering wheel

TRLR

Trailer

TRLR BATT

Trailer battery

XBCM

Export Body

Control Module

After changing of defective fuses

close the fuse box cover and press

until it engages.
If the fuse box cover is not closed

correctly, malfunctions may occur.

Vehicle tools

Tools

Vehicles with spare wheel

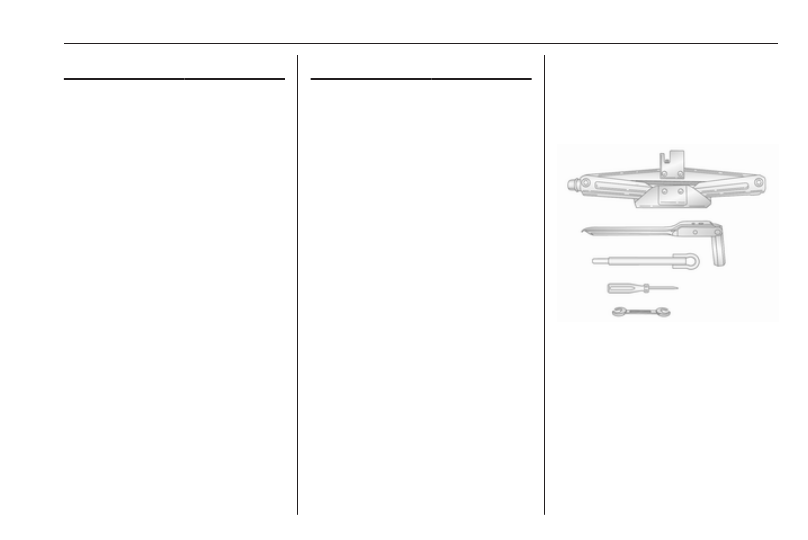

In vehicles with a spare wheel, a jack

and vehicle tools kit are available.
The jack and vehicle tools have been

specially developed for your vehicle

and must only be used on that

vehicle. Only use jack for changing

wheels.
The jack and vehicle tools are in a

storage compartment below the floor

cover in the load compartment.

180

Vehicle care

To remove the jack and vehicle tools,

open the tailgate.

Push both levers on the floor cover

towards the handle and pull up the

cover by the handle.

Where present, hang the hook to the

upper part of the tailgate opening.

Remove wing bolt from the jack by

rotating it anticlockwise and remove

the jack and wheel wrench bag.

Remove straps holding the bag

containing the wheel wrench.

Remove wheel wrench from the bag.
Wheel changing 3 190.
Spare wheel 3 193.

Vehicles with tyre repair kit

In vehicles with a tyre repair kit, there

may not be a jack and vehicle tool kit.
The tyre repair kit is in a storage

compartment below the floor cover in

the load compartment.

Vehicle care

181

To remove the tyre repair kit, open the

tailgate and pull the floor cover handle

upwards 3 68.

Caution

Do not allow objects to protrude

above the top of the rear floor

storage compartment, to avoid

damage to the storage area and

the load compartment floor.

Tyre repair kit 3 187.

Wheels and tyres

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view.
If winter tyres are installed that have

not been approved for your vehicle,

Electronic Stability Control (ESC)

system performance may be affected

3

 145. Seek the assistance of a

workshop regarding availability of

approved winter tyres.

If winter tyres are in use, the

temporary spare wheel may still be

fitted with a summer tyre. Vehicle

driveability could be affected,

especially on slippery road surfaces.

Spare wheel 3 193.

Tyre designations

E.g. 235/65 R 17 104 H
235 : Tyre width, in mm

65 : Cross-section ratio (tyre height

to tyre width), %

R

: Belt type: Radial

RF : Type: RunFlat

17 : Wheel diameter, in inches

104 : Load index e.g. 91 is

equivalent to 618 kg

H

: Speed code letter

Speed code letter:
Q : up to 160 km/h

S : up to 180 km/h

T : up to 190 km/h

H : up to 210 km/h

V : up to 240 km/h

W : up to 270 km/h
Choose a tyre appropriate for the

maximum speed of your vehicle.
