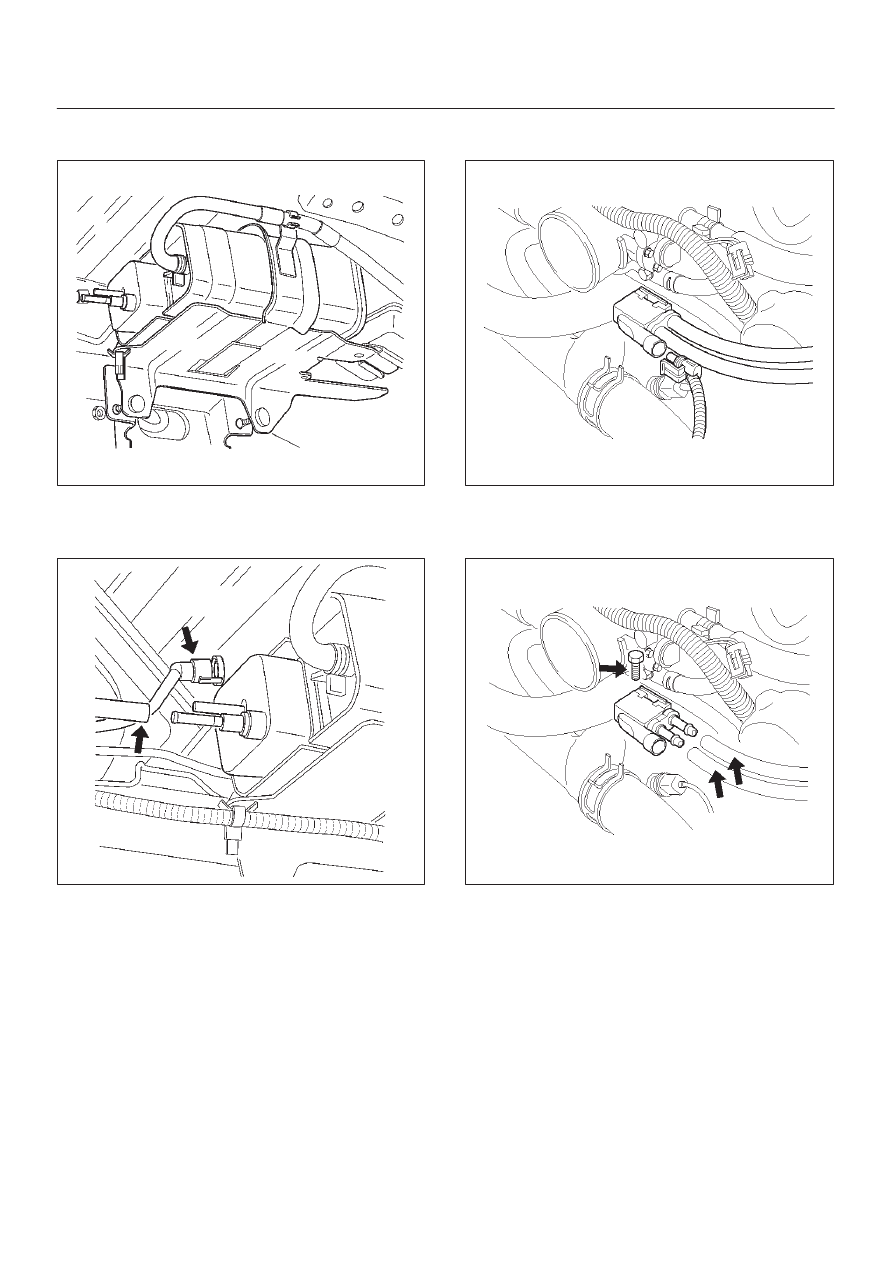

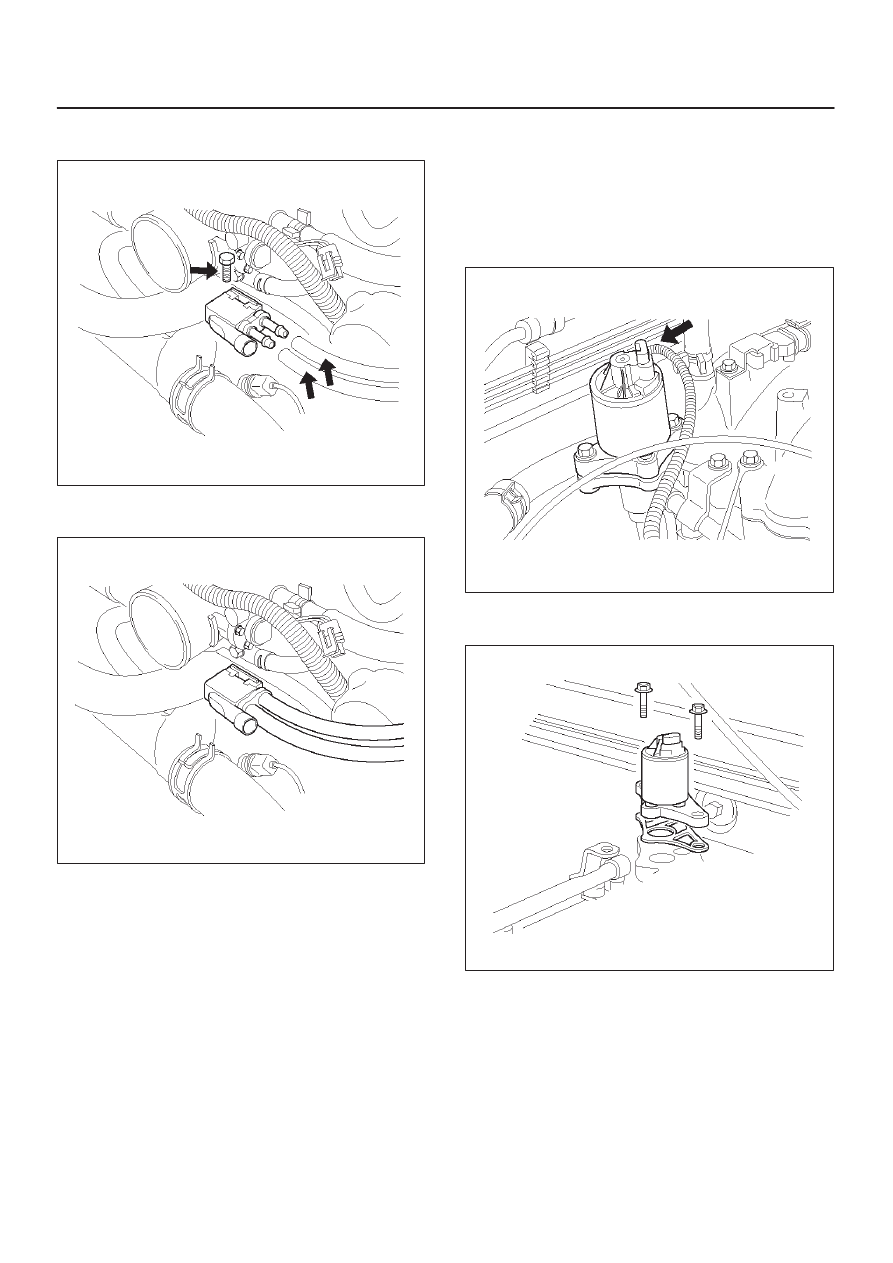

6E2–310 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS 2. Install the retaining bolts the EVAP canister to the mounting bracket on the cross member. 014RW131 3. Connect the fuel vapor connector to the EVAP canister vent solenoid. 4. Connect the two hoses to the EVAP canister. 014RW130 5. Disconnect the negative battery cable. EVAP Canister Purge Solenoid Removal Procedure 1. Disconnect the electrical connector from the EVAP canister purge solenoid. 2. Disconnect the vacuum hoses from the EVAP canister purge solenoid. 014RW136 3. Remove the EVAP canister purge solenoid retaining bolt from the upper intake manifold. 4. Remove the EVAP canister purge solenoid. 014RW137 Installation Procedure 1. Install the EVAP canister purge solenoid on the upper intake manifold. 2. Install the EVAP canister purge solenoid retaining bolt. |
