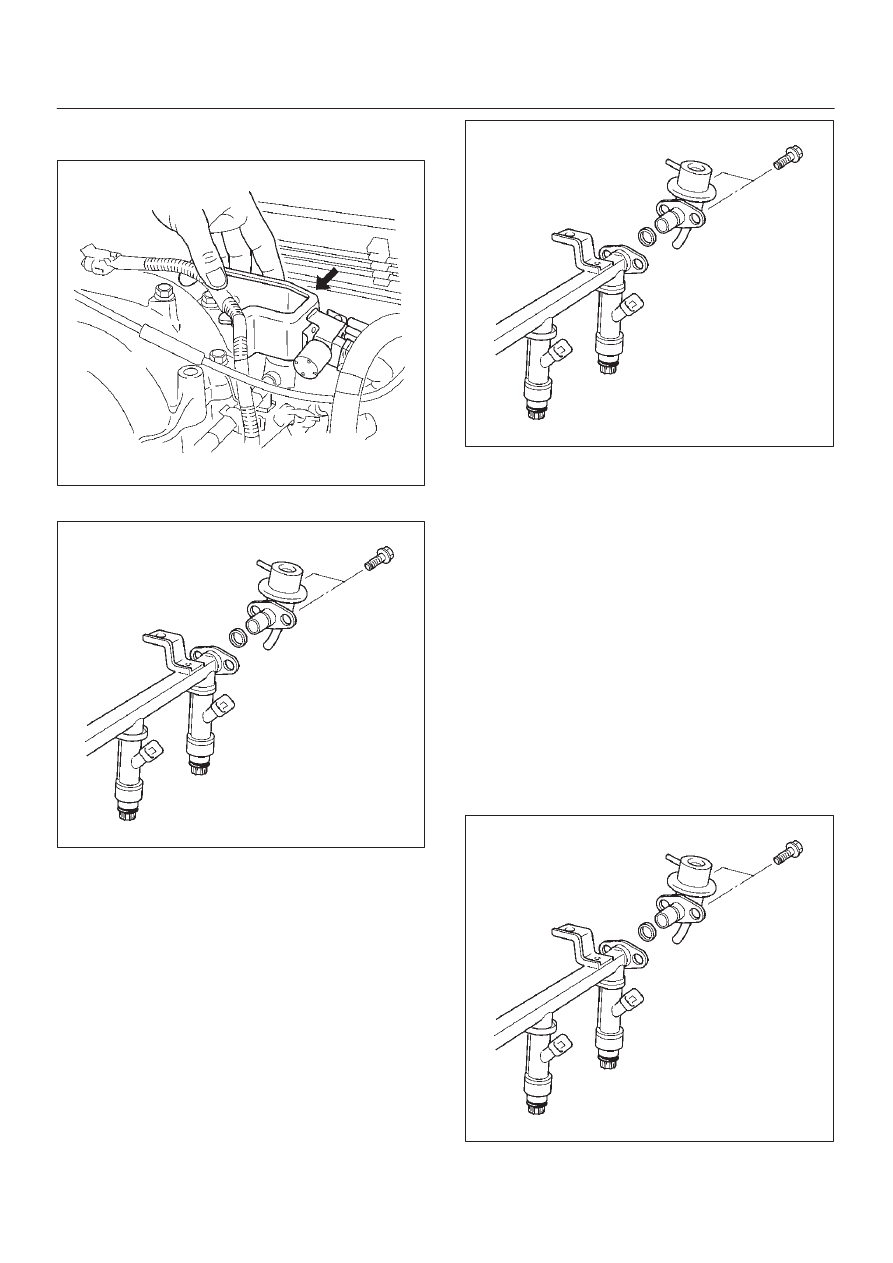

6E2–302 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS 5. Remove the two bolts from the protector that secures the common chamber. 014RW109 6. Remove the fuel pressure regulator attaching screw. F06RW016 7. Remove the fuel pressure regulator from the fuel rail. Disassembly Procedure 1. Remove the O-ring from the fuel pressure regulator. regulator. 4. Remove the O-ring from the fuel return line. D The O-ring may be left inside the fuel pressure F06RW016 Assembly Procedure 1. Install a new O-ring on the fuel return line. regulator. NOTE: Do not over-tighten the swivel nut on the fuel 3. Tighten the swivel nut. Installation Procedure 1. Install the fuel pressure regulator attaching screw. Tighten D Tighten the fuel pressure regulator attaching F06RW016 |
