Nissan Versa (2024 year). Manual in english

NOTE:

This vehicle’s occupant classification sen-
sor system locks the classification during
driving so it is important that you confirm
that the front passenger is properly clas-
sified prior to driving. Also, the occupant
classification sensor system may recalcu-
late the weight of the occupant when the
vehicle comes to a stop (i.e. stop light, stop
sign, etc.), so front passenger seat occu-
pants should continue to remain seated
as outlined above.

Troubleshooting

If you think the front passenger air bag
status light is incorrect:

1. If the light is OFF with no front passenger

and no objects on the front passenger
seat:

This may be due to the following conditions
that may be interfering with the weight
sensors:
• An object weighing over 9.1 lbs. (4 kg)

hanging on the seat or placed in the seat-
back pocket.

• A child restraint or other object pressing

against the rear of the seatback.

• A rear passenger pushing or pulling on

the back of the front passenger seat.

• Forcing the front seat or seatback

against an object on the seat or floor be-
hind it.

• An object placed under the front passen-

ger seat.

• An object placed between the seat cush-

ion and center console or between the
seat cushion and the door.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions. Re-
start the vehicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still ON after this, the vehicle
should be checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

2. If the light is ON with an adult occupying

the front passenger seat:

• Occupant is a small adult — the air bag light

is functioning as intended. The front pas-
senger air bag and front passenger supple-
mental knee air bag are suppressed.

However, if the occupant is not a small
adult, then this may be due to the following
conditions that may be interfering with the
weight sensors:
• Occupant is not sitting upright, leaning

against the seatback, and centered on
the seat cushion with his/her feet com-
fortably extended to the floor.

• A child restraint or other object pressing

against the rear of the seatback.

• A rear passenger pushing or pulling on

the back of the front passenger seat.

• Forcing the front seat or seatback

against an object on the seat or floor be-
hind it.

• An object placed under the front passen-

ger seat.

• An object placed between the seat cush-

ion and center console or between the
seat cushion and the door.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions. Re-
start the vehicle and wait 1 minute.

1-54

Safety-Seats, seat belts and supplemental restraint system

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and the vehicle should be
checked as soon as possible. It is recom-
mended that you visit a NISSAN dealer for
this service.

3. If the light is OFF with a small adult, child

or child restraint occupying the front
passenger seat.

This may be due to the following condi-
tions that may be interfering with the
weight sensors:

• Small adult or child is not sitting upright,

leaning against the seatback, and cen-
tered on the seat cushion with his/her
feet comfortably extended to the floor.

• The child restraint is not properly in-

stalled, as outlined in the “Child restraints”
section of this manual.

• An object weighing over 9.1 lbs. (4 kg)

hanging on the seat or placed in the seat-
back pocket.

• A child restraint or other object pressing

against the rear of the seatback.

• A rear passenger pushing or pulling on

the back of the front passenger seat.

• Forcing the front seat or seatback

against an object on the seat or floor be-
hind it.

• An object placed under the front passen-

ger seat.

• An object placed between the seat cush-

ion and center console.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions. Re-
start the vehicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still OFF after this, the small
adult, child or child restraint should be re-
positioned in the rear seat and the vehicle
should be checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

Other supplemental front-impact air
bag precautions

WARNING

•

Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause in-
jury if the front air bags inflate.

•

Immediately after inflation, several
front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.

•

No unauthorized changes should be
made to any components or wiring of
the supplemental air bag system. This
is to prevent accidental inflation of the
supplemental air bag or damage to
the supplemental air bag system.

•

Do not make unauthorized changes
to your vehicle's electrical system,
suspension system or front end
structure. This could affect proper
operation of the front air bag system.

Safety-Seats, seat belts and supplemental restraint system

1-55

•

Tampering with the front air bag sys-
tem may result in serious personal
injury. Tampering includes changes
to the steering wheel and the instru-
ment panel assembly by placing ma-
terial over the steering wheel pad
and above the instrument panel or
by installing additional trim material
around the air bag system.

•

Removing or modifying the front
passenger seat may affect the func-
tion of the air bag system and result
in serious personal injury.

•

Modifying or tampering with the
front passenger seat may result in
serious personal injury. For example,
do not change the front seats by
placing material on the seat cushion
or by installing additional trim mate-
rial, such as seat covers, on the seat
that are not specifically designed to
assure proper air bag operation. Ad-
ditionally, do not stow any objects
under the front passenger seat or the
seat cushion and seatback. Such ob-
jects may interfere with the proper
operation of the occupant classifica-
tion sensor (weight sensor).

•

No unauthorized changes should be
made to any components or wiring
of the seat belt system. This may af-
fect the front air bag system. Tam-
pering with the seat belt system may
result in serious personal injury.

•

It is recommended that you visit a
NISSAN dealer for work on and around
the front air bag. It is also recom-
mended that you visit a NISSAN dealer
for installation of electrical equipment.
The Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Unau-
thorized electrical test equipment and
probing devices should not be used on
the air bag system.

•

A cracked windshield should be re-
placed immediately by a qualified re-
pair facility. A cracked windshield could
affect the function of the supplemental
air bag system.

*The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the front air bag
system and guide the buyer to the appropri-
ate sections in this Owner's Manual.

Front and rear outboard
seat-mounted side-impact
supplemental air bag and
roof-mounted curtain
side-impact and rollover
supplemental air bag systems

The side air bags are located in the outside
of the seatback of the front and rear out-
board seats. The curtain air bags are lo-
cated in the side roof rails.

All of the infor-

mation, cautions and warnings in this
manual must be followed.

The side air

bags and curtain air bags are designed to
inflate in higher severity side collisions,

LRS3142

1-56

Safety-Seats, seat belts and supplemental restraint system

although they may inflate if the forces in
another type of collision are similar to
those of a higher severity impact. They are
designed to inflate on the side where the
vehicle is impacted. They may not inflate in
certain side collisions.

Curtain air bags are also designed to inflate
in certain types of rollover collisions or near
rollovers. As a result, certain vehicle move-
ments (for example, during severe off-
roading) may cause the curtain air bags to
inflate.

Vehicle damage (or lack of it) is not always
an indication of proper side air bag and
curtain air bag operation.

When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard,
followed by the release of smoke. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.

Side air bags, along with the use of seat
belts, help to cushion the impact force on
the chest and pelvic area of the front and
rear outboard occupants. Curtain air bags

help to cushion the impact force to the
head of occupants in the front and rear
outboard seating positions. They can help
save lives and reduce serious injuries. How-
ever, an inflating side air bag and curtain air
bag may cause abrasions or other injuries.
Side air bags and curtain air bags do not
provide restraint to the lower body.

The seat belts should be correctly worn
and the driver, front passenger and rear
outboard occupants seated upright as far
as practical away from the side air bag.
Rear seat passengers should be seated as
far away as practical from the door finish-
ers and side roof rails. The side air bags and
curtain air bags inflate quickly in order to
help protect the occupants. Because of
this, the force of the side air bag and curtain
air bag inflating can increase the risk of
injury if the occupant is too close to, or is
against, these air bag modules during in-
flation. The side air bag will deflate quickly
after the collision is over.

The curtain air bag will remain inflated for a
short time.

The side air bags and curtain air bags
operate only when the ignition switch is
placed in the ON position.

After placing the ignition switch in the
ON position, the supplemental air bag
warning light illuminates. The supple-
mental air bag warning light will turn off
after about 7 seconds if the system is
operational.

WARNING

•

Do not place any objects near the
seatback of the front and rear seats.
Also, do not place any objects (an
umbrella, bag, etc.) between the front
and rear door finisher and the front
and rear seat. Such objects may be-
come

dangerous

projectiles

and

cause injury if a side air bag inflate.

•

Right after inflation, several side air
bag and curtain air bag system com-
ponents will be hot. Do not touch
them; you may severely burn yourself.

•

No unauthorized changes should be
made to any components or wiring
of the side air bag and curtain air bag
systems. This is to prevent damage
to or accidental inflation of the side
air bag and curtain air bag or dam-
age to the side air bag and curtain air
bag systems.

Safety-Seats, seat belts and supplemental restraint system

1-57

•

Do not make unauthorized changes
to your vehicle's electrical system,
suspension system or side panel.
This could affect proper operation of
the side air bag and curtain air bag
systems.

•

Tampering with the side air bag sys-
tem may result in serious personal
injury. For example, do not change
the front and rear seats by placing
material near the seatbacks or by
installing additional trim material,
such as seat covers, around the side
air bag.

•

It is recommended that you visit a
NISSAN dealer for work on and
around the side air bag and curtain
air bag. It is also recommended that
you visit a NISSAN dealer for installa-
tion of electrical equipment. The SRS
wiring harnesses* should not be
modified or disconnected. Unauthor-
ized electrical test equipment and
probing devices should not be used
on the side air bag or curtain air bag
system.

* The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner's Manual.

Driver and front passenger
supplemental knee air bags

The knee air bag is located in the knee
bolster, on the driver’s and front passen-
ger’s side.

All of the information, cautions

and warnings in this manual apply and
must be followed.

The knee air bag is de-

signed to inflate in higher severity frontal
collisions, although it may inflate if the
forces in another type of collision are simi-
lar to those of a higher severity frontal im-
pact. It may not inflate in certain collisions.

LRS3343

Driver’s side

1-58

Safety-Seats, seat belts and supplemental restraint system

Vehicle damage (or lack of it) is not always an
indication of proper knee air bag operation.

When the knee air bag inflates, a fairly loud
noise may be heard, followed by release
of smoke. This smoke is not harmful and
does not indicate a fire. Care should be
taken not to inhale it, as it may cause irrita-
tion and choking. Those with a history of a
breathing condition should get fresh air
promptly.

The knee air bag helps to cushion the im-
pact force on the knees of the driver and
passenger. It can help reduce serious inju-
ries. However, an inflating knee air bag may
cause abrasions or other injuries. The knee
air bag provides restraint to the lower body.

The knee air bag inflates quickly in order to
help protect the occupants. Because of
this, the force of the knee air bag inflating
can increase the risk of injury if the occu-
pant is too close to, or is against, this air bag
module during inflation. The knee air bag
will deflate quickly after the collision is over
OR the knee air bag will remain inflated for
a short time.

The knee air bag operates only when
the ignition switch is placed in the ON
position.

WARNING

•

Do not place any objects between the
knee bolster and the driver’s or pas-
senger’s seat. Such objects may be-
come

dangerous

projectiles

and

cause injury if a knee air bag inflates.

•

Right after inflation, the knee air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.

•

No unauthorized changes should be
made to any components or wiring
of the knee air bag system. This is to
prevent damage to or accidental in-
flation of the knee air bag system.

•

Do not make unauthorized changes
to your vehicle's electrical system or
suspension system. This could affect
proper operation of the knee air bag
system.

•

Tampering with the knee air bag sys-
tem may result in serious personal
injury. For example, do not change
the driver or passenger knee bolster
or install additional trim material
around the knee air bag.

LRS3344

Front passenger’s side

Safety-Seats, seat belts and supplemental restraint system

1-59

•

It is recommended that you visit a
NISSAN dealer for work on and
around the knee air bag. It is also rec-
ommended that you visit a NISSAN
dealer for installation of electrical
equipment. The SRS wiring har-
nesses* should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the knee
air bag system.

*The SRS wiring harness or connectors are
yellow or orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the knee air
bag system and guide the buyer to the
appropriate sections in this manual.

Seat belt with pretensioner(s)
(front and rear seats)

WARNING

•

The pretensioner(s) cannot be re-
used after activation. They must be
replaced together with the retractor
and buckle as a unit.

•

If the vehicle becomes involved in a
collision but pretensioner(s) are not
activated, be sure to have the preten-
sioner system checked and, if neces-
sary, replaced. It is recommended
that you visit a NISSAN dealer for this
service.

•

No unauthorized changes should be
made to any components or wiring
of the pretensioner system. This is to
prevent damage to or accidental ac-
tivation of the pretensioner(s). Tam-
pering with the pretensioner system
may result in serious personal injury.

•

It is recommended that you visit a
NISSAN dealer for work on and
around the pretensioner system. It is
also recommended that you visit a
NISSAN dealer for installation of elec-
trical equipment. Unauthorized elec-
trical test equipment and probing
devices should not be used on the
pretensioner system.

•

If you need to dispose of the preten-
sioner(s) or scrap the vehicle, it is rec-
ommended that you visit a NISSAN
dealer for this service. Incorrect dis-
posal procedures could cause per-
sonal injury.

The pretensioner system may activate
with the supplemental air bag system in
certain types of collisions. Working with the
seat belt retractor, the pretensioner(s) help
tighten the seat belt when the vehicle be-
comes involved in certain types of colli-
sions, helping to restrain front and rear out-
board seat occupants.

The pretensioner(s) are encased within
the seat belt retractor and to the seat belt
anchor affixed to the floor of the vehicle.
These seat belts are used the same way as
conventional seat belts.

When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indi-
cate a fire. Care should be taken not to
inhale it, as it may cause irritation and
choking. Those with a history of a breath-
ing condition should get fresh air promptly.

After the pretensioner(s’) activation, load
limiters allow the seat belt to release web-
bing (if necessary) to reduce forces against
the chest.

1-60

Safety-Seats, seat belts and supplemental restraint system

The supplemental air bag warning light

is used to indicate malfunctions in the

pretensioner system. For additional infor-
mation, see “Supplemental air bag warning
light” (P. 1-61). If the operation of the supple-
mental air bag warning light indicates
there is a malfunction, have the system
checked. It is recommended that you visit
a NISSAN dealer for this service.

When selling your vehicle, we request that
you inform the buyer about the pretensioner
system and guide the buyer to the appropri-
ate sections in this Owner's Manual.

SUPPLEMENTAL AIR BAG WARNING
LABELS

Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.

WARNING

Do not use a rear-facing child restraint
on a seat protected by an air bag in
front of it. If the air bag deploys, it may
cause serious injury or death.

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag sys-
tems, pretensioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.

LRS2617

1. SRS Air Bag Warning Labels (located on

the sun visors)

LRS0100

Safety-Seats, seat belts and supplemental restraint system

1-61

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
knee air bag and pretensioner systems
need servicing:
• The supplemental air bag warning light re-

mains on after approximately 7 seconds.

• The supplemental air bag warning light

flashes intermittently.

• The supplemental air bag warning light

does not come on at all.

Under these conditions, the front air bags,
side air bags, curtain air bags, knee air bags
or pretensioner systems may not operate
properly. They must be checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bags, side air bags, curtain air bags,
knee air bags and/or pretensioner sys-
tems will not operate in an accident. To
help avoid injury to yourself or others,
have your vehicle checked as soon as
possible. It is recommended that you
visit a NISSAN dealer for this service.

Repair and replacement procedure

The front air bags, side air bags, curtain air
bags, knee air bags and pretensioner(s)
are designed to inflate on a one-time-only
basis. As a reminder, unless it is damaged,
the supplemental air bag warning light
remains illuminated after inflation has oc-
curred. These systems should be repaired
and/or replaced as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

When maintenance work is required on the
vehicle, the front air bags, side air bags,
curtain air bags, knee air bags, pretension-
er(s) and related parts should be pointed
out to the person performing the mainte-
nance. The ignition switch should always
be placed in the LOCK position when work-
ing under the hood or inside the vehicle.

WARNING

•

Once a front air bag, side air bag, cur-
tain air bag or knee air bag has in-
flated, the air bag module will not
function again and must be replaced.
Additionally, the activated pretension-
er(s) must also be replaced. The air bag
module and pretensioner(s) should be
replaced. It is recommended that you

visit a NISSAN dealer for this service.
However, the air bag module and pre-
tensioner(s) cannot be repaired.

•

The front air bag, side air bag, curtain
air bag, knee air bag systems and the
pretensioner system should be in-
spected if there is any damage to the
front end or side portion of the ve-
hicle. It is recommended that you
visit a NISSAN dealer for this service.

•

If you need to dispose of the supple-
mental air bag or pretensioner sys-
tems or scrap the vehicle, it is recom-
mended that you contact a NISSAN
dealer for this service. Incorrect dis-
posal procedures could cause per-
sonal injury.

•

If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked to verify it is still functioning
correctly. It is recommended that you
visit a NISSAN dealer for this service.
The OCS should be checked even if no
air bags deploy as a result of the im-
pact. Failure to verify proper OCS
function may result in an improper
air bag deployment resulting in in-
jury or death.

1-62

Safety-Seats, seat belts and supplemental restraint system

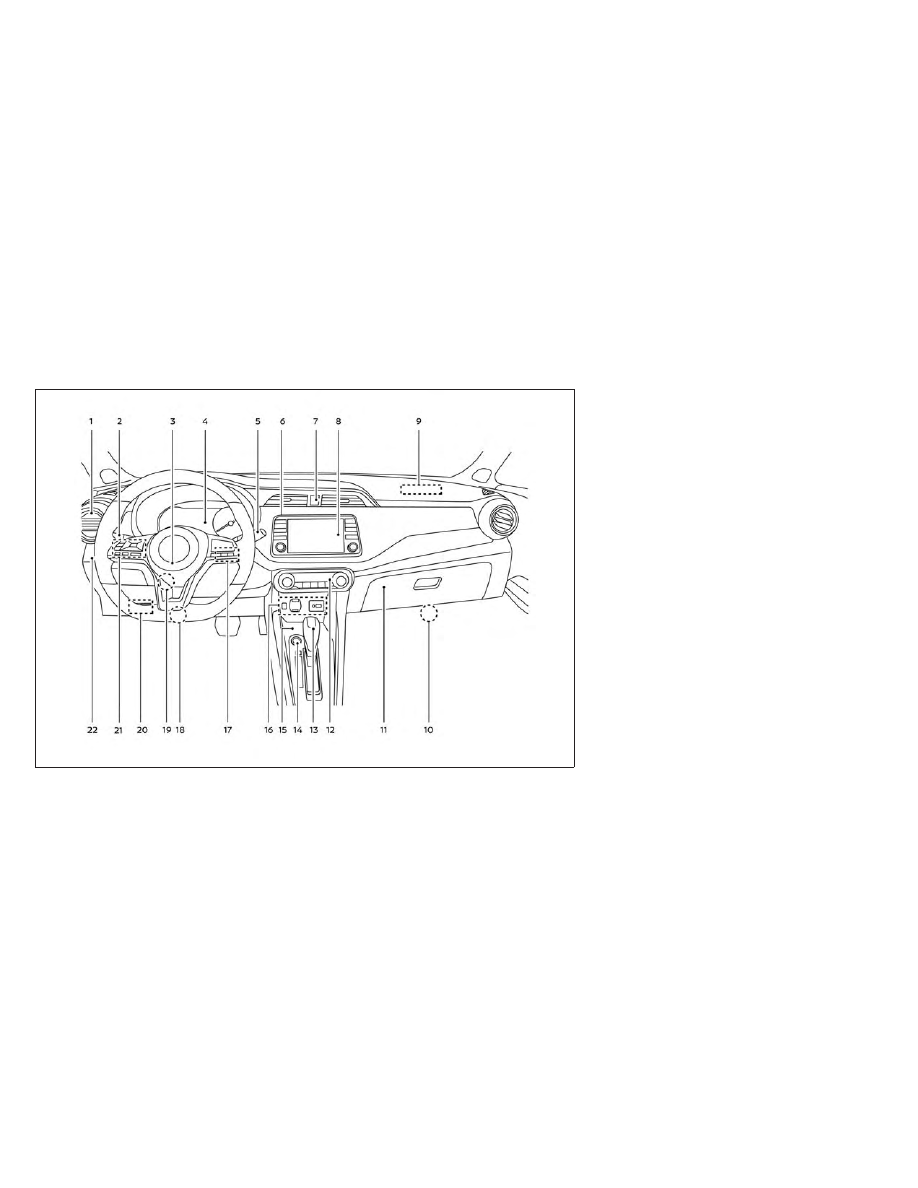

Vents (P. 4-15)

Headlight/fog light (if so equipped)/
turn signal switch (P. 2-45, 2-51)

Driver's supplemental air bag (P. 1-40)
Horn (P. 2-52)

Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-12)
Trip computer (if so equipped) (P. 2-10)
Vehicle information display (if so
equipped) (P. 2-25)

Wiper and washer switch (P. 2-43)

Center display controls (if so equipped)
(P. 4-2, 4-7, 4-26)
Audio controls (P. 4-2, 4-7, 4-26)

Front passenger air bag status light
(P. 1-51)
Hazard warning flasher switch (P. 6-2)

Center display (P. 4-2, 4-7, 4-26)

Passenger's supplemental air bag
(P. 1-40)

10.

Front passenger’s supplemental knee
airbag (P. 1-58)

11.

Glove box (P. 2-65)

12.

Climate controls (P. 4-16, 4-23)
Heated seat switches (if so equipped)
(P. 2-52)

13.

Shift lever (P. 5-20)

14.

Push-button ignition switch (if so
equipped) (P. 5-12)

15.

Wireless charger and indicator (if so
equipped) (P. 2-59)

16.

Power outlet (P. 2-62)
USB connection port (P. 4-2, 4-35)
AUX jack (if so equipped) (P. 4-2, 4-38)

LII2852

INSTRUMENT PANEL

2-2

Instruments and controls

17.

Cruise control switches (if so equipped)
(P. 5-51)
Intelligent Cruise Control (ICC) switches
(if so equipped) (P. 5-53)
Bluetooth® Hands-Free Phone System
(P. 4-2, 4-49)

18.

Driver supplemental knee air bag
(P. 1-58)

19.

Tilt and telescopic steering wheel lock
lever (P. 3-29)

20.

Hood release (P. 3-23)
Fuel-filler door release (P. 3-26)

21.

Steering wheel switches for audio
control (P. 4-2, 4-44)
Control panel and vehicle information
display switches (if so equipped)
(P. 2-26)

22.

Vehicle Dynamic Control (VDC) OFF
switch (if so equipped) (P. 2-54)
Enter/select switch for trip computer
(if so equipped) (P. 2-10)
Automatic Emergency Braking (AEB)
with Pedestrian Detection OFF switch
(if so equipped) (P 2-54)
Rear Sonar System (RSS) OFF switch
(if so equipped) (P 2-55)
Lane Departure Warning (LDW) switch
(if so equipped) (P 2-53)

* Refer to the separate NissanConnect®
Owner's Manual (if so equipped).

Refer to the page number indicated in
parentheses for operating details.

Instruments and controls

2-3

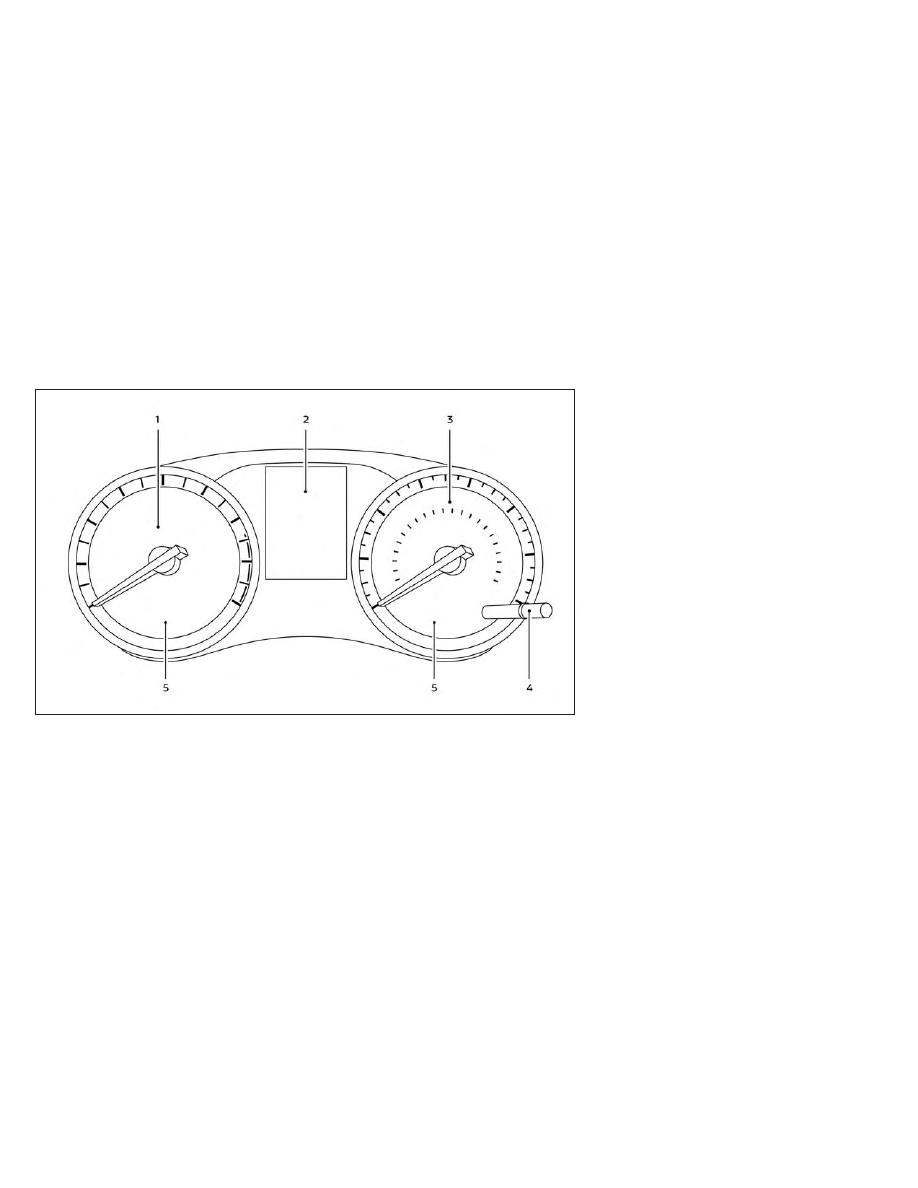

Tachometer

Trip computer
Odometer
Twin trip odometer

Speedometer

Trip reset switch
Instrument brightness control knob

Warning and indicator lights

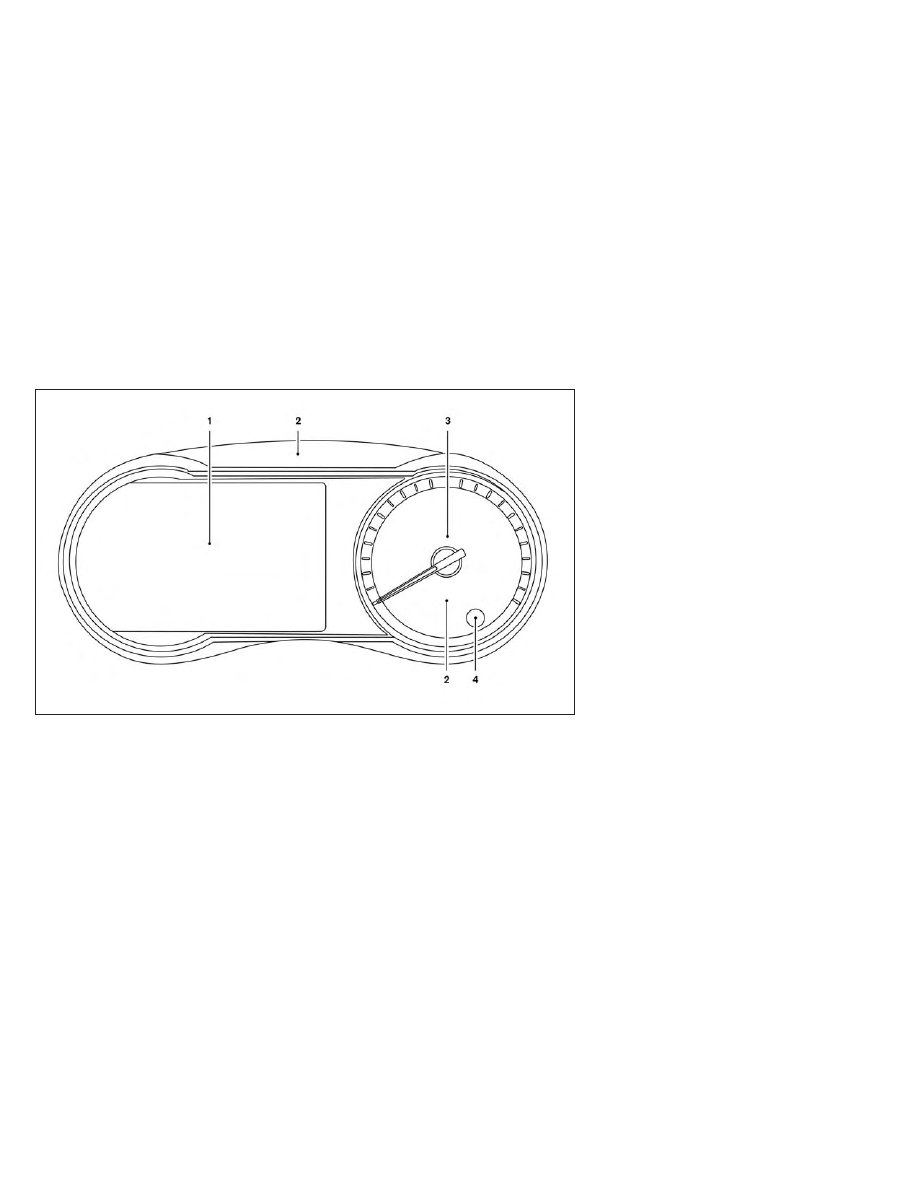

SPEEDOMETER AND ODOMETER

This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side the meter cluster. The
odometer is located within the vehicle infor-
mation display

(Type A — if so equipped)

the trip computer

(Type B — if so equipped)

to the left of the speedometer.

LIC4220

Type B (if so equipped)

Instruments and controls

2-5

Speedometer

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer and the twin trip odometer

are displayed in the vehicle information

display (Type A) (if so equipped) or the trip
computer (Type B) (if so equipped) when
the ignition switch is placed in the ON
position.

The odometer records the total distance
the vehicle has been driven.

The twin trip odometer records the dis-
tance of individual trips.

LIC2218

LIC4584

Type A (if so equipped)

LIC4585

Type B (if so equipped)

2-6

Instruments and controls

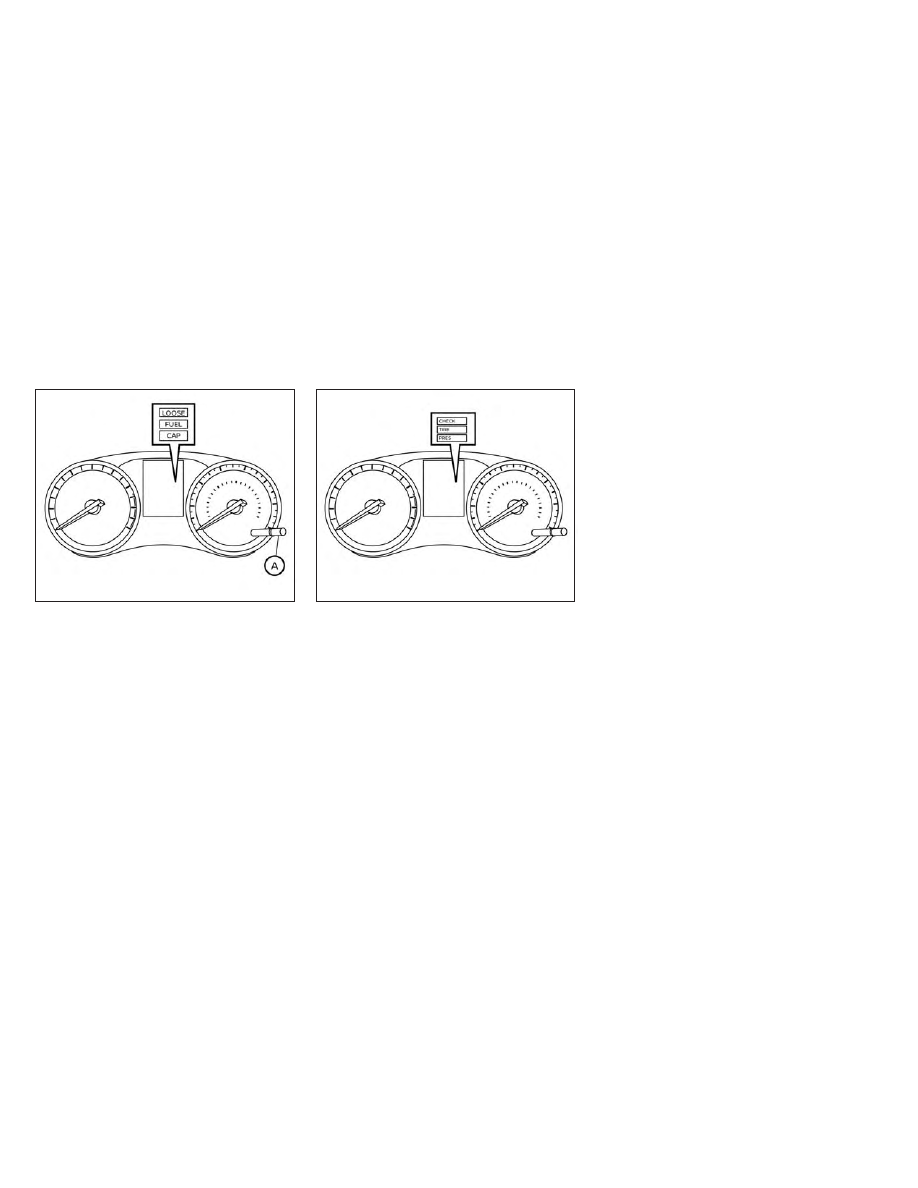

Loose fuel cap warning message
(if so equipped)

Press the reset button

for more than

1 second to reset the LOOSE FUEL CAP
warning message after the fuel cap has
been tightened. For additional information,
see “Fuel-filler cap” (P. 3-26).

Check tire pressure warning
message (if so equipped)

The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire
pressure warning light is illuminated and
low tire pressure is detected. Check and
adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. The
CHECK TIRE PRES warning message turns
off when the low tire pressure warning light
turns off.

The low tire pressure warning light remains
illuminated until the tires are inflated to
the recommended COLD tire pressure.
The CHECK TIRE PRES warning message is
displayed each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated. For additional information, see “Low
tire pressure warning light” (P. 2-18), or “Tire
Pressure Monitoring System (TPMS)” (P. 5-5)
and “Wheels and tires” (P. 8-27).

LIC4233

LIC4221

Instruments and controls

2-7

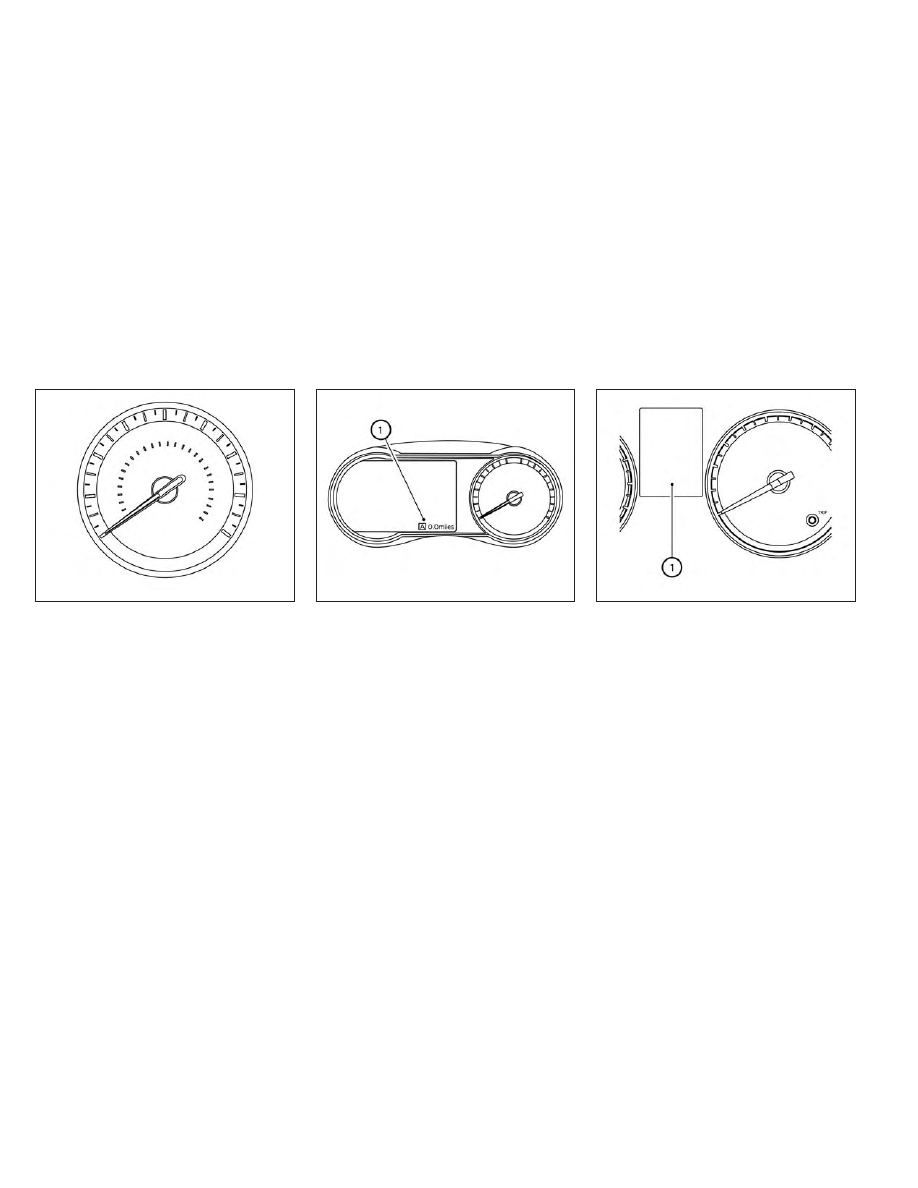

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
engine into the red zone

Type A (if so equipped):

To access the

tachometer, use the

and

on the

steering wheel to navigate to the “Gauges”
display. For additional information, see
“How to use the vehicle information dis-
play” (P. 2-26).

Type B (if so equipped):

The tachometer is

located on the left side of the meter cluster.

CAUTION

When engine speed approaches the
red zone, shift to a higher gear or re-
duce engine speed. Operating the en-
gine in the red zone may cause serious
engine damage.

FUEL GAUGE

The gauge indicates the

approximate

fuel

level in the tank.

The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.

Type A (if so equipped):

The low fuel

warning message shows in the vehicle in-
formation display when the amount of fuel
in the tank is getting low.

LIC3562

Type A (if so equipped)

LIC3536

Type B (if so equipped)

LIC3564

Type A (if so equipped)

2-8

Instruments and controls

Type B (if so equipped):

The low fuel

warning light illuminates when the amount
of fuel in the tank is getting low.

Refill the fuel tank before the gauge reg-
isters 0 (Empty).

The

indicates that the fuel-filler door

is located on the driver's side of the vehicle.

CAUTION

•

If the vehicle runs out of fuel, the
Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the

light

should turn off. If the light remains on
after a few driving trips, have the ve-
hicle inspected. It is recommended
that you visit a NISSAN dealer for this
service

•

For additional information, see “Mal-
function Indicator Light (MIL)” (P. 2-20).

DISTANCE TO EMPTY (DTE)

Displays the estimated distance the vehicle
can be driven before refueling. The value is
calculated based on recent fuel economy,
the amount of fuel remaining in the fuel tank,
and the actual fuel consumption.

Changes in driving patterns or conditions
can cause the DTE value to vary. As a result,
the value displayed may differ from the ac-
tual distance that can be driven.

DTE display will change to “---” when the
fuel level in the tank is getting low, prior to
the fuel gauge reaching 0 (Empty).

NOTE:
• The DTE value after refill is estimated

based on recent fuel economy and
amount of fuel added.

• If a small amount of fuel is added, or

the ignition is on during refueling, the
display may not be updated.

• Conditions that affect the fuel economy

will also affect the estimated DTE value
(city/highway driving, idle time, remote
start time, terrain, seasonal weather,
added vehicle weight, added deflectors,
roof racks, etc.).

LIC3593

Type B (if so equipped)

Instruments and controls

2-9

TRIP COMPUTER (if so equipped)

When the ignition switch is placed in the ON
position, modes of the trip computer can
be selected by pushing the TRIP RESET
switch

Each time the TRIP RESET switch is pushed,
the display changes as follows:

Trip A

→

Trip B

→

Odometer

The

switch for the trip computer is

located on the lower left side of the instru-
ment panel.

Each time the

switch is pushed, the

display will change as follows:

Average fuel economy

→

Average speed

→

Trip time

→

Trip Distance

Average fuel economy (mpg or
km/l)

The average fuel economy mode shows
the average fuel economy since the last
reset. Resetting is done by pushing the
change/reset switch for more than ap-
proximately 1 second. The display is up-
dated every 30 seconds. At about the first
1/3 mi (500 m) after a reset, the display
shows (----).

Average speed (mph or km/h)

The average speed mode shows the aver-
age vehicle speed since last reset. Reset-
ting is done by pushing the change/reset
switch for more than approximately 1 sec-
ond. The display is updated every 30 sec-
onds. The first 30 seconds after a reset, the
display shows (----).

Trip time

The trip time mode shows the time since
the last reset. The displayed time can be
reset by pushing the change/trip switch for
more than approximately 1 second.

Trip distance

The trip distance mode shows the distance
traveled since the last reset. The trip dis-
tance can be reset by pushing the change/
trip switch for more than approximately
1 second.

Shipping mode

This message may appear if the extended
storage switch is not pushed in. When this
message appears, push in the extended
storage switch to turn off the warning.
For additional information, see “Extended
storage switch” (P. 2-62).

LIC3594

2-10

Instruments and controls

ECO DRIVE REPORT (if so
equipped)

When the ignition switch is in the OFF posi-
tion, the ECO management display appears.

䊊

Previous 5 times (History)

䊊

Current fuel economy

䊊

Best fuel economy

The result of ECO evaluation is displayed
30 seconds after the ignition switch is
placed in the ON position and the vehicle is
driven at least 1/3 miles (500 meters).

䊊

The average fuel economy for the pre-
vious 5 times will be displayed.

䊊

The average fuel economy since the
last reset will be displayed.

䊊

The best fuel economy of the past his-
tory will be displayed.

The ECO Drive Report can be set to be ON
or OFF.

LSD4103

Instruments and controls

2-11

Warning/Indicator light (red)

Warning/Indicator light (yellow)

Warning/Indicator light (other)

Brake warning light

Anti-lock Braking System (ABS)
warning light

CRUISE indicator light (green) (if so
equipped)

Charge warning light

Automatic Emergency Braking (AEB) with
Pedestrian Detection system warning light

Front fog light indicator light (green)
(if so equipped)

Door open warning light (if so equipped)

Continuously Variable Transmission (CVT)
position indicator light (if so equipped)

High Beam Assist indicator light (green)

Engine oil pressure warning light

Engine start operation indicator light
(if so equipped)

High beam indicator light (blue)

High temperature warning light (red)
(if so equipped)

Front passenger air bag status light

Lane Departure Warning (LDW) indicator
light (green) (if so equipped)

Malfunction Indicator Light (MIL)

Lane Departure Warning (LDW) indicator
light (if so equipped)

NISSAN Intelligent Key® warning light
(green) (if so equipped)

Master warning light (if so equipped)

Low fuel warning light (if so equipped)

SET indicator light (green) (if so equipped)

Rear seat belt warning light and chime
(if so equipped)

Low tire pressure warning light

Side light and headlight indicator light
(green)

WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS

2-12

Instruments and controls

Warning/Indicator light (red)

Warning/Indicator light (yellow)

Warning/Indicator light (other)

Seat belt warning light and chime

Low windshield-washer fluid warning light
(if so equipped)

SPORT mode indicator light (green) (if so
equipped)

Security indicator light

Malfunction Indicator Light (MIL)

Turn signal/hazard indicator lights (green)

Supplemental air bag warning light

Master warning light (if so equipped)

NISSAN Intelligent Key® warning light
(if so equipped)

Power steering warning light

Rear Automatic Braking (RAB) system
warning light

Shift P (Park) warning light (if so equipped)

Slip indicator light

Vehicle Dynamic Control (VDC) OFF indica-
tor light

Instruments and controls

2-13

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights
(if so equipped) will come on:

;

The following lights (if so equipped) will
come on briefly and then go off:

If any light does not come on or operate in
a way other than described, it may indicate
a burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

WARNING/INDICATOR LIGHTS (red)

For additional information see, “Vehicle in-
formation display” (P. 2-25).

Brake warning
light

This light functions for both the parking
brake and the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON
position, this light comes on when the
parking brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine
is running with the parking brake not ap-
plied, stop the vehicle and perform the
following:

1. Check the brake fluid level. Add brake

fluid as necessary. For additional infor-
mation, see “Brake fluid” (P. 8-10).

2. If the brake fluid level is correct, have the

warning system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.

WARNING

•

Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for repairs.
Otherwise, have your vehicle towed
because driving it could be dangerous.

•

Pressing the brake pedal with the
engine stopped and/or a low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.

•

If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.

Charge warning light

If this light comes on while the engine is
running, it may indicate the charging sys-
tem is not functioning properly. Turn the
engine off and check the generator belt.
If the belt is loose, broken, missing, or if the
light remains on, have the system checked.
It is recommended that you visit a NISSAN
dealer for this service.

2-14

Instruments and controls

CAUTION

•

Do not ground electrical accessories
directly to the battery terminal. Do-
ing so will bypass the variable volt-
age control system and the vehicle
battery may not charge completely.
For additional information, see “Vari-
able voltage control system” (P. 8-14).

•

Do not continue driving if the genera-
tor belt is loose, broken or missing.

Door open warning light
(if so equipped)

This light comes on when any of the doors
are not closed securely while the ignition
switch is in the ON position.

Engine oil pressure
warning light

This light warns of low engine oil pressure.
If the light flickers or comes on during nor-
mal driving, pull off the road in a safe area,
stop the engine

immediately

and call a

NISSAN dealer or other authorized repair
shop.

The engine oil pressure warning light is
not designed to indicate a low oil level.

Use the dipstick to check the oil level. For
additional information, see “Engine oil” (P. 8-6).

CAUTION

Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by the NISSAN New Vehicle Limited
Warranty. Turn off the engine as soon
as it is safe to do so.

High temperature warning
light (red) (if so equipped)

When the ignition switch is placed in the ON
position, the high temperature warning light
illuminates and then turns off. This indicates
that the high temperature sensor in the en-
gine coolant system is operational.

When driving, the high temperature warning
light may turn off. This indicates that the en-
gine coolant temperature is within the nor-
mal range.

CAUTION

If the high temperature warning light
illuminates while the engine is running,
it may indicate the engine temperature

is extremely high. Stop the vehicle
safely as soon as possible. If the vehicle
is overheated, continuing vehicle op-
eration may seriously damage the en-
gine. For additional information, see “If
your vehicle overheats” (P. 6-11).

Malfunction Indicator Light
(MIL)

If this indicator light comes on steady or
blinks while the engine is running, it may
indicate a potential emission control mal-
function.

The MIL may also come on steady if the
fuel-filler cap is loose or missing, or if the
vehicle runs out of fuel. Check to make sure
the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least
3 gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the

light

should turn off if no other potential emis-
sion control system malfunction exists.

Instruments and controls

2-15

test. For additional information, see “Readi-
ness for Inspection/Maintenance (I/M) test”
(P. 10-22).

Operation

The MIL will come on in one of two ways:
• MIL on steady — An emission control sys-

tem malfunction has been detected.
Check the fuel-filler cap if the Loose Fuel
Cap warning appears in the vehicle infor-
mation display (if so equipped) or the trip
computer (if so equipped). If the fuel-filler
cap is loose or missing, tighten or install
the cap and continue to drive the vehicle.
The

light should turn off after a few

driving trips. If the

light does not turn

off after a few driving trips, have the ve-
hicle inspected. It is recommended that
you visit a NISSAN dealer for this service.
You do not need to have your vehicle
towed to the dealer.

• MIL blinking — An engine misfire has been

detected which may damage the emis-
sion control system. To reduce or avoid
emission control system damage:

– do not drive at speeds above 45 mph

(72 km/h).

– avoid hard acceleration or deceleration.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo

being hauled or towed.

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

Master warning light (if so
equipped)

This light illuminates red when various ve-
hicle information display warnings appear.
• Door open
• Parking brake release

For additional information, see “Vehicle in-
formation display” (P. 2-25).

Rear seat belt warning light
and chime (if so equipped)

This warning light appears for 65 seconds
after the ignition is placed in the ON posi-
tion and the engine is started.

This warning light shows the status of the
three rear seat belts. When one of the rear
seat belts are buckled, the corresponding
rear seat belt indicator will appear white or
not illuminate for models with a trip com-
puter. When one of the rear seat belts are
unbuckled, the corresponding rear seat
belt indicator will appear red.

After a change in buckle status, a chime will
sound and the warning will appear for an-
other 65 seconds.

Seat belt warning light and
chime

The light and chime remind you to fasten
the driver and front passenger seat belts.

For additional information, see “Seat belts”
(P. 1-9).

Security indicator light

This light blinks when the ignition switch is
placed in the OFF or LOCK position.

The blinking security indicator light indi-
cates that the security systems equipped
on the vehicle are operational.

For additional information, see “Security
systems” (P. 2-41).

2-16

Instruments and controls

Supplemental air bag
warning light

When the ignition switch is placed in the
ON or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
and pretensioner seat belt systems need
servicing:
• The supplemental air bag warning light re-

mains on after approximately 7 seconds.

• The supplemental air bag warning light

flashes intermittently.

• The supplemental air bag warning light

does not come on at all.

It is recommended that you visit a NISSAN
dealer for these services.

Unless checked and repaired, the supple-
mental restraint system (air bag system)
and/or the pretensioner(s) may not func-
tion properly. For additional information,
see “Supplemental Restraint System (SRS)”
(P. 1-40).

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible.
It is recommended that you visit a
NISSAN dealer for this service.

WARNING/INDICATOR LIGHTS
(yellow)

For additional information, see “Vehicle in-
formation display” (P. 2-25).

Anti-lock Braking
System (ABS)
warning light

When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while
the engine is running or while driving, it
may indicate the ABS is not functioning

properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally but without anti-
lock assistance. For additional information,
see “Brake system” (P. 5-117).

Automatic Emergency
Braking (AEB) with
Pedestrian Detection
system warning light

This light comes on when the ignition
switch is placed in the ON position. It turns
off after the engine is started.

This light illuminates when the AEB with
Pedestrian Detection system is set to off in
the vehicle information display, set to off
using the AEB switch, or the Vehicle Dy-
namic Control (VDC) system is turned off.

If the light illuminates when the AEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable.
For additional information, see “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” (P. 5-83) or “Intelligent Forward
Collision Warning (I-FCW)” (P. 5-96).

Instruments and controls

2-17

Continuously Variable
Transmission (CVT)
position indicator light
(if so equipped)

When the ignition switch is placed in the ON
position, this indicator light shows the shift
lever position. For additional information,
see “Driving the vehicle” (P. 5-18).

Engine start operation
indicator light (if so
equipped)

For vehicles equipped with push-button ig-
nition this indicator illuminates when the
ignition switch is in the LOCK, OFF or ON
position with the shift lever in the P (Park)
position.

This indicator means that the engine will
start by pushing the push-button ignition
switch with the brake pedal depressed.

Front passenger air bag
status light

The front passenger air bag status light will
be lit and the passenger front air bag will be
off depending on how the front passenger
seat is being used.

For additional information, see "Front pas-
senger air bag and status light" (P. 1-51).

Lane Departure Warning
(LDW) indicator light (if so
equipped)

This indicator light will blink when the LDW
system is operating. If the light illuminates
yellow while the system is on, it may indi-
cate a malfunction. Have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.
For additional information, see “Lane De-
parture Warning (LDW)” (P. 5-26).

Low fuel warning light (if so
equipped)

This light comes on when the fuel level in
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
fuel gauge reaches 0 (Empty).

There will be

a small reserve of fuel in the tank when
the fuel gauge reaches 0 (Empty).

Low tire pressure warning
light

Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.

The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about
1 second and turns off.

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. The “CHECK TIRE PRES” (vehicles
without a vehicle information display)
also appears in the trip computer or the
“Tire Pressure Low – Add Air” (vehicles
with a vehicle information display) ap-
pears in the vehicle information display.

When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label located in the driver’s door opening.

2-18

Instruments and controls

The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure, the
vehicle must be driven at speeds above 16
mph (25 km/h) to activate the TPMS and
turn off the low tire pressure warning
light. Use a tire pressure gauge to check
the tire pressure.

For vehicles without a vehicle information
display, the low tire pressure warning light
remains illuminated until the tires are in-
flated to the recommended COLD tire
pressure. The “CHECK TIRE PRES” warning
message is displayed each time the igni-
tion switch is placed in the ON position as
long as the low tire pressure warning light
remains illuminated.

For vehicles with a vehicle information dis-
play, the “Tire Pressure Low - Add Air”
warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light re-
mains illuminated.

For additional information, see “Vehicle in-
formation display” (P. 2-25) and “Tire Pres-
sure Monitoring System (TPMS)” (P. 5-5).

TPMS malfunction

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on after 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "CHECK TIRE PRES" warning message /
”Tire Pressure Low— Add Air” warning does
not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunc-
tion.

For additional information, see “Tire Pres-
sure Monitoring System (TPMS)” (P. 5-5) and
“Tire pressure” (P. 8-27).

WARNING

•

Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

•

If the light does not illuminate with
the ignition switch placed in the ON
position, have the vehicle checked as

soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

•

If the light illuminates while driving,
avoid sudden steering maneuvers
or abrupt braking, reduce vehicle
speed, pull off the road to a safe loca-
tion and stop the vehicle as soon as
possible. Driving with under-inflated
tires may permanently damage the
tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an acci-
dent and could result in serious per-
sonal injury or death. Check the tire
pressure for all four tires. Adjust the
tire pressure to the recommended
COLD tire pressure show on the Tire
and Loading Information label lo-
cated in the driver’s door opening to
turn the low tire pressure warning
light off. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat or the
TPMS may be malfunctioning. If you
have a flat tire, replace it with a spare
tire as soon as possible. If no tire is
flat and all tires are properly inflated,

Instruments and controls

2-19

have the vehicle checked. It is recom-
mended that you visit a NISSAN
dealer for this service.

•

When using a wheel without the
TPMS such as the spare tire, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light will
remain on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN
dealer for these services.

•

Replacing tires with those not origi-
nally specified by NISSAN could affect
the proper operation of the TPMS.

CAUTION

•

The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.

•

If the vehicle is being driven at
speeds of less than 16 mph (25 km/h),
the TPMS may not operate correctly.

•

Be sure to install the specified size of
tires to the four wheels correctly.

Low windshield-washer
fluid warning light (if so
equipped)

This light comes on when the windshield-
washer fluid is at a low level. Add windshield-
washer fluid as necessary. For additional
information, see “Windshield-washer fluid”
(P. 8-11).

Malfunction Indicator Light
(MIL)

If this indicator light comes on steady or
blinks while the engine is running, it may
indicate

potential

emission

control

malfunction.

After a few driving trips, the

light

should turn off if no other potential emis-
sion control system malfunction exists.

If this indicator light comes on steady for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance
test. For additional information, see “Readi-
ness for Inspection/Maintenance (I/M) test”
(P. 10-22).

Operation

The MIL will come on in one of two ways:
• MIL on steady — An emission control sys-

light should turn off after a few

driving trips. If the

light does not turn

off after a few driving trips, have the ve-
hicle inspected. It is recommended that
you visit a NISSAN dealer for this service.
You do not need to have your vehicle
towed to the dealer.

2-20

Instruments and controls

• MIL blinking — An engine misfire has been

detected which may damage the emis-
sion control system. To reduce or avoid
emission control system damage:

– do not drive at speeds above 45 mph

(72 km/h).

– avoid hard acceleration or deceleration.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo

being hauled or towed.

CAUTION

Master warning light (if so
equipped)

This light illuminates yellow when various ve-
hicle information display warnings appear.
• No key
• I-Key system warning
• Low washer fluid

For additional information, see “Vehicle in-
formation display” (P. 2-25).

NISSAN Intelligent Key®
warning light (yellow)
(if so equipped)

After the ignition switch is placed in the
ON position, this light comes on for about
2 seconds and then turns off. This light illu-
minates or blinks as follows:
• The light blinks in yellow when the door is

closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ON position. Make sure that the Intelligent
Key is inside the vehicle.

• The light illuminates in yellow when it

warns of a malfunction with the electrical
steering lock system or the Intelligent Key
system.

If the warning light illuminates in yellow
while the engine is stopped, it may be im-
possible to free the steering lock or to start
the engine. If the light comes on while the
engine is running, you can drive the vehicle.
However, in these cases, have the vehicle
checked and repaired as soon as possible.
It is recommended that you visit a NISSAN
dealer for this service.
For additional information, see “NISSAN
Intelligent Key®” (P. 3-2).

Power steering warning
light

WARNING

•

If the engine is not running or is
turned off while driving, the power
assist for the steering will not work.
Steering will be harder to operate.

•

When the power steering warning
light illuminates with the engine run-
ning, there will be no power assist for
the steering. You will still have control
of the vehicle, but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN
dealer for this service.

Instruments and controls

2-21

Nissan Versa (2024 year). Manual in english - page 3
