Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights flash.

WARNING

•

If stopping for an emergency, be sure
to move the vehicle well off the road.

•

Do not use the hazard warning flash-
ers while moving on the highway un-
less unusual circumstances force
you to drive so slowly that your ve-
hicle might become a hazard to other
traffic.

•

Turn signals do not work when the
hazard warning flasher lights are on.

The flashers will operate with the ignition
switch placed in any position.

Some jurisdictions may prohibit the use
of the hazard warning flasher switch
while driving.

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
• Rapidly push the push-button ignition

switch three consecutive times in less
than 1.5 seconds, or

• Push and hold the push-button ignition

switch for more than 2 seconds.

LIC0394

HAZARD WARNING FLASHER SWITCH

EMERGENCY ENGINE SHUT OFF

6-2

In case of emergency

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

This vehicle is equipped with TPMS. It moni-
tors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit, and the “Tire Pressure Low - Add
Air” appears in the vehicle information dis-
play, one or more of your tires is signifi-
cantly under-inflated. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light. This system will ac-
tivate only when the vehicle is driven at
speeds above 16 mph (25 km/h). For addi-
tional information, “Warning lights, indica-
tor lights and audible reminders” (P. 2-8),
and “Tire Pressure Monitoring System
(TPMS)” (P. 5-5).

WARNING

•

Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

•

If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and
increase the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving af-
ter adjusting the tire pressure, a tire
may be flat or the TPMS may be mal-
functioning. If you have a flat tire, re-
place it with a spare tire as soon as
possible. If no tire is flat and all tires
are properly inflated, have the ve-
hicle checked. It is recommended
that you visit a NISSAN dealer for this
service.

•

When using a wheel without TPMS
such as the spare tire, the TPMS will
not function and the low tire pres-
sure warning light will flash for ap-
proximately one minute. The light
will remain on after one minute. Have
your tires replaced and/or TPMS sys-
tem reset as soon as possible. It is
recommended

that

you

visit

NISSAN dealer for these services.

•

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

•

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.

CHANGING A FLAT TIRE

If you have a flat tire, follow the instructions
below:

Stopping the vehicle

1. Safely move the vehicle off the road and

away from traffic.

2. Turn on the hazard warning flashers.

FLAT TIRE

In case of emergency

6-3

3. Park on a level surface and apply the

parking brake. Shift the manual trans-
mission into R (Reverse), or the CVT into
P (Park).

4. Turn off the engine.

5. Raise the hood to warn other traffic and

to signal professional road assistance
personnel that you need assistance.

6. Have all passengers get out of the ve-

hicle and stand in a safe place, away
from traffic and clear of the vehicle.

WARNING

•

Make sure the parking brake is se-
curely applied and the manual trans-
mission is shifted into R (Reverse), or
the CVT is shifted into P (Park).

•

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

•

Never change tires if oncoming traf-
fic is close to your vehicle. Wait for
professional road assistance.

Blocking wheels

Place suitable blocks at both the front and
back of the wheel diagonally opposite the
flat tire to prevent the vehicle from moving
when it is jacked up.

WARNING

Be sure to block the wheel as the ve-
hicle may move and result in personal
injury.

Getting the spare tire and tools

1. Open the trunk and lift the trunk floor

carpeting.

2. Jack is located beside of the spare tire.

To remove, take off the rubber strap and
lift out.

3. Lift spacer to access the clamp.

LCE2142

A. Blocks

B. Flat tire

LCE2449

6-4

In case of emergency

4. Turn the clamp counterclockwise and

remove to release the spare tire.

CAUTION

Avoid touching the sheet metal area
around the spare tire. Doing so could
result in personal injury.

Removing wheel cover (if so
equipped)

CAUTION

Do not use your hands to pry off wheel
caps or wheel covers. Doing so could
result in personal injury.

To remove the wheel cover, use the jack rod

as illustrated.

Apply cloth

between the wheel and jack

rod to prevent damaging the wheel and
wheel cover.

Use caution not to scratch the wheel cover
or wheel surface.

LCE2450

SCE0630

In case of emergency

6-5

Jacking up vehicle and removing
the damaged tire

WARNING

•

Never get under the vehicle while it is
supported only by the jack. If it is nec-
essary to work under the vehicle,
support it with safety stands.

•

Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles. The jack is de-
signed for lifting only your vehicle
during a tire change.

•

Use the correct jack-up points. Never
use any other part of the vehicle for
jack support.

•

Never jack up the vehicle more than
necessary.

•

Never use blocks on or under the
jack.

•

Do not start or run the engine while
vehicle is on the jack. It may cause
the vehicle to move. This is especially
true for vehicles with limited slip
differentials.

•

Do not allow passengers to stay in
the vehicle while it is on the jack.

•

Never run the engine with a wheel(s)
off the ground. It may cause the ve-
hicle to move.

CE1089

6-6

In case of emergency

Always refer to the illustrations for the cor-
rect placement and jack-up points for your
specific vehicle model and jack type.

Carefully read the caution label attached
to the jack body and the following in-
structions.

1. Loosen each wheel nut one or two turns

by turning counterclockwise with the
wheel nut wrench.

Do not remove the

wheel nuts until the tire is off the
ground.

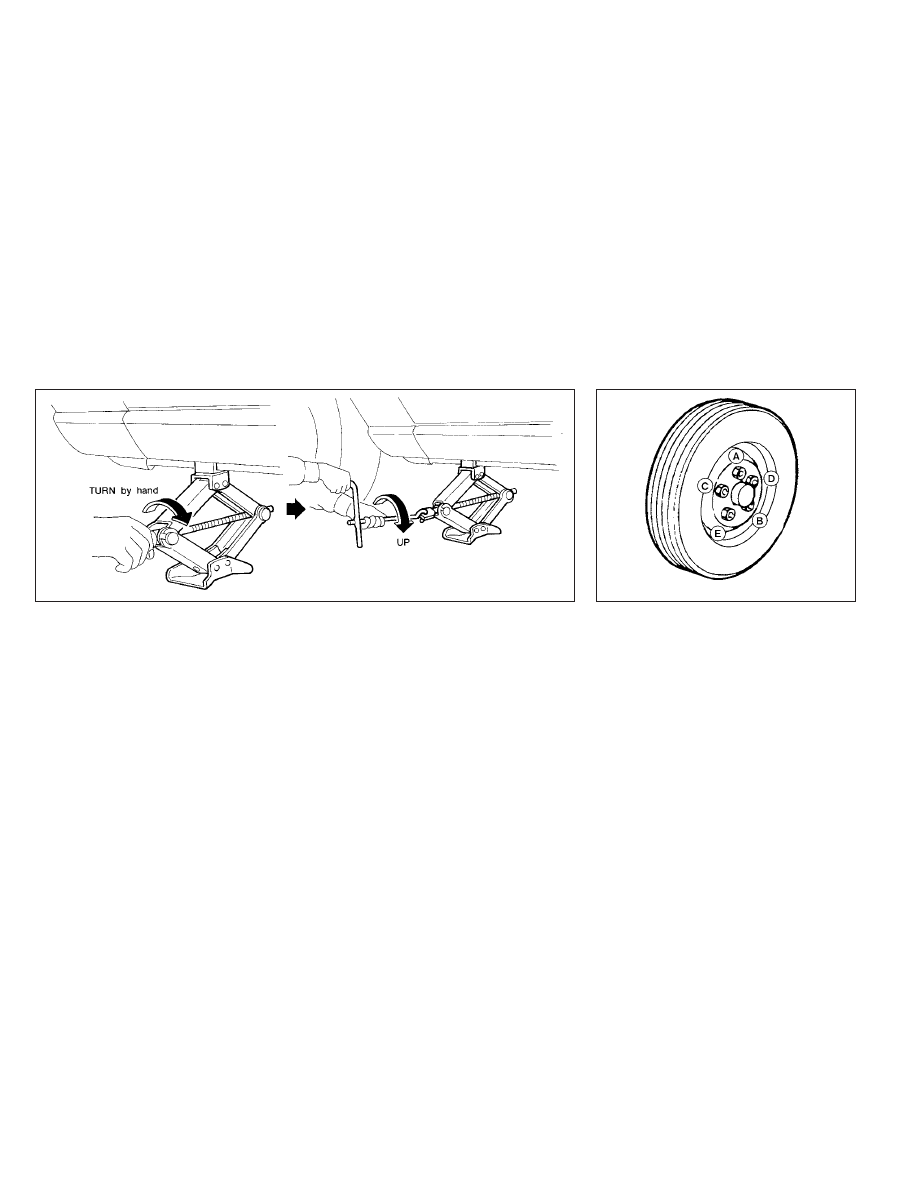

2. Place the jack directly under the jack-up

point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as
shown. Also fit the groove of the jack
head between the notches as shown.

The jack should be used on firm and
level ground.

3. To lift the vehicle, securely hold the jack

lever and rod with both hands. Carefully
raise the vehicle until the tire clears the
ground. Remove the wheel nuts and
then remove the tire.

Installing the spare tire

The spare tire is designed for emergency
use. For additional information, see
“Wheels and tires” (P. 8-29).

1. Clean any mud or dirt from the surface

between the wheel and hub.

2. Carefully put the spare tire on and

tighten the wheel nuts finger tight.

3. With the wheel nut wrench, tighten

wheel nuts alternately and evenly in the
sequence illustrated (

)

until they are tight.

SCE0002

WCE0056

In case of emergency

6-7

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence illustrated
(

). Lower the vehicle

completely.

WARNING

•

Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

•

Do not use oil or grease on the wheel
studs or nuts. This could cause the
nuts to become loose.

•

Retighten the wheel nuts when the
vehicle has been driven for 600 miles
(1,000 km) (also in cases of a flat tire,
etc.).

As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tightened
to specification at all times. It is recom-
mended that wheel nuts be tightened to
specification at each lubrication interval.

Adjust

tire

pressure

the

COLD

pressure.

COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km).

COLD tire pressures are shown on the
Tire and Loading Information Label.

After adjusting tire pressure to the COLD
tire pressure, the display of the tire pres-
sure information may show higher pres-
sure than the COLD tire pressure after
the vehicle has been driven more than 1
mile (1.6 km).

This is because the tire pressurizes as
the tire temperature rises. This does not
indicate a system malfunction.

5. Securely store the flat tire in the vehicle.

6. Install the jack in its storage area and

secure with rubber strap.

7. Place the trunk floor carpeting over the

damaged tire.

8. Close the trunk.

LCE2451

6-8

In case of emergency

WARNING

•

Always make sure that the spare tire
and jacking equipment are properly
secured after use. Such items can be-
come dangerous projectiles in an ac-
cident or sudden stop.

•

The spare tire is designed for emer-
gency use. Refer to specific instruc-
tions under the heading “Wheels and
tires” (P. 8-29).

To start your engine with a booster battery,
the instructions and precautions below
must be followed.

WARNING

•

If done incorrectly, jump starting can
lead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.

•

Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.

•

Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with any-
thing, immediately flush the con-
tacted area with water.

•

Keep battery out of the reach of
children.

•

The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.

•

Whenever working on or near a bat-
tery, always wear suitable eye pro-
tectors (for example, goggles or in-
dustrial

safety

spectacles)

and

remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.

•

Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.

•

Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it.

JUMP STARTING

In case of emergency

6-9

WARNING

Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.

1. If the booster battery is in another ve-

hicle, position the two vehicles to bring
their batteries near each other.

Do not allow the two vehicles to touch.

2. Apply the parking brake. Move the shift

lever to N (Neutral) (manual transmis-
sion) or to P (Park) (Continuously Variable
Transmission (CVT)). Switch off all un-
necessary electrical systems (lights,
heater, air conditioner, etc.).

3. Place the ignition switch to the LOCK or

OFF position.

4. Connect the jumper cables in the se-

quence illustrated (

CAUTION

•

Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (for example, strut mounting
bolt, engine lift bracket, etc.) — not to
the battery.

•

Make sure the jumper cables do not
touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.

5. Start the engine of the booster vehicle

and let it run for a few minutes.

6. Keep the engine speed of the booster

vehicle at about 2,000 rpm and start the
engine

the

vehicle

being

jump

started.

CAUTION

Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the ig-
nition switch in the OFF position and
wait 3 to 4 seconds before trying again.

7. After starting the engine, carefully dis-

connect the negative cable and then the
positive cable.

LCE2223

6-10

In case of emergency

CAUTION

•

Do not push start this vehicle. The
three-way

catalyst

may

damaged.

•

Continuously Variable Transmission
(CVT) models and Manual Transmis-
sion (M/T) cannot be push-started or
tow-started. Attempting to do so
may cause transmission damage.

•

For Manual Transmission (M/T) mod-
els, never try to start the vehicle by
towing it. When the engine starts, the
forward surge could cause the ve-
hicle to collide with the tow vehicle.

If your vehicle is overheating (indicated by
an extremely high temperature gauge
reading), or if you feel a lack of engine
power, detect abnormal noise, etc., take the
following steps.

WARNING

•

Do not continue to drive if your ve-
hicle overheats. Doing so could cause
engine damage or a vehicle fire.

•

To avoid the danger of being scalded,
never remove the coolant reservoir
cap while the engine is still hot. When
the coolant reservoir cap is removed,
pressurized hot water will spurt out,
possibly causing serious injury.

•

Do not open the hood if steam is
coming out.

1. Move the vehicle safely off the road, ap-

ply the parking brake and move the shift
lever to N (Neutral) (manual transmis-
sion) or to P (Park) (CVT).

Do not stop the engine.

2. Turn off the air conditioner (if so

equipped). Open all the windows, move
the heater or air conditioner tempera-
ture control to maximum hot and fan
control to high speed.

3. Get out of the vehicle. Look and listen for

steam or coolant escaping from the ra-
diator before opening the hood. (If
steam or coolant is escaping, turn off
the engine.) Do not open the hood fur-
ther until no steam or coolant can be
seen.

4. Open the engine hood.

WARNING

If steam or water is coming from the
engine, stand clear to prevent getting
burned.

5. Visually check drive belts for damage or

looseness. Also check if the cooling fan
is running. The radiator hoses and radia-
tor should not leak water. If coolant is
leaking, the water pump belt is missing
or loose, or the cooling fan does not run,
stop the engine.

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into con-
tact with, or get caught in, engine belts
or the engine cooling fan. The engine
cooling fan can start at any time.

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

In case of emergency

6-11

6. After the engine cools down, check the

coolant level in the engine coolant res-
ervoir with the engine running. Add cool-
ant to the engine coolant reservoir if
necessary. Have your vehicle repaired. It
is recommended that you visit a NISSAN
dealer for this service.

When towing your vehicle, all State (Provin-
cial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from a
NISSAN dealer. Local service operators are
generally familiar with the applicable laws
and procedures for towing. To assure
proper towing and to prevent accidental
damage to your vehicle, NISSAN recom-
mends having a service operator tow your
vehicle. It is advisable to have the service
operator

carefully

read

the

following

precautions:

WARNING

•

Never ride in a vehicle that is being
towed.

•

Never get under your vehicle after it
has been lifted by a tow truck.

CAUTION

•

When towing, make sure that the
transmission, axles, steering system
and powertrain are in working condi-
tion. If any of these conditions apply,
dollies or a flatbed tow truck must be
used.

•

Always attach safety chains before
towing.

For additional information about towing
your vehicle behind a Recreational Vehicle
(RV), see “Flat towing” (P. 10-19).

TOWING RECOMMENDED BY
NISSAN

NISSAN recommends towing your vehicle
based upon the type of drivetrain. For addi-
tional information, refer to the diagrams in
this section to ensure that your vehicle is
properly towed.

TOWING YOUR VEHICLE

6-12

In case of emergency

Two-Wheel Drive models with
Continuously Variable
Transmission (CVT)

NISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flatbed
truck as illustrated.

CAUTION

•

Never tow CVT models with the front
wheels on the ground or four wheels
on the ground (forward or back-
ward), as this may cause serious and
expensive damage to the transmis-
sion. If it is necessary to tow the ve-
hicle with the rear wheels raised al-
ways use towing dollies under the
front wheels.

•

When towing CVT models with the
rear wheels on the ground or on tow-
ing dollies:

–

Place the ignition switch in the
OFF

position,

and

secure

the

steering wheel in a straight-ahead
position with a rope or similar de-
vice. Never secure the steering
wheel by placing the ignition
switch in the LOCK position. This
may damage the steering lock
mechanism (for models with a
steering lock mechanism).

LCE2345

In case of emergency

6-13

Two-Wheel Drive models with
manual transmission

NISSAN recommends that towing dollies
be used when towing your vehicle or place
the

vehicle

the

flatbed

truck

illustrated.

If you must use a pull behind tow truck put
the manual transmission in N (Neutral).

Your vehicle speed should never exceed 60
mph (97 km/h) when towing your vehicle.
After towing 500 miles, start and idle the
engine with the transmission in N (Neutral)
for two minutes. Failure to idle the engine

after every 500 miles of towing may cause
damage to the transmission’s internal
parts.

CAUTION

Failure to follow these guidelines can
result in severe transmission damage.

•

If you have to tow manual transmis-
sion models with the rear wheels on
the ground (if you do not use towing
dollies) or four wheels on the ground:

–

Always release the parking brake.

–

Move the transmission shift lever
to the N (Neutral) position

–

Observe the following restricted
towing speeds and distances for
manual

transmission

models

only:
Speed: Below 60 mph (97 km/h)
Distance: Less than 500 miles (805
km)

When towing long distances or speeds in
excess of 60 mph (97 km/h), remove the
propeller shaft before towing to prevent
damage to the transmission. For additional
information, it is recommended that you
visit a NISSAN dealer.

VEHICLE RECOVERY (freeing a
stuck vehicle)

WARNING

To avoid vehicle damage, serious per-
sonal injury or death when recovering a
stuck vehicle:

•

Contact a professional towing ser-
vice to recover the vehicle if you have
any questions regarding the recov-
ery procedure.

•

Tow chains or cables must be at-
tached only to main structural mem-
bers of the vehicle.

LCE2346

6-14

In case of emergency

•

Do not use the vehicle tie-downs to
tow or free a stuck vehicle.

•

Only use devices specifically de-
signed for vehicle recovery and fol-
low the manufacturer's instructions.

•

Always

pull

the

recovery

device

straight out from the front of the ve-
hicle. Never pull at an angle.

•

Route recovery devices so they do
not touch any part of the vehicle ex-
cept the attachment point.

If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device de-
signed specifically for vehicle recovery. Al-
ways follow the manufacturer's instruc-
tions for the recovery device.

Rocking a stuck vehicle

WARNING

•

Stand clear of a stuck vehicle.

•

Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat and
be damaged.

If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:

1. Turn off the Vehicle Dynamic Control

(VDC) System.

2. Make sure the area in front and behind

the vehicle is clear of obstructions.

3. Turn the steering wheel right and left to

clear an area around the front tires.

4. Slowly rock the vehicle forward and

backward.

• Shift back and forth between R (Re-

verse) and D (Drive) (Continuously Vari-
able Transmission models) or 1st (Low)
and R (Reverse) (manual transmission
models).

• Apply the accelerator as little as pos-

sible to maintain the rocking motion.

• Release the accelerator pedal before

shifting between R (Reverse) and D
(Drive) (Continuously Variable Trans-
mission models) or 1st (Low) and R (Re-
verse) (manual transmission models).

• Do not spin the tires above 35 mph

(55 km/h).

5. If the vehicle cannot be freed after a few

tries, contact a professional towing ser-
vice to remove the vehicle.

In case of emergency

6-15

In order to maintain the appearance of
your vehicle, it is important to take proper
care of it.

To protect the paint surfaces, wash your
vehicle as soon as you can:
• After a rainfall to prevent possible dam-

age from acid rain.

• After driving on coastal roads.
• When contaminants such as soot, bird

droppings, tree sap, metal particles or
bugs get on the paint surface.

• When dust or mud builds up on the

surface.

Whenever possible, store or park your ve-
hicle inside a garage or in a covered area.

When it is necessary to park outside, park in
a shady area or protect the vehicle with a
body cover.

Be careful not to scratch the paint sur-
face when putting on or removing the
body cover.

WASHING

Wash dirt off with a wet sponge and plenty
of water. Clean the vehicle thoroughly us-
ing a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed
with clean, lukewarm (never hot) water.

CAUTION

•

Do not concentrate water spray di-
rectly on the sonar sensors (if so
equipped) on the bumper as this will
result in damage to the sensors. Do
not use pressure washers capable of
spraying water over 1,200 psi (8,274
kPa) to wash your vehicle. Use of
high-pressure washers over 1,200 psi
(8,274 kPa) can result in damage to or
removal of paint or graphics. Avoid
using a high-pressure washer closer
than 12 inches (30 cm) to the vehicle.
Always use a wide-angle nozzle only,
keep the nozzle moving and do not
concentrate the water spray on any
one area.

•

Do not use car washes that use acid
in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to func-
tion properly. Always check with your
car wash to confirm that acid is not
used.

•

Do not wash the vehicle with strong
household soap, strong chemical de-
tergents, gasoline or solvents.

•

Do not wash the vehicle in direct sun-
light or while the vehicle body is hot,
as

the

surface

may

become

water-spotted.

•

Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must

taken

when

removing

caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.

Rinse the vehicle thoroughly with plenty of
clean water.

Inside edges, seams and folds on the
doors, hatches and hood are particularly
vulnerable to the effects of road salt. There-
fore, these areas must be cleaned regularly.
Take care that the drain holes in the lower
edge of the door are open. Spray water
under the body and in the wheel wells to
loosen the dirt and wash away road salt.

A damp chamois can be used to dry the
vehicle to avoid water spots.

CLEANING EXTERIOR

7-2

Appearance and care

WAXING

Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove
built-up wax residue and to avoid a weath-
ered appearance before re-applying wax.

It is recommended that you visit a NISSAN
dealer to assist you in choosing the proper
product.
• Wax your vehicle only after a thorough

washing. Follow the instructions supplied
with the wax.

• Do not use a wax containing any abra-

sives, cutting compounds or cleaners
that may damage the vehicle finish.

Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint fin-
ish may dull the finish or leave swirl marks.

REMOVING SPOTS

Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the surface of the paint to avoid last-
ing damage or staining. Special cleaning
products are available at a NISSAN dealer
or any automotive accessory store. It is
recommended that you visit a NISSAN
dealer for these products.

UNDERBODY

In areas where road salt is used in winter, it
is necessary to clean the underbody regu-
larly in order to prevent dirt and salt from
building up and causing the acceleration of
corrosion on the underbody and suspen-
sion. Before the winter period and again in
the spring, the underseal must be checked
and, if necessary, re-treated.

GLASS

When cleaning the rear window, it may be
easier to clean if the inside high-mounted
stop light is removed first.

Be careful when removing the high-
mounted stop light to reduce the risk of
damaging the high-mounted stop light
wires.

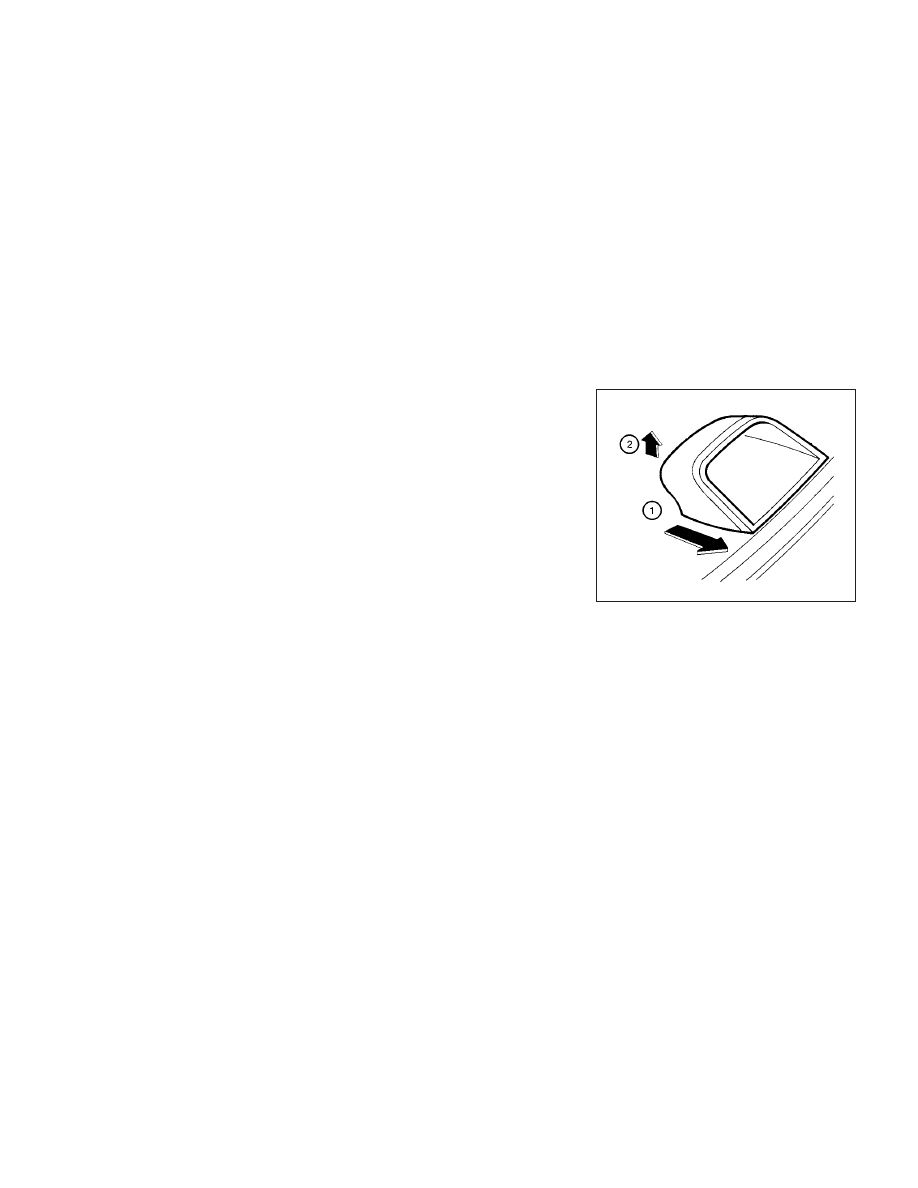

To remove the high-mounted stop light:

䊊

Push toward rear of vehicle.

䊊

Lift to remove.

WAI0005

Appearance and care

7-3

The high-mounted stop light must be
properly reinstalled before driving your
vehicle.

Use glass cleaner to remove smoke and
dust film from the glass surfaces. It is nor-
mal for glass to become coated with a film
after the vehicle is parked in the hot sun.
Glass cleaner and a soft cloth will easily
remove this film.

ALUMINUM ALLOY WHEELS (if so
equipped)

Wash the wheels regularly with a sponge
dampened in a mild soap solution, espe-
cially during winter months in areas where
road salt is used. If not removed, road salt
can discolor the wheels.

CAUTION

Follow the directions below to avoid
staining or discoloring the wheels:

•

Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.

•

Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as
ambient temperature.

•

Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.

CHROME PARTS

Clean all chrome parts regularly with a
non-abrasive chrome polish to maintain
the finish.

CAUTION

Follow the directions below to avoid
staining or discoloring the chrome
parts:

•

Do not use a cleaner that uses strong
acid or alkali contents to clean the
chrome parts.

TIRE DRESSINGS

NISSAN does not recommend the use of
tire dressings. Tire manufacturers apply a
coating to the tires to help reduce discolor-
ation of the rubber. If a tire dressing is ap-
plied to the tires, it may react with the coat-
ing and form a compound. This compound
may come off the tire while driving and
stain the vehicle paint.

If you choose to use a tire dressing, take the
following precautions:
• Use a water-based tire dressing. The

coating on the tire dissolves more easily
than with an oil-based tire dressing.

• Apply a light coat of tire dressing to help

prevent it from entering the tire tread/
grooves (where it would be difficult to
remove).

• Wipe off excess tire dressing using a dry

towel. Make sure the tire dressing is com-
pletely removed from the tire tread/
grooves.

• Allow the tire dressing to dry as recom-

mended by the tire dressing manufacturer.

7-4

Appearance and care

Occasionally remove loose dust from the
interior trim, plastic parts and seats using a
vacuum cleaner or soft bristled brush. Wipe
the vinyl and leather (if so equipped) sur-
faces with a clean, soft cloth dampened in
mild soap solution, then wipe clean with a
dry, soft cloth.

Regular care and cleaning is required in
order to maintain the appearance of the
leather (if so equipped).

Before using any fabric protector, read the
manufacturer's recommendations. Some
fabric protectors contain chemicals that
may stain or bleach the seat material.

Use a cloth dampened only with water to
clean the meter and gauge lens.

WARNING

•

Do not use wax or silicone based
products in the interior of the vehicle.
Doing so may cause damage to inte-
rior

parts,

electrical

devices,

electronics.

•

Do not use water or acidic cleaners
(hot steam cleaners) on the seat. This
can damage the seat or occupant
classification sensor. This can also
affect the operation of the air bag
system and result in serious personal
injury.

CAUTION

•

Never use benzine, thinner or any
similar material.

•

Small dirt particles can be abrasive
and damaging to leather surfaces
and should be removed promptly. Do
not use saddle soap, car waxes, pol-
ishes, oils, cleaning fluids, solvents,
detergents

ammonia-based

cleaners as they may damage the
leather's natural finish.

•

Never use fabric protectors unless
recommended by the manufacturer.

•

Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.

•

Never use chloride solutions for
cleaning aluminum decoratives (if so
equipped), damage may occur.

•

Do not spill on or make contact with
interior surfaces while handling air
fresheners, aroma agents, cosmet-
ics, sunscreen, etc. They may cause
permanent

discoloration,

stain,

crack, paint peeling, etc. depending
on the ingredients. If they contact the
interior surface, wipe them off imme-
diately using a soft cloth.

•

Do not use chlorine-based cleaning
liquid such as chlorine dioxide and
hypochlorous acid, which may cause
the paint peeling, corrosion, etc. If it is
unavoidable to clean or sterilize inte-
rior surfaces, use less than 75% etha-
nol. Wipe off ethanol completely. If
you leave it uncleaned, it may cause
paint

peeling,

discoloration,

etc.

Since ethanol is flammable, be care-
ful of fire.

CLEANING INTERIOR

Appearance and care

7-5

AIR FRESHENERS

Most air fresheners use a solvent that
could affect the vehicle interior. If you use
an

air

freshener,

take

the

following

precautions:
• Hanging-type air fresheners can cause

permanent discoloration when they con-
tact vehicle interior surfaces. Place the air
freshener in a location that allows it to
hang free and not contact an interior
surface.

• Liquid-type air fresheners typically clip on

the vents. These products can cause im-
mediate

damage

and

discoloration

when spilled on interior surfaces.

Carefully read and follow the manufactur-
er's instructions before using the air
fresheners.

POWER MOONROOF (if so
equipped)

The sunshade is made from a tricot
material.

CAUTION

To help prevent damaging the moon-
roof while cleaning:

•

Do not rub the material with a cloth.
Doing so can damage the surface of
the material or cause a stain to
spread.

•

Never use benzine, thinner or any
similar chemical to clean the sun-
shade. This may discolor the moon-
roof and damage the surface.

•

Clean water based stains by patting
the surface with a clean soft cloth
dampened in warm water. Press a
clean dry cloth onto the surface to
remove as much dampness as pos-
sible and then let air dry.

•

Clean oil based stains by patting the
surface with a clean soft cloth damp-
ened in warm water. Press a clean dry
cloth onto the surface to remove as
much dampness as possible and
then let air dry.

FLOOR MATS (if so equipped)

WARNING

To avoid potential pedal interference
that may result in a collision, injury or
death:

•

NEVER place a floor mat on top of
another floor mat in the driver front
position or install them upside down
or backwards.

•

Use only Genuine NISSAN floor mats,
or equivalent floor mats, that are
specifically designed for use in your
vehicle model and model year.

LAI2139

7-6

Appearance and care

•

Properly position the mats in the
floorwell using the floor mat posi-
tioning hook. For additional informa-
tion, see "Floor mat installation"
(P. 7-7).

•

Make sure the floor mat does not in-
terfere with pedal operation.

•

Periodically check the floor mats to
make

sure

they

are

properly

installed.

•

After cleaning the vehicle interior,
check the floor mats to make sure
they are properly installed.

The use of Genuine NISSAN floor mats can
extend the life of your vehicle carpet and
make it easier to clean the interior. Mats
should be maintained with regular clean-
ing and replaced if they become exces-
sively worn.

Floor mat installation

Your vehicle is equipped with floor mat po-
sitioning hook(s). The number and shape of
the floor mat positioning hooks for each
seating position varies depending on the
vehicle.

When installing Genuine NISSAN floor mats,
follow the installation instructions provided
with the mat and the following:

1. With the ignition in the OFF position, the

shift lever in P (Park) position (Continu-
ously Variable Transmission models) or
the shift lever in the N (Neutral) position
(manual transmission models) and with
the parking brake fully applied, position
the floor mat in the floorwell so that the
floor mat grommet holes are aligned
with the hook(s).

2. Secure the grommet holes into the

hook(s) and ensure that the floor mat is
properly positioned.

3. Make sure the floor mat does not inter-

fere with pedal operation. With the igni-
tion still in the OFF position, the shift le-
ver in the P (Park) position (Continuously
Variable Transmission models) or the
shift lever in the N (Neutral) position
(manual transmission models) and with
the parking brake applied, fully apply and
release all pedals. The floor mat must
not interfere with pedal operation or
prevent the pedal from returning to its
normal position.

It is recommended that you visit a NISSAN
dealer for details about installing the floor
mats in your vehicle.

Appearance and care

7-7

The illustration shows the location of the
floor mat positioning hooks.

SEAT BELTS

The seat belts can be cleaned by wiping
them with a sponge dampened in a mild
soap solution. Allow the belts to dry com-
pletely in the shade before using them. For
additional information, see “Seat belt main-
tenance” (P. 1-18).

WARNING

Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye or
chemical solvents to clean the seat
belts, since these materials may se-
verely weaken the seat belt webbing.

MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION

Most vehicle corrosion is caused by:
• The accumulation of moisture-retaining

dirt and debris in body panel sections,
cavities, and other areas.

• Damage to paint and other protective

coatings caused by gravel and stone
chips or minor traffic collisions.

ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION

Moisture

Accumulation of sand, dirt and water on
the vehicle body underside can accelerate
corrosion. Wet floor coverings will not dry
completely inside the vehicle and should
be removed for drying to avoid floor panel
corrosion.

Relative humidity

Corrosion will be accelerated in areas of
high relative humidity, especially those ar-
eas where the temperatures stay above
freezing and where atmospheric pollution
exists and road salt is used.

LAI2045

Positioning hooks

CORROSION PROTECTION

7-8

Appearance and care

Temperature

High temperatures accelerate the rate of
corrosion to those parts which are not well
ventilated.

Air pollution

Industrial pollution, the presence of salt in
the air in coastal areas, or heavy road salt
use accelerates the corrosion process.
Road salt also accelerates the disintegra-
tion of paint surfaces.

PROTECT YOUR VEHICLE FROM
CORROSION

• Wash and wax your vehicle often to keep

the vehicle clean.

• Always check for minor damage to the

paint and repair it as soon as possible.

• Keep drain holes at the bottom of the

doors open to avoid water accumulation.

• Check the underbody for accumulation

of sand, dirt or salt. If present, wash with
water as soon as possible.

CAUTION

•

NEVER remove dirt, sand or other de-
bris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner
or broom.

•

Never allow water or other liquids to
come in contact with electronic com-
ponents inside the vehicle as this
may damage them.

Chemicals used for road surface de-icing
are extremely corrosive. They accelerate
corrosion and deterioration of underbody
components such as the exhaust system,
fuel and brake lines, brake cables, floor pan
and fenders.

winter,

the

underbody

must

cleaned periodically.

For additional protection against rust and
corrosion, which may be required in some
areas, it is recommended that you visit a
NISSAN dealer.

Appearance and care

7-9

When performing any inspection or main-
tenance work on your vehicle, always take
care to prevent serious accidental injury to
yourself or damage to the vehicle. The fol-
lowing are general precautions which
should be closely observed.

WARNING

•

Park the vehicle on a level surface,
apply the parking brake securely and
block the wheels to prevent the ve-
hicle from moving. For manual trans-
mission models, move the shift lever
to N (Neutral). For CVT models, move
the shift lever to P (Park).

•

Be sure the ignition switch is in the
OFF or LOCK position when perform-
ing any parts replacement or repairs.

•

If you must work with the engine run-
ning, keep your hands, clothing, hair
and tools away from moving fans,
belts and any other moving parts.

•

It is advisable to secure or remove
any loose clothing and remove any
jewelry, such as rings, watches, etc.
before working on your vehicle.

•

Always wear eye protection when-
ever you work on your vehicle.

•

If you must run the engine in an en-
closed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.

•

Never get under the vehicle while it is
supported only by a jack. If it is nec-
essary to work under the vehicle,
support it with safety stands.

•

Keep smoking materials, flame and
sparks away from the fuel tank and
battery.

•

Because the fuel lines on gasoline en-
gine models are under high pressure
even when the engine is off, it is recom-
mended that you visit a NISSAN dealer
for service of the fuel filter or fuel lines.

•

Your vehicle is equipped with an au-
tomatic engine cooling fan. It may
come

any

time

without

warning, even if the ignition switch is
in the OFF position and the engine is
not running. To avoid injury, always
disconnect

the

negative

battery

cable before working near the fan.

CAUTION

•

Do not work under the hood while
the engine is hot. Turn the engine off
and wait until it cools down.

•

Avoid contact with used engine oil and
coolant. Improperly disposed engine
oil, engine coolant and/or other ve-
hicle fluids can damage the environ-
ment. Always conform to local regula-
tions for disposal of vehicle fluid.

•

Never leave the engine or the trans-
mission related component harness
connector disconnected while the ig-
nition switch is in the ON position.

•

Never connect or disconnect the bat-
tery or any transistorized compo-
nent while the ignition switch is in
the ON position.

This “Do-it-yourself ” section gives instruc-
tions regarding only those items which are
relatively easy for an owner to perform.

A Genuine NISSAN service manual is also
available. For additional information, see
“Owner's Manual/Service Manual order in-
formation” (P. 10-23).

You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and
could affect warranty coverage.

If in doubt

about any servicing, it is recommended
that you have it done by a NISSAN dealer.

MAINTENANCE PRECAUTIONS

8-2

Do-it-yourself

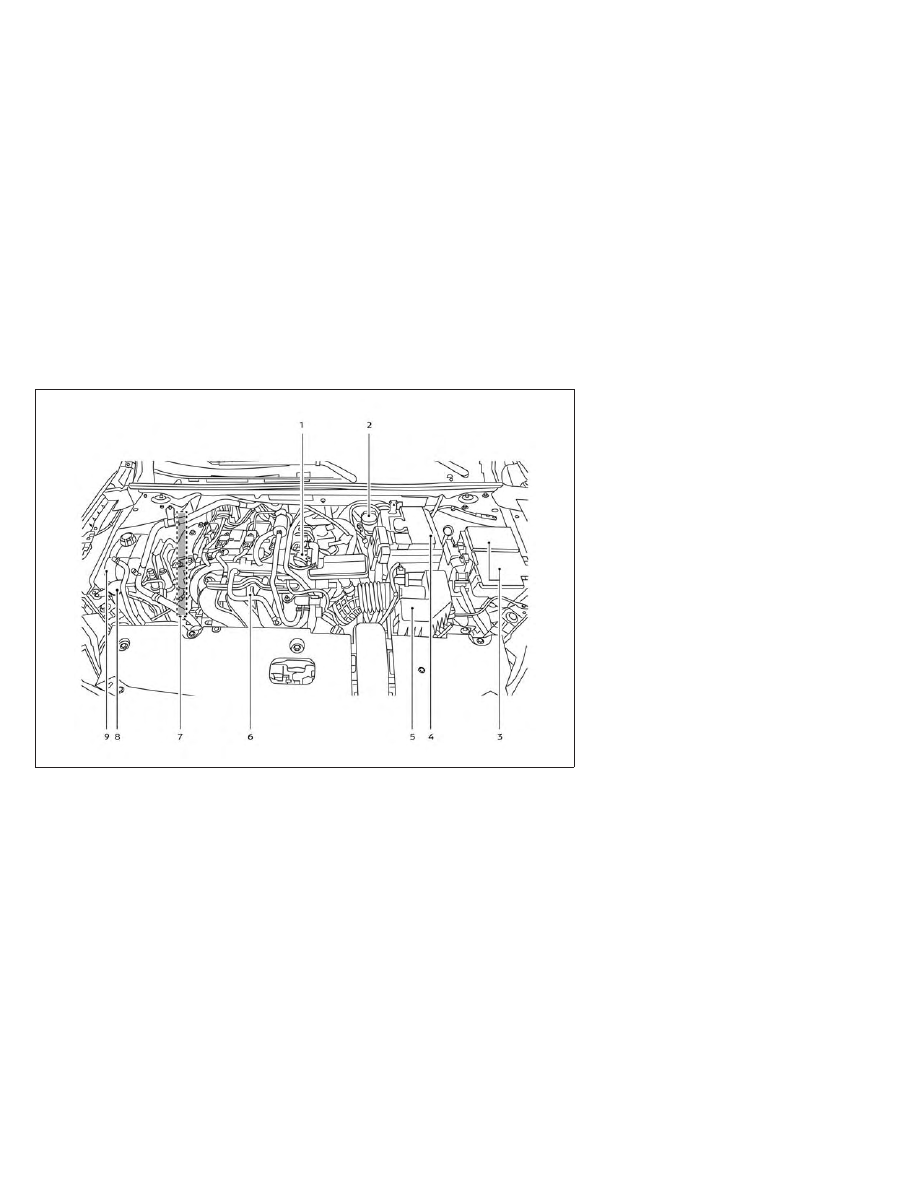

2.0L 4 cylinder (MR20DD engine model)

Engine oil filler cap

Brake and clutch (if so equipped) fluid
reservoir

Fuse and relay box

Battery

Air cleaner

Engine oil dipstick

Drive belt location

Windshield-washer fluid reservoir

Engine coolant reservoir

NOTE:

Your vehicle may not be equipped with
an engine cover.

LDI3477

ENGINE COMPARTMENT CHECK
LOCATIONS

Do-it-yourself

8-3

The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life Antifreeze/
Coolant (blue) and 50% water to provide
year-round antifreeze and coolant protec-
tion. The antifreeze solution contains rust
and corrosion inhibitors. Additional engine
cooling

system

additives

are

not

necessary.

WARNING

•

Never remove the coolant reservoir
cap when the engine is hot. Wait until
the engine and radiator cool down.
Serious burns could be caused by
high pressure fluid escaping from the
radiator. For additional information
on precautions, see “If your vehicle
overheats” (P. 6-11).

•

The coolant reservoir is equipped
with a pressure type coolant reser-
voir cap. To prevent engine damage,
use only a Genuine NISSAN coolant
reservoir cap.

CAUTION

•

Never use any cooling system addi-
tives such as radiator sealer. Addi-
tives may clog the cooling system
and cause damage to the engine,
transmission and/or cooling system.

•

When adding or replacing coolant, be
sure to use only Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
or equivalent. Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is pre-
diluted to provide antifreeze protec-
tion to -34° F (-37° C). If additional
freeze protection is needed due to
weather where you operate your ve-
hicle, add Genuine NISSAN Long Life
Antifreeze/Coolant

(blue)

concen-

trate following the directions on the
container. If an equivalent coolant
other than Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is used, fol-
low the coolant manufacturer’s in-
structions to maintain minimum an-
tifreeze protection to -34° F (-37° C).
The use of other types of coolant so-
lutions other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
or equivalent may damage the en-
gine cooling system.

•

The life expectancy of the factory-fill
coolant is 105,000 miles (168,000 km)
or 7 years. Mixing any other type of
coolant other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
(or

equivalent

cooling),

including

Genuine

NISSAN

Long

Life

Antifreeze/Coolant (green), or the
use of non-distilled water may re-
duce the life expectancy of the
factory-fill coolant. For additional in-
formation, see the “Maintenance and
schedules” section of this manual.

ENGINE COOLING SYSTEM

8-4

Do-it-yourself

CHECKING ENGINE COOLANT
LEVEL

Check the coolant level

in the reservoir

when the engine is cold.

If the coolant

level is below the MIN level

, add coolant

to the MAX level

This vehicle contains Genuine NISSAN Long
Life Antifreeze/Coolant (blue). The life ex-
pectancy of the factory-fill coolant is
105,000 miles (168,000 km) or 7 years. Mixing
any other type of coolant or the use of
non-distilled water will reduce the life ex-
pectancy of the factory-fill coolant. For ad-

ditional information, see the “Maintenance
and schedules” section of this manual.

If the cooling system frequently requires
coolant, have it checked. It is recom-
mended that you visit a NISSAN dealer
for this service.

For additional information on the location
of the engine coolant reservoir, see “Engine
compartment check locations” (P. 8-3).

CHANGING ENGINE COOLANT

A NISSAN dealer can change the engine
coolant. The service procedure can be
found in the NISSAN Service Manual.

Improper servicing can result in reduced
heater

performance

and

engine

overheating.

WARNING

•

To avoid the danger of being scalded,
never change the coolant when the
engine is hot.

•

Never remove the engine coolant
reservoir cap when the engine is hot.
Serious burns could be caused by
high pressure fluid escaping from the
system.

•

Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly

with

soap

hand

cleaner as soon as possible.

•

Keep coolant out of the reach of chil-
dren and pets.

Engine coolant must be disposed of prop-
erly. Check your local regulations.

LDI3495

Do-it-yourself

8-5

CHECKING ENGINE OIL LEVEL

1. Park the vehicle on a level surface and

apply the parking brake.

2. Start the engine and let it idle until it

reaches operating temperature.

3. Turn off the engine.

Wait more than 10

minutes for the oil to drain back into
the oil pan.

4. Remove the dipstick and wipe it clean.

Reinsert it all the way.

5. Remove the dipstick again and check

the oil level. It should be between the H
(High) and L (Low) marks

. This is the

normal operating oil level range. If the oil
level is below the L (Low) mark

, re-

move the oil filler cap and pour recom-
mended oil through the opening.

Do not

overfill

6. Recheck oil level with the dipstick.

CAUTION

•

Oil level should be checked regularly.
Operating the engine with an insuffi-
cient amount of oil can damage the
engine, and such damage is not cov-
ered by warranty.

•

It is normal to add some oil between
oil maintenance intervals or during
the break-in period, depending on
the severity of operating conditions.

Make sure to follow the engine oil changing
intervals in the maintenance booklet. Op-
erating under the following conditions may
require more frequent oil change:
• repeated short distance driving
• driving in dusty conditions
• stop and go commuting.

LDI3487

LDI0371

ENGINE OIL

8-6

Do-it-yourself

Nissan Sentra (2024 year). Manual in english - page 14
