Nissan Sentra (2024 year). Manual in english

Your vehicle may have two types of security
systems:
• Vehicle security system (if so equipped)
• NISSAN Vehicle Immobilizer System

VEHICLE SECURITY SYSTEM (if so
equipped)

The vehicle security system provides visual
and audible alarm signals if someone
opens the doors when the system is
armed. It is not, however, a motion detec-
tion type system that activates when a ve-
hicle is moved or when a vibration occurs.

The system helps detect vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your keys in the vehicle, and
always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various theft protection
features.

How to arm the vehicle security
system

1. Close all windows and the moonroof (if

so equipped).

The system can be

armed even if the windows and moon-
roof are open.

2. Remove the Intelligent Key from the

vehicle.

3. Close all doors, hood and trunk. Lock all

doors. The doors can be locked with the
Intelligent Key, door handle request
switch (if so equipped) or power door
lock switch.

4. Wait 30 seconds for the system to com-

plete the pre-armed phase.
If during the pre-armed phase one of
the following occurs, the system will not
arm:

• Any door is unlocked with the Intelli-

gent Key or door request switch (if so
equipped).

• The ignition switch is placed in the

AUTO ACC or ON position.

•

Even when the driver and/or passen-
gers are in the vehicle, the system will
activate when all the doors, hood and
trunk are locked with the ignition
switch placed in the LOCK position.
When placing the ignition switch in the
ON

position,

the

system

will

released.

LIC0301

SECURITY SYSTEMS

2-54

Instruments and controls

Vehicle security system activation

The vehicle security system will give the
following alarm:
• The headlights blink and the horn sounds

intermittently.

• The alarm automatically turns off after a

period of time. However, the alarm reacti-
vates if the vehicle is tampered with
again. The alarm can be shut off by press-
ing the

button on the Intelligent Key.

The alarm is activated by:
• opening the door or trunk lid without us-

ing the key or Intelligent Key (even if the
door is unlocked by releasing the door
inside lock switch).

How to stop an activated alarm

The alarm stops only by unlocking a door,
pressing the

button on the Intelligent

Key, or pushing the request switch (if so
equipped) on the driver's or passenger's
door with the Intelligent Key in range of the
door handle.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of a registered key.

If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedures:

1. Leave the ignition switch in the ON posi-

tion for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the de-

vice (which may have caused the inter-
ference) separate from the registered
key.

If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

Never leave these keys in the vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's author-
ity to operate the equipment.

For Canada:

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic
Development Canada’s licence-exempt
RSS(s). Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause interference. (2) This de-
vice must accept any interference, in-
cluding interference that may cause un-
desired operation of the device.

Instruments and controls

2-55

SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may
lead to an accident. Warm the wind-
shield with the defroster before you
wash the windshield.

CAUTION

•

Do not operate the washer continu-
ously for more than 30 seconds.

•

Do not operate the washer if the
windshield-washer fluid reservoir is
empty.

•

Do not fill the windshield-washer
fluid

reservoir

with

windshield-

washer fluid concentrates at full
strength.

Some

methyl

alcohol

based windshield-washer fluid con-
centrates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

•

Pre-mix

windshield-washer

fluid

concentrates

with

water

the

manufacturer's recommended lev-
els before pouring the fluid into the
windshield-washer fluid reservoir.
Do not use the windshield-washer
fluid reservoir to mix the windshield-
washer fluid concentrate and water.

NOTE:

If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.

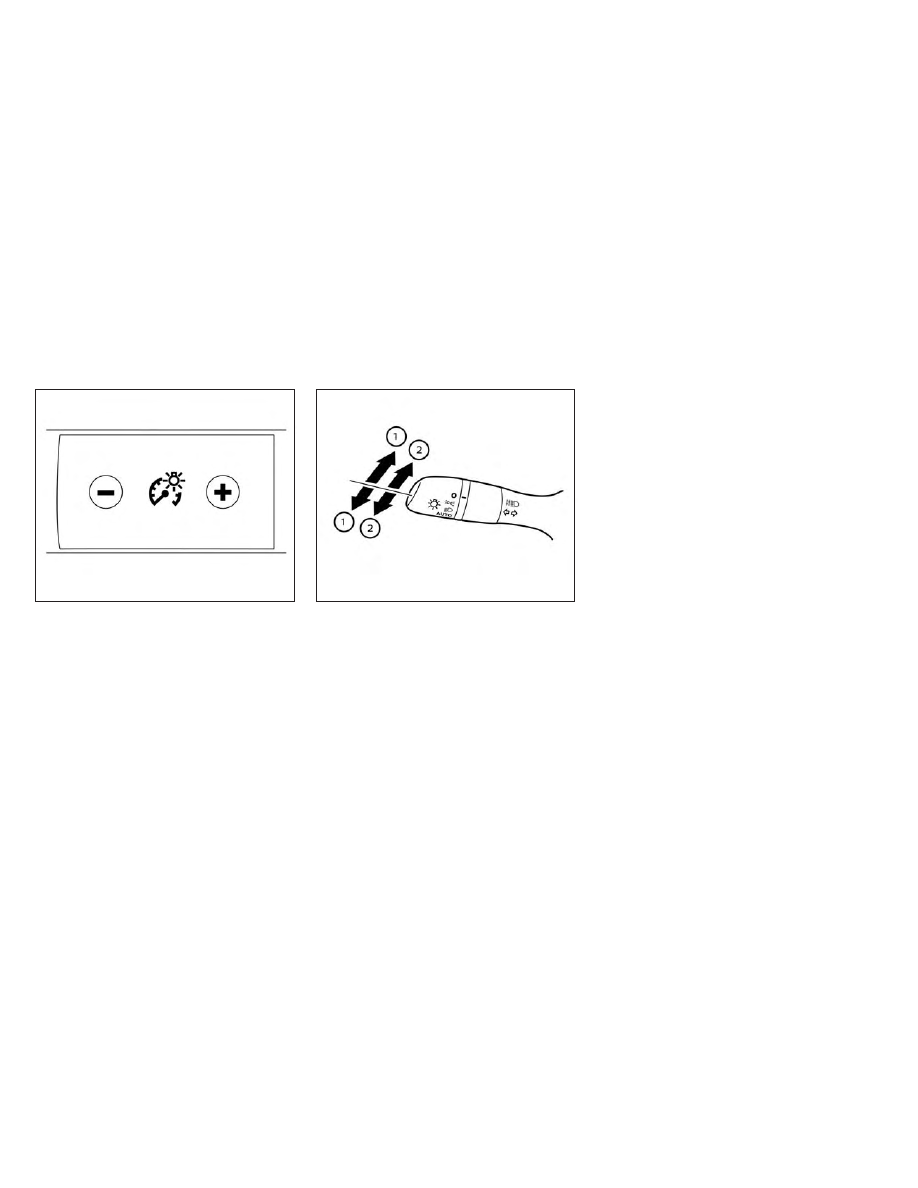

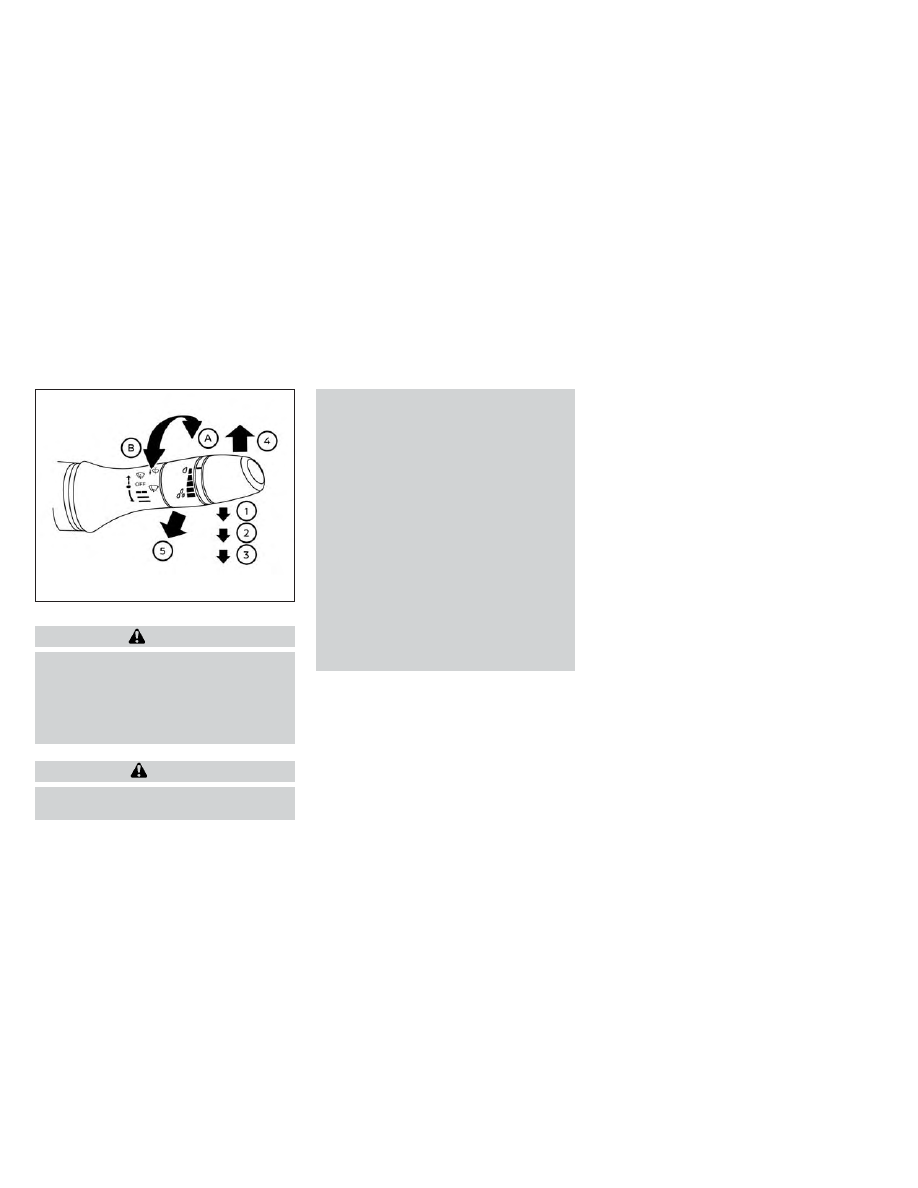

The windshield wiper and washer operates
when the ignition switch is placed in the ON
position.

Push the lever down to operate the wiper
at the following speed:

䊊

Intermittent — intermittent operation
can be adjusted by turning the knob
toward

(faster) or

(slower). Also,

the intermittent operation speed varies
in accordance with the vehicle speed.
(For example, when the vehicle speed is
high, the intermittent speed will be
faster.)

䊊

Low — continuous low speed operation

䊊

High

—

continuous

high

speed

operation

Push the lever up

to have one sweep

operation (MIST) of the wiper.

Pull the lever toward you

to operate the

washer. The wiper will also operate several
times.

LIC4896

WIPER AND WASHER SWITCH

2-56

Instruments and controls

NOTE:

The Wiper with Speed feature may be
disabled. For additional information, see
“Vehicle information display 4.2 inch (11
cm) Type A” (P. 2-17) or “Vehicle informa-
tion display 7 inch (18 cm) Type B”
(P. 2-34).

To defrost the rear window glass and out-
side mirrors (if so equipped), start the en-
gine and push the rear window defroster
switch on. The rear window defroster indi-
cator light on the switch comes on. Push
the switch again to turn the defroster off.

The rear window defroster automatically
turns off after approximately 15 minutes.

CAUTION

•

Use the defroster when the engine is
running to avoid discharging the
battery.

•

When cleaning the inner side of the
rear window, be careful not to scratch
or damage the rear window defroster.

LIC4039

REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH

Instruments and controls

2-57

HEADLIGHT CONTROL SWITCH

Lighting

䊊

Rotate the switch to the

position,

and the front parking, tail, license plate,
and instrument panel lights will come
on. The

will illuminate in the meter.

䊊

Rotate the switch to the

position,

and the headlights will come on and all
the other lights remain on.

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.

Autolight system

The autolight system allows the headlights
to turn on and off automatically. The auto-
light system can:
• Turn on the headlights, front parking, tail,

license plate and instrument panel lights
automatically when it is dark.

• Turn off all the lights when it is light.
• Keep all the lights on for a period of time

after you place the ignition switch in the
OFF position and all doors are closed.

LIC2635

Type A (if so equipped)

LIC4498

Type B (if so equipped)

LIC5096

HEADLIGHT AND TURN SIGNAL
SWITCH

2-58

Instruments and controls

To turn on the autolight system:

For USA:

Turn the headlight switch to the

AUTO position

For CAN:

Turn the headlight switch to the

AUTO

position.

2. Place the ignition switch in the ON

position.

3. The

autolight

system

automatically

turns the headlights on and off.

Initially, if the ignition switch is placed in the
OFF position and a door is opened and left
open, the headlights remain on for a period
of time. If another door is opened while the
headlights are on, timer continues.

To turn the autolight system off:

For USA:

Turn the switch to the OFF (if so

equipped),

, or

position.

For CAN:

Turn the switch to the

position.

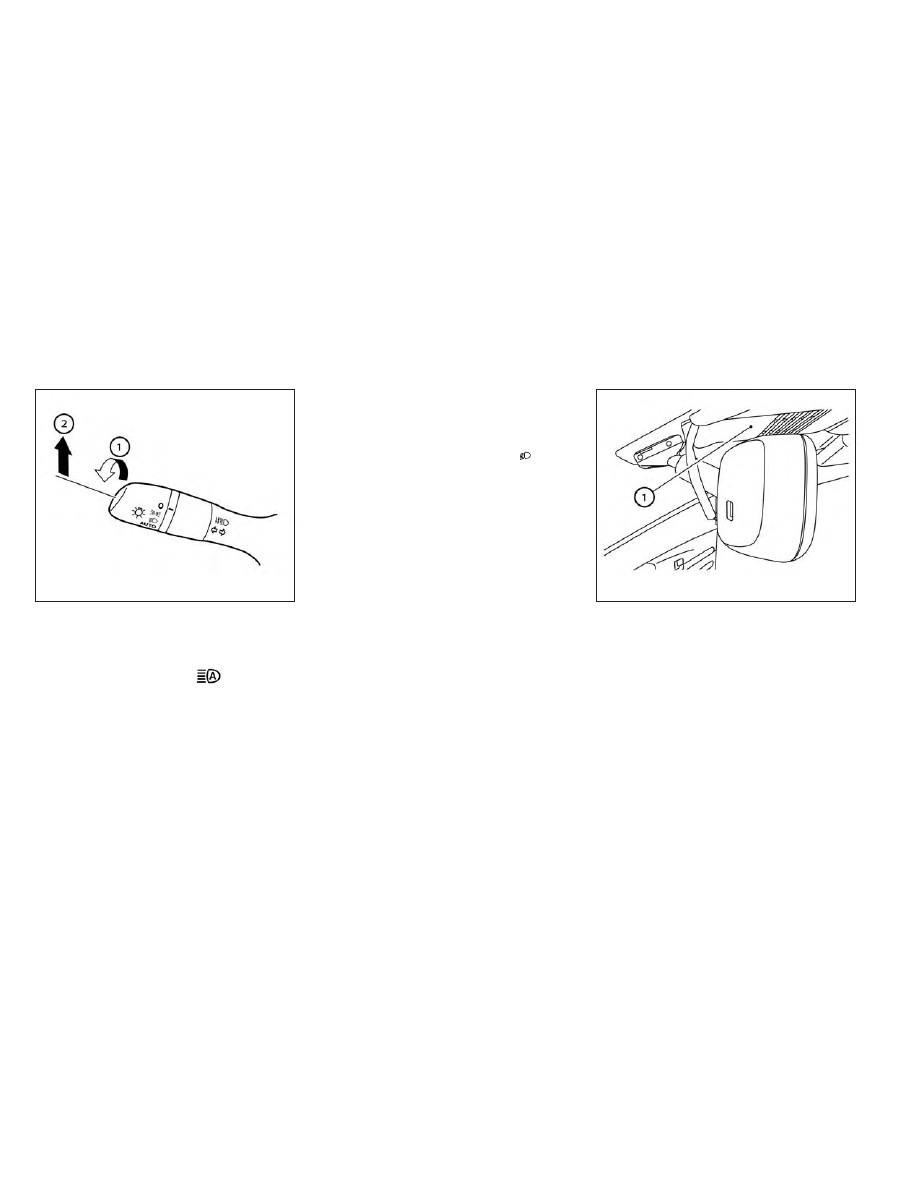

The headlights will turn on automatically at
twilight or in rainy weather (when the wind-
shield wiper is operated continuously).

If the ignition switch is placed in the OFF
position and one of the doors is opened
and this condition is continued, the head-
lights will remain on for 1 minute.

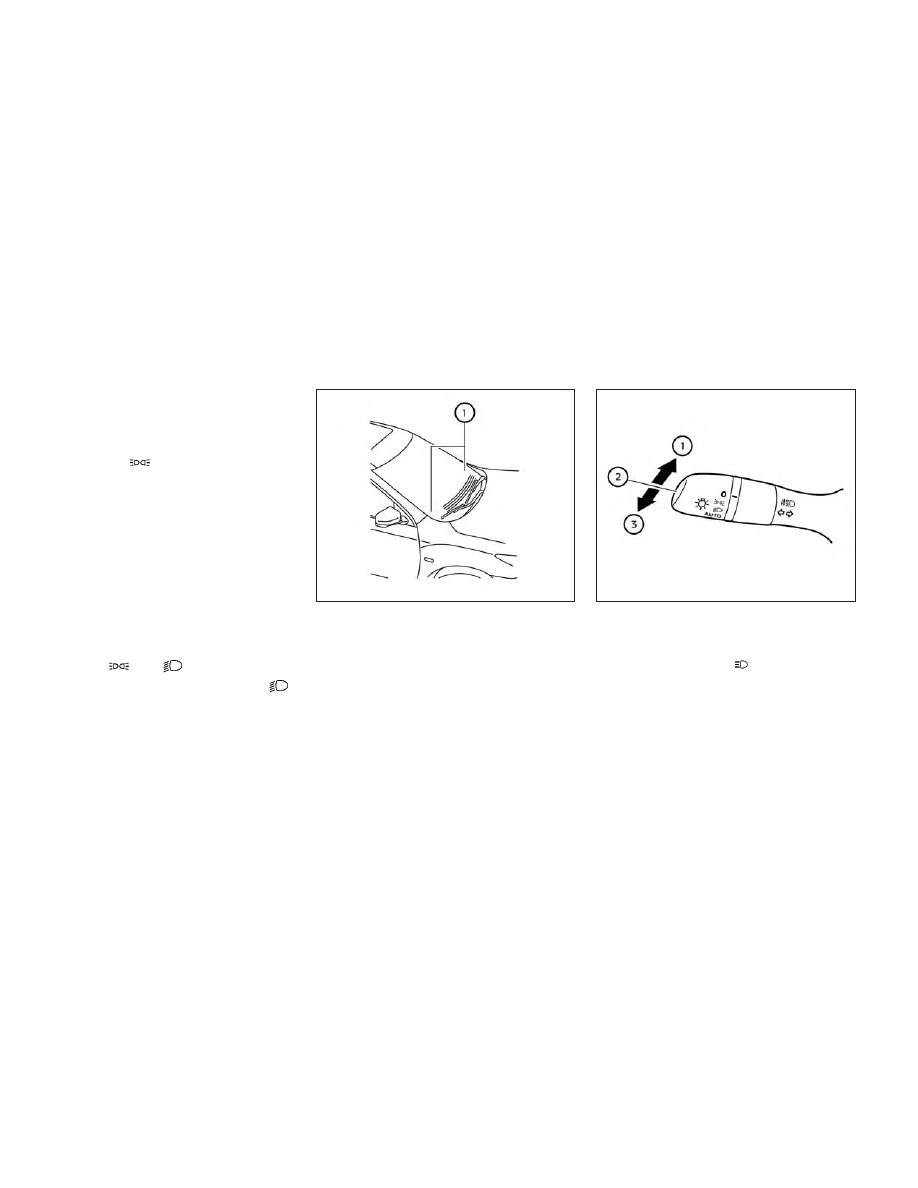

Be sure you do not put anything on top
of the autolight sensor located in the top
side

of the instrument panel. The au-

tolight sensor controls the autolight; if it
is covered, the autolight sensor reacts as
if it is dark out and the headlights will
illuminate. If this occurs while parked
with the engine off and the ignition
switch placed in the ON position, your
vehicle's

battery

could

become

discharged.

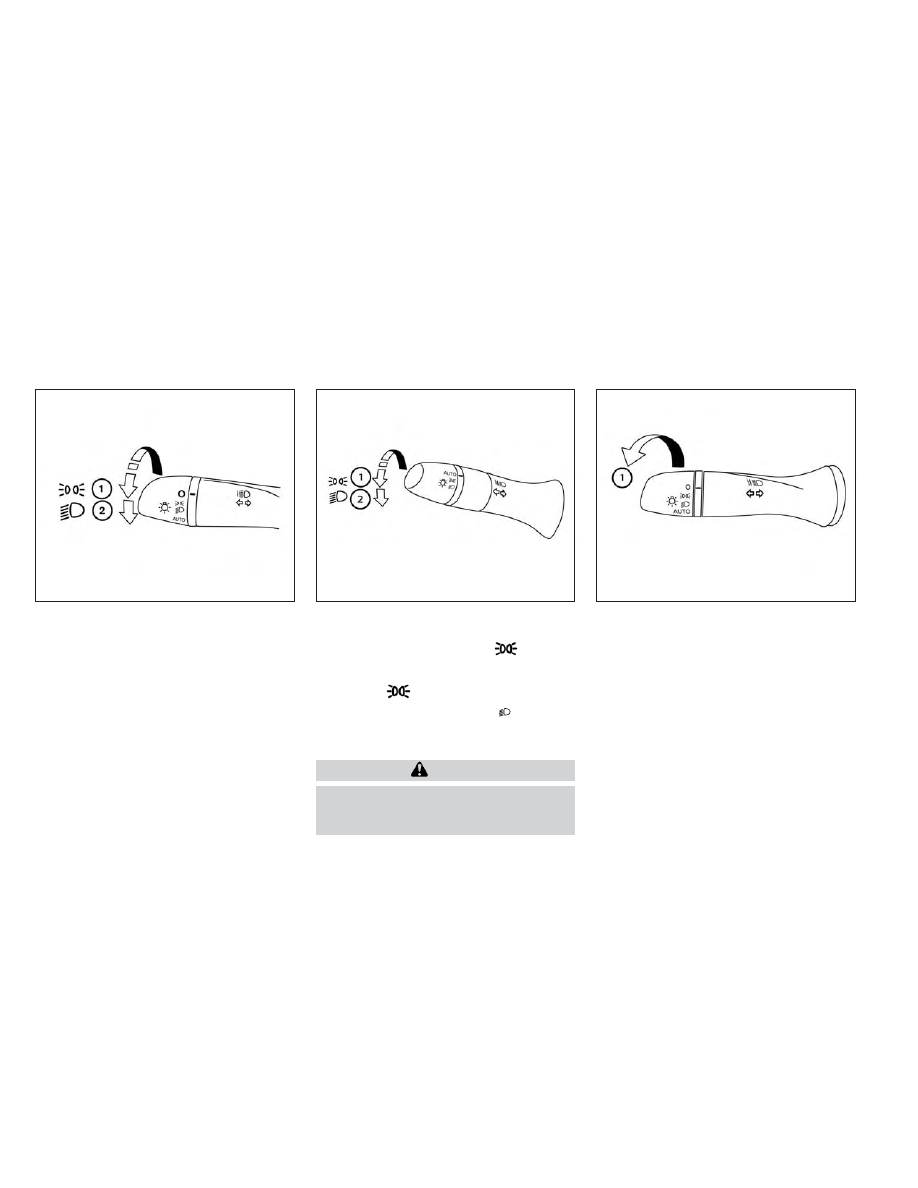

Headlight beam select

䊊

To select the high beam function, push
the lever forward. The high beam lights
come on and the

light illuminates

in the meter.

䊊

Pull the lever back to select the low
beam.

䊊

Pulling and releasing the lever flashes
the headlight high beams on and off.

LIC4417

LIC5340

Instruments and controls

2-59

High Beam Assist (if so equipped)

The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above. If
an oncoming vehicle or leading vehicle ap-
pears in front of your vehicle when the
headlight high beam is on, the headlight
will

switched

the

low

beam

automatically.

WARNING

•

The High Beam Assist system is a
convenience but it is not a substitute
for safe driving operation. The driver
should remain alert at all times, en-
sure

safe

driving

practices

and

switch the high beams and low beam
manually when necessary.

•

The high beam or low beam may not
switch automatically under the fol-
lowing conditions. Switch the high
beam and low beam manually.

–

During bad weather (rain, fog,
snow, wind, etc.).

–

When a light source similar to a
headlight or tail light is in the vi-
cinity of the vehicle.

–

When the headlights of the on-
coming vehicle or the leading ve-
hicle are turned off, when the color
of the light is affected due to for-
eign materials on the lights, or
when the light beam is out of
position.

–

When there is a sudden, continu-
ous change in brightness.

–

When driving on a road that
passes over rolling hills, or a road
that has level differences.

–

When driving on a road with many
curves.

–

When a sign or mirror-like surface
is reflecting intense light towards
the front of the vehicle.

–

When the container, etc. being
towed by a leading vehicle is re-
flecting intense light.

–

When a headlight on your vehicle
is damaged or dirty.

–

When the vehicle is leaning at an
angle due to a punctured tire, be-
ing towed, etc.

•

The timing of switching the low
beam and high beam may change
under the following situations.

–

The brightness of the headlights
of the oncoming vehicle or leading
vehicle.

–

The movement and direction of
the oncoming vehicle and the
leading vehicle.

–

When only one light on the on-
coming vehicle or the leading ve-
hicle is illuminated.

–

When the oncoming vehicle or the
leading vehicle is a two-wheeled
vehicle.

–

Road conditions (incline, curve,
the road surface, etc.).

–

The number of passengers and
the amount of luggage.

2-60

Instruments and controls

High Beam Assist operation

To activate the High Beam Assist system,
turn the headlight switch to the AUTO po-
sition

and push the lever forward

(high beam position). The

High Beam

Assist indicator light in the meter will illumi-
nate while the headlights are turned on.

If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked, it is
recommended that you visit a NISSAN
dealer for this service.

When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.

To turn off the High Beam Assist system,
turn the headlight switch to the

posi-

tion or select the low beam position by
placing the lever in the neutral position.

Ambient image sensor maintenance

The ambient image sensor

for the High

Beam Assist system is located in front of
the inside mirror. To maintain the proper
operation of the high beam assist system
and prevent a system malfunction, be sure
to observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including trans-

parent material) or install an accessory
near the ambient image sensor.

• Do not strike or damage the areas

around the ambient image sensor. Do
not touch the sensor lens that is located
on the ambient image sensor.

LIC5341

LSD3484

Instruments and controls

2-61

If the ambient image sensor is damaged
due to an accident, it is recommended that
you visit a NISSAN dealer.

Battery saver system (if so
equipped)

The light reminder chime will sound if the
headlight switch is in either the

position and when the driver’s door is

opened with the ignition switch in the OFF
or LOCK position.

If the ignition switch is placed in the OFF or
LOCK position while the headlight switch is
in the

position, the battery

saver function will turn off the lights after a
period of time to prevent the battery from
being discharged.

Be sure to turn the headlight switch to the
OFF or AUTO position when you leave the
vehicle.

CAUTION

•

Do not leave the lights on when the
engine is not running for extended
periods of time to prevent the bat-
tery from being discharged.

•

When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to turn
the light switch to the OFF (if so
equipped) or the AUTO position when
you leave the vehicle for extended
periods of time, otherwise the bat-
tery will be discharged.

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM (if so equipped)

The LED DRL automatically illuminate at
100% intensity when the engine is started
and the parking brake released. The LED
DRL operate with the headlight switch in
the OFF (if so equipped), or AUTO position
during day conditions.

For CAN:

the LED

DRL can turn on when headlight is in the

position during day conditions (rear

position lights will turn on as well). When
you turn the headlight switch to the
position for full illumination, the LED lights
switch from LED DRL to the park function.

If the parking brake is applied before the
engine is started, the LED DRL do not illumi-
nate. The LED DRL illuminate when the
parking brake is released. The LED DRL will
remain on until the ignition switch is placed
in the OFF position.

It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF or AUTO position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

2-62

Instruments and controls

INSTRUMENT BRIGHTNESS
CONTROL

Press the “+” button to increase the bright-
ness of instrument panel lights.

Press the “-” button to decrease the bright-
ness of instrument panel lights.

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down to signal the
turning direction. When the turn is com-
pleted,

the

turn

signal

cancels

automatically.

Lane change signal

䊊

Move the lever up or down until the turn
signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.

Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, and release the lever. The turn
signal will automatically flash three times.

Choose the appropriate method to signal
a lane change based on road and traffic
conditions.

NOTE:

If the turn signal light bulb malfunctions,
the turn signal indicator will flash at a
higher frequency when the turn signal is
activated.

NOTE:

The 3 flash pass feature may be disabled.
For additional information, see “Vehicle
information display 4.2 inch (11 cm) Type
A” (P. 2-17), or “Vehicle information dis-
play 7 inch (18 cm) Type B” (P. 2-34).

LIC4691

LIC5342

Instruments and controls

2-63

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering

with

the

supplemental

front air bag system may result in seri-
ous personal injury.

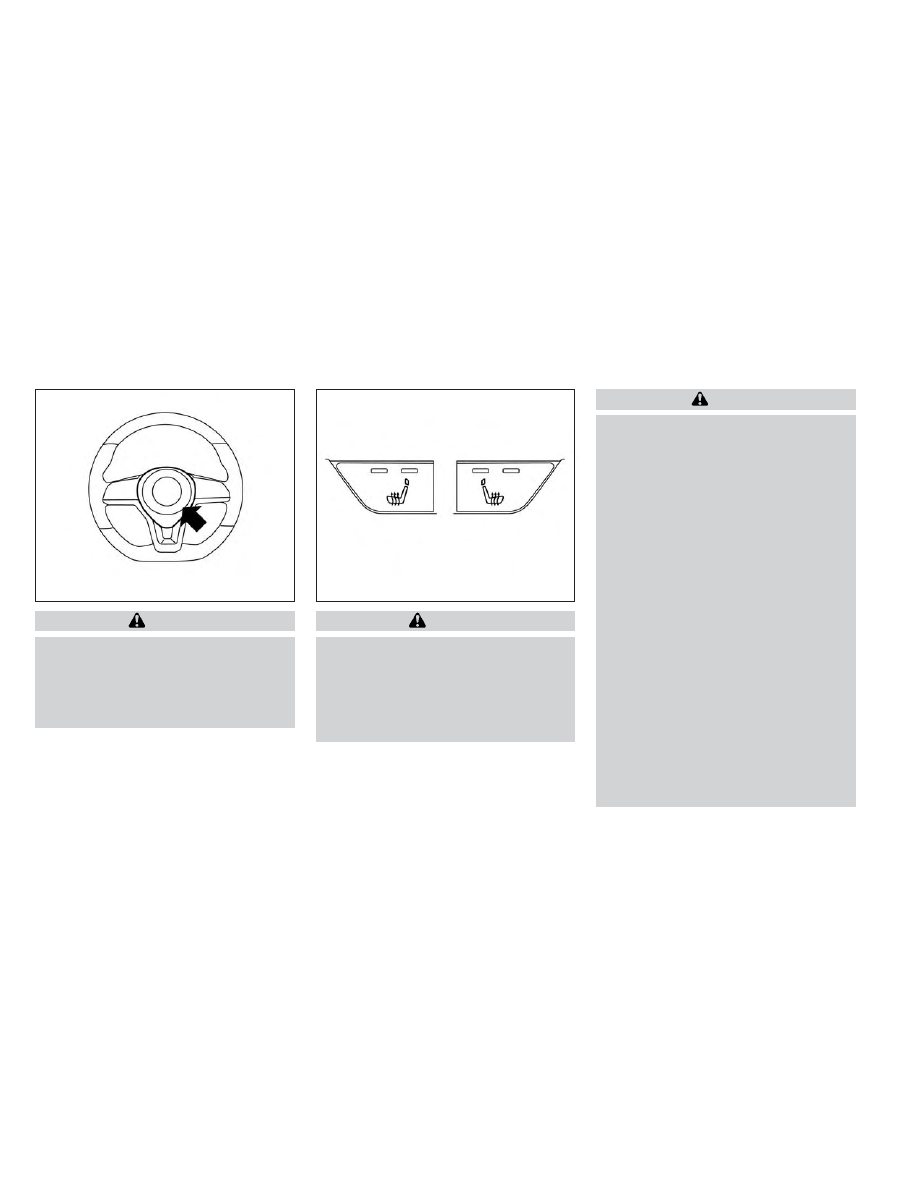

To sound the horn, push near the horn icon
on the steering wheel.

WARNING

Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tem-
peratures or have an inability to feel
pain in body parts that contact the
seat. Use of the seat heater by such
people could result in serious injury.

CAUTION

•

The battery could run down if the
seat heater is operated while the en-
gine is not running.

•

Do not use the seat heater for ex-
tended periods or when no one is us-
ing the seat.

•

Do not put anything on the seat
which insulates heat, such as a blan-
ket, cushion, seat cover, etc. Other-
wise,

the

seat

may

become

overheated.

•

Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.

•

Any liquid spilled on the heated seat
should be removed immediately with
a dry cloth.

•

When cleaning the seat, never use
gasoline, benzine, thinner, or any
similar materials.

•

If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.

LIC3568

LIC4904

HORN

HEATED SEAT SWITCHES (if so
equipped)

2-64

Instruments and controls

The front seats are warmed by built-in
heaters.

1. Place the ignition switch in the ON

position.

2. Push the switch until either two lights

are illuminated for high setting, or one
light is illuminated for low setting.

The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.

3. When the seat is warmed or before you

leave the vehicle, be sure to push the
switch to turn it off.

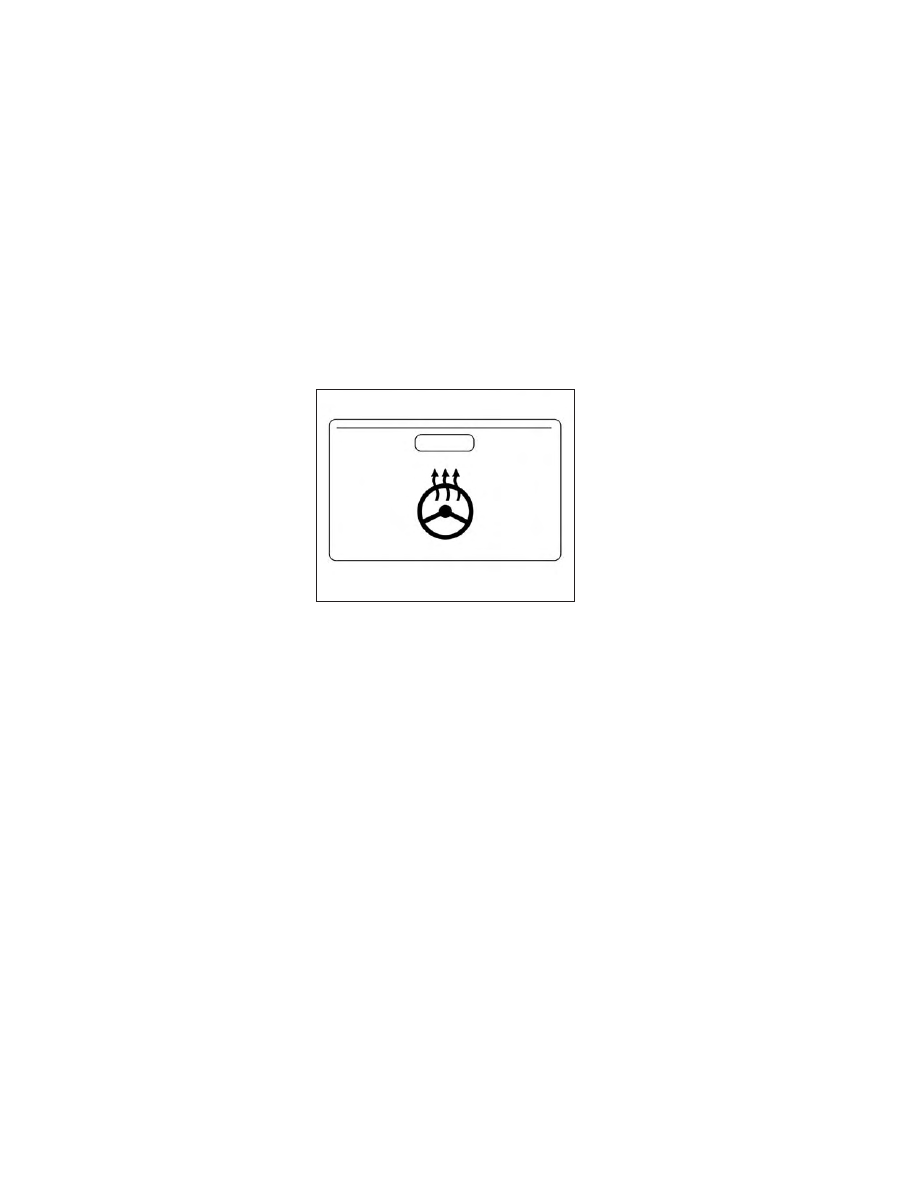

The heated steering wheel system is de-
signed to operate only when the surface
temperature of the steering wheel is below
68°F (20°C).

Push the heated steering wheel switch to
warm the steering wheel after the engine
starts. The indicator light will come on.

If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and
on to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on.

Push the switch again to turn the heated
steering wheel system off manually. The
indicator light will go off.

NOTE:

If the surface temperature of the steer-
ing wheel is above 68°F (20°C) when the
switch is turned on, the system will not
heat the steering wheel. This is not a
malfunction.

LIC4030

HEATED STEERING WHEEL SWITCH (if
so equipped)

Instruments and controls

2-65

EMERGENCY SUPPORT

NissanConnect® Services provide various
services to support dealing with emergen-
cies of the subscribed vehicle and the
driver.

For example, in case of an illness or serious
injury, you can seek support by press-
ing the in-vehicle Emergency Call (SOS)
button

and

connecting

the

NissanConnect® Services Response Center.
The NissanConnect® Services Response
Center can specify the location of the ve-
hicle via GPS, and the information will be
sent to the police or other agencies as
needed.

For information about other NissanConnect®
Services emergency support related ser-
vices, contact the NissanConnect® Customer
Support line at 1–855–426–6628 or refer
to the NissanConnect® Services website
www.nissanusa.com/connect (for U.S.) or
www.nissan.ca/nissanconnect (English) /
www.nissan.ca/nissanconnect/fr (French)
(for Canada).

WARNING

•

Please note that the Automatic Colli-
sion Notification service and Emer-
gency Call function cannot be used in
the following conditions:

–

Emergency functions and services
will not be available without a paid
subscription

NissanConnect®

Services.

–

The NissanConnect® Services net-
work system is disabled.

–

The vehicle moves outside the
service

area

where

the

TCU

(Telematics Control Unit) is con-
nected to the system.

–

The vehicle is outside the area
where the cellular network service
is receivable.

–

The vehicle is in a location with
poor

signal

reception

such

tunnels, underground parking ga-
rages, behind buildings or in moun-
tainous areas.

–

The line is busy.

–

The TCU (Telematics Control Unit)
or other systems of your vehicle
are not working properly.

–

It may not be possible to make an
emergency call depending on the
severity of a collision and/or
emergency.

•

Park the vehicle in a safe location and
set the parking brake before operat-
ing the Emergency Call (SOS) button.

•

Only use this service in case of an
emergency. There may be a penalty
for inappropriate use of the service.

•

Radio waves could adversely affect
electric medical equipment. Indi-
viduals who use a pacemaker should
contact the device manufacturer re-
garding any possible effects before
using the system.

•

The TCU (Telematics Control Unit) an-
tenna is installed inside the upper
central part of the instrument panel.
An occupant should not get any
closer to the antenna than specified
by the pacemaker manufacturer. The
radio waves from the TCU antenna
may adversely affect the operation
of the pacemaker while using the
NissanConnect® Services.

EMERGENCY CALL (SOS) BUTTON (if
so equipped)

2-66

Instruments and controls

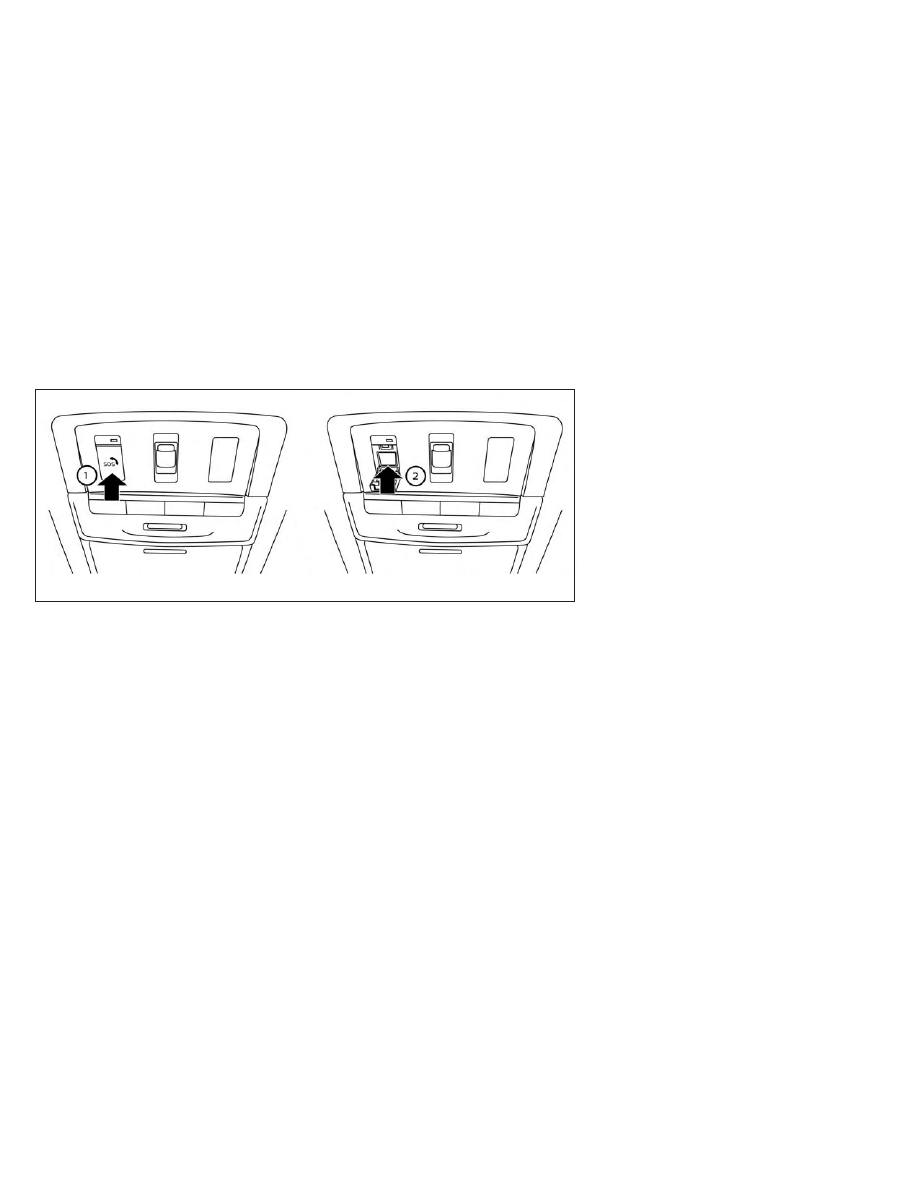

Making an emergency call

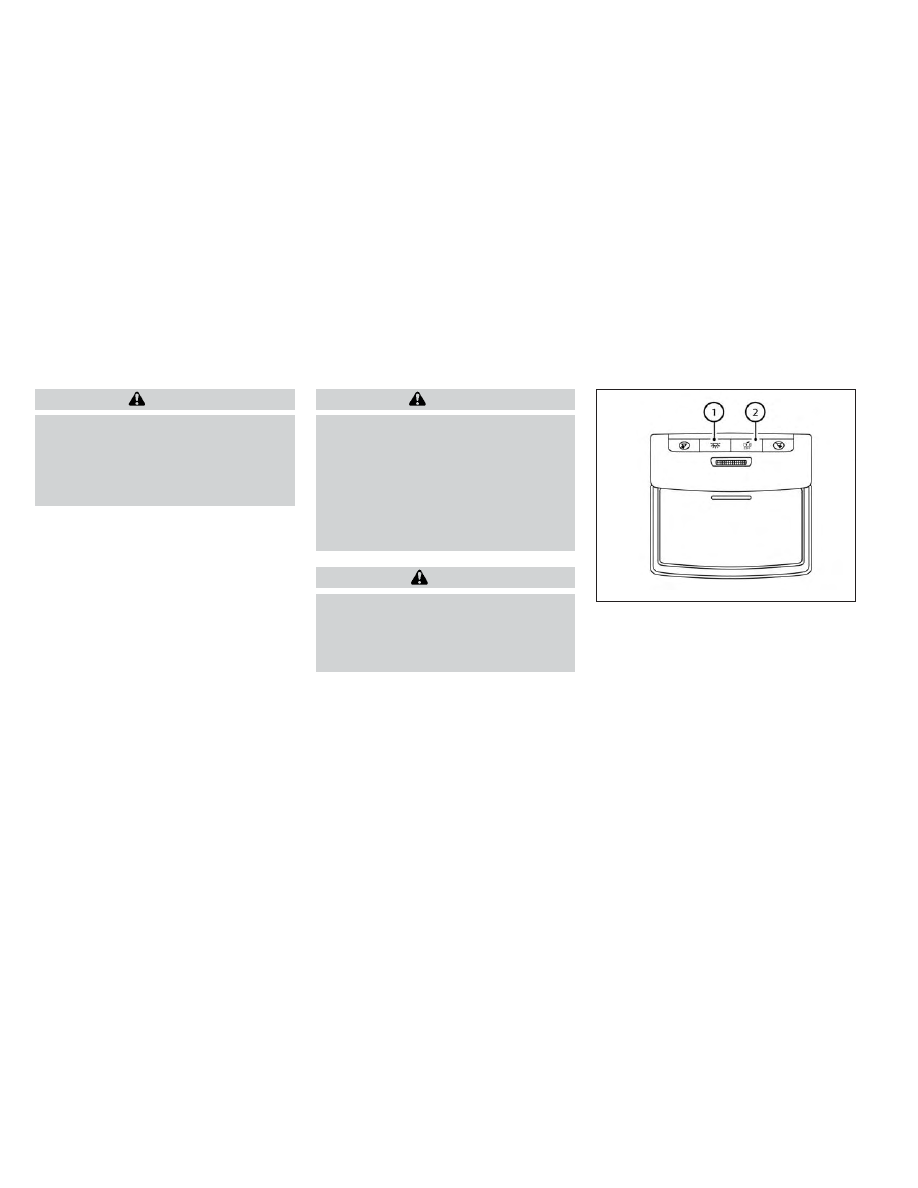

The Emergency Call (SOS) button is located
near the map light under a cover.

1. Press the cover once

. The cover will

drop down, exposing the Emergency call
button.

2. Press the Emergency Call (SOS) button

to make an emergency call.

3. When the line is connected, speak to the

Response Specialist.

If you want to cancel the emergency call,
press and hold the Emergency Call (SOS)
button for a few seconds.

NOTE:

•

After the Emergency Call (SOS) button
is pressed, it may take some time until
the system initiates connection, de-
pending on the technical environment
and whether the TCU (Telematics Con-
trol Unit) is being used by the other
services.

•

An indicator light on the Emergency
call (SOS) button shows the readiness
of the emergency support system. If
the indicator light is not illuminated,
pressing the Emergency Call (SOS) but-
ton does not connect your vehicle to
the Response Specialist. The indicator
light blinks while connected to the
NissanConnect®

Services

Response

Center.

•

Even when the indicator light is illumi-
nated,

connection

the

NissanConnect®

Services

Response

Center may not be possible. If this oc-
curs in an emergency situation, con-
tact the authorities by other means.

•

To avoid disconnecting the line, keep
the engine running during an emer-
gency call, if it is safe to do so.

LIC4213

Instruments and controls

2-67

The Rear Door Alert system functions un-
der certain conditions to indicate there
may be an object or passenger in the rear
seat(s). Check the seat(s) before exiting the
vehicle.

The Rear Door Alert system is initially dis-
abled. The driver can enable the system
using the vehicle information display. For
additional information, see “Vehicle infor-
mation display 4.2 inch (11 cm) Type A”
(P. 2-17) or “Vehicle information display 7
inch (18 cm) Type B” (P. 2-34).

When the system is enabled:
• The system is activated when a rear door

is opened and closed within 10 minutes of
the vehicle being driven. When the driver
door is closed and the system is acti-
vated, a visual message appears in the
vehicle information display. For additional
information, see “Rear Door Alert is acti-
vated (P. 2-28) or “Rear Door Alert is acti-
vated (P. 2-48)

• If a rear door is opened and closed but

the vehicle is not driven within approxi-
mately 10 minutes, the system will not be
activated. A rear door must be opened
and closed and the car driven within 10
minutes for the system to activate.

When the Rear Door Alert system is activated:
• When the driver puts the vehicle in the P

(Park) position, a notification message
appears in the vehicle information dis-
play with the options to “Dismiss Mes-
sage” or “Disable Alert” if desired.

• Select “Disable Alert” to temporarily

disable for that stop.

• No selection or ‘Dismiss Message” will

keep the alert enabled for that stop.

• If the alert is enabled when a driver exits

the vehicle, a message will appear in the
vehicle information display that states
“Check Back Seat For All Articles.”

If “Horn & Alert” setting is selected:

• An audible horn sound will occur after

a short time unless a rear door is
opened and closed within a short time
to deactivate the alert.

• If the doors are locked before the alert

is deactivated by opening a rear door,
the horn will sound.

• If the trunk is opened before a rear

door is opened, the horn will be de-
layed until after the trunk is closed.

NOTE:

If “Alert Only” setting is selected, the
message alert will still be shown in the
vehicle information display but the horn
will not sound.

WARNING

•

If the driver selects “Disable Alert”, no
audible alert will be provided regard-
less of rear door open/close status.

•

There may be times when there is an
object or passenger in the rear
seat(s) but the audible alert does not
sound. For example, this may occur if
rear seat passengers enter or exit the
vehicle during a trip.

•

The system does not directly detect
objects or passengers in the rear
seat(s). Instead, it can detect when a
rear door is opened and closed, indi-
cating that there may be something
in the rear seat(s).

NOTE:

There may be times when the horn
sounds but there are no objects or pas-
sengers in the rear seat(s).

For additional information, see “Rear Door
Alert is activated (P. 2-28) or “Rear Door Alert
is activated (P. 2-48)

REAR DOOR ALERT

2-68

Instruments and controls

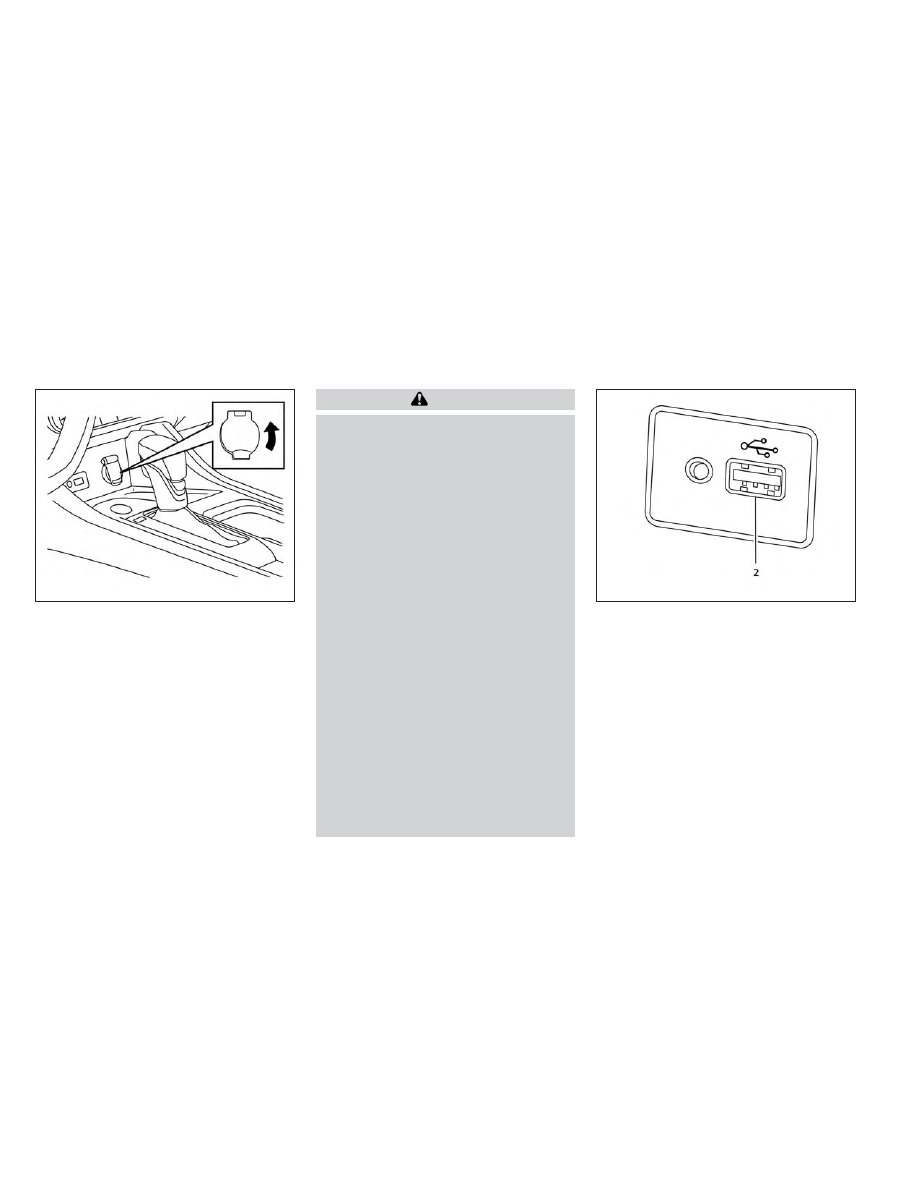

The power outlet is for powering electrical
accessories such as cellular telephones. It
is rated at 12 volt, 120W (10A) maximum.

The power outlet is powered only when the
ignition switch is in the ON position.

CAUTION

•

The outlet and plug may be hot dur-
ing or immediately after use.

•

Only certain power outlets are de-
signed for use with a cigarette lighter
unit. Do not use any other power out-
let for an accessory lighter. It is rec-
ommended that you visit a NISSAN
dealer for additional information.

•

Do not use with accessories that ex-
ceed a 12 volt, 120W (10A) power draw.

•

Do not use double adapters or more
than one electrical accessory.

•

Use power outlets with the engine
running to avoid discharging the ve-
hicle battery.

•

Avoid using power outlets when the
air conditioner, headlights or rear
window defroster is on.

•

Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned off.

•

Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

•

When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.

LIC4337

LIC5329

Front (Type A) (if so equipped)

POWER OUTLET

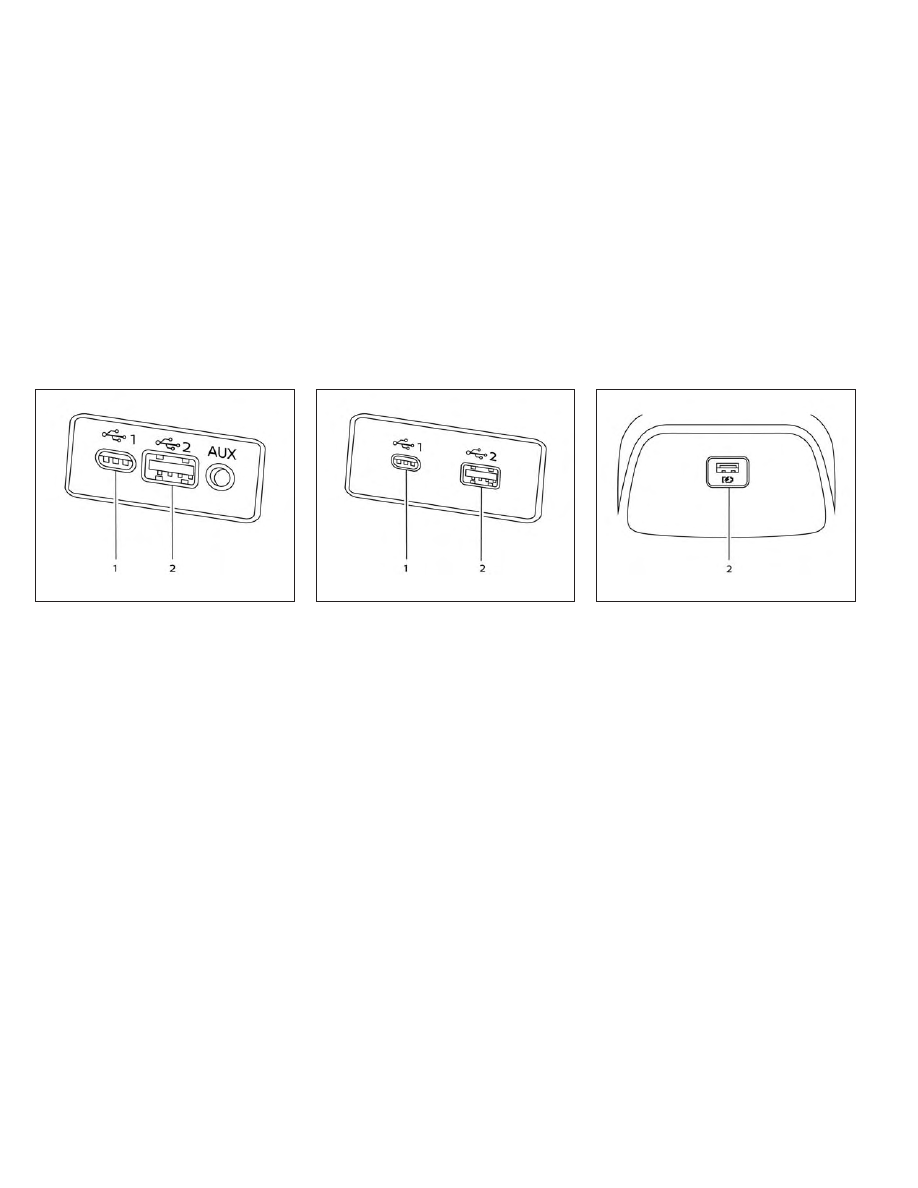

USB/iPod® CHARGING PORTS (if so
equipped)

Instruments and controls

2-69

1. Type-C USB

2. Type-A USB

There are USB charging ports located in
the rear seat area on the back of the center
console. These ports will charge compat-
ible devices.

NOTE:
• Not all of the USB charging ports will

operate with the display screen. Only
the USB connection ports located un-
der the climate controls will allow op-
eration of USB devices through the au-
dio system.

LIC5330

Front (Type B) (if so equipped)

LIC5331

Front (Type C) (if so equipped)

LIC5339

Rear (if so equipped)

2-70

Instruments and controls

• For best results, it is recommended to

use the manufacturer cables, which
are sold separately. A USB Type-C to
USB Type-A adapter (or vice versa) can
also be purchased separately; how-
ever, results may vary.

CAUTION

•

Do not force a USB device into the
connector. Inserting the USB device
tilted or up-side down into the con-
nector may damage the connector.
Make sure that the USB device is con-
nected correctly into the connector.

•

Do not use a reversible USB cable. Us-
ing the reversible USB cable may
damage the connector.

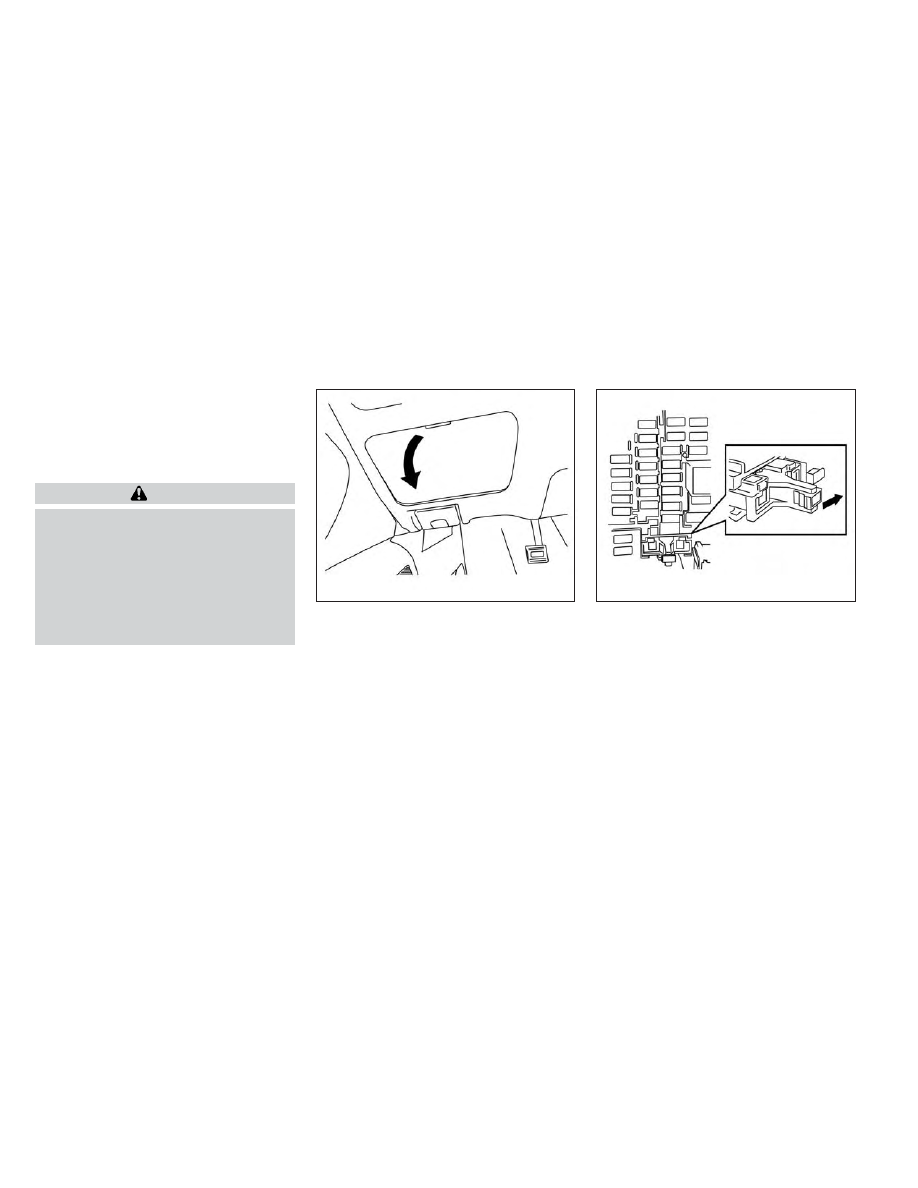

The extended storage switch is used when
the vehicle is in transit from the factory. It is
located in the fuse panel to the left of the
steering wheel on the instrument panel. If
any electrical equipment does not operate,
ensure the extended storage switch is
pushed fully in place, as shown.

LIC4391

LIC4392

Pulled position

EXTENDED STORAGE SWITCH

Instruments and controls

2-71

WARNING

To ensure proper operation of the driv-
er’s and/or front passenger’s NISSAN
Advanced

Air

Bag

System

(if

equipped), please observe the follow-
ing items:

•

Do not allow a passenger in the rear
seat to push or pull on the seatback
pocket or head restraint/headrest.

•

Do not place heavy loads heavier
than 9.1 lbs. (4 kg) on the seatback,
head restraint/headrest, or in the
seatback pocket.

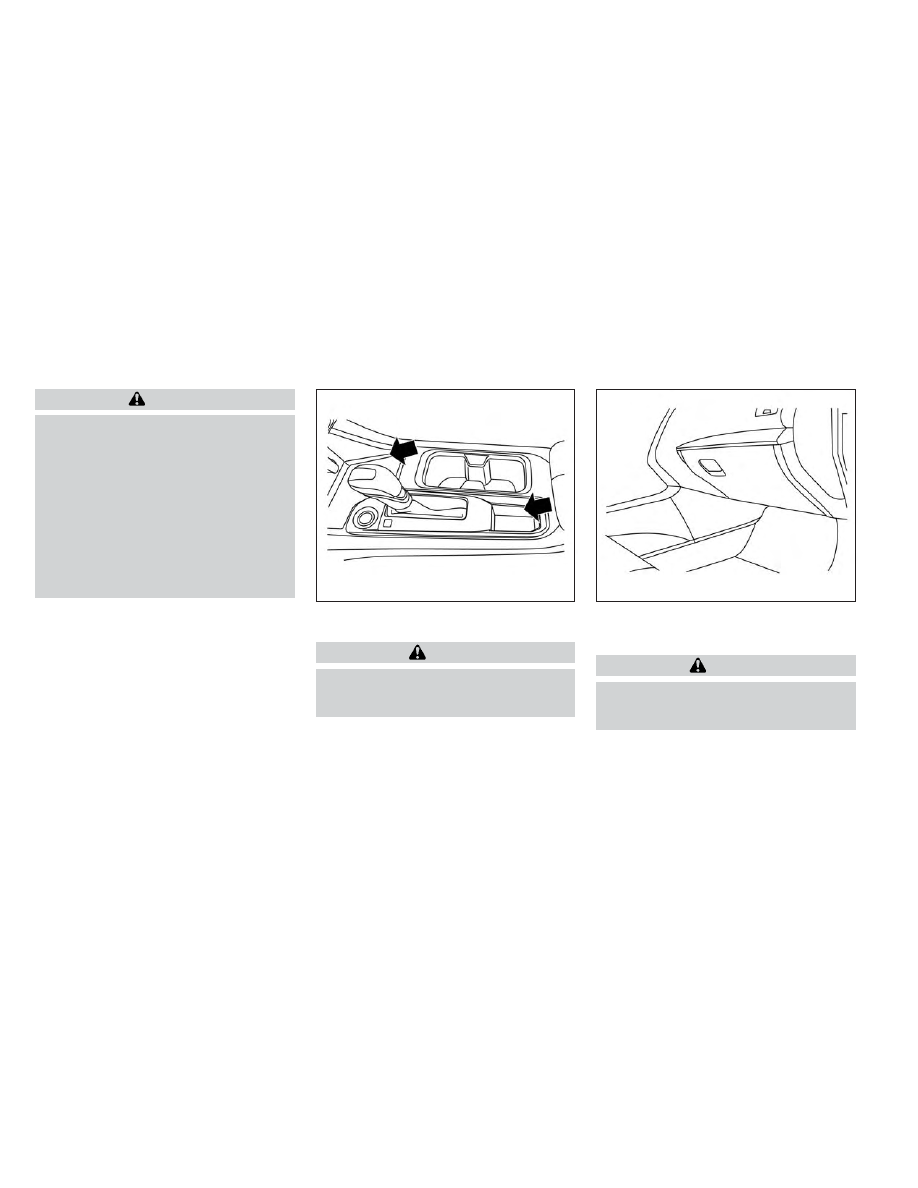

STORAGE TRAYS

WARNING

Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.

GLOVE BOX

Open the glove box by pulling the handle.

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or
a sudden stop.

LIC4338

Storage Trays (if so equipped)

LIC4551

Instruments and controls

2-73

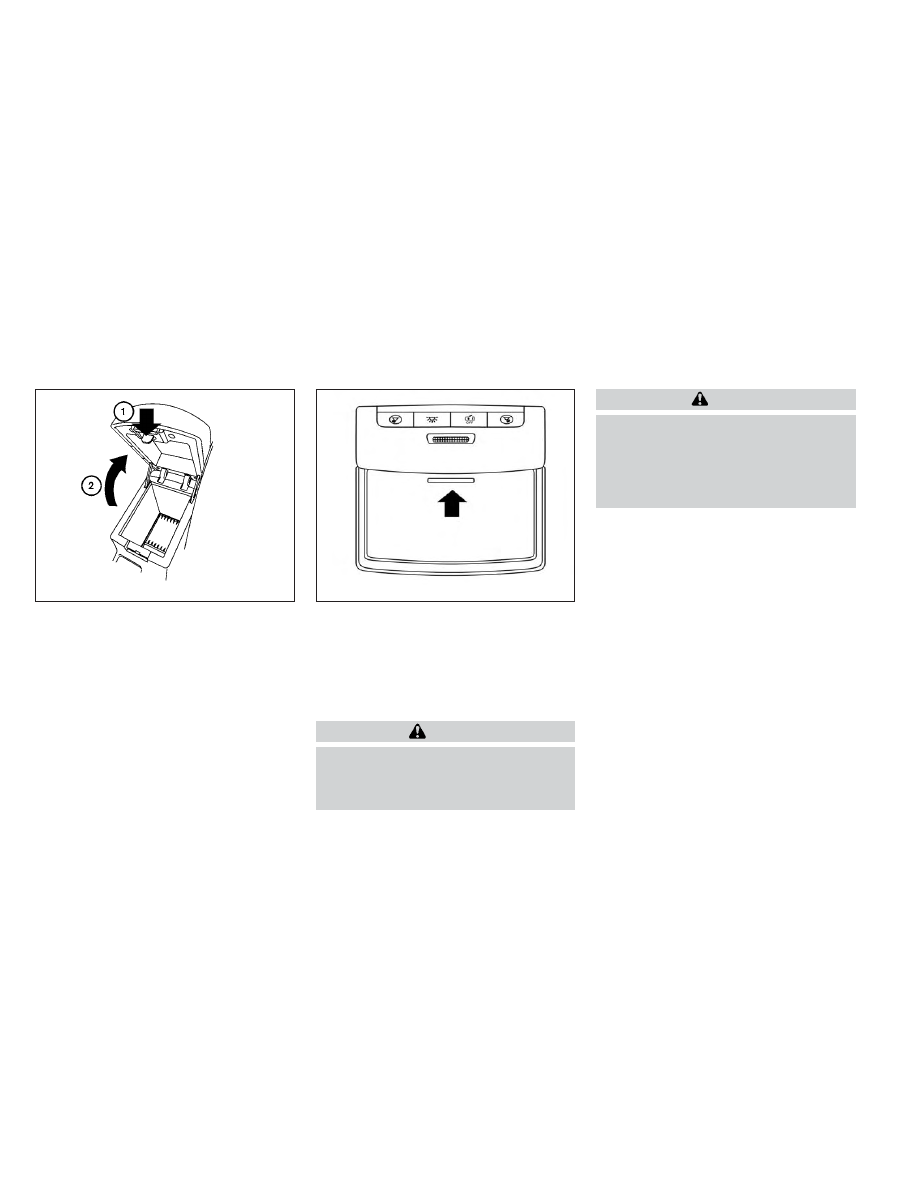

CONSOLE BOX

To open the console box, press in on the
lever

and raise the lid

To close, push the lid down until the lock
latches.

OVERHEAD SUNGLASSES
STORAGE

To open the sunglasses holder, push and
release.

Only store one pair of sunglasses in the
holder.

WARNING

Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.

CAUTION

•

Do not use for anything other than
sunglasses.

•

Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.

LIC1026

LIC4905

2-74

Instruments and controls

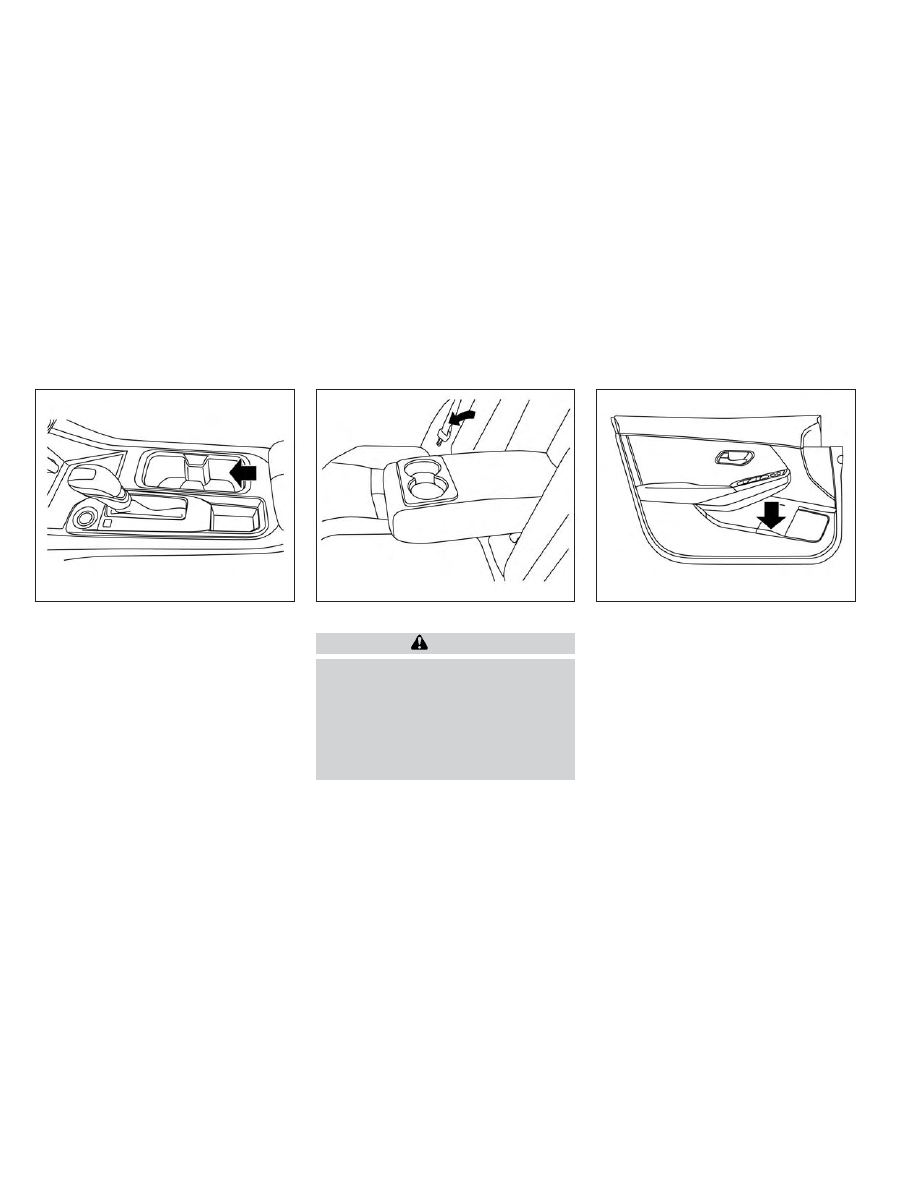

CUP HOLDERS

CAUTION

•

Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your
passenger.

•

Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.

Soft bottle holder

LIC4339

Front cup holders

LIC2656

Rear cup holders (if so equipped)

LIC4965

Front bottle holder

Instruments and controls

2-75

CAUTION

•

Do not use bottle holder for any other
objects that could be thrown about
in the vehicle and possibly injure
people during sudden braking or an
accident.

•

Do not use bottle holder for open liq-
uid containers.

POWER WINDOWS

WARNING

•

Make sure that all passengers have
their hands, etc., inside the vehicle
while it is in motion and before clos-
ing the windows. Use the window
lock switch to prevent unexpected
use of the power windows.

•

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not
leave children, people who require
the assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

The power windows operate when the ig-
nition switch is placed in the ON position or
for a period of time after the ignition switch
is placed in the OFF position. If the driver's
door is opened during this period of time,
the power to the windows is canceled.

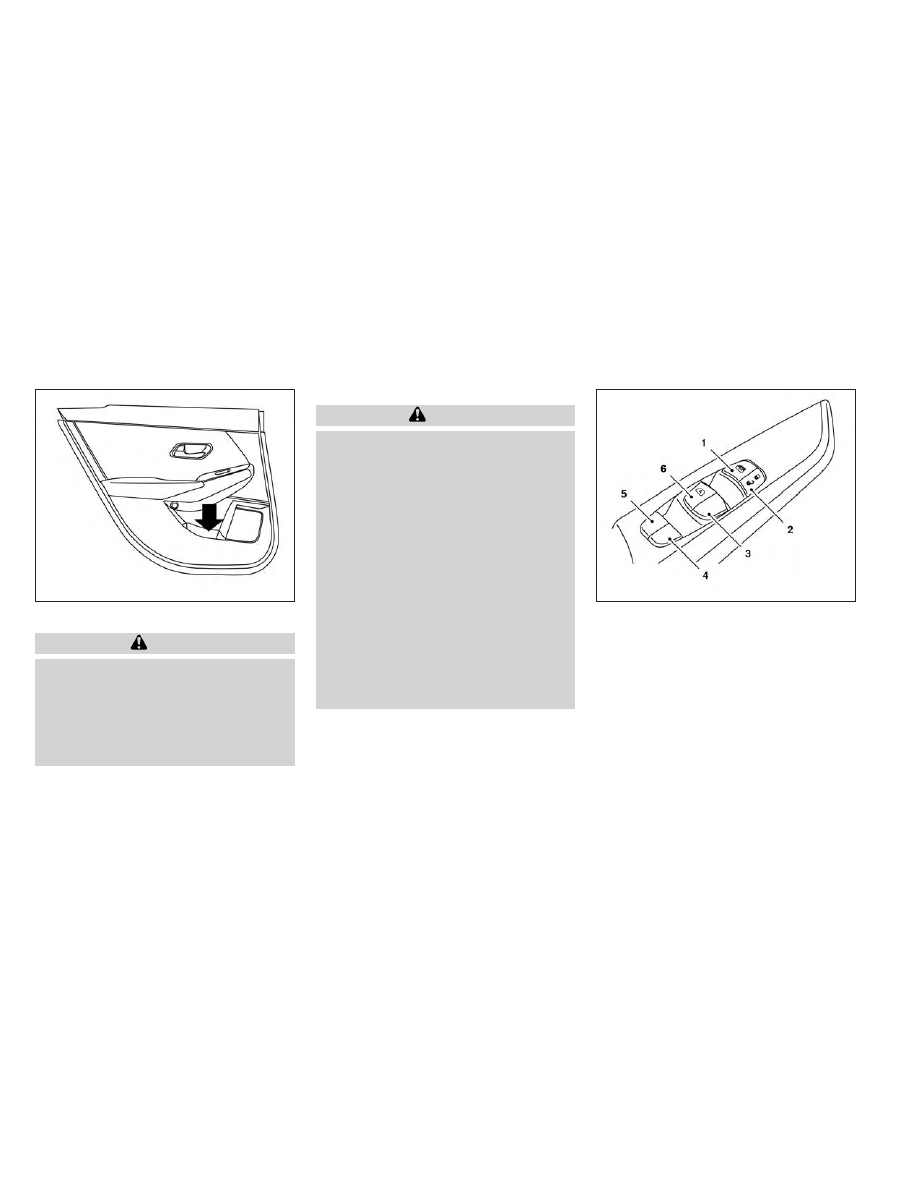

Driver's side power window
switch

The driver's side control panel is equipped
with switches to open or close all of the
windows.

LIC4964

Rear bottle holder

LIC3208

1. Window lock button

2. Power door lock switch

3. Front passenger side switch

4. Right rear passenger side

5. Left rear passenger side

6. Driver side automatic switch

WINDOWS

2-76

Instruments and controls

To open a window, push the switch and
continue to hold it down until the desired
window position is reached. To close a win-
dow, pull the switch and continue to hold it
up until the desired window position is
reached.

Locking passengers' windows

When the window lock switch is depressed,
only the driver's side window can be
opened or closed. Push it again to cancel
the window lock function.

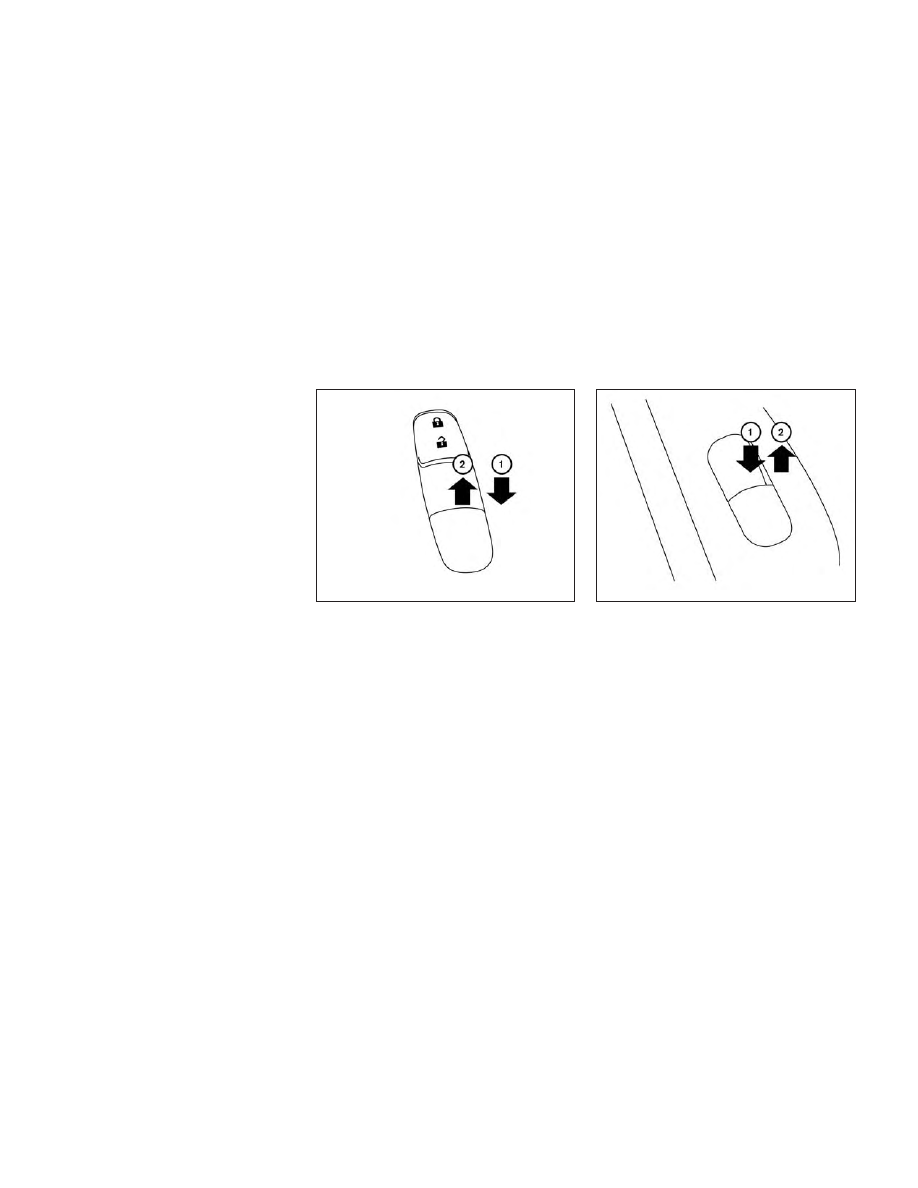

Front passenger's power window
switch

The passenger's window switch operates
only the corresponding passenger's win-
dow. To open the window, push the switch
and continue to hold it down until the de-
sired window position is reached

. To

close the window, pull the switch and con-
tinue to hold it up until the desired window
position is reached

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold
it down

. To close the window, pull the

switch up

LIC2309

LIC2663

Instruments and controls

2-77

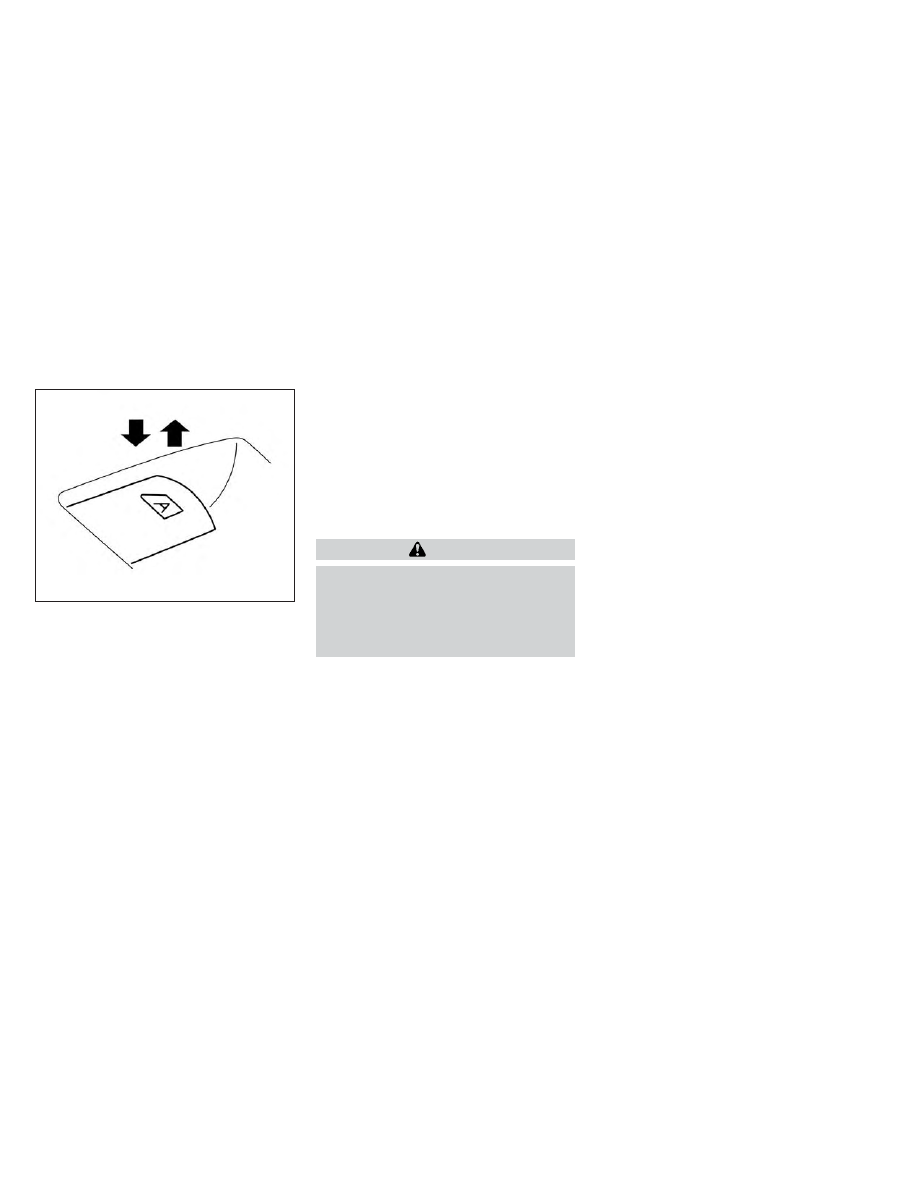

Automatic operation

To fully open a window equipped with au-
tomatic

operation,

push

the

window

switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lift the switch up while the win-
dow is opening.

To fully close a window equipped with au-
tomatic operation, pull the switch up to the
second detent and release it; it need not be
held. The window automatically closes all
the way. To stop the window, push the
switch down while the window is closing.

Auto-reverse function

The auto-reverse function can be acti-
vated when a window is closed by auto-
matic operation.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the window occurs.

WARNING

There are some small distances imme-
diately

before

the

closed

position

which cannot be detected. Make sure
that all passengers have their hands,
etc., inside the vehicle before closing
the window.

If the vehicle's battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate
properly. Have the power window auto-
reverse system re-initialized. It is recom-
mended that you visit a NISSAN dealer for
this service.

If the control unit detects something
caught in a window equipped with auto-
matic operation as it is closing, the window
will be immediately lowered.

When power window switch does
not operate

If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initial-
ize the power window system:

1. Place the ignition switch in the ON

position.

2. Open the window more than halfway by

operating the power window switch.

3. Pull the power window switch and hold it

to close the window, and then hold the
switch more than 3 seconds after the
window is closed.

4. Release the power window switch. Oper-

ate the window by the automatic function
to confirm the initialization is complete.
The power window automatically opens
or closes depending on if the automatic
down or up function is selected.

5. Perform steps 2 through 4 above for

other windows.

If the power window function does not op-
erate properly after performing the above
procedure have the system checked and
repaired. It is recommended that you visit a
NISSAN dealer for this service.

LIC4340

2-78

Instruments and controls

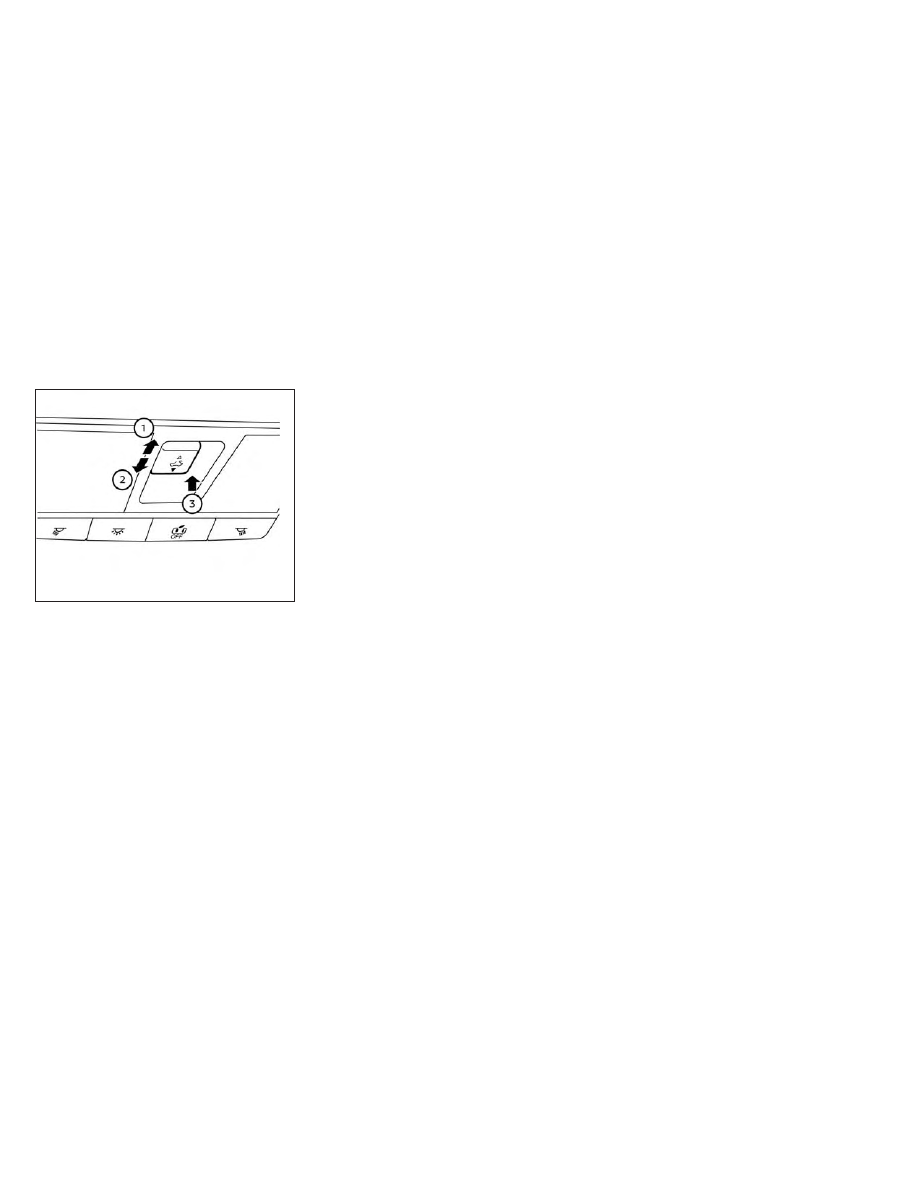

POWER MOONROOF

The moonroof will only operate when the
ignition switch is placed in the ON position.
The power moonroof is operational for a
period of time, even if the ignition switch is
placed in the AUTO ACC or OFF position. If
the driver's door is opened during this pe-
riod of time, the power to the moonroof is
canceled.

Sliding the moonroof

To fully open or close the moonroof, push
the switch to the open

or closed

position and release it; it need not be held.

The roof will automatically open or close all
the way. To stop the roof, push the switch
once more while it is opening or closing.

Tilting the moonroof

To tilt up, first close the moonroof, then
push the switch

and release it; it need

not be held. To tilt down the moonroof,
push the switch to the tilt down position

Resetting the moonroof switch

If the moonroof does not operate properly,
perform the following procedure to initial-
ize the moonroof operation system.

1. If the moonroof is open, close it fully by

repeatedly pushing the moonroof switch
to the closed position

2. Push and hold the switch to the closed

position

for approximately 15 seconds.

3. Release the switch after the moonroof

moves up, down, then back to the full tilt
up position.

4. Push and hold the switch to the closed

position

5. Release the switch after the moonroof

completes one full cycle from the tilt up
position to the closed position, then to
the open position, and again to the fully
closed position.

6. Check if the moonroof switch operates

normally.

If the moonroof does not operate properly
after performing the procedure above,
have your vehicle serviced. It is recom-
mended that you visit a NISSAN dealer for
this service.

Auto-reverse function (when
closing or tilting down the
moonroof)

The auto-reverse function can be acti-
vated when the moonroof is closed or
tilted down by automatic operation when
the ignition switch is placed in the ON po-
sition or for a period of time after the igni-
tion switch is placed in the OFF position.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the moonroof occurs.

LIC4249

MOONROOF (if so equipped)

Instruments and controls

2-79

WARNING

There are some small distances imme-
diately

before

the

closed

position

which cannot be detected. Make sure
that all passengers have their hands,
etc., inside the vehicle before closing
the moonroof.

When closing

If the control unit detects something
caught in the moonroof as it moves to the
front, the moonroof will immediately open
backward.

When tilting down

If the control unit detects something
caught in the moonroof as it tilts down, the
moonroof will immediately tilt up.

If the auto-reverse function malfunctions
and repeats opening or tilting up the
moonroof, keep pushing the tilt down
switch within 5 seconds after it happens;
the moonroof will fully close gradually.
Make sure nothing is caught in the
moonroof.

WARNING

•

In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts and
child restraints.

•

Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.

CAUTION

•

Remove water drops, snow, ice or
sand from the moonroof before
opening.

•

Do not place heavy objects on the
moonroof or surrounding area.

Sunshade

Open and close the sunshade by sliding it
forward or backward.

If the moonroof does not close

Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service.

䊊

The interior light can be turned on re-
gardless of door position. The light will
go off after a period of time unless the
ignition switch is placed in the ON posi-
tion when any door is opened.

䊊

The interior lights can be set to operate
when the doors are opened. To turn off
the interior lights when a door is open,
push the switch; the interior lights will
not illuminate, regardless of door posi-
tion.
The lights will go off when the ignition
switch is placed in the ON position, or
the driver's door is closed and locked.

LIC4906

INTERIOR LIGHTS

2-80

Instruments and controls

NOTE:

The step lights (if so equipped) illumi-
nate when the driver and passenger
doors are opened regardless of the inte-
rior light switch position. These lights
will turn off automatically after a period
of time while doors are open to prevent
the battery from becoming discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

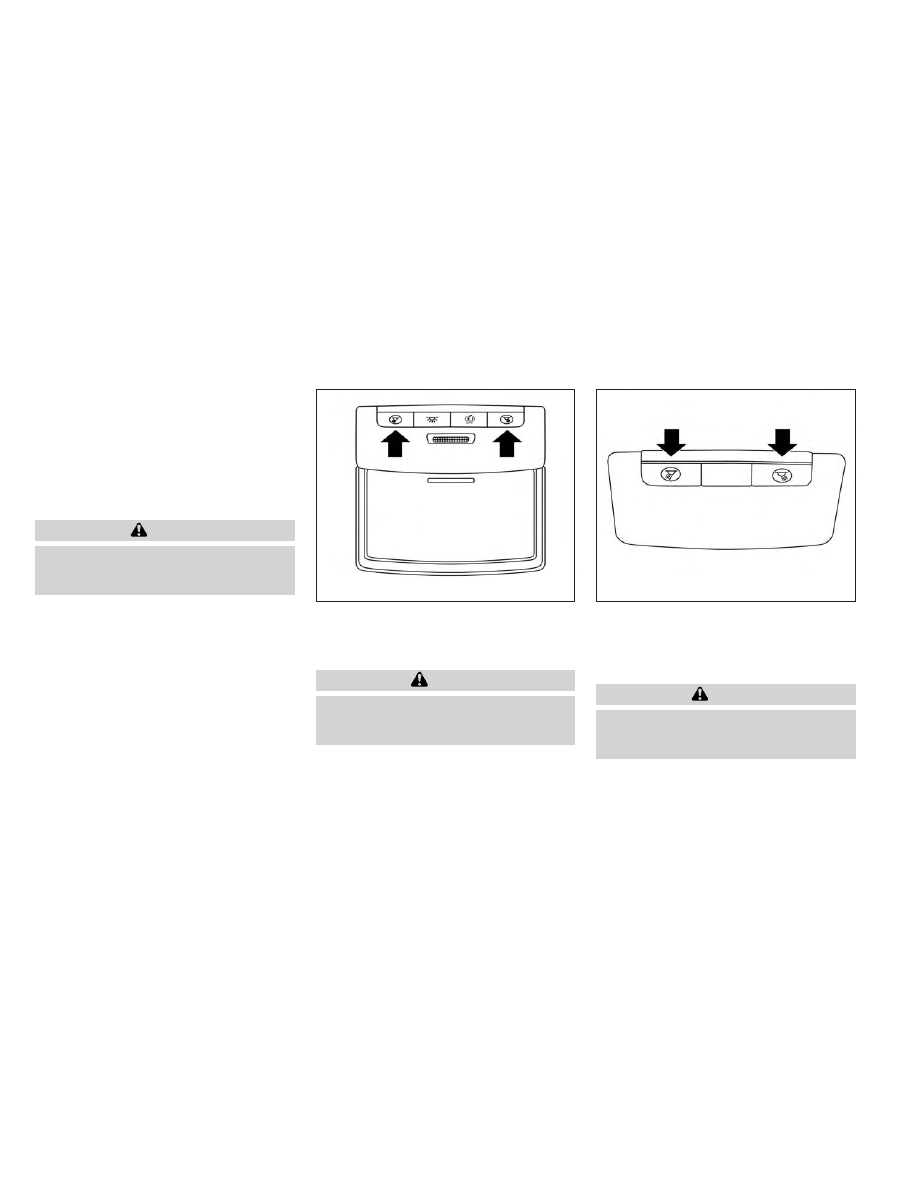

MAP LIGHTS

To turn the map lights on, push the switches.
To turn them off, push the switches again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

PERSONAL LIGHTS

To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

LIC4907

LIC4041

Instruments and controls

2-81

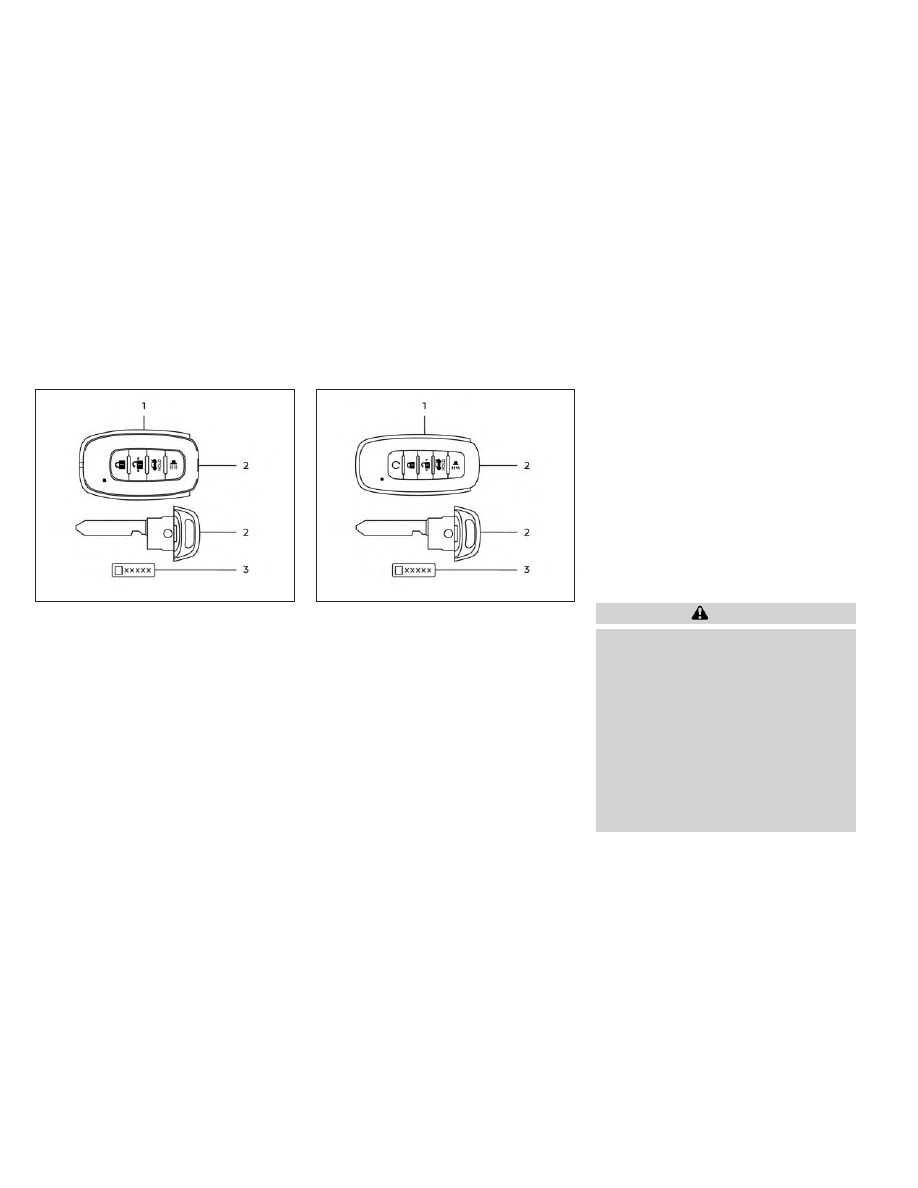

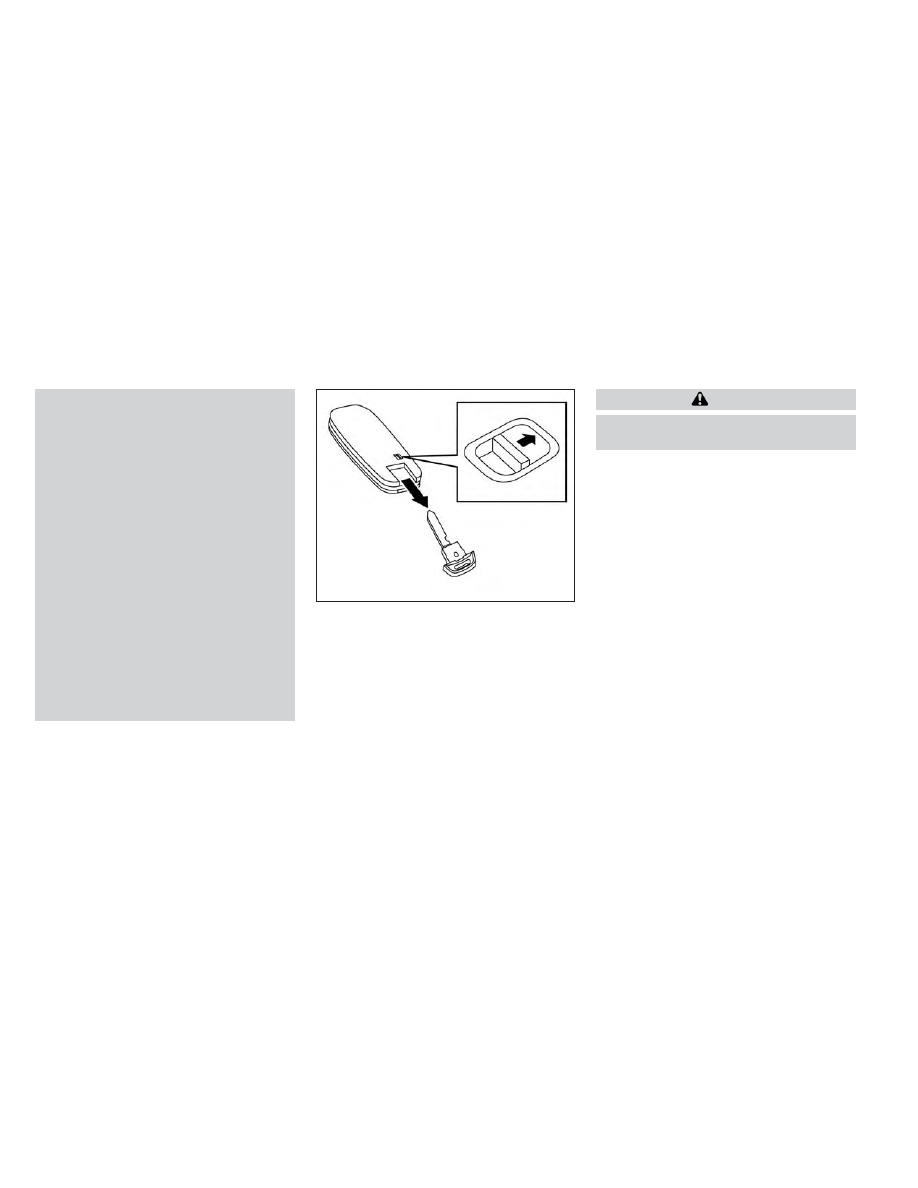

NISSAN INTELLIGENT KEY®

Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key components
and NISSAN Vehicle Immobilizer System
components.

Never leave the keys in the vehicle.

As many as four Intelligent Keys can be
registered and used with one vehicle. The
new keys must be registered prior to use
with the Intelligent Key and NISSAN Vehicle
Immobilizer System of your vehicle. It is rec-
ommended that you visit a NISSAN dealer
for this service. Since the registration pro-
cess requires erasing all memory in the
Intelligent Key components, when register-
ing new keys, be sure to take all Intelligent
Keys that you have to a NISSAN dealer.

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelli-
gent Key:

•

Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with wa-
ter or salt water. This could affect the
system function.

•

Do not drop the Intelligent Key.

•

Do not strike the Intelligent Key
sharply against another object.

•

Do not change or modify the Intelli-
gent Key.

LDI3697

Type A (if so equipped)

1. Intelligent Keys (two sets)

2. Mechanical key

3. Key number plate (one plate)

LDI3698

Type B (if so equipped)

KEYS

3-2

Pre-driving checks and adjustments

•

Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.

•

Do not place the Intelligent Key for an
extended period in an area where
temperatures exceed 140°F (60°C).

•

Do not attach the Intelligent Key with
a key holder that contains a magnet.

•

Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment
and personal computers.

If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key from the
vehicle. This may prevent the unau-
thorized use of the Intelligent Key to
operate the vehicle. For information re-
garding the erasing procedure, it is rec-
ommended that you visit a NISSAN
dealer.

Mechanical key

The Intelligent Key contains the mechani-
cal key.

To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.

Use the mechanical key to lock or unlock
the driver's door.

For additional information, see “Doors”
(P. 3-4).

CAUTION

Always carry the mechanical key in-
stalled in the Intelligent Key slot.

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN
Vehicle Immobilizer System keys. Your ex-
isting key can be duplicated without know-
ing the key number. As many as four
NISSAN Vehicle Immobilizer System keys
can be used with one vehicle. You should
bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to the NISSAN
dealer for registration. This is because the
registration process will erase the memory
of all key codes previously registered into
the NISSAN Vehicle Immobilizer System. Af-
ter the registration process, these compo-
nents will only recognize keys coded into
the NISSAN Vehicle Immobilizer System
during registration. Any virtual key acces-
sories (if so equipped) will also have to be
reregistered. Any key that is not given to the
dealer at the time of registration will no
longer be able to start your vehicle.

LPD3338

Pre-driving checks and adjustments

3-3

Nissan Sentra (2024 year). Manual in english - page 5
