When the ignition switch is placed in the ON
position, the power steering warning light
illuminates. After starting the engine, the
power steering warning light turns off. This
indicates the power steering is operational.

If the power steering warning light illumi-
nates while the engine is running, it may
indicate the power steering is not function-
ing properly and may need servicing. Have
the power steering checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

When the power steering warning light illu-
minates with the engine running, there will
be no power assist for the steering, but you
will still have control of the vehicle. At this
time, greater steering effort is required to
operate the steering wheel, especially in
sharp turns and at low speeds.

For additional information, see “Power
steering” (P. 5-119).

Rear Automatic Braking
(RAB) system warning light

This light comes on when the ignition
switch is placed in the ON position. It turns
off after the engine is started.

This light illuminates when the RAB system
is turned off in the vehicle information
display.

If the light illuminates or blinks when the
RAB system is on, it may indicate that the
system is unavailable. For additional infor-
mation, see “Rear Automatic Braking (RAB)”
(P. 5-81).

Slip indicator light

This indicator light will blink when the Ve-
hicle Dynamic Control (VDC) system is op-
erating, thus alerting the driver to the fact
that the road surface is slippery and the
vehicle is nearing its traction limits.

You may feel or hear the system working;
this is normal.

The light will blink for a few seconds after
the VDC system stops limiting wheel spin.

The

indicator light also comes on

when you place the ignition switch in the
ON position. The light will turn off after ap-
proximately 2 seconds if the system is op-
erational. If the light does not come on
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Vehicle Dynamic Control
(VDC) OFF indicator light

This indicator light comes on when the
VDC OFF switch is pushed to off. This indi-
cates the VDC system has been turned off.

Push the VDC OFF switch again or restart
the engine and the system will operate
normally. For additional information, see
“Vehicle Dynamic Control (VDC) system”
(P. 5-122).

The VDC OFF indicator light also comes on
when you place the ignition switch in the
ON position. The light will turn off after
about 2 seconds if the system is opera-
tional. If the light stays on or comes on
along with the

indicator light while

you are driving, have the VDC system
checked. It is recommended that you visit a
NISSAN dealer for this service.

While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or
accelerating, but this is normal.

2-16

Instruments and controls

WARNING/INDICATOR LIGHTS
(other)

For additional information, see “Vehicle in-
formation display” (P. 2-18).

Front fog light indicator
light (green) (if so equipped)

The front fog light indicator light illumi-
nates when the front fog lights are on. For
additional

information,

see

“Fog

light

switch” (P. 2-46).

High Beam Assist indicator
light (green)

This indicator light illuminates when the
headlights come on while the headlight
switch is in the AUTO position with the high
beams selected. This indicates that the
high beam assist is operational.

For additional information, see “Headlight
and turn signal switch” (P. 2-40).

High beam indicator light
(blue)

This blue light comes on when the head-
light high beams are on and goes out when
the low beams are selected.

Side light and headlight
indicator light (green)

The side light and headlight indicator light
illuminates when the side light or headlight
position is selected. For additional informa-
tion, see “Headlight and turn signal switch”
(P. 2-40).

Turn signal/hazard
indicator lights (green)

The appropriate light flashes when the turn
signal switch is activated.

Both lights flash when the hazard switch is
turned on.

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard.

Light reminder chime

With the ignition switch placed in the OFF
position, a chime sounds when the driver's
door is opened if the headlights or parking
lights are on.

Turn the headlight control switch off before
leaving the vehicle.

NISSAN Intelligent Key® door
buzzer (if so equipped)

The Intelligent Key door buzzer sounds if
any one of the following improper opera-
tions is found.
• The Intelligent Key is left inside the vehicle

when locking the doors.

• The Intelligent Key is taken outside the

vehicle when operating the vehicle.

When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key. For
additional information, see “NISSAN Intelli-
gent Key®” (P. 3-6).

Instruments and controls

2-17

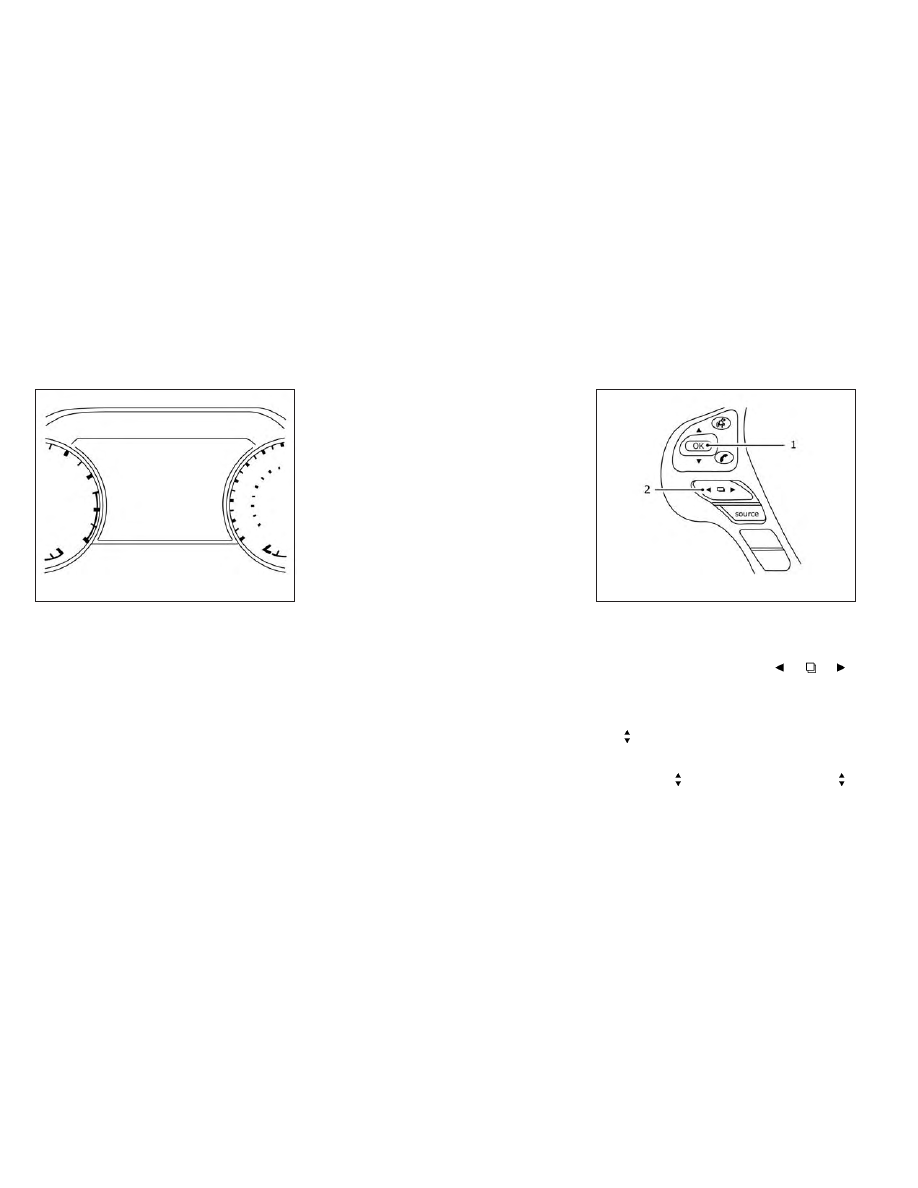

The vehicle information display is located
to the left of the speedometer. It displays
such items as:
• Home
• Audio information
• Navigation information (if so equipped)
• Drive computer information
• Fuel economy information
• Driving aids information (if so equipped)
• Speed Limit Sign (if so equipped)
• Tire pressure information
• Indicators and warnings
• Vehicle and meter display settings

• Cruise control status
• Odometer/twin trip odometer
• Gear position information (P, R, N, D)
• Distance To Empty and fuel indicator
• Time
• Outside Air Temperature

The display will be interrupted when a
phone call is received. Phone calls can be
answered or rejected through the steering
wheel controls.

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be
changed using the OK and
buttons located on the steering wheel.

1. OK — change or select an item in the

vehicle information display.

— scroll up or down the vehicle in-

formation menu items. If the vehicle in-
formation display is not showing a menu
with the

buttons, pressing the

will change to the previous/next audio
preset.

LIC3224

LIC3778

VEHICLE INFORMATION DISPLAY

2-18

Instruments and controls

— go back or forward

through the vehicle information menu
items or to change from one display
screen to the next (i.e. trip, TPMS, fuel
economy).

The OK and

buttons also

control audio and control panel functions
in some conditions. Most screens and
menus offer instruction prompts of the
steering switch buttons to indicate how to
control the vehicle information display. An
orange cursor is shown to indicate where
you are in the available menu items. A scroll
bar with up and down arrows will appear if
there is more than one page of menu
items. For additional information, refer to
the separate NissanConnect® Owner’s
Manual.

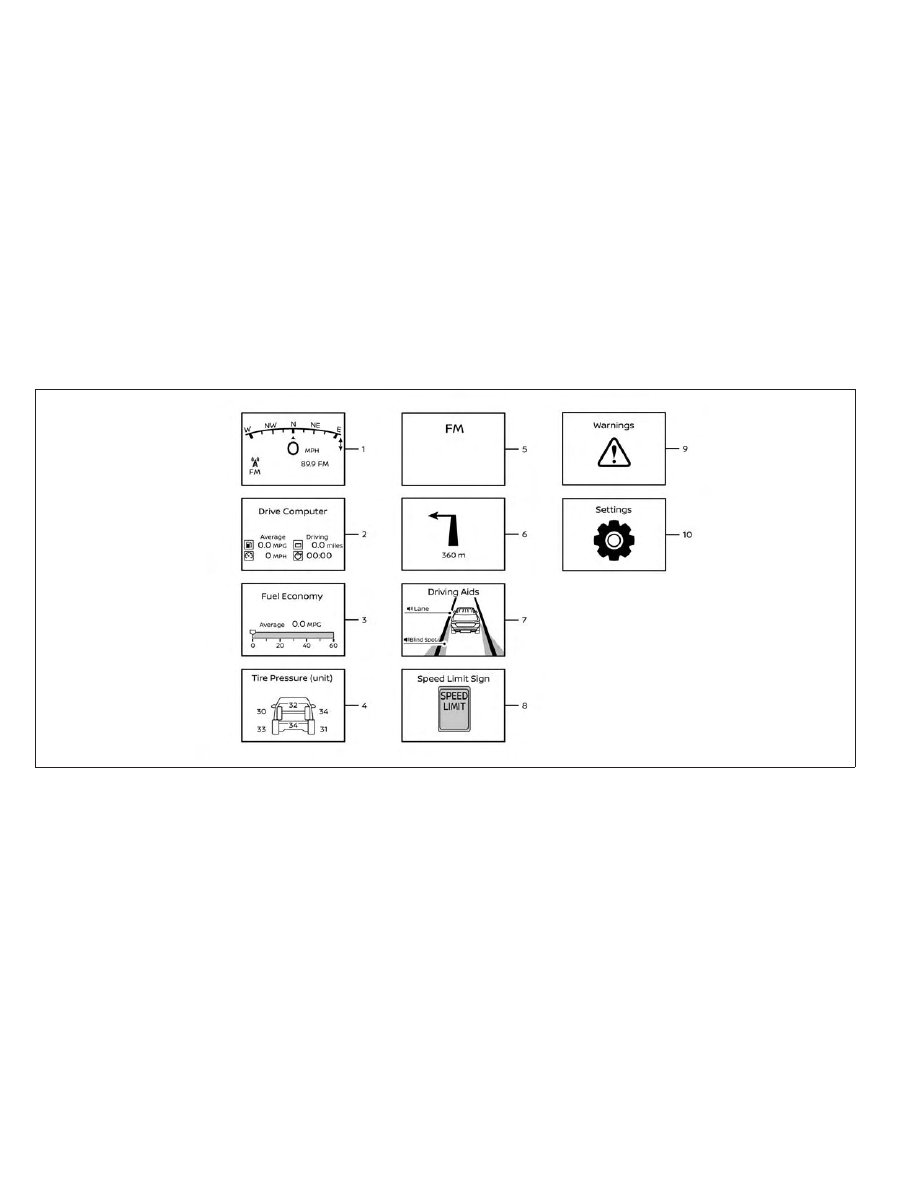

STARTUP DISPLAY

When the vehicle in placed in the ON or ACC
position the screens that display in the ve-
hicle information display include:
• Home
• Audio
• Navigation (if so equipped)
• Drive computer
• Fuel economy
• Driving aids (if so equipped)
• Speed Limit Sign (if so equipped)
• Tire pressure information
• Warning review
• Settings

The warnings review title screen will show
how many active warnings exist, or “No
items to review” in the event that no warn-
ings are active. For additional information
on warnings and indicators, see “Vehicle
information display warnings and indica-
tors” (P. 2-29).

To control what items display in the vehicle
information display, see “Customize Dis-
play” (P. 2-24).

Instruments and controls

2-19

1. Home

The Home mode shows the following infor-
mation:
• Vehicle speed
• Navigation (if so equipped)
• Audio

The Home display will switch to the audio
source by pressing the OK button.

2. Drive computer

Average fuel consumption:

The average fuel consumption shows the
average fuel consumption since the last
reset. Press the OK button on the steering
wheel to bring up the drive computer Reset
menu, and follow the instructions to reset.

Average speed:

The average speed shows the average ve-
hicle speed since the last reset. Press the
OK button on the steering wheel to bring
up the drive computer Reset menu, and
follow the instructions to reset.

Trip odometer:

The trip odometer shows the total dis-
tance the vehicle has been driven since the
last reset. Press the OK button on the steer-
ing wheel to bring up the drive computer
Reset menu, and follow the instructions to
reset.

Elapsed time:

The elapsed time shows the time since the
last reset. Press the OK button to bring up
the drive computer Reset menu, and follow
the instructions to reset.

3. Fuel economy display

Current fuel consumption:

The

current

fuel

consumption

mode

shows the current fuel consumption.

Average fuel consumption:

The average fuel consumption mode
shows the average fuel consumption since
the last reset. Press the OK button on the
steering wheel to bring up the drive com-
puter Reset menu, and follow the instruc-
tions to reset.

The display is updated every 30 seconds.
For about the first 1/3 of a mile (500 m) after
a reset, the display shows “– –.”

4. Tire Pressures

The tire pressure mode shows the pres-
sure of all four tires while the vehicle is
driven.

When the “Tire Pressure Low — Add Air”
warning

appears,

the

display

can

switched to the tire pressure mode by push-
ing the

switch to reveal addi-

tional details on the displayed warning.

For additional information, see “Low tire
pressure warning light” (P. 2-13), “Tire Pres-
sure Monitoring System (TPMS)” (P. 5-5), “Flat
tire” (P. 6-3) and “Types of tires” (P. 8-34)

5. Audio

The audio mode shows the status of audio
information.

6. Navigation/Compass (if so
equipped)

When the route guidance is set in the navi-
gation system, this item shows the naviga-
tion route information.

When no route is set, a compass is dis-
played on the screen.

Instruments and controls

2-21

7. Driving Aids

The driving aids mode shows the operat-
ing condition for the following systems (if
so equipped):
• Lane:

–– Lane Departure Warning (LDW)
–– Intelligent Lane Intervention (I-LI)

• Blind Spot:

–– Blind Spot Warning (BSW)

For additional information, see “Blind Spot
Warning (BSW)” (P. 5-38), “Lane Departure
Warning (LDW)” (P. 5-27), or “Intelligent Lane
Intervention (I-LI)” (P. 5-32).

8. Traffic Sign Recognition (if so
equipped)

The Traffic Sign Recognition (TSR) system
provides the driver with information about
the most recently detected speed limit.

For additional information, see “Traffic Sign
Recognition (TSR) (P. 5-24).

9. Warnings

The warnings mode allows the driver to
view any present warnings.

NOTE:

The warnings mode will only display if
any are present.

10. Settings

The settings mode allows the driver to view
or modify settings.

SETTINGS

The setting mode allows you to change the
information displayed in the vehicle infor-
mation display:
• Driver Assistance
• Customize Display
• Vehicle Settings
• Maintenance
• Clock
• TPMS Settings
• Unit / Language
• Key-Linked Settings
• Factory Reset

2-22

Instruments and controls

Driver Assistance

The driver assistance menu allows the user to change the various driving aids.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Lane

Displays available lane options.

Lane Departure Warning

Allows user to turn the Lane Departure Warning (LDW) system on or off. For additional information, see “Lane
Departure Warning (LDW)” (P. 5-27).

Lane Departure Prevention

Allows user to turn the Intelligent Lane Intervention (I-LI) on or off when the engine is running The system will
reset to off after every ignition cycle. For additional information, see “Intelligent Lane Intervention (I-LI)” (P. 5-32).

Blind Spot

Allows user to turn the Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) systems on or off. For addi-
tional information, see “Blind Spot Warning (BSW)” (P. 5-38) and “Rear Cross Traffic Alert (RCTA)” (P. 5-48).

Speed Limit Sign

Allows user to turn the Speed Limit Sign recognition on or off. For additional information, see “Traffic Sign Recogni-
tion” (P. 5-24).

Parking Aids

Displays available parking aids.

Sensor

Displays available sensor options.

Front and rear sonar is on.

OFF

Front and rear sonar is off.

Front Only

Only front sonar is on.

Display

Allows user to turn the parking aids display on or off.

Volume

Allows the user to set the parking sensor volume to High/Med./Low

Range

Allows user to set the parking sensor range to Near/Mid/Far.

Emergency Brake

Displays available emergency brake options.

Front

Allows user to turn the front emergency braking system on or off. For additional information, see “Automatic
Emergency Braking (AEB) with Pedestrian Detection” (P. 5-86) and “Intelligent Forward Collision Warning (I-FCW)”
(P. 5-97).

Rear

Allows user to turn the rear emergency braking system on or off. For additional information, see “Rear Automatic
Braking (RAB)” (P. 5-81)..

Instruments and controls

2-23

Menu item

Explanation

Driver Attention Alert

Allows user to turn the Intelligent Driver Alertness (I-DA) on or off. For additional information, see “Intelligent Driver
Alertness (I-DA)” (P. 5-110).

Timer Alert

Allows user to set or reset the timer alert. The timer alert is based on when the ignition is placed in the ON posi-
tion.

Low Temperature Alert

Allows user to turn the low temperature alert on or off.

Cruise Control Alerts

Allows user to turn the cruise control alerts on or off.

Customize Display

The customize display menu allows the user to customize the information that appears in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Main Menu Selection

Displays available main menu items to display in the vehicle information display.

Home

Allows user to turn the home screen on or off.

Audio

Allows user to turn the audio screen on or off.

Navigation

Allows user to turn the navigation screen on or off.

Drive Computer

Allows user to turn the drive computer screen on or off.

Fuel Economy

Allows user to turn the fuel economy screen on or off.

Driving Aids

Allows user to turn the driving aids screen on or off.

Speed Limit Sign

Allows user to turn the speed limit sign screen on or off.

Tire Pressures

Allows user to turn the tire pressures screen on or off.

Car Icon Color

Allows user to select the color of the vehicle shown in the vehicle information display.

ECO Info Settings

Displays the various ECO info settings.

ECO Drive Report

Select to display this report for a period of time when the ignition is turned off.

View History

Select to view the vehicle’s fuel consumption history.

2-24

Instruments and controls

Menu item

Explanation

Navigation Settings

Displays the various navigation settings.

Alerts

Allows user to disable the interrupt alerts for upcoming turns.

View Mode

Allows user to select the “Arrow” mode for displaying the upcoming turn or “City” mode for displaying the intersec-
tion on a map when available.

Welcome Effect

Displays the various welcome effect settings.

Gauges

Allows the user to disable the gauge pointer sweep during vehicle startup.

Animation

Allows the user to disable the welcome animation during vehicle startup.

Vehicle Settings

The vehicle settings allow the user to change the settings for lights, wipers, locking, keys, and other vehicle settings.

Some menu items shown below may not equipped on your vehicle.

Menu item

Explanation

Rear Door Alert

Displays the available Rear Door Alert options. For additional information, see “Rear Door Alert” (P. 2-55).

OFF

When selected, no alert or horn will be active.

Horn & Alert

When selected, the alert is displayed and horn sounds.

Alert Only

When selected, only the alert is displayed.

Lighting

Displays the various lighting settings.

Accent Lighting

Allows the user to adjust the brightness of the accent lights.

Light Sensitivity

Allows the user to change when the lights illuminate based on the brightness outside the vehicle.

Light Off Delay

Allows the user to change the duration of time, from 0 to 180 seconds, that the automatic headlights stay on
after the vehicle is shut off.

Turn Indicator

Displays available turn indicator settings.

3 Flash Pass

Allows the user to turn the 3 flash pass on or off.

Instruments and controls

2-25

Menu item

Explanation

Locking

Displays the various locking settings.

Ext. Door Switch

Allows user to turn the exterior door switch on or off. When turned on, the request switch on the door is acti-
vated.

Selective Unlock

Allows user to turn selective unlock on and off. When turned on, the driver’s door is unlocked and the door
handle request switch on the driver’s or front passenger’s door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors can be unlocked if the door unlock operation is performed
again within 1 minute. When this item is turned to OFF, all the doors will be unlocked after the door unlock
operation is performed once.

Answer Back Horn

Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators
will flash once when locking the vehicle with the Intelligent Key.

Auto Door Unlock

Displays the options for the auto door unlock.

OFF

Doors will have to be manually unlocked.

Ignition OFF

Doors will unlock when the ignition is turned off.

Shift into Park

Doors will unlock when the vehicle is shifted into P (Park).

Wipers

Displays the various wipers settings.

Speed Dependent

Allows the user to turn the speed dependent feature on or off.

Driving Position

Displays the various driving position settings.

Exit Seat Slide

Allows the user to turn the exit seat slide on or off. When turned on, the driver seat will slide back after ignition
is turned off for easy exit of the vehicle. For additional information, see "Memory seat" (P. 3-36).

Exit Steering Up

Allows the user to turn the exit steering up on or off. When turned on, the steering wheel will rise after ignition
is turned off for easy exit of the vehicle. For additional information, see "Memory seat" (P. 3-36).

Remote Engine Start

Allows user to turn the Remote Engine Start on or off. When turned on, the engine can be restarted remotely.
For additional information, see “Remote Engine Start” (P. 3-17).

2-26

Instruments and controls

Maintenance

The maintenance menu allows the user to set reminders for various vehicle maintenance items.

WARNING

The tire replacement indicator is not a substitute for regular tire checks, including tire pressure checks. For additional informa-
tion, see “Changing wheels and tires” (P. 8-36). Many factors including tire inflation, alignment, driving habits and road conditions
affect tire wear and when tires should be replaced. Setting the tire replacement indicator for a certain driving distance does not
mean your tires will last that long. Use the tire replacement indicator as a guide only and always perform regular tire checks.
Failure to perform regular tire checks, including tire pressure checks could result in tire failure. Serious vehicle damage could
occur and may lead to a collision, which could result in serious personal injury or death.

Menu item

Explanation

Maintenance

Displays various maintenance reminder options.

Oil and Filter

Allows user to set a reminder at a specific interval or reset the current one.

Tire

Allows user to set a reminder at a specific interval or reset the current one.

Other

Allows user to set a reminder at a specific interval or reset the current one.

Clock

Menu item

Explanation

Clock

The vehicle clock can only be adjusted from the audio center display. When selected, the user will be in-
structed to go to the settings menu in the audio center display. For additional information, refer to the sepa-
rate NissanConnect® Owner's Manual.

Instruments and controls

2-27

TPMS Settings

The TPMS settings menu allows the user to change the tire pressure units displayed in the vehicle information display.

Menu item

Explanation

Tire Pressure Unit

Allows the user to select the tire pressure units that will display in the vehicle information display.

Unit/Language

The Unit/Language menu allows the user to change the units and language shown in the vehicle information display.

Menu item

Explanation

Mileage/Fuel

Allows user to select different mileage display units.

Tire Pressure Unit

Allows user to select different pressure display units.

Temperature

Allows user to select different temperature display units.

Language

Allows user to select different languages.

Key-Linked Settings

Menu item

Explanation

System

Allows user to turn the Key-Linked Settings on or off. For additional information, see "Memory seat" (P. 3-36).

Factory Reset

The factory reset menu allows the user to restore the vehicle information display settings to factory status.

Menu item

Explanation

Factory Reset

Allows user to reset the vehicle information display settings to the original factory settings. Once selected,
the user can confirm or cancel the reset.

2-28

Instruments and controls

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS

The following messages may appear in
your vehicle information display.

Engine start operation for
Intelligent Key system (if
I-Key battery level is low)

This indicator appears when the battery of
the Intelligent Key is low and when the In-
telligent Key system and the vehicle are not
communicating normally.

If this appears, touch the ignition switch
with the Intelligent Key while depressing
the brake pedal. For additional information,
see “NISSAN Intelligent Key® battery dis-
charge” (P. 5-15).

Key Battery Low

This indicator appears when the Intelligent
Key battery is running out of power.

If this indicator appears, replace the bat-
tery with a new one. For additional infor-
mation, see “Battery replacement” (P. 8-23).

Key ID Incorrect

This warning appears when the ignition
switch is placed from the OFF position and
the Intelligent Key is not recognized by the
system. You cannot start the engine with
an unregistered key.

For additional information, see “NISSAN In-
telligent Key®” (P. 3-6).

Key System Fault See
Owner’s Manual

After the ignition switch is placed in the ON
position, this warning appears for a period
of time and then turns off.

The Key System Fault message warns of a
malfunction with the Intelligent Key sys-
tem. If the warning appears while the en-
gine is stopped, it may be impossible to
start the engine.

If the warning appears while the engine is
running, you can drive the vehicle. However,
in these cases, have the system checked. It
is recommended that you visit a NISSAN
dealer for this service.

No Key Detected

This warning appears when the Intelligent
Key is left outside the vehicle with the igni-
tion switch in the ON position. Make sure
the Intelligent Key is inside the vehicle.

For additional information, see “NISSAN In-
telligent Key®” (P. 3-6).

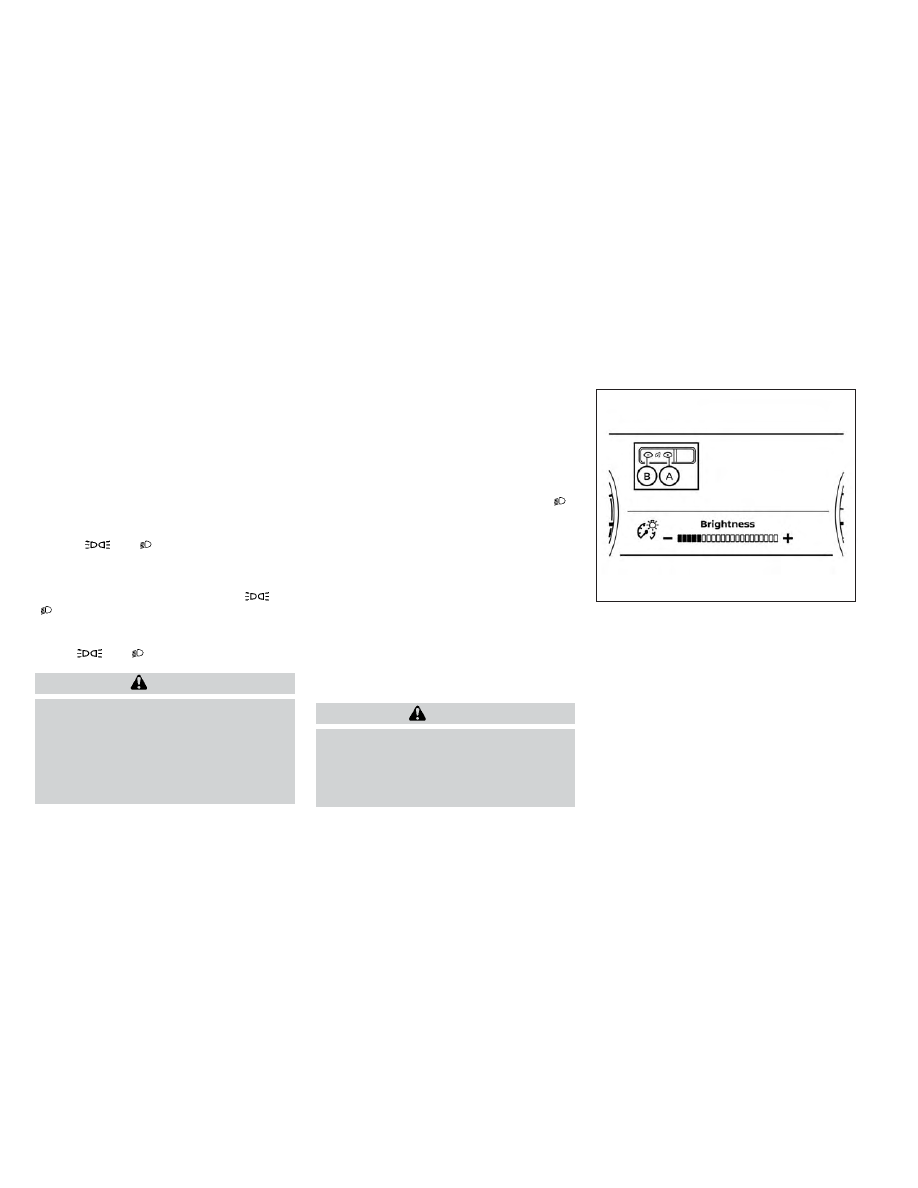

Brightness indicator

This indicator shows the brightness ad-
justment of the instrument panel. For addi-
tional information, see “Instrument bright-
ness control” (P. 2-45).

Check Rear Seat For All Articles

When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from
the D (Drive) position to P (Park) position,
and the driver exits the vehicle. This mes-
sage alerts the driver, after a period of time,
to check for items in the rear seats after
the audible alert has been provided.

Instruments and controls

2-29

NOTE:

This system is disabled until a driver en-
ables it using the vehicle information
display. For additional information, see
“How to use the vehicle information dis-
play” (P. 2-18).

For additional information, see “Rear Door
Alert” (P. 2-55).

Rear Door Alert is activated

When the system is enabled, this message
appears when the Rear Door Alert system
is active and can remind the driver to check
the back seat.
• Using the steering wheel switch, a driver

can select “Dismiss Message” to clear the
display for a period of time. If no selection
is made, this message automatically
turns off after a period of time.

• Using the steering wheel switch, a driver

can select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.

WARNING

Selecting “Dismiss Message” during a
stop within a trip temporarily dis-
misses the message for that stop with-
out turning the system off. Alerts can

be provided for other stops during the
trip. Selecting “Disable Alert” turns off
the Rear Door Alert system for the re-
mainder of a trip and no audible alert
will be provided.

NOTE:

This system is disabled until a driver en-
ables it using the vehicle information
display. For additional information, see
“How to use the vehicle information dis-
play” (P. 2-18).

For additional information, see “Rear Door
Alert” (P. 2-55).

Door/liftgate Open

This warning appears when a door or the
liftgate has been opened.

Headlight System Error: See Owner’s
Manual

This warning appears when the LED head-
lights are not functioning properly.

If this warning appears, have your system
checked. It is recommended that you visit a
NISSAN dealer for this service.

Loose Fuel Cap

This warning appears when the fuel-filler
cap is not tightened correctly after the ve-
hicle has been refueled. For additional in-
formation, see “Fuel-filler cap” (P. 3-28).

Low Fuel

This warning appears when the fuel level in
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
fuel gauge reaches 0 (Empty).

There will be

a small reserve of fuel in the tank when
the fuel gauge needle reaches 0 (Empty).

Low Outside Temperature

This warning appears if the outside tem-
perature is below 37°F (3°C). The tempera-
ture can be changed to display in Celsius or
Fahrenheit. For additional information, see
“Settings” (P. 2-22).

Low Washer Fluid

This warning appears when the windshield-
washer fluid is at a low level. Add windshield-
washer fluid as necessary. For additional
information, see “Windshield-washer fluid”
(P. 8-12).

2-30

Instruments and controls

Power will turn off to save the battery

This message appears in the vehicle infor-
mation display after a period of time if the
ignition switch is in the ACC or the ON po-
sition and if the vehicle is in P (Park). For
additional information, see “Push-button
ignition switch positions” (P. 5-13).

Power turned off to save the battery

This message appears after the ignition
switch is automatically turned to off. For
additional information, see “Push-button
ignition switch positions” (P. 5-13)

Push brake and start
switch to drive

This indicator appears when the shift lever
is in the P (Park) position.

This indicator also appears when the ve-
hicle has been started using the Remote
Engine Start (if so equipped) function.

This indicator means that the engine will
start by pushing the ignition switch with
the brake pedal depressed. You can start
the engine from any position of the ignition
switch.

Push Ignition to OFF

After the Push ignition to OFF warning ap-
pears, the warning will appear if the ignition
switch is placed in the ACC position when
the shift lever is moved to the P (Park)
position.

To turn off the Push warning, place the ig-
nition switch in the ON position and then in
the LOCK position.

Rear seat belt warning

• This warning includes display of the seat

belts for rear positions only. Rear seat
belts that are unfastened will appear red.

• If any rear seat belts are unfastened

when the ignition switch is pushed to the
ON position, this warning will display for
about one minute, or until dismissed.

• When a rear seat belt is changed from

fastened to unfastened, this warning will
display for about one minute, or until
dismissed.

• If the vehicle is driven above 9 mph (15

km/h) during or after the status change,
this warning will display and the chime
will sound for over one minute. During
this time, the warning and chime cannot
be dismissed unless the rear seat belt is
fastened again.

NOTE:

Opening and closing a rear door while
stopped will reset this warning, similar to
pushing the ignition switch to the ON po-
sition again.

Release Parking Brake

This warning appears in the message area
of the vehicle information display when the
parking brake is set and the vehicle is
driven.

Reminder: Turn OFF
Headlights

This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the
OFF or AUTO position. For additional infor-
mation, see “Headlight and turn signal
switch” (P. 2-40).

Shift to Park

This warning appears when the ignition
switch is in the ACC or OFF position and the
shift lever is not in the P (Park) position. Also,
a chime sounds when the ignition switch is
in the ACC or OFF position.

If this warning appears, move the shift lever
to the P (Park) position or start the engine.

Instruments and controls

2-31

Shipping Mode On Push Storage Fuse

This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended
storage switch to turn off the warning. For
additional information, see “Extended stor-
age switch” (P. 2-58).

Tire Pressure Low - Add Air

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. The
warning appears each time the ignition
switch is placed in the ON position as long
as the low tire pressure warning light re-
mains illuminated. If this warning appears,
stop the vehicle and adjust the tire pres-
sures of all four tires to the recommended
COLD tire pressure shown on the Tire and
Loading Information label. For additional
information, see “Low tire pressure warning
light” (P. 2-13) and “Tire Pressure Monitoring
System (TPMS)” (P. 5-5).

Transmission Shift Position
indicator

This indicator shows the transmission shift
position.

AWD Error: See Owner’s
Manual

This warning appears when the all-wheel
drive system is not functioning properly
while the engine is running.

AWD High Temp. Stop
Vehicle

This warning may appear while trying to
free a stuck vehicle due to increased oil
temperature.

The

driving

mode

may

change to 2-Wheel Drive (2WD). If this
warning is displayed, stop the vehicle with
the engine idling, as soon as it is safe to do
so. Then if the warning turns off, you can
continue driving.

Tire Size Incorrect: See
Owner’s Manual

This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes are the same, that the tire
pressure is correct and that the tires are
not excessively worn.

CVT Error: See Owner's
Manual

This warning appears when the there is a
problem with the CVT system. If this warning
appears, have the system checked. It is rec-
ommended that you visit a NISSAN dealer
for this service.

Alarm - Time for a break?

This indicator appears when the driver en-
ables the timer alert function within the
driver assistance settings and the selected
set time is expired. The time is based on
ignition on time and can be set up to six
hours.

Automatic Emergency
Braking (AEB) with
Pedestrian Detection
emergency warning
indicator

This indicator appears along with an au-
dible warning, when the system detects
the possibility of a forward collision.

For additional information, see “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” (P. 5-86).

2-32

Instruments and controls

Blind Spot Warning (BSW)
and Rear Cross Traffic Alert
(RCTA) indicator

This indicator appears when the BSW and
RCTA systems are engaged.

For additional information, see “Blind Spot
Warning (BSW)” (P. 5-38) and “Rear Cross
Traffic Alert (RCTA)” (P. 5-48).

Cruise control indicator

These indicators show the cruise control
system status.

For additional information, see “Intelligent
Cruise control (ICC)” (P. 5-57).

Cruise ON: Press SET to engage speed
control

This message appears if the

cruise

control switch on the steering wheel is
pressed and Cruise Control Alerts are en-
abled in the vehicle information display.

For additional information, see “Intelligent
Cruise control (ICC)” (P. 5-57).

Cruise ON: Press SET to engage speed
and distance control

This message appears if the

Intelli-

gent Cruise Control (ICC) switch on the
steering wheel is pressed and Cruise Con-

trol Alerts are enabled in the vehicle infor-
mation display.

For additional information, see “Intelligent
Cruise Control (ICC)” (P. 5-57).

Cruise Target Speed SET

This message will appear if the Cruise Con-
trol system is on when the SET switch is
pushed and the Cruise Control Alerts are
enabled.

For additional information, see “Intelligent
Cruise Control (ICC)” (P. 5-57).

Currently Unavailable

This message appears when the Vehicle
Dynamic Control (VDC) system is turned
off. The Intelligent Cruise Control (ICC)
and/or Intelligent Lane Intervention (I-LI)
system will be turned off automatically.
For additional information, see ”Intelligent
Cruise Control (ICC)” (P. 5-57), Vehicle Dy-
namic Control (VDC) system” (P. 5-122) and
“Intelligent Lane Intervention (I-LI)” (P. 5-32).

Driver Attention Alert -
Take a Break?

This alert appears when the system has
detected that the driver may be displaying
fatigue or a lack of attention.

Driver Attention Alert
Malfunction

This warning appears when the Intelligent
Driver Alertness (I-DA) system is not func-
tioning properly. For additional information,
see “Intelligent Driver Alertness (I-DA)”
(P. 5-110).

Forward Driving Aids Temporarily
Disabled Front Sensor Blocked See
Owner’s Manual

This message appears when the front ra-
dar sensor may be obstructed due to:
• mud, dirt, snow, ice, etc.
• inclement weather (rain, fog, snow, etc.)

All forward driving aids are temporarily dis-
abled until the system detects that the
front radar sensor is no longer obstructed.

For additional information, see:
• Automatic Emergency Braking (AEB) with

Pedestrian Detection (P. 5-86)

• Intelligent Cruise Control (ICC) (P. 5-57)
• Intelligent

Forward

Collision

Warning

(I-FCW) (P. 5-97)

Instruments and controls

2-33

Intelligent Cruise Control
(ICC) indicators

These

indicators

show

the

Intelligent

Cruise Control (ICC) system status. For ad-
ditional information, see “Intelligent Cruise
Control (ICC)” (P. 5-57).

Lane Departure Warning
(LDW)/ Intelligent Lane
Intervention (I-LI) indicator

This indicator appears when the LDW
and/or Intelligent Lane Intervention (I-LI)
systems are engaged.

For additional information, see “Lane De-
parture Warning (LDW)” (P. 5-27) and “Intelli-
gent Lane Intervention (I-LI)” (P. 5-32).

Parking Sensor Error: See Owner’s
Manual

This warning appears when there is an
error with the system. For additional infor-
mation, see “Front and rear sonar system”
(P. 5-125).

Parking Sensor

This indicator appears when the sensor is
activated. Pressing the

button while

the sonar screen is displayed will dismiss
this message until the next time the sen-

sors are activated. The Parking Sensor sys-
tem will remain on, unless it is disabled in
the vehicle information display. For addi-
tional information, see “Front and rear so-
nar system” (P. 5-125).

Rear Automatic Braking
(RAB) system indicator

This indicator appears to indicate the sta-
tus of the Rear Automatic Braking (RAB)
system. For additional information, see
“Rear Automatic Braking (RAB)” (P. 5-81).

Speed Limit Sign indicator

This message may appear when the Traffic
Sign Recognition system is engaged.

For additional information, see “Traffic Sign
Recognition” (P. 5-24).

Target Speed SET with Intelligent
Distance Control

This message will appear if the Intelligent
Cruise Control system is on when the SET
switch is pushed and the Cruise Control
Alerts are enabled.

For additional information, see “Intelligent
Cruise Control (ICC)” (P. 5-57).

Traffic Sign Recognition system fault

This warning appears when the Traffic Sign
Recognition system is malfunctioning.

For additional information, see “Traffic Sign
Recognition” (P. 5-24).

Unavailable: High Cabin Temperature

This message appears when the camera de-
tects an interior temperature of more than
104°F (40°C). For additional information, see
“Intelligent Lane Intervention (I-LI)” (P. 5-32),
“Lane Departure Warning (LDW)” (P. 5-27) or
“Traffic Sign Recognition (TSR)” (P. 5-24).

Unavailable: Road is Slippery

This message appears when the Intelligent
Cruise Control (ICC) or the Intelligent Lane
Intervention (I-LI) systems become un-
available because the road is slippery.
For additional information, see “Intelligent
Cruise Control (ICC)” (P. 5-57) or “Intelligent
Lane Intervention (I-LI)” (P. 5-32).

Unavailable: Side Radar Obstruction

This message appears when one of the
following systems (if so equipped) be-
comes unavailable because a radar block-
age is detected.
• Blind Spot Warning (BSW) (P. 5-38)
• Rear Cross Traffic Alert (RCTA) (P. 5-48)

2-34

Instruments and controls

Vehicle ahead detection
indicator

This indicator appears when the Auto-
matic Emergency Braking (AEB) with Pe-
destrian Detection system is engaged and
has detected a vehicle.

For additional information, see “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” (P. 5-86).

Your vehicle has two types of security
systems:
• Vehicle security system
• NISSAN Vehicle Immobilizer System

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual
and audible alarm signals if someone
opens the doors, liftgate or the hood when
the system is armed. It is not, however, a
motion detection type system that acti-
vates when a vehicle is moved or when a
vibration occurs.

The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your Intelligent Key in the ve-
hicle, and always lock the vehicle when un-
attended. Be aware of your surroundings,
and park in secure, well-lit areas whenever
possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various theft protection
features.

How to arm the vehicle security
system

1. Close all windows and the moonroof

(if so equipped).

The system can be

armed even if the windows and moon-
roof are open.

2. Remove the Intelligent Key from the

vehicle.

LIC2930

SECURITY SYSTEMS

Instruments and controls

2-35

3. Close all doors, hood and liftgate. Lock

all doors. The doors can be locked with
the Intelligent Key, door handle request
switch or power door lock switch.

Key fob operation:

4. Confirm that the

indicator light

comes on. The

indicator stays

illuminated for a period of time indicat-
ing that the system is in the pre-armed
phase.
The

indicator light will blink every

3 seconds once the security system is
armed.
If during the pre-armed phase one of
the following occurs, the system will not
arm:

• A door is opened with the release button

with the Intelligent Key on your person.

• The doors are unlocked using the unlock

button on the Intelligent Key.

• The ignition switch is placed in the ACC or

ON position.

•

Even when the driver and/or passen-
gers are in the vehicle, the system will
activate when all the doors, hood and
liftgate are locked with the ignition
switch placed in the LOCK position.
When placing the ignition switch in the
ACC or ON position, the system will be
released.

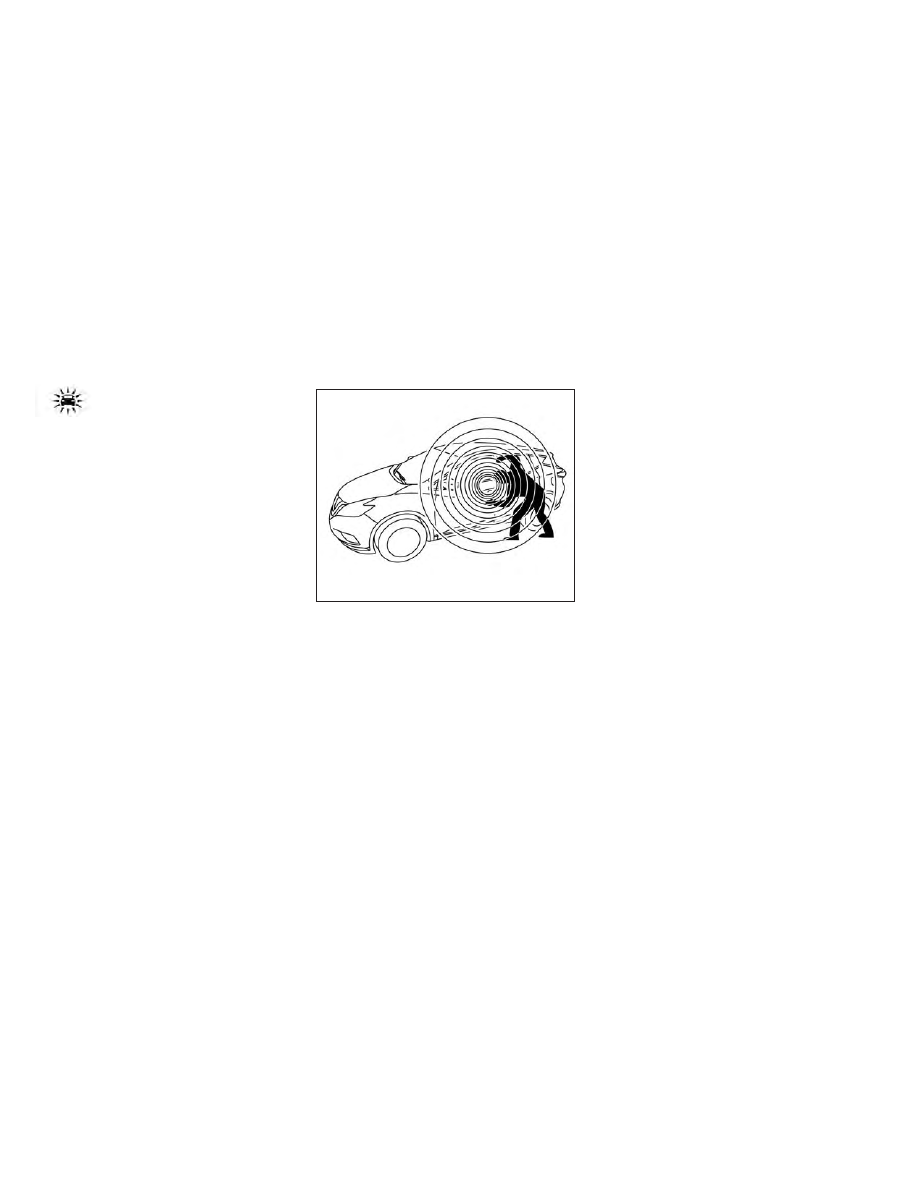

Vehicle security system activation

The vehicle security system will give the
following alarm:
• The turn signals blink and the horn

sounds intermittently.

• The alarm automatically turns off after a

period of time. However, the alarm reacti-
vates if the vehicle is tampered with
again. The alarm can be shut off by un-
locking the driver's door or liftgate by
pressing the

button on the Intelli-

gent Key.

The alarm is activated by:
• Opening the door or liftgate without us-

ing the Intelligent Key (even if the door is
unlocked by releasing the door inside
lock switch).

How to stop an activated alarm

The alarm stops only by unlocking the driv-
er’s door or the liftgate by pressing the

button on the Intelligent Key or push-

ing the request switch on the driver's or
passenger's door with the Intelligent Key in
range of the door handle.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of a registered key.

Never leave these keys in the vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

2-36

Instruments and controls

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's author-
ity to operate the equipment.

For Canada:

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic
Development Canada’s licence-exempt
RSS(s). Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause interference. (2) This de-
vice must accept any interference, in-
cluding interference that may cause un-
desired operation of the device.

Security indicator light

The security indicator light blinks whenever
the ignition switch is placed in the OFF,
LOCK or ACC position.

This function indicates the NISSAN Vehicle
Immobilizer System is operational.

If the NISSAN Vehicle Immobilizer System is
malfunctioning, the light will remain on
while the ignition switch is placed in the ON
position.

If the light still remains on and/or the
engine will not start, seek service for the
NISSAN Vehicle Immobilizer System as
soon as possible. Please bring all regis-
tered keys that you have. It is recom-
mended that you visit a NISSAN dealer
for this service.

LIC0474

Instruments and controls

2-37

SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may
lead to an accident. Warm the wind-
shield with the defroster before you
wash the windshield.

CAUTION

•

Do not operate the washer continu-
ously for more than 30 seconds.

•

Do not operate the washer if the
windshield-washer fluid reservoir is
empty.

•

Do not fill the windshield-washer
fluid

reservoir

with

windshield-

washer fluid concentrates at full
strength.

Some

methyl

alcohol

based windshield-washer fluid con-
centrates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

•

Pre-mix

windshield-washer

fluid

concentrates

with

water

the

manufacturer’s recommended levels
before pouring the fluid into the
windshield-washer fluid reservoir.
Do not use the windshield-washer
fluid reservoir to mix the windshield-
washer fluid concentrate and water.

NOTE:

If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.

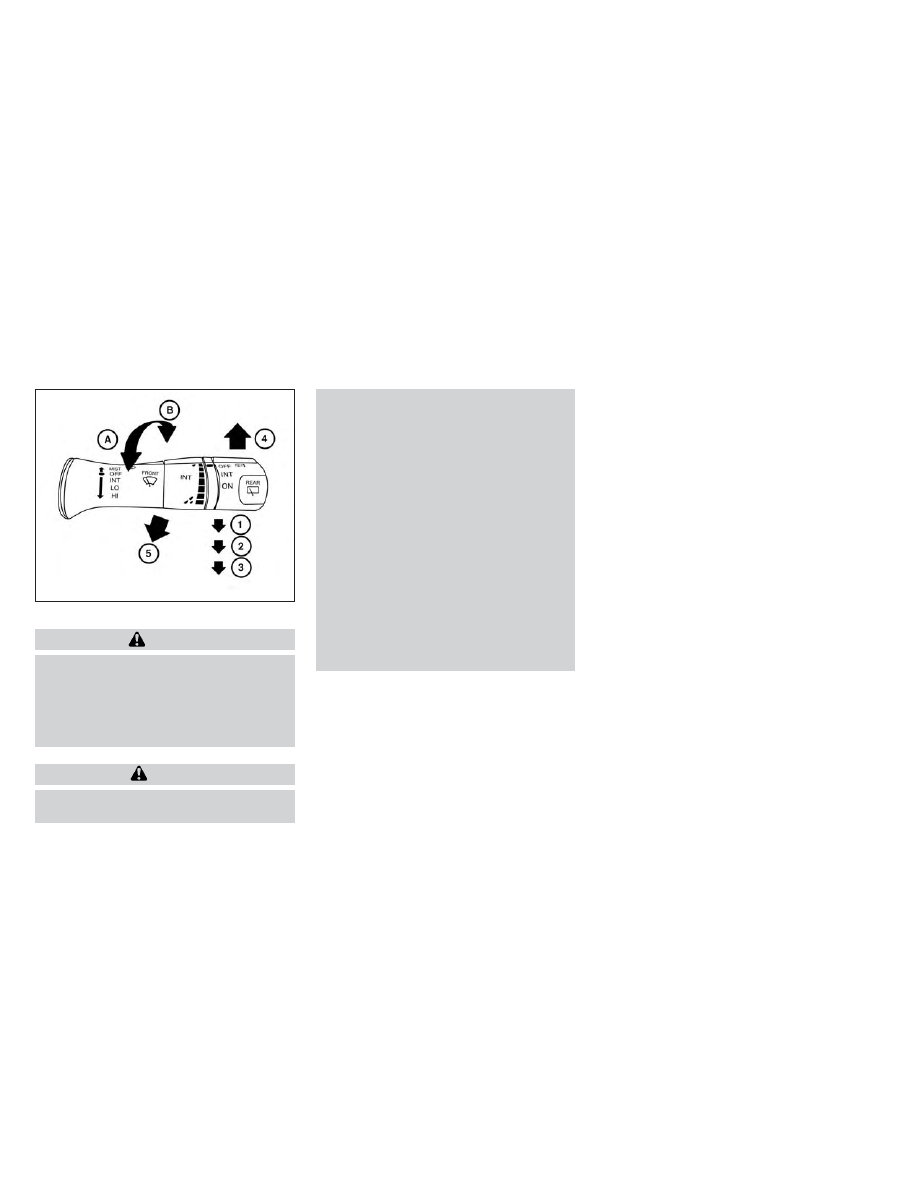

The windshield wiper and washer operates
when the ignition switch is in the ON
position.

Push the lever down to operate the wiper
at the following speed:

䊊

Intermittent (INT) — intermittent opera-
tion can be adjusted by turning the
knob toward

(slower) or

(faster).

Also, the intermittent operation speed
varies in accordance with the vehicle
speed (if so equipped). (For example,
when the vehicle speed is high, the in-
termittent operation speed will be
faster.)

䊊

Low (LO) — continuous low speed
operation

䊊

High (HI) — continuous high speed
operation

Push the lever up

to have one sweep

operation (MIST) of the wiper.

Pull the lever toward you

to operate the

washer. The wiper will also operate several
times.

NOTE:

The Speed Dependent feature may be
disabled. For additional information, see
“Vehicle information display” (P. 2-18).

LIC3028

WIPER AND WASHER SWITCH

2-38

Instruments and controls

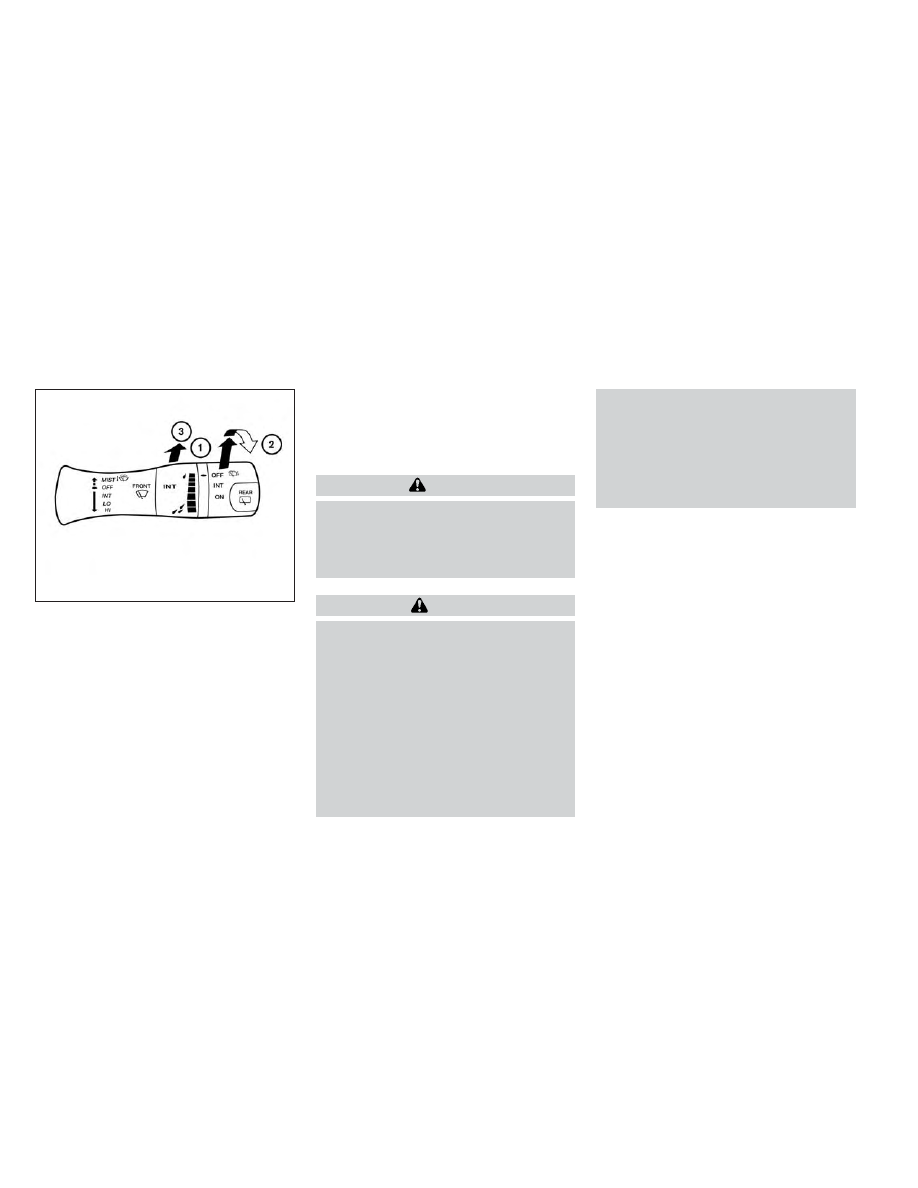

REAR SWITCH OPERATION

If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove
the snow, etc. on and around the wiper
arms. After about 1 minute, turn the switch
ON again to operate the wiper.

The rear window wiper and washer oper-
ate when the ignition switch is in the ON
position. Turn the switch clockwise from
the OFF position to operate the wiper.

䊊

Intermittent (INT) — intermittent opera-
tion (not adjustable)

䊊

Low (ON) — continuous low speed
operation

Push the switch forward

to operate the

washer. The wiper will also operate several
times.

WARNING

In freezing temperatures the washer
solution may freeze on the window and
obscure your vision. Warm the rear win-
dow with the defroster before you
wash the rear window.

CAUTION

•

Do not operate the washer continu-
ously for more than 30 seconds.

•

Do not operate the washer if the
windshield-washer fluid reservoir is
empty.

•

Do not fill the windshield-washer
fluid

reservoir

with

windshield-

washer fluid concentrates at full
strength.

Some

methyl

alcohol

based windshield-washer fluid con-
centrates may permanently stain the
grille

spilled

while

filling

the

windshield-washer fluid reservoir.

•

Pre-mix

windshield-washer

fluid

concentrates

with

water

the

manufacturer's recommended lev-
els before pouring the fluid into the
windshield-washer fluid reservoir.
Do not use the windshield-washer
fluid reservoir to mix the windshield-
washer fluid concentrate and water.

LIC3101

Instruments and controls

2-39

To defrost the rear window glass and out-
side mirrors, place the ignition switch in the
ON position and push the rear window de-
froster switch on. The rear window de-
froster indicator light on the switch comes
on. Push the switch again to turn the de-
froster off.

The rear window defroster automatically
turns off after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.

NOTE:

The top and bottom few rows of wires on
the rear window are not part of the rear
window defroster system. These wires
make up the antenna for the audio
system.

HEADLIGHT CONTROL SWITCH

Lighting

䊊

Rotate the switch to the

position,

and the front parking, tail, license plate,
and instrument panel lights will come
on.

䊊

Rotate the switch to the

position,

and the headlights will come on and all
the other lights remain on.

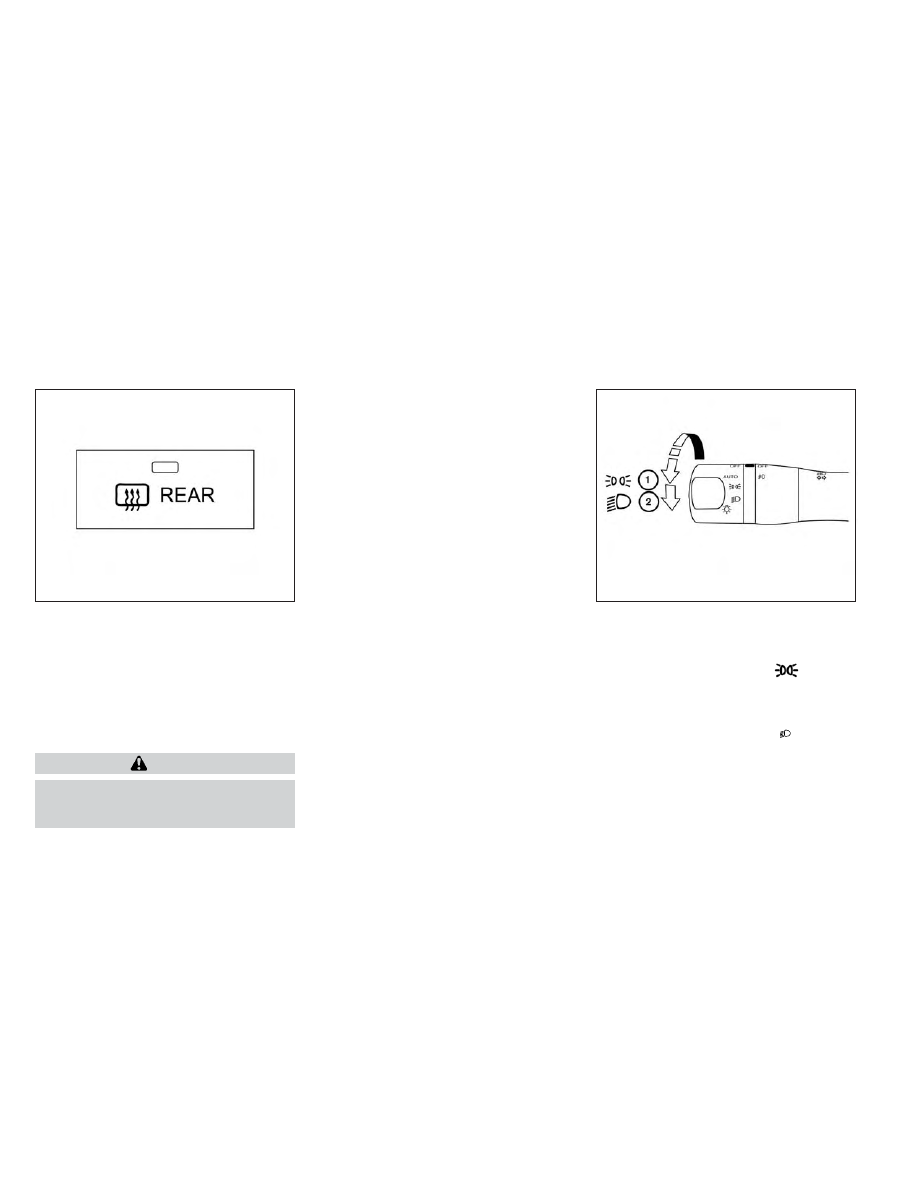

LIC2923

LIC3240

Type A (if so equipped)

REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH

HEADLIGHT AND TURN SIGNAL
SWITCH

2-40

Instruments and controls

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.

Autolight system

The autolight system allows the headlights
to turn on and off automatically. The auto-
light system can:
• Turn on the headlights, front parking, tail,

license plate and instrument panel lights
automatically when it is dark.

• Turn off all the lights (except daylight run-

ning lights) when it is light.

• Keep all the lights on for a period of time

after you place the ignition switch in the
OFF position and all doors are closed.

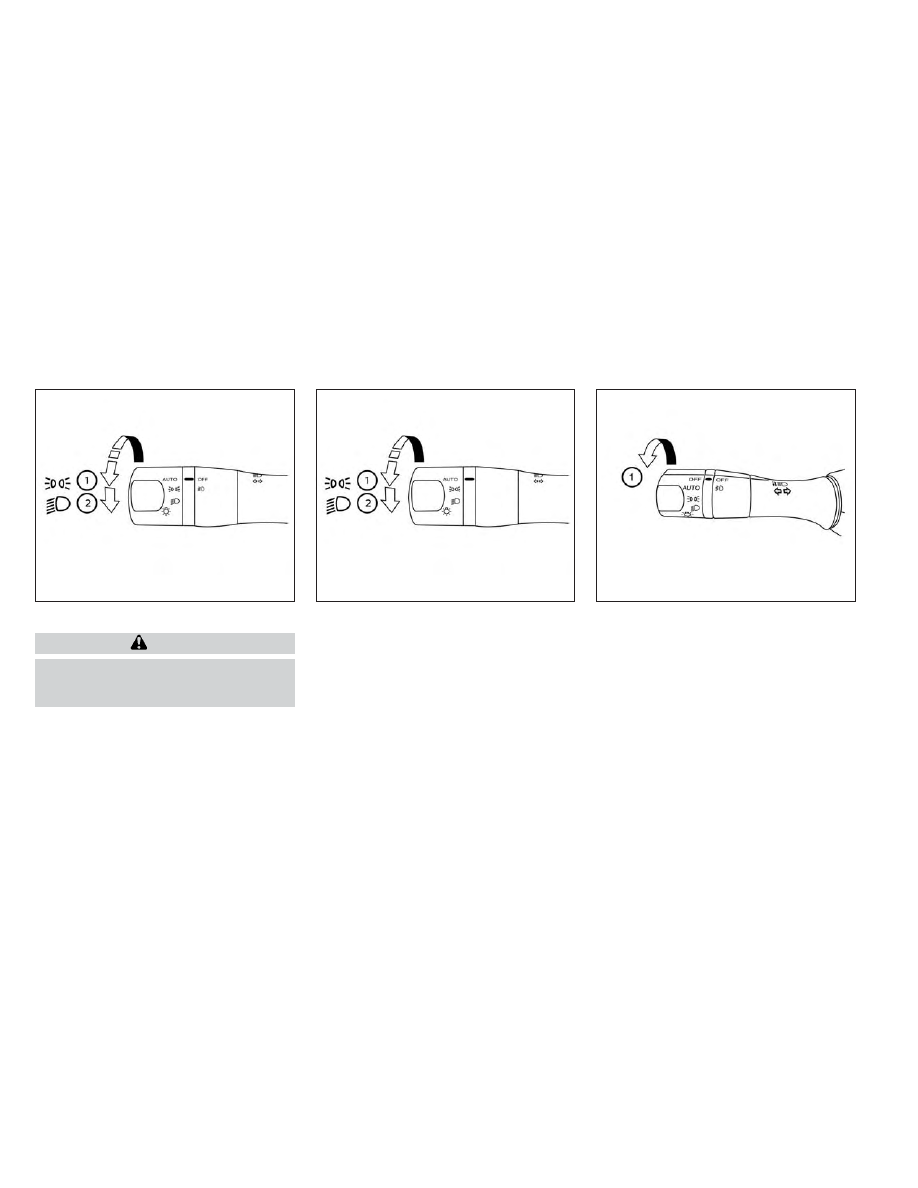

LIC4564

Type B (if so equipped)

LIC4597

Type C (if so equipped)

LIC3474

Instruments and controls

2-41

NOTE:
Autolight activation sensitivity and
the time delay for autolight shutoff
can be adjusted. For additional infor-
mation, see “Vehicle information dis-
play” (P. 2-18).

To turn on the autolight system:

1. Turn the headlight switch to the AUTO

position

2. Place the ignition switch in the ON

position.

3. The

autolight

system

automatically

turns the headlights on and off.

Initially, if the ignition switch is turned off
and a door is opened and left open, the
headlights remain on for a period of time. If
another door is opened while the head-
lights are on, then the timer is reset.

To turn the autolight system off, turn the
switch to the OFF (if so equipped),

, or

position.

Be sure you do not put anything on top
of the autolight sensor located in the
top side

of the instrument panel. The

autolight sensor controls the autolight;
if it is covered, the autolight sensor re-
acts as if it is dark out and the headlights
will illuminate. If this occurs while parked
with the engine off and the ignition switch
placed in the ON position, your vehicle's
battery could become discharged.

Headlight beam select

䊊

To select the high beam function, push
the lever forward while the low beams
are on. The high beam lights come on
and the

indicator light illuminates.

䊊

Pull the lever back to return to the low
beams.

䊊

Pulling and releasing the lever flashes
the headlight high beams on and off.
The low beams do not need to be on
for this to function.

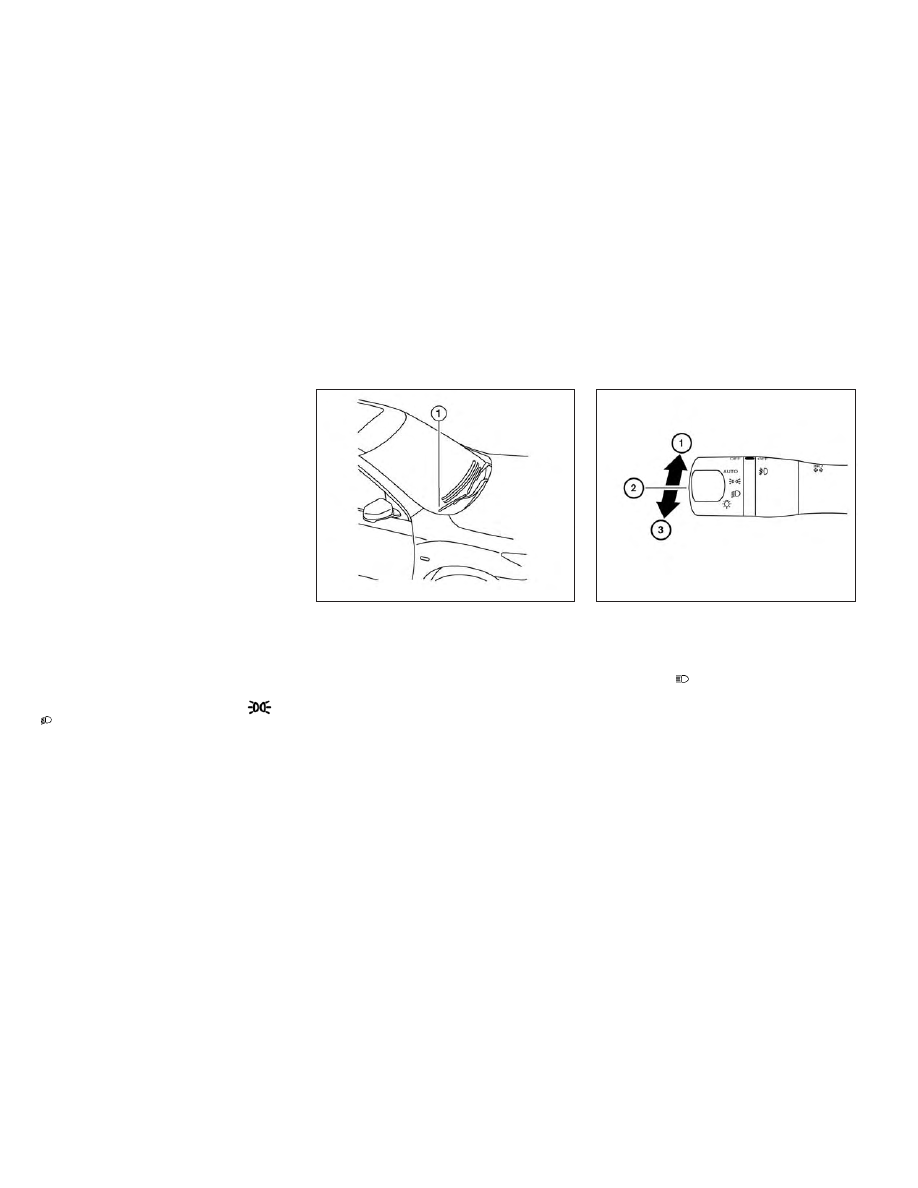

LIC2237

LIC3250

2-42

Instruments and controls

High Beam Assist

The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above.
If an oncoming vehicle or leading vehicle
appears in front of your vehicle when
the headlight high beam is on, the head-
light will be switched to the low beam
automatically.

WARNING

•

The High Beam Assist system is a
convenience but it is not a substitute
for safe driving operation. The driver
should remain alert at all times, en-
sure

safe

driving

practices

and

switch the high beams and low beam
manually when necessary.

•

The high beam or low beam may not
switch automatically under the fol-
lowing conditions. Switch the high
beam and low beam manually.

–

During bad weather (rain, fog,
snow, wind, etc.).

–

When a light source similar to a
headlight or tail light is in the vi-
cinity of the vehicle.

–

When the headlights of the on-
coming vehicle or the leading ve-
hicle are turned off, when the color
of the light is affected due to for-
eign materials on the lights, or
when the light beam is out of
position.

–

When there is a sudden, continu-
ous change in brightness.

–

When driving on a road that
passes over rolling hills, or a road
that has level differences.

–

When driving on a road with many
curves.

–

When a sign or mirror-like surface
is reflecting intense light towards
the front of the vehicle.

–

When the container, etc. being
towed by a leading vehicle is re-
flecting intense light.

–

When a headlight on your vehicle
is damaged or dirty.

–

When the vehicle is leaning at an
angle due to a punctured tire, be-
ing towed, etc.

•

The timing of switching the low
beam and high beam may change
under the following situations.

–

The brightness of the headlights
of the oncoming vehicle or leading
vehicle.

–

The movement and direction of
the oncoming vehicle and the
leading vehicle.

–

When only one light on the on-
coming vehicle or the leading ve-
hicle is illuminated.

–

When the oncoming vehicle or the
leading vehicle is a two-wheeled
vehicle.

–

Road conditions (incline, curve,
the road surface, etc.).

–

The number of passengers and
the amount of luggage.

Instruments and controls

2-43

High Beam Assist operation

To activate the High Beam Assist system,
turn the headlight switch to the AUTO po-
sition

and push the lever forward

(high beam position). The

High Beam

Assist indicator light in the meter will illumi-
nate while the headlights are turned on.

If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked, it is
recommended that you visit a NISSAN
dealer for this service.

When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.

To turn off the High Beam Assist system,
turn the headlight switch to the

posi-

tion or select the low beam position by
placing the lever in the neutral position.

Ambient image sensor maintenance

The ambient image sensor

for the High

Beam Assist system is located in front of
the inside mirror. To maintain the proper
operation of the high beam assist system
and prevent a system malfunction, be sure
to observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including trans-

parent material) or install an accessory
near the ambient image sensor.

• Do not strike or damage the areas

around the ambient image sensor. Do
not touch the sensor lens that is located
on the ambient image sensor.

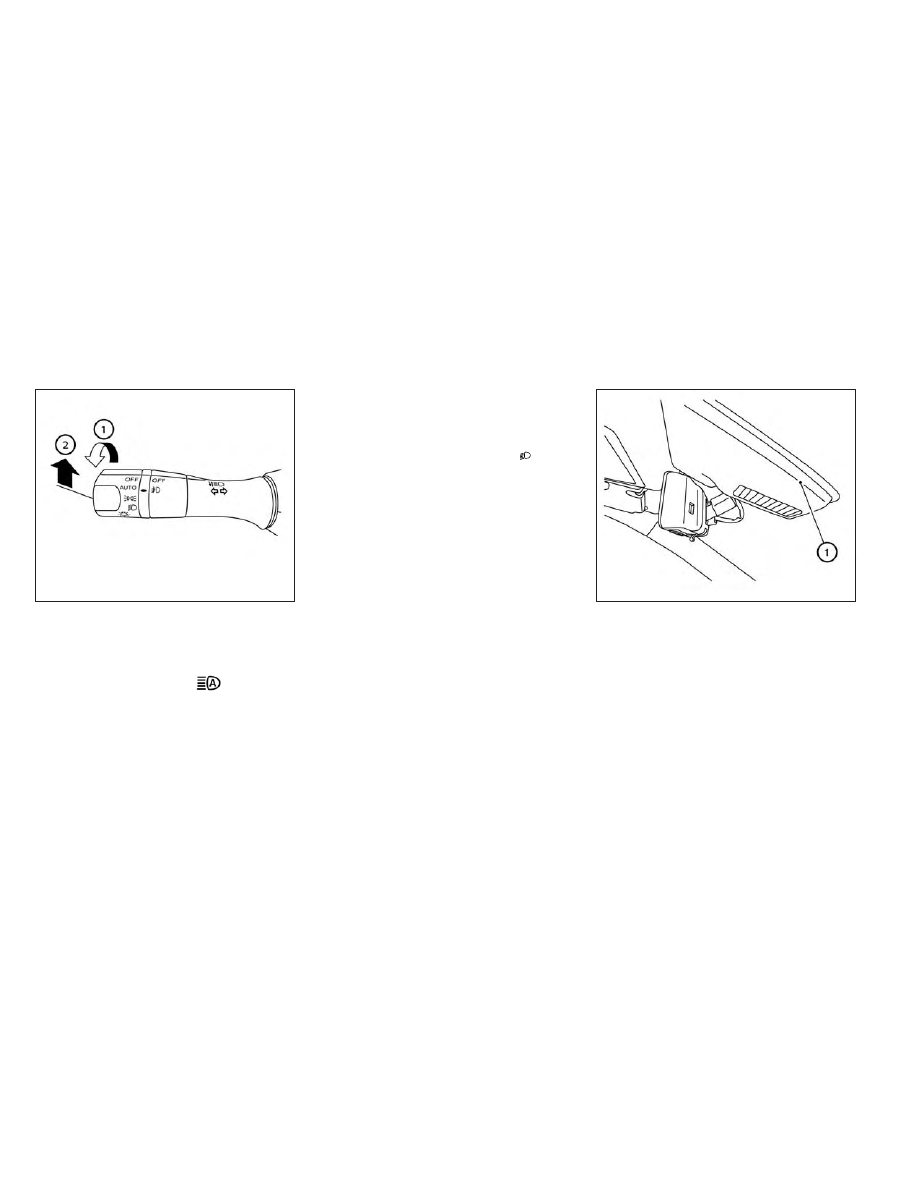

LIC4115

LSD2712

2-44

Instruments and controls

If the ambient image sensor is damaged
due to an accident, it is recommended that
you visit a NISSAN dealer.

Battery saver system

The battery saver system automatically
turns off the following lights after a period
of time when the ignition switch is placed in
the OFF position and the doors are closed:
• Headlights, when the headlight switch is

in the

position

• Interior lights, when left in the ON position

After the headlights automatically turn off
with the headlight switch in the

position, the headlights will illuminate

again if the headlight switch is moved to
the AUTO or OFF position and then turned
to the

position.

CAUTION

Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the AUTO or OFF
position when the engine is not run-
ning to avoid discharging the vehicle
battery.

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM

The LED DRL automatically illuminate at
100% intensity when the engine is started
and the parking brake released. The LED
Daytime Running Lights (DRL) operate with
the headlight switch in any position. When
you turn the headlight switch to the
position for full illumination, the LED DRL
illuminate at a lower intensity.

If the parking brake is applied before the
engine is started, the LED DRL do not illumi-
nate. The LED DRL illuminate when the
parking brake is released. The LED DRL will
remain on until the ignition switch is placed
in the OFF position.

At dusk, the headlights, interior controls
and switches will automatically illuminate
if the headlight switch is in the AUTO
position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

INSTRUMENT BRIGHTNESS
CONTROL

Press the “+” button

to increase the

brightness of instrument panel lights.

Press the “-” button

to decrease the

brightness of instrument panel lights.

LIC4161

Instruments and controls

2-45

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down to signal
the turning direction. When the turn is
completed, the turn signal cancels
automatically.

Lane change signal

䊊

Move the lever up or down until the turn
signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.

Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, and release the lever. The turn
signal will automatically flash three times.

Choose the appropriate method to signal
a lane change based on road and traffic
conditions.

NOTE:

The 3 Flash Pass feature may be dis-
abled. For additional information, see
“How to use the vehicle information dis-
play” (P. 2-18).

FOG LIGHT SWITCH (if so
equipped)

To turn the fog lights on, turn the headlight
switch to the

position, then turn the

fog light switch to the

position.

To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then turn the fog light switch to
the

position.

To turn the fog lights off, turn the fog light
switch to the OFF position.

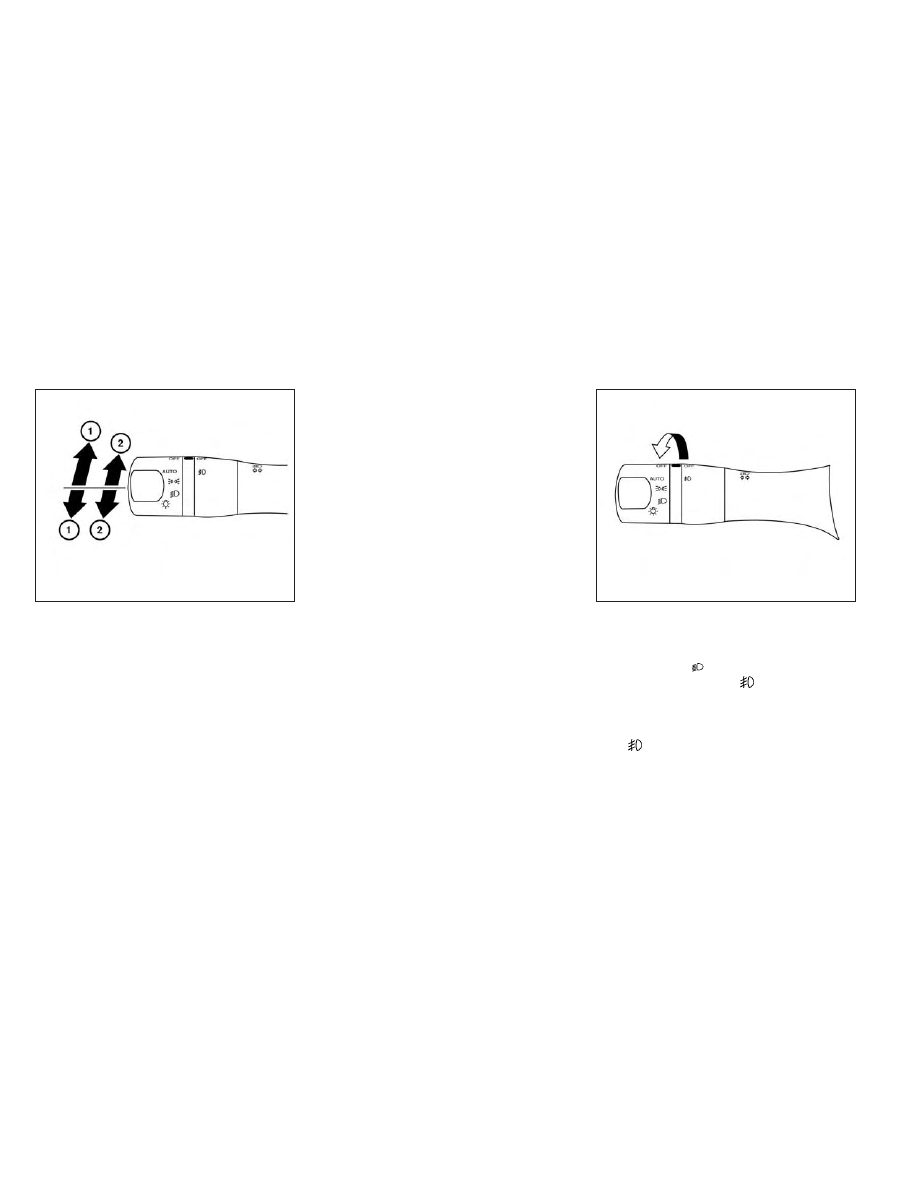

LIC3252

LIC3256

2-46

Instruments and controls

The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are
selected.

To sound the horn, push near the horn icon
on the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering

with

the

supplemental

front air bag system may result in seri-
ous personal injury.

The climate controlled seat warms up or
cools down the front seat by blowing warm
or cool air from under the surface of the
seat. The climate control switch is located
on the center console.

The climate controlled seat can be oper-
ated as follows:

1. Place the ignition switch in the ON

position.

2. Turn the control knob

to the heat side

or the cool side

. The indicator light

on the control knob will illuminate.

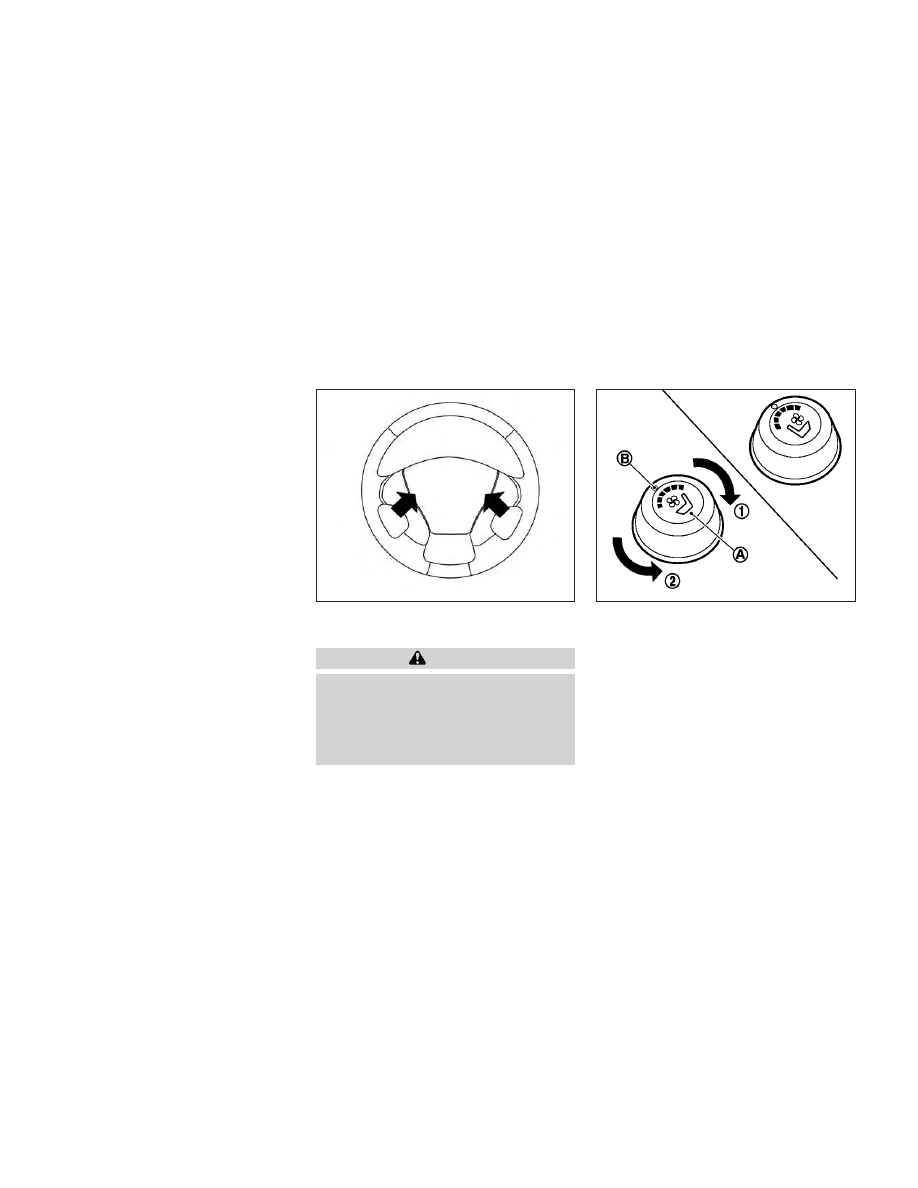

LIC2227

SIC4334

HORN

CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)

Instruments and controls

2-47

Nissan Murano (2024 year). Manual in english - page 4
