SUPPLEMENTAL AIR BAG
WARNING LIGHT

The

supplemental

air

bag

warning

light,

displaying

in the instrument panel, moni-

tors the circuits for the air bag systems, preten-
sioners and all related wiring.

When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:

● The supplemental air bag warning light re-

mains on after approximately 7 seconds.

● The supplemental air bag warning light

flashes intermittently.

● The supplemental air bag warning light does

not come on at all.

Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. Take your vehicle to the nearest
NISSAN dealer.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.

Repair and replacement procedure

The front air bags, side air bags, curtain air bags
and pretensioners are designed to inflate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
remains illuminated after inflation has occurred.
Repair and replacement of these supplemental
air bag systems should be done only by a
NISSAN dealer.

When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags, pretensioners and related parts should be
pointed out to the person performing the mainte-
nance. The ignition switch should always be
placed in the LOCK position when working under
the hood or inside the vehicle.

LRS0100

Safety—Seats, seat belts and supplemental restraint system

1-51

WARNING

● Once a front air bag, side air bag, or

curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the acti-
vated pretensioner must also be re-
placed. The air bag module and preten-
sioner should be replaced by a NISSAN
dealer. The air bag module and preten-
sioner cannot be repaired.

● The front air bag, side air bag, curtain

air bag systems and the pretensioner
system

should

inspected

NISSAN dealer if there is any damage to
the front end or side portion of the
vehicle.

● If you need to dispose of the supple-

mental air bag or pretensioner systems
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.

1-52

Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls

Instrument panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Meters and gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Speedometer and odometer . . . . . . . . . . . . . . . . . . . . . 2-5
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Engine coolant temperature gauge
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Warning/indicator lights and audible reminders . . . . . . 2-12

Checking bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
Audible reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Security systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

NISSAN vehicle immobilizer system
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Windshield wiper and washer switch . . . . . . . . . . . . . . . 2-22

Switch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

Rear window and outside mirror (if so equipped)
defroster switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23
Headlight and turn signal switch. . . . . . . . . . . . . . . . . . . . 2-23

Headlight control switch. . . . . . . . . . . . . . . . . . . . . . . . 2-23
Daytime running light system (Canada only) . . . . . . 2-24
Instrument brightness control . . . . . . . . . . . . . . . . . . . 2-25
Turn signal switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Fog light switch (if so equipped) . . . . . . . . . . . . . . . . 2-26

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
Vehicle Dynamic Control (VDC) off switch . . . . . . . . . . . 2-26
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Map pockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Seatback pocket (if so equipped) . . . . . . . . . . . . . . . 2-28
Storage trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30

Power windows (if so equipped) . . . . . . . . . . . . . . . . 2-30
Manual windows (if so equipped). . . . . . . . . . . . . . . . 2-32

Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-32
Map light (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 2-33
Trunk light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-34

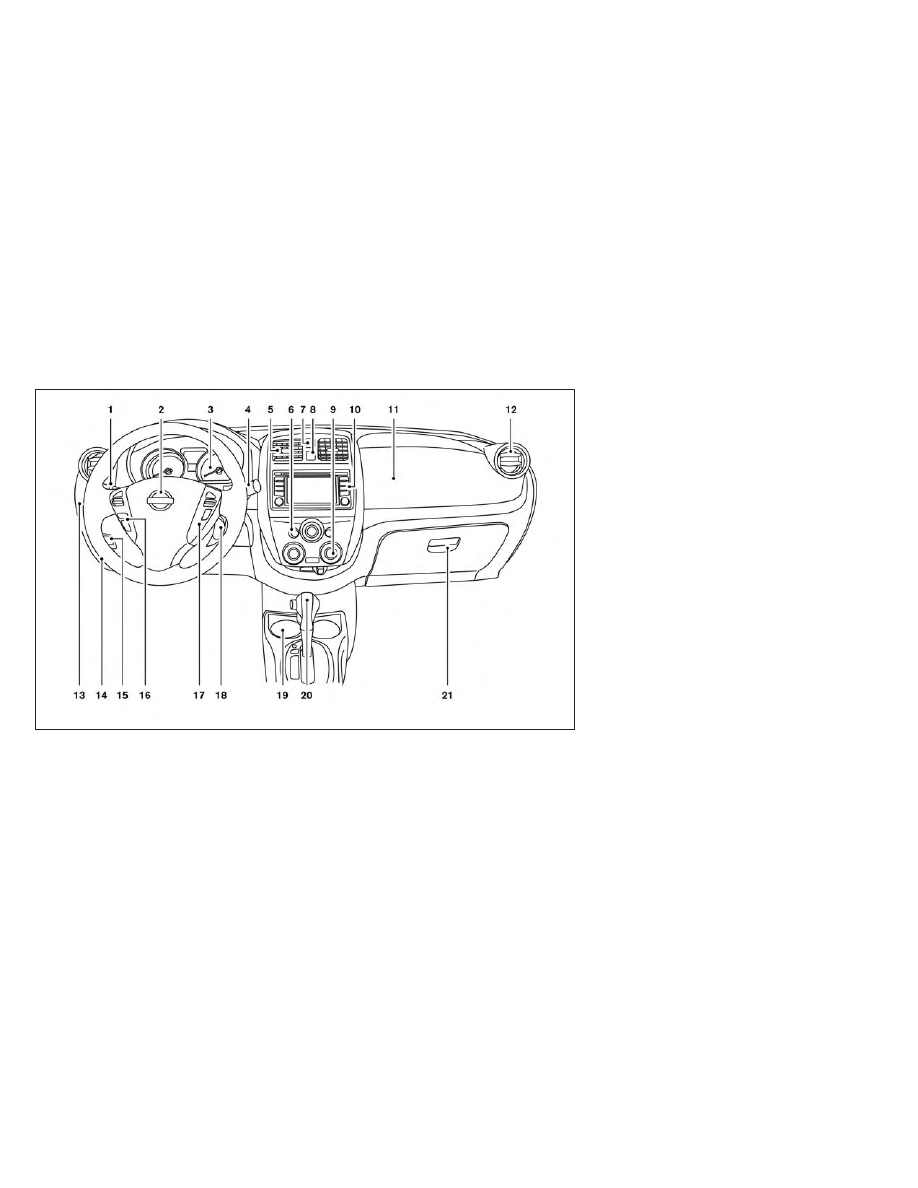

Headlight/turn signal switch (P. 2-23)

Driver’s supplemental air bag/horn
(P. 1-36, 2-26)

Meters and gauges (P. 2-3)

Windshield wiper/washer switch
(P. 2-22)

Center vents (P. 4-14)

Rear window and outside mirror (if so
equipped) defroster switch (P. 2-23)

Front passenger air bag status light
(P. 6-2)

Hazard warning flasher switch (P. 6-2)

Climate controls (P. 4-15)

10.

Audio system (P. 4-23, 4-23)

11.

Passenger’s supplemental air bag
(P. 1-36)

12.

Side vents (P. 4-14)

13.

Electronic outside rearview mirror
control switch (P.3-31)

14.

Fuel-filler lid release lever (P. 3-27)/
Hood release lever (P. 3-24)

15.

Vehicle Dynamic Control (VDC) off
switch (P. 2-26)

16.

Audio control switches (if so equipped)
(P.4-59)

17.

Cruise control (if so equipped) (P.5-27)

18.

Ignition switch/Push button ignition
switch (if so equipped)
(P. 5-8, P. 5-11)

19.

Cup holders (P. 2-28)

20.

Shift lever (P. 5-16)

21.

Glove box (P. 2-27)

See the page number indicated in paren-
theses for operating details.

LIC2753

INSTRUMENT PANEL

2-2

Instruments and controls

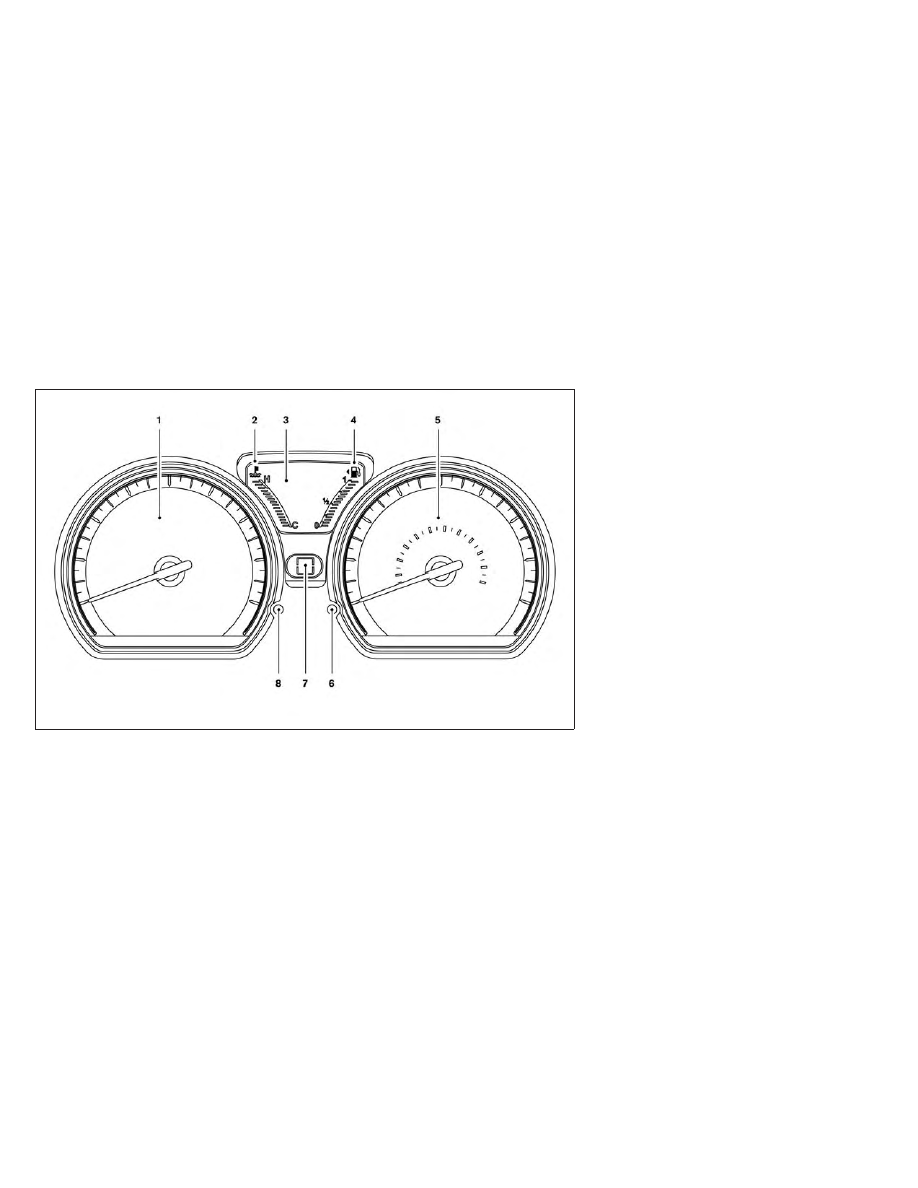

Tachometer

Speedometer

Trip odometer reset switch/trip com-
puter mode

Instrument brightness control

Continuously Variable Transmission
(CVT) / AT Automatic Transmission po-
sition indicator (CVT / A/T models only)

Odometer/twin trip odometer/trip com-
puter

Fuel gauge

Type A

LIC2283

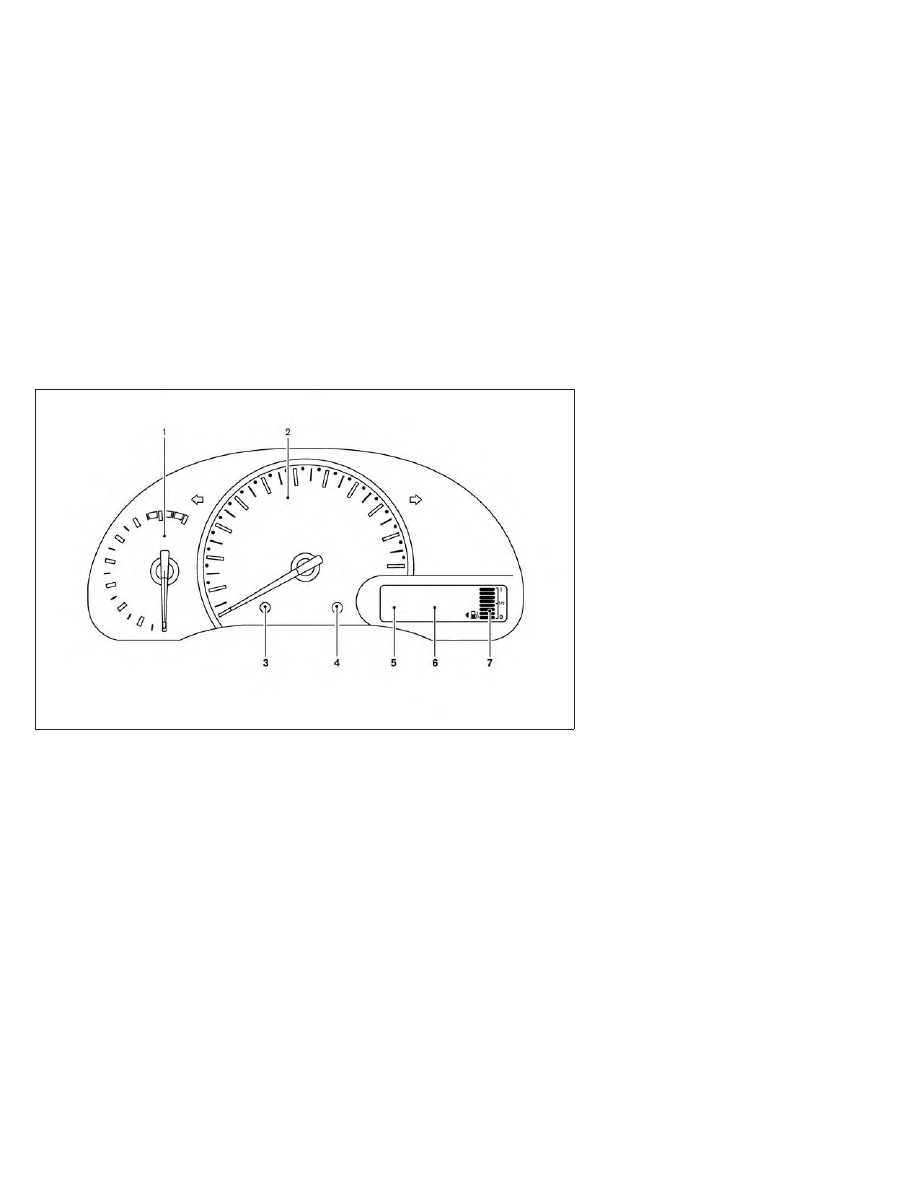

METERS AND GAUGES

Instruments and controls

2-3

Tachometer

Temperature gauge

Odometer/twin trip odometer/trip com-
puter

Fuel gauge

Speedometer

Trip odometer reset switch/trip com-
puter mode

Continuously Variable Transmission
(CVT) / Manual Transmission shift indi-
catorposition indicator

Instrument brightness control

Type B

LIC2146

2-4

Instruments and controls

SPEEDOMETER AND ODOMETER

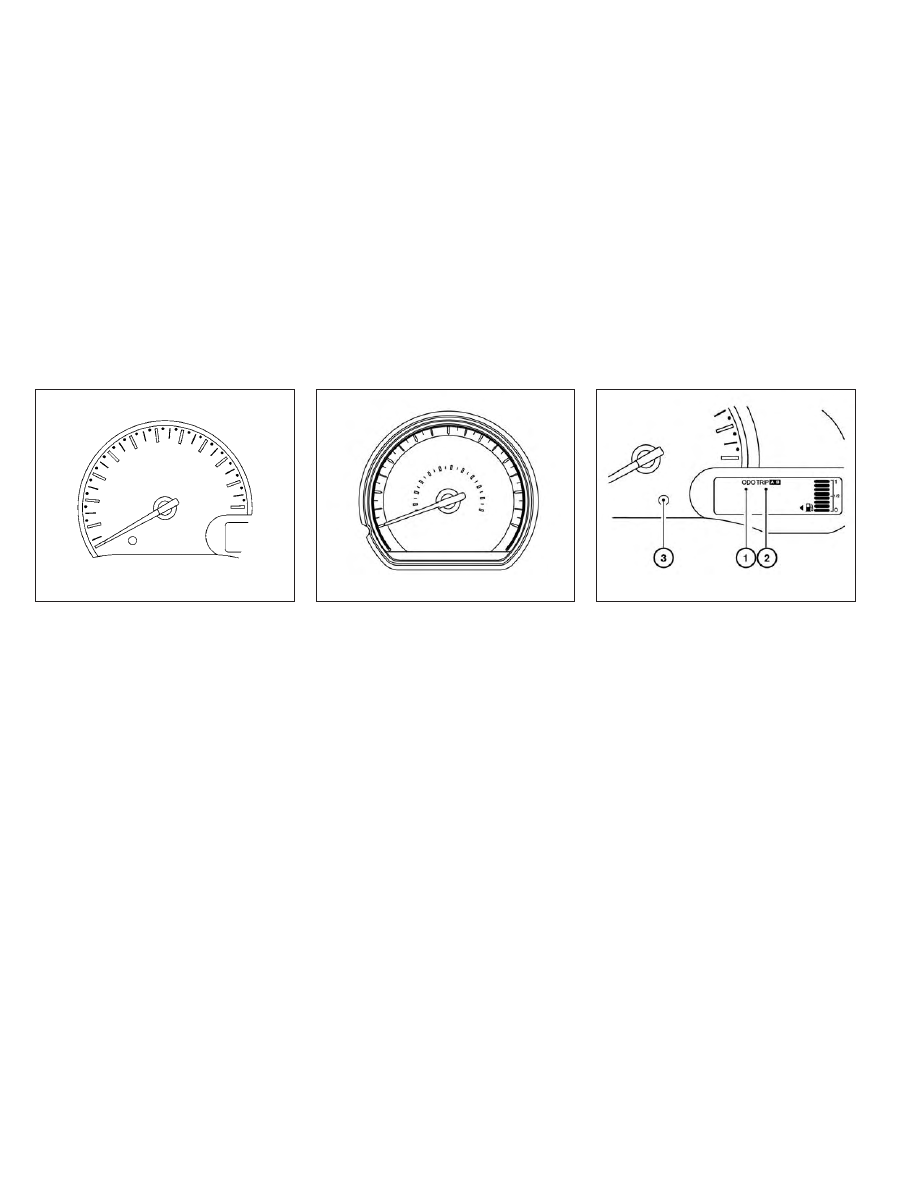

Speedometer

The speedometer indicates the vehicle speed.

Odometer/Twin trip odometer

The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.

The odometer

䊊

records the total distance the

vehicle has been driven.

The twin trip odometer

䊊

records the distance

of individual trips.

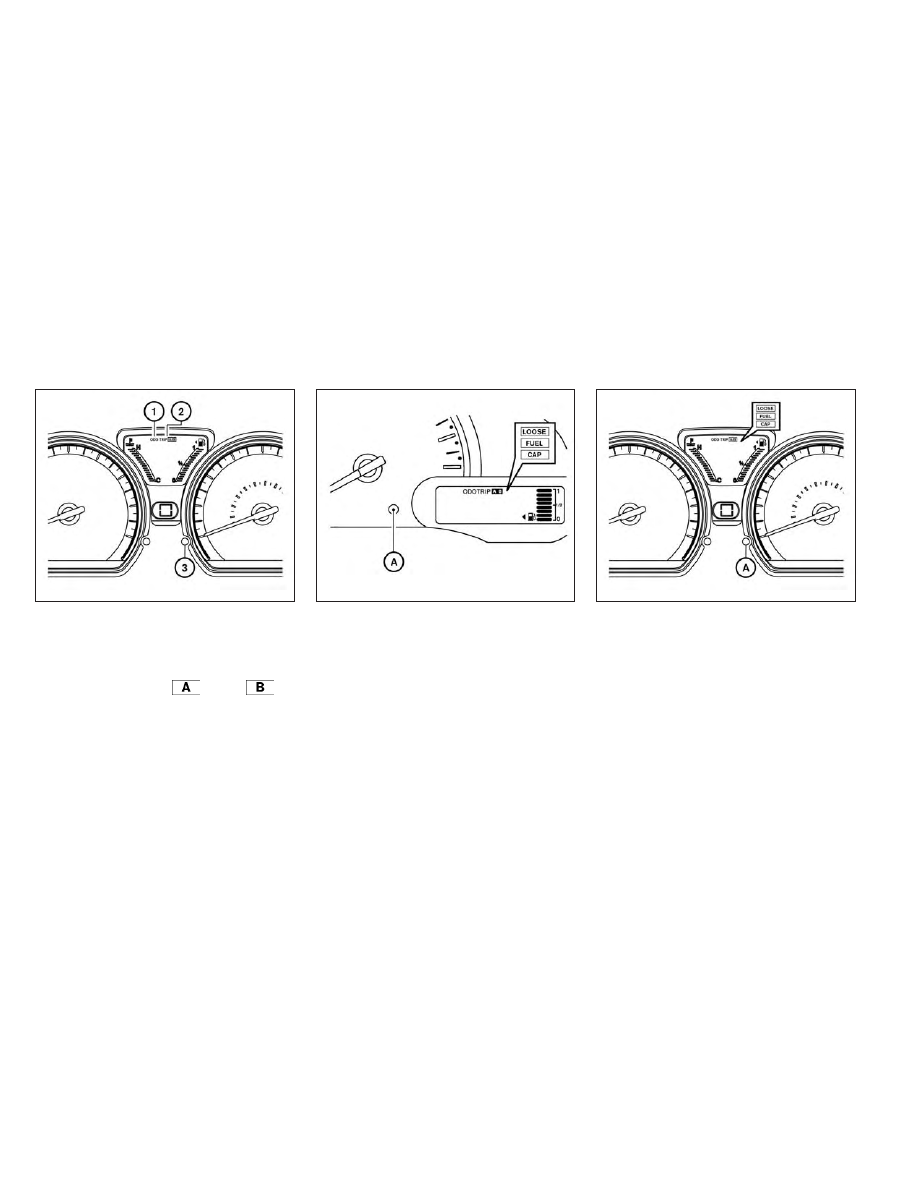

Type A

LIC2118

Type B

LIC2136

Type A

LIC2284

Instruments and controls

2-5

Changing the display:

Press the change button

䊊

to change the dis-

play as follows:

Odometer (ODO)

→ Trip

→

Instant fuel consumption

→ Average fuel con-

sumption

→ DTE (cruising range) → Outside air

temperature (is so equipped)

→ Odometer

(ODO)

Resetting the trip odometer:

Press the change button

䊊

for more than 1 sec-

ond to reset the currently displayed trip odometer
to zero.

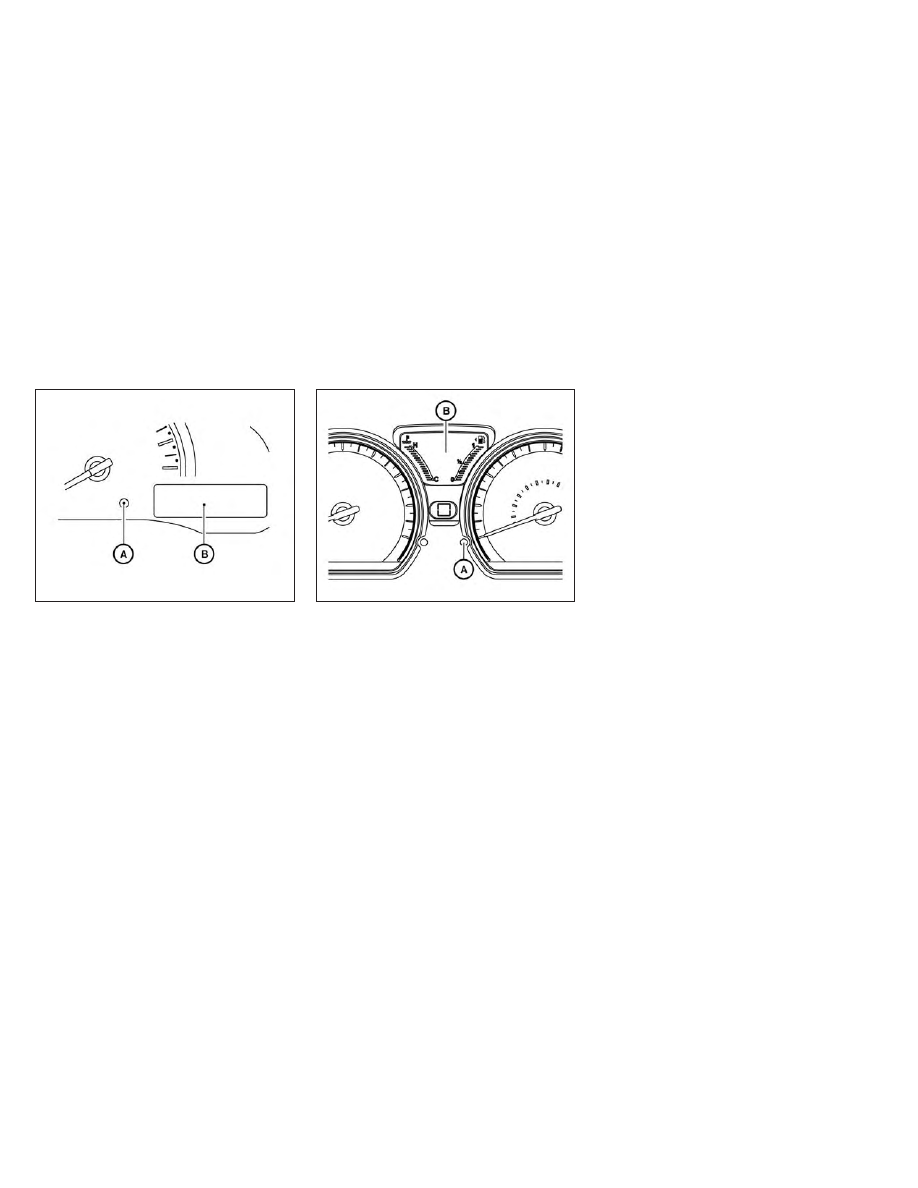

Loose fuel cap warning message

Push the reset button

䊊

for more than 1 second

to reset the LOOSE FUEL CAP warning mes-
sage after the fuel cap has been tightened. For
additional information see “Fuel-filler cap” in the
“Pre-driving checks and adjustments” section of
this manual.

Type B

LIC2139

Type A

LIC2285

Type B

LPD2025

2-6

Instruments and controls

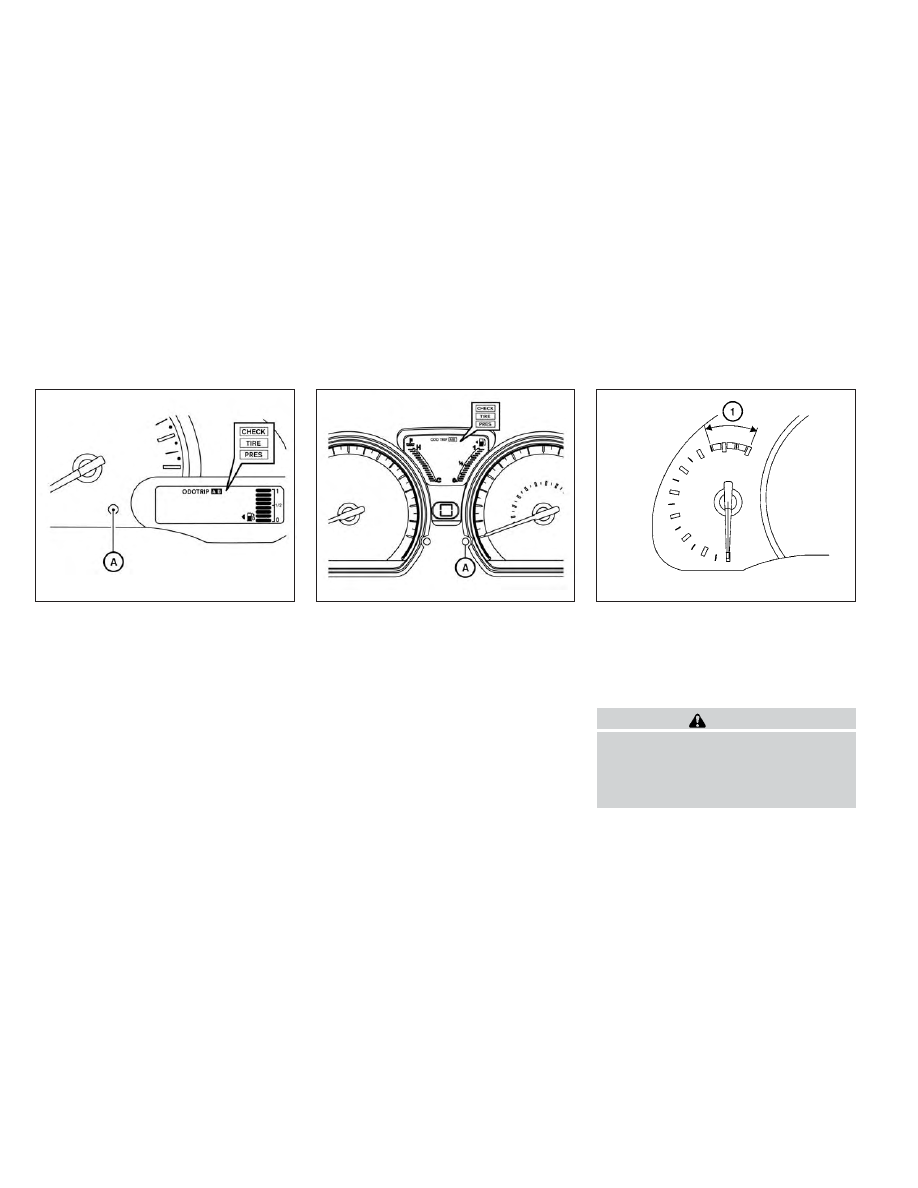

Check tire pressure warning message
(if so equipped)

The CHECK TIRE PRES warning message is
displayed when the low tire pressure warning
light is illuminated and low tire pressure is de-
tected. Check and adjust the tire pressure to the
recommended COLD tire pressure shown on the
Tire and Loading Information label. The CHECK
TIRE PRES warning message can be turned off
using the reset button

䊊

on the meter, the low

tire pressure warning light will not be turned off.

The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure. The CHECK TIRE
PRES warning message is displayed each time
the ignition switch is placed in the ON position as
long as the low tire pressure warning light re-
mains illuminated. For more information see “Low
tire pressure warning light” in the “Instruments
and controls” section, “Tire Pressure Monitoring
System (TPMS)” in the “Starting and driving”
section, and “Wheels and tires” in the “Mainte-
nance and do-it-yourself” section of this Owner’s
Manual.

TACHOMETER

The tachometer indicates engine speed in revo-
lutions per minute (rpm).

Do not rev the engine into the red zone

䊊

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.

Type A

LIC2436

Type B

LPD2128

Type A

LIC2107

Instruments and controls

2-7

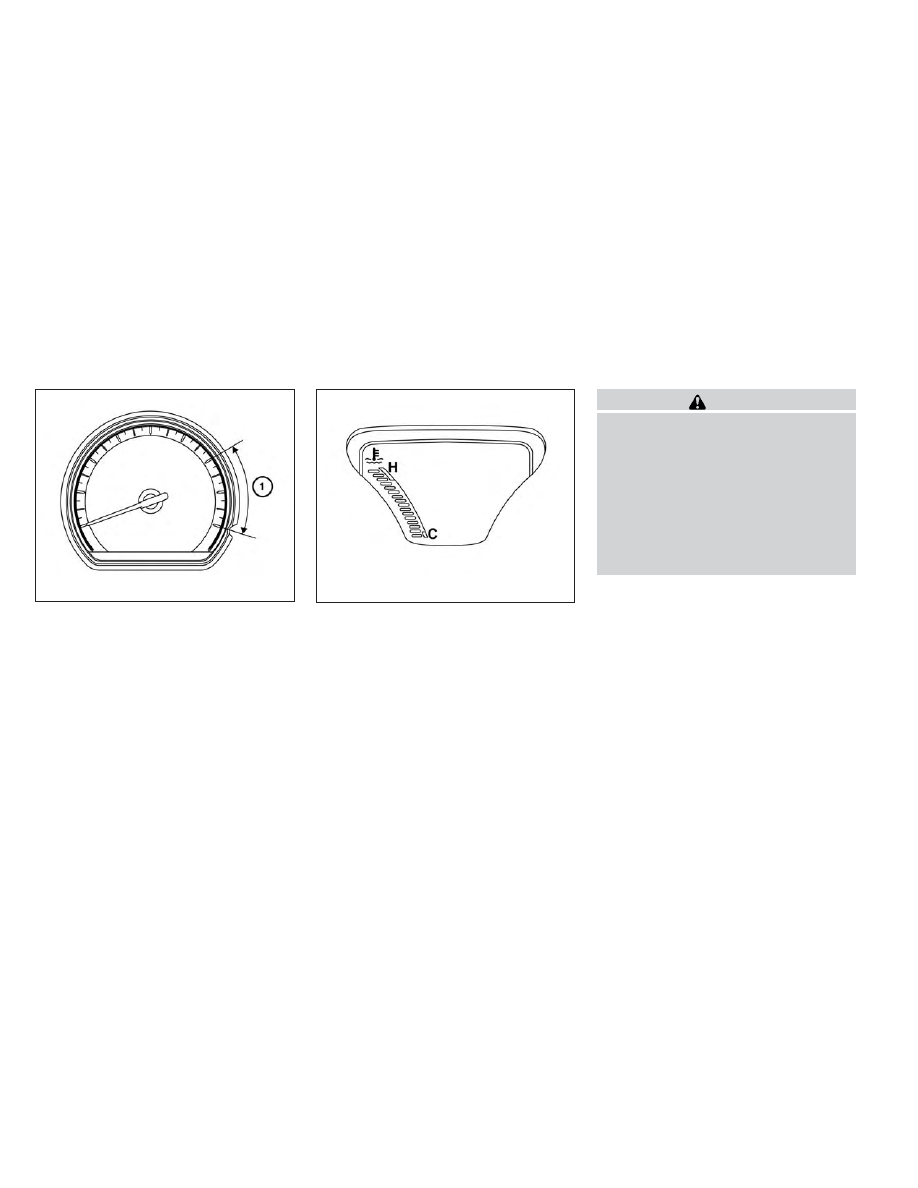

ENGINE COOLANT TEMPERATURE
GAUGE (if so equipped)

NOTE:

The ignition switch must be placed in the
ON position for the gauge to give a reading.

The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature will vary
with the outside air temperature and driving con-
ditions.

CAUTION

If the gauge indicates a coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
the temperature. If the gauge is over the
normal range, stop the vehicle as soon as
safely possible. If the engine is over-
heated, continued operation of the vehicle
may seriously damage the engine. See “If
your vehicle overheats” in the “In case of
emergency” section for immediate action
required.

Type B

LIC2151

LIC2501

2-8

Instruments and controls

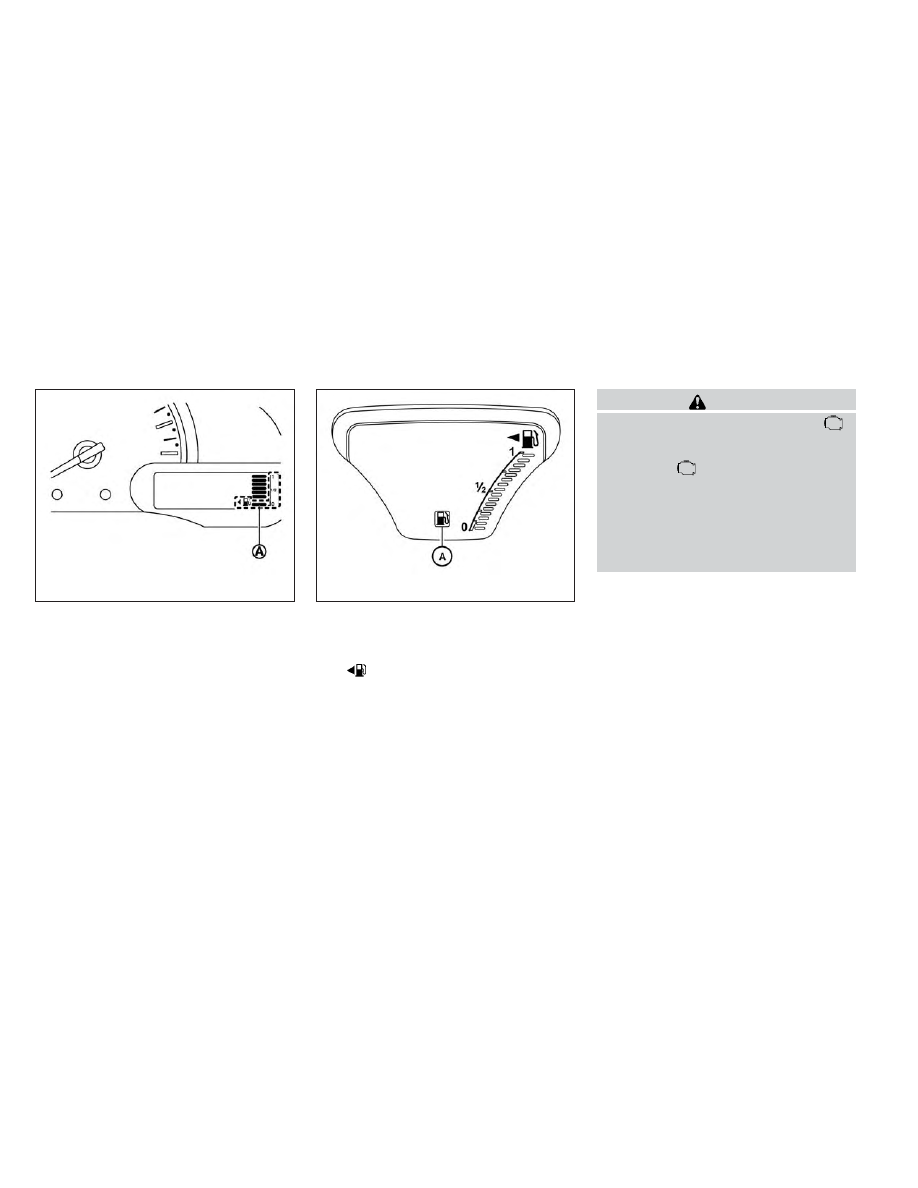

FUEL GAUGE

The gauge indicates

䊊

the approximate fuel

level in the tank when the ignition switch is placed
in the ON position.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

Type A: The fuel level segments will blink when
the amount of fuel in the tank is getting low.

Type B: The low fuel warning light will turn on
when the amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge regis-
ters E (Empty).

The

indicates that the fuel-filler door is

located on the driver’s side of the vehicle.

CAUTION

● If the vehicle runs out of fuel, the

check engine light may come on. Refuel
as soon as possible. After a few driving
trips, the

light should turn off. If

the light remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.

● For additional information, see “Mal-

function Indicator Light (MIL)” in this
section.

Type A

LIC2286

Type B

LIC2287

Instruments and controls

2-9

TRIP COMPUTER

When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer change
button

䊊

on the instrument panel located near

the speedometer. The following modes can be
selected in the display

䊊

● Instant fuel consumption
● Average fuel consumption
● Distance to empty
● Outside air temperature (if so equipped)

Instant fuel consumption

The instant fuel consumption mode shows the
instant fuel economy. The display updates in-
stantly when driving.

Average fuel consumption

The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the trip computer
change button

䊊

for more than approximately

1 second.

Distance to empty

The distance to empty mode provides you with an
estimation of the distance that can be driven
before refueling. The range is constantly being
calculated, based on the amount of fuel in the fuel
tank and the actual fuel consumption.

The distance to empty includes a low range
warning feature: when the fuel level is low, the
distance to empty is automatically selected and
the digits blink in order to draw the driver’s atten-
tion. Press the trip computer change button

䊊

you wish to return to the mode that was selected
before the warning occurred.

When the fuel level drops even lower, the dis-
tance to empty will display (----).

Outside air temperature (ICY-°F or °C)
(if so equipped)

The outside air temperature is displayed in °F or
°C.

The outside air temperature mode includes a low
temperature warning feature: below 37°F (3°C),
the outside air temperature mode is automatically
selected and ICY will illuminate in order to draw
the driver’s attention. Press the trip or change
button to toggle to the next mode, if desired. The
ICY indicator will remain illuminated as long as
the temperature remains below 39°F (4°C).

Type A

LIC2288

Type B

LIC2138

2-10

Instruments and controls

The ambient temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and other
driving conditions. The display may differ from the
actual ambient temperature or the temperature
displayed on various signs or billboards.

Trip computer reset

Pushing the change button for more than 3 sec-
onds will reset all modes except Trip A and dis-
tance to empty (dte).

Instruments and controls

2-11

Anti-lock Braking System (ABS)
warning light

NISSAN Intelligent Key® warning light
(if so equipped)

High beam indicator light (blue)

Brake warning light

Power steering warning light

Malfunction Indicator Light (MIL)

Charge warning light

Seat belt warning light and chime

Overdrive off indicator light (if so equipped)

Door open warning light

Shift P warning light (if so equipped)

Security indicator light (if so equipped)

Engine oil pressure warning light

Supplemental air bag warning light

Side and headlight indicator light (green)
(if so equipped)

High temperature warning light (red)

Automatic Transmission (A/T)/Continuously
Variable Transmission (CVT) position indicator
light (if so equipped)

Slip indicator light

Low fuel warning light

Cruise main switch indicator light
(if so equipped)

Turn signal/hazard indicator lights

Low tire pressure warning light (if so
equipped)

Engine start operation indicator
(if so equipped)

Vehicle Dynamic Control (VDC) off indicator
light

Low windshield-washer fluid warning light
(if so equipped)

Front passenger air bag status light

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS

2-12

Instruments and controls

CHECKING BULBS

With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:

If equipped, the following lights come on briefly
and then go off:

(red),

If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.

WARNING LIGHTS

Anti-lock Braking
System (ABS)
warning light

When the ignition switch is placed in the ON
position, the Anti-lock Braking System (ABS)
warning light illuminates and then turns off. This
indicates the ABS is operational.

If the ABS warning light illuminates while the
engine is running or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.

If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally, but without anti-lock assistance. See
“Brake system” in the “Starting and driving” sec-
tion.

Brake warning light

This light functions for both the parking brake and
the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid level.
If the light comes on while the engine is running
with the parking brake not applied, stop the ve-
hicle and perform the following:

1. Check the brake fluid level. Add brake fluid

as necessary. See “Maintenance and do-it-
yourself” section of this manual.

2. If the brake fluid level is correct, have the

warning system checked by a NISSAN
dealer.

WARNING

● Your brake system may not be working

properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.

● Pressing the brake pedal with the en-

gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.

● If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.

Instruments and controls

2-13

Anti-lock Braking System (ABS) warning
indicator

When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate the
ABS is not functioning properly. Have the brake
system checked, and if necessary, repaired by a
NISSAN dealer promptly. Avoid high-speed driv-
ing and abrupt braking. See “Anti-lock Braking
System (ABS) warning light” in this section.

Charge warning light

If this light comes on while the engine is running,
it may indicate the charging system is not func-
tioning properly. Turn the engine off and check
the drive belt. If the belt is loose, broken, missing,
or if the light remains on, see a NISSAN dealer
immediately.

CAUTION

Do not continue driving if the drive belt is
loose, broken or missing.

Door open warning light

This light comes on when any of the doors are not
closed securely while the ignition switch is
placed in the ON position.

Engine oil pressure warning
light

This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. See “Engine oil” in
the “Maintenance and do-it-yourself” section of
this manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause se-
rious damage to the engine almost imme-
diately. Such damage is not covered by
warranty. Turn off the engine as soon as it
is safe to do so.

High temperature warning light

When the ignition switch is placed in the ON
position, the high temperature warning light illu-
minates and then turns off. This indicates that the
high temperature sensor in the engine coolant
system is operational.

CAUTION

If the high temperature warning light illu-
minates while the engine is running, it
may indicate the engine temperature is
extremely high. Stop the vehicle safely as
soon as possible. If the vehicle is over-
heated, continuing vehicle operation may
seriously damage the engine. See “If your
vehicle overheats” in the “In case of emer-
gency” section.

Low fuel warning
light

This light comes on when the fuel level in the fuel
tank is getting low. Refuel as soon as it is conve-
nient, preferably before the fuel gauge reaches E
(Empty). There will be a small reserve of fuel
in the tank when the fuel gauge reaches E
(Empty), showing no more fuel bars.

Low tire pressure warning light
(if so equipped)

Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

2-14

Instruments and controls

Content .. 3 4 5 6 ..
