The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Do-it-yourself ” section to determine the proper refill capacity.

Fluid type

Capacity (approximate)

Recommended Fluids/Lubricants

Metric

Measure

Imperial

Measure

Fuel

VK56VD

98.4 L

26 gal

21-5/8 gal

• For additional information, refer to “Fuel recommendation” in this
section.

Cummins 5.0 L

—

• For additional information, refer to “Recommended fluids/
lubricants and capacities” chart of the Titan Diesel Owner’s Manual.

Engine oil *1
Drain and refill
*1 For additional
information, refer to
“Changing engine
oil” in the “Do-it-
yourself ” section of
this manual.

VK56VD

With oil

filter

change

6.5 L

6-7/8 qt

5-3/4 qt

Gasoline engine models:
• Genuine “Nissan Motor Oil 0W-20” (or equivalent) is recommended.
• If the above motor oil (or engine oil) is not available, a synthetic
0W-20 GF-5 SN motor oil (or engine oil) may be used. Damage
caused by the use of motor oil (or engine oil) other than as recom-
mended is not covered under NISSAN’s/INFINITI’s New Vehicle Lim-
ited Warranty. For additional information, refer to “Engine oil and oil
filter recommendations (for gas engine only)” in this section.

Without

oil filter

change

6.2 L

6-1/2 qt

5-1/2 qt

Cummins 5.0 L

—

Diesel engine models:
• For additional information, refer to “Recommended fluids/
lubricants and capacities” chart of the Titan Diesel Owner’s Manual.

Engine coolant
with reservoir

VK56VD

Non-XD

model

13.4 L

3-1/2 gal

3 gal

• Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent

model

13.2 L

3-1/2 gal

2-7/8 gal

Cummins 5.0 L

—

• For additional information, refer to “Recommended fluids/
lubricants and capacities” chart of the Titan Diesel Owner’s Manual.

RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES

10-2

Technical and consumer information

Fluid type

Capacity (approximate)

Recommended Fluids/Lubricants

Metric

Measure

Imperial

Measure

Automatic Trans-
mission Fluid (ATF)

6-speed (Diesel en-

gine only)

—

• Genuine NISSAN Matic K ATF
• Using automatic transmission fluid that is not equivalent to Genu-
ine NISSAN Matic K ATF may damage the transmission or impact
transmission durability. Damage caused by the use of fluid other
than as recommended is not covered under the NISSAN New Ve-
hicle Limited Warranty.

7-speed (Gasoline en-

gine only)

• Genuine NISSAN Matic S ATF
• NISSAN recommends using Genuine NISSAN Matic S ATF ONLY in
NISSAN automatic transmissions. Do not mix with other fluids. Using
fluids that are not equivalent to Genuine NISSAN Matic S ATF may
damage the automatic transmission. Damage caused by the use of
fluid other than as recommended is not covered under the NISSAN
New Vehicle Limited Warranty.

Differential gear oil

Front

Non-XD

model

1.25 L

2-5/8 pt

2-1/4 pt

• Genuine NISSAN Differential Oil Hypoid Super-CT Synthetic GL-5
75W-90
• NISSAN recommends using Genuine NISSAN Differential Oil Hypoid
Super-CT Synthetic GL-5 75W-90 ONLY in final drive.
Do not mix with other fluids. Using fluids that are not equivalent to
Genuine NISSAN Differential Oil Hypoid Super-CT Synthetic GL-5
75W-90 may damage the differential gear. Damage caused by the
use of fluids other than as recommended is not covered under the
NISSAN’s New Vehicle Limited Warranty.

model

1.51 L

3-1/4 pt

2-5/8 pt

Rear

Non-XD

model

2.3 L

4-7/8 pt

4 pt

model

2.6 L

5-1/2 pt

4-5/8 pt

Transfer fluid

Non-XD model

1.5 L

1-5/8 qt

1-3/8 qt

• Genuine NISSAN ATF D3M
• Using fluid other than Genuine NISSAN ATF D3M (or equivalent)
may cause deterioration in driveability and transfer durability, and
may damage the transfer. Damage caused by fluids other than as
recommended is not covered by the NISSAN’s New Vehicle Limited
Warranty.

XD model

1.8 L

1-7/8 qt

1-5/8 qt

Power Steering Fluid (PSF)

—

• Genuine NISSAN PSF II or equivalent.

Technical and consumer information

10-3

Fluid type

Capacity (approximate)

Recommended Fluids/Lubricants

Metric

Measure

Imperial

Measure

Brake fluid

—

• Genuine NISSAN Super Heavy Duty Brake Fluid *2 or equivalent
DOT 3.
*2 Available in mainland USA through a NISSAN dealer.

Multi-purpose grease

—

• NLGI No. 2 (Lithium Soap base) (or equivalent).

Air conditioning system refrigerant

—

• HFO-1234yf (R-1234yf) (or equivalent).
• For additional information, refer to “Air conditioner system refriger-
ant and oil recommendations” in this section.

Air conditioning system oil

—

• Genuine NISSAN A/C System Oil Type PAG or equivalent
• For additional information, refer to “Air conditioner system refriger-
ant and oil recommendations” in this section.

Windshield-washer fluid

4.5 L

1-1/4 gal

1 gal

• Genuine NISSAN Windshield Washer Concentrate Cleaner & Anti-
freeze fluid or equivalent.

10-4

Technical and consumer information

FUEL RECOMMENDATION

Gas engine only

Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).

CAUTION

∙ Using a fuel other than that specified

could adversely affect the emission
control system, and may also affect
the warranty coverage.

∙ Under no circumstances should a

leaded gasoline be used, because this
will damage the three-way catalyst.

∙ Do not use E-15 or E-85 fuel in your

vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or
E-85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can ad-
versely affect the emission control
devices and systems of the vehicle.
Damage caused by such fuel is not
covered by the NISSAN New Vehicle
Limited Warranty.

∙ Do not use fuel that contains the oc-

tane booster methylcyclopentadienyl
manganese tricarbonyl (MMT). Using
fuel containing MMT may adversely
affect vehicle performance and ve-
hicle emissions. Not all fuel dispens-
ers are labeled to indicate MMT con-
tent, so you may have to consult your
gasoline retailer for more details.
Note that Federal and California laws
prohibit the use of MMT in reformu-
lated gasoline.

∙ U.S. government regulations require

ethanol dispensing pumps to be iden-
tified by a small, square, orange and
black label with the common abbre-
viation or the appropriate percentage
for that region.

Diesel engine only

For additional information, refer to “Fuel
recommendation” in the Titan Diesel Own-
er’s Manual.

Gasoline specifications

NISSAN recommends using gasoline that
meets the World-Wide Fuel Charter (WWFC)
specifications where it is available. Many of
the automobile manufacturers developed
this specification to improve emission con-

trol system and vehicle performance. Ask
your service station manager if the gaso-
line meets the WWFC specifications.

Reformulated gasoline

Some fuel suppliers are now producing re-
formulated gasolines. These gasolines are
specially designed to reduce vehicle emis-
sions. NISSAN supports efforts towards
cleaner air and suggests that you use re-
formulated gasoline when available.

Gasoline containing oxygenates

Some fuel suppliers sell gasoline contain-
ing oxygenates such as ethanol, Methyl
Tert-butyl Ether (MTBE) and methanol with
or without advertising their presence.
NISSAN does not recommend the use of
fuels of which the oxygenate content and
the fuel compatibility for your NISSAN can-
not be readily determined. If in doubt, ask
your service station manager.

you

use

oxygenate-blend

gasoline,

please take the following precautions as
the usage of such fuels may cause vehicle
performance problems and/or fuel system
damage.

Technical and consumer information

10-5

∙ The fuel should be unleaded and have

an octane rating no lower than that
recommended for unleaded gasoline.

∙ If an oxygenate-blend other than

methanol blend is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

∙ E-15 fuel contains more than 10% oxy-

genate. E-15 fuel will adversely affect
the emission control devices and sys-
tems of the vehicle and should not be
used. Damage caused by such fuel is
not covered by the NISSAN New Ve-
hicle Limited Warranty.

∙ If a methanol blend is used, it should

contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should

also

contain

suitable

amount of appropriate cosolvents
and corrosion inhibitors. If not prop-
erly formulated with appropriate co-
solvents and corrosion inhibitors,
such methanol blends may cause fuel
system damage and/or vehicle per-
formance problems. At this time, suf-
ficient data is not available to ensure
that all methanol blends are suitable
for use in NISSAN vehicles.

If any driveability problems such as engine
stalling and difficult hot-starting are expe-
rienced after using oxygenate-blend fuels,
immediately change to a non-oxygenate
fuel or a fuel with a low blend of MTBE.

Take care not to spill gasoline during re-
fueling. Gasoline containing oxygenates
can cause paint damage.

E–15 fuel

E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline.
E-15 can only be used in vehicles designed
to run on E-15 fuel. Do not use E-15 in your
vehicle. U.S. government regulations re-
quire fuel ethanol dispensing pumps to be
identified with small, square, orange and
black label with the common abbreviation
or the appropriate percentage for that re-
gion.

E–85 fuel

E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline.
E-85 can only be used in a Flexible Fuel
Vehicle (FFV). Do not use E-85 in your ve-
hicle. U.S. government regulations require
fuel ethanol dispensing pumps to be iden-
tified by a small, square, orange and black

label with the common abbreviation or the
appropriate percentage for that region.

Fuel containing MMT

MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting ad-
ditive. NISSAN does not recommend the
use of fuel containing MMT. Such fuel may
adversely affect vehicle performance, in-
cluding the emissions control system. Note
that while some fuel pumps label MMT
content, not all do, so you may have to
consult your gasoline retailer for more de-
tails.

Aftermarket fuel additives

NISSAN does not recommend the use of
any aftermarket fuel additives (for ex-
ample,

fuel

injector

cleaner,

octane

booster, intake valve deposit removers,
etc.) which are sold commercially. Many of
these additives intended for gum, varnish
or deposit removal may contain active sol-
vents or similar ingredients that can be
harmful to the fuel system and engine.

10-6

Technical and consumer information

Octane rating tips

Using unleaded gasoline with an octane
rating lower than recommended can
cause persistent, heavy “spark knock.”
(“Spark knock” is a metallic rapping
noise.) If severe, this can lead to engine
damage. If you detect a persistent heavy
spark knock even when using gasoline
of the stated octane rating, or if you hear
steady spark knock while holding a
steady speed on level roads, it is recom-
mended that you have a NISSAN dealer
correct the condition. Failure to correct
the condition is misuse of the vehicle, for
which NISSAN is not responsible.

Incorrect ignition timing may result in
spark knock, after-run and/or overheating,
which may cause excessive fuel consump-
tion or engine damage. If any of the above
symptoms are encountered, have your ve-
hicle checked. It is recommended that you
visit a NISSAN dealer for servicing.

However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not
a cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS (for gas
engine only)

For diesel engine oil and oil filter recom-
mendations, refer to “Engine oil and oil filter
recommendations” section of the Titan
Diesel Owner’s Manual.

Selecting the correct oil

It is essential to choose the correct grade,
quality and viscosity engine oil to ensure
satisfactory engine life and performance.
For additional information, refer to “Recom-
mended fluids/lubricants and capacities”

in this section. NISSAN recommends the
use of an energy conserving oil in order to
improve fuel economy.

Select only engine oils that meet the
American Petroleum Institute (API) certifi-
cation or International Lubricant Standard-
ization and Approval Committee (ILSAC)
certification and SAE viscosity standard.

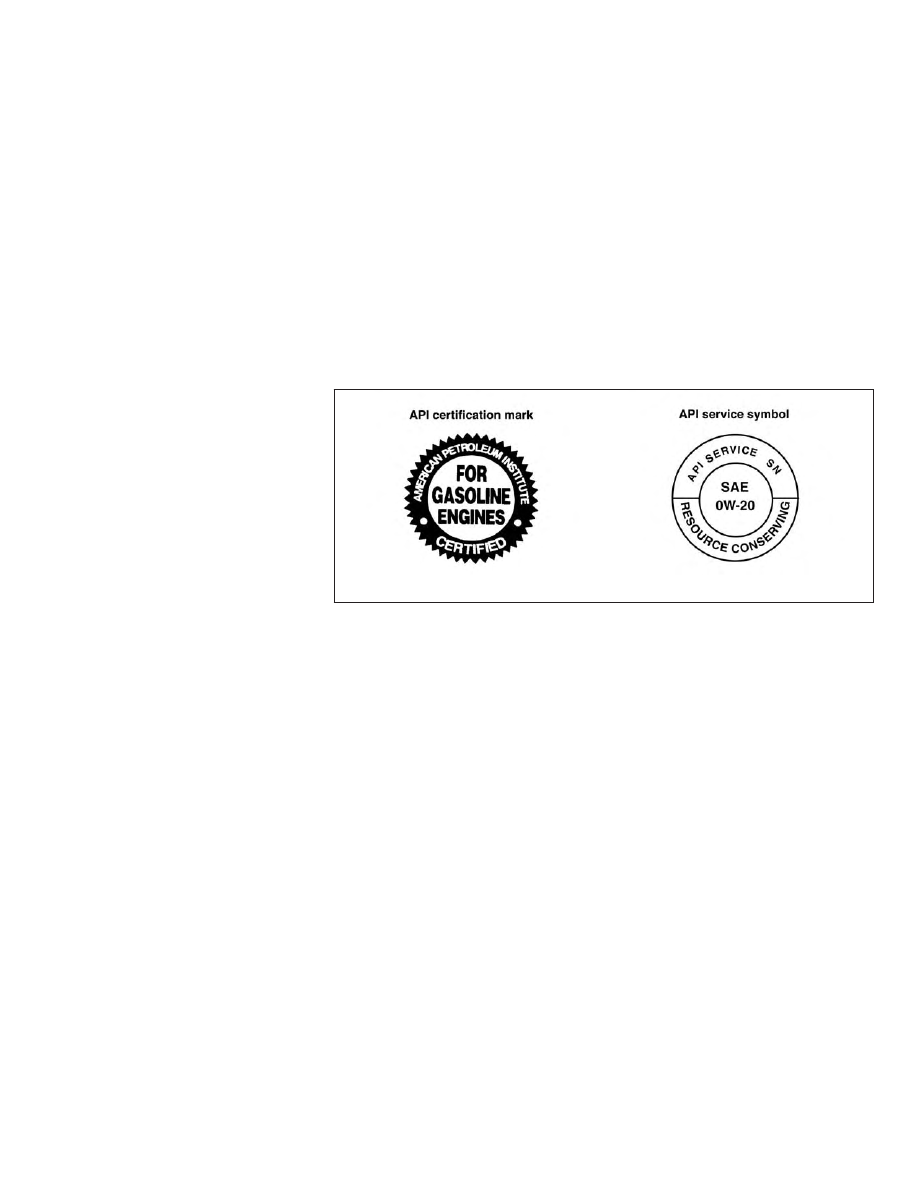

These oils have the API certification mark
on the front of the container. Oils which do
not have the specified quality label should
not be used as they could cause engine
damage.

LTI2051

Technical and consumer information

10-7

Oil additives

NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.

Oil which may contain foreign matter or
has been previously used should not be
used.

Oil viscosity

The engine oil viscosity or thickness
changes with temperature. Because of
this, it is important to select the engine oil
viscosity based on the temperatures at
which the vehicle will be operated before
the next oil change. Choosing an oil viscos-
ity other than that recommended could
cause serious engine damage.

Selecting the correct oil filter

Your new NISSAN vehicle is equipped with a
high-quality Genuine NISSAN oil filter. When
replacing, use a Genuine NISSAN oil filter or
its equivalent for the reason described in
“Change intervals.”

Change intervals

The oil and oil filter change intervals for
your engine are based on the use of the

specified quality oils and filters. Using en-
gine oil and filters that are not of the speci-
fied quality, or exceeding recommended oil
and filter change intervals could reduce
engine life. Damage to the engine caused
by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is
not covered by the NISSAN New Vehicle
Limited Warranty.

Your engine was filled with a high-quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter
change intervals depend upon how you
use your vehicle.

Operation under the following conditions
may require more frequent oil and filter
changes:

∙ repeated short distance driving at cold

outside temperatures

∙ driving in dusty conditions

∙ extensive idling

∙ towing a trailer

∙ stop and go commuting

For additional information, refer to the
“Maintenance and schedules” section of
this manual.

AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS

The air conditioner system in your
NISSAN vehicle must be charged with the
refrigerant HFO-1234yf (R-1234yf) and
NISSAN A/C system oil Type PAG or the
exact equivalents.

CAUTION

The use of any other refrigerant or oil
may cause severe damage to the air
conditioning system and may require
the replacement of all air conditioner
system components.

The refrigerant HFO-1234yf (R-1234yf) in
your NISSAN vehicle does not harm the
earth’s ozone layer. Although this refriger-
ant does not affect the earth’s atmo-
sphere, certain government regulations re-
quire the recovery and recycling of any
refrigerant during automotive air condi-
tioner system service. Air conditioner sys-
tem should only be service by trained and
certified technicians to ensure proper and
safe operation (SAE J2845). A NISSAN dealer
has the trained technicians and equip-
ment needed to recover and recycle your
air conditioner system refrigerant.

10-8

Technical and consumer information

ENGINE

Gas engine only

Model

VK56VD

Type

Gasoline, 4-cycle, DOHC

Cylinder arrangement

8-cylinder, V-block, Slanted at 90°

Bore x Stroke

in (mm) 3.858 x 3.622 (98 x 92)

Displacement

cu in (cm

) 338.78 (5,552)

Firing order

1–8–7–3–6–5–4–2

Idle speed

No adjustment is necessary.

A/T (in “N” position)

Ignition timing (degree B.T.D.C. at idle
speed)

CO % at idle

Spark plug

DILKAR7B11

Spark plug gap (Nominal)

in (mm) 0.043 (1.1)

Camshaft operation

Timing chain

This spark ignition system complies with the Canadian standard ICES-002.

Diesel engine only

For additional information, refer to “Engine” in the Titan Diesel Owner’s Manual.

SPECIFICATIONS

10-10

Technical and consumer information

WHEELS AND TIRES

Wheel Type

Offset in (mm)

Size

Steel

1.73 (44)

17 x 7.5 J

0.98 (25)

18 x 8.0 J

Alloy

0.98 (25)

18 x 8.0 J

0.91 (23)

18 x 8.0 J

1.63 (41.5)

18 x 7.5 J

0.91 (23)

20 x 8.0 J

1.63 (41.5)

20 x 7.5 J

Tire type

Performance type

Size

Passenger

All season

265/70R18

All season

P265/70R18

All season

P275/60R20

All terrain

P275/70R18

Light truck

All season

LT245/75R17

All terrain

LT275/65R18

All season

LT265/60R20

Spare wheel type

Performance type

Size

Full size
(Non Matching) Steel

265/70R18

P265/70R18

P265/75R18

P275/70R18

P275/60R20

LT245/75R17

Full size
(Non Matching) Alloy

P275/60R20

Full size (Matching)
Alloy

P275/70R18

P275/60R20

LT265/60R20

LT275/60R20

LT275/65R18

Technical and consumer information

10-11

DIMENSIONS AND WEIGHTS

Non-XD single cab models

Models

Units: in (mm)

Overall Length:

228.1 (5,794)

Overall width:

79.5 (2,020)

Overall height:

2WD S

74.5 (1,893)

2WD SV

74.6 (1,894)

4WD S

75.1 (1,907.9)

4WD SV

75.2 (1,908.9)

Front Track:

S and SV

67.9 (1,725)

Rear Track:

S and SV

67.9 (1,725)

Wheelbase:

139.8 (3,550)

Gross vehicle weight rating:

Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.

Gross axle weight rating:
Front:
Rear:

10-12

Technical and consumer information

XD single cab models

Models

Units: in (mm)

Overall Length:

231 (5,866.5)

Overall width:

79.5 (2,020)

Overall height:

2WD with diesel engine

77.2 (1,960)

4WD with diesel engine

77.1 (1959)

2WD with gasoline engine

77.3 (1,962.5)

4WD with gasoline engine

77.2 (1,962)

Front Track:

S and SV

68.4 (1,738)

Rear Track:

S and SV

68.4 (1,737)

Wheelbase:

139.8 (3,550)

Gross vehicle weight rating:

Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.

Gross axle weight rating:
Front:
Rear:

Technical and consumer information

10-13

Non-XD crew cab models

Models

Units: in (mm)

Overall Length:

S, SV, SL and Platinum

228.1 (5,794)

Pro-4X

228.5 (5,804)

Overall width:
Tow mirrors non-extended

98.2 (2,494)

Tow mirrors extended

103.9 (2,640)

Without overfenders

S, SV and SL

79.5 (2,020)

With overfenders

Pro-4X and Platinum

80.7 (2,050)

Overall height:

2WD S/SV

75.4 (1,915.1)

4WD S/SV

76.0 (1,929.7)

2WD SL/Platinum

75.6 (1,920.4)

4WD Pro-4X

77.2 (1,960.3)

4WD SL/Platinum

77.2 (1,959.7)

Front Track:

S and SV

67.9 (1,725)

SL, Pro-4X and Platinum

68.1 (1,729)

Rear Track:

S and SV

67.9 (1,725)

SL, Pro-4X and Platinum

68.1 (1,729)

Wheelbase:

139.8 (3,550)

Gross vehicle weight rating:

Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.

Gross axle weight rating:
Front:
Rear:

10-14

Technical and consumer information

XD crew cab models

Models

Units: in (mm)

Overall Length:
Without front license plate bracket

S, SV, SL and Platinum

242.7 (6,165.7)

Without front license plate bracket

Pro-4X

243.6 (6,187.1)

With front license plate bracket

S, SV, SL and Platinum

243.0 (6,172.6)

With front license plate bracket

Pro-4X

243.9 (6,194.6)

Overall width:
Tow mirrors non-extended

98.2 (2,494)

Tow mirrors extended

103.9 (2,640)

Without overfenders

S, SV and SL

79.5 (2,020)

With overfenders

Pro-4X and Platinum

80.7 (2,049)

Overall height:

2WD/4WD S/SV

78.0 (1981)

4WD Pro-4X

78.4 (1,992.3)

2WD/4WD SL/Platinum

78.9 (2,002.8)

Front Track:

S and SV

68.4 (1,738)

SL, Pro-4X and Platinum

68.6 (1,743)

Rear Track:

S and SV

68.4 (1,737)

SL, Pro-4X and Platinum

68.6 (1,742)

Wheelbase:

151.6 (3,850)

Gross vehicle weight rating:

Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.

Gross axle weight rating:
Front:
Rear:

Technical and consumer information

10-15

Non-XD King Cab® models

Models

Units: in (mm)

Overall Length:

S and SV

228.1 (5,794)

Pro-4X

228.5 (5,804)

Overall width:

S and SV

79.5 (2,020)

Pro-4X

80.7 (2,049.6)

Overall height:

2WD S

75.1 (1,906.6)

4WD S

75.7 (1,921.8)

2WD SV

75.1 (1,908)

4WD SV

75.7 (1,923.2)

Pro-4X

76.9 (1,953.2)

Front Track:

S and SV

67.9 (1,725)

Pro-4X

68.1 (1,729)

Rear Track:

S and SV

67.9 (1,725)

Pro-4X

68.1 (1,729)

Wheelbase:

139.8 (3,550)

Gross vehicle weight rating:

Refer to the “F.M.V.S.S./C.M.V.S.S. certification label” on
the center pillar between the driver’s side front and
rear doors.

Gross axle weight rating:
Front:
Rear:

10-16

Technical and consumer information

Nissan Titan (2019 year). Instruction - part 32
