∙ The request switch (if so equipped) on

the driver’s door is pushed and the In-
telligent Key is in range of the door
handle.

Trailer light check (if so equipped)

This functionality allows the customer to
confirm trailer light operation, without the
need of a second person to press the brake
pedal or activate each turn signal light. The
trailer light check can be performed by the
Intelligent Key or through the Vehicle Set-
tings in the vehicle information display. For
additional information, refer to “Vehicle in-
formation display” in the “Instruments and
controls” section of this manual.

To activate the trailer light check function
with your Intelligent Key, perform the fol-
lowing:

1. Aim the Intelligent Key at the vehicle.

2. Press and release the

LOCK

button.

3. Within 2 seconds, press and hold

the

LOCK button again for at

least 2 seconds, until the horn beeps
once and the park lights turn on.

The following events will occur:

∙ The left turn signal light on the vehicle

and the trailer will flash for 5 seconds.

∙ The right turn signal light on the vehicle

and the trailer will flash for 5 seconds.

∙ The brake lights on the vehicle and the

trailer will turn ON for 5 seconds.

LPD2906

Pre-driving checks and adjustments

3-19

NOTE:

If the ignition switch is in the OFF posi-
tion, the park lights will turn off after the
events above occur. If ignition switch is
in the ON position, lights will stay on for
45 seconds after trailer light check. If the
trailer lights do not work properly, check
the connections and bulbs. If the vehicle
lights do not turn on, check the bulbs. If
the trailer light check routine fails to
start, ensure the following vehicle condi-
tions:

∙ The vehicle is NOT moving, 0 mph

(0 km/h)

∙ Brake switch is NOT depressed

∙ Left or right flasher is OFF

∙ Trailer light check configuration is NOT

disabled and available in the meter
towing settings

∙ The hazard switch is NOT turned ON

∙ The shift position is fully in P (Park) posi-

tion

∙ Vehicle is within Remote Keyless Entry

range

Answer back horn feature

If desired, the answer back horn feature
can be deactivated using the Intelligent
Key. When it is deactivated and the
LOCK

button is pressed, the hazard

indicator lights flash twice. When the
UNLOCK

button is pressed, neither

the hazard indicator lights nor the horn
operates.

NOTE:

If you change the answer back horn and
light flash feature with the Intelligent
Key while the ignition is in the ON posi-
tion, the vehicle information display
screen will show the previous mode. The
vehicle information display screen will
show the current mode after the ignition
switch has been cycled from the OFF to
the ON position. The vehicle information
display screen can also be used to
change the answer back horn mode. For
additional information refer to “Vehicle
information display” in the “Instruments
and controls” section of this manual.

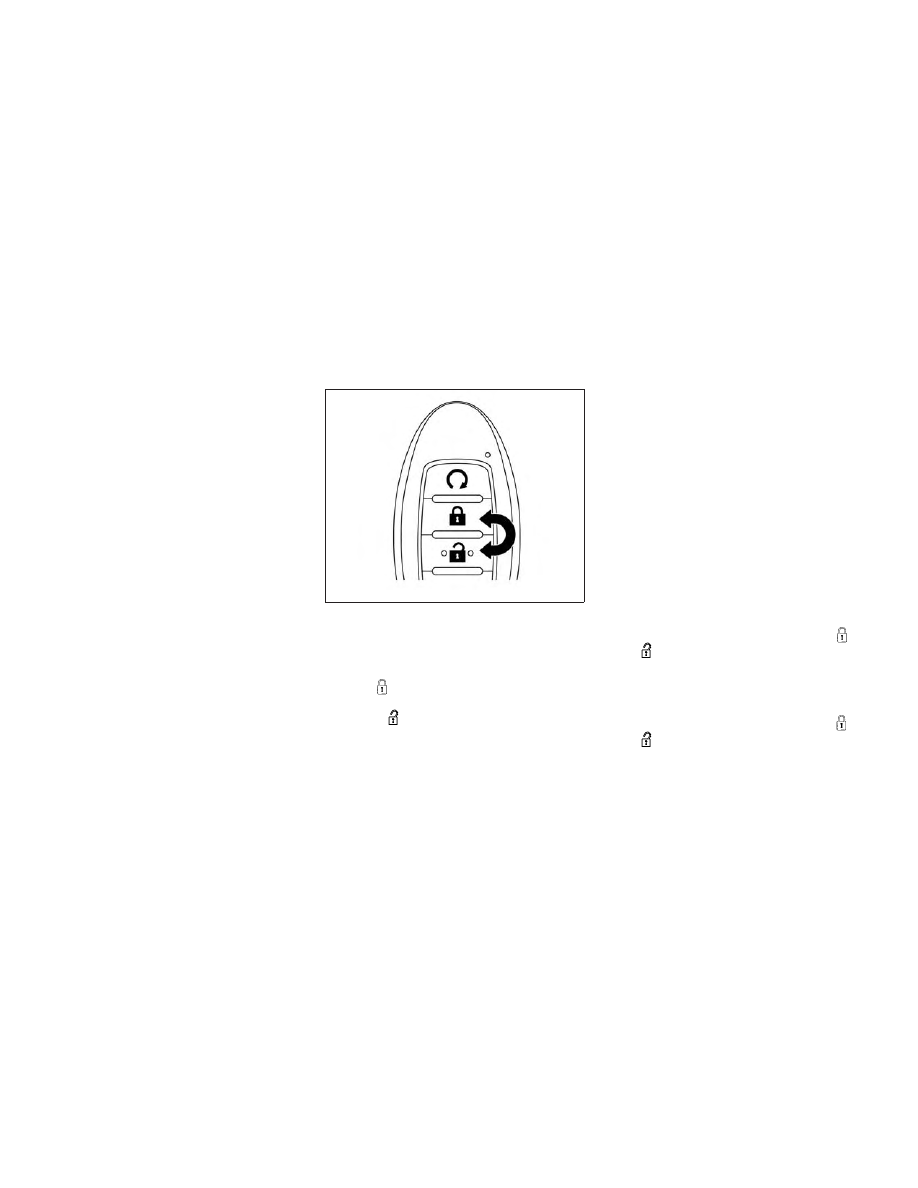

To deactivate: Press and hold the
and

buttons for at least 2 seconds.

The hazard indicator lights will flash three
times to confirm that the answer back
horn feature has been deactivated.

To activate: Press and hold the
and

buttons for at least 2 seconds

once more.
The hazard indicator lights will flash once
and the horn will sound once to confirm
that the horn beep feature has been reac-
tivated.

LPD2878

3-20

Pre-driving checks and adjustments

Deactivating the horn beep feature does
not silence the horn if the alarm is trig-
gered.

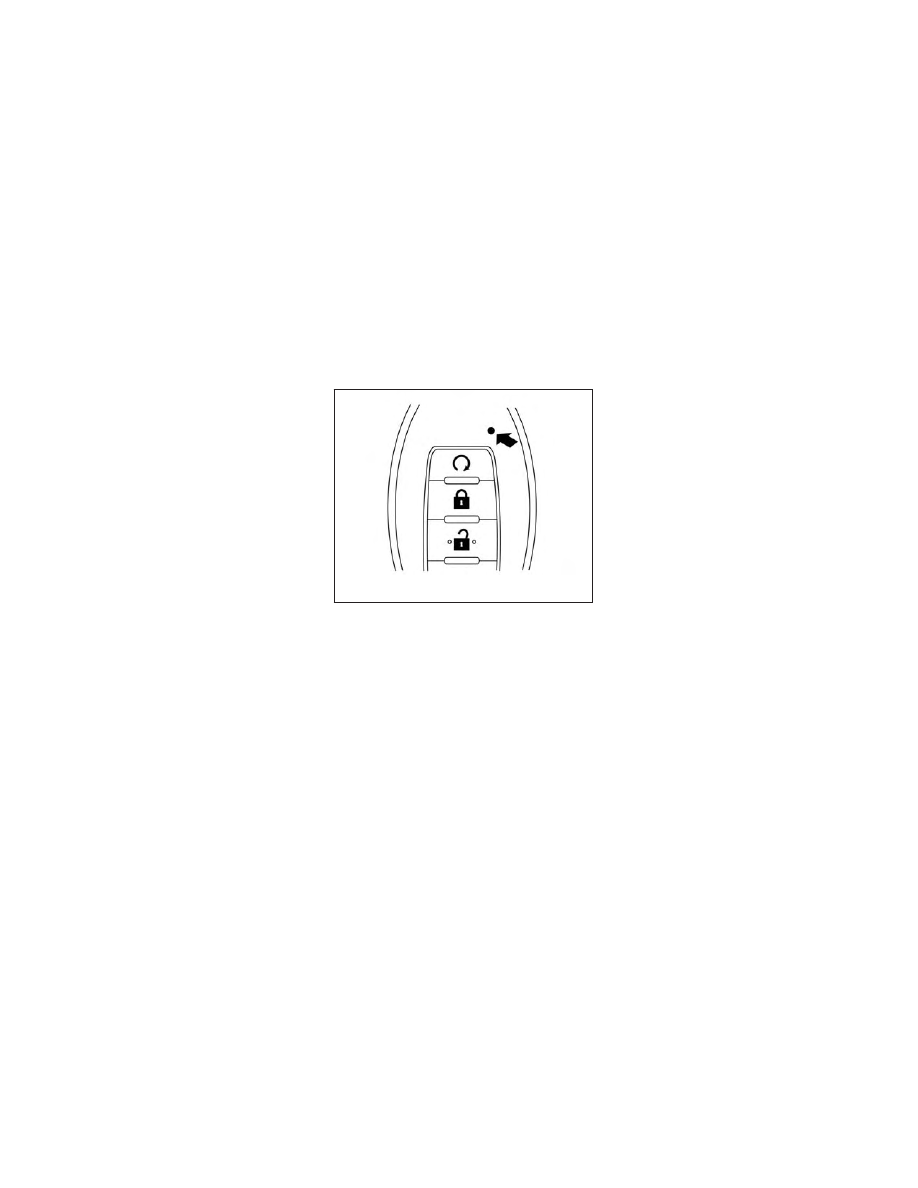

Intelligent Key button operation
light

The light blinks only when you push any
button on the Intelligent Key. The light illu-
mination only signifies that the key fob has
transmitted a signal. You may look and/or
listen to verify that the vehicle has per-
formed the intended operation. The num-
ber of blinks identifies each registered key
(i.e. 1 blink = 1st key,...,4 blinks = 4th key) for
your own identification purposes. If the
light does not blink, your battery may be
too weak to communicate to the vehicle. If
this occurs, the battery may need to be
replaced. For additional information re-

garding the replacement of a battery, refer
to “Battery replacement” in the “Do-it-
yourself ” section of this manual.

WARNING SIGNALS

To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key or to help prevent the
vehicle from being stolen, a chime or chirp
sounds from inside and outside the vehicle
and a warning is displayed in the instru-
ment panel.

When a chime or beep sounds or a warning
is displayed, be sure to check the vehicle
and the Intelligent Key.

For

additional

information,

refer

“Troubleshooting guide” in this section and
“Vehicle information display” in the “Instru-
ments and controls” section of this manual.

LPD2836

Pre-driving checks and adjustments

3-21

TROUBLESHOOTING GUIDE

Verify the location of all Intelligent Keys that
are programmed for the vehicle. If another
Intelligent Key is in range or inside the ve-
hicle, the vehicle system may respond dif-
ferently than expected.

Symptom

Possible Cause

Remedy

When pushing the ignition switch to
stop the engine

The red “Shift to Park” warning ap-
pears on the vehicle information dis-
play and the inside warning chime
sounds continuously.

The shift lever is not in the P (Park)
position.

Move the shift lever to the P (Park)
position.

When opening the driver’s door to get
out of the vehicle

The door open warning appears on
the display and the inside warning
chime sounds continuously.

The ignition switch is in the ACC
position.

Place the ignition switch in the ON po-
sition or close the driver’s door.

When closing the door after getting
out of the vehicle

The yellow “No Key Detected” warning
appears on the vehicle information
display, the outside chime sounds
three times and the inside warning
chime sounds for approximately three
seconds.

The Intelligent Key is not detected in-
side of the vehicle.

Place the ignition switch in the OFF
position.

The Rear Door Alert (if so equipped)
warning message appears on the
display, the horn sounds three times
twice, or a Check Back Seat For All Ar-
ticles warning appears on the display.

The Rear Door Alert (if so equipped) is
activated.

Check the back seat for all articles,
press the ENTER button to clear the
Rear Door Alert (if so equipped) warn-
ing message.

The red “Shift to Park” warning ap-
pears on the vehicle information dis-
play and the inside and outside
chimes sound continuously.

The ignition switch is in the ACC or
OFF position and the shift lever is not
in the P (Park) position.

Carry the Intelligent Key with you.

3-22

Pre-driving checks and adjustments

Symptom

Possible Cause

Remedy

When closing the door with the inside
lock knob turned to LOCK

The outside chime sounds for approxi-
mately three seconds and all the
doors unlock.

The Intelligent Key is inside the vehicle.

Carry the Intelligent Key with you.

When pushing the door handle re-
quest switch or (if so equipped)

the

button on the Intelligent

Key to lock the door

The outside chime sounds for approxi-
mately three seconds.

The Intelligent Key is inside the vehicle.

Carry the Intelligent Key with you.

When pushing the ignition switch to
start the engine

The Intelligent Key battery indicator
appears on the display.

The battery charge is low.

Replace the battery with a new one.
For additional information, refer to
“Battery replacement” in the “Do-it-
yourself ” section of this manual.

The yellow “Key ID Incorrect” warning
appears on the vehicle information
display .

The Intelligent Key is not detected in-
side of the vehicle.

Carry the registered Intelligent Key
with you.

Pre-driving checks and adjustments

3-23

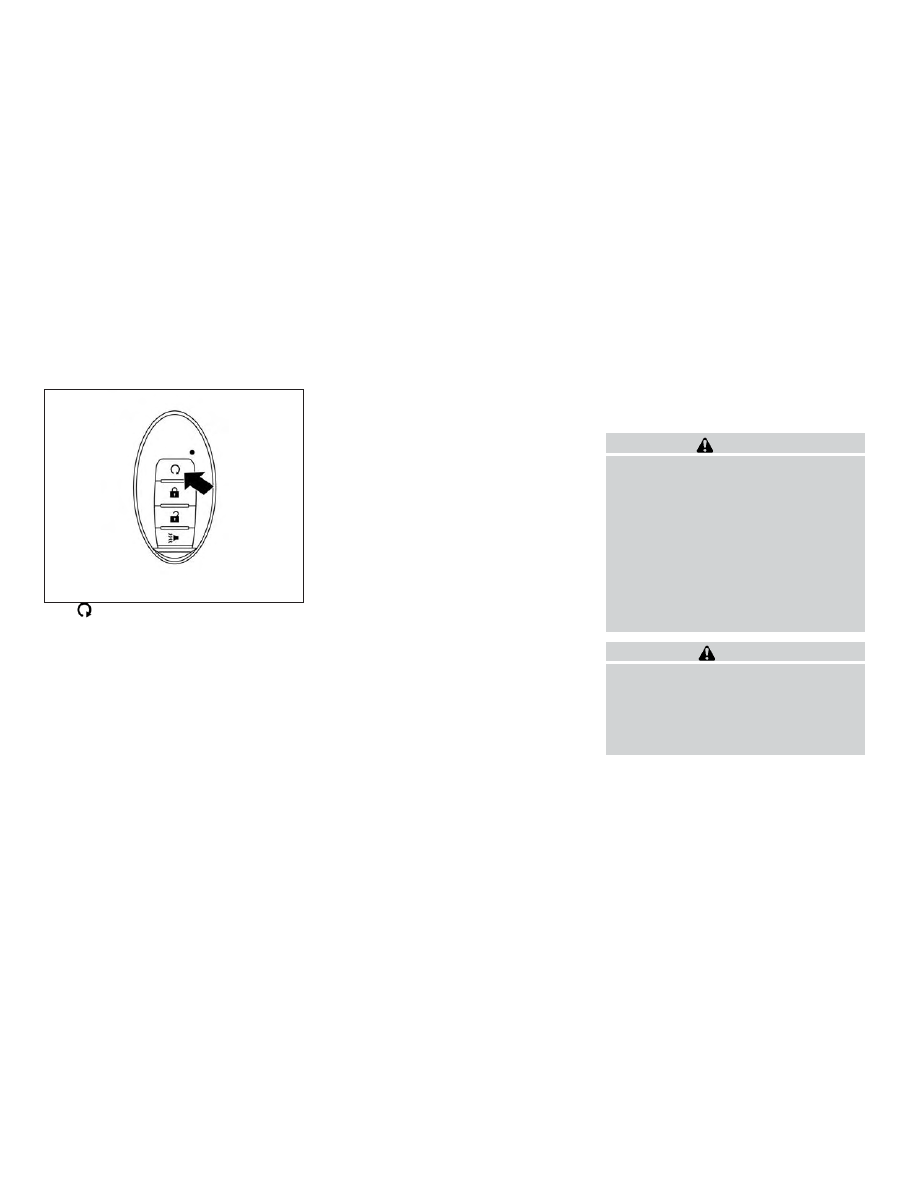

The

button will be on the NISSAN In-

telligent Key® if the vehicle has Remote En-
gine Start. This feature allows the engine to
start from outside the vehicle.
The following features may be affected
when the Remote Engine Start feature is
used:

∙ Vehicles with a manual climate control

system (if so equipped) will default to
the last used heating or cooling mode.

∙ Vehicles with an automatic climate

control system (if so equipped) will de-
fault to either heating or cooling mode.
For additional information, refer to “Re-
mote Engine Start with Intelligent Cli-
mate Control” in the “Monitor, climate,
audio, phone and voice recognition sys-
tems” section of this manual.

Laws in some local communities may re-
strict the use of remote starters. For ex-
ample, some laws require a person using
Remote Engine Start to have the vehicle in
view. Check local regulations for any re-
quirements.

Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, refer to “Conditions the
Remote Engine Start will not work” in this
section.

Other conditions can affect the perfor-
mance of the Intelligent Key transmitter.
For additional information, refer to “NISSAN
Intelligent Key®” in this section.

REMOTE ENGINE START
OPERATING RANGE

WARNING

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.

CAUTION

When the Intelligent Key battery is dis-
charged or other strong radio wave
sources are present near the operating
location, the Intelligent Key operating
range becomes narrower, and the Intel-
ligent Key may not function properly.

The Remote Engine Start function can only
be used when the Intelligent Key is within
the specified operating range from the ve-
hicle.

LPD2860

REMOTE ENGINE START (if so
equipped)

3-24

Pre-driving checks and adjustments

The Remote Engine Start operating range
is approximately 197 ft (60 m) from the ve-
hicle.

REMOTE STARTING THE VEHICLE

To use the Remote Engine Start feature to
start the engine perform the following:

1. Aim the Intelligent Key at the vehicle.

2. Press the

button to lock all

doors.

3. Within 5 seconds press and hold

the

button until the turn signal

lights flash and the tail lamps turn on. If
the vehicle is not within view press and
hold the

button for at least 2 sec-

onds.

The following events will occur when the
engine starts:

∙ The parking lights will turn on and re-

main on as long as the engine is run-
ning.

∙ The doors will be locked and the climate

control system may come on.

∙ The engine will continue to run for

10 minutes. Repeat the steps to extend
the time for an additional 10 minutes.
For additional information, refer to “Ex-
tending engine run time” in this section.

Depress and hold the brake then push the
push-button ignition switch to the ON po-
sition before driving. For additional infor-
mation, refer to “Driving the vehicle” in the
“Starting

and

driving”

section

this

manual.

EXTENDING ENGINE RUN TIME

The Remote Engine Start feature can be
extended one time by performing the
steps listed in “Remote starting the vehicle”
in this section. Run time will be calculated
as follows:

∙ The first 10 minute run time will start

when the Remote Engine Start function
is performed.

∙ The second 10 minutes will start imme-

diately when the Remote Engine Start
function is performed again. For ex-
ample, if the engine has been running
for 5 minutes, and 10 minutes are
added, the engine will run for a total of
15 minutes.

∙ Extending engine run time will count to-

wards the two Remote Engine Start
limit.

A maximum of two Remote Engine Starts,
or a single Remote Engine Start with an
extension, are allowed between ignition
cycles. The ignition switch must be cycled
to the ON position and then back to the
OFF position before the Remote Engine
Start procedure can be used again.

CANCELING A REMOTE ENGINE
START

To cancel a Remote Engine Start, perform
one of the following:

∙ Aim the Intelligent Key at the vehicle

and press

until the parking lights

turn off.

∙ Turn on the hazard warning flashers.

∙ Cycle the ignition switch on and then

off.

∙ The extended engine run time has ex-

pired.

∙ The first 10 minute timer has expired.

∙ The engine hood has been opened.

∙ The shift lever is moved out of park.

Pre-driving checks and adjustments

3-25

∙ The alarm sounds due to illegal entry

into the vehicle.

∙ The ignition switch is pushed without

an Intelligent Key in the vehicle.

∙ The ignition switch is pushed with an

Intelligent Key in the vehicle but the
brake pedal is not depressed.

CONDITIONS THE REMOTE ENGINE
START WILL NOT WORK

The Remote Engine Start will not operate if
any of the following conditions are present:

∙ The ignition switch is placed in the ON

position.

∙ The hood is not securely closed.

∙ The hazard warning lights are on.

∙ The engine is still running. The engine

must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable
when extending engine run time.

∙ The

button is not pressed and

held for at least 2 seconds.

∙ The

button is not pressed and

held within 5 seconds of pressing the
lock button.

∙ The brake is pressed.

∙ The doors are not closed and locked.

∙ The I-Key Indicator Light remains solid

in the vehicle information display.

∙ The alarm sounds due to illegal entry

into the vehicle.

∙ Two Remote Engine Starts, or a single

Remote Engine Start with an extension,
have already been used.

∙ The vehicle is not in P (Park).

∙ There is a detected registered key al-

ready inside of the vehicle.

∙ The remote start function has been

switched to the OFF position in Vehicle
Settings of the vehicle information dis-
play. For additional information, refer to
“Vehicle information display” in the “In-
struments and controls” section of this
manual.

The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, re-
fer to “Vehicle information display” in the
“Instruments and controls” section of this
manual.

3-26

Pre-driving checks and adjustments

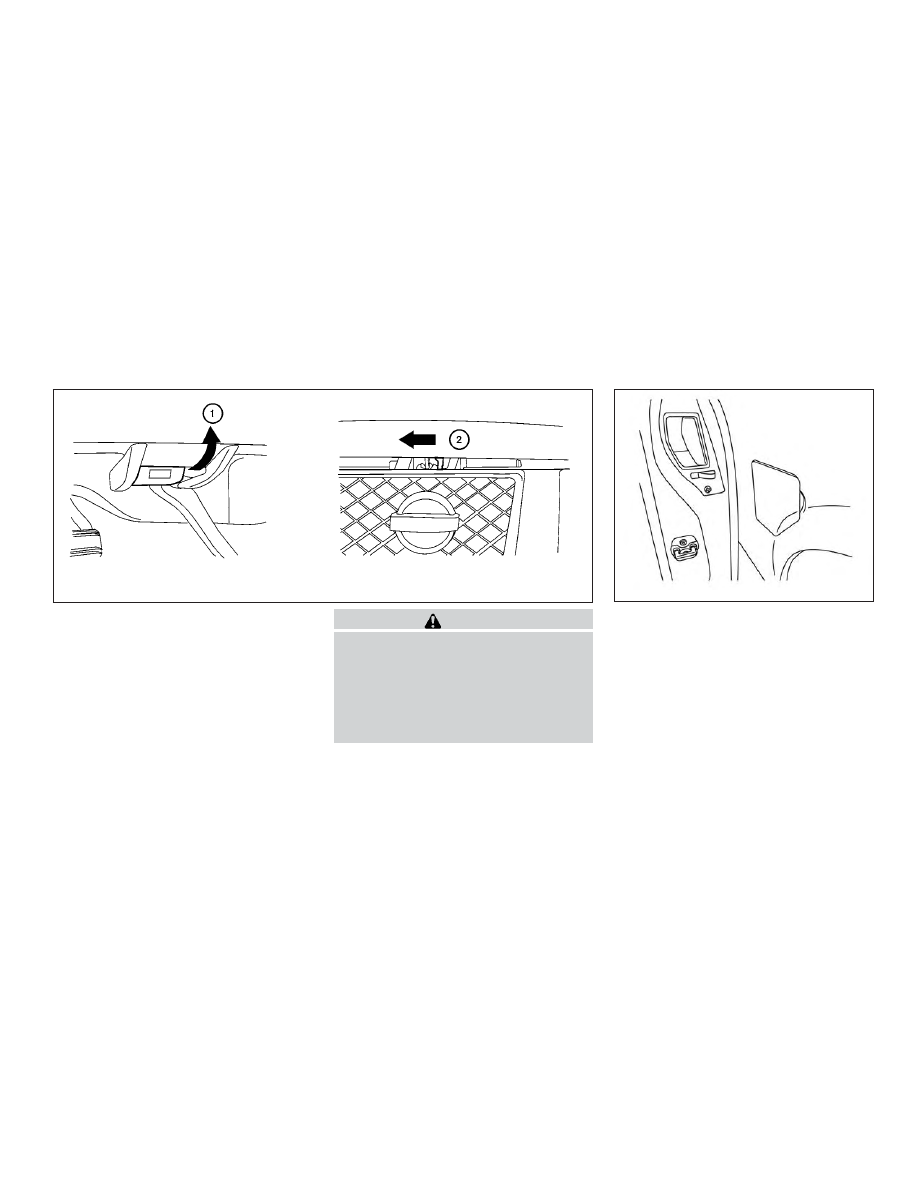

1. Pull the hood lock release handle

䊊

located below the driver side instru-
ment panel. The hood will spring up
slightly.

2. Push the lever at the front of the hood

to the side

䊊

as illustrated with your

fingertips and raise the hood.

When closing the hood, lower it slowly and
make sure it locks into place.

WARNING

∙ Make sure the hood is completely

closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

∙ If you see steam or smoke coming

from the engine compartment, to
avoid injury do not open the hood.

LPD0244

King Cab® models only

LPD2593

HOOD

FUEL-FILLER DOOR

Pre-driving checks and adjustments

3-27

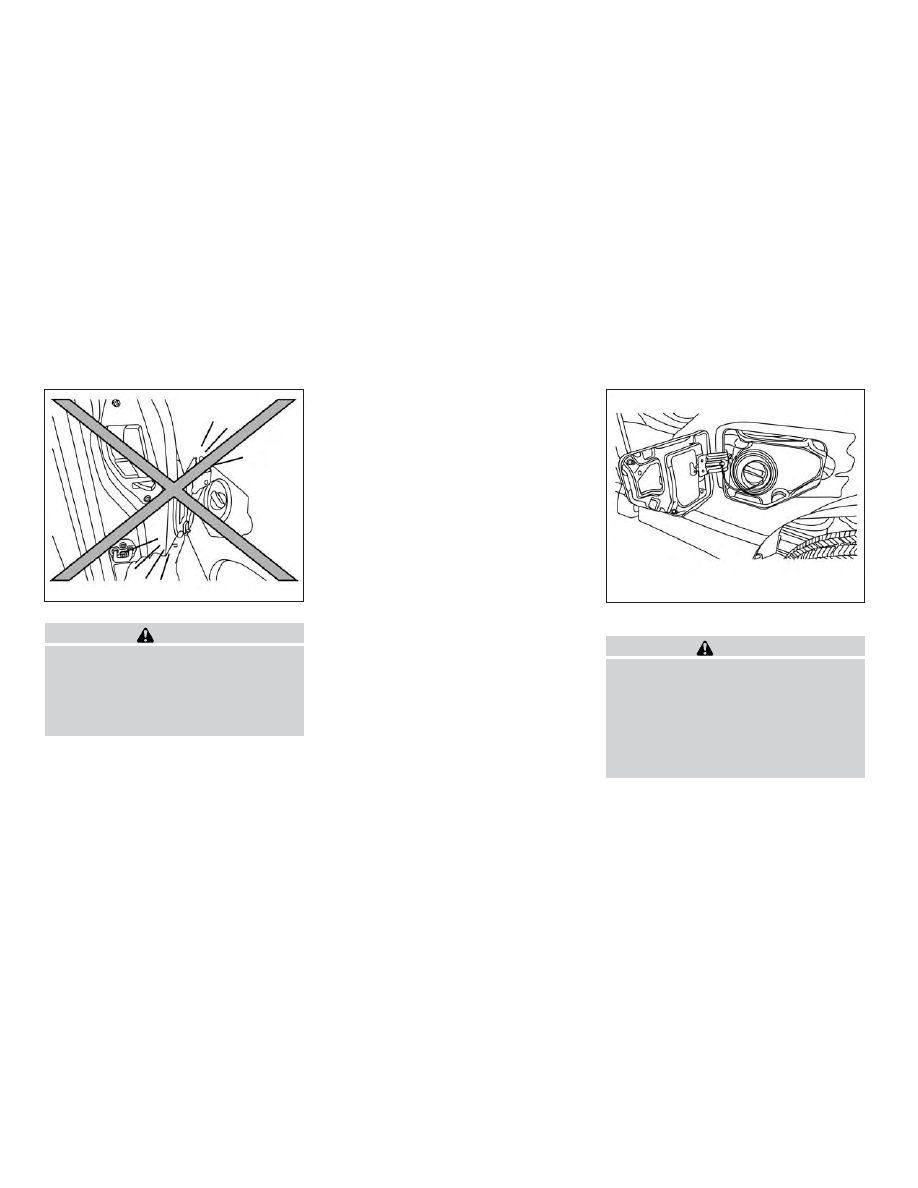

CAUTION

Be careful when opening and exiting
the driver’s side rear door if the fuel-
filler door is open. This may cause dam-
age to the driver’s side rear door or fuel-
filler door if you open fully and they
make contact.

DIESEL FUEL ENGINES

For additional information, refer to the Ti-
tan Diesel Owner’s Manual.

GASOLINE FUEL ENGINES

WARNING

∙ Gasoline is extremely flammable and

highly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames or
sparks

near

the

vehicle

when

refueling.

King Cab® models only

LPD2594

LPD2434

3-28

Pre-driving checks and adjustments

∙ Do not attempt to top off the fuel tank

after the fuel pump nozzle shuts off
automatically.

Continued

refueling

may cause fuel overflow, resulting in
fuel spray and possibly a fire.

∙ Use only an original equipment type

fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the

Malfunction Indi-

cator Light (MIL) to come on.

∙ Never pour fuel into the throttle body

to attempt to start your vehicle.

∙ Do not fill a portable fuel container in

the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:

– Always place the container on the

ground when filling.

– Do not use electronic devices when

filling.

– Keep the pump nozzle in contact

with the container while you are
filling it.

– Use only approved portable fuel

containers for flammable liquid.

CAUTION

∙ Do not use E-15 or E-85 fuel in your

vehicle. For additional information,
refer to “Fuel recommendation” in the
“Technical and consumer informa-
tion” section of this manual.

∙ The Loose Fuel Cap warning message

will appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the fuel-
filler cap properly after the Loose Fuel
Cap warning message appears may
cause the

Malfunction Indicator

Light (MIL) to illuminate.

∙ Failure to tighten the fuel-filler cap

properly may cause the

Mal-

function Indicator Light (MIL) to illumi-
nate. If the

light illuminates be-

cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue

drive

the

vehicle.

The

light should turn off after a

few driving trips. If the

light does

not turn off after a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
the “Instruments and controls” sec-
tion of this manual.

∙ If fuel is spilled on the vehicle body,

flush it away with water to avoid paint
damage.

Pre-driving checks and adjustments

3-29

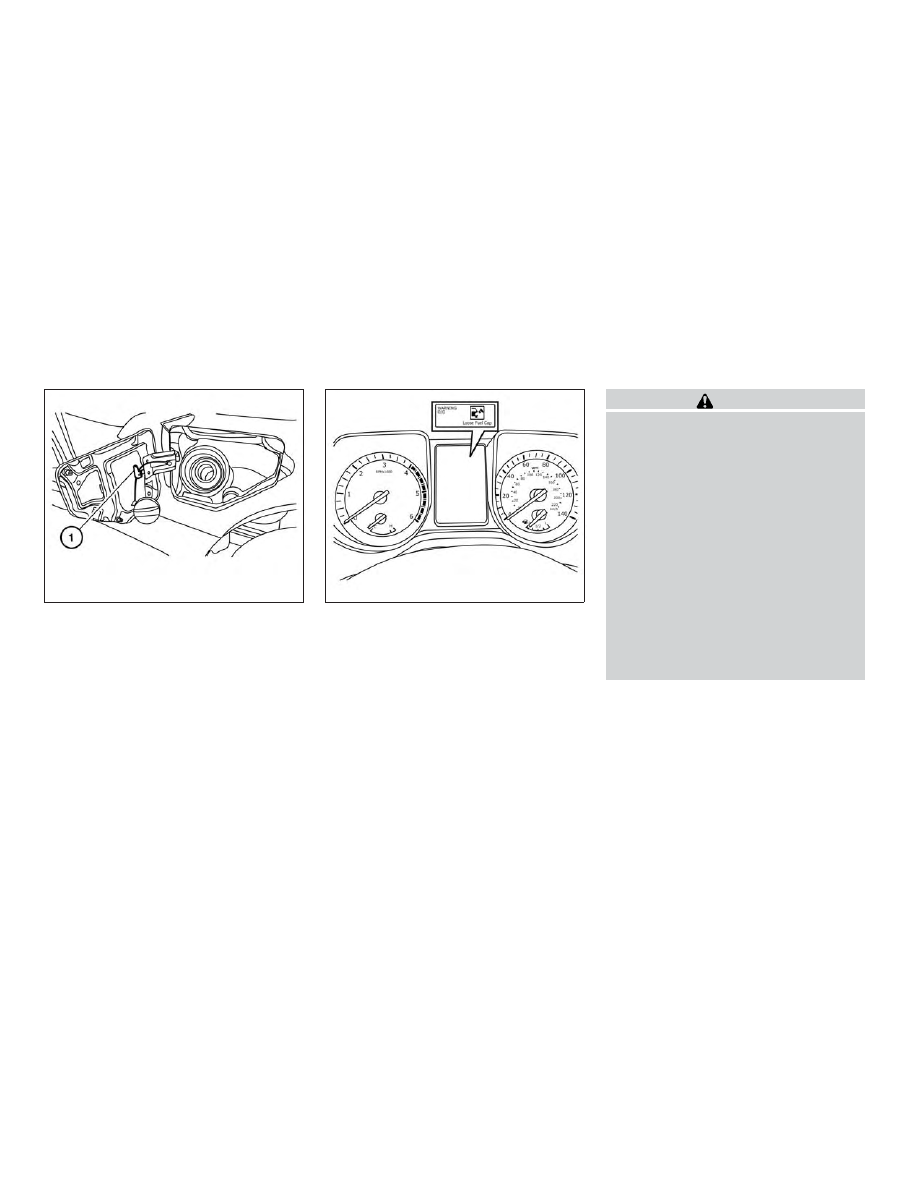

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclock-

wise to remove.

2. Loop the tether strap around the hook

䊊

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the

fuel-filler tube.

2. Turn the fuel-filler cap clockwise until a

single click is heard.

Loose Fuel Cap warning

The Loose Fuel Cap warning appears in the
vehicle information display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a few
driving trips for the message to be dis-
played. To turn off the warning, perform the
following:

1. Remove and install the fuel-filler cap as

previously described as soon as pos-
sible.

2. Tighten the fuel-filler cap until a single

click is heard.

WARNING

∙ Do not adjust the steering wheel while

driving. You could lose control of your
vehicle and cause an accident.

∙ Do not adjust the steering wheel any

closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.

LPD2435

LPD2652

STEERING WHEEL

3-30

Pre-driving checks and adjustments

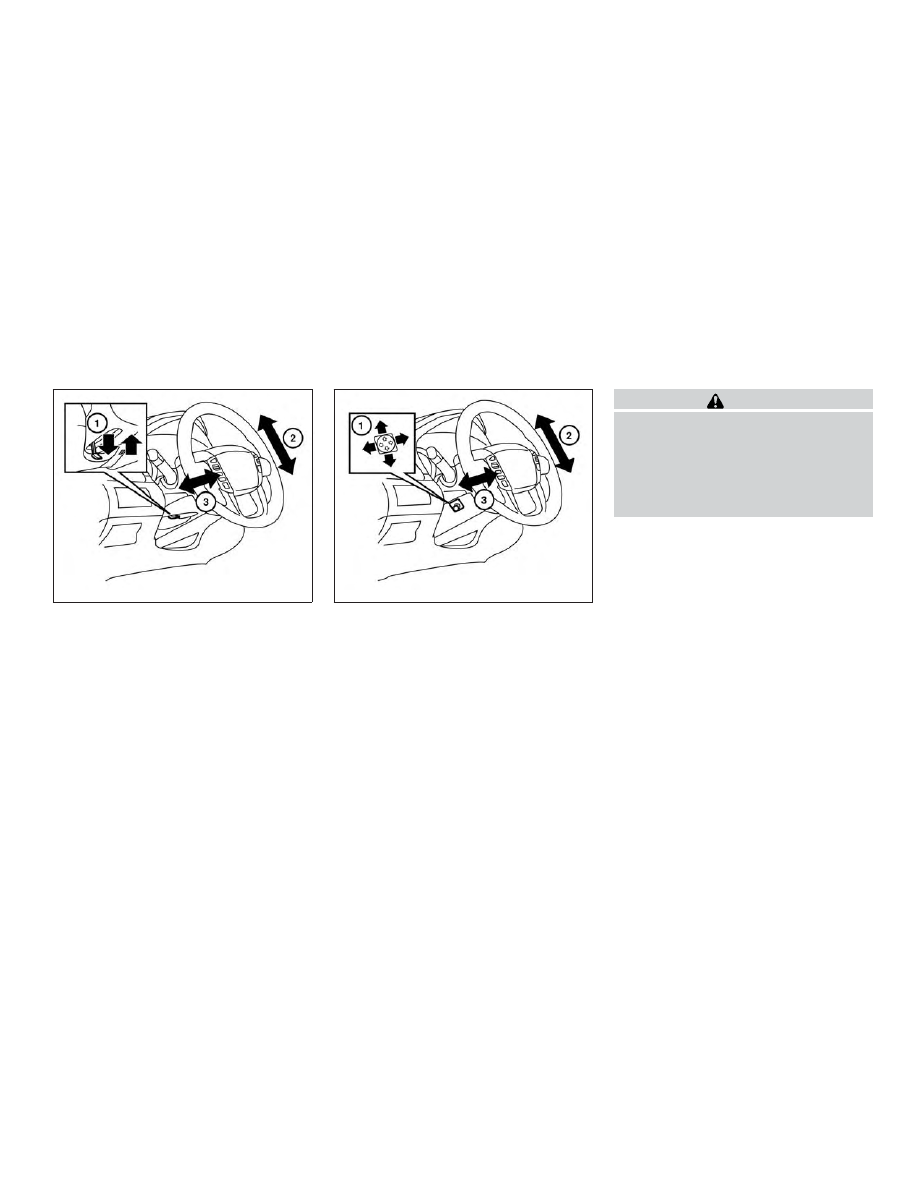

MANUAL OPERATION (if so
equipped)

Tilt and telescopic operation

Pull the lock lever

䊊

down:

∙ Adjust the steering wheel up or down in

direction

䊊

to the desired position.

∙ Adjust the steering wheel forward or

backward in direction

䊊

to the desired

position.

Push the lock lever

䊊

up firmly to lock the

steering wheel in place.

AUTOMATIC OPERATION (if so
equipped)

Tilt and telescopic operation

To adjust the steering wheel move the
switch

䊊

in the following directions:

∙ Adjust the steering wheel up or down in

direction

䊊

to the desired tilt position.

∙ Adjust the steering wheel forward or

backward in direction

䊊

to the desired

telescopic position.

CAUTION

For vehicles with automatic drive posi-
tioner: Failure to reset the tilt and tele-
scoping

functions

the

steering

wheel, after the vehicle’s battery has
been discharged, may prevent the
steering wheel position from being
adjusted.

For vehicles with automatic drive posi-
tioner: Both the tilt and telescopic steering
operation must be reset after the vehicle’s
battery has been discharged in order to
prevent the tilt and telescopic operation
from locking in one position. When the bat-
tery has been recharged or replaced, per-
form the following:

∙ For tilt operation: Adjust the switch

䊊

so the steering wheel moves to the
highest

position

䊊

that

can

reached.

∙ For telescopic operation: Adjust the

switch

䊊

so the steering wheel moves

to the most forward and backward po-
sition

䊊

that can be reached.

Performing these operations resets the
range of the steering wheel’s tilt and tele-
scopic function.

LPD2597

LPD2580

Pre-driving checks and adjustments

3-31

Entry/Exit function (if so
equipped)

The automatic drive positioner system (if
so equipped) will make the steering wheel
move up automatically when the driver’s
door is opened and the ignition switch is in
the LOCK position. This lets the driver get
into and out of the seat more easily. The
steering wheel moves back into position
when the driver’s door is closed and the
ignition switch is pushed.

For additional information, refer to “Auto-
matic drive positioner” in this section.

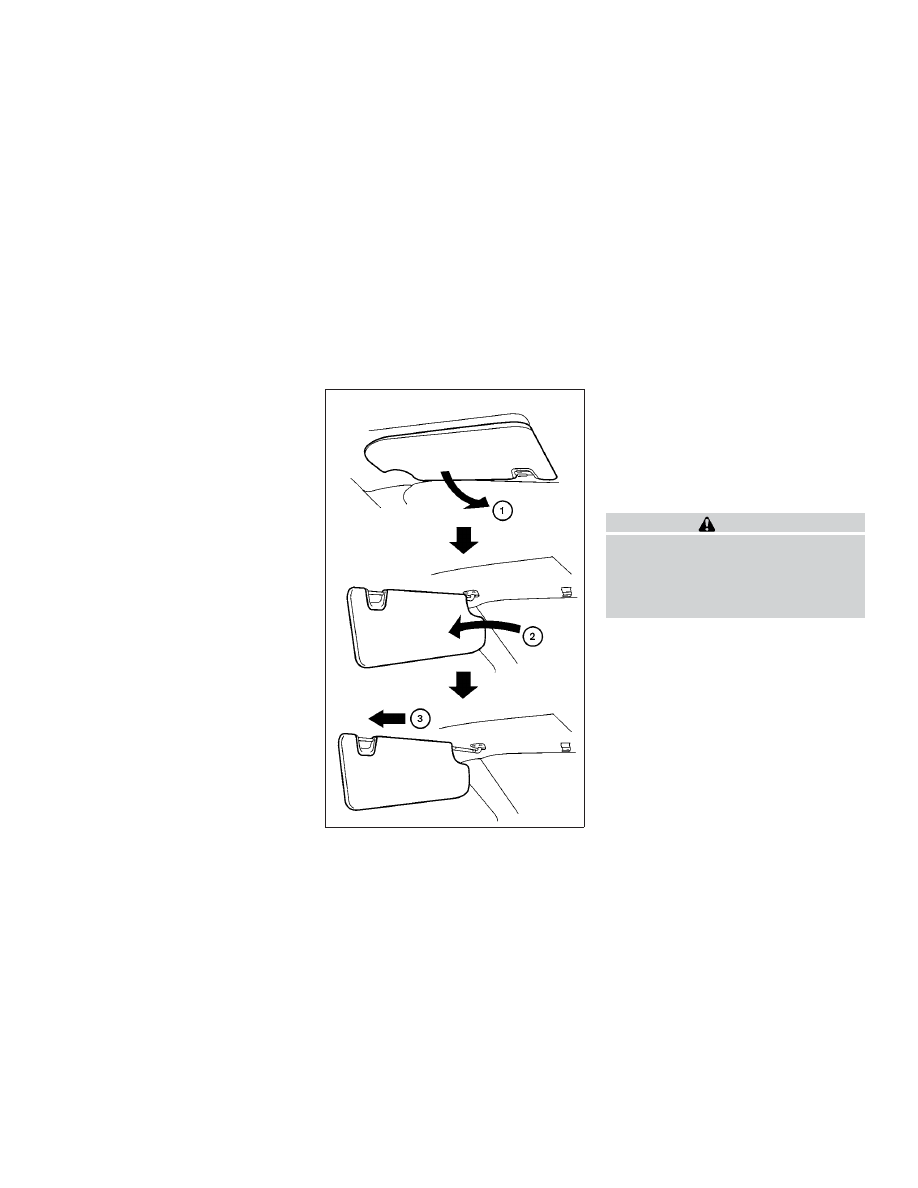

1. To block glare from the front, swing

down

䊊

the sun visor.

2. To block glare from the side, remove

the sun visor from the center mount
and swing the visor to the side

䊊

3. To extend the sun visor, slide

䊊

in or

out as needed.

CAUTION

∙ Do not store the sun visor before re-

turning the extension to its original
position.

∙ Do not pull the extension sun visor

forcedly downward.

WPD0344

SUN VISORS

3-32

Pre-driving checks and adjustments

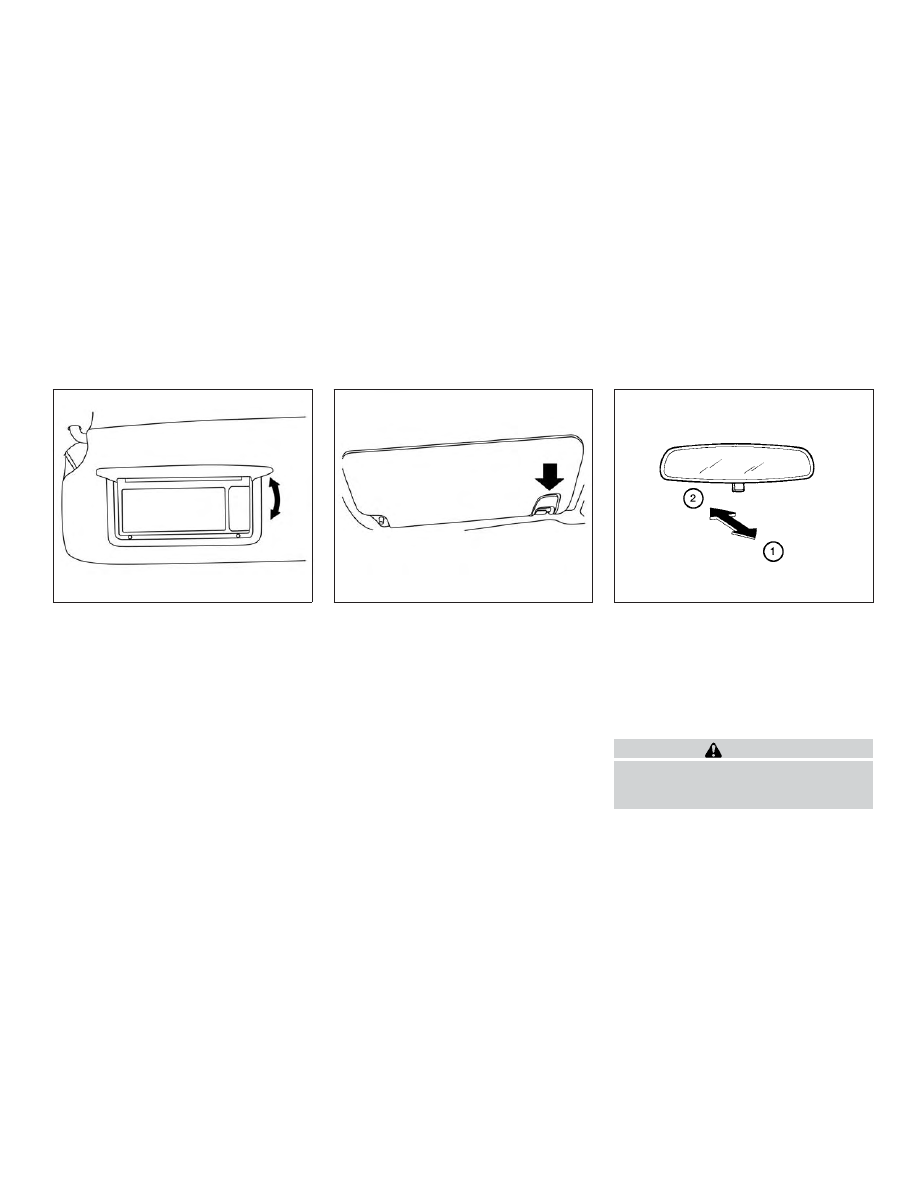

VANITY MIRRORS (if so equipped)

To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors are illuminated and
turn on when the mirror cover is open.

CARD HOLDER (driver’s side only)

To access the card holder, slide card in the
card holder. Do not view information while
operating the vehicle.

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)

Use the night position

䊊

to reduce glare

from the headlights of vehicles behind you
at night.

Use the day position

䊊

when driving in

daylight hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view
clarity.

LPD2583

LPD2436

WPD0126

MIRRORS

Pre-driving checks and adjustments

3-33

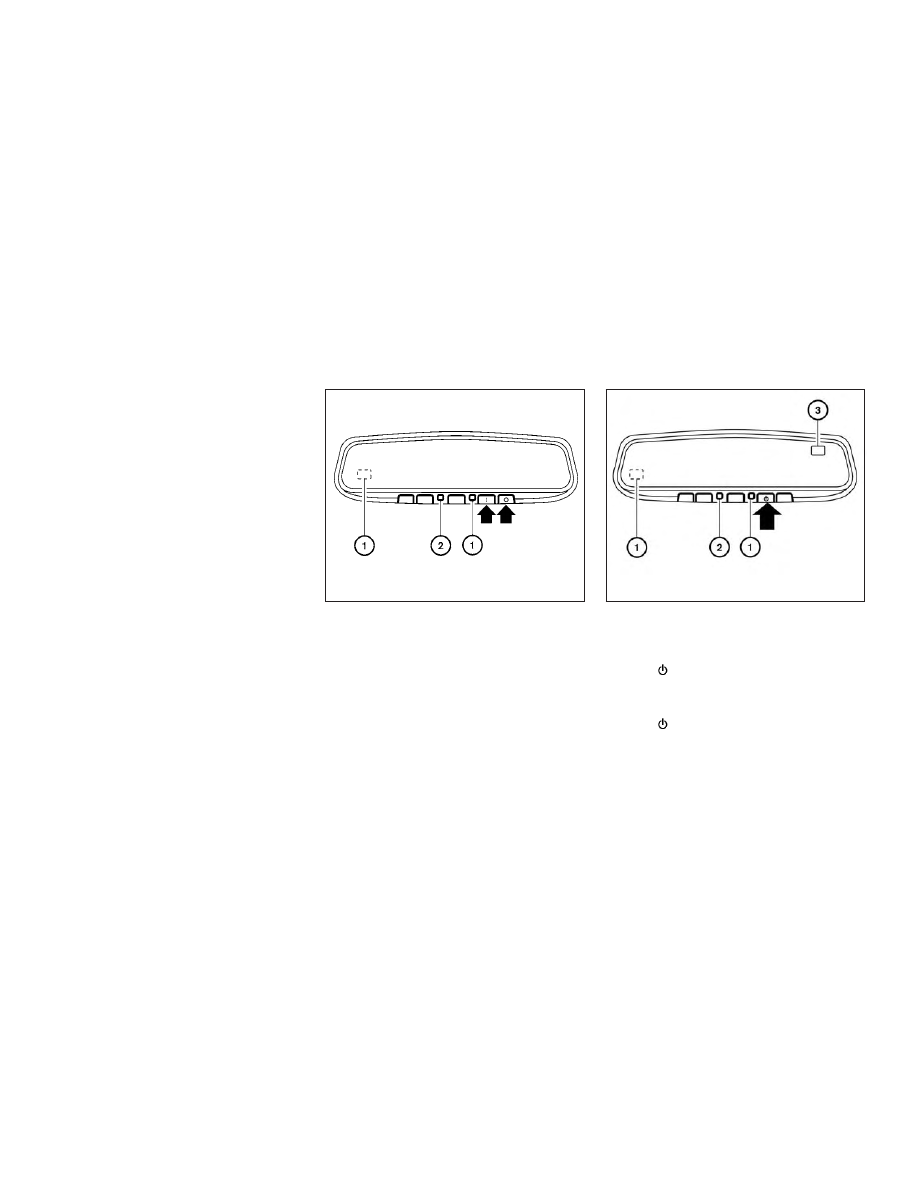

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)

The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare feature is activated
when the ignition switch is in the ON posi-
tion.

The indicator light

䊊

will illuminate when

the automatic anti-glare feature is operat-
ing.

NOTE:

Do not hang any objects over the sen-
sors

䊊

or apply glass cleaner to the sen-

sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.

Type A (if so equipped)

To turn off the automatic anti-glare feature,
press the

button. The indicator light

will turn off.

To turn on the automatic anti-glare feature
again, press the

button. The indicator

light will turn on.

For additional information, refer to the
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.

Type B (if so equipped)

∙ To turn off the anti-glare feature, press

the

button. The indicator light will

turn off.

∙ To turn on the anti-glare feature, press

the

button again. The indicator

light will turn on.

For additional information about the com-
pass and compass features

䊊

, refer to

“Compass” in the “Instruments and con-
trols” section of this manual.

Type A - Without compass

(if so equipped)

LPD0469

Type B - With compass (if so equipped)

LPD2419

3-34

Pre-driving checks and adjustments

Nissan Titan (2019 year). Instruction - part 14
