When the system detects a malfunction,
the telltale will flash for approximately one
minute and then remain continuously illu-
minated. This sequence will continue upon
subsequent vehicle start-ups as long as
the malfunction exists. When the malfunc-
tion indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions
may occur for a variety of reasons, includ-
ing the installation of replacement or alter-
nate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

Additional information:

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
does not monitor the tire pressure of
the spare tire.

∙ The TPMS will activate only when the ve-

hicle is driven at speeds above 16 mph
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example, a flat tire while driving).

∙ The low tire pressure warning light does

not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

∙ The “Tire Pressure Low - Add Air” warn-

ing appears each time the ignition
switch is placed in the ON position as
long as the low tire pressure warning
light remains illuminated.

∙ The “Tire Pressure Low - Add Air” warn-

ing appears in the vehicle information
display when the low tire pressure
warning light is illuminated and low tire
pressure is detected. The “Tire Pressure
Low - Add Air” warning turns off when
the low tire pressure warning light turns
off.

∙ The “Tire Pressure Low - Add Air” warn-

ing does not appear if the low tire pres-
sure warning light illuminates to indi-
cate a TPMS malfunction.

∙ Tire pressure rises and falls depending

on the heat caused by the vehicle’s op-
eration and the outside temperature.
Do not reduce the tire pressure after
driving because the tire pressure rises
after driving. Low outside temperature
can lower the temperature of the air
inside the tire which can cause a lower
tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illumi-
nates, check the tire pressure for all four
tires.

∙ The Tire and Loading Information label

is located in the driver’s door opening.

∙ You can also check the pressure of all

tires (except the spare tire) on the ve-
hicle information display screen. The or-
der of the tire pressure figures dis-
played on the screen corresponds with
the actual order of the tire position.

For additional information, refer to “Low tire
pressure warning light” in the “Instruments
and controls” section and “Tire Pressure
Monitoring System (TPMS)” in the “In case of
emergency” section of this manual.

5-6

Starting and driving

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ If the low tire pressure warning light

illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road
to a safe location and stop the vehicle
as soon as possible. Driving with under-
inflated tires may permanently dam-
age the tires and increase the likeli-
hood of tire failure. Serious vehicle
damage could occur and may lead to
an accident and could result in serious
personal injury. Check the tire pressure
for all four tires. Adjust the tire pressure
to the recommended COLD tire pres-
sure shown on the Tire and Loading In-
formation label to turn the low tire
pressure warning light off. If you have a
flat tire, replace it with a spare tire as
soon as possible. (For additional infor-
mation, refer to “Flat tire” in the “In case
of emergency” section for changing a
flat tire.)

∙ When replacing a wheel without the

TPMS such as the spare tire, when a
spare tire is mounted or a wheel is
replaced, tire pressure will not be indi-
cated, the TPMS will not function and
the low tire pressure warning light will
flash for approximately 1 minute. The
light will remain on after 1 minute.
Have your tires replaced and/or TPMS
system reset as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

∙ Do not inject any tire liquid or aerosol

tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.

CAUTION

∙ The TPMS may not function properly

when the wheels are equipped with tire
chains or the wheels are buried in snow.

∙ Do not place metalized film or any metal

parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.

Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate.

Some examples are:

∙ Facilities or electric devices using simi-

lar radio frequencies are near the ve-
hicle.

∙ If a transmitter set to similar frequen-

cies is being used in or near the vehicle.

∙ If a computer (or similar equipment) or

a DC/AC converter is being used in or
near the vehicle.

The low tire pressure warning light may
illuminate in the following cases:

∙ If the vehicle is equipped with a wheel

and tire without TPMS.

∙ If the TPMS has been replaced and the

ID has not been registered.

∙ If the wheel is not originally specified by

NISSAN.

Starting and driving

5-7

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

TPMS with Easy-Fill Tire Alert

When adding air to an under-inflated tire,
the TPMS with Easy-Fill Tire Alert provides

visual and audible signals outside the ve-
hicle to help you inflate the tires to the rec-
ommended COLD tire pressure.

Vehicle set-up

1. Park the vehicle in a safe and level place.

2. Apply the parking brake and place the

shift lever in the P (Park) position.

3. Place the ignition switch in the ON po-

sition. Do not start the engine.

Operation

1. Add air to the tire.

2. After a few seconds, the hazard indica-

tors will start flashing.

3. When

the

designated

pressure

reached, the horn beeps once and the
hazard indicators stop flashing.

4. Perform the above steps for each tire.

∙ If the tire is over-inflated more than

approximately 4 psi (30 kPa), the horn
beeps and the hazard indicators
flash three times. To correct the pres-
sure, push the core of the valve stem
on the tire briefly to release pressure.
When the pressure reaches the des-
ignated pressure, the horn beeps
once.

∙ If the hazard indicator does not flash

within approximately 15 seconds af-
ter starting to inflate the tire, it indi-
cates that the Easy-Fill Tire Alert is
not operating.

∙ The TPMS will not activate the Easy-

Fill Tire Alert under the following con-
ditions:

– If there is interference from an exter-

nal device or transmitter.

– The air pressure from the inflation

device is not sufficient to inflate the
tire.

– There is a malfunction in the TPMS.

– There is a malfunction in the horn or

hazard indicators.

– The identification code of the tire

pressure sensor is not registered to
the system.

– The battery of the tire pressure sen-

sor is low.

∙ If the Easy-Fill Tire Alert does not op-

erate due to TPMS interference, move
the vehicle about 3 ft (1 m) backward
or forward and try again.

If the Easy-Fill Tire Alert is not working, use a
tire pressure gauge.

5-8

Starting and driving

ON-PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS

Utility

vehicles

have

significantly

higher rollover rate than other types of
vehicles.

They have higher ground clearance than
passenger cars to make them capable of
performing in a variety of on-pavement
and off-road applications. This gives them
a higher center of gravity than ordinary ve-
hicles. An advantage of higher ground
clearance is a better view of the road, allow-
ing you to anticipate problems. However,
they are not designed for cornering at the
same speeds as conventional 2-Wheel
Drive vehicles any more than low-slung
sports cars are designed to perform satis-
factorily under off-road conditions. If at all
possible, avoid sharp turns at high speeds.
As with other vehicles of this type, failure to
operate this vehicle correctly may result in
loss of control or vehicle rollover. In a roll-
over crash, an unbelted person is signifi-
cantly more likely to die than a person
wearing a seat belt.

For additional information, refer to “Driving
safety precautions” in this section.

AVOIDING COLLISION AND
ROLLOVER

WARNING

Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.

Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid excessive
speed, high speed cornering, or sudden
steering maneuvers, because these driving
practices could cause you to lose control of
your vehicle.

As with any vehicle, loss of control could
result in a collision with other vehicles or
objects or cause the vehicle to roll over,
particularly if the loss of control causes
the vehicle to slide sideways.

Be attentive at all times, and avoid driving
when tired. Never drive when under the in-
fluence of alcohol or drugs (including pre-
scription or over-the-counter drugs which
may cause drowsiness). Always wear your
seat belt as outlined in the “Safety – Seats,
seat belts and supplemental restraint sys-
tem” section of this manual, and also in-
struct your passengers to do so.

Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash,
an unbelted or improperly belted person
is significantly more likely to be injured
or killed than a person properly wearing
a seat belt.

OFF-ROAD RECOVERY

While driving, the right side or left side
wheels may unintentionally leave the road
surface. If this occurs, maintain control of
the vehicle by following the procedure be-
low. Please note that this procedure is only
a general guide. The vehicle must be driven
as appropriate based on the conditions of
the vehicle, road and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering

wheel with both hands and try to hold a
straight course.

4. When appropriate, slowly release the

accelerator pedal to gradually slow the
vehicle.

Starting and driving

5-9

5. If there is nothing in the way, steer the

vehicle to follow the road while vehicle
speed is reduced. Do not attempt to
drive the vehicle back onto the road
surface until vehicle speed is reduced.

6. When it is safe to do so, gradually turn

the steering wheel until both tires re-
turn to the road surface. When all tires
are on the road surface, steer the ve-
hicle to stay in the appropriate driving
lane.

∙ If you decide that it is not safe to re-

turn the vehicle to the road surface
based on vehicle, road or traffic con-
ditions, gradually slow the vehicle to a
stop in a safe place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged
due to hitting a curb or pothole. Rapid air
pressure loss can also be caused by driving
on under-inflated tires.

Rapid air pressure loss can affect the han-
dling and stability of the vehicle, especially
at highway speeds.

Help prevent rapid air pressure loss by
maintaining the correct air pressure and
visually inspecting the tires for wear and
damage. For additional information, refer
to “Wheels and tires” in the “Do-it-yourself ”
section of this manual. If a tire rapidly loses
air pressure or “blows-out” while driving,
maintain control of the vehicle by following
the procedure below. Please note that this
procedure is only a general guide. The ve-
hicle must be driven as appropriate based
on the conditions of the vehicle, road and
traffic.

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air pres-
sure. Losing control of the vehicle may
cause a collision and result in personal
injury.

∙ The vehicle generally moves or pulls

in the direction of the flat tire.

∙ Do not rapidly apply the brakes.

∙ Do not rapidly release the accelerator

pedal.

∙ Do not rapidly turn the steering wheel.

1. Remain calm and do not overreact.

2. Maintain a firm grip on the steering

wheel with both hands and try to hold a
straight course.

3. When appropriate, slowly release the

accelerator pedal to gradually slow the
vehicle.

4. Gradually steer the vehicle to a safe

location off the road and away from
traffic if possible.

5. Lightly apply the brake pedal to gradu-

ally stop the vehicle.

6. Turn on the hazard warning flashers

and contact a roadside emergency
service to change the tire. For addi-
tional information, refer to “Changing a
flat tire” in the “In case of emergency”
section of this manual.

5-10

Starting and driving

DRINKING ALCOHOL/DRUGS AND
DRIVING

WARNING

Never drive under the influence of alco-
hol or drugs. Alcohol in the bloodstream
reduces coordination, delays reaction
time and impairs judgement. Driving
after drinking alcohol increases the
likelihood of being involved in an acci-
dent injuring yourself and others. Addi-
tionally, if you are injured in an accident,
alcohol can increase the severity of the
injury.

NISSAN is committed to safe driving. How-
ever, you must choose not to drive under
the influence of alcohol. Every year thou-
sands of people are injured or killed in
alcohol-related collisions. Although the lo-
cal laws vary on what is considered to be
legally intoxicated, the fact is that alcohol
affects all people differently and most
people underestimate the effects of alco-
hol.

Remember, drinking and driving don’t mix!
That is true for drugs (over-the-counter,
prescription) and illegal drugs, too. Don’t

drive if your ability to operate your vehicle is
impaired by alcohol, drugs, or some other
physical condition.

DRIVING SAFETY PRECAUTIONS

Your NISSAN is designed for both normal
and off-road use. However, avoid driving in
deep water or mud as your NISSAN is
mainly designed for leisure use, unlike a
conventional off-road vehicle.

Remember that 2-Wheel Drive (2WD) mod-
els are less capable than All-Wheel Drive
(AWD) models for rough road driving and
extrication when stuck in deep snow or
mud, or the like.

Please observe the following precautions:

WARNING

∙ Spinning the front wheels on slippery

surfaces may cause the AWD warning
message to display and the AWD sys-
tem to automatically switch from the
AWD to the 2WD mode. This could re-
duce the traction. Be especially care-
ful

when

towing

trailer

(AWD

models).

∙ Drive carefully when off the road and

avoid dangerous areas. Every person
who drives or rides in this vehicle
should be seated with their seat belt
fastened. This will keep you and your
passengers in position when driving
over rough terrain.

∙ Do not drive across steep slopes. In-

stead drive either straight up or
straight down the slopes. Off-road ve-
hicles can tip over sideways much
more easily than they can forward or
backward.

∙ Many hills are too steep for any ve-

hicle. If you drive up them, you may
stall. If you drive down them, you may
not be able to control your speed. If
you drive across them, you may roll
over.

∙ Do not shift gears while driving on

downhill grades as this could cause
loss of control of the vehicle.

∙ Stay alert when driving to the top of a

hill. At the top there could be a drop-
off or other hazard that could cause
an accident.

Starting and driving

5-11

∙ If your engine stalls or you cannot

make it to the top of a steep hill, never
attempt to turn around. Your vehicle
could tip or roll over. Always back
straight down in the R (Reverse) gear
and apply brakes to control your
speed.

∙ Heavy braking going down a hill could

cause your brakes to overheat and
fade, resulting in loss of control and
an accident. Apply brakes lightly and
use a low gear to control your speed.

∙ Unsecured

cargo

can

thrown

around when driving over rough ter-
rain. Properly secure all cargo so it will
not be thrown forward and cause in-
jury to you or your passengers.

∙ To avoid raising the center of gravity

excessively, do not exceed the rated
capacity

the

roof

rack

(if

equipped) and evenly distribute the
load.

∙ Secure heavy loads in the cargo area

as far forward and as low as possible.
Do not equip the vehicle with tires
larger than specified in this manual.
This could cause your vehicle to roll
over.

∙ Do not grip the inside or spokes of the

steering wheel when driving off-road.
The steering wheel could move sud-
denly and injure your hands. Instead
drive with your fingers and thumbs on
the outside of the rim.

∙ Before operating the vehicle, ensure

that the driver and all passengers
have their seat belts fastened.

∙ Always drive with the floor mats in

place as the floor may become hot.

∙ Lower your speed when encountering

strong crosswinds. With a higher cen-
ter of gravity, your NISSAN is more af-
fected by strong side winds. Slower
speeds ensure better vehicle control.

∙ Do not drive beyond the performance

capability of the tires, even with AWD
engaged.

∙ For AWD equipped vehicles, do not at-

tempt to raise two wheels off the
ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result
in drivetrain damage or unexpected
vehicle movement which could result
in serious vehicle damage or personal
injury.

∙ Do not attempt to test an AWD

equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions
testing) or similar equipment even if
the other two wheels are raised off the
ground. Make sure you inform test fa-
cility personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong
test equipment may result in drive-
train damage or unexpected vehicle
movement which could result in seri-
ous

vehicle

damage

personal

injury.

∙ When a wheel is off the ground due to

an unlevel surface, do not spin the
wheel excessively.

∙ Accelerating quickly, sharp steering

maneuvers or sudden braking may
cause loss of control.

∙ If at all possible, avoid sharp turning

maneuvers,

particularly

high

speeds. Your NISSAN vehicle has a
higher center of gravity than a pas-
senger car. The vehicle is not de-
signed for cornering at the same
speeds as passenger cars.

5-12

Starting and driving

∙ Failure to operate this vehicle cor-

rectly could result in loss of control
and/or a rollover accident.

∙ Always use tires of the same type,

size, brand, construction (bias, bias-
belted, or radial), and tread pattern on
all four wheels. Install tire chains on
the front wheels when driving on slip-
pery roads and drive carefully.

∙ Be sure to check the brakes immedi-

ately after driving in mud or water. For
additional information, refer to “Brake
precautions” in this section.

∙ Avoid parking your vehicle on steep

hills. If you get out of the vehicle and it
rolls forward, backward or sideways,
you could be injured.

∙ Whenever you drive off-road through

sand, mud or water as deep as the
wheel hub, more frequent mainte-
nance may be required. For additional
information, refer to “Maintenance
under severe operating conditions” in
the “Maintenance and schedules” sec-
tion of this manual.

WARNING

Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock (for models with a
steering lock mechanism). This may
cause the driver to lose control of the
vehicle and could result in serious ve-
hicle damage or personal injury.

CONTINUOUSLY VARIABLE
TRANSMISSION

The ignition lock is designed so that the
ignition switch cannot be turned to the
LOCK position until the shift lever is moved
to the P (Park) position.

∙ When moving the ignition switch to the

LOCK position, make sure the shift lever
is in the P (Park) position.

∙ When removing the key from the igni-

tion switch, make sure the shift lever is
in the P (Park) position.

LIC2717

IGNITION SWITCH (if so equipped)

Starting and driving

5-13

When the ignition switch cannot be turned
to the LOCK position:

1. Move the shift lever to the P (Park) posi-

tion.

2. Turn the ignition switch slightly in the

ON direction.

3. Turn the ignition switch to the LOCK

position.

4. Remove the key if it is inserted in the

ignition switch.

If the ignition switch is turned to the LOCK
position, the shift lever cannot be moved
from the P (Park) position.

The shift lever can be moved if the igni-
tion switch is placed in the ON position
and the foot brake pedal is depressed.

KEY POSITIONS

LOCK: Normal parking position (0)

Off position (1)

This position activates electrical accesso-
ries such as the radio when the engine is
not running.

ON: Normal operating position (2)

This position turns on the ignition system
and the electrical accessories.

START: (3)

This position starts the engine. As soon as
the engine has started, release the key. It
automatically returns to the ON position.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered key.

If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedure:

1. Leave the ignition switch in the ON po-

sition for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position, and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the

device (which may have caused the in-
terference) separate from the regis-
tered key.

If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

5-14

Starting and driving

WARNING

Do not operate the push-button igni-
tion switch while driving the vehicle ex-
cept in an emergency. (The engine will
stop when the ignition switch is pushed
three consecutive times in quick suc-
cession or the ignition switch is pushed
and held for more than 2 seconds.) If the
engine stops while the vehicle is being
driven, this could lead to a crash and
serious injury.

When the ignition switch is pushed without
depressing the brake pedal, the ignition
switch will illuminate.

Push the ignition switch center:

∙ Once to change to ON.

∙ Two times to change to OFF.

The ignition switch will automatically re-
turn to the LOCK position when any door is
either opened or closed with the switch in
the OFF position.

The ignition lock is designed so that the
ignition

switch

position

cannot

switched to OFF until the shift lever is
moved to the P (Park) position.

When the ignition switch cannot be pushed
toward the OFF position, proceed as fol-
lows:

1. Move the shift lever to the P (Park) posi-

tion.

2. Push the ignition switch. The ignition

switch position will change to the ON
position.

3. Push the ignition switch again to the

OFF position.

The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.

If the battery of the vehicle is discharged,
the push-button ignition switch cannot
be moved from the LOCK position.

Some indicators and warnings for opera-
tion are displayed on the vehicle informa-
tion display. For additional information, re-
fer to “Vehicle information display” in the
“Instruments and controls” section of this
manual.

LSD2184

PUSH-BUTTON IGNITION SWITCH (if
so equipped)

Starting and driving

5-15

OPERATING RANGE

The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range.

When the Intelligent Key battery is almost
discharged or strong radio waves are pres-
ent near the operating location, the Intelli-
gent Key system’s operating range be-
comes narrower and may not function
properly.

If the Intelligent Key is within the operating
range, it is possible for anyone, even some-
one who does not carry the Intelligent Key,
to push the ignition switch to start the en-
gine.

The operating range of the engine start
function is inside of the vehicle

䊊

∙ The luggage area is not included in the

operating range, but the Intelligent Key
may function.

∙ If the Intelligent Key is placed on the

instrument panel or inside the glove
box, storage bin or door pocket, the In-
telligent Key may not function.

∙ If the Intelligent Key is placed near the

door or window outside the vehicle, the
Intelligent Key may function.

PUSH-BUTTON IGNITION SWITCH
POSITIONS

LOCK (Normal parking position):

The ignition switch can only be locked in
this position.

The ignition switch will lock when any door
is opened or closed with the ignition
switched off.

ON (Normal operating position):

This position turns on the ignition system
and electrical accessories.

ON has a battery saver feature that will
place the ignition switch in the OFF posi-
tion, if the vehicle is not running, after some
time under the following conditions:

∙ All doors are closed.

∙ The shift lever is in P (Park).

The battery saver feature will be canceled if
any of the following occur:

∙ Any door is opened.

∙ The shift lever is moved out of the P

(Park) position.

∙ The ignition switch changes position.

CAUTION

Do not leave the vehicle with the igni-
tion switch in the ON position when the
engine is not running for an extended
period. This can discharge the battery.

OFF:

The ignition switch is in the OFF position
when the engine is turned off using the
ignition switch. No lights will illuminate on
the ignition switch.

LSD2020

5-16

Starting and driving

AUTO ACC:

With the vehicle in the P (Park) position, the
Intelligent Key with you and the ignition
switch placed from the ON position to the
OFF position, the radio can still be used for
a period of time, or until the driver’s door is
opened.

After a period of time, functions such as
radio, navigation, and Bluetooth® Hands-
Free Phone System may be restarted by
pressing the POWER button/VOLUME con-
trol knob or the key fob unlock button. For
additional information, refer to the “Monitor,
climate, audio, phone and voice recogni-
tion systems” section of this manual.

EMERGENCY ENGINE SHUT OFF

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:

∙ Rapidly push the ignition switch three

consecutive times in less than 1.5 sec-
onds, or

∙ Push and hold the ignition switch for

more than 2 seconds.

NISSAN INTELLIGENT KEY®
BATTERY DISCHARGE (if so
equipped)

If the battery of the NISSAN Intelligent Key®
is discharged or environmental conditions
interfere with the Intelligent Key operation,
start the engine according to the following
procedure:

1. Place the shift lever in the P (Park) posi-

tion.

2. Firmly apply the foot brake.

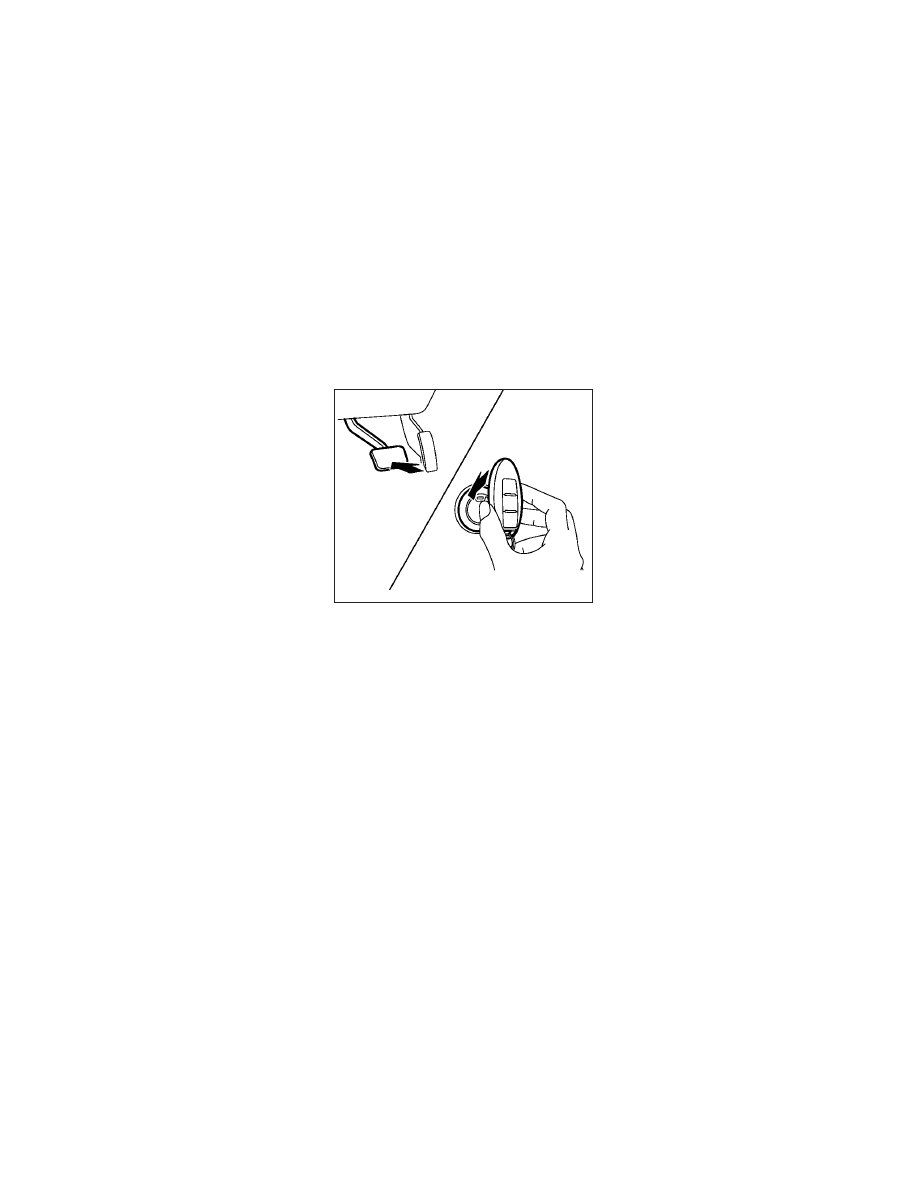

3. Touch the ignition switch with the Intel-

ligent Key as illustrated. (A chime will
sound.)

After step 3 is performed, when the
ignition switch is pushed without de-
pressing the brake pedal, the ignition
switch position will change to the ON
position.

4. Push the ignition switch while depress-

ing the brake pedal within 10 seconds
after the chime sounds. The engine will
start.

NOTE:

∙ When the ignition switch is pushed to

the ON position or the engine is
started by the above procedure, the
Intelligent Key battery discharge in-
dicator appears in the vehicle infor-
mation display even when the Intelli-
gent Key is inside the vehicle. This is
not a malfunction. To turn off the In-
telligent Key battery discharge indi-
cator, touch the ignition switch with
the Intelligent Key again.

SSD0860

Starting and driving

5-17

∙ If the Intelligent Key battery dis-

charge indicator appears, replace the
battery as soon as possible. For addi-
tional information, refer to “Battery
replacement” in the “Do-it-yourself ”
section of this manual.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered key.

1. Leave the ignition switch in the ON po-

sition for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position, and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the

device (which may have caused the in-
terference) separate from the regis-
tered key.

If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

∙ Make sure the area around the vehicle is

clear.

∙ Check fluid levels such as engine oil,

coolant, brake fluid, and windshield-
washer fluid as frequently as possible,
or at least whenever you refuel.

∙ Check that all windows and lights are

clean.

∙ Visually inspect tires for their appear-

ance and condition. Also check tires for
proper inflation.

∙ Check that all doors are closed.

∙ Position

seat

and

adjust

head

restraints/headrests.

∙ Adjust inside and outside mirrors.

∙ Fasten seat belts and ask all passen-

gers to do likewise.

∙ Check the operation of warning lights

when the ignition switch is placed in the
ON position. For additional information,
refer to “Warning lights, indicator lights
and audible reminders” in the “Instru-
ments and controls” section of this
manual.

BEFORE STARTING THE ENGINE

5-18

Starting and driving

1. Apply the parking brake.

2. Move the shift lever to P (Park) or N

(Neutral). P (Park) is recommended.

The shift lever cannot be moved out
of P (Park) and into any of the other
gear positions if the ignition key is
turned to the OFF position or if the
key is removed from the ignition
switch.

The starter is designed not to oper-
ate if the shift lever is in any of the
driving positions.

3. Crank the engine with your foot off

the accelerator pedal by turning the
ignition key to the START position. Re-
lease the key when the engine starts. If
the engine starts, but fails to run, repeat
the above procedure.

∙ If the engine is very hard to start in

extremely cold weather or when re-
starting, depress

the

accelerator

pedal a little (approximately 1/3 to the
floor) and hold it and then crank the
engine. Release the key and the ac-
celerator pedal when the engine
starts.

∙ If the engine is very hard to start be-

cause it is flooded, depress the accel-

erator pedal all the way to the floor
and hold it. Crank the engine for 5 to
6 seconds. After cranking the engine,
release the accelerator pedal. Crank
the engine with your foot off the ac-
celerator pedal by turning the igni-
tion key to the START position. Re-
lease the key when the engine starts.
If the engine starts, but fails to run,
repeat the above procedure.

CAUTION

Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, turn the key off and wait
10 seconds before cranking again, oth-
erwise the starter could be damaged.

4. Allow the engine to idle for at least

30 seconds after starting. Do not race
the engine while warming it up. Drive at
a moderate speed for a short distance
first, especially in cold weather.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (phone chargers, GPS, DVD
players, etc.).

2. The vehicle is not driven regularly

and/or only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

STARTING THE ENGINE (models
without NISSAN Intelligent Key®
system)

Starting and driving

5-19

1. Apply the parking brake.

2. Move the shift lever to P (Park) or N

(Neutral). P (Park) is recommended.

The starter is designed not to oper-
ate if the shift lever is in any of the
driving positions.

3. Push the ignition switch to the ON po-

sition. Depress the brake pedal and
push the ignition switch to start the
engine.

To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal with the
ignition switch in any position.

∙ If the engine is very hard to start in

extremely cold weather or when re-
starting, depress

the

accelerator

pedal a little (approximately 1/3 to the
floor) and while holding, crank the en-
gine. Release the accelerator pedal
when the engine starts.

∙ If the engine is very hard to start be-

cause it is flooded, depress the accel-
erator pedal all the way to the floor
and hold it. Push the ignition switch
to the ON position to start cranking
the engine. After 5 or 6 seconds, stop
cranking by pushing the ignition

switch to the LOCK position. After
cranking the engine, release the ac-
celerator pedal. Crank the engine
with your foot off the accelerator
pedal by depressing the brake pedal
and pushing the ignition switch to
start the engine. If the engine starts,
but fails to run, repeat the above pro-
cedure.

CAUTION

Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to the OFF position and wait 10 seconds
before cranking again, otherwise the
starter could be damaged.

4. Warm-up:

Allow the engine to idle for at least
30 seconds after starting. Do not race
the engine while warming it up. Drive at
a moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 to 3 minutes before
shutting it off. Starting and stopping
the engine over a short period of time
may make the vehicle more difficult to
start.

5. To stop the engine, place the shift lever

in the P (Park) position and push the
ignition switch to the OFF position.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (phone chargers, GPS, DVD
players, etc.).

2. The vehicle is not driven regularly

and/or only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

STARTING THE ENGINE (models with
NISSAN Intelligent Key® system)

5-20

Starting and driving

REMOTE ENGINE START (if so
equipped)

Vehicles started with the Remote Engine
Start require the ignition switch to be
placed in the ON position before the shift
lever can be moved from the P (Park) posi-
tion. To place the ignition switch in the ON
position, follow these steps:

1. Make sure that the Intelligent Key is on

you.

2. Apply the brake.

3. Push the ignition switch once to the ON

position.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

CONTINUOUSLY VARIABLE
TRANSMISSION (CVT)

WARNING

∙ Do not depress the accelerator pedal

while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or M
(Manual shift mode). Always depress
the brake pedal until shifting is com-
pleted. Failure to do so could cause
you to lose control and have an
accident.

∙ Cold engine idle speed is high, so use

caution when shifting into a forward
or reverse gear before the engine has
warmed up.

∙ Do not downshift abruptly on slippery

roads. This may cause a loss of
control.

∙ Never shift to either the P (Park) or R

(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident
or damage the transmission.

CAUTION

∙ To avoid possible damage to your ve-

hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

∙ Except in an emergency, do not shift

to the N (Neutral) position while driv-
ing. Coasting with the transmission in
the N (Neutral) position may cause se-
rious damage to the transmission.

The CVT in your vehicle is electronically
controlled to produce maximum power
and smooth operation.

The recommended operating procedures
for this transmission are shown on the fol-
lowing pages. Follow these procedures for
maximum vehicle performance and driv-
ing enjoyment.

Engine power may be automatically re-
duced to protect the CVT if the engine
speed increases quickly when driving on
slippery roads or while being tested on
some dynamometers.

DRIVING THE VEHICLE

Starting and driving

5-21

Nissan Rogue (2019 year). Instruction - part 17
