Nissan Rogue (2019 year). Instruction

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

Security indicator light

This light blinks when the ignition switch is
placed in the OFF or LOCK position.

The blinking security indicator light indi-
cates that the security systems equipped
on the vehicle are operational.

For additional information, refer to “Security
systems” in this section.

Side light and headlight

indicator light (green)

The side light and headlight indicator light
illuminates when the side light or headlight
position is selected. For additional informa-

tion, refer to “Headlight and turn signal
switch” in this section.

Slip indicator light

This indicator will blink when the VDC sys-
tem is operating, thus alerting the driver to
the fact that the road surface is slippery
and the vehicle is nearing its traction limits.

You may feel or hear the system working;
this is normal.

The light will blink for a few seconds after
the VDC system stops limiting wheel spin.

The

indicator light also comes on

when you place the ignition switch in the
ON position. The light will turn off after ap-
proximately 2 seconds if the system is op-
erational. If the light does not come on
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Turn signal/hazard

indicator lights

The appropriate light flashes when the turn
signal switch is activated.

Both lights flash when the hazard switch is
turned on.

Vehicle Dynamic Control

(VDC) OFF indicator light

This indicator light comes on when the
VDC OFF switch is pushed to off. This indi-
cates the VDC system has been turned off.

Push the VDC OFF switch again or restart
the engine and the system will operate
normally. For additional information, refer
to “Vehicle Dynamic Control (VDC) system”
in the “Starting and driving” section of this
manual.

The VDC OFF indicator light also comes on
when you place the ignition switch in the
ON position. The light will turn off after
about 2 seconds if the system is opera-
tional. If the light stays on or comes on
along with the

indicator light while

you are driving, have the VDC system
checked. It is recommended that you visit a
NISSAN dealer for this service.
While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or
accelerating, but this is normal.

2-20

Instruments and controls

AUDIBLE REMINDERS
Brake pad wear warning

The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is
opened while the ignition switch is placed
in the OFF position or placed in the OFF or
LOCK position with the key left in the ve-
hicle. Make sure the ignition switch is
placed in the LOCK position, and take the
key with you when leaving the vehicle.

Light reminder chime

With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.

Turn the headlight control switch off before
leaving the vehicle.

NISSAN Intelligent Key® door
buzzer (if so equipped)

The Intelligent Key door buzzer sounds if
any one of the following improper opera-
tions is found.

∙ The Intelligent Key is left inside the ve-

hicle when locking the doors.

∙ Any doors are not closed securely when

locking the doors.

When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key. For
additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Driving aid chimes (if so equipped)

An audible alert/chime may be heard if any
of the following systems are active:

∙ Automatic Emergency Braking (AEB)

with Pedestrian Detection

∙ Blind Spot Warning (BSW)/Rear Cross

Traffic Alert (RCTA)

∙ Intelligent Cruise Control (ICC)

∙ Intelligent Lane Intervention (I-LI)

∙ Lane Departure Warning (LDW)

∙ ProPILOT Assist

∙ Rear Automatic Braking (RAB)

∙ Rear Sonar System (RSS)

For additional information, refer to the
“Starting

and

driving”

section

this

manual.

Instruments and controls

2-21

The vehicle information display is located
to the left of the speedometer. It displays
such items as:

∙ Vehicle settings

∙ Drive computer information

∙ Drive system warnings and settings

∙ Cruise control system information

∙ NISSAN Intelligent Key® operation infor-

mation

∙ Chassis Control

∙ Indicators and warnings

∙ Tire Pressure information

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be

changed using the
,

, and OK buttons located on the

steering wheel.

䊊

- Use these

buttons to navigate the vehicle infor-
mation display.

䊊

OK - Change or select an item in the
vehicle information display.

䊊

— Returns to the previous menu.

The OK,

and

buttons also

control audio and control panel functions
in some conditions. Most screens and
menus offer instruction prompts of the
steering switch buttons to indicate how to
control the vehicle information display. An
arrow on the bottom right side of the ve-
hicle information display will appear if there
is more than one page of menu items. The
OK button changes the audio source and

the

buttons also control voice

recognition manual mode. For additional
information,

refer

the

separate

NissanConnect® Owner’s Manual.

STARTUP DISPLAY

When the vehicle is placed in the ON posi-
tion, the vehicle information display may
display the following screens:

∙ Home

∙ Drive Computer — Average Speed-Trip

(Distance & Time)-Fuel Economy

∙ Compass or Navigation (if so equipped)

∙ Audio

∙ Intelligent Cruise or ProPILOT (if so

equipped)

LIC2630

LIC3566

VEHICLE INFORMATION DISPLAY

2-22

Instruments and controls

∙ Driving Aids

∙ Tire Pressures

∙ 4x4–i

∙ Chassis Control

∙ Warnings

∙ Settings

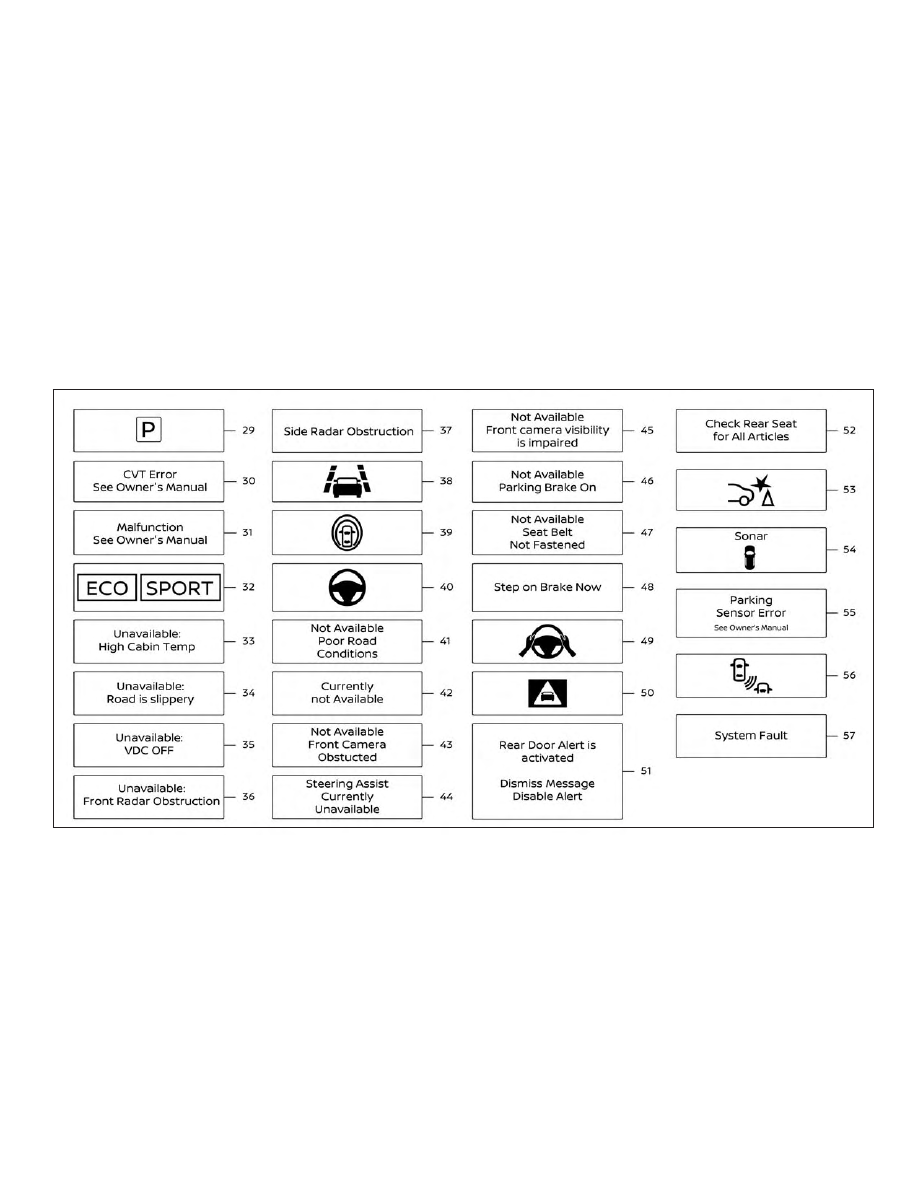

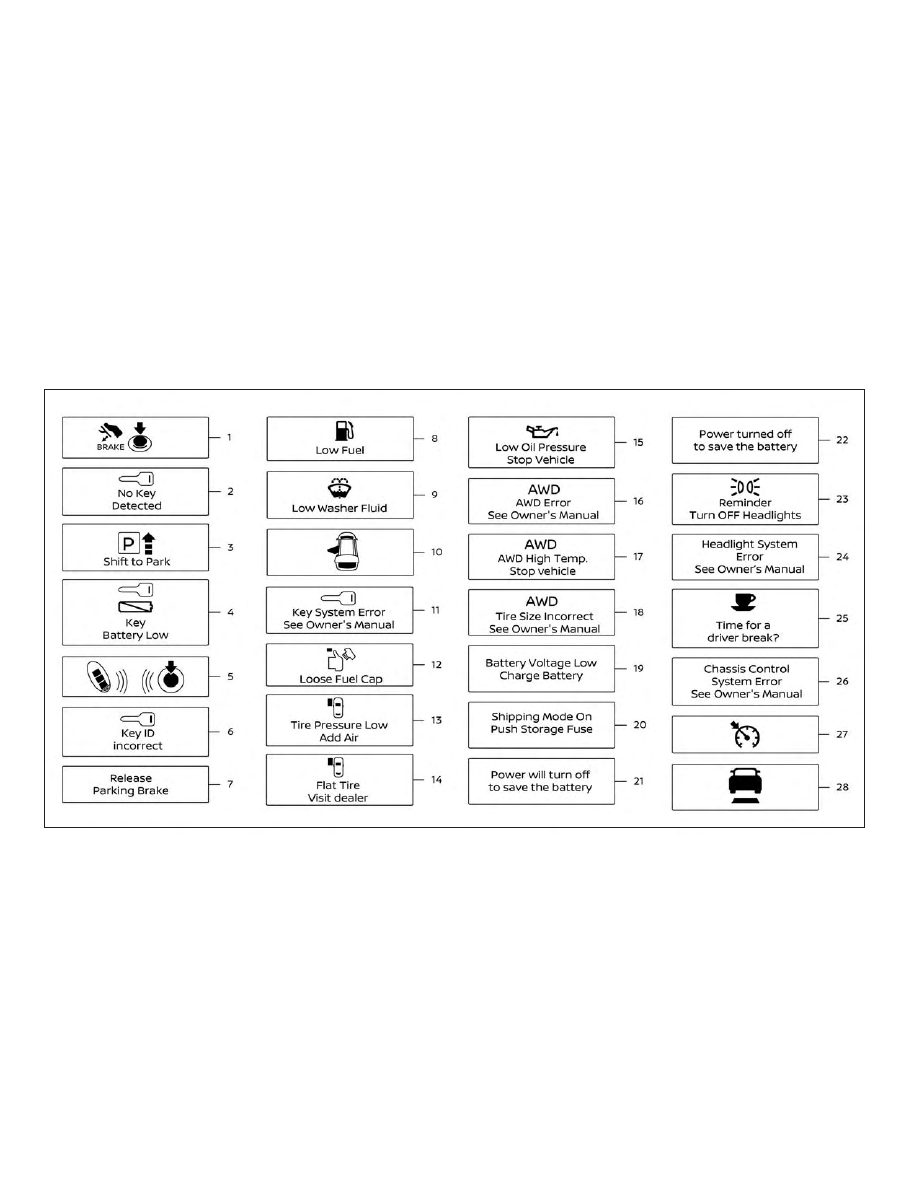

Warnings will only display if there are any
present. For additional information, refer to
“Vehicle information display warnings and
indicators” in this section.

To control which items display in the ve-
hicle information display, refer to “Meter
settings” in this section.

RESETTING THE DRIVE COMPUTER

1. Press the

buttons until

you reach the desired drive computer
mode.

NOTE:

Once you have a drive computer dis-

played, you can use the

and

buttons to switch between Drive Com-
puter

䊊

2. Press the OK button.

3. Select one of the following items:

∙ “Cancel” — returns to the previous

screen without resetting the trip com-
puter.

∙ Drive computer value

– “Average Speed” - resets the average

speed of the selected drive com-
puter.

– “Distance” - resets the distance and

time of the selected drive computer.

– “Fuel Economy” - resets the fuel

economy of the selected drive com-
puter.

∙ “All” — resets all linked values for the se-

lected drive computer. This includes
distance

and

time,

average

fuel

economy and average speed informa-
tion for the selected drive computer.

NOTE:

Drive computer 2 will automatically reset
each time the ignition is placed in the
OFF position.

SETTINGS

The setting mode allows you to change the
information displayed in the vehicle infor-
mation display:

∙ Driver Assistance

∙ Clock

∙ Meter Settings

∙ Vehicle Settings

∙ Maintenance

∙ Alarm

∙ Tire Pressures

∙ Unit

∙ Language

∙ Factory Reset

Instruments and controls

2-23

Driver Assistance

The driver assistance menu allows the user
to change the settings for driving, parking,
and braking aids.

Menu item

Result

Driving Aids (if so equipped)

Displays available driving aids.

Steering Assist (if so equipped)

Allows user to turn the steering assist on or off.

Emergency Brake

Displays available emergency braking options.

Front

Allows user to turn the front emergency braking system on or off. For additional information, refer to “Automatic
Emergency Braking (AEB)” and “Automatic Emergency Braking (AEB) with Pedestrian Detection” in the “Starting
and driving” section of your owner’s manual.

Rear

Allows user to turn the rear emergency braking system on or off. For additional information, refer to “Rear Emer-
gency Braking (RAB)” in the “Starting and driving” section of your owner’s manual.

Lane

Displays available lane options.

Warning (LDW)

Allows user to turn the Lane Departure Warning (LDW) and Intelligent Lane Intervention (I-LI) systems on or off. For
additional information, refer to “Lane Departure Warning (LDW)” and “Intelligent Lane Intervention (I-LI)” in the
“Starting and driving” section of this manual.

Prevention (LDP)

Allows user to turn the Intelligent Lane Intervention (I-LI) system on or off. For additional information, refer to “Intel-
ligent Lane Intervention (I-LI) in the “Starting and driving” section of this manual.

Blind Spot

Displays available blind spot options.

Warning (BSW)

Allows user to turn Blind Spot Warning (BSW) on or off. For additional information, refer to “Blind Spot Warning
(BSW)” in the “Starting and driving” section of your owner’s manual.

Parking Aids

Displays available parking aids.

Moving Object (if so equipped)

Allows user to turn the Moving Object Detection (MOD) feature on or off. For additional information, refer to “Intelli-
gent Around View Monitor” in the “Monitor, climate, audio, phone and voice recognition systems” section of your
owner’s manual.

Cross Traffic

Allows user to turn the Rear Cross Traffic Alert (RCTA) feature on or off.

Front Sensor (if so equipped)

Allows user to turn the front sensor on or off.

Rear Sensor (if so equipped)

Allows user to turn the rear sensor on or off.

2-24

Instruments and controls

Menu item

Result

Display (if so equipped)

Allows user to turn the display on or off.

Volume (if so equipped)

Allows user to select sensor volume (High, Mid. or Low).

Range (if so equipped)

Allows user to select the sensor range (Far, Mid. or Near).

Chassis Control

Displays available chassis controls options.

Trace Control

Allows user to turn the trace control feature on or off. For additional information, refer to “Intelligent Trace Control
(I-TC)” in the “Starting and driving” section of this manual.

Engine Brake

Allows user to turn the engine brake feature on or off. For additional information, refer to “Intelligent Engine Brake
(I-EB)” in the “Starting and driving” section of this manual.

Clock

Menu item

Result

Clock

Allows user to adjust the clock settings and time within the vehicle information display. Adjustments that
can be made include automatically setting the time, 12H/24H format, Daylight Savings Time, time zone, and
manually setting the time.
The clock may also be set within the center display. For additional information, refer to the separate
NissanConnect® Owner’s Manual.

Instruments and controls

2-25

Meter Settings

The meter settings allow the user to change the settings for the vehicle information display.

Menu item

Result

Main Menu Selection

Displays the available options.

Home

Allows user to turn the home screen on or off in the vehicle information display.

Average Speed

Allows user to turn the average speed screen on or off in the vehicle information display.

Trip

Allows user to turn the trip display on or off in the vehicle information display.

Fuel Economy

Allows user to turn the fuel economy display on or off in the vehicle information display.

Navigation (if so equipped)

Allows user to turn the navigation display on or off in the vehicle information display. For additional
information, refer to the separate NissanConnect® Owner’s Manual.

Audio

Allows user to turn the audio screen on or off in the vehicle information display. For additional information,
refer to the separate NissanConnect® Owner’s Manual.

Cruise Control (if so equipped)

Allows user to turn the cruise control display on or off in the vehicle information display.

Driving Aids (if so equipped)

Allows user to turn the driving aids display on or off in the vehicle information display. For additional
information, refer to “Driver Assistance” in this section.

Tire Pressures

Allows user to turn the tire pressure display on or off in the vehicle information display.

4x4–i (if so equipped)

Allows user to turn the 4x4–i display on or off in the vehicle information display.

Chassis Control

Allows user to turn the chassis control display on or off in the vehicle information display.

Body Color

Allows user to select the color of the vehicle displayed in the vehicle information display.

ECO Mode Settings

Displays the available options for ECO mode settings.

ECO Indicator

Allows the user to turn the ECO indicator on or off in the vehicle information display.

DISP Mode

Allows user to select how the ECO mode in displayed.

Pedal

Select to have the ECO mode shown as a pedal display.

Inst.FE

Select to have the ECO mode shown as instant fuel economy.

ECO Drive Report

Displays the available options for the ECO drive report.

Display

Allows user to turn the ECO drive report on or off.

View History

Allows user to view and reset ECO drive report history.

Welcome Effect

Displays the available options for the welcome effect.

Dial Effect

Allows user to turn the dial effect on or off.

Display Effect

Allows user to turn the display effect on or off.

2-26

Instruments and controls

Vehicle Settings

The vehicle settings allow the user to
change the settings for lights, wipers, lock-
ing, keys, and other vehicle settings.

Menu item

Result

Lighting

Displays the available lighting options.

Welcome Light

Allows user to turn the welcome light on or off.

Auto Room Lamp

Allows user to turn the auto room lamp on or off.

Light Sensitivity (if so equipped)

Allows user to change when the lights illuminate based on the brightness outside the vehicle.

Light Off Delay (if so equipped)

Allows user to change the duration of time that the automatic headlights stay on after the vehicle is shut off.

Turn indicator

Displays the available turn indicator options.

3 Flash Pass

Allows user to turn the 3 flash pass feature on or off.

Locking

Displays the available locking options.

I-Key Door Lock (if so equipped)

Allows user to turn I-Key door lock on or off. When turned on, the request switch on the door is activated.

Selective Unlock

Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked after the
door unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is
pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the
door unlock operation is performed again within 5 seconds. When this item is turned off, all the doors will be
unlocked after the door unlock operation is performed once.

Auto Door Unlock

Displays the auto door unlock options.

Shift to Park

Doors will unlock when the vehicle is shifted into P (Park).

IGN OFF

Doors will unlock when the ignition is turned off.

OFF

Doors will have to be manually unlocked.

Auto Door Lock

Displays the available auto door lock options.

Off

Doors will have to be manually locked.

Vehicle Speed

Doors will lock when the vehicle reaches a certain speed.

Shift out of P

Doors will lock when the vehicle is shifted out of P (Park).

Answer Bk. Horn

Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators
will flash once when locking the vehicle with the Intelligent Key.

Instruments and controls

2-27

Menu item

Result

Wipers

Displays the available wiper options.

Speed Dependent

Allows user to turn wiper with speed on or off.

Reverse Link (if so equipped)

Allows user to turn the reverse link feature on or off.

Drip Wipe

Allows user to turn the drip wipe feature on or off.

Remote Start (if so equipped)

Allows user to turn the Remote Engine Start on or off. When turned on, the engine can be restarted remotely.
For additional information, refer to “Remote Engine Start” in the “Pre-driving checks and adjustments” section
of this manual.

Battery Saver (if so equipped)

Allows user to turn the battery saver on or off. When turned on, the battery saver automatically turns off the
ignition after a period of time when the ignition switch is left in the ON position.

Driving Position (if so equipped)

Displays the available driving position options.

Exit Seat Slide

Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat
backward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into
the vehicle and placing the ignition switch in the ON position, the driver’s seat will move to the previous set
position. For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and ad-
justments” section of this manual.

Rear Door Alert

Displays the available Rear Door Alert options.

Horn & Alert

When selected, the alert is displayed; and the horn sounds.

Alert Only

When selected, only the alert is displayed.

OFF

When selected, no alert or horn will be active.

2-28

Instruments and controls

Maintenance

The maintenance menu allows the user to
set reminders for various vehicle mainte-
nance items.

WARNING

The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. For addi-
tional information, refer to “Changing
wheels and tires” in the “Do-it-yourself ”
section of this manual. Many factors in-
cluding tire inflation, alignment, driving
habits and road conditions affect tire
wear and when tires should be re-
placed. Setting the tire replacement in-
dicator for a certain driving distance
does not mean your tires will last that
long. Use the tire replacement indicator
as a guide only and always perform
regular tire checks. Failure to perform
regular tire checks, including tire pres-
sure checks could result in tire failure.
Serious vehicle damage could occur
and may lead to a collision, which could
result in serious personal injury or
death.

Menu item

Result

Maintenance

Displays various maintenance reminder options.

Oil and Filter

Allows user to set a reminder at a specific interval or reset the current one.

Tire

Allows user to set a reminder at a specific interval or reset the current one.

Other

Allows user to set a reminder at a specific interval or reset the current one.

Instruments and controls

2-29

Alarm

The alarm menu allows the user to set spe-
cific alarms for various items on the vehicle.

Menu item

Result

Timer Alert

Allows user to set the timer alert alarm.

Navigation (if so equipped)

Allows user to turn the navigation alarm on or off.

Phone

Allows user to turn the phone alarm on or off.

Mail

Allows user to turn the mail alarm on or off.

Tire Pressures

The tire pressure menu allows the user to
change the units for the tire pressure dis-
play.

Menu item

Result

Tire Pressure Unit

Displays available units for tire pressure display.

Unit

The unit menu allows the user to custom-
ize the information that appears in the ve-
hicle information display.

Menu item

Result

Mileage

Displays available mileage options shown in the vehicle information display.

Tire Pressures (if so equipped)

Displays available tire pressures options shown in the vehicle information display.

Temperature

Displays available temperature options shown in the vehicle information display.

2-30

Instruments and controls

Language

The language menu allows the user to
change the languages displayed in the ve-
hicle information display.

Menu item

Result

Language

Displays available language options for the vehicle information display.

Factory Reset

The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.

Menu item

Result

Factory Reset

Allows user to reset the vehicle information display settings to the original factory settings. Once selected,
the user can confirm or cancel the reset.

Instruments and controls

2-31

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS

1. Engine start operation

2. No Key Detected (if so equipped)

3. Shift to Park

4. Key Battery Low (if so equipped)

5. Engine start operation for Intelligent

Key system (if I-Key battery level is low)
(if so equipped)

6. Key ID incorrect (if so equipped)

7. Release Parking Brake

8. Low Fuel

9. Low Washer Fluid (if so equipped)

10. Door/liftgate Open

11. Key System Error: See Owner’s Manual

(if so equipped)

12. Loose Fuel Cap

13. Tire Pressure Low — Add Air

14. Flat Tire — Visit dealer (if so equipped)

15. Low Oil Pressure Stop Vehicle

16. AWD Error: See Owner’s Manual (if so

equipped)

17. AWD High Temp. Stop vehicle (if so

equipped)

18. Tire Size Incorrect: See Owner’s Manual

(if so equipped)

19. Battery Voltage Low Charge Battery

20. Shipping Mode On Push Storage Fuse

21. Power will turn off to save the battery

22. Power turned off to save the battery

23. Reminder: Turn OFF Headlights

24. Headlight System Error: See Owner’s

Manual (if so equipped)

25. Timer Alert — Time for a driver break?

26. Chassis Control System Error: See

Owner’s Manual

27. Cruise control indicator (if so equipped)

28. Intelligent Cruise Control (ICC) indica-

tors (if so equipped)

29. Transmission Shift Position indicator

30. CVT Error: See Owner’s Manual

31. Malfunction: See Owner’s Manual

32. Drive mode indicators

33. Unavailable: High Cabin Temp (if so

equipped)

34. Unavailable: Road is slippery (if so

equipped)

35. Unavailable: VDC OFF (if so equipped)

36. Unavailable: Front Radar Obstruction (if

so equipped)

37. Side Radar Obstruction (if so equipped)

38. Lane Departure Warning (LDW) indica-

tor (if so equipped)

39. Intelligent Lane Intervention (I-LI) indi-

cator (if so equipped)

40. Steering

Assist

indicator

(if

equipped)

41. Not Available Poor Road Conditions (if

so equipped)

42. Currently not available (if so equipped)

43. Not

Available

Front

Camera

Ob-

structed (if so equipped)

44. Steering Assist Currently unavailable (if

so equipped)

45. Not Available Front camera visibility im-

paired (if so equipped)

46. Not Available Parking Brake On (if so

equipped)

2-34

Instruments and controls

47. Not Available Seat Belt Not Fastened (if

so equipped)

48. Step on Brake Now (if so equipped)

49. Steering Assist on Alert (if so equipped)

50. Automatic Emergency Braking (AEB)

emergency warning indicator

51. Rear Door Alert is activated

52. Check Rear Seat for All Articles

53. Rear Automatic Braking (RAB) indicator

(if so equipped)

54. Rear Sonar System (RSS) indicator (if so

equipped)

55. Parking Sensor Error: See Owner’s

Manual (if so equipped)

56. Blind Spot Warning (BSW) indicator

57. System Fault (if so equipped)

Engine start operation

This indicator appears when the shift lever
is in the P (Park) position.

This indicator means that the engine will
start by pushing the ignition switch with
the brake pedal depressed. You can start
the engine from any position of the ignition
switch.

No Key Detected (if so equipped)

This warning appears when the Intelligent
Key is left outside the vehicle with the igni-
tion switch in the ON position. Make sure
the Intelligent Key is inside the vehicle.

For additional information about the Intel-
ligent Key, refer to “NISSAN Intelligent Key®”
in the “Pre-driving checks and adjust-
ments” section of this manual.

Shift to Park

This warning illuminates when the ignition
switch is in the OFF position and the shift
lever is not in the P (Park) position. Also, a
chime sounds when the ignition switch is
in the OFF position.

If this warning illuminates, move the shift
lever to the P (Park) position and start the
engine.

Key Battery Low (if so equipped)

This indicator illuminates when the Intelli-
gent Key battery is running out of power.

If this indicator illuminates, replace the bat-
tery with a new one. For additional infor-
mation, refer to “Battery replacement” in
the “Do-it-yourself ” section of this manual.

Engine start operation for Intelligent
Key system (if I-Key battery level is low)
(if so equipped)

This indicator appears when the battery of
the Intelligent Key is low and when the In-
telligent Key system and the vehicle are not
communicating normally.

If this appears, touch the ignition switch
with the Intelligent Key while depressing
the brake pedal. For additional information,
refer to “NISSAN Intelligent Key® battery dis-
charge” in the “Starting and driving” section
of this manual.

Key ID incorrect (if so equipped)

This warning appears when the ignition
switch is placed from the OFF position and
the Intelligent Key is not recognized by the
system. You cannot start the engine with
an unregistered key.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

Release Parking Brake

This warning illuminates in the message
area of the vehicle information display
when the parking brake is set and the ve-
hicle is driven.

Instruments and controls

2-35

Nissan Rogue (2019 year). Instruction - part 7
