Nissan Rogue Select (2015 year). Instruction

service as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.

CAUTION

. Do not operate the washer continu-

ously for more than 30 seconds.

. Do not operate the washer if the

reservoir tank is empty.

. Do not fill the window washer

reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.

. Pre-mix washer fluid concentrates

with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer

reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.

If the windshield wiper operation is inter-
rupted by snow or ice, the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to the OFF position
and remove the snow or ice that is on and
around the wiper arms. In approximately 1
minute, turn the switch on again to operate
the wiper.

Instruments and controls

2-27

WINDSHIELD WIPER AND WASHER
SWITCH

2-28

Instruments and controls

SIC2821

The windshield wiper and washer operates
when the ignition switch is in the ON position.

Push the lever down to operate the wiper at the
following speed:

Intermittent — intermittent operation can be
adjusted by turning the knob toward

(Slower) or

(Faster).

Low — continuous low speed operation

High — continuous high speed operation

Push the lever up

to have one sweep

operation of the wiper.

Pull the lever toward you

to operate the

washer. Then the wiper will also operate several
times.

WARNING

In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.

CAUTION

. Do not operate the washer continu-

ously for more than 30 seconds.

. Do not operate the washer if the

reservoir tank is empty.

. Do not fill the window washer

. Pre-mix washer fluid concentrates

with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the

window washer reservoir tank to
mix the washer fluid concentrate
and water.

If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi-
mately 1 minute, turn the switch on again
to operate the wiper.

REAR WINDOW WIPER AND
WASHER SWITCH

SIC3480

The rear window wiper and washer operate
when the ignition switch is in the ON position.

Turn the switch clockwise from the OFF position
to operate the wiper.

Intermittent (INT) — intermittent operation (not
adjustable)

Low (ON) — continuous low speed operation

Push the switch forward

to operate the

washer. Then the wiper will also operate several
times.

SIC3481

To defog/defrost the rear window glass, start the
engine and push the switch on. The indicator
light

will illuminate. Push the switch again to

turn the defroster off.

It will automatically turn off in approximately 15
minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.

SIC2745

HEADLIGHT SWITCH

Lighting

Turn the switch to the

position:

The front parking, side marker, tail, license plate
and instrument lights will come on.

Turn the switch to the

position:

Headlights will come on and all the other lights
remain on.

Instruments and controls

2-29

REAR WINDOW DEFROSTER
SWITCH

HEADLIGHT AND TURN SIGNAL
SWITCH

2-30

Instruments and controls

SIC3484

Headlight beam select

To select the low beam, put the lever in the
neutral position as shown.

To select the high beam, push the lever forward
while the switch is in the

position. Pull it

back to select the low beam.

Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.

Battery saver system

. When the headlight switch is in the

position while the ignition switch is in

the ON position, the lights will automatically
turn off within a period of time after the
ignition switch has been turned to the OFF
position.

. When the headlight switch remains in the

position after the lights auto-

matically turn off, the lights will turn on when
the ignition switch is turned to the ON
position.

CAUTION

. When you turn on the headlight

switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.

. Never leave the light switch on

when the engine is not running for
extended periods of time even if the
headlights turn off automatically.

SIC3488

TURN SIGNAL SWITCH

Turn signal

Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.

Lane change signal

To indicate a lane change, move the lever up or
down to the point where lights begin flashing.

SIC3404

To sound the horn, push the center pad area of
the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.

SSD1153

The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.

If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.

To turn off the VDC system, push the VDC OFF
switch. The

indicator light will illuminate.

Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-27).)

SIC3492

Instrument panel

SIC3493

Center console

Instruments and controls

2-31

HORN

VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

POWER OUTLET

2-32

Instruments and controls

The power outlet is located in the instrument
panel and the center console.

CAUTION

. The outlet and plug may be hot

during or immediately after use.

. Do not use with accessories that

exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.

. Use power outlet with the engine

running to avoid discharging the
vehicle battery.

. Avoid using power outlet when the

air conditioner, headlights or rear
window defroster is on.

. Before inserting or disconnecting a

plug, be sure the electrical acces-
sory being used is turned OFF.

. This power outlet is not designed

for use with a cigarette lighter unit.

. Push the plug in as far as it will go.

If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

. When not in use, be sure to close

the cap. Do not allow water or any
liquid to contact the outlet.

CUP HOLDERS

CAUTION

. Avoid abrupt starting and braking

when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.

. Use only soft cups in the cup holder.

Hard objects can injure you in an
accident.

STORAGE

SIC3494

Front

The flap

will be folded down when inserting

a large container.

To remove the inner tray for cleaning, pull it up as
illustrated

SIC3495

Rear

To open the cup holder, pull the lid.

SIC3496

SUNGLASSES HOLDER

WARNING

Keep the sunglasses holder closed
while driving to prevent an accident.

To open the sunglasses holder, push

CAUTION

. Do not use for anything other than

glasses.

Instruments and controls

2-33

2-34

Instruments and controls

. Do not leave glasses in the sun-

glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.

SIC3497

SIC3498

GLOVE BOX

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.

To open the glove box, pull the handle.

To close, push the lid in until the lock latches.
The glove box light illuminates when the head-
light switch is turned on.

Card holder

Back side pocket of lid

Removable partition (if so equipped)

To remove the partition, pull it out.

SIC3499

CONSOLE BOX

To open the console boxes, push up the knob

and pull up the lid.

To close, push the lid down until latched.

To remove the inner box (if so equipped) for
cleaning or storing a large object, pull it up as
illustrated

The inside of the console box lid is designed to
be used as a card holder

and pen holders

SIC4530

Type A (if so equipped)

SIC3514

Type B (if so equipped)

LUGGAGE FLOOR BOX (if so
equipped)

Type A (if so equipped): To open the luggage
floor box, push

. To close, push the lid until

the lock latches.

The net partitions can be folded to make a larger
storage space.

CAUTION

To avoid damage, do not load more
than 22 lbs (10 kg) of cargo into the
luggage floor box.

Type B (if so equipped): To open the luggage
floor box, pull the handle

on the lid. To close,

push the lid until the lock latches.

The luggage floor box needs to be removed
when you need a spare tire. (See “Flat tire” (P.6-
2).)

Instruments and controls

2-35

2-36

Instruments and controls

SIC4267

LUGGAGE SIDE BOX

To open the luggage side box, pull up the strap.

SIC3503

CARGO COVER (if so equipped)

The cargo cover keeps the contents in the cargo
area hidden from the outside.

To use the cargo cover, pull it out and hang both
sides on the hooks

To stow the cargo cover, remove it from the

hooks and hold until it is retracted.

To remove the cargo cover, stow the cover and
pull the holder to the opposite side

WARNING

. Never put anything on the cargo

cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.

. Close the cargo cover when folding

the rear seat.

. Do not leave the cargo cover in the

vehicle with it disengaged from the
holder.

. Properly secure all cargo with ropes

or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.

. If the cargo cover contacts the top

tether strap when it is attached to
the top tether anchor, remove the
cargo cover from the vehicle or
secure it on the cargo floor below
its attachment location. If the cargo

cover is not removed, it may da-
mage the top tether strap during a
collision. Your child could be ser-
iously injured or killed in a collision
if the child restraint top tether strap
is damaged.

. Do not allow cargo to contact the

top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not
contact the top tether strap. Cargo
that is not properly secured or that
contacts the top tether strap may
damage the top tether strap during
a collision. Your child could be
seriously injured or killed in a colli-
sion if the child restraint top tether
strap is damaged.

JVI0850X

LUGGAGE HOOKS

WARNING

. Always make sure that the luggage

is properly secured. Use the suitable
ropes and hooks.

. Unsecured luggage can become

dangerous in an accident or sudden
stop.

CAUTION

Do not apply a total load of more than
22 lb (10 kg)

to a single hook.

Instruments and controls

2-37

2-38

Instruments and controls

SIC4550

COAT HOOKS

The coat hooks are equipped above the rear
window.

CAUTION

Do not apply a total load of more than 2
lb (1 kg) to a single hook.

SIC3506

UTILITY HOOK

To use the utility hook on the seatback, pull it.

CAUTION

. Do not apply a total load of more

than 6 lb (3 kg) to the hook.

. Do not use the utility hook to pull

the seatback to the upright and
locked position. Doing so will cause
the utility hook to break.

SIC3549

ROOF RACK (if so equipped)

Secure the crossbars to the roof rail before
loading. The crossbars are available from a
NISSAN dealer.

Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg). Be
careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear). The GVWR and GAWR are located on the
F.M.V.S.S. certification label (located on the
driver’s door pillar). For more information re-
garding GVWR and GAWR, see “Vehicle
loading information” (P.9-12).

WARNING

. Drive extra carefully when the vehi-

cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.

. Heavy loading of the roof rack has

the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.

. Roof rack load should be evenly

distributed.

. Do not exceed maximum roof rack

load weight capacity.

. Properly secure all cargo with ropes

or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

CAUTION

Use care when placing or removing
items from the roof rack. If you cannot
comfortably lift the items onto the roof

rack from the ground, use a ladder or
stool.

POWER WINDOWS

WARNING

. Make sure that all passengers have

their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.

The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is turned to the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.

Instruments and controls

2-39

WINDOWS

2-40

Instruments and controls

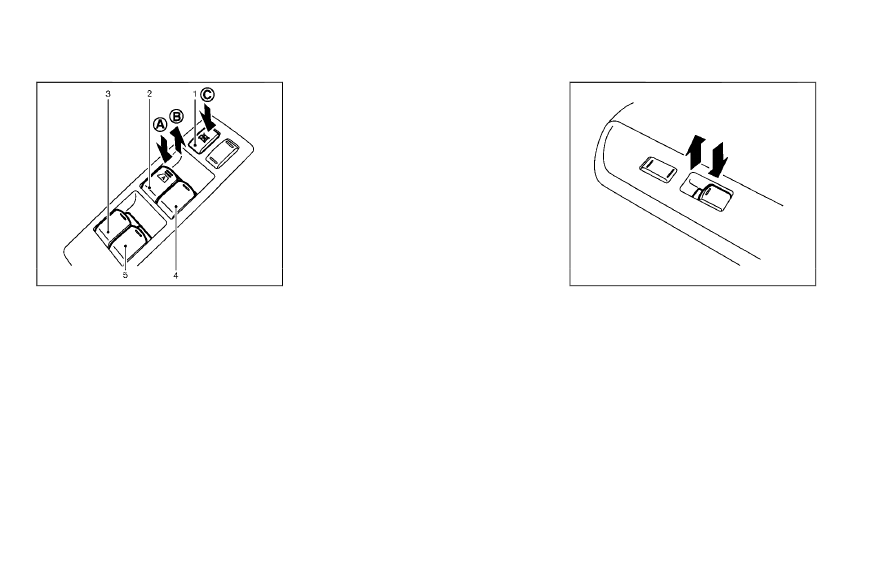

SIC3507

Window lock button

Driver side window

Rear left passenger side window

Front passenger side window

Rear right passenger side window

Main power window switch (driver’s
side)

To open or close the window, push down

pull up

the switch and hold it. The main

switch (driver side switches) will open or close
all the windows.

Locking passengers’ windows

When the lock button

is pushed in, only the

driver side window can be opened or closed.
Push it in again to cancel.

SIC3508

Passenger side power window switch

The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.

SIC3509

Automatic operation (if so equipped)

The automatic operation is available for the
switch that has an

mark on its surface.

To fully open or close the window, push down or
pull up the switch to the second detent and
release it; the switch need not be held. The
window will automatically open or close all the
way. To stop the window, just push or lift the
switch in the opposite direction.

A light push or pull on the switch will cause the
window to open or close until the switch is
released.

Auto-reverse function (if so equipped)

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.

If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.

The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is turned
to the OFF position.

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

If the windows do not close automatically

If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.

1. Turn the ignition switch to the ON position.

2. Close the door.

3. Open the window completely by operating

the power window switch.

4. Pull the power window switch and hold it to

close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.

5. Release the power window switch. Operate

the window by the automatic function to
confirm the initialization is complete.

If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.

Instruments and controls

2-41

2-42

Instruments and controls

CAUTION

Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.

MAP LIGHTS

Push the light lens to turn the map light on or off.

SIC3512

The map light control switch has three positions:
ON

, DOOR

and OFF

The light

(if so equipped) will illuminate

when the headlight switch is turned to the
or

position.

ON position

When the switch is in the ON position

, the

map lights will illuminate.

DOOR position

When the switch is in the DOOR position

the map lights will illuminate under the following
conditions:
. ignition switch is turned to the LOCK

position
— remain on for about 15 seconds.

. doors are unlocked by pushing the unlock

button

(on the key fob), with the ignition

switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed with the

ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened with the ignition switch

in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights go
off.

The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

INTERIOR LIGHTS

Nissan Rogue Select (2015 year). Instruction - part 7
