Nissan Rogue Hybrid (2019 year). Instruction - part 9





Headlight System Error: See Owner’s
Manual (if so equipped)

This warning appears when there is an er-
ror with the system. For additional informa-
tion, refer to “Headlight and turn signal
switch” in this section.

Side Radar Obstruction

This message appears when the Blind
Spot Warning (BSW)/Rear Cross Traffic Alert
(RCTA) systems become unavailable be-
cause a radar blockage is detected. For
additional information, refer to “Blind Spot
Warning (BSW)” or “Rear Cross Traffic Alert
(RCTA)” in the “Starting and driving” section
of this manual.

Unavailable: Front Radar Obstruction (if
so equipped)

This message appears when the Intelligent
Cruise Control (ICC) system, the Automatic
Emergency Braking (AEB) system or the
Automatic Emergency Braking (AEB) with
Pedestrian Detection system becomes un-
available because the front radar is ob-
structed. For additional information, refer
to “Intelligent Cruise Control (ICC)”, “Auto-
matic Emergency Braking (AEB)” or “Auto-
matic Emergency Braking (AEB) with Pe-

destrian Detection” in the “Starting and
driving” section of this manual.

Shift to Park Li-ion battery low

This warning appears when the shift lever
is in the N (Neutral) position and the level of
remaining charge in the Li-ion battery is
low. When this warning appears, place the
shift lever in the P (Park) position.
This will turn off in the following condi-
tion(s):

∙ When the shift lever has been placed in

the P (Park) position.

HV System Warm up Please Wait In Park

This warning appears when the hybrid sys-
tem has not reached full operating tem-
perature. When the warning turns off, the
vehicle can be driven.

Unavailable: Road is slippery (if so
equipped)

This message appears when the Intelligent
Lane Intervention (I-LI) system becomes
unavailable because the road is slippery.
For additional information, refer to “ Intelli-
gent Lane Intervention (I-LI)” in the “Starting
and driving” section of this manual.

Unavailable: VDC OFF (if so equipped)

This message appears when the Intelligent
Lane Intervention (I-LI) system becomes
unavailable because the VDC is turned off.
For additional information, refer to “ Intelli-
gent Lane Intervention (I-LI)” in the “Starting
and driving” section of this manual.

Unavailable: High Cabin Temp. (if so
equipped)

This message appears when the camera
detects an interior temperature of more
than approximately 104°F (40°C). For addi-
tional information, refer to “Lane Departure
Warning (LDW)” and “Intelligent Lane Inter-
vention (I-LI)” in the “Starting and driving”
section of this manual.

Lane Departure Warning (LDW) indicator
(if so equipped)

This indicator shows when the LDW and
Intelligent Lane Intervention (I-LI) systems
are engaged.

For additional information, refer to “Lane
Departure Warning (LDW) system” and “In-
telligent Lane Intervention (I-LI)” in the
“Starting

and

driving”

section

of

this

manual.

2-38

Instruments and controls

Intelligent Lane Intervention (I-LI) indi-
cator (if so equipped)

This indicator shows when the I-LI system
is engaged.

For additional information, refer to “Dy-
namic driver assistance switch” in this sec-
tion and “Intelligent Lane Intervention (I-LI)”
in the “Starting and driving” section of this
manual.

Rear Door Alert is activated

When the system is enabled, this message
appears when the Rear Door Alert system
is active and can remind the driver to check
the back seat.

∙ Using the steering wheel switch, a driver

can select “Dismiss Message” to clear
the display for a period of time. If no
selection is made, this message auto-
matically turns off after a period of time.

∙ Using the steering wheel switch, a driver

can select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.

WARNING

Selecting “Dismiss Message” during a
stop within a trip temporarily dismisses
the message for that stop without turn-
ing the system off. Alerts can be pro-
vided for other stops during the trip. Se-
lecting “Disable Alert” turns off the Rear
Door Alert system for the remainder of
a trip and no audible alert will be
provided.

NOTE:

This system is disabled until a driver en-
ables it using the vehicle information
display. For additional information, refer
to “How to use the vehicle information
display” in this section.

For additional information, refer to “Rear
Door Alert” in this section.

Check Rear Seat For All Articles

When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from
the D (Drive) position to P (Park) position,
and the driver exits the vehicle. This mes-
sage alerts the driver, after a period of time,
to check for items in the rear seat after the
audible alert has been provided.

NOTE:

This system is disabled until a driver en-
ables it using the vehicle information
display. For additional information, refer
to “How to use the vehicle information
display” in this section.

For additional information, refer to “Rear
Door Alert” in this section.

Rear Automatic Braking (RAB) system
warning indicator (if so equipped)

This indicator illuminates to indicate the
status of the Rear Automatic Braking (RAB)
system. For additional information, refer to
“Rear Automatic Braking (RAB) system” in
the “Starting and driving” section of this
manual.

Blind Spot Warning (BSW) indicator (if
so equipped)

This indicator shows when the BSW system
is engaged.

For additional information, refer to “Blind
Spot Warning (BSW)” in the “Starting and
driving” section of this manual.

Instruments and controls

2-39

Rear Sonar System (RSS) indicator (if so
equipped)

This indicator illuminates to indicate the
status of the RSS. For additional informa-
tion, refer to “Rear Sonar System (RSS)” in
the “Starting and driving” section of this
manual.

Parking Sensor Error: See Owner’s
Manual (if so equipped)

This warning illuminates when there is an
error with the system. For additional infor-
mation, refer to “Rear Sonar System (RSS)”
in the “Starting and driving” section of this
manual.

Automatic Emergency Braking (AEB)
emergency warning indicator (if so
equipped)

This indicator illuminates along, with an au-
dible warning, when the system detects
the possibility of a forward collision.

For additional information, refer to “Auto-
matic Emergency Braking (AEB)” in the
“Starting

and

driving”

section

of

this

manual.

System Fault (if so equipped)

This warning appears if there is a malfunc-
tion in the Rear Automatic Braking (RAB)
system. For additional information, refer to
“Rear Automatic Braking (RAB)” in the “Start-
ing and driving” section of this manual.

Your vehicle may have two types of security
systems:

∙ Vehicle security system

∙ NISSAN Vehicle Immobilizer System

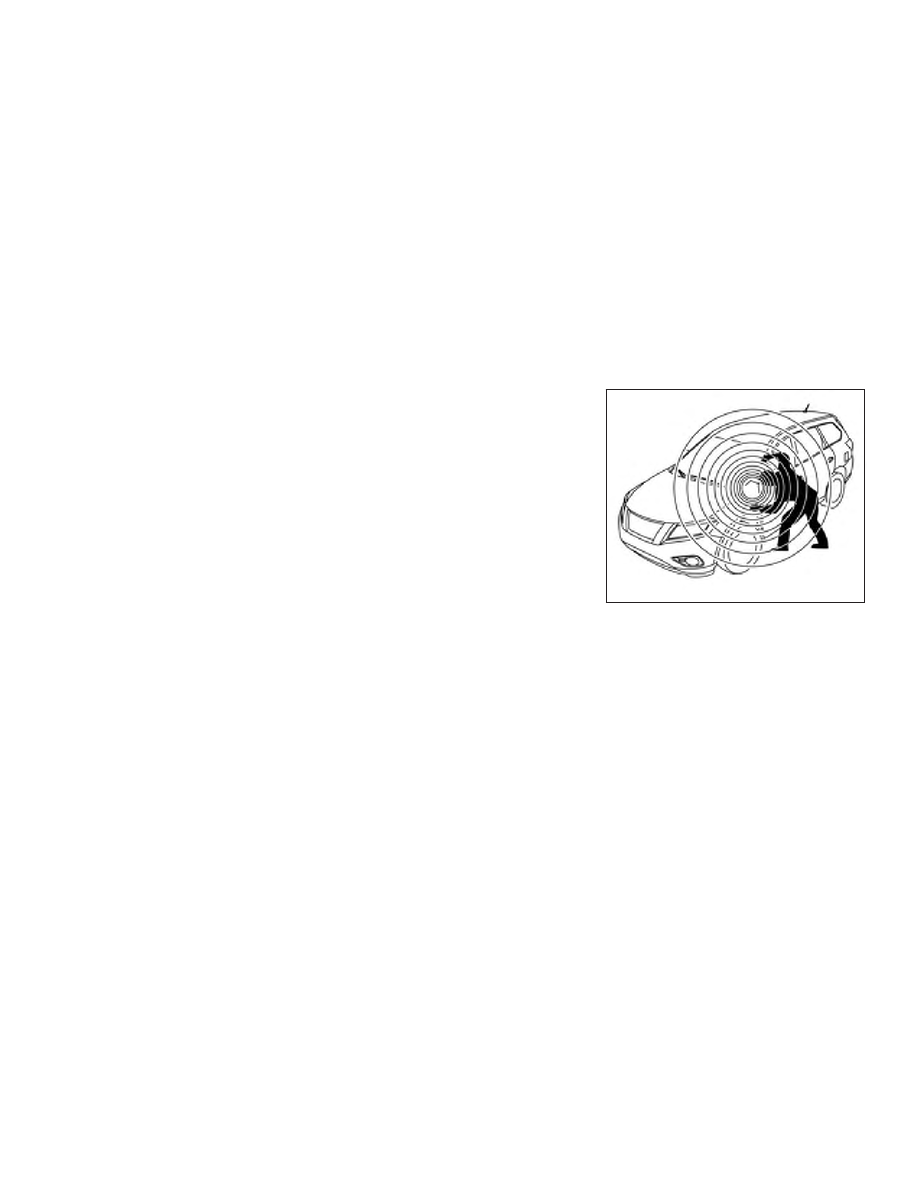

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual
and audible alarm signals if someone
opens the doors or liftgate when the sys-
tem is armed. It is not, however, a motion
detection type system that activates when
a vehicle is moved or when a vibration oc-
curs.

LIC2385

SECURITY SYSTEMS

2-40

Instruments and controls

The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your keys in the vehicle, and
always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN dealer may also offer
such equipment. Check with your insur-
ance company to see if you may be eligible
for discounts for various theft protection
features.

How to arm the vehicle security
system

1. Close all windows. (The system can be

armed even if the windows are open.)

2. Remove the keys from the vehicle.

3. Close all doors and liftgate. Lock all

doors. The doors can be locked with
the key fob (if so equipped), Intelligent
Key (if so equipped), door handle re-
quest switch, or mechanical key (if so
equipped).

4. Confirm that the

security indica-

tor light stays on for about 30 seconds.
The vehicle security system is now pre-
armed. The vehicle security system will
automatically shift into the armed
phase. The

security light begins

to flash once every three seconds. If
during the pre-armed phase one of the
following occurs, the system will not
arm:

∙ Any door is unlocked with the key fob (if

so equipped), the Intelligent Key (if so
equipped),

mechanical

key

(if

so

equipped), or door request switch.

∙ Ignition switch is placed in the ON posi-

tion.

∙ Even when the driver and/or passen-

gers are in the vehicle, the system will
activate with all the doors, hood and
liftgate

locked

with

the

ignition

switch placed in the LOCK position.
When placing the ignition switch in
the ON position, the system will be
released.

Vehicle security system activation

The vehicle security system will give the
following alarm:

∙ The turn signals blink and the horn

sounds intermittently.

∙ The alarm automatically turns off after

a period of time. However, the alarm
reactivates if the vehicle is tampered
with again. The alarm can be shut off by
unlocking the driver’s door or liftgate
with the key (if so equipped) or by press-
ing the

button on the Intelligent

Key.

Instruments and controls

2-41

The alarm is activated by:

∙ Opening the door or liftgate without us-

ing the key (if so equipped) or Intelligent
Key (even if the door is unlocked by re-
leasing the door inside lock switch).

How to stop an activated alarm

The alarm stops only by unlocking a door
or the liftgate with the mechanical key (if so
equipped), pressing the

button on

the Intelligent Key, or pushing the request
switch on the driver’s or passenger’s door
with the Intelligent Key in range of the door
handle.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the hybrid system to start
without the use of a registered key.

Never leave these keys in the vehicle.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired
operation of the device.

Security indicator light

The security indicator light blinks whenever
the ignition switch is placed in the OFF or
LOCK position.

This function indicates the NISSAN Vehicle
Immobilizer System is operational.

If the NISSAN Vehicle Immobilizer System is
malfunctioning, the light will remain on
while the ignition switch is placed in the ON
position.

LIC0474

2-42

Instruments and controls

If the light still remains on and/or the
hybrid system will not start, seek service
for the NISSAN Vehicle Immobilizer Sys-
tem service as soon as possible. Please
bring all registered keys that you have. It
is recommended that you visit a NISSAN
dealer for this service.

SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm the windshield
with the defroster before you wash the
windshield.

CAUTION

∙ Do not operate the washer continu-

ously for more than 30 seconds.

∙ Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

∙ Do not fill the windshield-washer fluid

reservoir

with

windshield-washer

fluid concentrates at full strength.
Some

methyl

alcohol

based

windshield-washer

fluid

concen-

trates may permanently stain the
grille

if

spilled

while

filling

the

windshield-washer fluid reservoir.

∙ Pre-mix windshield-washer fluid con-

centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

LIC2661

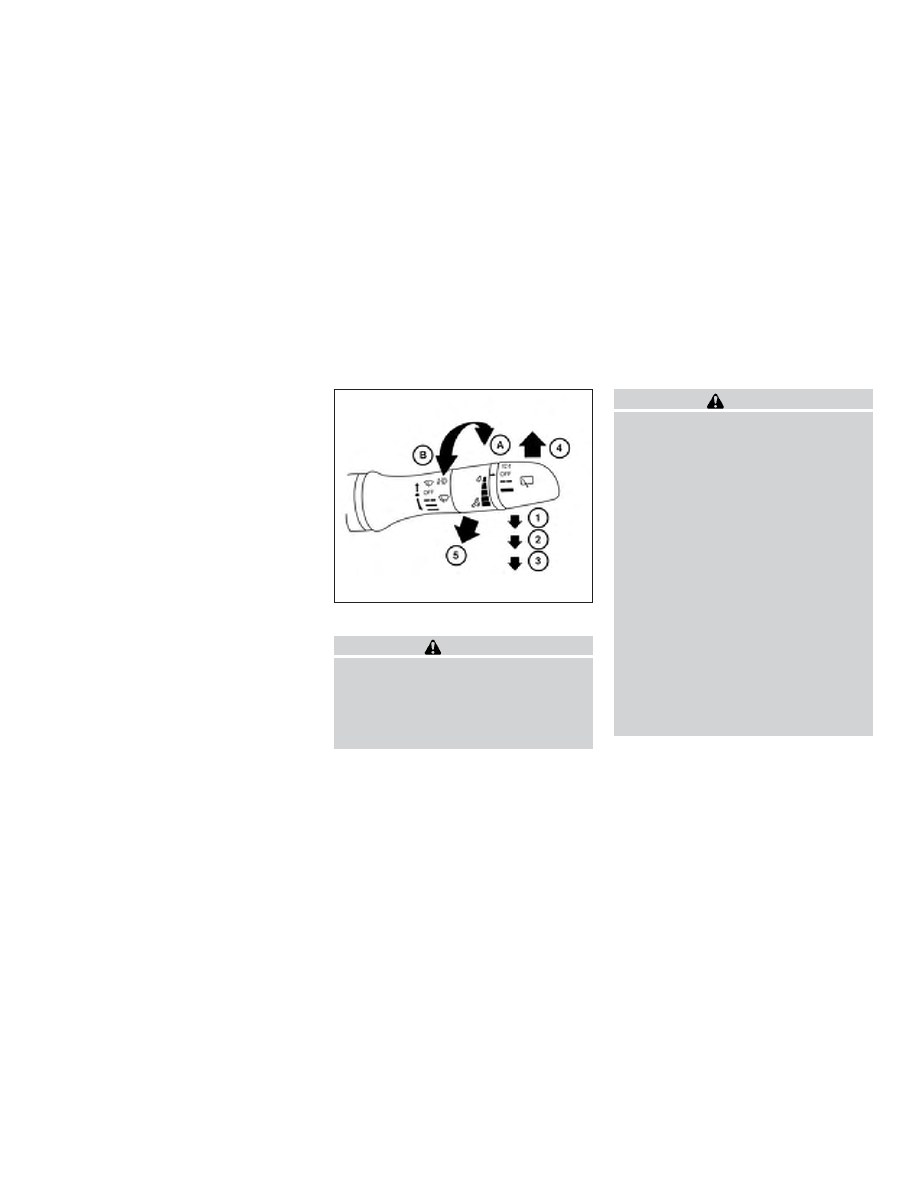

WIPER AND WASHER SWITCH

Instruments and controls

2-43

NOTE:

If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.

The windshield wiper and washer operates
when the ignition switch is in the ON posi-
tion.

Push the lever down to operate the wiper
at the following speed:

1

Intermittent — intermittent operation
can be adjusted by turning the knob
toward

A

(Slower) or

B

(Faster). Also,

the intermittent operation speed var-
ies in accordance with the vehicle
speed. (For example, when the vehicle
speed is high, the intermittent opera-
tion speed will be faster.)

2

Low — continuous low speed opera-
tion

3

High — continuous high speed opera-
tion

Lift the lever up

4

to have one sweep op-

eration (MIST) of the wiper.

Pull the lever toward you

5

to operate the

washer. The wiper will also operate several
times.

After a short delay the drip wipe function
will operate the wiper once more to clear
remaining windshield-washer fluid from
the windshield.

NOTE:

The Speed Dependent feature and Drip
Wipe feature may be disabled. For addi-
tional information, refer to “Vehicle in-
formation display” in this section.

REAR SWITCH OPERATION

WARNING

In freezing temperatures the washer
solution may freeze on the window and
obscure your vision. Warm the rear win-
dow with the defroster before you wash
the rear window.

LIC2662

2-44

Instruments and controls

CAUTION

∙ Do not operate the washer continu-

ously for more than 30 seconds.

∙ Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

∙ Do not fill the windshield-washer fluid

reservoir

with

windshield-washer

fluid concentrates at full strength.
Some

methyl

alcohol

based

windshield-washer

fluid

concen-

trates may permanently stain the
grille

if

spilled

while

filling

the

windshield-washer fluid reservoir.

∙ Pre-mix windshield-washer fluid con-

centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer fluid reservoir. Do not use the
windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

NOTE:

If the rear window wiper operation is in-
terrupted by snow, etc., the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to OFF and
remove the snow, etc. on and around the
wiper arms. After about 1 minute, turn
the switch ON again to operate the wiper.

The rear window wiper and washer oper-
ate when the ignition switch is in the ON
position. Turn the switch clockwise from
the OFF position to operate the wiper.

1

Intermittent (INT) — intermittent op-
eration (not adjustable)

2

Low (ON) — continuous low speed op-
eration

Push the switch forward

3

to operate the

washer. The wiper will also operate several
times.

NOTE:

The Reverse Link feature may be dis-
abled. For additional information, refer
to “Vehicle information display” in this
section.

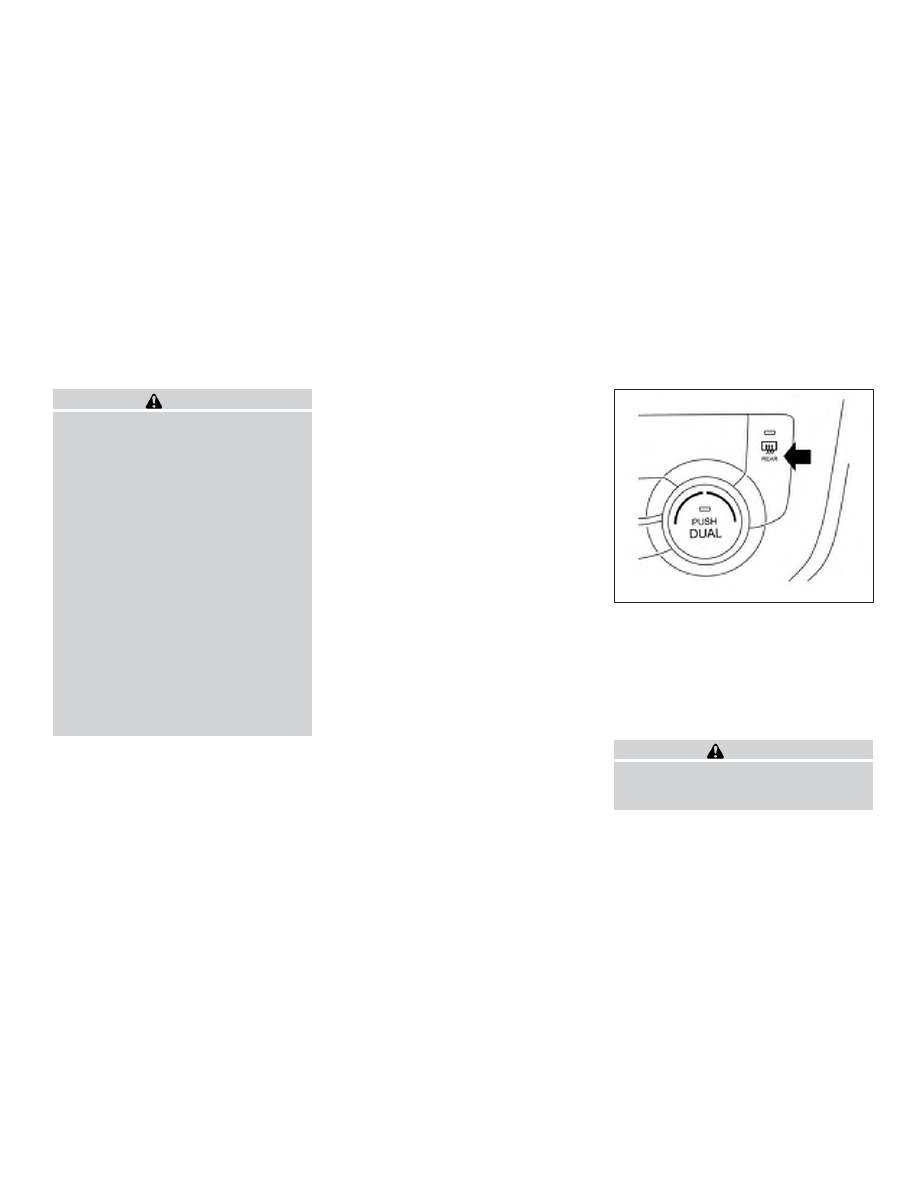

To defrost the rear window glass and out-
side mirrors start the hybrid system and
push the rear window defroster switch on.
The rear window defroster indicator light
on the switch comes on. Push the switch
again to turn the defroster off.

The rear window defroster automatically
turns off after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.

LIC2614

REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH

Instruments and controls

2-45

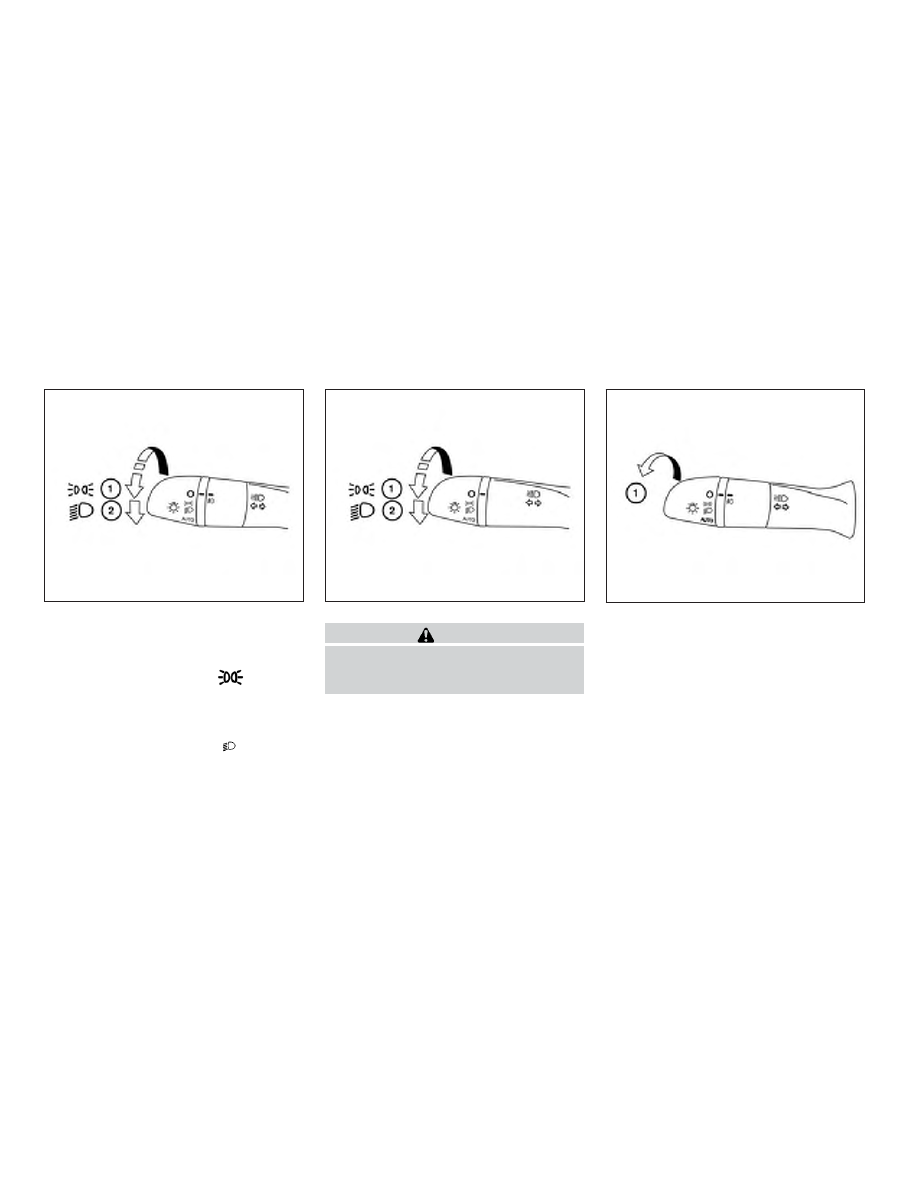

HEADLIGHT CONTROL SWITCH

Lighting

1

Rotate the switch to the

position,

and the front parking, tail, license plate,
and instrument panel lights will come
on.

2

Rotate the switch to the

position,

and the headlights will come on and all
the other lights remain on.

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle’s
12–volt battery.

Autolight system

The autolight system allows the headlights
to turn on and off automatically. The auto-
light system can:

∙ Turn on the headlights, front parking,

tail, license plate and instrument panel
lights automatically when it is dark.

∙ Turn off all the lights when it is light.

∙ Keep all the lights on for a period of time

after you place the ignition switch in the
OFF position and all doors are closed.

Type A (if so equipped)

LIC2634

Type B (if so equipped)

LIC2635

LIC2636

HEADLIGHT AND TURN SIGNAL
SWITCH

2-46

Instruments and controls

NOTE:

Autolight activation sensitivity and the
time delay for autolight shutoff can be
adjusted. For additional information, re-
fer to “Vehicle information display” in
this section.

To turn on the autolight system:

1. Turn the headlight switch to the AUTO

position

1

.

2. Place the ignition switch in the ON po-

sition.

3. The autolight system automatically

turns the headlights on and off.

Initially, if the ignition switch is turned OFF
and a door is opened and left open, the
headlights remain on for a period of time. If
another door is opened while the head-
lights are on, then the timer is reset.

To turn the autolight system off, turn the

switch to the OFF,

, or

position.

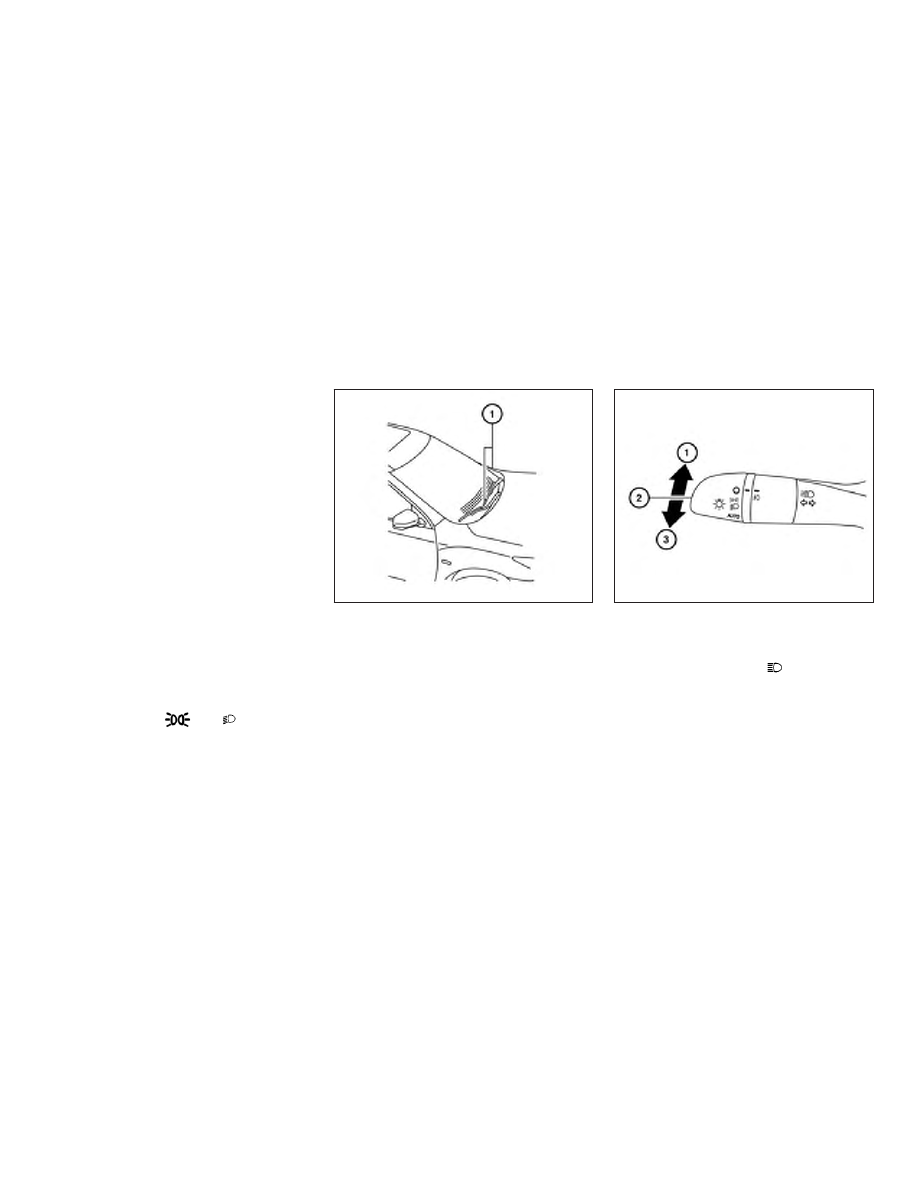

Be sure you do not put anything on top
of the autolight sensor located in the top
side

1

of the instrument panel. The au-

tolight sensor controls the autolight; if it
is covered, the autolight sensor reacts as
if it is dark out and the headlights will
illuminate. If this occurs while parked
with the engine off and the ignition
switch placed in the ON position, your
vehicle’s 12–volt battery could become
discharged.

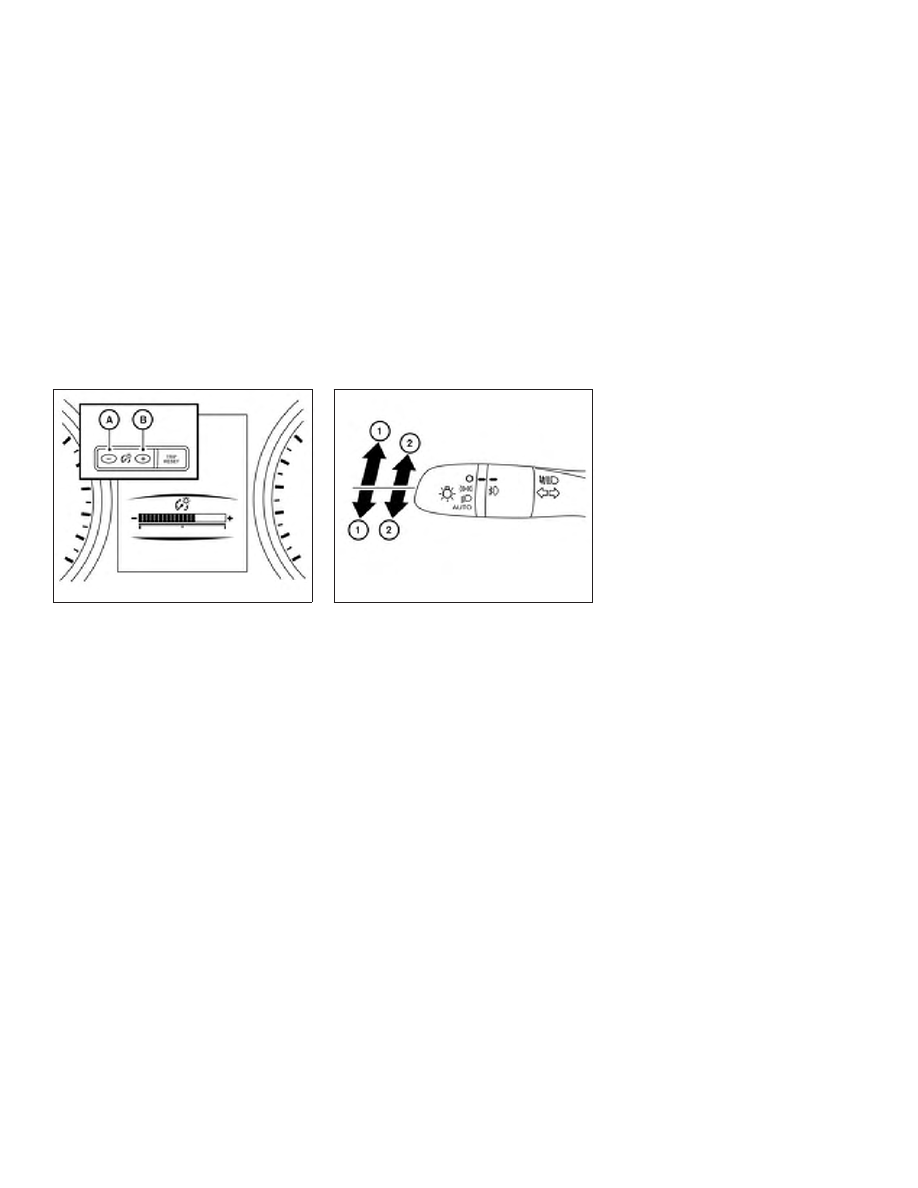

Headlight beam select

1

To select the high beam function, push
the lever forward. The high beam lights
come on and the

light illumi-

nates.

2

Pull the lever back to select the low
beam.

3

Pulling and releasing the lever flashes
the headlight high beams on and off.

LIC3051

LIC2637

Instruments and controls

2-47

High Beam Assist

The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 25 mph (40 km/h) and above. If
an oncoming vehicle or leading vehicle ap-
pears in front of your vehicle when the
headlight high beam is on, the headlight
will be switched to the low beam automati-
cally.

WARNING

∙ The High Beam Assist system is a con-

venience but it is not a substitute for
safe driving operation. The driver
should remain alert at all times, en-
sure safe driving practices and switch
the high beams and low beam manu-
ally when necessary.

∙ The high beam or low beam may not

switch automatically under the fol-
lowing conditions. Switch the high
beam and low beam manually.

– During bad weather (rain, fog,

snow, wind, etc.).

– When a light source similar to a

headlight or tail light is in the vicin-
ity of the vehicle.

– When the headlights of the on-

coming vehicle or the leading ve-
hicle are turned off, when the color
of the light is affected due to for-
eign materials on the lights, or
when the light beam is out of
position.

– When there is a sudden, continu-

ous change in brightness.

– When driving on a road that passes

over rolling hills, or a road that has
level differences.

– When driving on a road with many

curves.

– When a sign or mirror-like surface

is reflecting intense light towards
the front of the vehicle.

– When the container, etc. being

towed by a leading vehicle is re-
flecting intense light.

– When a headlight on your vehicle is

damaged or dirty.

– When the vehicle is leaning at an

angle due to a punctured tire, be-
ing towed, etc.

∙ The timing of switching the low beam

and high beam may change under the
following situations.

– The brightness of the headlights of

the oncoming vehicle or leading
vehicle.

– The movement and direction of

the oncoming vehicle and the lead-
ing vehicle.

– When only one light on the oncom-

ing vehicle or the leading vehicle is
illuminated.

– When the oncoming vehicle or the

leading vehicle is a two-wheeled
vehicle.

– Road conditions (incline, curve, the

road surface, etc.).

– The number of passengers and the

amount of luggage.

2-48

Instruments and controls

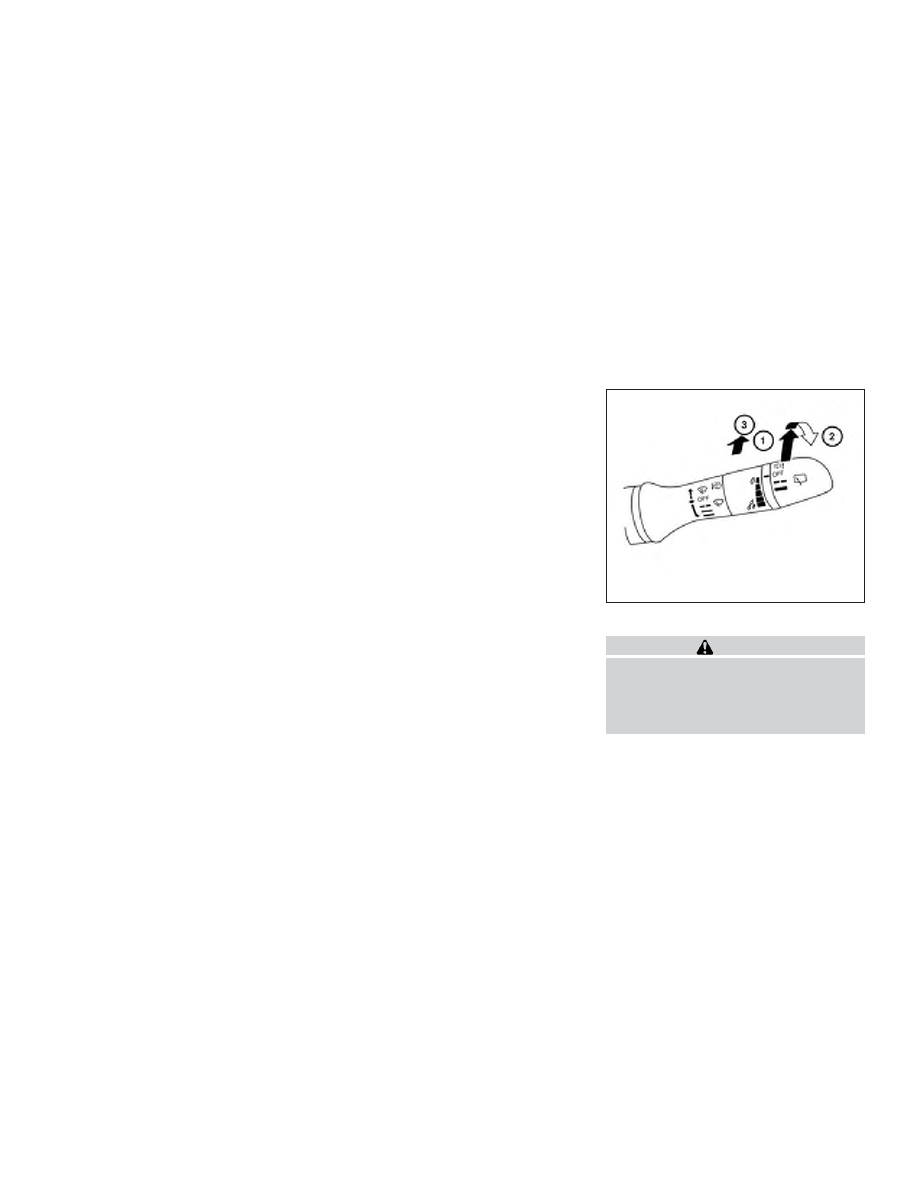

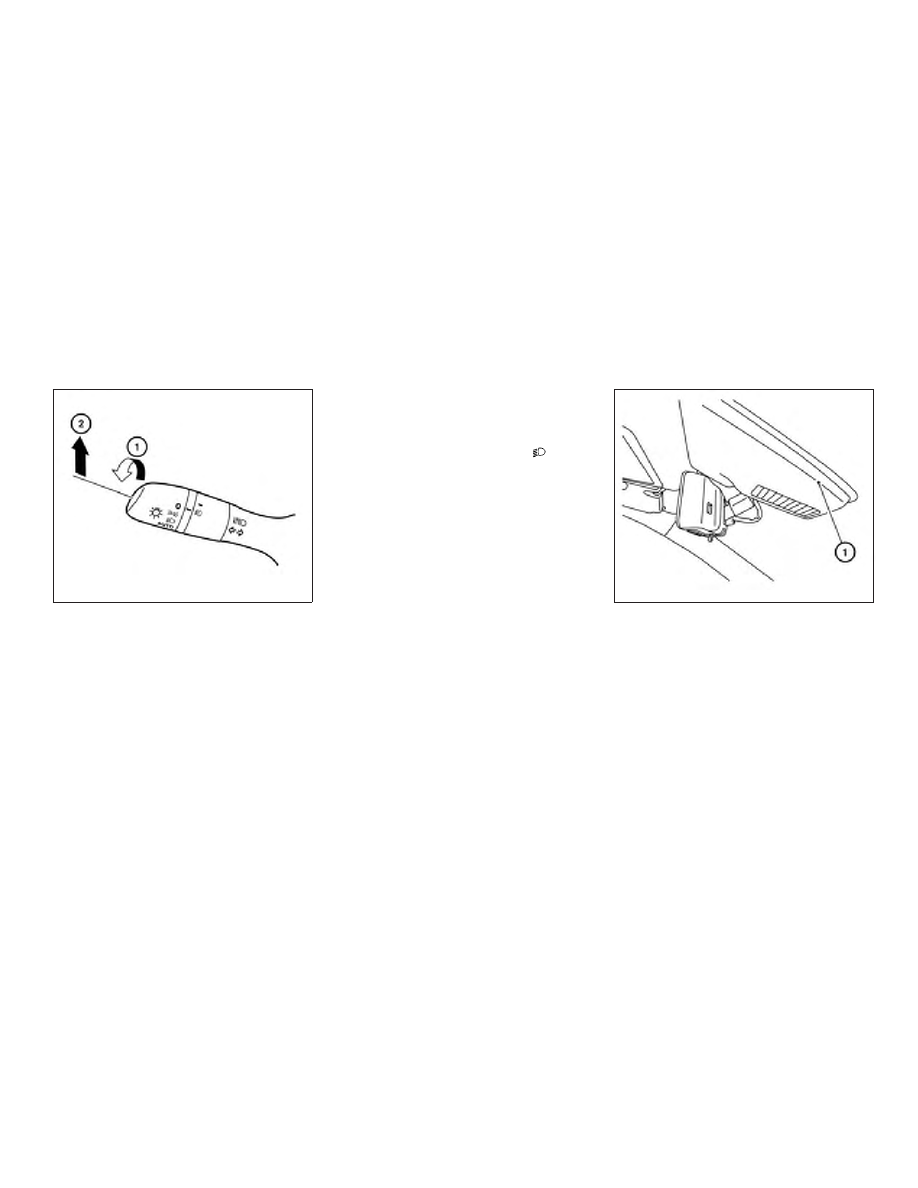

High Beam Assist operation

To activate the High Beam Assist system,
turn the headlight switch to the AUTO po-
sition

1

and push the lever forward

2

(high beam position). The High Beam Assist
indicator light in the meter will illuminate
while the headlights are turned on.

If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked, it is
recommended that you visit a NISSAN
dealer for this service.

When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system,
turn the headlight switch to the

posi-

tion or select the low beam position by
placing the lever in the neutral position.

Ambient image sensor maintenance
The ambient image sensor

1

for the High

Beam Assist system is located in front of
the inside mirror. To maintain the proper
operation of the high beam assist system
and prevent a system malfunction, be sure
to observe the following:

∙ Always keep the windshield clean.

∙ Do not attach a sticker (including trans-

parent material) or install an accessory
near the ambient image sensor.

LIC3696

LSD2712

Instruments and controls

2-49

∙ Do not strike or damage the areas

around the ambient image sensor. Do
not touch the sensor lens that is lo-
cated on the ambient image sensor.

If the ambient image sensor is damaged
due to an accident, it is recommended that
you visit a NISSAN dealer.

Battery saver system

The battery saver system automatically
turns off the ignition after a period of time
when the ignition switch is left in the ON
position.

The battery saver system automatically
turns off the following lights after a period
of time when the ignition switch is placed in
the OFF position and the doors are closed:

∙ Headlights, when the headlight switch

is in the

or

position

∙ Interior lights, when left in the ON posi-

tion

NOTE:

The Battery Saver system may be dis-
abled. For additional information, refer
to “Vehicle information display” in this
section.

CAUTION

Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging

the

vehicle’s

12–volt

battery.

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM

The LED portion of the headlights auto-
matically illuminate at 100% intensity when
the engine is started and the parking brake
released. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the

position

for full illumination, the LED lights switch
from LED DRL system to the park function.
If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released.
The LED DRL system will remain on until the
ignition switch is placed in the OFF position.

It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your head-
lights. Failure to do so could cause an
accident injuring yourself and others.

2-50

Instruments and controls

INSTRUMENT BRIGHTNESS
CONTROL

Press the “-” button

A

to decrease the

brightness of instrument panel lights.

Press the “+” button

B

to increase the

brightness of instrument panel lights.

TURN SIGNAL SWITCH

Turn signal

1

Move the lever up or down to signal the
turning direction. When the turn is
completed, the turn signal cancels au-
tomatically.

Lane change signal

2

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, to signal a lane change.
Hold the lever until the lane change is
completed.

Move the lever up or down until the
turn signal begins to flash, but the lever
does not latch, and release the lever.
The turn signal will automatically flash
three times.

Choose the appropriate method to signal
a lane change based on road and traffic
conditions.

NOTE:

The 3 flash pass feature may be disabled.
For additional information, refer to “Ve-
hicle information display” in this section.

LIC2624

LIC2638

Instruments and controls

2-51

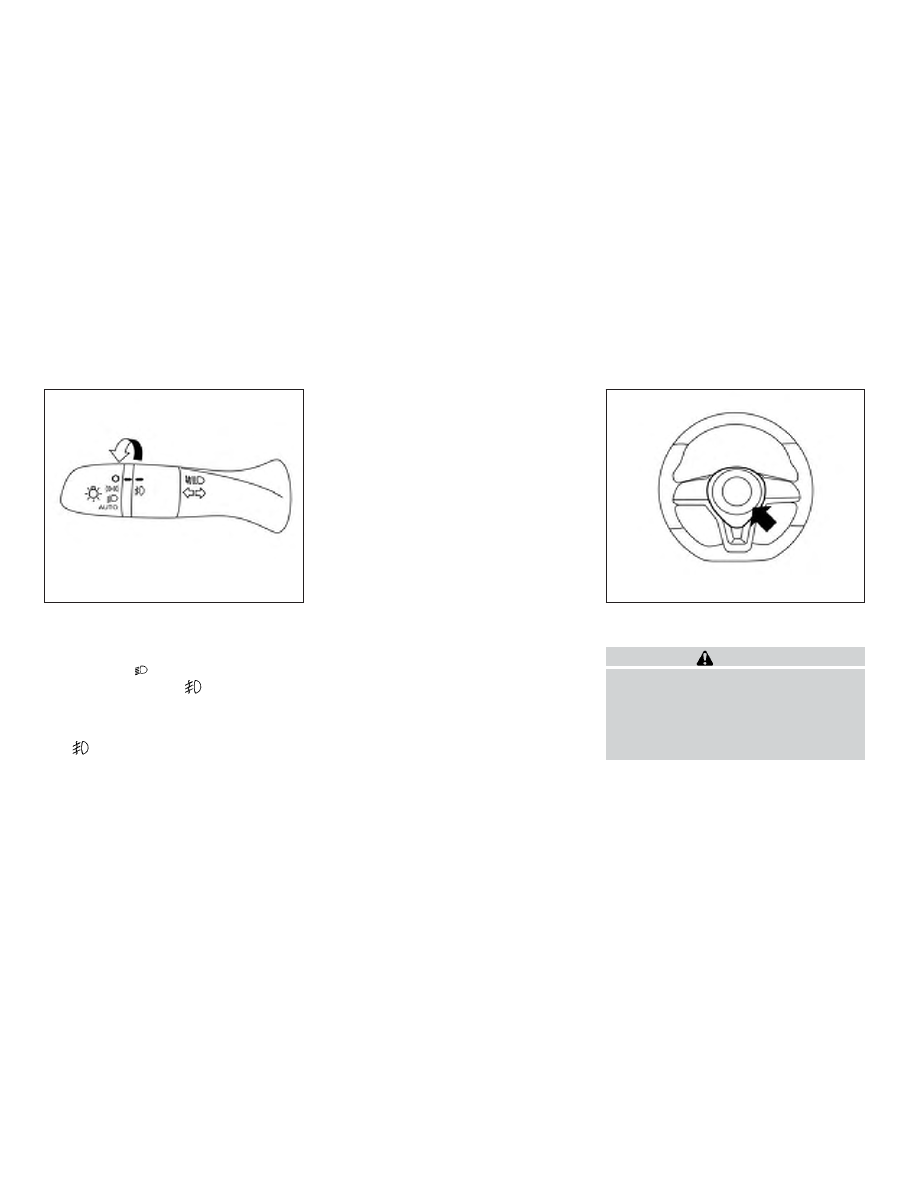

FOG LIGHT SWITCH (if so
equipped)

To turn the fog lights on, turn the headlight
switch to the

position, then turn the

fog light switch to the

position.

To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then turn the fog light switch to
the

position.

To turn the fog lights off, turn the fog light
switch to the OFF position.

The headlights must be on and the low
beams selected for the fog lights to oper-
ate. The fog lights automatically turn off
when the high beam headlights are se-
lected.

To sound the horn, push near the horn icon
on the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.

LIC2639

LIC3568

HORN

2-52

Instruments and controls

WARNING

Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.

CAUTION

∙ The 12–volt battery could run down if

the seat heater is operated while the
engine is not running.

∙ Do not use the seat heater for ex-

tended periods or when no one is us-
ing the seat.

∙ Do not put anything on the seat which

insulates heat, such as a blanket,
cushion, seat cover, etc. Otherwise,
the seat may become overheated.

∙ Do not place anything hard or heavy

on the seat or pierce it with a pin or
similar object. This may result in dam-
age to the heater.

∙ Any liquid spilled on the heated seat

should be removed immediately with
a dry cloth.

∙ When cleaning the seat, never use

gasoline, benzine, thinner, or any
similar materials.

∙ If any malfunctions are found or the

heated seat does not operate, turn
the switch off and have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.

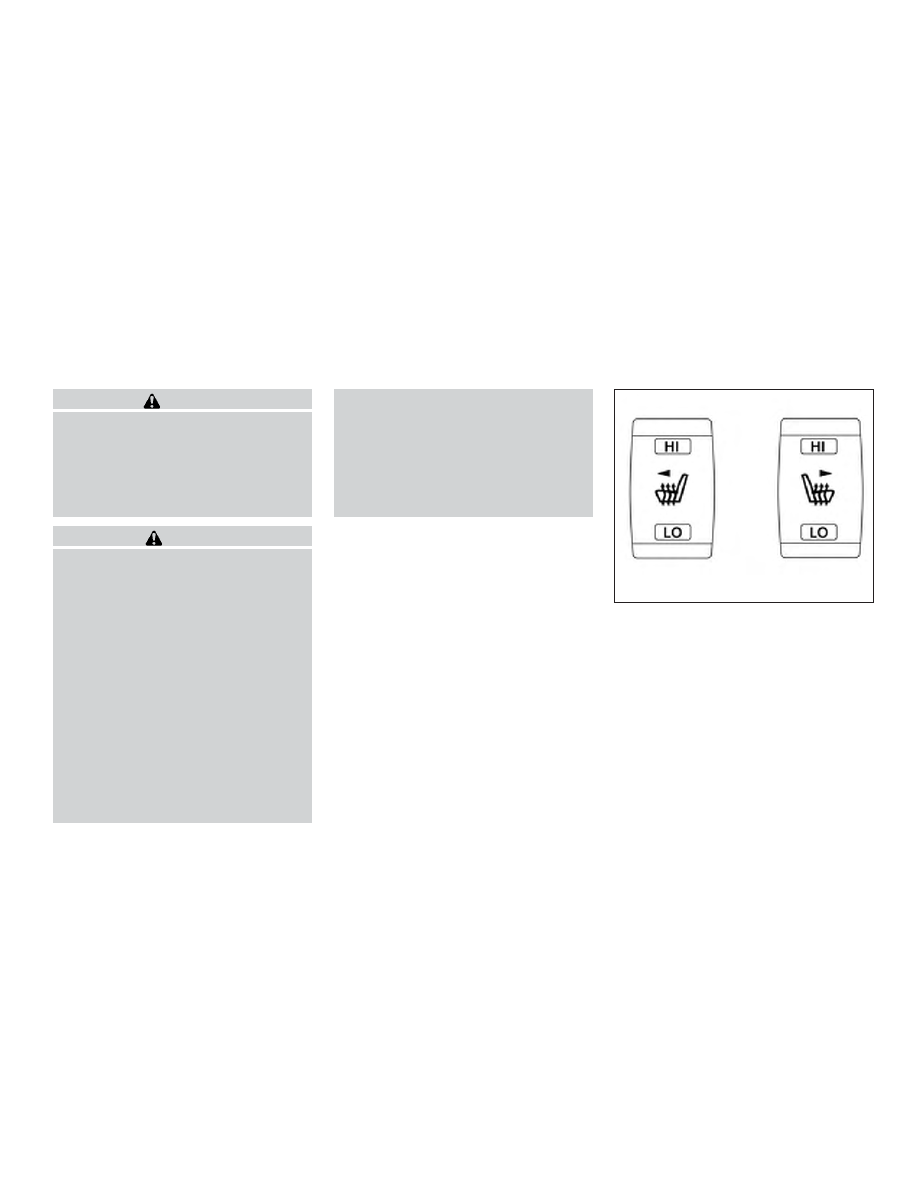

The front seats are warmed by built-in
heaters.

1. Start the hybrid system.

2. Push the LO or HI position of the switch,

as desired. The indicator light in the
switch will illuminate.

The heater is controlled by a thermo-
stat, automatically turning the heater
on and off. The indicator light will re-
main on as long as the switch is on.

3. When the seat is warmed or before you

leave the vehicle, be sure to push the
switch to turn it off.

LIC3475

HEATED SEAT SWITCHES

Instruments and controls

2-53















Content   ..  7  8  9  10   ..
