Nissan Rogue Hybrid (2019 year). Instruction

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev
engine into the red zone

䊊

CAUTION

When engine speed approaches the red
zone, reduce engine speed. Operating
the engine in the red zone may cause
serious engine damage.

FUEL GAUGE

The gauge indicates the approximate fuel
level in the tank.

The gauge may move slightly during brak-
ing, turning, acceleration, or going up or
down hills.

The gauge needle returns to 0 (Empty) af-
ter the ignition switch is placed in the OFF
position.

The low fuel warning message appears in
the vehicle information display when the
amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge reg-
isters 0 (Empty).

The

indicates that the fuel-filler door

is located on the passenger’s side of the
vehicle.

CAUTION

∙ If the vehicle runs out of fuel, the

Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips. the

light

should turn off. If the light remains on
after a few driving trips, have the ve-
hicle inspected. It is recommended
that you visit a NISSAN dealer for this
service.

∙ For additional information, refer to

“Malfunction Indicator Light (MIL)” in
this section.

LIC2219

LIC2222

2-6

Instruments and controls

ASSIST CHARGE GAUGE

The assist charge gauge indicates the con-
dition of the electric motor. When the
needle is between the center and “charge”
(

䊊

range), this indicates that the electric

motor is generating power to recharge the
Li-ion battery.

When the needle is between the center and
the PWR side, this indicates that the electric
motor is powering the drive wheels and the
Li-ion battery is discharging.

This unit measures terrestrial magnetism
and indicates the heading direction of the
vehicle.

With the ignition switch in the ON position,
press the

button as described in the

charts below to activate various features of
the automatic anti-glare rearview mirror.

Press and hold

the
button for
about:

Feature:
(Press button again for about
1 second to change settings)

1 second

Compass display toggles on/off

8 seconds

Compass zone can be changed
to correct false compass read-
ings

10 seconds

Compass enters calibration
mode

For additional information about the auto-
matic anti-glare feature, refer to “Auto-
matic anti-glare rearview mirror” in the
“Pre-driving checks and adjustments” sec-
tion of this manual.

COMPASS DISPLAY

Press the

button for about one sec-

ond when the ignition switch is placed in
the ON position to toggle the compass di-
rection display

䊊

on or off. The display will

indicate the direction that the vehicle is
heading.
N: North
E: East
S: South
W: West

If the display reads “C”, calibrate the com-
pass by driving the vehicle in three com-
plete circles at less than 5 mph (8 km/h).

LIC2544

LIC1487

COMPASS (if so equipped)

Instruments and controls

2-7

Zone variation change procedure

The difference between magnetic north
and geographical north is known as vari-
ance. In some areas, this difference can
sometimes be great enough to cause false
compass readings. Follow these instruc-
tions to set the variance for your particular
location if this happens:

1. Press and hold the

button for

about 8 seconds. The current zone
number will appear in the display. Re-
lease the button.

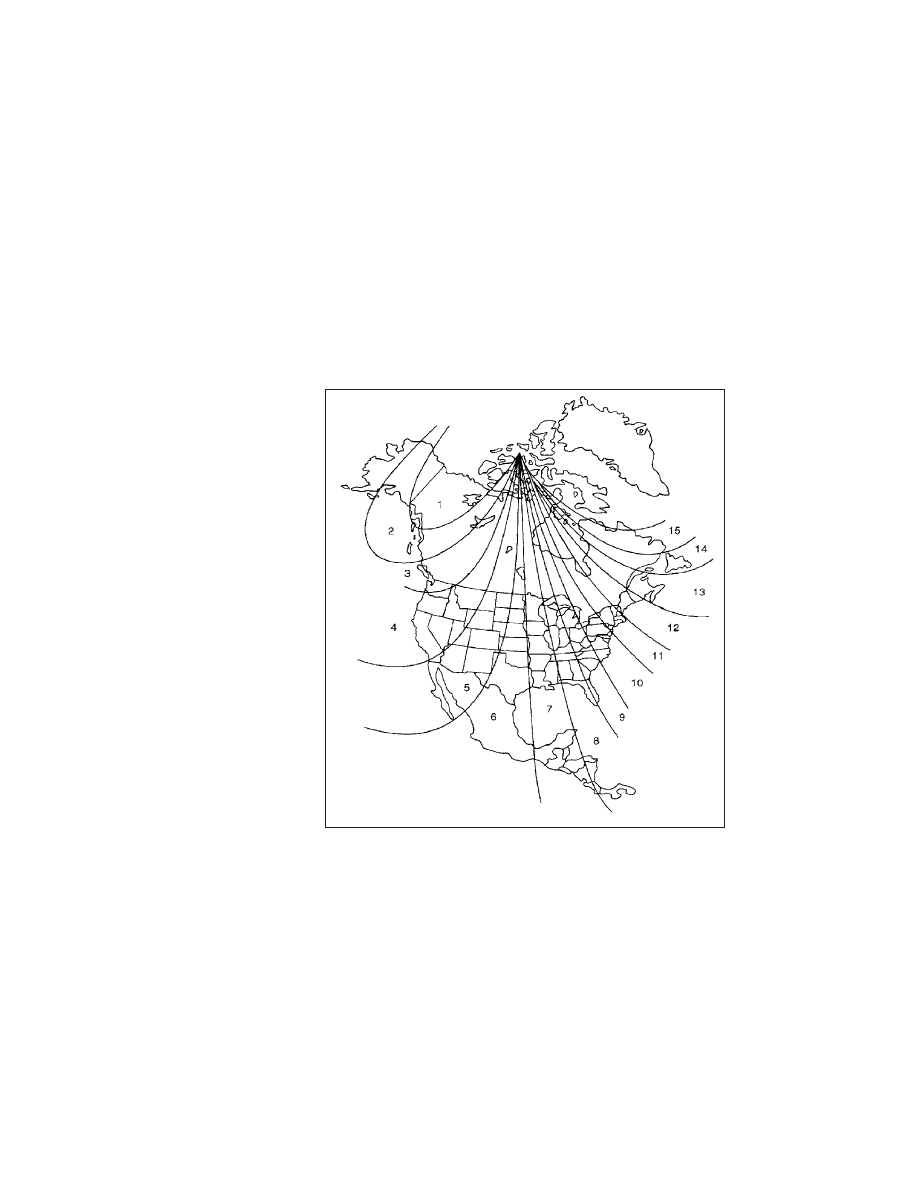

2. Find your current location on the zone

map. Refer to the illustration.

3. Press the

button repeatedly to

toggle through the zone numbers until
the desired number appears in the dis-
play. Once you have selected a zone
number, the display will show a com-
pass direction within a few seconds.

Inaccurate compass direction
The compass display is equipped with au-
tomatic correction function. If the correct
direction is not shown, follow this proce-
dure.

1. With the display turned on, press and

hold the

for about 10 seconds.

The “C” icon in the compass display will
illuminate.

2. Calibrate the compass by driving the

vehicle in three complete circles at a
maximum speed of 5 mph (8 km/h).

3. After completing the circles, the display

should return to normal.

CAUTION

∙ Do not install a ski rack, antenna, etc.,

which are attached to the vehicle by
means of a magnet. They affect the
operation of the compass.

∙ When cleaning the mirror, use a paper

towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as it
may cause the liquid cleaner to enter
the mirror housing.

Instruments and controls

2-9

12–volt battery charge warning light

PURE DRIVE® Hybrid system warning
light

High beam assist indicator light (green)

Anti-lock Braking System (ABS)
warning light

Rear Automatic Braking (RAB) system

warning light (if so equipped)

High beam indicator light (blue)

Automatic Emergency Braking (AEB) system
warning light (if so equipped)

Seat belt warning light and chime

Malfunction Indicator Light (MIL)

Automatic Emergency Braking (AEB) with
Pedestrian Detection system warning light
(if so equipped)

Supplemental air bag warning light

READY to drive indicator light

Brake warning light (red)

All-Wheel Drive (AWD) LOCK indicator
light (if so equipped)

Security indicator light

Electronically controlled brake warning light
(yellow)

Approaching Vehicle Sound for
Pedestrians (VSP) OFF indicator light

Side light and headlight indicator light
(green)

Low tire pressure warning light

EV indicator light

Slip indicator light

Master warning light

Front fog light indicator light (if so
equipped)

Turn signal/hazard indicator lights

Power steering warning light

Front passenger air bag status light

Vehicle Dynamic Control (VDC) OFF
indicator light

WARNING LIGHTS, INDICATOR LIGHTS
AND AUDIBLE REMINDERS

2-10

Instruments and controls

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the hybrid system. The following
lights (if so equipped) will come on:

The following lights (if so equipped) come
on briefly and then go off:

If any light fails to come on or operate in a
way other than described, it may indicate a
burned-out bulb and/or a system mal-
function. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

Some indicators and warnings are also dis-
played on the vehicle information display
between the speedometer and tachom-
eter. For additional information, refer to “Ve-
hicle information display” in this section.

WARNING LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

12–volt battery charge

warning light

If this light comes on when the READY to
drive indicator light comes on, it may indi-
cate the charging system is not function-
ing properly. Have your vehicle serviced im-
mediately. It is recommended that you visit
a NISSAN dealer for this service.

CAUTION

The charging system may not be func-
tioning properly if the 12–volt battery
charge warning light comes on while
the hybrid system is running. The hy-
brid system will stop operating when
the

12–volt

battery

becomes

dis-

charged. Immediately stop the vehicle
in a safe place and contact a NISSAN
dealer.

Anti-lock Braking

System (ABS)

warning light

When the ignition switch is placed in the ON
position, the ABS warning light illuminates
and then turns off. This indicates the ABS is
operational.

If the ABS warning light illuminates while
the hybrid system is running, or while driv-
ing, it may indicate the ABS is not function-
ing properly. Have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system
then operates normally, but without anti-
lock assistance. For additional information,
refer to “Brake system” in the “Starting and
driving” section of this manual.

Automatic Emergency

Braking (AEB) system
warning light (if so
equipped)

This light comes on when the ignition
switch is placed in the ON position. It turns
off after the engine is started.

Instruments and controls

2-11

This light illuminates when the AEB system
is set to OFF on the vehicle information
display.

If the light illuminates when the AEB sys-
tem is on, it may indicate that the system is
unavailable. For additional information, re-
fer to “Automatic Emergency Braking (AEB)”
in the “Starting and driving” section of this
manual.

Automatic Emergency

Braking (AEB) with
Pedestrian Detection
system warning light (if so
equipped)

This light comes on when the ignition
switch is placed in the ON position. It turns
off after the engine is started.

This light illuminates when the AEB with
Pedestrian Detection system is set to OFF
in the vehicle information display.

If the light illuminates when the AEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable. For
additional information, refer to “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” in the “Starting and driving” sec-
tion of this manual.

Brake warning

light (red)

This light functions for the foot brake system.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the hybrid
system is running, with the parking brake
not applied, stop the vehicle and perform
the following:

1. Check the brake fluid level. Add brake

fluid as necessary. For additional infor-
mation, refer to “Brake fluid” in the “Do-
it-yourself ” section of this manual.

2. If the brake fluid level is correct, have

the warning system checked. It is rec-
ommended that you visit a NISSAN
dealer for this service.

WARNING

∙ Your brake system may not be working

properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.

∙ Pressing the brake pedal with the en-

gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.

∙ If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.

Electronically controlled

brake warning light (yellow)

When the ignition switch is placed in the ON
position and the hybrid system is in the
READY mode, the light stays on for about
2 seconds. If the light comes on at any
other time, it may indicate the regenerative
brake and/or the electronically controlled
brake systems are not functioning prop-
erly. Have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

2-12

Instruments and controls

If the hydraulic brake warning light also
comes on with the parking brake not ap-
plied, stop the vehicle immediately and it is
recommended that you call a NISSAN
dealer. For additional information, refer to
"Brake system" in the "Starting and driving"
section of this manual.

WARNING

Your brake system may not be working
properly if both the brake warning light
and electronically controlled brake sys-
tem warning light come on when the
hybrid system is in READY mode and the
parking brake is not applied. Driving
could be dangerous. If you judge it to be
safe, drive carefully to the nearest ser-
vice station for repairs. Otherwise, have
your vehicle towed because driving
could be dangerous.

Low tire pressure warning

light

Your vehicle is equipped with a Tire Pres-
sure Monitoring System (TPMS) that moni-
tors the tire pressure of all tires except the
spare.

The low tire pressure warning light warns
of low tire pressure or indicates that the
TPMS is not functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about
1 second and turns off.

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illumi-
nate. A “Tire Pressure Low - Add Air”
warning also appears in the vehicle in-
formation display.

When the low tire pressure warning light
illuminates, you should stop and adjust
the tire pressure of all four tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information la-
bel located in the driver’s door opening.
The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure,
the vehicle must be driven at speeds
above 16 mph (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.

The “Tire Pressure Low - Add Air” warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.

For additional information, refer to “Vehicle
information display” in this section and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section and in the
“In case of emergency” section of this
manual.

TPMS malfunction

If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is placed in the ON position. The
light will remain on after 1 minute. Have the
system checked. It is recommended that
you visit a NISSAN dealer for this service.
The "Tire Pressure Low — Add Air" warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

For additional information, refer to “Tire
Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire
pressure” in the “Do-it-yourself ” section of
this manual.

Instruments and controls

2-13

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ If the light does not illuminate with

the ignition switch placed in the ON
position, have the vehicle checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

∙ If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could re-
sult in serious personal injury or
death. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pressure
shown on the Tire and Loading Infor-
mation label located in the driver’s
door opening to turn the low tire pres-
sure warning light off. If the light still
illuminates while driving after adjust-
ing the tire pressure, a tire may be flat
or the TPMS may be malfunctioning. If
you have a flat tire, replace it with a
spare tire as soon as possible. If no tire
is flat and all tires are properly in-
flated, have the vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service.

∙ When replacing a wheel without the

TPMS such as the spare tire, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Have your
tires replaced and/or TPMS system
reset as soon as possible. It is recom-
mended that you visit a NISSAN dealer
for these services.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

CAUTION

∙ The TPMS is not a substitute for the

regular tire pressure check. Be sure to
check the tire pressure regularly.

∙ If the vehicle is being driven at speeds

of less than 16 mph (25 km/h), the
TPMS may not operate correctly.

∙ Be sure to install the specified size of

tires to the four wheels correctly.

2-14

Instruments and controls

Master warning light

When the ignition is in the ON position, the
master warning light illuminates if any of
the following are displayed on the vehicle
information display.

∙ All-Wheel Drive (AWD) Tire Size Incorrect

See Owner’s Manual

∙ All-Wheel Drive (AWD) High Temp. Stop

vehicle

∙ All-Wheel Drive (AWD) Error See Owner’s

Manual

∙ No key warning

∙ Low fuel warning

∙ Low windshield-washer fluid warning

∙ Parking brake release warning

∙ Door/liftgate open warning

∙ Loose fuel cap warning

If the All-Wheel Drive (AWD) system mal-
functions, or the diameter of the front and
the rear wheels are different, the master
warning light will illuminate. For additional
information, refer to “All-Wheel Drive (AWD)”
in the “Starting and driving” section of this
manual.

∙ If the warning light comes on while driv-

ing there may be a malfunction in the
AWD system. Reduce the vehicle speed
and have your vehicle checked as soon
as possible. It is recommended that you
visit a NISSAN dealer for this service.

CAUTION

∙ If the master warning light was illumi-

nated while driving:

—AWD High Temp Stop vehicle

Pull off the road in a safe area and idle
the engine. The driving mode will
change to 2WD to prevent the AWD sys-
tem from malfunctioning. If the warn-
ing light turns off, you can drive again.

—Tire

Size

Incorrect

See

Owner’s

Manual

Pull off the road in a safe area and idle
the engine. Check that all tire sizes are
the same, tire pressure is correct and
tires are not worn.

∙ If the warning light is still on after the

above operations, have your vehicle
checked as soon as possible. It is rec-
ommended that you visit a NISSAN
dealer for this service.

Power steering warning

light

WARNING

∙ If the hybrid system is not running or

is turned off while driving, the power
assist for the steering will not work.
Steering will be harder to operate.

∙ When the power steering warning

light illuminates with the hybrid sys-
tem running, there will be no power
assist for the steering. You will still
have control of the vehicle, but the
steering will be harder to operate.
Have the power steering system
checked. It is recommended that you
visit a NISSAN dealer for this service.

When the ignition switch is placed in the ON
position, the power steering warning light
illuminates. After starting the hybrid sys-
tem, the power steering warning light turns
off. This indicates the power steering is op-
erational.

Instruments and controls

2-15

If the power steering warning light illumi-
nates while the hybrid system is running, it
may indicate the power steering is not
functioning properly and may need servic-
ing. Have the power steering checked. It is
recommended that you visit a NISSAN
dealer for this service.

When the power steering warning light illu-
minates with the hybrid system running,
there will be no power assist for the steer-
ing, but you will still have control of the
vehicle. At this time, greater steering effort
is required to operate the steering wheel,
especially in sharp turns and at low speeds.

For additional information, refer to “Power
steering” in the “Starting and driving” sec-
tion of this manual.

PURE DRIVE® Hybrid

System warning light

When the ignition switch is in the ON posi-
tion, the hybrid system warning light illumi-
nates. After starting the hybrid system, the
hybrid system warning light turns off. If the
hybrid system warning light illuminates
while driving, it may indicate that there is a
malfunction in the electric motor and/or
other hybrid system components. Stop

your vehicle immediately and it is recom-
mended that you visit a NISSAN dealer for
service.

Rear Automatic Braking

(RAB) system warning light
(if so equipped)

This light comes on when the ignition
switch is placed in the ON position. It turns
off after the hybrid system is started.

This light illuminates when the RAB system
is turned off in the vehicle information dis-
play.

If the light illuminates when the RAB sys-
tem is on, it may indicate that the system is
unavailable. For additional information, re-
fer to “Rear Automatic Braking (RAB)” in the
“Starting

and

driving”

section

this

manual.

Seat belt warning light and

chime

The light and chime remind you to fasten
your seat belts. The light illuminates when-
ever the ignition switch is placed in the ON
or START position and remains illuminated
until the driver’s seat belt is fastened. At the

same time, the chime sounds for about
6 seconds unless the driver’s seat belt is
securely fastened.

The seat belt warning light may also illumi-
nate if the front passenger’s seat belt is not
fastened when the front passenger’s seat
is occupied. For 7 seconds after the ignition
switch is placed in the ON position, the sys-
tem does not activate the warning light for
the front passenger.

For additional information, refer to “Seat
belts” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

Supplemental air bag

warning light

When the ignition switch is placed in the ON
or START position, the supplemental air
bag warning light illuminates for about
7 seconds and then turns off. This means
the system is operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
and pretensioner seat belt systems need
servicing:

∙ The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

2-16

Instruments and controls

∙ The supplemental air bag warning light

flashes intermittently.

∙ The supplemental air bag warning light

does not come on at all.

It is recommended that you visit a NISSAN
dealer for these services.

Unless checked and repaired, the supple-
mental restraint system (air bag system)
and/or the pretensioner(s) may not func-
tion properly. For additional information, re-
fer to “Supplemental Restraint System
(SRS)” in the “Safety—Seats, seat belts and
supplemental restraint system” section of
this manual.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended that you visit a NISSAN
dealer for this service.

INDICATOR LIGHTS

For additional information, refer to “Vehicle
information display” in this section.

All-Wheel Drive (AWD) LOCK

indicator light (if so
equipped)

When the ignition switch is in the ON posi-
tion, the All-Wheel Drive (AWD) LOCK indica-
tor light illuminates and then turns off.

When selecting AWD LOCK mode while the
hybrid system is running, the AWD LOCK
indicator light illuminates.

CAUTION

Do not drive on dry hard surface roads
in the LOCK mode.

Approaching Vehicle

Sound for Pedestrians
(VSP) OFF indicator light

This light comes on if there is a malfunction
in the Approaching Vehicle Sound for Pe-
destrians (VSP) system.

EV indicator light

This light illuminates when the engine
stops running.

Front fog light indicator

light (if so equipped)

The front fog light indicator light illumi-
nates when the front fog lights are on. For
additional information, refer to “Fog light
switch” in this section.

Front passenger air bag

status light

The front passenger air bag status light will
be lit and the passenger front air bag will be
off depending on how the front passenger
seat is being used.

For additional information, refer to “Front
passenger air bag and status light” in the
“Safety — Seats, seat belts and supplemen-
tal restraint system” section of this manual.

Instruments and controls

2-17

High beam assist indicator

light (green)

This indicator light illuminates when the
headlights come on while the headlight
switch is in the AUTO position with the high
beams selected. This indicates that the
high beam assist is operational.

For additional information, refer to “Head-
light and turn signal switch” in this section.

High beam indicator light

(blue)

This blue light comes on when the head-
light high beams are on and goes out when
the low beams are selected.

The high beam indicator light also comes
on when the passing signal is activated.

Malfunction Indicator Light

(MIL)

If this indicator light comes on steady or
blinks while the hybrid system is running, it
may indicate a potential emission control
malfunction.

The MIL may also come on steady if the
fuel-filler cap is loose or missing, or if the
vehicle runs out of fuel. Check to make sure
the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least
3 gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the

light

should turn off if no other potential emis-
sion control system malfunction exists.
If this indicator light comes on steady for
20 seconds and then blinks for 10 seconds
when the hybrid system is not running, it
indicates that the vehicle is not ready for an
emission

control

system

inspection/maintenance test. For addi-
tional information, refer to “Readiness for
inspection/maintenance (I/M) test” in the
“Technical and consumer information” sec-
tion of this manual.

Operation

The MIL will come on in one of two ways:

∙ MIL on steady — An emission control sys-

tem malfunction has been detected.
Check the fuel-filler cap if the Loose Fuel
Cap warning appears in the vehicle infor-
mation display. If the fuel-filler cap is
loose or missing, tighten or install the cap
and

continue

drive

the

vehicle.

The

light should turn off after a few

driving trips. If the

light does not

turn off after a few driving trips, have the
vehicle inspected. It is recommended
that you visit a NISSAN dealer for this ser-
vice. You do not need to have your vehicle
towed to the dealer.

∙ MIL blinking — An engine misfire has been

detected which may damage the emis-
sion control system. To reduce or avoid
emission control system damage:

– do

not

drive

speeds

above

45 mph (72 km/h).

– avoid hard acceleration or decelera-

tion.

– avoid steep uphill grades.

– if possible, reduce the amount of

cargo being hauled or towed.

2-18

Instruments and controls

The MIL may stop blinking and come on
steady. Have the vehicle inspected. It is rec-
ommended that you visit a NISSAN dealer
for this service. You do not need to have
your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.

READY to drive indicator

light

The READY to drive indicator light illumi-
nates when the hybrid system is powered
and the vehicle may be driven.

Security indicator light

This light blinks when the ignition switch is
placed in the OFF or LOCK position.

The blinking security indicator light indi-
cates that the security systems equipped
on the vehicle are operational.

For additional information, refer to “Security
systems” in this section.

Side light and headlight

indicator light (green)

The side light and headlight indicator light
illuminates when the side light or headlight
position is selected. For additional informa-
tion, refer to “Headlight and turn signal
switch” in this section.

Slip indicator light

This indicator will blink when the VDC sys-
tem is operating, thus alerting the driver to
the fact that the road surface is slippery
and the vehicle is nearing its traction limits.

You may feel or hear the system working;
this is normal.

The light will blink for a few seconds after
the VDC system stops limiting wheel spin.

The

indicator light also comes on

when you place the ignition switch in the
ON position. The light will turn off after ap-
proximately 2 seconds if the system is op-
erational. If the light does not come on
have the system checked. It is recom-
mended that you visit a NISSAN dealer for
this service.

Turn signal/hazard

indicator lights

The appropriate light flashes when the turn
signal switch is activated.

Both lights flash when the hazard switch is
turned on.

Vehicle Dynamic Control

(VDC) OFF indicator light

This indicator light comes on when the
VDC OFF switch is pushed to off. This indi-
cates the VDC system has been turned off.

Push the VDC OFF switch again or restart
the hybrid system and the system will op-
erate normally. For additional information,
refer to “Vehicle Dynamic Control (VDC) sys-
tem” in the “Starting and driving” section of
this manual.

The VDC OFF indicator light also comes on
when you place the ignition switch in the
ON position. The light will turn off after
about 2 seconds if the system is opera-
tional. If the light stays on or comes on
along with the

indicator light while

you are driving, have the VDC system
checked. It is recommended that you visit a
NISSAN dealer for this service.

Instruments and controls

2-19

While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or
accelerating, but this is normal.

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear
warnings. When a disc brake pad requires
replacement, it makes a high pitched
scraping sound when the vehicle is in mo-
tion, whether or not the brake pedal is de-
pressed. Have the brakes checked as soon
as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is
opened while the ignition switch is placed
in the OFF position or placed in the OFF or
LOCK position with the key left in the ve-
hicle. Make sure the ignition switch is
placed in the LOCK position, and take the
key with you when leaving the vehicle.

Lane Departure Warning (LDW)
and Intelligent Lane Intervention
(I-LI) warning chime (if so
equipped)

When the LDW or I-LI system is on, the
chime sounds if the vehicle is traveling
close to either the left or the right of a
traveling lane with detectable lane mark-
ers.

For additional information, refer to “Lane
Departure Warning (LDW)” or “Intelligent
Lane Intervention (I-LI)” in the “Starting and
driving” section of this manual.

Light reminder chime

With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.

Turn the headlight control switch off before
leaving the vehicle.

NISSAN Intelligent Key® door
buzzer

The Intelligent Key door buzzer sounds if
any one of the following improper opera-
tions is found.

∙ The Intelligent Key is left inside the ve-

hicle when locking the doors.

∙ Any doors are not closed securely when

locking the doors.

When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key. For
additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

2-20

Instruments and controls

The vehicle information display is located
to the left of the speedometer. It displays
such items as:

∙ Vehicle settings

∙ Drive computer information

∙ Drive system warnings and settings

∙ Cruise control system information

∙ NISSAN Intelligent Key® operation infor-

mation

∙ Chassis Control

∙ Indicators and warnings

∙ Tire Pressure information

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be

changed using the
,

, and OK buttons located on the

steering wheel.

䊊

- Use these

buttons to navigate the vehicle infor-
mation display.

䊊

OK - Change or select an item in the
vehicle information display.

䊊

— Returns to the previous menu.

The OK,

and

buttons also

control audio and control panel functions
in some conditions. Most screens and
menus offer instruction prompts of the
steering switch buttons to indicate how to
control the vehicle information display.
Dots on the left side of the vehicle informa-
tion display will appear if there is more than
one page of menu items. The OK button
changes

the

audio

source

and

the

buttons also control voice

recognition manual mode. For additional
information,

refer

the

separate

NissanConnect® Owner’s Manual.

STARTUP DISPLAY

When the vehicle is placed in the ON posi-
tion, the vehicle information display may
display the following screens:

∙ Home

∙ Drive Computer — Average Speed-Trip

(Distance & Time)-Fuel Economy

∙ Energy Flow

∙ EV Odometer

∙ Coolant Temp.

∙ Compass or Navigation (if so equipped)

∙ Audio

LIC2630

LIC3566

VEHICLE INFORMATION DISPLAY

Instruments and controls

2-21

Nissan Rogue Hybrid (2019 year). Instruction - part 7
