Monitor, heater, air conditioner, audio, phone and voice recognition systems

hour or per minute.

Daylight Saving Time:

Turn this item to ON for daylight saving time
application.

Time Zone:

Choose the time zone from the following

Models with navigation system
. Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
Models without navigation system
. Eniwetok, Kwajalein
. Midway Island, Samoa
. Hawaii
. Alaska
. Pacific

SAA2490

Models with navigation system

SAA1092

Models without navigation system

Language & Units settings

Models with navigation system:

The Language & Units settings display will
appear when pushing the SETTING button,
selecting the “Others” key, and then selecting
the “Language & Units” key.

Models without navigation system:

The display illustrated will appear when pushing
the SETTING button and selecting the “Lan-
guage & Units” key.

Select Language:

Select the “Select Language” key. Choose
“English”, “Franc¸ais” or “Espan˜ol” for your
favorite display appearance.

If you select the “Franc¸ais” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “Owner’s manual/service
manual order information” (P.10-27).

Select Units:

Select the “Select Units” key. Choose “US”
(Mile,

8F, MPG) or “Metric” (km, 8C, L/100 km)

for your favorite display appearance.

Voice Recognition settings (models with
navigation system)

For details about the “Voice Recognition”
settings, see “NISSAN Voice Recognition sys-
tem (models with navigation system)” (P.4-154).

Camera settings (models without navi-
gation system)

For the details about the “Camera” settings, see
“RearView Monitor” (P.4-25).

SAA2491

Image Viewer (models with navigation
system)

The image files in the USB memory will be
displayed. To display the Image Viewer, push the
SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image of
the selected file is displayed on the right side of
the screen.

When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.

Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the

vehicle in a safe location and apply the parking
brake.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-23

4-24

Monitor, heater, air conditioner, audio, phone and voice recognition systems

SAA2492

Full Screen Display:

The full screen display will appear when select-
ing the “Full Screen Display” key.

To operate the Image Viewer or to change the
settings, select the desired key using the multi-
function controller.
.

(Start)

Select the “

” key to start playing the

slideshow.

.

(Stop)

Select the “

” key to stop the slideshow.

.

(Next)

Select the “

” key to display the next file.

.

(Previous)

Select the “

” key to display the previous

file.

Setting the Image Viewer:

The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are
available for the full screen display.
. Slideshow Speed

Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.

. Slideshow Order

Select the “Slideshow Order” key. From the
following display, select “Random” or “Order
List”. For “Order List”, the image order is the
order of the files as stored on the USB
memory.

Operating tips:
. Only files that meet the following conditions

will be displayed.
— Image type: JPEG
— File Extensions: *.jpg, *jpeg
— Maximum Resolution: 2048

6 1536

pixels

— Maximum Size: 2-MB
— Colors: 32768 (15-bit)
— Maximum File Name lengths: 253-Bytes
— Maximum Folders: 500
— Maximum Images per Folder: 1024

. If an electronic device (such as a digital

camera) is directly connected to the vehicle
using a USB cable, no image will be
displayed on the screen.

. If the file name is too long, some file names

may not be entirely displayed.

. When the total number of characters in the

file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when
selected.

WARNING

Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

The RearView Monitor is a conve-

nience but it is not a substitute for
proper backing. Always turn and
look out the windows, and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.

The system is designed as an aid to

the driver in showing large station-
ary objects directly behind the vehi-
cle, to help avoid damaging the
vehicle.

The distance guide line and the

vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automatically
shows a rear view of the vehicle when the shift
lever is placed in the R (Reverse) position.

The radio can still be heard while the RearView
Monitor is active.

JVH1274X

To display the rear view, the RearView Monitor
system uses a camera located just above the
vehicle’s license plate

*

1

.

REARVIEW MONITOR SYSTEM OP-
ERATION

With the ignition switch in the “ON” position,
move the shift lever to the R (Reverse) position
to operate the RearView Monitor.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-25

REARVIEW MONITOR (if so
equipped)

4-26

Monitor, heater, air conditioner, audio, phone and voice recognition systems

SAA1896

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line

*

A

are displayed on the monitor.

Distance guide lines:

Indicate distances from the bumper.
. Red line

*

1

: approx. 1.5 ft (0.5 m)

. Yellow line

*

2

: approx. 3 ft (1 m)

. Green line

*

3

: approx. 7 ft (2 m)

. Green line

*

4

: approx. 10 ft (3 m)

Vehicle width guide lines

*

5

:

Indicate the vehicle width when backing up.

Predictive course lines

*

6

(models with

center multi-function control panel):

Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the R
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.

The vehicle width guide lines and the width of
the predictive course lines are wider than the
actual width and course.

DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES (if so
equipped)

The displayed guide lines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guide lines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.

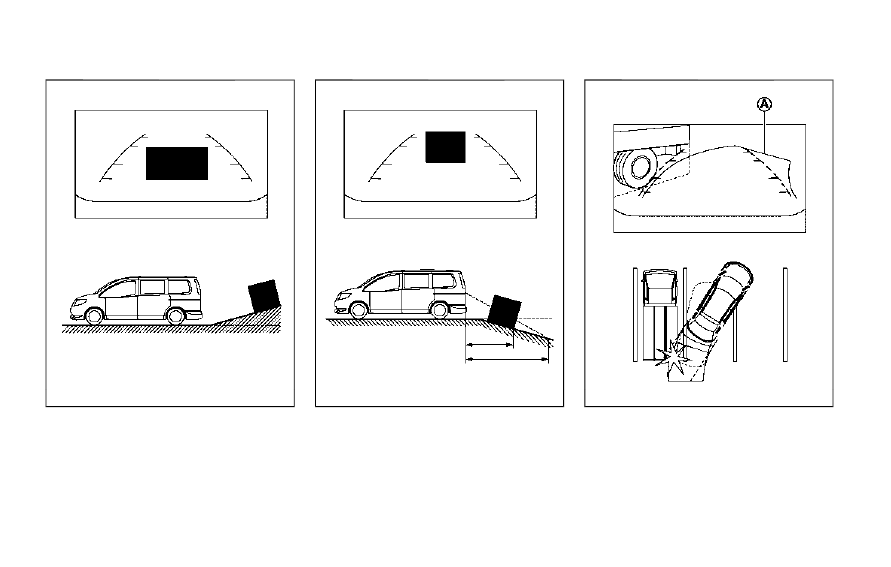

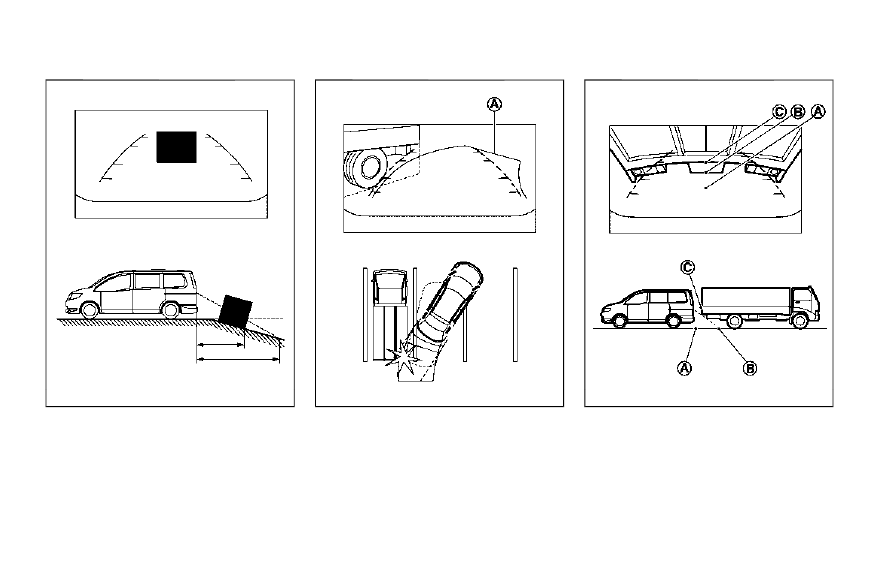

JVH1275X

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.

JVH1276X

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.

SAA1923

Backing up near a projecting object

The predictive course lines

*

A

do not touch the

object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.

JVH1009X

Backing up behind a projecting object

The position

*

C

is shown further than the

position

*

B

in the display. However, the

position

*

C

is actually at the same distance

as the position

*

A

. The vehicle may hit the

object when backing up to the position

*

A

if

the object projects over the actual backing up

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-27

4-28

Monitor, heater, air conditioner, audio, phone and voice recognition systems

course.

HOW TO PARK WITH PREDICTIVE
COURSE LINES (models with center
multi-function control panel)

WARNING

If the tires are replaced with differ-

ent sized tires, the predictive course
line may not be displayed correctly.

On a snow-covered or slippery road,

there may be a difference between
the predictive course line and the
actual course line.

The displayed lines will appear

slightly off to the right because the
rearview camera is not installed in
the rear center of the vehicle.

SAA1897

1. Visually check that the parking space is safe

before parking your vehicle.

2. The rearview of the vehicle is displayed on

the screen

*

A

when the shift lever is moved

to the R (Reverse) position.

SAA1898

3. Slowly back up the vehicle adjusting the

steering wheel so that the predictive course
lines

*

B

enter the parking space

*

C

.

4. Maneuver the steering wheel to make the

vehicle width guide lines

*

D

parallel to the

parking space

*

C

while referring to the

predictive course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position and apply the parking brake.

ADJUSTING THE SCREEN

Models with Center Multi-function Control
Panel:
. To adjust the Display ON/OFF, Brightness,

Tint, Color, Contrast and Black Level of the
RearView Monitor, push the SETTING but-
ton with the RearView Monitor on, select the
item key and adjust the level using the
multifunction controller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.
The display of the predictive course lines
can be set to ON or OFF. For details, see
“Predictive course line settings” (P.4-29).

Models without Center Multi-function Control
Panel:
. To set up the RearView Monitor to your

preferred settings, push the ENTER/
SETTING button while the RearView Moni-
tor screen is displayed. Each time the
ENTER/SETTING button is pushed, the next
setting item is selected. Turn the TUNE
SCROLL control knob to adjust each item.

Available setting items:
— Brightness
— Contrast

The setting items will disappear and the display
will return to the original screen if ENTER/
SETTING button is pushed when the last setting
item is selected or if the screen is left without
operation for some time. For details, see “FM-
AM-SAT radio with Compact Disc (CD) player
(Type A)” (P.4-77).

NOTE:

Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.

SAA2606

PREDICTIVE COURSE LINE SETTINGS
(if so equipped)

To toggle on and off the predictive course lines:

1. Push the SETTING button.

2. Select “Camera” key and push the ENTER

button.

Predictive Course Lines:

When this item is turned on, the predictive
course lines will be displayed on the monitor
when the shift lever is in the R (Reverse)
position.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-29

4-30

Monitor, heater, air conditioner, audio, phone and voice recognition systems

REARVIEW MONITOR SYSTEM LIM-
ITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in ser-
ious injury or death.

The system cannot completely elim-

inate blind spots and may not show
every object.

Underneath the bumper and the

corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.

Objects viewed in the RearView

Monitor differ from actual distance
because a wide-angle lens is used.

Objects in the RearView Monitor

will appear visually opposite com-
pared to when viewed in the rear
view and outside mirrors.

Use the displayed lines as a refer-

ence. The lines are highly affected
by the number of occupants, fuel
level, vehicle position, road condi-
tions and road grade.

Make sure that the liftgate is se-

curely closed when backing up.

Do not put anything on the rearview

camera. The rearview camera is
installed above the license plate.

When washing the vehicle with

high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.

Do not strike the camera. It is a

precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.

The following are operating limitations and do
not represent a system malfunction:
. When the temperature is extremely high or

low, the screen may not clearly display
objects.

. When strong light is directly coming on the

camera, objects may not be displayed
clearly.

. Vertical lines may be seen in objects on the

screen. This is due to strong reflected light
from the bumper.

. The screen may flicker under fluorescent

light.

. The colors of objects on the RearView

Monitor may differ somewhat from the actual
color of objects.

. Objects on the monitor may not be clear in a

dark environment.

. If dirt, rain or snow accumulates on the

camera, the RearView Monitor may not
display objects clearly. Clean the camera.

. Do not use wax on the camera window.

Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.

JVH1274X

SYSTEM MAINTENANCE

CAUTION

Do not use alcohol, benzine or

thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.

Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the camera

*

1

, RearView Monitor may not display objects

clearly. Clean the camera by wiping it with a
cloth dampened with a diluted mild cleaning
agent and then wiping it with a dry cloth.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-31

4-32

Monitor, heater, air conditioner, audio, phone and voice recognition systems

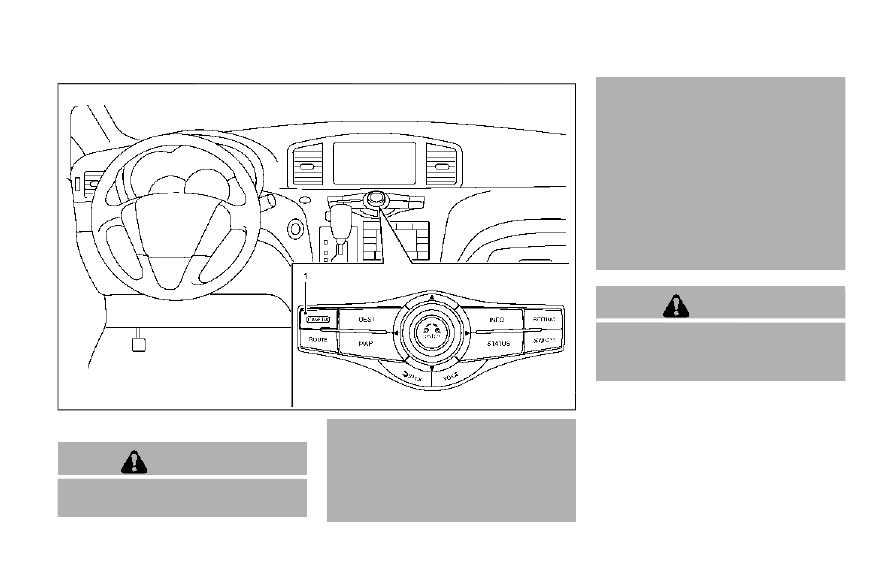

JVH1278X

1. CAMERA button

WARNING

Failure to follow the warnings and
instructions for the proper use of the

Around View

Š

Monitor system could

result in serious injury or death.

The Around View

Š

Monitor is a

convenience feature and is not a
substitute for proper vehicle opera-
tion because it has areas where

objects cannot be viewed. The four
corners of the vehicle in particular,
are areas where objects do not
always appear in the bird
s-eye,
front, or rear views. Always check
your surroundings to be sure that it
is safe to move before operating the
vehicle. Always operate the vehicle
slowly.

The driver is always responsible for

safety during parking and other
maneuvers.

CAUTION

Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.

The Around View

Š

Monitor system is designed

as an aid to the driver in situations such as slot
parking or parallel parking.

The monitor displays various views of the
position of the vehicle in a split screen format.
All views are not available at all times.

AROUND VIEW

Š

MONITOR (if so

equipped)

Available views:
. Front View

The view to the front of the vehicle.

. Rear View

The view to the rear of the vehicle.

. Bird’s-Eye View

The surrounding view of the vehicle.

. Front-side View

The view around and ahead of the front
passenger’s side wheel.

JVH1524X

To display the multiple views, the Around View

Š

Monitor system uses cameras

*

1

located in the

front grill, on the vehicle’s outside mirrors and
one just above the vehicle’s license plate.

AROUND VIEW

Š

MONITOR SYSTEM

OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) position
or press the CAMERA button to operate the
Around View

Š

Monitor.

The screen displayed on the Around View

Š

Monitor will automatically return to the previous
screen 3 minutes after the CAMERA button has
been pushed while the shift lever is in a position
other than the R (Reverse) position.

Available views

WARNING

The distance guide lines and the

vehicle width lines should be used
as a reference only when the vehicle
is on a paved, level surface. The
apparent distance viewed on the
monitor may be different than the
actual distance between the vehicle
and displayed objects.

Use the displayed lines and the

birds-eye view as a reference. The
lines and the bird
s-eye view are
greatly affected by the number of
occupants, fuel level, vehicle posi-
tion, road condition and road grade.

If the tires are replaced with differ-

ent sized tires, the predictive course
lines and the bird
s-eye view may be
displayed incorrectly.

When driving the vehicle up a hill,

objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-33

4-34

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Objects in the monitor will appear

visually opposite compared to when
viewed in the rear view and outside
mirrors.

Use the mirrors or actually look to

properly judge distances to other
objects.

The distance between objects

viewed in the rear view differs from
actual distance because a wide-
angle lens is used.

On a snow-covered or slippery road,

there may be a difference between
the predictive course line and the
actual course line.

The vehicle width and predictive

course lines are wider than the
actual width and course.

The displayed lines on the rear view

will appear slightly off to the right
because the rear view camera is not
installed in the rear center of the
vehicle.

SAA1840

Front view

SAA1896

Rear view

Front and rear view:

Guiding lines that indicate the approximate
vehicle width and distances to objects with
reference to the vehicle bumper line

*

A

are

displayed on the monitor.

Distance guide lines

Indicate distances from the bumper.
. Red line

*

1

: approx. 1.5 ft (0.5 m)

. Yellow line

*

2

: approx. 3 ft (1 m)

. Green line

*

3

: approx. 7 ft (2 m)

. Green line

*

4

: approx. 10 ft (3 m)

Vehicle width guide lines

*

5

Indicate the vehicle width when backing up.

Predictive course lines

*

6

Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight-ahead
position.

The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h).

NOTE:

When the monitor displays the front view
and the steering wheel turns about 90

degrees or less from the straight ahead
position, both the right and left predictive
course lines

*

6

are displayed. When the

steering wheel turns about 90 degrees or
more, a line is displayed only on the
opposite side of the turn.

JVH0337X

Bird’s-eye view:

The bird’s-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predicted course to a parking
space.

The vehicle icon

*

1

shows the position of the

vehicle. Note that the distance between objects
viewed in the bird’s-eye view differs from the
actual distance.

The areas that the cameras cannot cover

*

2

are

indicated in black.

After the ignition switch is placed in the ON
position, the non-viewable area

*

2

is high-

lighted in yellow for 3 seconds after the bird’s-

eye view is displayed.

In addition, the non-viewable corners are dis-
played in red (blink for the first 3 seconds)

*

3

to remind the drivers to be cautious.

WARNING

Objects in the birds-eye view will

appear further than the actual dis-
tance because the bird
s-eye view is
a pseudo view that is processed by
combining the views from the cam-
eras on the outside mirrors, the
front and the rear of the vehicle.

Tall objects, such as a curb or

vehicle, may be misaligned or not
displayed at the seam of the views.

Objects that are above the camera

cannot be displayed.

The view for the birds-eye view may

be misaligned when the camera
position alters.

A line on the ground may be mis-

aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the
vehicle.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-35

4-36

Monitor, heater, air conditioner, audio, phone and voice recognition systems

Tire angle display does not indicate

the actual tire angle.

JVH1141X

Front-side view:

Guiding lines:

Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.

The front-of-vehicle line

*

1

shows the front part

of the vehicle.

The side-of-vehicle line

*

2

shows the vehicle

width including the outside mirrors.

The extensions

*

3

of both the front

*

1

and

side

*

2

lines are shown with a green dotted

line.

CAUTION

The turn signal light may look like the
side-of-vehicle line. This is not a mal-
function.

Difference between predictive and actual
distances

The displayed guide lines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in the
monitor relative to the guide lines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or park
and exit the vehicle to view the positioning of
objects behind the vehicle.

JVH1275X

Backing up on a steep uphill:

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.

JVH1276X

Backing up on a steep downhill:

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.

SAA1923

Backing up near a projecting object:

The predictive course lines

*

A

do not touch the

object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.

Monitor, heater, air conditioner, audio, phone and voice recognition systems

4-37















Content   ..  12  13  14  15   ..
