Nissan Pathfinder (2018 year). Instruction

∙ Failure to operate this vehicle cor-

rectly could result in loss of control
and/or a rollover accident.

∙ Always use tires of the same type,

size, brand, construction (bias, bias-
belted, or radial), and tread pattern on
all four wheels. Install tire chains on
the front wheels when driving on slip-
pery roads and drive carefully.

∙ Be sure to check the brakes immedi-

ately after driving in mud or water. For
additional information, refer to “Brake
system” in this section.

∙ Avoid parking your vehicle on steep

hills. If you get out of the vehicle and it
rolls forward, backward or sideways,
you could be injured.

∙ Whenever you drive off-road through

sand, mud or water as deep as the
wheel hub, more frequent mainte-
nance may be required. For additional
information, refer to “Severe driving
conditions” in the “Maintenance and
schedules” section of this manual.

WARNING

Do not operate the push-button igni-
tion switch while driving the vehicle ex-
cept in an emergency. (The engine will
stop when the ignition switch is pushed
three consecutive times in quick suc-
cession or the ignition switch is pushed
and held for more than 2 seconds.) If the
engine stops while the vehicle is being
driven, this could lead to a crash and
serious injury.

When the ignition switch is pushed without
depressing the brake pedal, the ignition
switch will illuminate.

Push the ignition switch center:

∙ Once to change to ACC.

∙ Two times to change to ON.

∙ Three times to return to OFF.

The ignition switch will automatically re-
turn to the LOCK position when any door is
either opened or closed with the switch in
the OFF position.

LSD2014

PUSH-BUTTON IGNITION SWITCH

Starting and driving

5-11

The ignition lock is designed so that the
ignition

switch

position

cannot

switched to OFF until the shift lever is
moved to the P (Park) position.

When the ignition switch cannot be pushed
toward the OFF position, proceed as fol-
lows:

1. Move the shift lever to the P (Park) posi-

tion.

2. Push the ignition switch. The ignition

switch position will change to the ON
position.

3. Push the ignition switch again to the

OFF position.

The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.

If the battery of the vehicle is discharged,
the push-button ignition switch cannot
be moved from the LOCK position.

Some indicators and warnings for opera-
tion are displayed on the vehicle informa-
tion display. For additional information, re-
fer to “Vehicle information display” in the
“Instruments and controls” section of this
manual.

OPERATING RANGE

The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range.

When the Intelligent Key battery is almost
discharged or strong radio waves are pres-
ent near the operating location, the Intelli-
gent Key system’s operating range be-
comes narrower and may not function
properly.

If the Intelligent Key is within the operating
range, it is possible for anyone, even some-

one who does not carry the Intelligent Key,
to push the ignition switch to start the en-
gine.

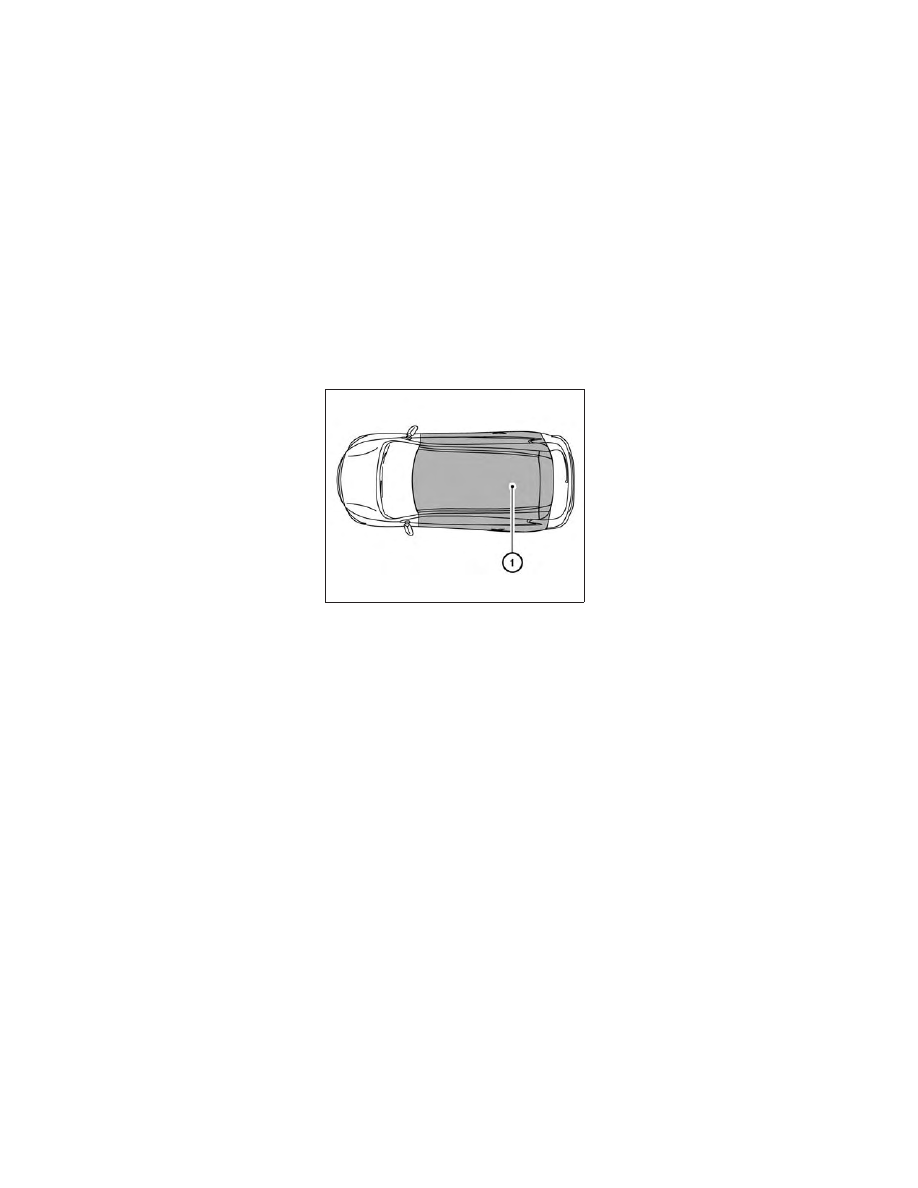

The operating range of the engine start
function is inside of the vehicle

䊊

∙ The luggage area is not included in the

operating range, but the Intelligent Key
may function.

∙ If the Intelligent Key is placed on the

instrument panel, inside the glove box,
storage bin or door pocket, the Intelli-
gent Key may not function.

∙ If the Intelligent Key is placed near the

door or window outside the vehicle, the
Intelligent Key may function.

PUSH-BUTTON IGNITION SWITCH
POSITIONS

LOCK (Normal parking position)

The ignition switch can only be locked in
this position.

The ignition switch will be unlocked when it
is pushed to the ACC position while carry-
ing the Intelligent Key.

The ignition switch will lock when any door
is opened or closed with the ignition
switched off.

LSD2020

5-12

Starting and driving

ACC (Accessories)

This position activates electrical accesso-
ries, such as the radio, when the engine is
not running.

ACC has a battery saver feature that will
place the ignition switch in the OFF position
after a period of time under the following
conditions:

∙ All doors are closed.

∙ The shift lever is in P (Park).

The battery saver feature will be canceled if
any of the following occur:

∙ Any door is opened.

∙ The shift lever is moved out of P (Park).

∙ The ignition switch changes position.

ON (Normal operating position)

This position turns on the ignition system
and electrical accessories.

ON has a battery saver feature that will
place the ignition switch in the OFF posi-
tion, if the vehicle is not running, after some
time under the following conditions:

∙ All doors are closed.

∙ The shift lever is in P (Park).

The battery saver feature will be canceled if
any of the following occur:

∙ Any door is opened.

∙ The shift lever is moved out of the P

(Park) position.

∙ The ignition switch changes position.

CAUTION

Do not leave the vehicle with the igni-
tion switch in ACC or ON positions when
the engine is not running for an ex-
tended period. This can discharge the
battery.

OFF

The ignition switch is in the OFF position
when the engine is turned off using the
ignition switch. No lights will illuminate on
the ignition switch.

EMERGENCY ENGINE SHUT OFF

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:

∙ Rapidly push the push-button ignition

switch three consecutive times in less
than 1.5 seconds, or

∙ Push and hold the push-button ignition

switch for more than 2 seconds.

NISSAN INTELLIGENT KEY®
BATTERY DISCHARGE

If the battery of the NISSAN Intelligent Key®
is discharged, or environmental conditions
interfere with the Intelligent Key operation,
start the engine according to the following
procedure:

1. Place the shift lever in the P (Park) posi-

tion.

2. Firmly apply the foot brake.

3. Touch the ignition switch with the Intel-

ligent Key as illustrated. (A chime will
sound.)

SSD0860

Starting and driving

5-13

After Step 3 is performed, when the
ignition switch is pushed without de-
pressing the brake pedal, the ignition
switch position will change to ACC.

4. Push the ignition switch while depress-

ing the brake pedal within 10 seconds
after the chime sounds. The engine will
start.

NOTE:

∙ When the ignition switch is pushed to

the ACC or ON position or the engine
is started by the above procedure, the
Intelligent Key battery discharge in-
dicator appears in the vehicle infor-
mation display even when the Intelli-
gent Key is inside the vehicle. This is
not a malfunction. To turn off the In-
telligent Key battery discharge indi-
cator, touch the ignition switch with
the Intelligent Key again.

∙ If the Intelligent Key battery dis-

charge indicator appears, replace the
battery as soon as possible. For addi-
tional information, refer to “Battery
replacement” in the “Do-it-yourself ”
section of this manual.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered key.

If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedure:

1. Leave the ignition switch in the ON po-

sition for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position, and wait approximately
10 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the

device (which may have caused the in-
terference) separate from the regis-
tered key.

If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices.

∙ Make sure the area around the vehicle is

clear.

∙ Check fluid levels such as engine oil,

coolant, brake fluid, and windshield-
washer fluid as frequently as possible,
or at least whenever you refuel.

∙ Check that all windows and lights are

clean.

∙ Visually inspect tires for their appear-

ance and condition. Also check tires for
proper inflation.

∙ Check that all doors are closed.

∙ Position

seat

and

adjust

head

restraints/headrests.

∙ Adjust inside and outside mirrors.

∙ Fasten seat belts and ask all passen-

gers to do likewise.

∙ Check the operation of warning lights

when the ignition switch is placed in the
ON position. For additional information,
refer to “Warning lights, indicator lights
and audible reminders” in the “Instru-
ments and controls” section of this
manual.

BEFORE STARTING THE ENGINE

5-14

Starting and driving

1. Apply the parking brake.

2. Move the shift lever to P (Park) or N

(Neutral). P (Park) is recommended.

The starter is designed not to oper-
ate if the shift lever is in any of the
driving positions.

3. Push the ignition switch to the ON po-

sition. Depress the brake pedal and
push the ignition switch to start the
engine.

To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal with the
ignition switch in any position.

∙ If the engine is very hard to start in

extremely cold weather or when re-
starting, depress

the

accelerator

pedal a little (approximately 1/3 to the
floor) and while holding, crank the en-
gine. Release the accelerator pedal
when the engine starts.

∙ If the engine is very hard to start be-

cause it is flooded, depress the accel-
erator pedal all the way to the floor
and hold it. Push the ignition switch
to the ON position to start cranking
the engine. After 5 or 6 seconds, stop
cranking by pushing the ignition

switch to the LOCK position. After
cranking the engine, release the ac-
celerator pedal. Crank the engine
with your foot off the accelerator
pedal by depressing the brake pedal
and pushing the ignition switch to
start the engine. If the engine starts,
but fails to run, repeat the above pro-
cedure.

CAUTION

Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to the OFF position and wait 10 seconds
before cranking again, otherwise the
starter could be damaged.

4. Warm-up:

Allow the engine to idle for at least
30 seconds after starting. Do not race
the engine while warming it up. Drive at
a moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 to 3 minutes before
shutting it off. Starting and stopping
the engine over a short period of time
may make the vehicle more difficult to
start.

5. To stop the engine, move the shift lever

to the P (Park) position and push the
ignition switch to the OFF position.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of elec-

tronic accessories that consume bat-
tery power when the engine is not
running (phone chargers, GPS, DVD
players, etc.).

2. The vehicle is not driven regularly

and/or only driven short distances.

In these cases, the battery may need to
be charged to maintain battery health.

STARTING THE ENGINE

Starting and driving

5-15

REMOTE ENGINE START (if so
equipped)

Vehicles started with the Remote Engine
Start require the ignition switch to be
placed in the ON position before the shift
lever can be moved from the P (Park) posi-
tion. To place the ignition switch in the ON
position, follow these steps:

1. Make sure that the Intelligent Key is on

you.

2. Apply the brake.

3. Push the ignition switch once to the ON

position.

For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks
and adjustments” section of this manual.

CONTINUOUSLY VARIABLE
TRANSMISSION (CVT)

WARNING

∙ Do not depress the accelerator pedal

while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or L (Low).
Always depress the brake pedal until
shifting is completed. Failure to do so
could cause you to lose control and
have an accident.

∙ Cold engine idle speed is high, so use

caution when shifting into a forward
or reverse gear before the engine has
warmed up.

∙ Do not downshift abruptly on slippery

roads. This may cause a loss of
control.

∙ Never shift to either the P (Park) or R

(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident
or damage the transmission.

CAUTION

∙ To avoid possible damage to your ve-

hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

∙ Except in an emergency, do not shift

to the N (Neutral) position while driv-
ing. Coasting with the transmission in
the N (Neutral) position may cause se-
rious damage to the transmission.

The CVT in your vehicle is electronically
controlled to produce maximum power
and smooth operation.

The recommended operating procedures
for this transmission are shown on the fol-
lowing pages. Follow these procedures for
maximum vehicle performance and driv-
ing enjoyment.

Engine power may be automatically re-
duced to protect the CVT if the engine
speed increases quickly when driving on
slippery roads or while being tested on
some dynamometers.

DRIVING THE VEHICLE

5-16

Starting and driving

Starting the vehicle

1. After starting the engine, fully depress

the foot brake pedal before moving the
shift lever out of the P (Park) position.
This Continuously Variable Transmis-
sion is designed so that the foot
brake pedal must be depressed be-
fore shifting from P (Park) to any driv-
ing position while the ignition switch
is in the ON position.
The shift lever cannot be moved out
of the P (Park) position and into any
of the other positions if the ignition
switch is placed in the LOCK, OFF or
ACC position while the ready light il-
luminates.

2. Keep the foot brake pedal depressed

and move the shift lever to a driving
position.

3. Release the parking brake and foot

brake pedal and then gradually start
the vehicle in motion.

WARNING

∙ Do not depress the accelerator pedal

while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive) or L (Low).
Always depress the brake pedal until
shifting is completed. Failure to do so
could cause you to lose control and
have an accident.

∙ Cold engine idle speed is high, so use

caution when shifting into a forward
or reverse gear before the engine has
warmed up.

∙ Do not downshift abruptly on slippery

roads. This may cause a loss of
control.

∙ Never shift to either the P (Park) or R

(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident
or damage the transmission.

CAUTION

∙ To avoid possible damage to your ve-

hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

∙ Except in an emergency, do not shift

to the N (Neutral) position while driv-
ing. Coasting with the transmission in
the N (Neutral) position may cause se-
rious damage to the transmission.

Starting and driving

5-17

Shifting

Press the button

䊊

while depressing

the brake pedal

Press the button

䊊

to shift

Shift without pressing the

䊊

button

After starting the engine, fully depress the
brake pedal, press the shift lever button
and move the shift lever from the P (Park)
position to any of the desired shift posi-
tions.

WARNING

Apply the parking brake if the shift lever
is in any position while the engine is not
running. Failure to do so could cause
the vehicle to move unexpectedly or roll
away and result in serious personal in-
jury or property damage.

CAUTION

Use the P (Park) or R (Reverse) position
only when the vehicle is completely
stopped.

P (Park)

CAUTION

To prevent transmission damage, use
the P (Park) position only when the ve-
hicle is completely stopped.

Use the P (Park) shift lever position when
the vehicle is parked or when starting the
engine. Make sure the vehicle is completely
stopped. The brake pedal must be de-
pressed and the shift lever button
pressed to move the shift lever from N
(Neutral) or any drive position to P (Park).
Apply the parking brake. When parking on a
hill, apply the parking brake first, then move
the shift lever in the P (Park) position.

R (Reverse)

CAUTION

To prevent transmission damage, use
the R (Reverse) position only when the
vehicle is completely stopped.

Use the R (Reverse) position to back up.
Make

sure

the

vehicle

completely

stopped before selecting the R (Reverse)
position. The brake pedal must be de-
pressed and the shift lever button
pressed to move the shift lever from P
(Park), N (Neutral) or any drive position to
R (Reverse).

N (Neutral)

Neither forward nor reverse gear is en-
gaged. The engine can be started in this
position. You may shift to N (Neutral) and
restart a stalled engine while the vehicle is
moving.

D (Drive)

Use this position for all normal forward
driving.

L (Low)

Use this position for engine braking on
steep downhill gradients/climbing steep
slopes and whenever approaching sharp

LSD2127

5-18

Starting and driving

bends. Do not use the L (Low) position in
any other circumstances.

Shift lock release

If the battery charge is low or discharged,
the shift lever may not be moved from the
P (Park) position even with the brake pedal
depressed and the shift lever button
pressed. To move the shift lever, perform
the following procedure:

1. Place the ignition switch in the OFF or

LOCK position.

2. Apply the parking brake.

3. Remove the shift lock release cover

䊊

using a suitable tool.

4. Push down the shift lock release

䊊

using a suitable tool.

5. Press the shift lever button

䊊

and

move the shift lever to the N (Neutral)
position

䊊

while holding down the

shift lock release. The vehicle may be
moved to the desired location. Replace
the removed shift lock release cover
after the operation. If the shift lever
cannot be moved out of the P (Park)
position, have the Continuously Vari-
able Transmission system checked as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.

WARNING

If the shift lever cannot be moved from
the P (Park) position while the engine is
running and the brake pedal is de-
pressed, the stop lights may not work.
Malfunctioning stop lights could cause
an

accident

injuring

yourself

and

others.

LSD2128

Starting and driving

5-19

Overdrive (O/D) OFF switch

When the O/D OFF switch is pushed with
the shift lever in the D (Drive) position,
the

light in the instrument panel illu-

minates. For additional information, refer
to “Overdrive OFF indicator light” in the “In-
struments and controls” section of this
manual.
Use the overdrive OFF mode when you
need improved engine braking.

To turn off the overdrive OFF mode, push
the O/D OFF switch again. The

indi-

cator light will turn off.

Each time the engine is started, or when
the shift lever is shifted to any position
other than D (Drive), the overdrive OFF
mode will be automatically turned off.

Accelerator downshift
— in D (Drive) position —

For passing or hill climbing, depress the
accelerator pedal to the floor. This shifts
the transmission down into a lower gear,
depending on the vehicle speed.

High fluid temperature protection
mode

This transmission has a high fluid tem-
perature protection mode. If the fluid tem-
perature becomes too high (for example,
when climbing steep grades in high tem-
peratures with heavy loads, such as when
towing a trailer), engine power and, under
some conditions, vehicle speed will be de-
creased

automatically

reduce

the

chance of transmission damage. Vehicle
speed can be controlled with the accelera-
tor pedal, but the engine and vehicle speed
may be limited.

Fail-safe

If the vehicle is driven under extreme
conditions, such as excessive wheel
spinning and subsequent hard braking,
the fail-safe system may be activated.
The Malfunction Indicator Light (MIL)
may come on to indicate the fail-safe
mode is activated. For additional infor-
mation, refer to “Malfunction Indicator
Light (MIL)” in the “Instruments and con-
trols” section of this manual. This will oc-
cur even if all electrical circuits are func-
tioning properly. In this case, place the
ignition switch in the OFF position and
wait for 10 seconds. Then push the
switch back to the ON position. The ve-
hicle should return to its normal operat-
ing condition. If it does not return to its
normal operating condition, have the
transmission checked and repaired, if
necessary. It is recommended that you
visit a NISSAN dealer for this service.

LSD2246

5-20

Starting and driving

WARNING

When the high fluid temperature pro-
tection mode or fail-safe operation oc-
curs, vehicle speed may be gradually re-
duced. The reduced speed may be lower
than other traffic, which could increase
the chance of a collision. Be especially
careful when driving. If necessary, pull
to the side of the road at a safe place
and allow the transmission to return to
normal operation, or have it repaired if
necessary.

WARNING

∙ Be sure the parking brake is fully re-

leased before driving. Failure to do so
can cause brake failure and lead to an
accident.

∙ Do not release the parking brake from

outside the vehicle.

∙ Do not use the shift lever in place of

the parking brake. When parking, be
sure

the

parking

brake

fully

engaged.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

To engage: Firmly depress the parking
brake.

To release:

1. Firmly apply the foot brake.

2. Move the shift lever to the P (Park) po-

sition.

3. Firmly depress the parking brake pedal

and it will release.

4. Before driving, be sure the brake warn-

ing light goes out.

LSD0158

PARKING BRAKE

Starting and driving

5-21

WARNING

Failure to follow the warnings and in-
structions for proper use of the BSW
system could result in serious injury or
death.

∙ The BSW system is not a replacement

for proper driving procedures and is
not designed to prevent contact with
vehicles or objects. When changing
lanes, always use the side and rear
mirrors and turn and look in the direc-
tion your vehicle will move to ensure it
is safe to change lanes. Never rely
solely on the BSW system.

The BSW system helps alert the driver of
other vehicles in adjacent lanes when
changing lanes.

The BSW system uses radar sensors

䊊

installed near the rear bumper to detect
other vehicles in an adjacent lane.

The radar sensors can detect vehicles on
either side of your vehicle within the detec-
tion zone shown as illustrated. This detec-
tion zone starts from the outside mirror of
your vehicle and extends approximately
10 ft (3.0 m) behind the rear bumper, and
approximately 10 ft (3.0 m) sideways.

LSD2707

Detection zone

SSD1030

BLIND SPOT WARNING (BSW) (if so
equipped)

5-22

Starting and driving

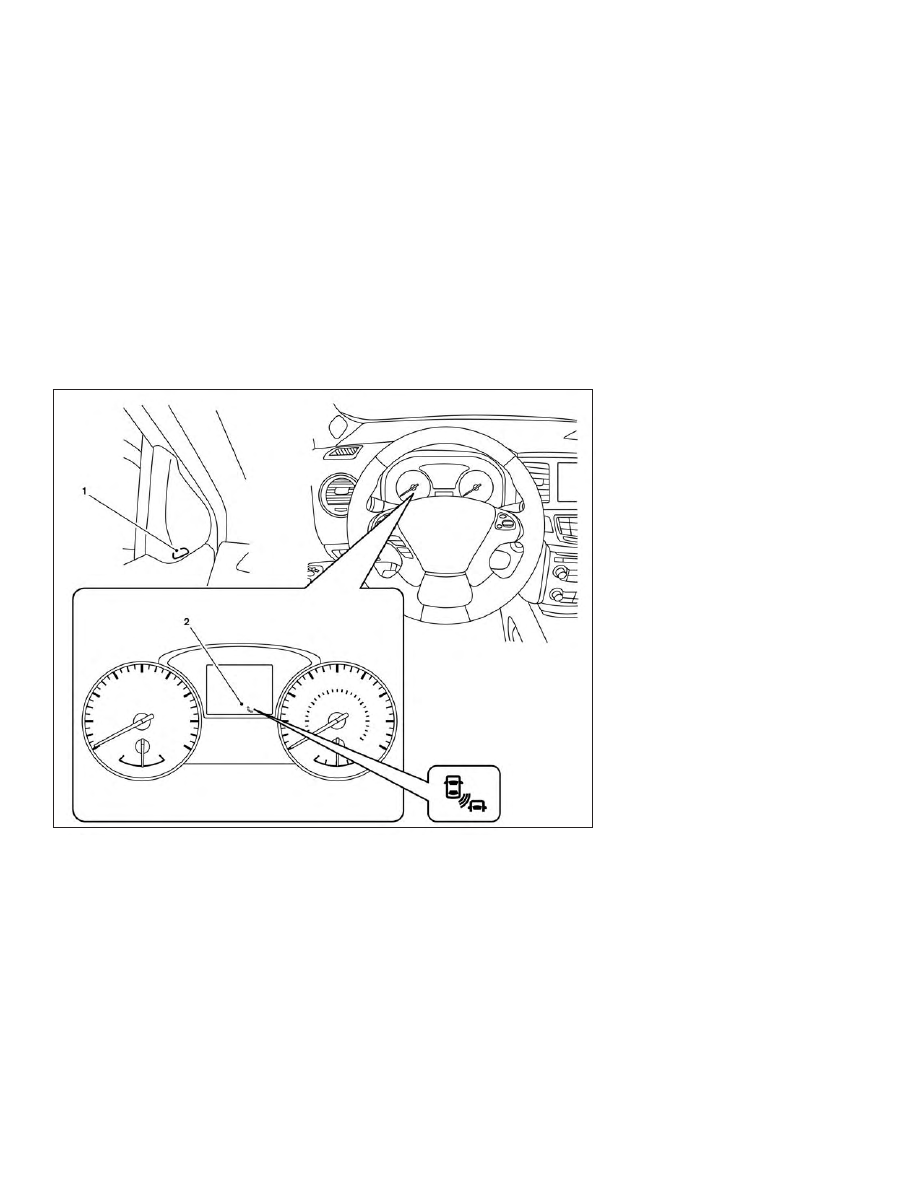

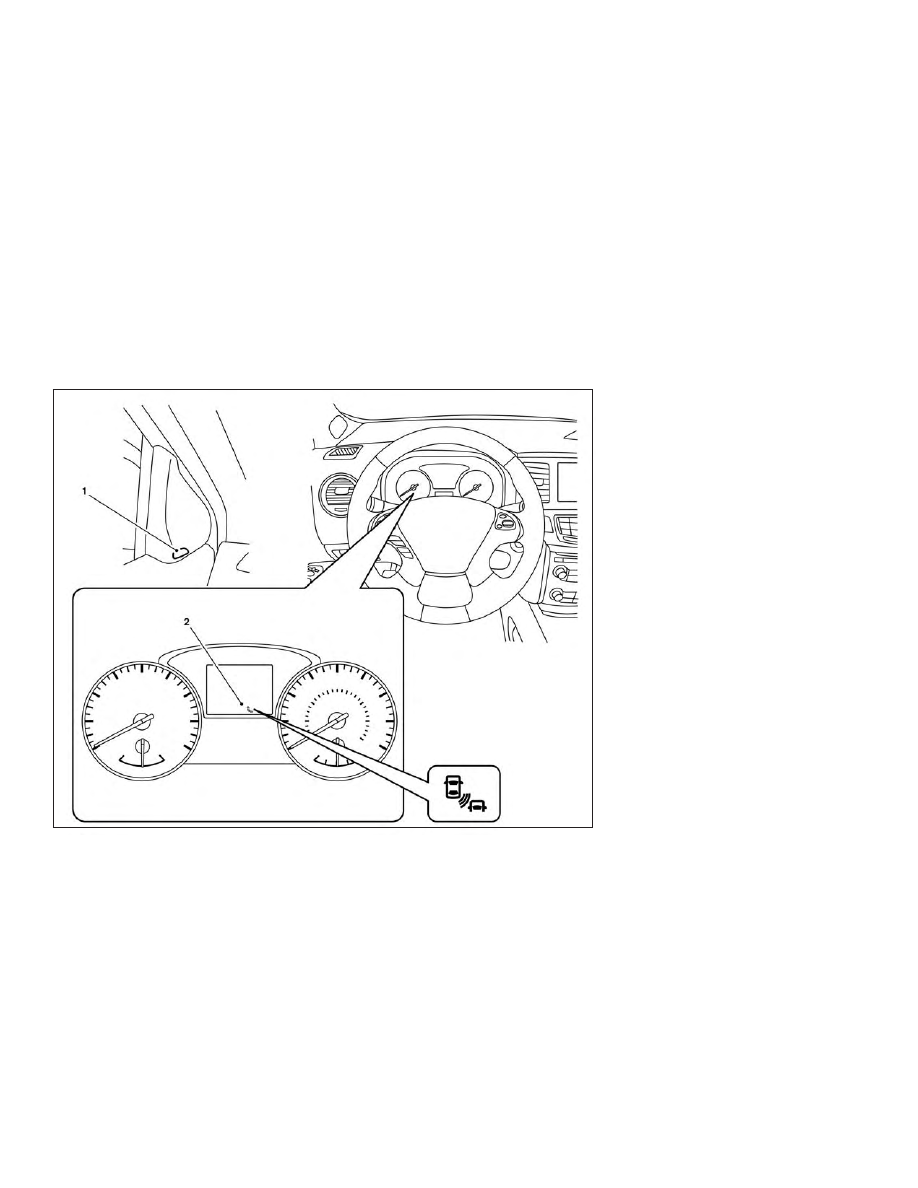

1. Side BSW/RCTA Indicator Light

2. BSW/RCTA Indicator

BSW SYSTEM OPERATION

The BSW system operates above approxi-
mately 20 mph (32km/h).

If the radar sensors detect a vehicle in the
detection zone, the side BSW/RCTA indica-
tor light (1) illuminates. If the turn signal is
then activated, the system chimes (twice)
and the side BSW/RCTA indicator light
flashes. The side BSW/RCTA indicator light
continues to flash until the detected ve-
hicles leaves the detection zone.

The side BSW/RCTA indicator light illumi-
nates for a few seconds when the ignition
switch is placed in the ON position.

The brightness of the side BSW/RCTA indi-
cator light is adjusted automatically de-
pending on the brightness of the ambient
light.

If a vehicle comes into the detection zone
after the driver activates the turn signal,
then only the side BSW/RCTA indicator light
flashes and no chime sounds. For addi-
tional information, refer to “BSW driving
situations” in this section.

LSD2765

Starting and driving

5-23

HOW TO ENABLE/DISABLE THE
BSW SYSTEM

When the BSW system is enabled in the
vehicle information display, the system can
be turned off by pushing the warning sys-
tems switch. For additional information, re-
fer to “Warning systems switch” in the “In-
struments and controls” section of this
manual.

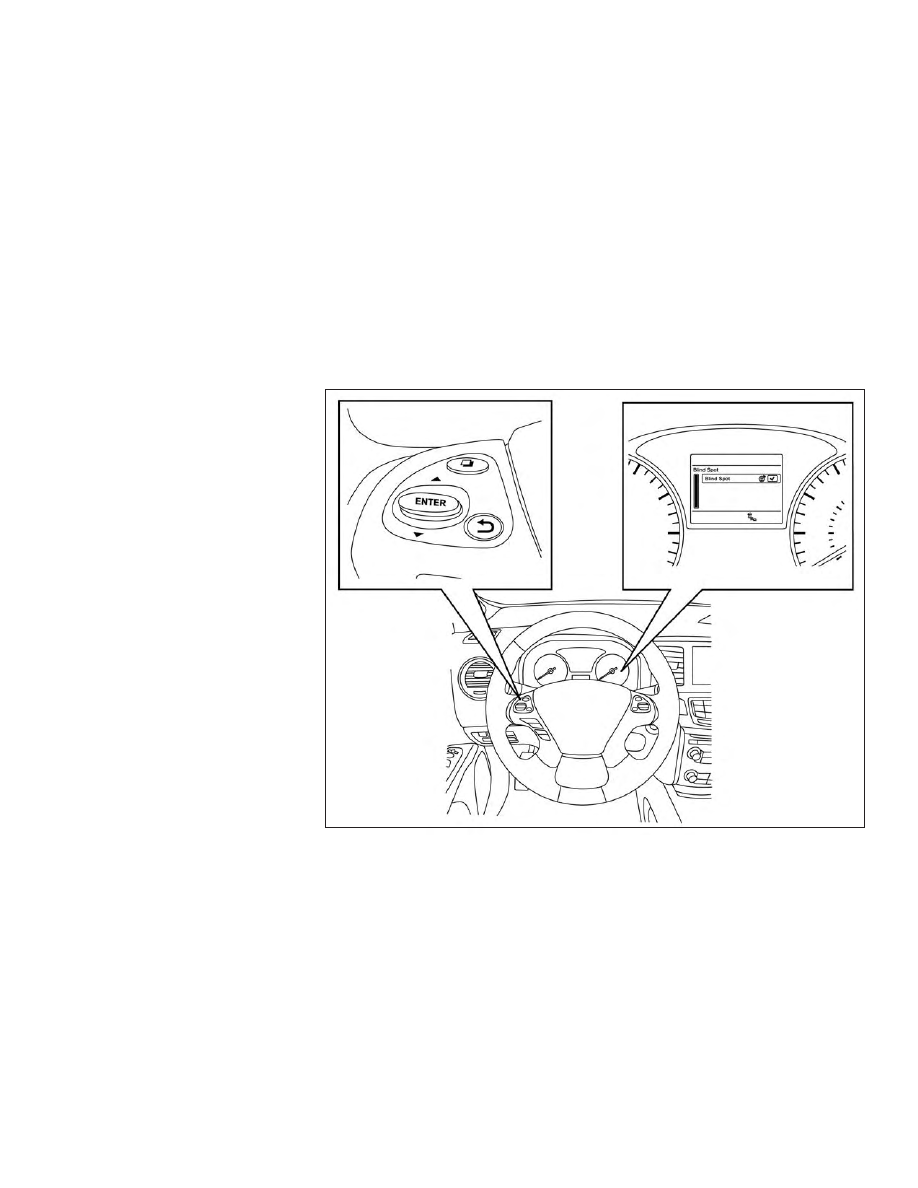

Perform the following steps to enable or
disable the BSW system.

1. Press the

button until “Settings”

displays in the vehicle information dis-
play. Use the

button to select

“Driver Assistance.” Then press the EN-
TER button.

2. Select “Driving Aids” and press the EN-

TER button.

3. Select “Blind Spot” and press the ENTER

button.

4. Use the ENTER button to turn the sys-

tem on or off.

NOTE:

∙ When enabling/disabling the system,

the system will retain current set-
tings even if the engine is restarted.

∙ The RCTA system (if so equipped) is

integrated into the BSW system.
There is not a separate selection in
the vehicle information display for
the RCTA system. When the BSW is
disabled, the RCTA system is also dis-
abled.

∙ When the BSW system is turned on,

the BSW/RCTA indicator (white) in the
vehicle information display illumi-
nates.

BSW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the BSW system. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The BSW system cannot detect all ve-

hicles under all conditions.

∙ The radar sensors may not be able to

detect and activate BSW when certain
objects are present such as:

– Pedestrian, bicycles, animals.

– Vehicles such as motorcycles, low

height vehicles, or high ground
clearance vehicles.

– Oncoming vehicles.

– Vehicles remaining in the detec-

tion zone when you accelerate
from a stop.

– A vehicle merging into an adjacent

lane at a speed approximately the
same as your vehicle.

– A vehicle approaching rapidly from

behind.

– A vehicle which your vehicle over-

takes rapidly.

– A vehicle that passes through the

detection zone quickly.

– When overtaking several vehicles

in a row, the vehicles after the first
vehicle may not be detected if they
are traveling close together.

Starting and driving

5-25

∙

The radar sensor’s detection zone is

designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect ve-
hicles in an adjacent lane. When driv-
ing in a narrow lane, the radar sensors
may detect vehicles driving two lanes
away.

∙ The radar sensors are designed to ig-

nore most stationary objects; how-
ever objects such as guardrails, walls,
foliage and parked vehicles may oc-
casionally be detected. This is a nor-
mal operation condition.

∙ The following conditions may reduce

the ability of the radar to detect other
vehicles:

– Severe weather

– Road spray

– Ice/frost/dirt

build-up

the

vehicle

∙

Do not attach stickers (including

transparent material), install accesso-
ries or apply additional paint near the
radar sensors. These conditions may
reduce the ability of the radar to de-
tect other vehicles.

∙ Excessive noise (for example, audio

system volume, open vehicle window)
will interfere with the chime sound,
and it may not be heard.

BSW DRIVING SITUATIONS

Indicator on

Indicator off

Indicator flashing

Illustration 1 – Approaching from behind

LSD2299

5-26

Starting and driving

Nissan Pathfinder (2018 year). Instruction - part 18
