Nissan Pathfinder (2018 year). Instruction - part 11

CAUTION

∙ Remove water drops, snow, ice or

sand

from

the

moonroof

before

opening.

∙ Do not place heavy objects on the

moonroof or surrounding area.

Sunshade

Open and close the sunshade by sliding it
forward or backward.

If the moonroof does not close

Have your moonroof checked and re-
paired. It is recommended that you visit a
NISSAN dealer for this service.

Panoramic sunshade

The panoramic sunshade operates when
the ignition switch is in the ON position. The
sunshade switch is located near the roof
console. When opening or closing the sun-
shade the switch need not be held.

To open the sunshade:

∙ To fully open the sunshade, push the

switch

䊊

toward the open position.

To close the sunshade:

∙ To fully close the sunshade, push the

switch

䊊

toward the close position.

WARNING

∙ To avoid personal injury, keep your

hands, fingers and head away from
the sunshade arm, the arm rail and
sunshade inlet port.

∙ Do not allow children near the rear

sunshade system. They could be
injured.

∙ Do not place objects on or near the

rear sunshade. This could cause im-
proper operation or damage it.

∙ Do not pull or push the rear sunshade.

This could cause improper operation
or damage it.

CAUTION

∙ Do not place objects (such as newspa-

pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may en-
tangle these objects in the sunshade
when it is extending or retracting,
causing improper operation or dam-
age to the sunshade.

∙ Do not push the sunshade arm with

your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result.

LIC2228

Instruments and controls

2-69

∙ Do not put any object into the sun-

shade inlet port as this may result in
improper operation or damage the
sunshade.

∙ Do not hang any object on the arm rail

as this may result in improper opera-
tion or damage the sunshade.

∙ Do not forcefully pull the sunshade.

Doing so may elongate the sunshade.
Improper operation or damage to the
sunshade may result.

Restarting the sunshade switch

If the sunshade does not operate properly,
perform the following procedure to initial-
ize the sunshade operation system.

1. Place the ignition switch in the ACC or

ON position.

2. Push and hold the sunshade close

switch.

3. Sunshade will begin moving towards

the close position only while the switch
is continually held. (this disables the ob-
stacle detection).

4. Sunshade will stop for about 4 sec-

onds.

5. Sunshade drive cable will travel in the

open direction for .394 in. (10 mm) then
reverse direction and stop at the nor-
mal close position.

6. Release the sunshade close switch. Ini-

tialization procedure is complete.

If the moonroof does not operate properly
after performing the procedure above,
have your vehicle serviced. It is recom-
mended that you visit a NISSAN dealer for
this service.

Auto-reverse function (when closing
the sunshade)

The auto-reverse function can be acti-
vated when the sunshade is closed by au-
tomatic operation when the ignition switch
is placed in the ON position or for a period
of time after the ignition switch is placed in
the OFF position.

Depending on the environment or driv-
ing conditions, the auto-reverse func-
tion may be activated if an impact or
load similar to something being caught
in the sunshade occurs.

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
of the passengers have their hands,
etc., inside the vehicle before closing
the sunshade.

2-70

Instruments and controls

When the ON switch

䊊

is pressed, the foot-

well lights (if so equipped), step lights (if so
equipped), map lights and rear personal
lights will automatically turn on and stay on
for a period of time when:

∙ The doors are unlocked by the Intelli-

gent Key, a key or the request switch (if
so equipped) while all doors are closed
and the ignition switch is in the OFF
position.

∙ When individually pushed.

When the OFF switch

䊊

is pushed, the in-

terior lights do not illuminate.

NOTE:

The footwell lights (if so equipped) and
step lights (if so equipped) illuminate
when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time
while doors are open to prevent the bat-
tery from becoming discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

CONSOLE LIGHT

The console light will turn on whenever the
parking lights or headlights are illuminated.

The console light brightness can be ad-
justed with the illumination brightness
control.

LIC2302

LIC2303

INTERIOR LIGHTS

Instruments and controls

2-71

MAP LIGHTS

Press the button to turn the map lights on.
To turn them off, press the button again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

PERSONAL LIGHTS

To turn on the personal lights, push and
release the switch

䊊

To turn off the personal lights, push and
release the switch

䊊

CARGO LIGHT

The cargo light on the overhead trim has a
three-position switch. To operate, push the
switch to the desired position.

䊊

ON: The light is illuminated.

䊊

DOOR: The light illuminates when the
liftgate is opened. The light turns off
when the liftgate is closed.

䊊

OFF: The light does not illuminate re-
gardless of liftgate position or lock sta-
tus.

LIC2304

LIC1413

SIC2063A

2-72

Instruments and controls

CAUTION

Do not use for extended periods of time
with the engine stopped. This could re-
sult in a discharged battery.

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.

HomeLink® Universal Transceiver:

∙ Will operate most radio frequency de-

vices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

∙ Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is dis-
connected, HomeLink® will retain all
programming.

When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming pro-
cedures (Example: new vehicle pur-
chases). Upon sale of the vehicle, the
programmed

HomeLink®

Universal

Transceiver buttons should be erased for
security purposes. For additional infor-
mation,

refer

“Programming

HomeLink®” in this section.

WARNING

∙ Do not use the HomeLink® Universal

Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards
became effective for opener models
manufactured after April 1, 1982).
A garage door opener which cannot
detect an object in the path of a clos-
ing garage door and then automati-
cally stop and reverse, does not meet
current federal safety standards. Us-
ing a garage door opener without
these features increases the risk of
serious injury or death.

∙ During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming.

∙ Your

vehicle’s

engine

should

turned off while programming the
HomeLink® Universal Transceiver. Do
not breathe exhaust gases; they con-
tain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)

Instruments and controls

2-73

PROGRAMMING HOMELINK®

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.

NOTE:

Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery
be placed in the hand-held transmitter
of the device being programmed to
HomeLink® for quicker programming
and accurate transmission of the radio
frequency.

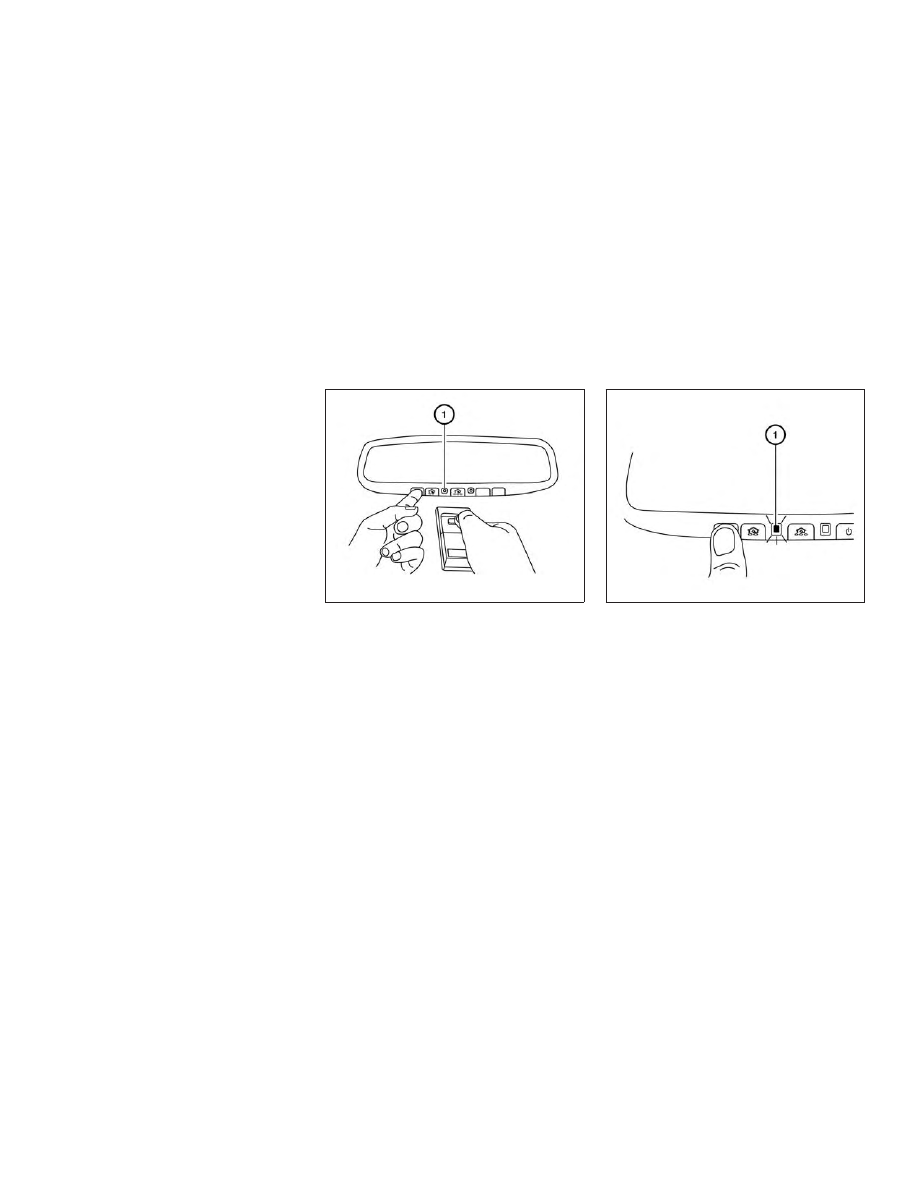

1. Position the end of your hand-held

transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light

䊊

in view.

2. Using

both

hands,

simultaneously

press and hold the desired HomeLink®
button and hand-held transmitter but-
ton.

NOT

release

until

the

HomeLink® indicator light

䊊

flashes

slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. (The rapid flashing
indicates successful programming.)

LIC2365

LIC2366

2-74

Instruments and controls

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted
in “Programming HomeLink® for Cana-
dian customers and gate openers” in this
section.

3. Press

and

hold

the

programmed

HomeLink® button and observe the in-
dicator light.

∙ If the indicator light

䊊

is solid/

continuous, programming is com-
plete and your device should acti-
vate when the HomeLink® button is
pressed and released.

∙ If the indicator light

䊊

blinks rapidly

for 2 seconds and then turns to a
solid/continuous

light,

continue

with Steps 4-6 for a rolling code de-
vice. A second person may make the
following steps easier. Use a ladder or
other device. Do not stand on your
vehicle to perform the next steps.

4. At the receiver located on the garage

door opener motor in the garage, lo-
cate the “learn” or “smart” button (the
name and color of the button may vary
by manufacturer but it is usually lo-
cated near where the hanging an-

tenna wire is attached to the unit). If
there is difficulty locating the button,
reference the garage door opener’s
manual.

5. Press and release the “learn” or “smart”

button.

6. Return to the vehicle and firmly press

and hold the trained HomeLink® but-
ton for 2 seconds and release. Repeat
the “press/hold/release” sequence up
to three times to complete the training
process. HomeLink® should now acti-
vate your rolling code equipped device.

7. If you have any questions or are having

difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at: www.homelink.com or call 1-800-355-
3515.

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND GATE
OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
training. Similar to this Canadian law, some

U.S. gate operators are designed to “tim-
eout” in the same manner.

If you live in Canada or you are having diffi-
culties training a gate operator or garage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
Step 2 with the following:

NOTE:

When

programming

garage

door

opener, etc., unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener com-
ponents.

1. For additional information, refer to “Pro-

gramming HomeLink®” step 1 in this
section.

2. Using

both

hands,

simultaneously

press and hold the desired HomeLink®
button and the hand-held transmitter
button. During training, your hand-held
transmitter may automatically stop
transmitting. Continue to press and
hold the desired HomeLink® button
while you press and re-press (“cycle”)
your

hand-held

transmitter

every

2 seconds until the frequency signal
has been learned. The HomeLink® indi-
cator light will flash slowly and then

Instruments and controls

2-75

rapidly after several seconds upon
successful training. DO NOT release un-
til the HomeLink® indicator light flashes
slowly and then rapidly. When the indi-
cator light flashes rapidly, both buttons
may be released. The rapid flashing in-
dicates successful training.
Proceed

with

“Programming

HomeLink®” step 3 to complete.
If the device was unplugged during the
programming procedure, remember
to plug it back in when programming is
completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate
the programmed device. To operate, sim-
ply press and release the appropriate pro-
grammed HomeLink® Universal Trans-
ceiver button. The amber indicator light will
illuminate while the signal is being trans-
mitted.

For convenience, the hand-held transmit-
ter of the device may also be used at any
time.

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink® does not quickly learn the
hand-held transmitter information:

∙ replace the hand-held transmitter bat-

teries with new batteries.

∙ position the hand-held transmitter with

its battery area facing away from the
HomeLink® surface.

∙ press and hold both the HomeLink®

and hand-held transmitter buttons
without interruption.

∙ position

the

hand-held

transmitter

1 - 3 in (26 - 76 mm) away from the
HomeLink® surface. Hold the transmit-
ter in that position for up to 15 seconds.
If HomeLink® is not programmed within
that time, try holding the transmitter in
another position – keeping the indicator
light in view at all times.

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-3515.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared. How-
ever, individual buttons can be repro-
grammed. For additional information, refer
to “Reprogramming a single HomeLink®
button” in this section.

To clear all programming:

1. Press

and

hold

the

two

outer

HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.

2. Release both buttons.

HomeLink® is now in the programming
mode and can be programmed at any
time

beginning

with

“Programming

HomeLink®” - Step 1.

2-76

Instruments and controls

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® Universal
Transceiver button, complete the following:

1. Press and hold the desired HomeLink®

button. DO NOT release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.

For

questions

comments,

contact

HomeLink®

at:

www.homelink.com

1–800–355–3515 (except Mexico).

The HomeLink® Universal Transceiver but-
ton has now been reprogrammed. The
new device can be activated by pressing
the HomeLink® button that was just pro-
grammed. This procedure will not affect
any other programmed HomeLink® but-
tons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device
that

has

been

programmed

into

HomeLink®. Consult the Owner’s Manual of
each device or call the manufacturer or
dealer of those devices for additional infor-
mation.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Uni-
versal Transceiver with your new trans-
mitter information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any received, including interference
that may cause undesired operation of
the device.

Instruments and controls

2-77

3 Pre-driving checks and adjustments

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

NISSAN Intelligent Key® . . . . . . . . . . . . . . . . . . . . . . . 3-2
NISSAN Vehicle Immobilizer System
keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Locking with key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Locking with inside lock knob. . . . . . . . . . . . . . . . . 3-6
Locking with power door lock switch . . . . . . . . . 3-7
Automatic door locks. . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Child safety rear door lock . . . . . . . . . . . . . . . . . . . . 3-7

NISSAN Intelligent Key® With Door and
Liftgate Request Switches . . . . . . . . . . . . . . . . . . . . . . . 3-8

Operating range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Door locks/unlocks precaution . . . . . . . . . . . . . . 3-10
NISSAN Intelligent Key® Operation . . . . . . . . . . . .3-11
How to use the remote keyless entry
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Warning signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . 3-17

NISSAN Intelligent Key® Without Door and
Liftgate Request Switches . . . . . . . . . . . . . . . . . . . . . . 3-20

Operating range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
How to use the remote keyless entry
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Warning signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . 3-25

Remote Engine Start (if so equipped) . . . . . . . . . . . 3-27

Remote Engine Start operating range . . . . . . . 3-27
Remote starting the vehicle . . . . . . . . . . . . . . . . . 3-28
Extending engine run time . . . . . . . . . . . . . . . . . . 3-28
Canceling a Remote Engine Start . . . . . . . . . . . . 3-28
Conditions the Remote Engine Start will
not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Liftgate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30

Fuel-filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38

Opening the fuel-filler door . . . . . . . . . . . . . . . . . . 3-38
Fuel-filler cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38

Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41

Manual operation (if so equipped) . . . . . . . . . . . 3-41
Automatic operation (if so equipped) . . . . . . . . 3-41

Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42

Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
Card holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43

Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44

Manual anti-glare rearview mirror
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44

Automatic anti-glare rearview mirror
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
Outside mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45

Automatic drive positioner (if so equipped) . . . . . 3-47

Memory storage function . . . . . . . . . . . . . . . . . . . 3-47
Entry/exit function . . . . . . . . . . . . . . . . . . . . . . . . . . 3-48
Setting memory function . . . . . . . . . . . . . . . . . . . . 3-49
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49

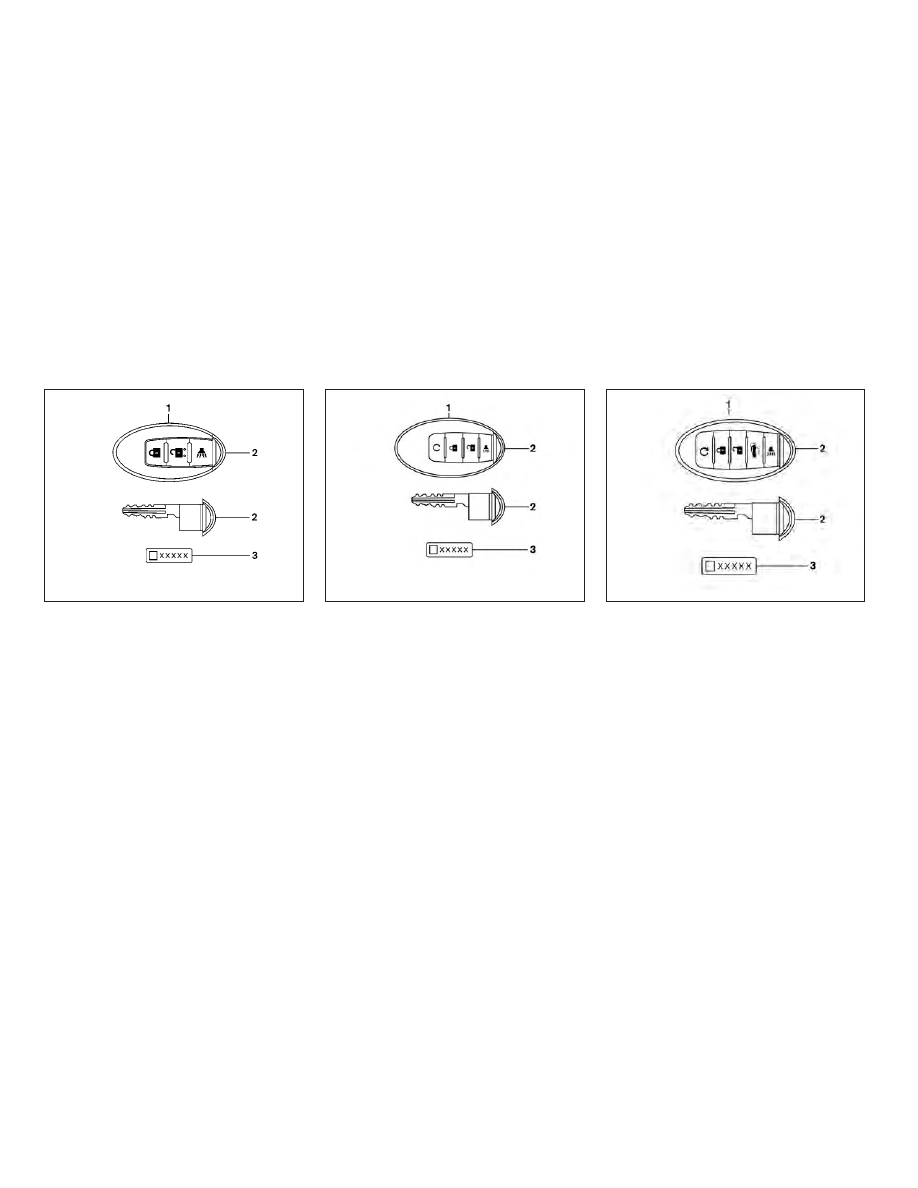

Two Intelligent Keys

Mechanical key

Key number plate

NISSAN INTELLIGENT KEY®

Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and NISSAN Vehicle Immobilizer
System components.

Never leave these keys in the vehicle.

As many as four Intelligent Keys can be
registered and used with one vehicle. The
new keys must be registered by a NISSAN
dealer prior to use with the Intelligent Key
system and NISSAN Vehicle Immobilizer
System of your vehicle. Since the registra-
tion process requires erasing all memory in
the Intelligent Key components when reg-
istering new keys, be sure to take all Intelli-
gent Keys that you have to the NISSAN
dealer.

A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended that you visit a NISSAN dealer for
duplicates by using the key number.
NISSAN does not record key numbers so it
is very important to keep track of your key
number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.

Type A (if so equipped)

LPD0350

Type B (if so equipped)

LPD2279

Type C (if so equipped)

LPD2052

KEYS

3-2

Pre-driving checks and adjustments

CAUTION

Listed below are conditions or occur-
rences which will damage the Intelli-
gent Key:

∙ Do not allow the Intelligent Key, which

contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.

∙ Do not drop the Intelligent Key.

∙ Do not strike the Intelligent Key

sharply against another object.

∙ Do not change or modify the Intelli-

gent Key.

∙ Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely
dry.

∙ Do not place the Intelligent Key for an

extended period in an area where
temperatures exceed 60°C (140°F).

∙ Do not attach the Intelligent Key with

a key holder that contains a magnet.

∙ Do not place the Intelligent Key near

equipment that produces a magnetic
field, such as a TV, audio equipment
and personal computers.

If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may
prevent the unauthorized use of the Intelli-
gent Key to operate the vehicle. For infor-
mation regarding the erasing procedure, it
is recommended that you visit a NISSAN
dealer.

Mechanical key

The Intelligent Key contains the mechani-
cal key.

To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.

Use the mechanical key to lock or unlock
the driver’s door and glove box.

SPA1951

Pre-driving checks and adjustments

3-3

CAUTION

Always carry the mechanical key in-
stalled in the Intelligent Key slot.

For additional information, refer to “Doors”
in this section and “Storage” in the “Instru-
ments and controls” section of this manual.

Valet hand-off

When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect
your belongings.

To prevent the glove box from being
opened during valet hand-off, follow the
procedure below.

1. Remove the mechanical key from the

Intelligent Key.

2. Lock the glove box with the mechani-

cal key.

3. Hand the Intelligent Key to the valet

and keep the mechanical key with you.

For additional information, refer to “Stor-
age” in the “Instruments and controls” sec-
tion of this manual.

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS

You can only drive your vehicle using the
master or valet keys which are registered
to the NISSAN Vehicle Immobilizer System
components in your vehicle. These keys
have a transponder chip in the key head.

The master key can be used for all the
locks.

To protect your belongings when you leave
a key with someone, give them the Intelli-
gent Key only, not the mechanical key.

Never leave these keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN
Vehicle Immobilizer System keys. Your ex-
isting key can be duplicated without know-
ing the key number. As many as four
NISSAN Vehicle Immobilizer System keys
can be used with one vehicle. You should
bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to the NISSAN
dealer for registration. This is because the
registration process will erase the memory
of all key codes previously registered into
the NISSAN Vehicle Immobilizer System. Af-

ter the registration process, these compo-
nents will only recognize keys coded into
the NISSAN Vehicle Immobilizer System
during registration. Any key that is not
given to the dealer at the time of registra-
tion will no longer be able to start your
vehicle.

CAUTION

Do not allow the immobilizer system
key, which contains an electrical tran-
sponder, to come into contact with wa-
ter or salt water. This could affect sys-
tem function.

3-4

Pre-driving checks and adjustments

When the doors are locked using one of the
following methods, the front doors cannot
be opened using the outside door handles,
and the back doors cannot be opened us-
ing the inside or outside door handles. The
doors must be unlocked to open the doors.

WARNING

∙ Always have the doors locked while

driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from unintention-
ally opening the doors, and will help
keep out intruders.

∙ Before opening any door, always look

for and avoid oncoming traffic.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.

LOCKING WITH KEY

To lock or unlock the vehicle, turn the key as
shown.

Manual

To lock a door, turn the key toward the front
of the vehicle

䊊

. To unlock, turn the key

toward the rear of the vehicle

䊊

Driver’s side

LPD2129

DOORS

Pre-driving checks and adjustments

3-5

Power

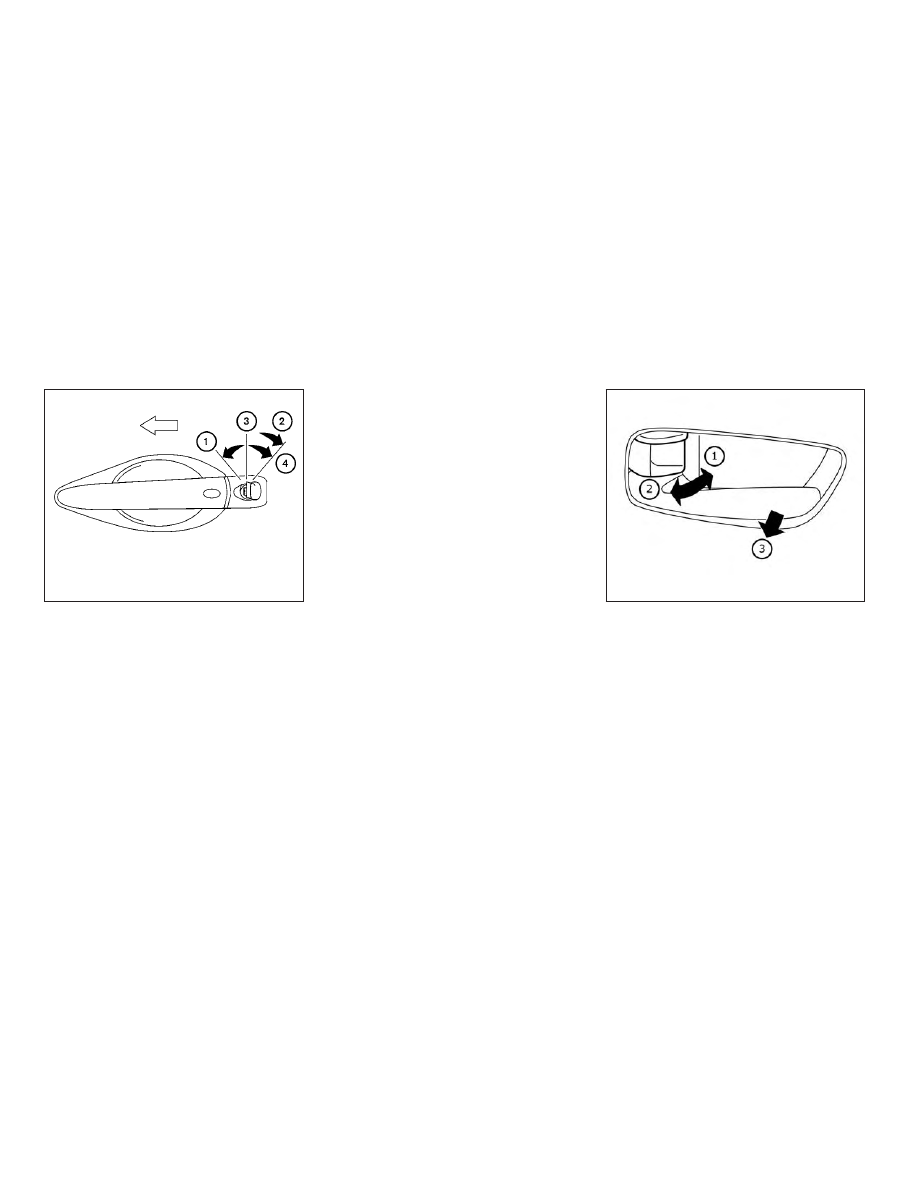

The power door lock system allows you to
lock or unlock all doors at the same time.

Turning the key toward the front

䊊

of the

vehicle locks all doors.

Turning the key one time toward the rear

䊊

of the vehicle unlocks that door. From that
position, returning the key to neutral

䊊

(where the key can only be removed and
inserted) and turning it toward the rear
again within 5 seconds unlocks all doors

䊊

Opening and closing windows (if
so equipped)

The driver’s door key operation allows you
to open and close windows equipped with
automatic operation at the same time.

∙ To open the windows, turn the driver’s

door key toward the rear of the vehicle
for longer than 1 second.

∙ To close the windows, turn the driver’s

door key toward the front of the vehicle
for longer than 1 second.

Windows stop when the key cylinder is re-
leased.

LOCKING WITH INSIDE LOCK KNOB

To lock the door without the key, move the
inside lock knob to the lock position

䊊

then close the door.

To unlock the door without the key, move the
inside lock knob to the unlock position

䊊

For front doors, the door can also be un-
locked by pulling on the inside handle lever
one time

䊊

Driver’s side

LPD0461

Inside lock

LPD2641

3-6

Pre-driving checks and adjustments

Content .. 9 10 11 12 ..
