Nissan Pathfinder Hybrid (2015 year). Instruction

Initialization

When the ignition switch is placed in the ON
position, NISSAN Voice Recognition is initialized,
which takes a few seconds. If the

button is

pressed before the initialization completes, the
system will announce “Hands-free phone system
not ready” and will not react to voice commands.

Operating tips

To get the best performance out of the NISSAN
Voice Recognition system, observe the following:

● Keep the interior of the vehicle as quiet as

possible. Close the windows to eliminate
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing voice commands correctly.

● Wait until the tone sounds before speaking a

command. Otherwise, the command will not
be received properly.

● Start speaking a command within 5 seconds

after the tone sounds.

● Speak in a natural voice without pausing

between words.

Giving voice commands

To operate NISSAN Voice Recognition, press
and release the

button located on the

steering wheel. After the tone sounds, speak a
command.

The command given is picked up by the micro-
phone, and voice feedback is given when the
command is accepted.

● If you need to hear the available commands

for the current menu again, say “Help” and
the system will repeat them.

● If a command is not recognized, the system

announces, “Command not recognized.
Please try again.” Make sure the command is
said exactly as prompted by the system and
repeat the command in a clear voice.

● If you want to go back to the previous com-

mand, you can say “Go back” or “Correc-
tion” any time the system is waiting for a
response.

● You can cancel a command when the sys-

tem is waiting for a response by saying,
“Cancel” or “Quit.” The system announces
“Cancel” and ends the VR session. You can
also press and hold the

button on the

steering wheel for 5 seconds at any time to
end the VR session. Whenever the VR ses-
sion is cancelled, a double beep is played to
indicate you have exited the system.

● If you want to adjust the volume of the voice

feedback, press the volume control switches
(+ or -) on the steering wheel while being
provided with feedback. You can also use
the radio volume control knob.

● In most cases you can interrupt the voice

feedback to speak the next command by
pressing the

button on the steering

wheel.

● To use the system faster, you may speak the

second level commands with the main menu
command on the main menu. For example,
press the

button and after the tone

say, “Call Redial.”

4-112

Monitor, climate, audio, phone and voice recognition systems

How to say numbers

NISSAN Voice Recognition requires a certain
way to speak numbers in voice commands. Refer
to the following rules and examples.

● Either “zero” or “oh” can be used for “0”.

Example: 1-800-662-6200

– “One eight oh oh six six two six two oh

oh”, or

– “One eight zero zero six six two six two oh

oh”

● Words can be used for the first 4 digits

places only.

Example: 1-800-662-6200

– “One eight hundred six six two six two oh

oh”,

– NOT “One eight hundred six six two sixty

two hundred,” and

– NOT “One eight oh oh six six two sixty two

hundred”

● Numbers can be spoken in small groups.

The system will prompt you to continue en-
tering digits, if desired.

Example: 1-800-662-6200

– “One eight zero zero”

The system repeats the numbers and
prompts you to enter more.

– “Six six two”

The system repeats the numbers and
prompts you to enter more.

– “Six two zero zero”

● Say “pound” for “#”. Say “star” for “*” (avail-

able when using the “Special Number” com-
mand and the “Send” command during a
call).

For additional information, refer to “List of
voice commands” and “Special number” in
this section.

Example: 1-555-1212 *123

– “One five five five one two one two star

one two three”

● Say “plus” for “+” (available only when using

the “Special Number” command).

● Say “pause” for a 2-second pause (available

only when storing a phonebook number).

NOTE:

For best results, say phone numbers as
single digits.

The voice command “Help” is available at any
time. Please use the “Help” command to get
information on how to use the system.

One Shot Call

To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example, press
the

button and after the tone say, “Call

Redial”.

Monitor, climate, audio, phone and voice recognition systems

4-113

CONTROL BUTTONS

The control buttons for the Bluetooth® Hands-
Free Phone System are located on the steering
wheel.

PHONE/SEND

Press the

button to initiate a

VR session or answer an incoming
call.

You can also use the

button

to interrupt the system feedback
and give a command at once. For
additional information, refer to “List
of voice commands” and “During a
call” in this section.

PHONE/END
While the voice recognition system
is active, press and hold the
button for 5 seconds to quit the
voice recognition system at any
time.

TUNING SWITCH
While using the voice recognition
system, tilt the tuning switch up or
down to manually control the
phone system.

GETTING STARTED

The following procedures will help you get
started using the Bluetooth® Hands-Free Phone
System with NISSAN Voice Recognition. For ad-
ditional command options, refer to “List of voice
commands” in this section.

Choosing a language

You can interact with the Bluetooth® Hands-
Free Phone System using English, Spanish or
French.

To change the language, perform the following.

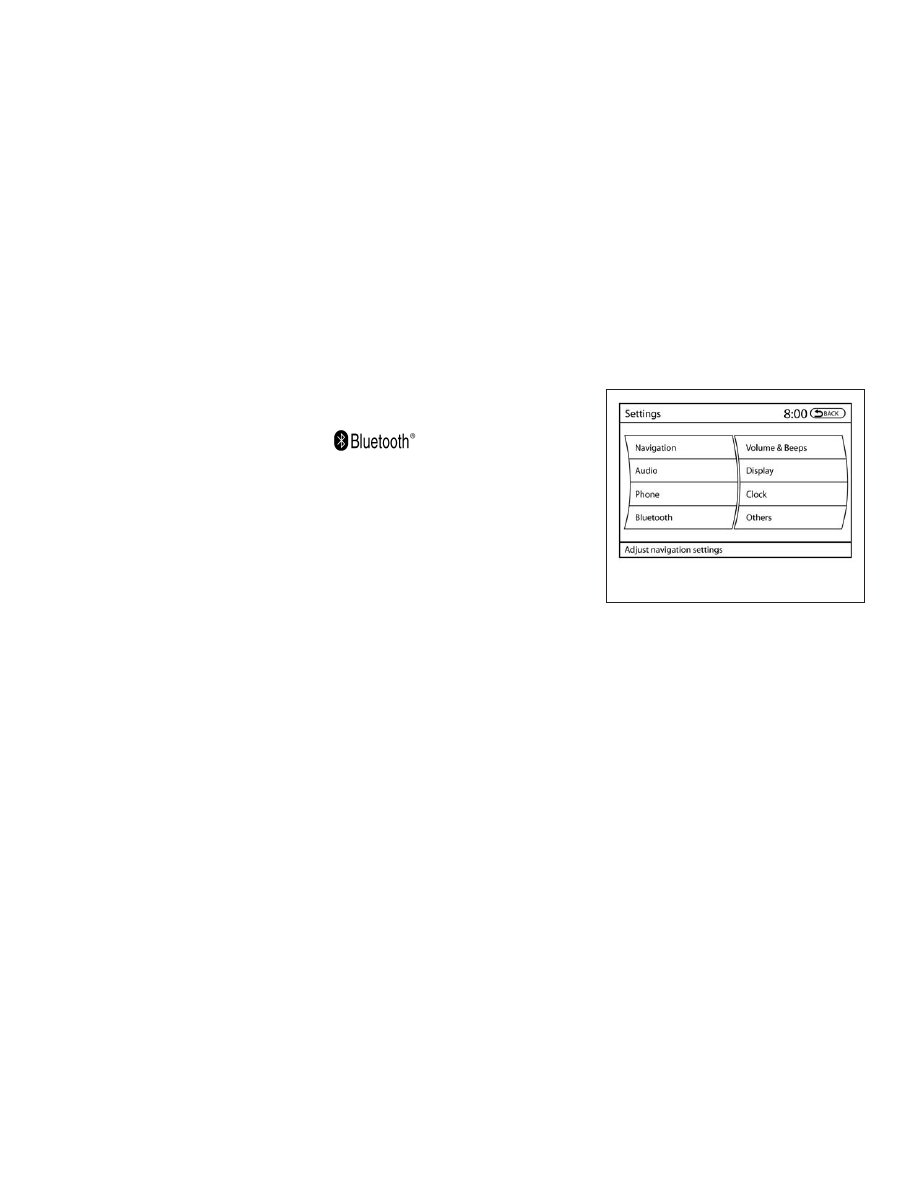

1. Press the SETTING button on the control

panel.

2. Select the “Language & Units” key.

3. Select desired language and press ENTER

on the control panel.

Connecting procedure

NOTE:

The connecting procedure must be per-
formed when the vehicle is stationary. If the
vehicle starts moving during the procedure,
the procedure will be cancelled.

Main Menu

“Connect phone”

䊊

“Add phone”

䊊

Initiate from handset

䊊

Name phone

䊊

LHA2566

4-114

Monitor, climate, audio, phone and voice recognition systems

1. Press the

button on the steering

wheel. The system announces the available
commands.

2. Say: “Connect phone”

䊊

. The system ac-

knowledges the command and announces
the next set of available commands.

3. Say: “Add phone”

䊊

. The system acknowl-

edges the command and asks you to initiate
connecting from the phone handset

䊊

The connecting procedure of the cellular
phone varies according to each cellular
phone model. For additional information, re-
fer to the cellular phone Owner’s Manual.
You

can

also

visit

www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.

When prompted for a PIN, enter “1234”
from the handset. The PIN “1234” has been
assigned by NISSAN and cannot be
changed.

4. The system asks you to say a name for the

phone

䊊

If the name is too long or too short, the
system tells you, then prompts you for a
name again.

Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then
prompts you for a name again.

Making a call by entering a phone
number

Main Menu

“Call”

䊊

“Phone Number”

䊊

Speak the digits

䊊

“Dial”

䊊

1. Press the

button on the steering

wheel. A tone will sound.

2. Say: “Call”

䊊

. The system acknowledges

the command and announces the next set of
available commands.

3. Say “Phone Number”

䊊

. The system ac-

knowledges the command and prompts
user to select either “(7 or 10 digits)” or
“Special Number”. Select desired option to
proceed to next step.

4. Say the number you wish to call starting with

the area code in single digit format

䊊

. If the

system has trouble recognizing the correct
phone number, try entering the number in
the following groups: 3-digit area code,

3-digit prefix and the last 4-digits. For ex-
ample, 555-121-3354 can be said as “five
five five” as the 1st group, then “one two
one” as the 2nd group, and “three three five
four” as the 3rd group. For dialing more than
10 digits or any special characters, say
“Special Number”. For additional informa-
tion, refer to “How to say numbers” in this
section.

5. When you have finished speaking the phone

number, the system repeats it back and an-
nounces the available commands.

6. Say: “Dial”

䊊

. The system acknowledges

the command and makes the call.

For additional information on command options,
refer to “List of voice commands” in this section.

Receiving a call

When you hear the ring tone, press the
button on the steering wheel.

Once the call has ended, press the

button

on the steering wheel.

Monitor, climate, audio, phone and voice recognition systems

4-115

NOTE:

If you do not wish to take the call when you
hear the ring tone, press the

button

on the steering wheel.

For additional information on command options,
refer to “List of voice commands” in this section.

LIST OF VOICE COMMANDS

Main Menu

“Call”

“Phonebook”

“Recent Calls”

“Connect Phone”

When you press and release the

button on

the steering wheel, you can choose from the
commands on the Main Menu. The following
pages describe these commands and the com-
mands in each sub-menu.

Remember to wait for the tone before
speaking.

After the main menu, you can say “Help” to hear
the list of commands currently available any time
the system is waiting for a response.

If you want to end an action without completing it,
you can say “Cancel” or “Quit” at any time the
system is waiting for a response. The system will

end the VR session. Whenever the VR session is
cancelled, a double beep is played to indicate
you have exited the system.

If you want to go back to the previous command,
you can say “Go back” or “Correction” any time
the system is waiting for a response.

“Call”

Main Menu

“Call”

(Speak name)

䊊

“Phone Number”

(Speak Digits)

䊊

“Special Number”

䊊

“Redial”

䊊

“Call Back”

䊊

(Speak name)

䊊

If you have stored entries in the phonebook, you
can dial a number associated with a name.

For additional information, refer to “Phonebook
(phones without automatic phonebook download
function)” in this section to learn how to store
entries.

When prompted by the system, say the name of
the phone book entry you wish to call. The system
acknowledges the name.

If there are multiple numbers associated with the
name, the system asks you to choose the correct
number.

Once you have confirmed the name and location,
the system begins the call.

(Speak Digits)

䊊

When prompted by the system, say the number
you wish to call. For additional information, refer
to “How to say numbers” and “Making a call by
entering a phone number” in this section.

“Special Number”

䊊

For dialing more than 10 digits or any special
characters, say “Special Number”. When the
system acknowledges the command, the system
will prompt you to speak the number.

“Redial”

䊊

Use the Redial command to call the last number
that was dialed.

The system acknowledges the command, re-
peats the number and begins dialing.

If a redial number does not exist, the system
announces, “There is no number to redial” and
ends the VR session.

4-116

Monitor, climate, audio, phone and voice recognition systems

“Call Back”

䊊

Use the Call Back command to dial the number of
the last incoming call within the vehicle.

The system acknowledges the command, re-
peats the number and begins dialing.

If a call back number does not exist, the system
announces, “There is no number to call back” and
ends the VR session.

During a call

During a call there are several command options
available. Press the

button on the steering

wheel to mute the receiving voice and enter com-
mands.

● “Help” — The system announces the avail-

able commands.

● “Cancel/Quit” — The system announces

“Cancel,” ends the VR session and returns
to the call.

● “Send” — Use the Send command to enter

numbers, “*” or “#” during a call. For ex-
ample, if you were directed to dial an exten-
sion by an automated system:

Say: “Send one two three four.”

The system acknowledges the command
and sends the tones associated with the
numbers. The system then ends the VR ses-

sion and returns to the call. Say “star” for “*”.
Say “pound” for “#”.

● “Transfer call” — Use the Transfer Call com-

mand

transfer

the

call

from

the

Bluetooth® Hands-Free Phone System to
the cellular phone when privacy is desired.

The system announces, “Transfer call. Call
transferred to privacy mode.” The system
then ends the VR session.

To reconnect the call from the cellular phone
to the Bluetooth® Hands-Free System,
press the

button.

● “Mute” — Use the Mute command to mute

your voice so the other party cannot hear it.
Use the mute command again to unmute
your voice.

NOTE:

If a call is ended or the cellular phone
network connection is lost while the Mute
feature is on, the Mute feature will be reset
to “off” for the next call so the other party
can hear your voice.

“Phonebook” (phones without
automatic phonebook download
function)

NOTE:

The “Transfer Entry” command is not avail-
able when the vehicle is moving.

Main Menu

“Phonebook”

“Transfer Entry”

䊊

“Delete Entry”

䊊

“List Names”

䊊

For phones that do not support automatic down-
load of the phonebook (PBAP Bluetooth® pro-
file), the “Phonebook” command is used to manu-
ally add entries to the vehicle phonebook.

The phonebook stores up to 40 names for each
phone connected to the system.

NOTE:

Each phone has its own separate phone-
book. You cannot access Phone A’s phone-
book if you are currently connected with
Phone B.

Monitor, climate, audio, phone and voice recognition systems

4-117

“Transfer Entry”

䊊

Use the Transfer Entry command to store a new
name in the system.

When prompted by the system, say the name you
would like to give the new entry.

For example, say: “Mary.”

If the name is too long or too short, the system
tells you, then prompts you for a name again.

Also, if the name sounds too much like a name
already stored, the system tells you, then prompts
you for a name again.

The system will ask you to transfer a phone
number stored in the cellular phone’s memory.

Enter a phone number by voice command:

For example, say: “five five five one two one two.”
For additional information, refer to “How to say
numbers” in this section.

To transfer a phone number stored in the cellular
phone’s memory:

Say “Transfer entry.” The system acknowledges
the command and asks you to initiate the transfer
from the phone handset. The new contact phone
number will be transferred from the cellular
phone via the Bluetooth® communication link.

The transfer procedure varies according to each
cellular phone. For additional information, refer to
the cellular phone Owner’s Manual.

The system repeats the number and prompts you
for the next command. When you have finished
entering numbers or transferring an entry, choose
“Store.”

The system confirms the name, location and
number.

“Delete Entry”

䊊

Use the Delete Entry command to erase one
entry from the phonebook. After the system rec-
ognizes the command, speak the name to delete
or say “List Names” to choose an entry.

“List Names”

䊊

Use the List Names command to hear all the
names in the phonebook.

The system recites the phonebook entries but
does not include the actual phone numbers.
When the playback of the list is complete, the
system goes back to the main menu.

You can stop the playback of the list at any time
by pressing the

button on the steering

wheel. The system ends the VR session.

“Phonebook” (phones with automatic
phonebook download function)

NOTE:

The “Transfer Entry” command is not avail-
able when the vehicle is moving.

Main Menu

“Phonebook”

Say a Name

“List Names”

䊊

“Record (A Name)”

䊊

For phones that support automatic download of
the phonebook (PBAP Bluetooth® profile), the
“Phonebook” command is used to manage en-
tries in the vehicle phonebook. You can say the
name of an entry at this menu to initiate dialing of
that entry.

The phonebook stores up to 1,000 names for
each phone connected to the system.

When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth® system and call
contacts by name. You can record a custom
voice tag for contact names that the system has

4-118

Monitor, climate, audio, phone and voice recognition systems

difficulty recognizing. For additional information,
refer to “Record Name” in this section.

NOTE:

Each phone has its own separate phone-
book. You cannot access Phone A’s phone-
book if you are currently connected with
Phone B.

“List Names”

䊊

Use the List Names command to hear all the
names and locations in the phonebook.

The system recites the phonebook entries but
does not include the actual phone numbers.
When the playback of the list is complete, the
system goes back to the main menu.

You can stop the playback of the list at any time
by pressing the

button on the steering

wheel. The system ends the VR session. For
additional information about recording custom
voice tags for list entries that the system has
difficulty pronouncing, refer to “Record name”
command in this section.

“Record Name”

䊊

The system allows you to record custom voice
tags for contact names in the phonebook that the
vehicle has difficulty recognizing. This feature can
also be used to record voice tags to directly dial

an entry with multiple numbers. Up to 40 voice
tags can be recorded to the system.

“Recent Calls”

Main Menu

“Recent Calls”

“Outgoing”

䊊

“Incoming”

䊊

“Missed”

䊊

“Call Back”

䊊

“Redial”

䊊

Use the Recent Calls command to access out-
going, incoming, missed calls and to call back the
last incoming call or to redial the last outgoing
call.

“Incoming”

䊊

Use the Incoming command to list the incoming
calls made to the vehicle.

“Missed”

䊊

Use the Missed command to list the calls made to
the vehicle that were not answered.

“Outgoing”

䊊

Use the Outgoing command to list the outgoing
calls made from the vehicle.

“Call Back”

䊊

Use the Call Back command to dial the number of
the last incoming call to the vehicle.

“Redial”

䊊

Use the Redial command to dial the number of
the last outgoing call from the vehicle.

“Connect Phone”

NOTE:

The Add Phone command is not available
when the vehicle is moving.

Main Menu

“Connect Phone”

“Add Phone”

䊊

“Select Phone”

䊊

“Delete Phone”

䊊

“Turn Bluetooth OFF”

䊊

“Replace Phone”

䊊

Use the Connect Phone commands to manage
the phones connecting to the vehicle or to enable
the Bluetooth® function on the vehicle.

Monitor, climate, audio, phone and voice recognition systems

4-119

“Add Phone”

䊊

Use the Add Phone command to add a phone to
the vehicle. For additional information, refer to
“Connecting procedure” in this section.

“Select Phone”

䊊

Use the Select Phone command to select from a
list of phones connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
select. Only one phone can be active at a time.

“Delete Phone”

䊊

Use the Delete Phone command to delete a
phone that is connected to the vehicle. The sys-
tem will list the names assigned to each phone
and then prompt you for the phone you wish to
delete. Deleting a phone from the vehicle will also
delete the phonebook for that phone.

“Turn Bluetooth OFF”

䊊

Use the Turn Bluetooth OFF command to prevent
a wireless connection to your phone.

“Replace Phone”

䊊

Use the Replace Phone command to replace an
existing phone pairing with a new phone. The
system will keep all voice tags assigned to your
phonebook.

VOICE ADAPTATION (VA) MODE

Voice Adaptation allows up to two out-of-dialect
users to train the system to improve recognition
accuracy. By repeating a number of commands,
the users can create a voice model of their own
voice that is stored in the system. The system is
capable of storing a different voice adaptation
model for each connected phone.

Training procedure

The procedure for training a voice is as follows.

1. Position the vehicle in a reasonably quiet

outdoor location.

2. Sit in the driver’s seat with the engine run-

ning, the parking brake on, and the transmis-
sion in P (Park).

3. Press and hold the

button for approxi-

mately 5 seconds.

4. The

system

announces:

“Press

the

PHONE/SEND (

) button for the

hands-free phone system to enter the voice
adaptation mode or press the PHONE/END
(

) button to select a different lan-

guage.”

5. Press the

button.

For additional information on selecting a dif-
ferent language, refer to “Choosing a lan-
guage” in this section.

6. Voice memory A or memory B is selected

automatically. If both memory locations are
already in use, the system will prompt you to
overwrite one. Follow the instructions pro-
vided by the system.

7. When preparation is complete and you are

ready to begin, press the

button.

8. The VA mode will be explained. Follow the

instructions provided by the system.

9. When training is finished, the system will tell

you an adequate number of phrases have
been recorded.

10. The system will announce that voice adap-

tation has been completed and the system is
ready.

The VA mode will stop if:

● The

button is pressed for approxi-

mately 5 seconds in VA mode.

4-120

Monitor, climate, audio, phone and voice recognition systems

● The vehicle begins moving during VA mode.
● The ignition switch is placed in the OFF or

LOCK position.

Training phrases

During the VA mode, the system instructs the
trainer to say the following phrases. The system
will prompt you for each phrase.

● phonebook transfer entry
● dial three oh four two nine
● delete call back number
● incoming
● transfer entry
● eight pause nine three two pause seven
● delete all entries
● call seven two four zero nine
● phonebook delete entry
● next entry
● dial star two one seven oh
● yes
● no
● select

● missed
● dial eight five six nine two
● Bluetooth on
● outgoing
● call three one nine oh two
● nine seven pause pause three oh eight
● cancel
● call back number
● call star two zero nine five
● delete phone
● dial eight three zero five one
● record name
● four three pause two nine pause zero
● delete redial number
● phonebook list names
● call eight oh five four one
● correction
● connect phone
● dial seven four oh one eight
● previous entry

● delete
● dial nine seven two six six
● call seven six three oh one
● go back
● call five six two eight zero
● dial six six four three seven

MANUAL CONTROL

While using the voice recognition system, it is
possible to select menu options by using the
steering wheel controls instead of speaking voice
commands. This can be especially helpful if the
noise of driving makes it difficult for the voice
recognition system to accurately interpret com-
mands. The manual control mode does not allow
dialing a phone number by digits. The user may
select an entry from the Phonebook or Recent
Calls lists. To re-activate voice recognition, exit
the manual control mode by pressing and holding
the PHONE/END (

) button. At that time,

pressing the PHONE/SEND (

) button will

start the Hands Free Phone System.

Monitor, climate, audio, phone and voice recognition systems

4-121

Operating tips

● To enter manual control mode, start the

voice recognition system and tilt the tuning
(

) switch up or down. The system will

speak

⬙Showing Manual Options⬙ when

manual controls are initially activated.

● To browse the menu options, tilt the tuning

(

) switch up or down. The system will

always speak the current menu option. De-
pending on the audio display, it will also
show the current menu option.

● To select the current menu option, press the

PHONE/SEND (

) button.

● To go back to the previous menu, press the

PHONE/END (

) button. If the current

menu is the main menu, pressing the
PHONE/END (

) button will exit the

phone system.

● To exit the manual control mode, press and

hold the PHONE/END (

) button for

5 seconds.

4-122

Monitor, climate, audio, phone and voice recognition systems

TROUBLESHOOTING GUIDE

The system should respond correctly to all voice
commands without difficulty. If problems are en-
countered, try the following solutions.

Where the solutions are listed by number, try
each solution in turn, starting with number 1, until
the problem is resolved.

Symptom

Solution

System fails to interpret the command correctly.

1. Ensure that the command is valid. For additional information, refer to “List of voice commands” in this section.

2. Ensure that the command is spoken after the tone.

3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.

4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on). NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.

5. If more than one command was said at a time, try saying the commands separately.

6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to im-
prove the recognition response for the speaker. For additional information, refer to “Voice Adaptation (VA) mode” in
this section.

The system consistently selects the wrong entry from the
phone book.

1. Ensure that the phone book entry name requested matches what was originally stored. This can be confirmed by
using the “List Names” command. For additional information, refer to “Phonebook” in this section.

2. Replace one of the names being confused with a new name.

Monitor, climate, audio, phone and voice recognition systems

4-123

WARNING

● Use a phone after stopping your vehicle

in a safe location. If you have to use a
phone while driving, exercise extreme
caution at all times so full attention may
be given to vehicle operation.

● If you are unable to devote full attention

to vehicle operation while talking on
the phone, pull off the road to a safe
location and stop your vehicle.

CAUTION

To avoid discharging the vehicle battery,
use a phone after starting the engine.

Your NISSAN is equipped with the Bluetooth®
Hands-Free Phone System. If you have a com-
patible Bluetooth® enabled cellular phone, you
can set up the wireless connection between your
cellular phone and the in-vehicle phone module.
With Bluetooth® wireless technology, you can

make or receive a hands-free telephone call with
your cellular phone in the vehicle.

Once your cellular phone is connected to the
in-vehicle phone module, no other phone con-
necting procedure is required. Your phone is
automatically connected with the in-vehicle

LHA3156

BLUETOOTH® HANDS-FREE PHONE
SYSTEM WITH NAVIGATION SYSTEM
(if so equipped)

4-124

Monitor, climate, audio, phone and voice recognition systems

phone module when the ignition switch is placed
in the ON position with the connected cellular
phone turned on and carried in the vehicle.

You can register up to five different Bluetooth®
cellular phones to the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.

NISSAN Voice Recognition system supports the
phone commands, so dialing a phone number
using your voice is possible. For additional infor-
mation, refer to “NISSAN Voice Recognition Sys-
tem” in this section.

Before using the Bluetooth® Hands-Free Phone
System, refer to the following notes.

● Set up the wireless connection between a

cellular phone and the in-vehicle phone
module before using the hands-free phone
system.

● Some Bluetooth® enabled cellular phones

may not be recognized by the in-vehicle
phone

module.

Please

visit

www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth

for

recom-

mended phone list and connecting.

● You will not be able to use a hands-free

phone under the following conditions:

– Your vehicle is outside of the cellular ser-

vice area.

– Your vehicle is in an area where it is

difficult to receive cellular signal; such as
in a tunnel, in an underground parking
garage, near a tall building or in a moun-
tainous area.

– Your cellular phone is locked to prevent it

from being dialed.

● When the radio wave condition is not ideal

or ambient sound is too loud, it may be
difficult to hear the other person’s voice dur-
ing a call.

● Immediately after the ignition switch is

placed in the ON position, it may be impos-
sible to receive a call for a short period of
time.

● Do not place the cellular phone in an area

surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.

● While a cellular phone is connected through

the Bluetooth® wireless connection, the
battery power of the cellular phone may dis-
charge quicker than usual. The Bluetooth®
Hands-Free Phone System cannot charge
cellular phones.

● If the hands-free phone system seems to be

malfunctioning, refer to “Troubleshooting
guide” in this section. You can also visit
www.nissanusa.com/bluetooth

www.nissan.ca/bluetooth for troubleshoot-
ing help.

● Some cellular phones or other devices may

cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.

● Refer to the cellular phone owner’s manual

regarding the telephone charges, cellular
phone antenna and body, etc.

● The signal strength display on the monitor

will not coincide with the signal strength
display of some cellular phones.

● If reception between callers is unclear, ad-

justing the incoming or outgoing call volume
may improve the clarity. For additional infor-
mation, refer to “Call volume” in this section.

Monitor, climate, audio, phone and voice recognition systems

4-125

REGULATORY INFORMATION

FCC Regulatory information

– CAUTION: To maintain compliance with

FCC’s RF exposure guidelines, use only the
supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.

– Operation is subject to the following two con-

ditions:

1. This device may not cause interference and

2. this device must accept any interference,

including interference that may cause unde-
sired operation of the device.

IC Regulatory information

– Operation is subject to the following two con-

ditions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.

– This Class B digital apparatus meets all re-

quirements of the Canadian Interference-
Causing Equipment Regulations.

BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc.
and licensed to
Clarion.

VOICE COMMANDS

You can use voice commands to operate various
Bluetooth® Hands-Free Phone System features
using the NISSAN Voice Recognition system. For
additional information, refer to “NISSAN Voice
Recognition System” in this section.

LHA1236

4-126

Monitor, climate, audio, phone and voice recognition systems

CONNECTING PROCEDURE

Press the SETTING button on the control panel,
then touch the “Bluetooth” key on the display.

Menu Item

Result

Bluetooth ON/OFF

Allows user to switch Bluetooth on and off. Bluetooth must be on in order to connect device.

Turns Bluetooth on.

OFF

Turns Bluetooth off.

Connect Bluetooth

Upon pressing this button, a popup box will appear on the screen, prompting you to confirm that the connection is for the phone system. Select the
⬙Yes⬙ key.

Yes

Confirms that you are connecting a Bluetooth device. Upon pressing this button, the following message will appear on screen:

⬙The system is

searching for your phone. Using your handset, look for a Bluetooth device called MY-CAR. When requested by the handset, enter the PIN 1234. Exit-
ing screen cancels search.

⬙ The connecting procedure varies by phone. For additional information, refer to the phone Owner’s Manual. When the

connecting is complete, the screen will return to the Bluetooth settings screen.

Cancel

Cancels operation.

Indicates to the system that you are connecting a Bluetooth enabled audio device.

Cancel

Cancels operation.

Monitor, climate, audio, phone and voice recognition systems

4-127

Nissan Pathfinder Hybrid (2015 year). Instruction - part 21
