• If the combined weight of the child and

child restraint is greater than 65 lbs.
(29.5 kg), use the vehicle's seat belt (not the
lower anchors) to install the child restraint.

• Be sure to follow the child restraint manu-

facturer's instructions for installation.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved
child restraint at all times while the ve-
hicle is being operated. Canadian law re-
quires the top tether strap on forward-
facing child restraints be secured to the
designated anchor point on the vehicle.

LATCH (LOWER ANCHORS AND
TETHERS FOR CHILDREN) SYSTEM

Your vehicle is equipped with special an-
chor points that are used with LATCH sys-
tem compatible child restraints. This sys-
tem may also be referred to as the ISOFIX
or ISOFIX compatible system. With this sys-
tem, you do not have to use a vehicle seat
belt to secure the child restraint unless the
combined weight of the child and child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and child restraint
is greater than 65 lbs. (29.5 kg), use the ve-
hicle's seat belt (not the lower anchors) to

install the child restraint. Be sure to follow
the child restraint manufacturer's instruc-
tions for installation.

The LATCH lower anchor points are pro-
vided to install child restraints in the rear
outboard seating positions only. Do not at-
tempt to install a child restraint in the cen-
ter position using the LATCH lower an-
chors.

LATCH lower anchor

WARNING

Failure to follow the warnings and in-
structions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or
other passengers in a sudden stop or
collision:
• Attach LATCH system compatible

child restraints only at the locations
shown in the illustration.

• Do not secure a child restraint in the

center rear seating position using
the LATCH lower anchors. The child
restraint will not be secured prop-
erly.

1-24

Safety–Seats, seat belts and supplemental restraint system

• Inspect the lower anchors by insert-

ing your fingers into the lower an-
chor area. Feel to make sure there
are no obstructions over the an-
chors such as seat belt webbing or
seat cushion material. The child re-
straint will not be secured properly if
the lower anchors are obstructed.

• Child restraint anchorages are de-

signed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used to attach
adult seat belts, or other items or
equipment to the vehicle. Doing so
could damage the child restraint an-
chorages. The child restraint will not
be properly installed using the dam-
aged anchorage, and a child could
be seriously injured or killed in a col-
lision.

LATCH lower anchor location

The LATCH lower anchors are located at
the rear of the seat cushion near the seat-
back. A label is attached to the seatback to
help you locate the LATCH lower anchors.

Installing child restraint LATCH
lower anchor attachments

LATCH compatible child restraints include
two rigid or webbing-mounted attach-
ments that can be connected to two an-
chors located at certain seating positions
in your vehicle. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint. Check your child restraint for
a label stating that it is compatible with the
LATCH system. This information may also
be in the instructions provided by the child
restraint manufacturer.

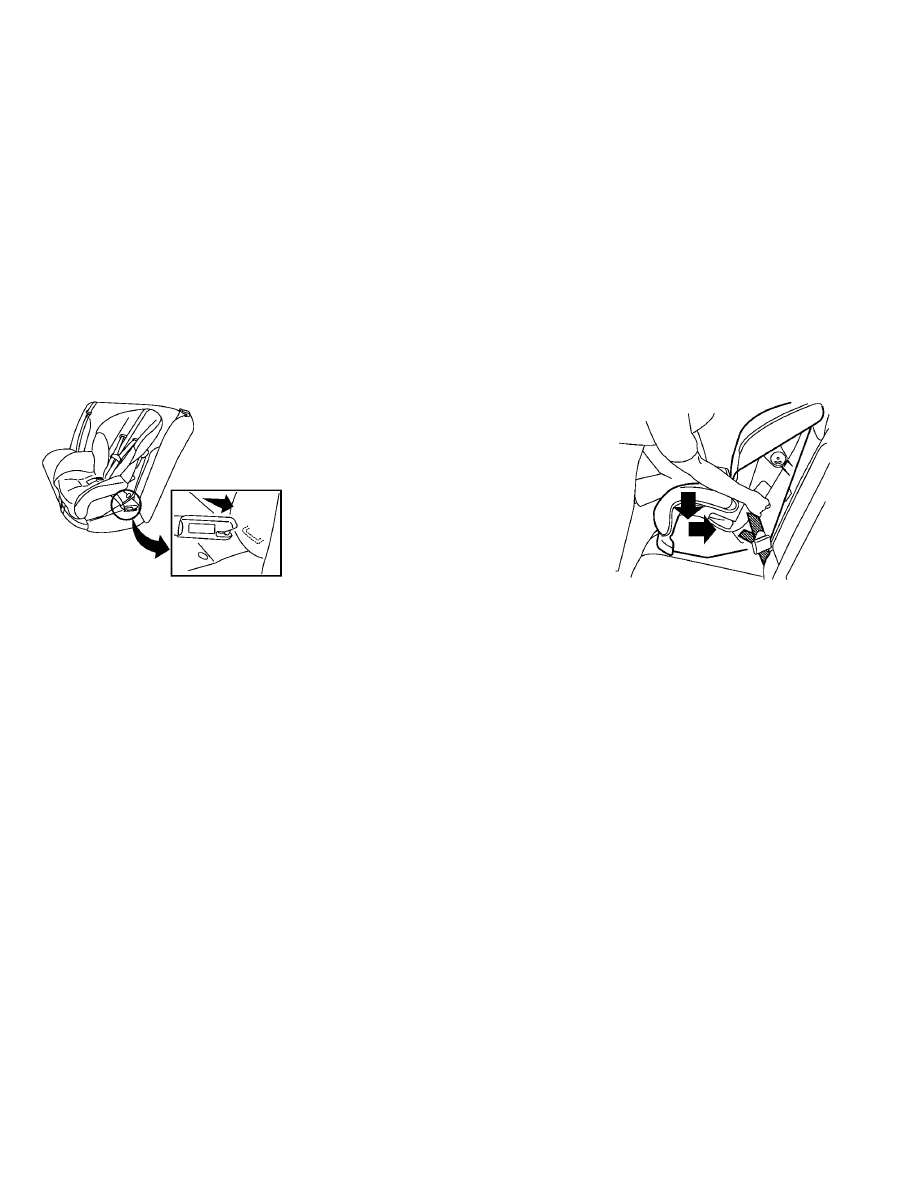

LATCH lower anchor location

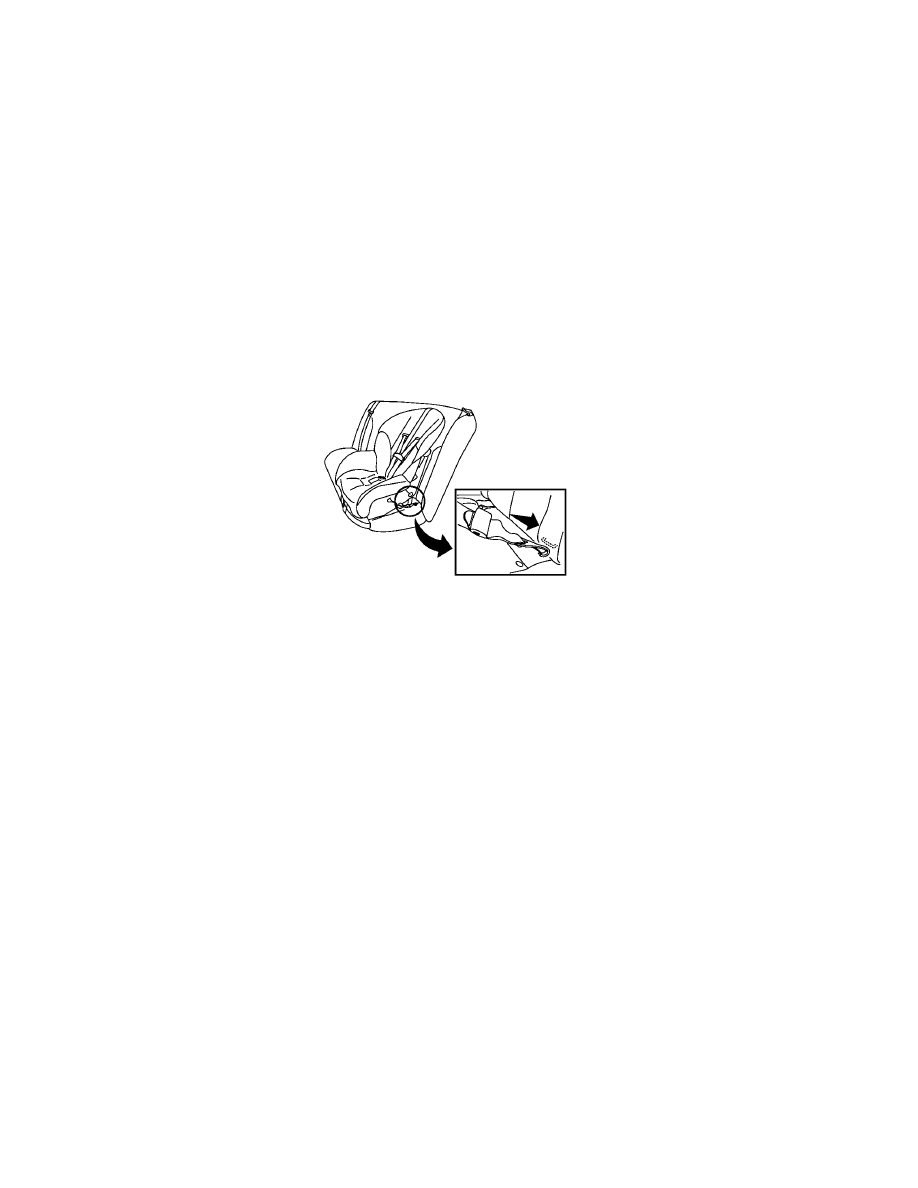

LATCH webbing-mounted attachment

Safety–Seats, seat belts and supplemental restraint system

1-25

When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.

Top tether anchor

WARNING

• If the tonneau cover (if so equipped)

contacts the top tether strap when it
is attached to the top tether anchor,
remove the tonneau cover (if so
equipped) from the vehicle or secure
it on the cargo floor below its attach-
ment location. If the tonneau cover
(if so equipped) is not removed, it
may damage the top tether strap
during a collision. Your child could be
seriously injured or killed in a colli-
sion if the child restraint top tether
strap is damaged.

• Do not allow cargo to contact the top

tether strap when it is attached to
the top tether anchor. Properly se-
cure the cargo so it does not contact
the top tether strap. Cargo that is not
properly secured or that contacts
the top tether strap may damage
the top tether strap during a colli-
sion. Your child could be seriously in-
jured or killed in a collision if the
child restraint top tether strap is
damaged.

• Child restraint anchorages are de-

LATCH rigid-mounted attachment

1-26

Safety–Seats, seat belts and supplemental restraint system

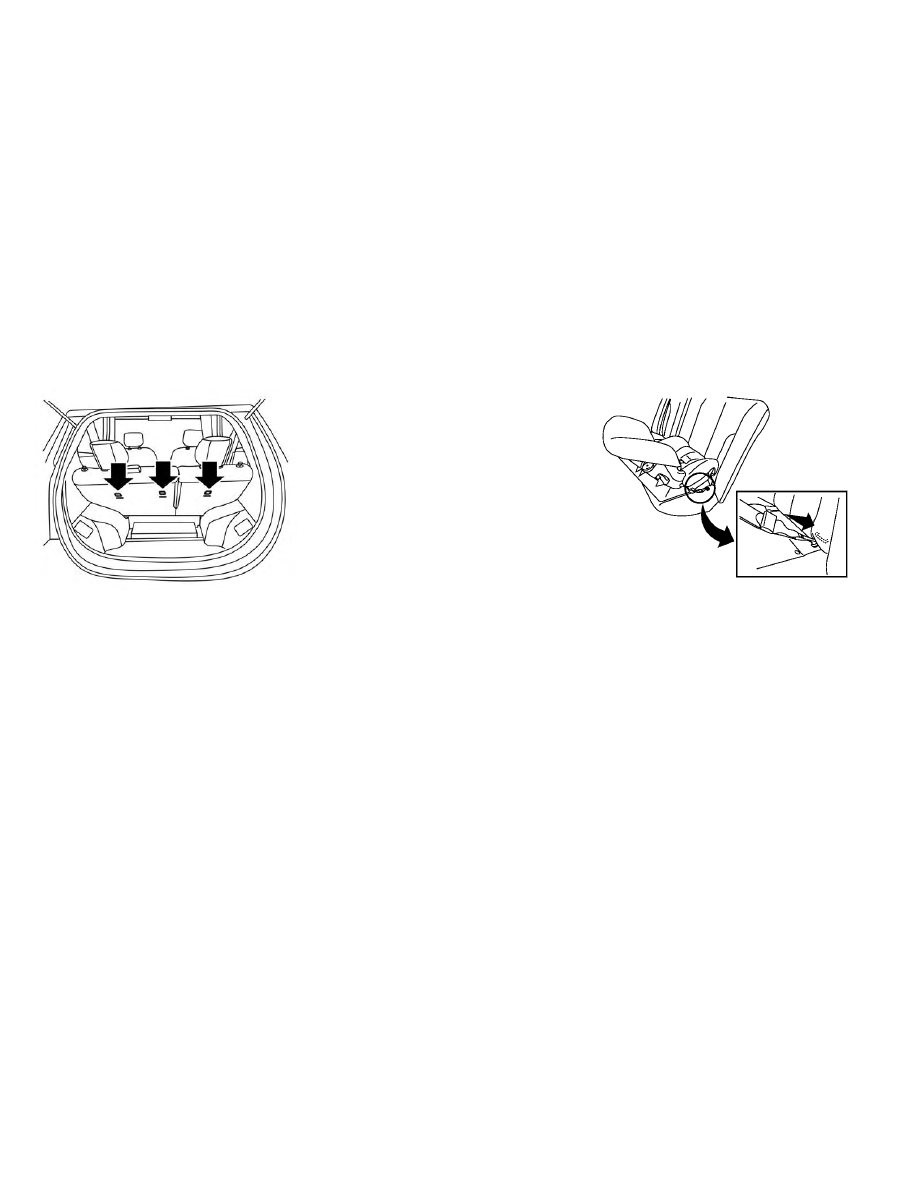

Top tether anchor point locations:

Anchor points are located on the back side
of the seatbacks.

The child restraint top tether strap must be
used when installing child restraints with
the LATCH lower anchor attachments or
seat belts. For additional information, refer
to “Installing top tether strap” in this sec-
tion.

If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN certified LEAF
dealer for details.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH

For additional information, refer to all Warn-
ings and Cautions in “Child safety” and
“Child restraints” in this section before in-
stalling a child restraint.

Do not use the lower anchors if the com-
bined weight of the child and the child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and the child
restraint is greater than 65 lbs. (29.5 kg), use
the vehicle's seat belt (not the lower an-
chors) to install the child restraint. Be sure
to follow the child restraint manufacturer's
instructions for installation.

Follow these steps to install a rear-facing
child restraint using the LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

2. Secure the child restraint anchor at-

tachments to the LATCH lower anchors.
Check to make sure that the LATCH at-
tachment is properly attached to the
lower anchors.

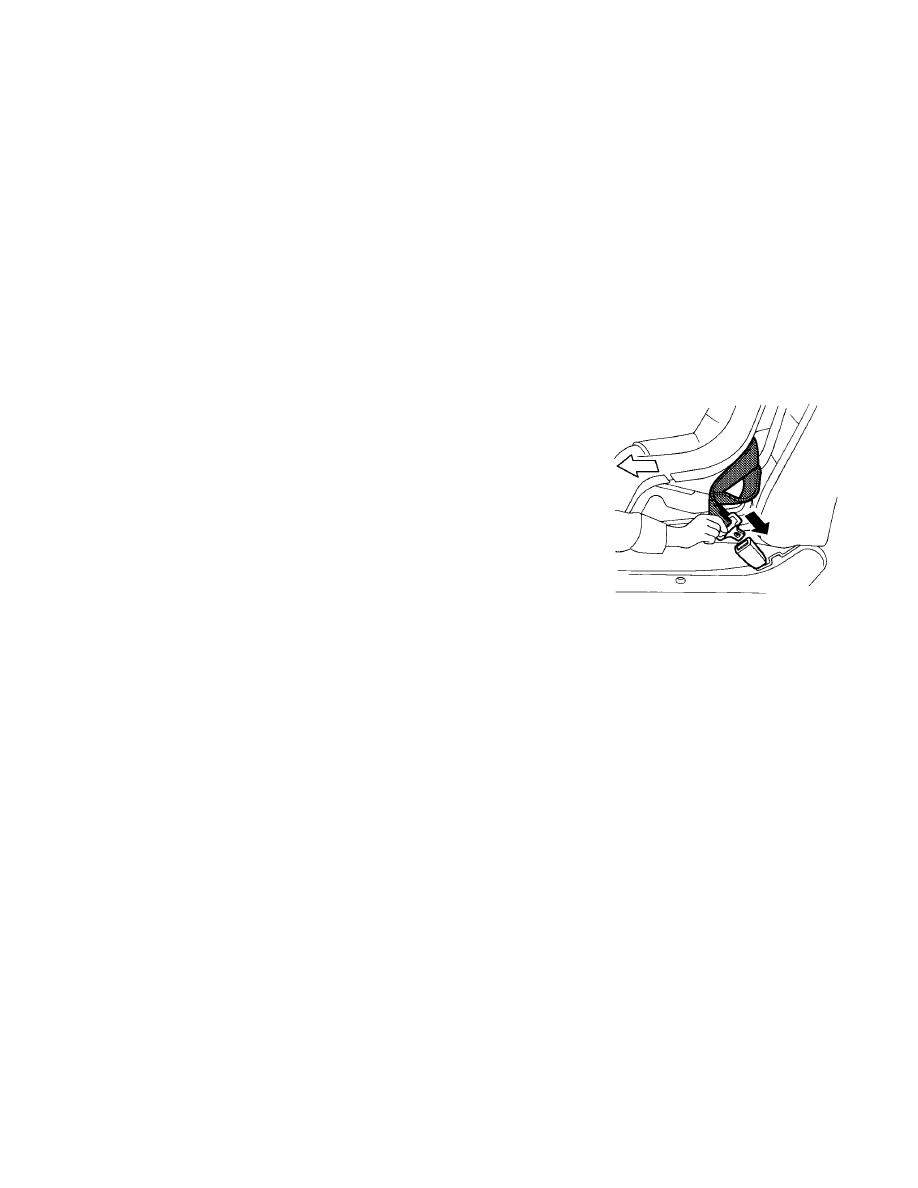

Rear-facing webbing-mounted — step 2

Safety–Seats, seat belts and supplemental restraint system

1-27

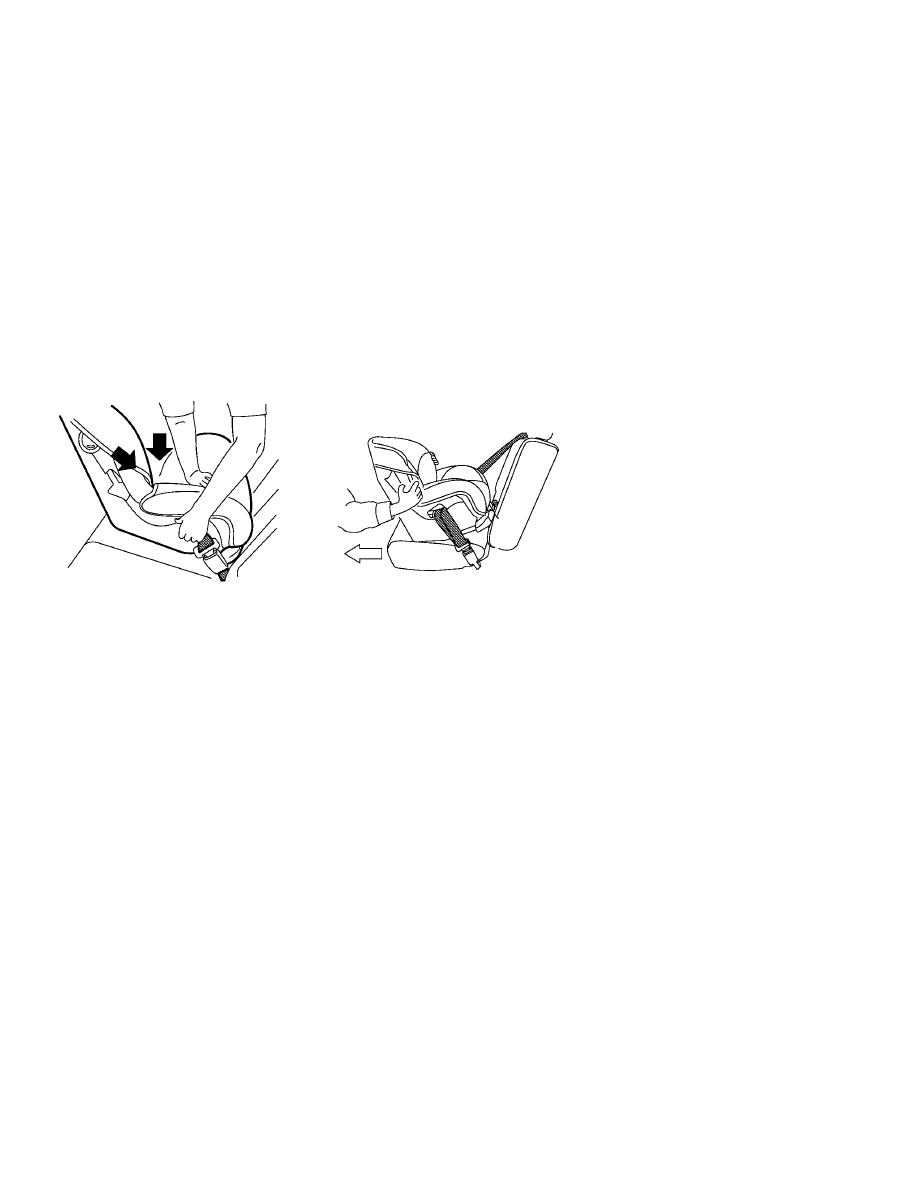

3. For child restraints that are equipped

with webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your hand to com-
press the vehicle seat cushion and seat-
back while tightening the webbing of
the anchor attachments.

4. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment path. The
child restraint should not move more
than 1 inch (25 mm), from side to side. Try
to tug it forward and check to see if the
LATCH attachment holds the restraint in
place. If the restraint is not secure,
tighten the LATCH attachment as nec-
essary, or put the restraint in another
seat and test it again. You may need to

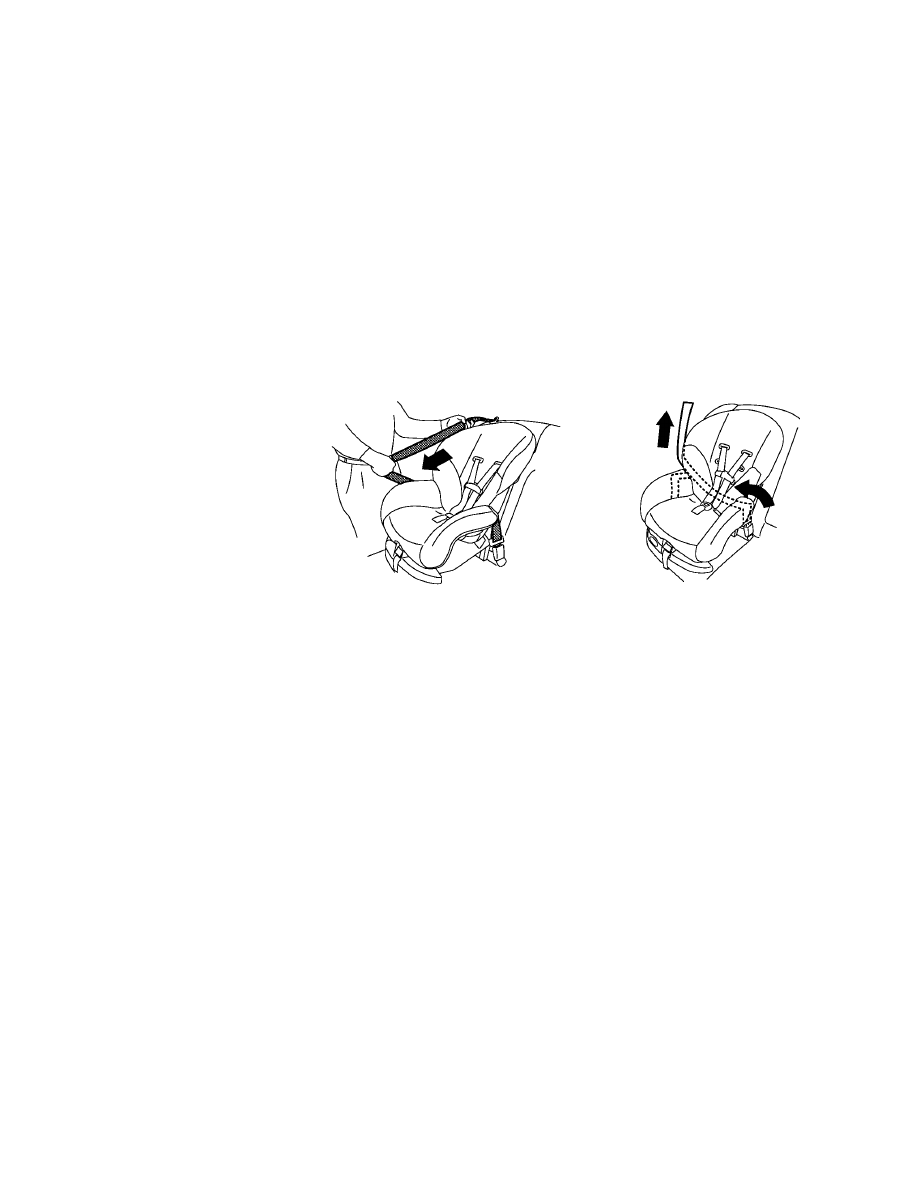

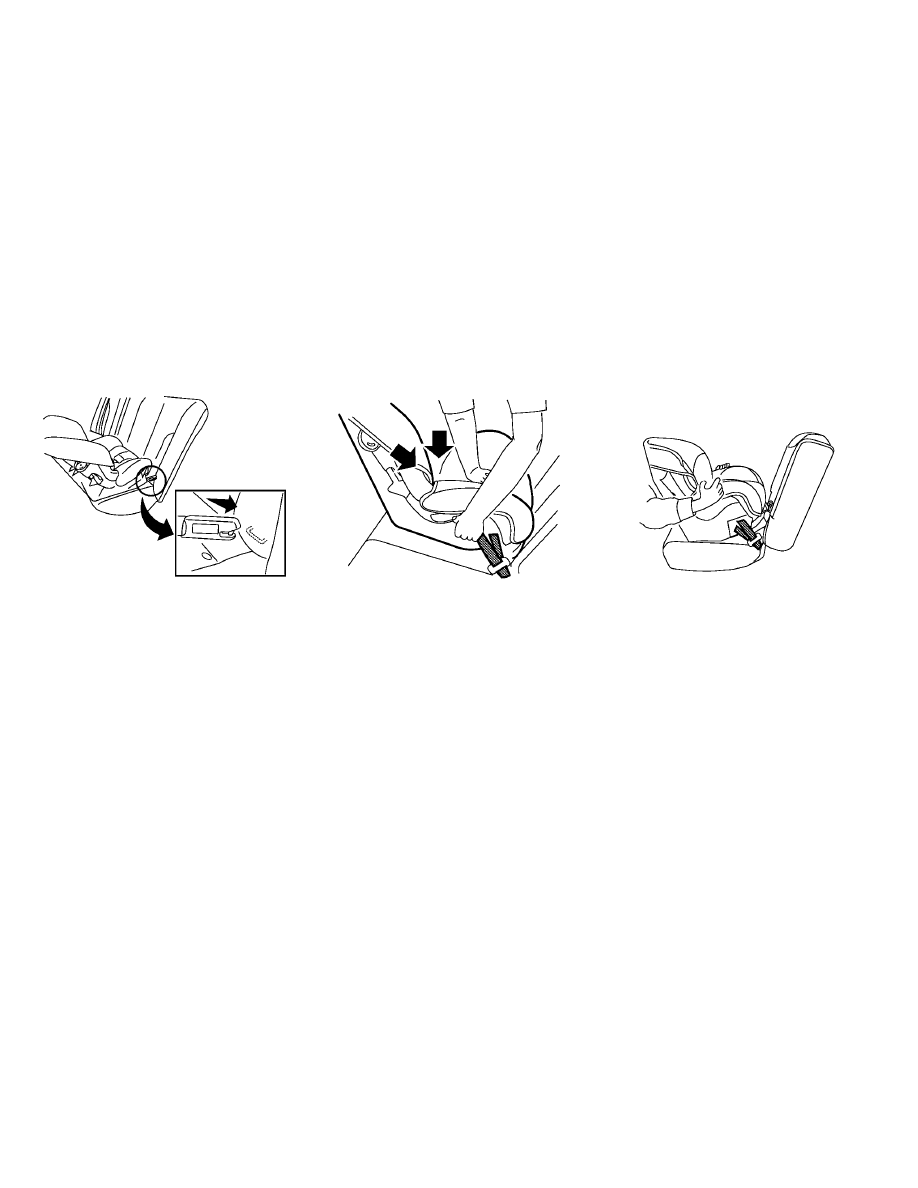

Rear-facing rigid-mounted — step 2

Rear-facing — step 3

Rear-facing — step 4

1-28

Safety–Seats, seat belts and supplemental restraint system

try a different child restraint or try install-
ing by using the vehicle seat belt (if ap-
plicable). Not all child restraints fit in all
types of vehicles.

5. Check to make sure that the child re-

straint is properly secured prior to each
use. If the child restraint is loose, repeat
steps 2 through 4.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS

WARNING

The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result
in the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. For additional informa-
tion, refer to “Front passenger air bag
and status light” in this section.

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint. Do not
use the lower anchors if the combined
weight of the child and child restraint ex-
ceeds 65 lbs. (29.5 kg). If the combined
weight of the child and child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle’s seat belt (not the lower anchors) to
install the child restraint. Be sure to follow
the child restraint manufacturer’s instruc-
tions for installation.

Follow these steps to install a rear-facing
child restraint using the vehicle seat belt in
the rear seats:

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the front
seat. Position the child restraint on the
seat. Always follow the child restraint
manufacturer’s instructions.

Rear-facing — step 1

Safety–Seats, seat belts and supplemental restraint system

1-29

2. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

3. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to the ELR mode when
the seat belt is fully retracted.

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

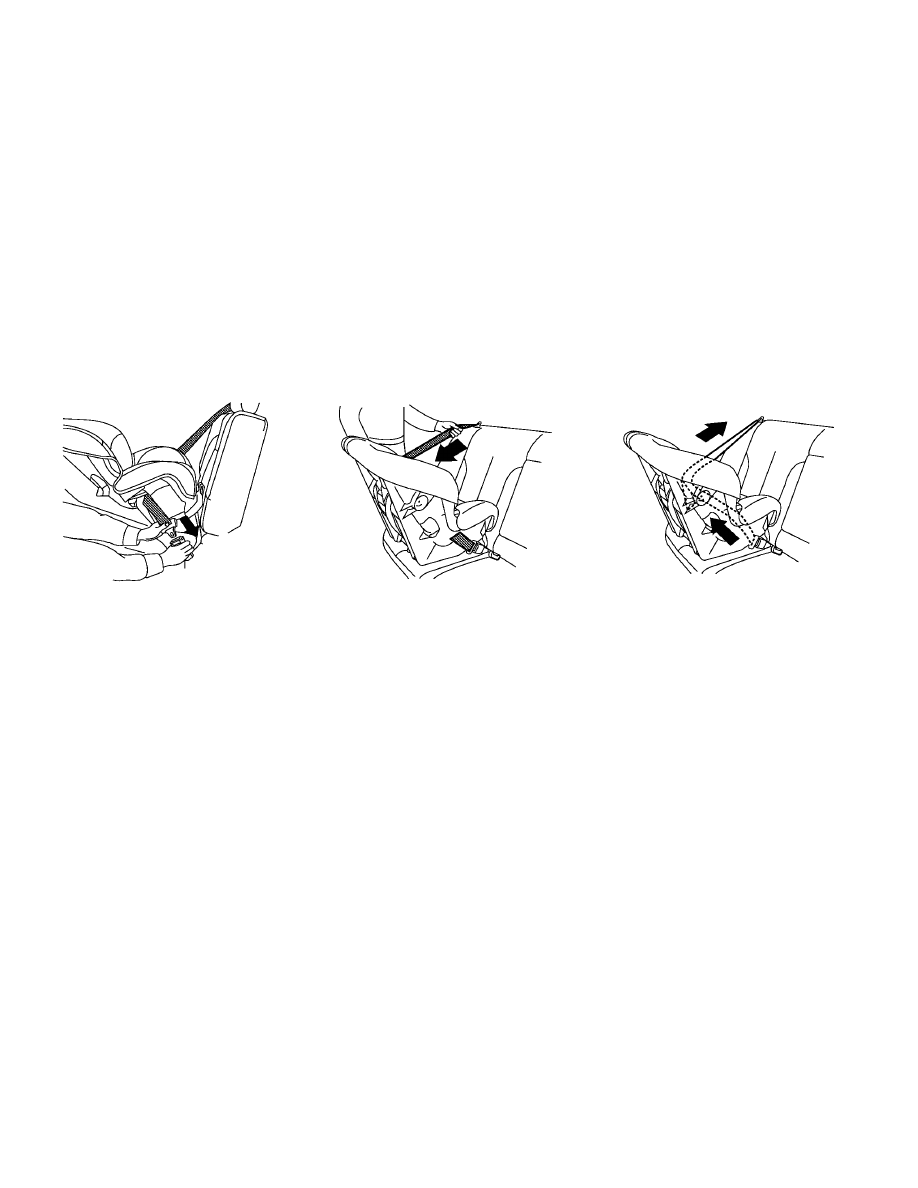

Rear-facing — step 2

Rear-facing — step 3

Rear-facing — step 4

1-30

Safety–Seats, seat belts and supplemental restraint system

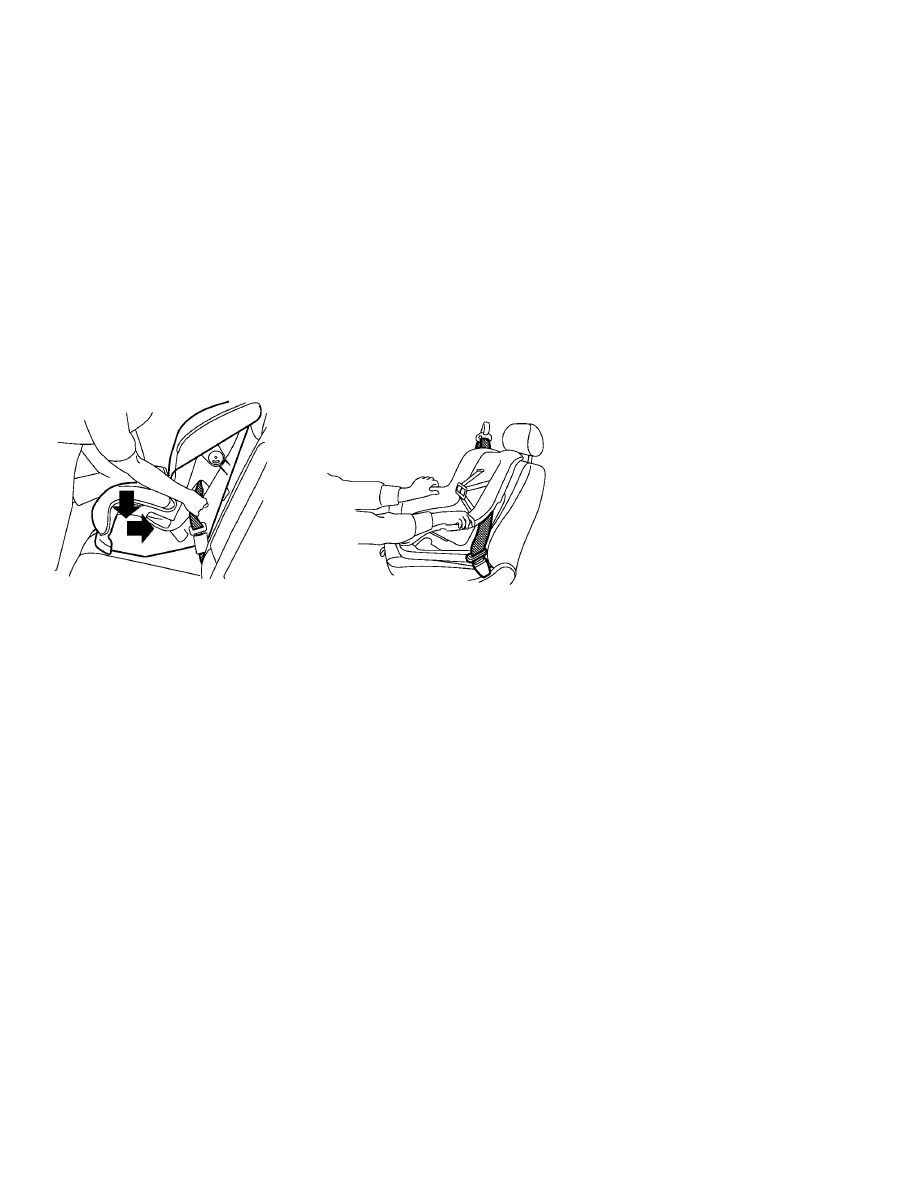

5. Remove any additional slack from the

child restraint. Press downward and
rearward firmly in the center of the child
restraint with your hand to compress
the vehicle seat cushion and seatback
while pulling up on the seat belt.

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than
1 inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the restraint
is not secure, tighten the seat belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

7. Check to make sure that the child re-

straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 1 through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode
(child restraint mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH

For additional information, refer to all Warn-
ings and Cautions in “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Rear-facing — step 5

Rear-facing — step 6

Safety–Seats, seat belts and supplemental restraint system

1-31

Follow these steps to install a forward-
facing child restraint using the LATCH sys-
tem:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

2. Secure the child restraint anchor at-

tachments to the LATCH lower anchors.
Check to make sure that the LATCH at-
tachment is properly attached to the
lower anchors.

If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point. For additional infor-
mation, refer to “Installing top tether
strap” in this section.

Do not install child restraints that re-
quire the use of a top tether strap in
seating positions that do not have a top
tether anchor.

Forward-facing webbing-mounted —

step 2

1-32

Safety–Seats, seat belts and supplemental restraint system

3. The back of the child restraint should be

secured against the vehicle seatback.

If necessary, remove the head restraint/
headrest to obtain the correct child re-
straint fit. If the head restraint/headrest
is removed, store it in a secure place. Be
sure to reinstall the head restraint/
headrest when the child restraint is
removed. For additional information, re-
fer to “Head restraints/headrests” in this
section.

If the seating position does not have an
adjustable head restraint/headrest and
it is interfering with the proper child re-
straint fit, try another seating position or
a different child restraint.

4. For child restraints that are equipped

with webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your knee to com-
press the vehicle seat cushion and seat-
back while tightening the webbing of
the anchor attachments.

5. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

Forward-facing rigid-mounted — step 2

Forward-facing — step 4

Safety–Seats, seat belts and supplemental restraint system

1-33

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not
move more than 1 inch (25 mm), from
side to side. Try to tug it forward and
check to see if the LATCH attachment
holds the restraint in place. If the re-
straint is not secure, tighten the LATCH
attachment as necessary, or put the re-
straint in another seat and test it again.

You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.

7. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps
1 through 6.

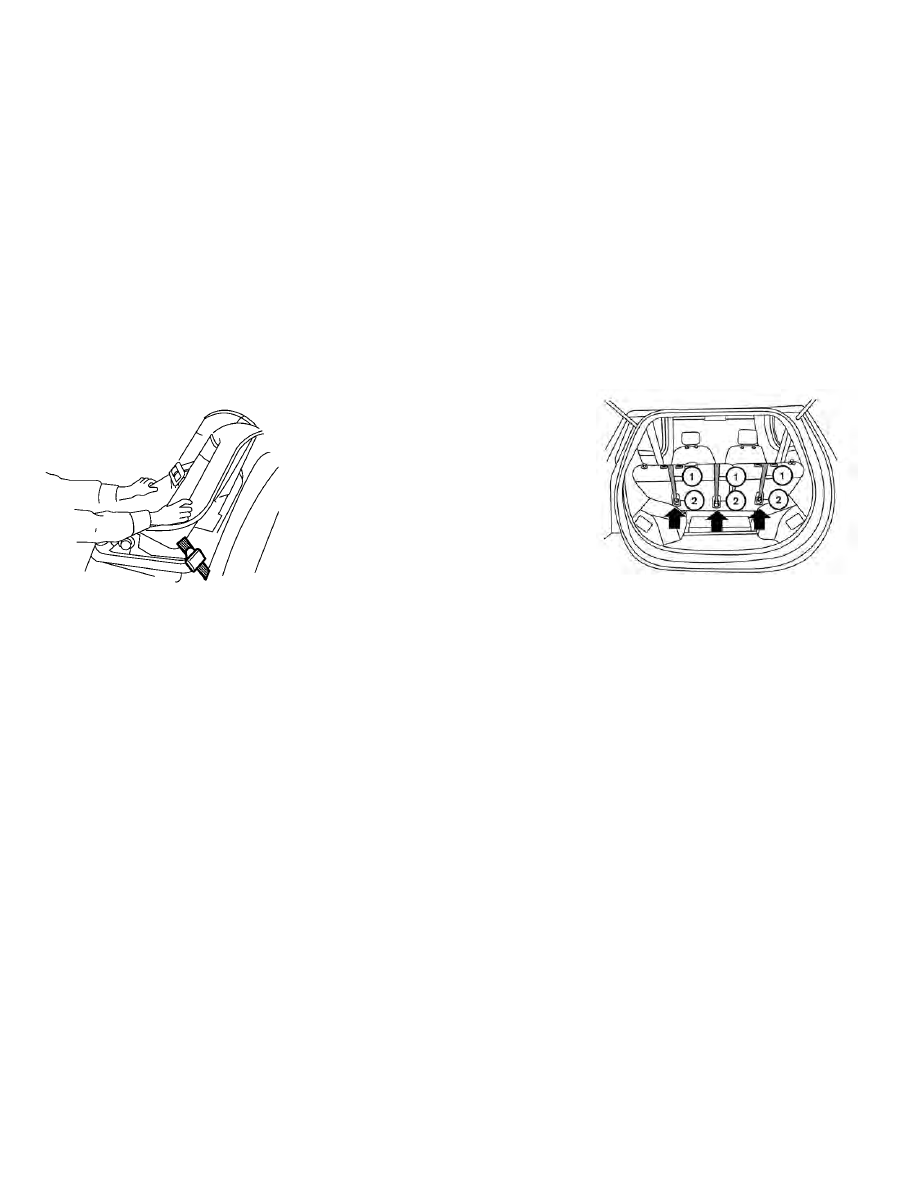

Installing top tether strap

䊊

Top tether strap

䊊

Tether anchor point

The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.

First, secure the child restraint with the
LATCH lower anchors (rear bench out-
board seating positions only).

Forward-facing — step 6

1-34

Safety–Seats, seat belts and supplemental restraint system

Rear bench seat

OUTBOARD SEATING POSITIONS

1. Remove the head restraint/headrest

and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional information, refer to “Head
restraints/headrests" in this section.

2. Position the top tether strap

䊊

over the

seatback.

3. Secure the tether strap to the tether an-

chor point

䊊

on the bottom of the seat-

back behind the child restraint.

4. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN certified LEAF
dealer for details.

WARNING

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are

they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child
restraint will not be properly installed
using the damaged anchorage, and a
child could be seriously injured or
killed in a collision.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS

WARNING

For additional information, refer to all Warn-
ings and Cautions in “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Forward-facing (front passenger seat)

— step 1

Safety–Seats, seat belts and supplemental restraint system

1-35

Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seat or in the front passen-
ger seat:

1. If you must install a child restraint in

the front seat, it should be placed in
the

forward-facing

direction

only.

Move the seat to the rearmost posi-
tion. Child restraints for infants must
be used in the rear-facing direction
and therefore must not be used in the
front seat.

2. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

The back of the child restraint should be
secured against the seatback.

If necessary, adjust the head restraint/
headrest to obtain the correct child re-
straint fit. If the head restraint/headrest
is removed, store it in a secure place. Be
sure to reinstall the head restraint/
headrest when the child restraint is
removed. For additional information,
refer to “Head restraints/headrests” in
this section.

If the seating position does not have an
adjustable head restraint/headrest and
it is interfering with the proper child re-
straint fit, try another seating position or
a different child restraint.

3. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to the
tether anchor point (rear seat installa-
tion only). For additional information, re-
fer to “Installing top tether strap” in this
section.

Forward-facing — step 3

1-36

Safety–Seats, seat belts and supplemental restraint system

Do not install child restraints that re-
quire the use of a top tether strap in
seating positions that do not have a top
tether anchor.

4. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to the ELR mode when
the seat belt is fully retracted.

5. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

Forward-facing — step 4

Forward-facing — step 5

Safety–Seats, seat belts and supplemental restraint system

1-37

6. Remove any additional slack from the

seat belt. Press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while pulling
up on the seat belt.

7. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

8. After attaching the child restraint, test it

9. Check to make sure the child restraint is

properly secured prior to each use. If the
seat belt is not locked, repeat steps
2 through 8.

Forward-facing — step 6

Forward-facing — step 8

1-38

Safety–Seats, seat belts and supplemental restraint system

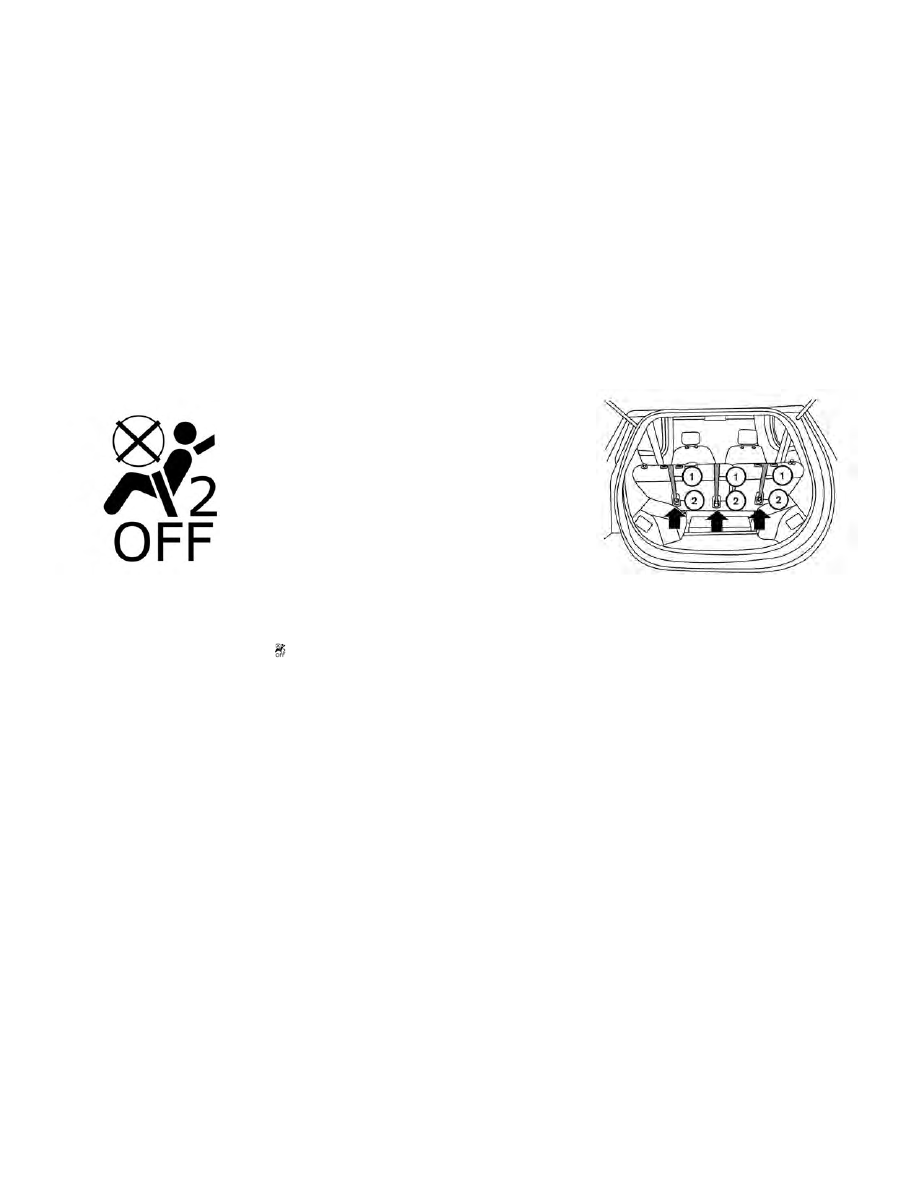

10. If the child restraint is installed on the

front passenger seat, push the power
switch to the ON position. The front
passenger air bag status light
should illuminate. If this light does not
illuminate, refer to “Front passenger air
bag and status light” in this section.
Move the child restraint to another
seating position. Have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer for
this service.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

Installing top tether strap

䊊

Top tether strap

䊊

Tether anchor point

The child restraint top tether strap must be
used when installing the child restraint with
the seat belts.

First, secure the child restraint with the seat
belt.

Safety–Seats, seat belts and supplemental restraint system

1-39

Content .. 6 7 8 9 ..
