CHARGING RELATED REMOTE
FUNCTION (MODELS WITH
NAVIGATION SYSTEM)

This vehicle incorporates a communica-
tion device that is called a TCU (Telematics
Communication Unit). The communication
connection between this unit and NISSAN
Data Center allows for various remote
function services.

• Remote Battery status check:

The charging status of the Li-ion battery
can be checked using the NissanConnect®
EV & Services app or Owners Portal even if
you are not in the vehicle.

• Remote Start Charge:

The function of starting the Li-ion bat-
tery charge or starting the heater and air
conditioner is available using your per-
sonal computer or internet enabled
smart phone.

• Plug-in reminder:

A notification e-mail will be sent to your
personal computer or internet enabled
smart phone if the plug is not connected
at the specific time you selected, after
turning off the power switch.

NOTE:

• Establishing the NissanConnect® EV &

Services is necessary before using this
service. For additional information, re-
fer to the LEAF Navigation System Own-
er's Manual.

• To check the Li-ion battery charging

status using an internet enabled smart
phone or personal computer, the fol-
lowing conditions must be met:

– The vehicle must be located in a cel-

lular phone coverage area.

– The cellular phone must be located

in an area with cellular phone cover-
age.

– If using a computer, the computer

must be connected to the internet.

– Some cellular phones are not com-

patible and cannot be used to check
the Li-ion battery charging status.
Please confirm beforehand.

• Certain remote functions require a

compatible smart phone, which is not
included with the vehicle.

• NissanConnect® EV & Services informa-

tion

system

features

are

included

through a subscription service which
requires owner consent to activate. The
subscription must be active to use
these features.

• NissanConnect® EV & Services commu-

nications may be received at a verified
e-mail

address

or

by

SMS/text

messaging-enabled mobile phone.

• Standard text rates and/or data usage

may apply depending on your carrier.

CH-42

Charging

CHARGING STATUS INDICATOR
LIGHTS

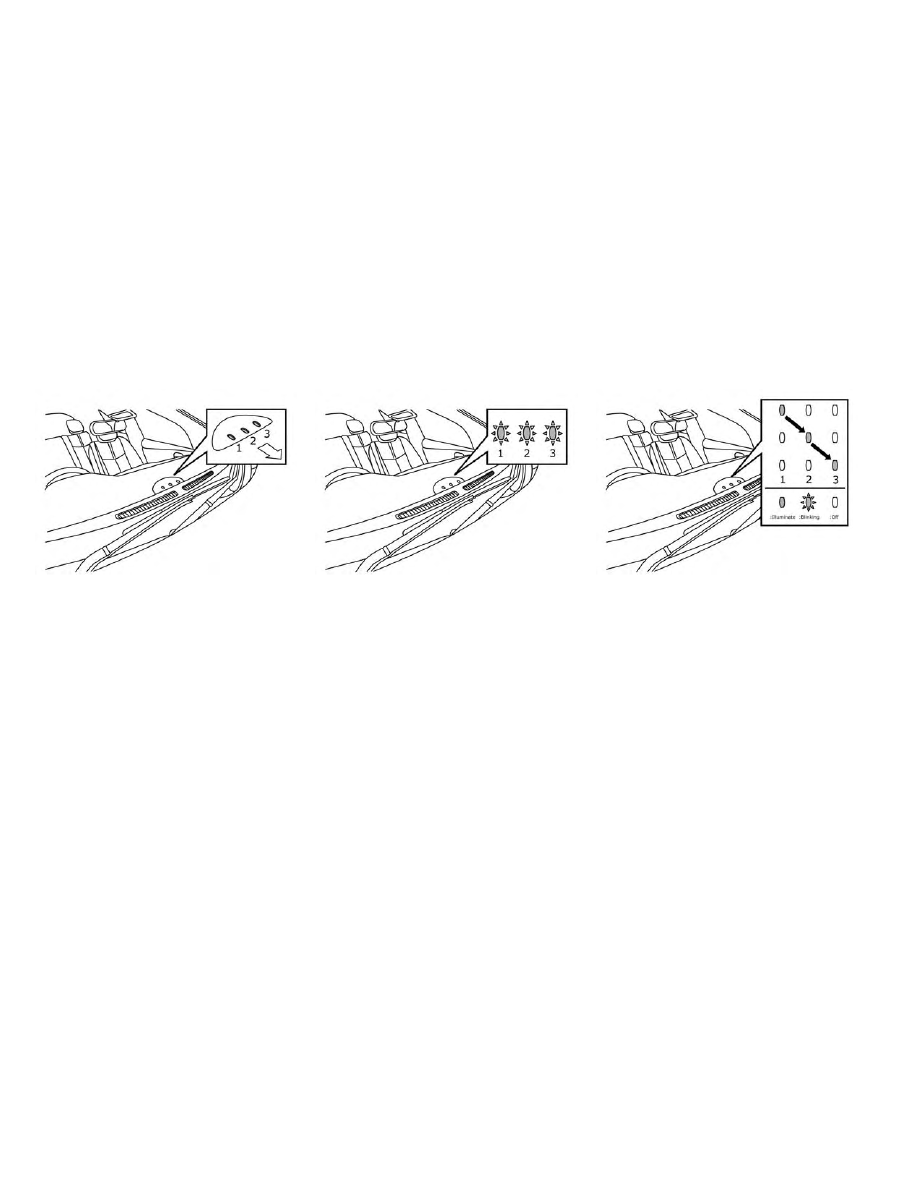

The charging status indicator lights (1) to (3)
display the charging status, and are visible
from both inside and outside the vehicle.

When the normal charge connector lock
is unlocked

All of the indicator lights, (1) to (3), will flash
and a beep will sound three times when
the normal charge connector lock switch
on the Intelligent Key or the charge port lid
switch is pushed.

When the normal charge connector is
connected incorrectly

All of the indicator lights, (1) to (3), will flash
and a beep will sound three times within
30 seconds when the charge connector
is connected incorrectly to the normal
charge port.

Ready for charging timer

If the charging timer is set, the indicator
lights illuminate in order from (1) to (3). The
indicator lights turn off after approximately
5 minutes.

CHARGING RELATED INDICATOR
LIGHTS

Charging

CH-43

Ready for immediate charge

When the power switch is off and if the
immediate charge switch is pushed while
the charge cable is not connected, the in-
dicator light (2) illuminates.

This indicator light (2) illuminates when the
vehicle is ready for immediate charge. You
have 15 minutes to connect the charge
connector to the vehicle. If the charge con-
nector is not connected within 15 minutes,
the indicator light (2) turns off and you
must start the immediate charge mode
again to charge the Li-ion battery.

When charging

When the Li-ion battery is being charged,
the charging status indicator lights will
change depending on the amount the Li-
ion battery is charged.

*: This value is also displayed by the battery
available charge gauge on the vehicle in-
formation display.

When fully charged

All of the indicator lights (1) to (3) illuminate
when the Li-ion battery is fully charged to
the selected charging mode level.

The indicator lights turn off after approxi-
mately 5 minutes or when the charge con-
nector is removed.

CH-44

Charging

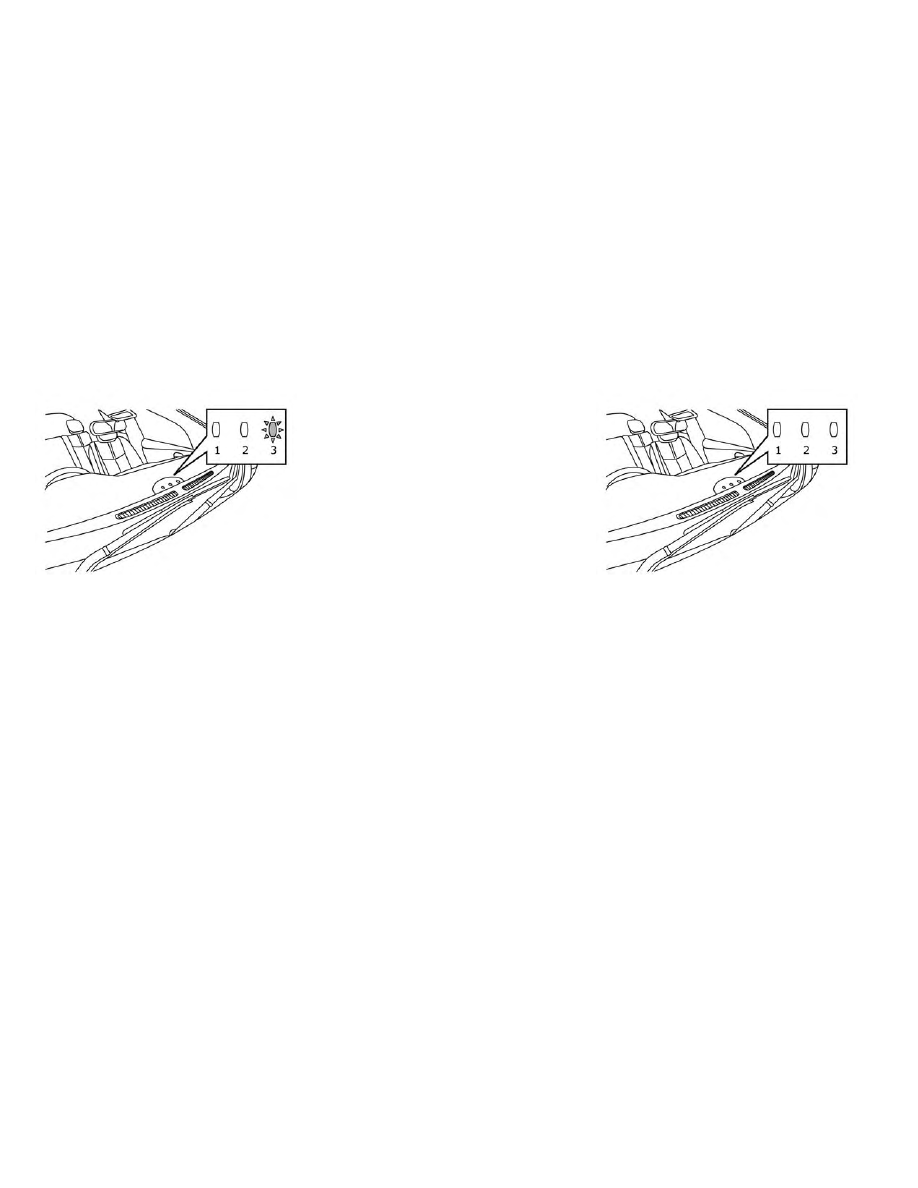

When the indicator light (3) flashes

The indicator light (3) flashes when the 12-
volt battery is being charged. For additional
information, refer to “Charging the 12-volt
battery” in the “EV overview” section of this
manual.

The indicator light will also flash for up to
5 minutes if the electrical power from the
EVSE or charging device is interrupted dur-
ing charging. Charging will restart auto-
matically when the electrical power from
the EVSE or charging device is restored if
the normal charge connector is con-

nected. The charge start beep will not
sound when charging restarts.

The indicator will also flash when the fol-
lowing systems are operating:

• Climate Ctrl. Timer

• Remote climate control (if so equipped)

• Li-ion battery warmer (if so equipped)

When not charging

None of the lights are illuminated when the
Li-ion battery and 12-volt battery are not
charging.

Charging

CH-45

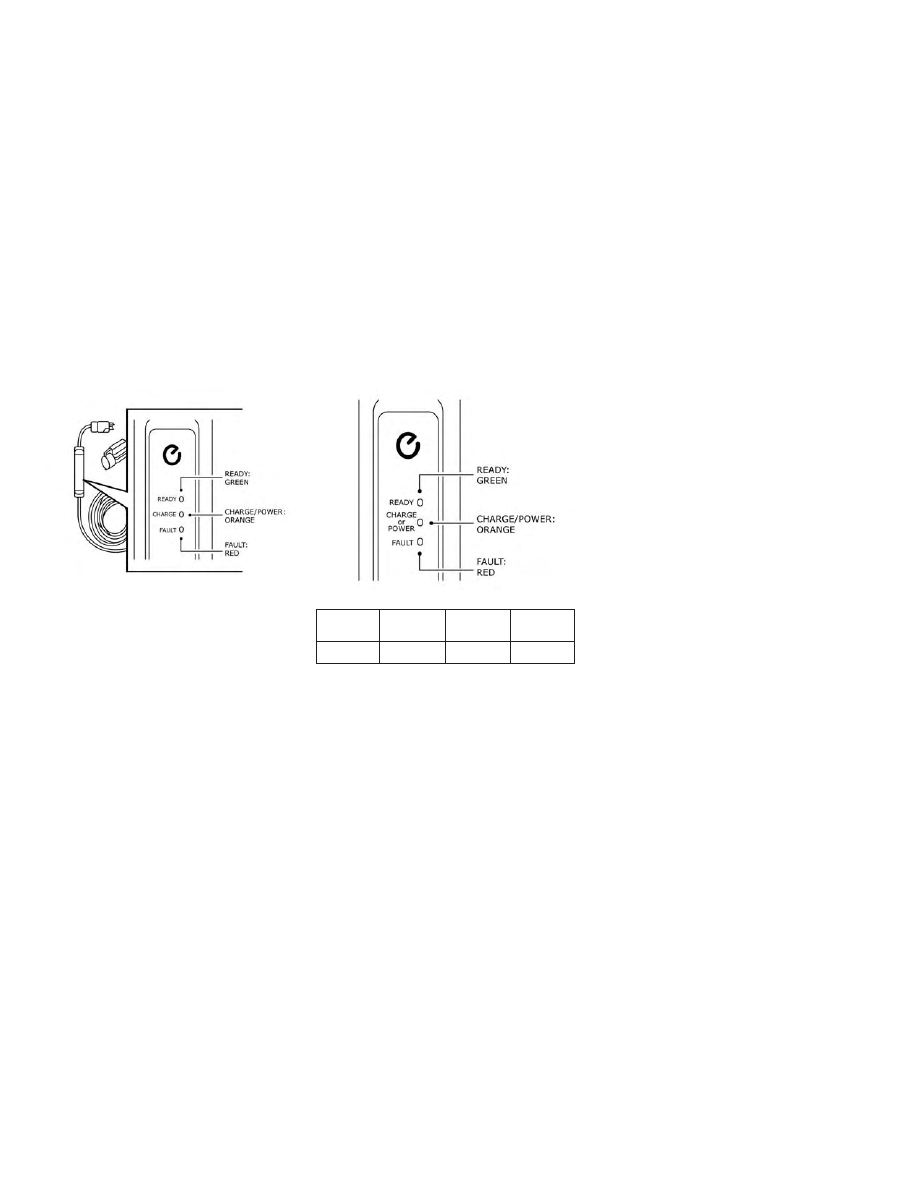

EVSE (ELECTRIC VEHICLE SUPPLY
EQUIPMENT) CONTROL BOX
INDICATOR LIGHT

When a charge is being performed, the
charging status is shown by the indicator
light that is on the EVSE control box.

An indicator light also indicates if there is
an EVSE malfunction.

Meaning Light ON

Blinking

Light

OFF

Symbol

CH-46

Charging

READY

CHARGE

or POWER

FAULT

Status and action to be taken

All LED lamps will light for a 1/2 second check when EVSE is first connected to an outlet.

After initial processing is completed, when the EVSE is not connected to the vehicle, or the EVSE is connected to the vehicle
but charging is not being performed. For additional information, refer to “Charging troubleshooting guide” in this section.

While the Li-ion battery is being charged

If the EVSE control box indicator light does not illuminate after connecting the plug to the outlet, check the GFCI and circuit
breaker for the outlet. If either the GFCI or breaker has tripped, the circuit may not be suitable for use with EVSE. You should
have a qualified electrician inspect and repair the electrical circuit. If the GFCI breaker is not tripped, stop using the EVSE. It is
recommended that you visit a NISSAN certified LEAF dealer.

The EVSE could not detect sufficient grounding at outlet for reliable EV charging. Consult a qualified electrician to have the out-
let checked.

When the temperature of the electrical plug is too hot or the EVSE is unable to detect the temperature of the electrical plug.
The EVSE is restricting the charging current for safety according to the temperature of the electrical plug.
POWER or CHARGE Lamp status:

䡩 = No charging current restricted.

= Charge current restricted

쏹 = Charge stopped
This problem may be caused by a failure in the outlet.
Stop using the outlet and consult a qualified electrician.
If the same indication continues after checking an outlet, it is recommended that you visit a NISSAN certified LEAF dealer.

L1 & L2 EVSE only
The temperature detection circuit in the plug of the EVSE is malfunctioning.
Power Lamp status:

= Charge current reduced

쏹 = Charge stopped
Since the EVSE is restricting the charging current, it is recommended that you visit a NISSAN certified LEAF dealer.


or

This trouble is caused by a malfunction of the EVSE internal circuits.
Stop using the EVSE immediately. It is recommended that you visit a NISSAN certified LEAF dealer.

The EVSE detected leakage current or PWM signal error
Stop using the EVSE immediately. It is recommended that you visit a NISSAN certified LEAF dealer.

Charging

CH-47

Symptom

Possible cause

Possible solution

Charging cannot be per-

formed.

The vehicle power switch is in the ON posi-
tion.

Before charging, place the vehicle power switch in the OFF position.

Both the normal charge connector and the
quick charge connector (if so equipped) are
connected at the same time.

The normal charge connector and the quick charge connector cannot be connected at
the same time.

The Li-ion battery is already fully charged.

Confirm the available Li-ion battery capacity remaining by checking the Li-ion battery
available charge gauge. If the Li-ion battery charge gauge reaches 100%, the Li-ion battery
is already fully charged and cannot be charged. Charging automatically turns off if the
Li-ion battery is fully charged.

The temperature of the Li-ion battery is too
hot or cold to charge.

Confirm the Li-ion battery temperature by checking the Li-ion battery temperature gauge.
If the gauge indicates the Li-ion battery is too hot (red zone) or too cold (blue zone),
charging is not possible. Allow the Li-ion battery to cool or warm up before charging. For
additional information, refer to “Li-ion battery temperature gauge” in the “Instruments and
controls” section of this manual.

The 12-volt battery is discharged.

If the vehicle electrical systems cannot be turned on even when the power switch is turned
on, the 12V battery may be discharged. Charge or replace the 12V battery.

The vehicle has a malfunction.

The vehicle may have a malfunction. Confirm if the warning light on the meter is illumi-
nated. If a warning is displayed, stop charging. It is recommended that you visit a NISSAN
certified LEAF dealer.

Normal charge or trickle

charge cannot be per-

formed.

There is no electrical power coming from
the outlet.

Confirm that there has not been a power failure. Make sure the breaker is on. If an outlet
with a timer device installed is used, power will only be available at the time set by the
timer.

The EVSE or charging device may have a
malfunction.

If Genuine NISSAN EVSE is used, refer to “Charging Troubleshooting.”

The charge connector is not connected
correctly.

Confirm the charge connector is connected correctly.

Plug might not be connected correctly.

Confirm if the plug is connected correctly.

Immediate charge cannot

be performed.

Charging timer has been set.

Turn off the charging timer. For additional information, refer to “Charging timer” in this
section.

CHARGING TROUBLESHOOTING
GUIDE

CH-48

Charging

Symptom

Possible cause

Possible solution

Charging timer cannot be

performed.

The charge cable is not connected.

Connect the charge cable.

The time on the clock is wrong.

The charging timer function does not start charging based on the clock located on the
vehicle information display. Adjust the clock. For additional information, refer to “Clock” in
the “Instruments and controls” section of this manual. If the 12-volt battery is discharged
or if the Li-ion battery is disconnected, the time setting must be updated. For models
with Navigation System, there must be a GPS signal to adjust the timer setting clock.

The immediate charge switch has been
pushed.

Charging timer does not operate when immediate charge is selected.

Charging timer has not been set.

Set the charging timer schedule. For additional information, refer to “Charging timer” in
this section.

Charging does not start because the
charging timer start time and end time are
set and the current time is before the set
start time.

Confirm when the charging timer time is set to start charging. Change the charging timer
setting to the desired charge time or push the immediate charge switch. For additional
information, refer to “Charging timer” in this section.

The charge cable is not connected.

Connect the charge cable beforehand.

Normal charge stops in

the middle of charging.

There is no power coming from the outlet.

There may have been an electrical power failure, or the breaker may have failed. Charg-
ing will resume when the power source is reset.

The charge cable has been disconnected.

Check that the charge cable has not been disconnected.

Both the normal charge connector and the
quick charge connector were connected at
the same time.

If the normal charge connector and the quick charge connector are connected at the
same time, charging will be stopped.

Charging timer end time has been
reached.

When the charging timer is set and the charge end time is reached, charging will be
stopped, even if the Li-ion battery is not fully charged.

The temperature of the Li-ion battery is
too hot or too cold to charge.

Confirm the Li-ion battery temperature by checking the Li-ion battery temperature
gauge. If the gauge indicates the Li-ion battery is too hot (red zone) or too cold (blue
zone), charging is not possible. Allow the Li-ion battery to cool or warm up before charg-
ing. For additional information, refer to “Li-ion battery temperature gauge” in the “Instru-
ments and controls” section of this manual.

Charging

CH-49

Symptom

Possible cause

Possible solution

Quick charge cannot be

performed.

Incorrect charge connector connection, not
fully inserted or may not be locked.

Check that the charge connector is connected correctly and that it is locked.

The self-diagnostic function of the quick
charge device returns a negative result.

There is a possibility that the vehicle has a malfunction. Stop charging. It is recommended
that you visit a NISSAN certified LEAF dealer.

The power switch of the quick charger is off.

Check the power switch of the quick charger.

Quick charge stops in the

middle of charging.

Charging is stopped by the quick charge
timer.

Charging will stop depending on the timer function setting of the quick charge device. If
you need to charge the Li-ion battery more, start the charging procedure again.

The power supply for the quick charger is
off.

Check whether the power supply for the quick charger is off.

CH-50

Charging

1 Safety–Seats, seat belts and
supplemental restraint system

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Front manual seat adjustment (for passenger’s
seat and if so equipped for driver’s seat) . . . . .1-3
Front power seat adjustment
(if so equipped for driver’s seat). . . . . . . . . . .1-4
Rear seats . . . . . . . . . . . . . . . . . . . . . . . .1-6

Head restraints/headrests . . . . . . . . . . . . . . . .1-7

Adjustable head restraint/headrest
components . . . . . . . . . . . . . . . . . . . . . . .1-8
Non-adjustable head restraint/headrest
components . . . . . . . . . . . . . . . . . . . . . . .1-8
Remove . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11

Precautions on seat belt usage . . . . . . . . . .1-11
Seat belt warning light . . . . . . . . . . . . . . . .1-14
Pregnant women . . . . . . . . . . . . . . . . . . .1-14
Injured persons. . . . . . . . . . . . . . . . . . . . .1-14
Three-point type seat belt with retractor . . . .1-14
Seat belt extenders . . . . . . . . . . . . . . . . . .1-18
Seat belt maintenance . . . . . . . . . . . . . . . .1-19

Child safety . . . . . . . . . . . . . . . . . . . . . . . . .1-19

Infants . . . . . . . . . . . . . . . . . . . . . . . . . .1-20
Small children . . . . . . . . . . . . . . . . . . . . .1-20
Larger children . . . . . . . . . . . . . . . . . . . . .1-20

Child restraints . . . . . . . . . . . . . . . . . . . . . . .1-22

Precautions on child restraints . . . . . . . . . .1-22
LATCH (Lower Anchors and Tethers for CHildren)
system . . . . . . . . . . . . . . . . . . . . . . . . . .1-24
Rear-facing child restraint installation using
LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . .1-27
Rear-facing child restraint installation using the
seat belts . . . . . . . . . . . . . . . . . . . . . . . .1-29
Forward-facing child restraint installation using
LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . .1-31
Forward-facing child restraint installation using
the seat belts . . . . . . . . . . . . . . . . . . . . . .1-35
Booster seats . . . . . . . . . . . . . . . . . . . . .1-40

Supplemental Restraint System (SRS) . . . . . . . .1-43

Precautions on SRS . . . . . . . . . . . . . . . . . .1-43
Supplemental air bag warning labels . . . . . .1-61
Supplemental air bag warning light . . . . . . .1-61

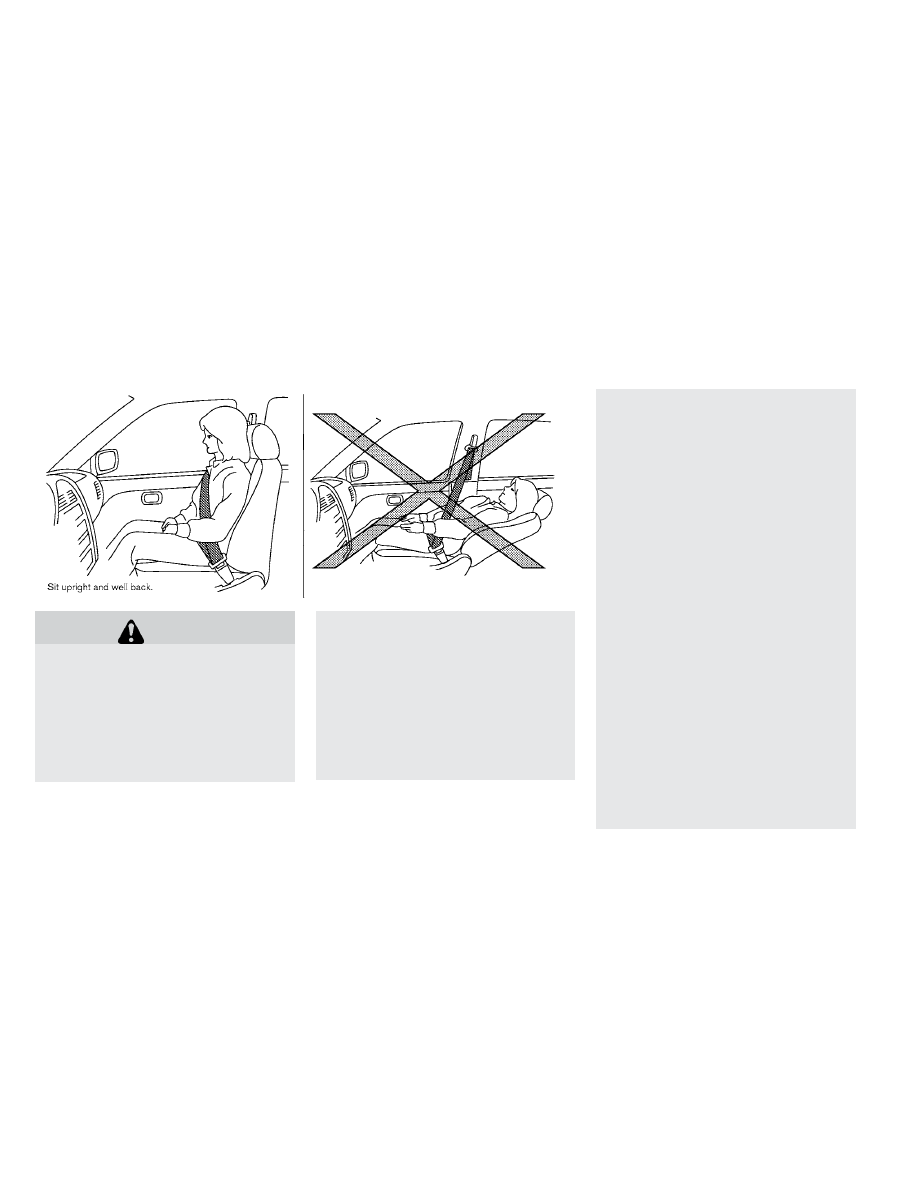

WARNING

• Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will
not be against your body. In an acci-
dent, you could be thrown into it and
receive neck or other serious inju-
ries. You could also slide under the
lap belt and receive serious internal
injuries.

• For the most effective protection

when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat
with both feet on the floor and ad-
just the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.

• After adjustment, gently rock in the

seat to make sure it is securely
locked.

• Do not leave children unattended in-

side the vehicle. They could un-
knowingly activate switches or con-
trols or make the vehicle move.
Unattended children could become
involved in serious accidents.

• To help avoid risk of injury or death

through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle. Ad-
ditionally, the temperature inside a
closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.

• Do not adjust the driver’s seat while

driving so full attention may be
given to vehicle operation. The seat
may

move

suddenly

and

could

cause loss of control of the vehicle.

• The seatback should not be reclined

any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.

SEATS

1-2

Safety–Seats, seat belts and supplemental restraint system

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts
to avoid possible injuries and/or dam-
age.

FRONT MANUAL SEAT
ADJUSTMENT (FOR PASSENGER’S
SEAT AND IF SO EQUIPPED FOR
DRIVER’S SEAT)

Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.

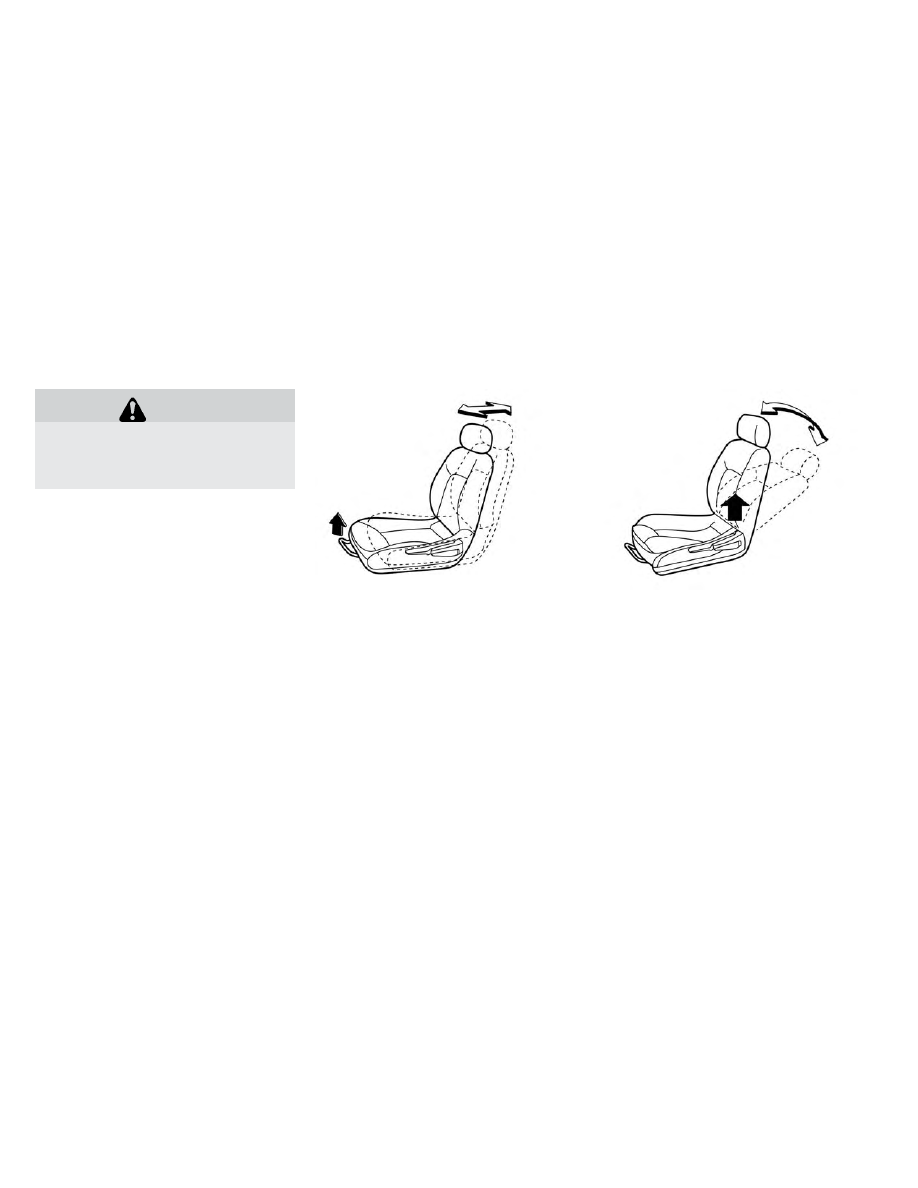

Forward and backward

Pull the bar up and hold it while sliding the
seat forward or backward to the preferred
position. Release the bar to lock the seat in
position.

Reclining

To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the ve-
hicle is in the P (Park) position.

Safety–Seats, seat belts and supplemental restraint system

1-3

Seat lifter (driver’s seat)

Pull up or push down the adjusting lever to
adjust the seat height to the preferred po-
sition.

FRONT POWER SEAT ADJUSTMENT
(IF SO EQUIPPED FOR DRIVER’S
SEAT)

Operating tips

• The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.

• Do not operate the power seat switch for

a long period of time when the system is
not in the READY mode. This will discharge
the battery.

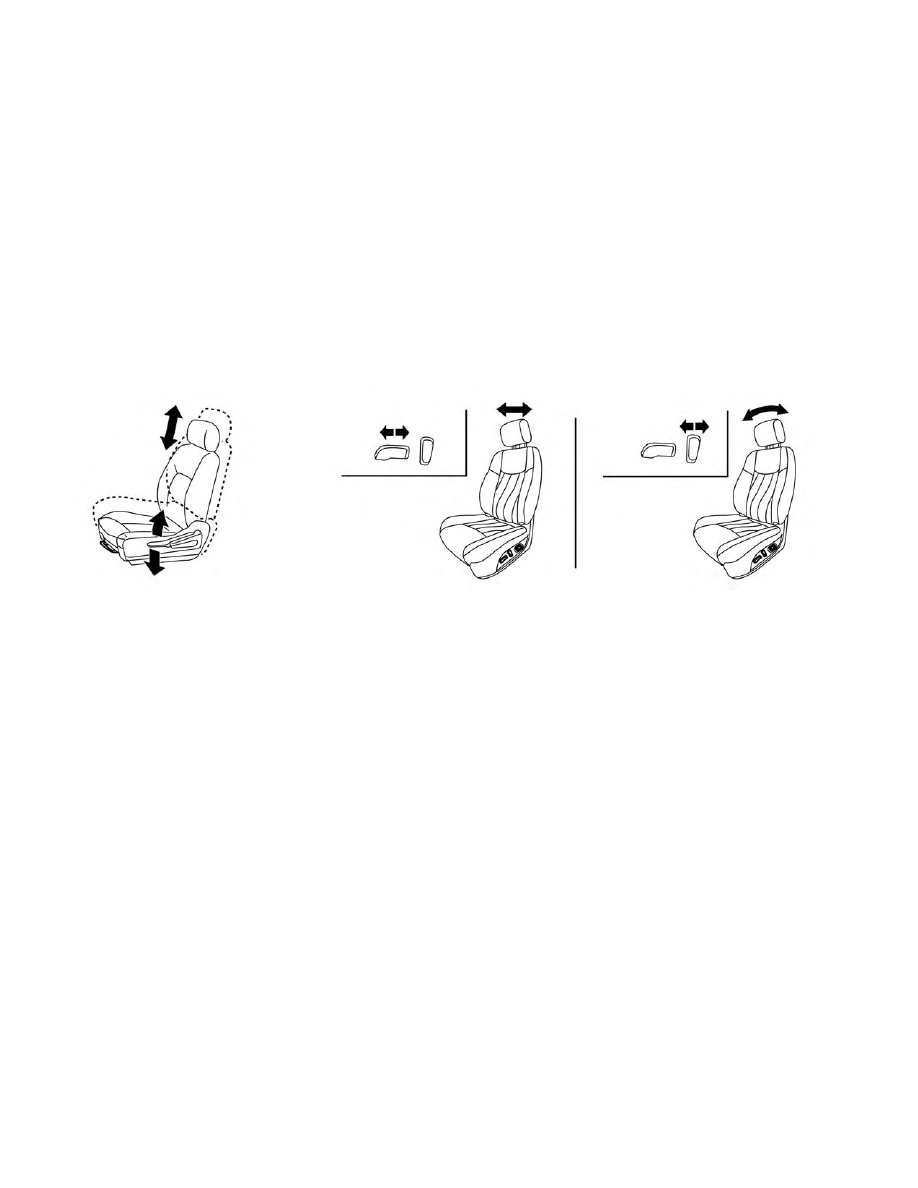

Forward and backward

Moving the switch as shown will slide the
seat forward or backward to the desired
position.

Reclining

Move the recline switch as shown until the
desired angle is obtained.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain

1-4

Safety–Seats, seat belts and supplemental restraint system

proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shift
lever is in P (Park).

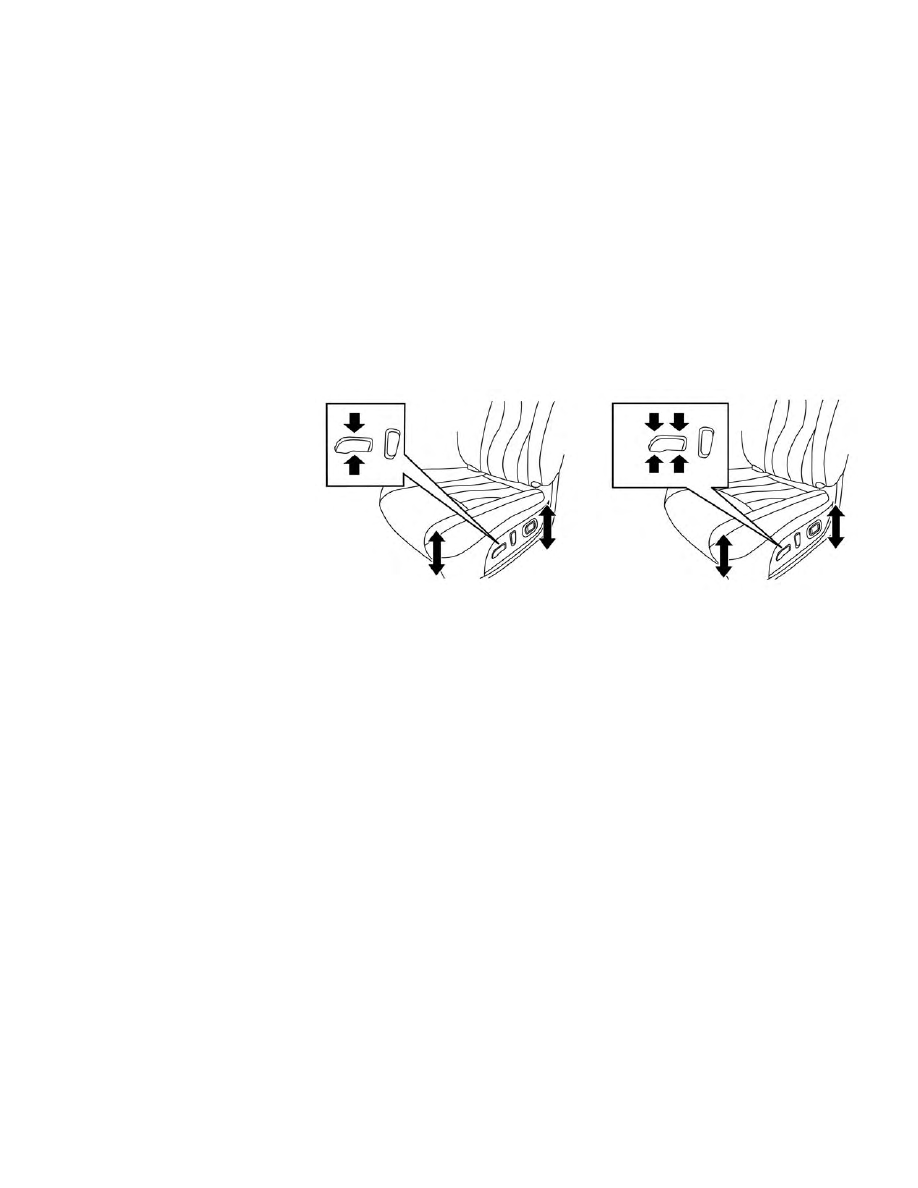

Seat lifter

Move the switch as shown to adjust the
angle (if so equipped) and height of the
seat cushion.

Type A (if so equipped)

Type B (if so equipped)

Safety–Seats, seat belts and supplemental restraint system

1-5

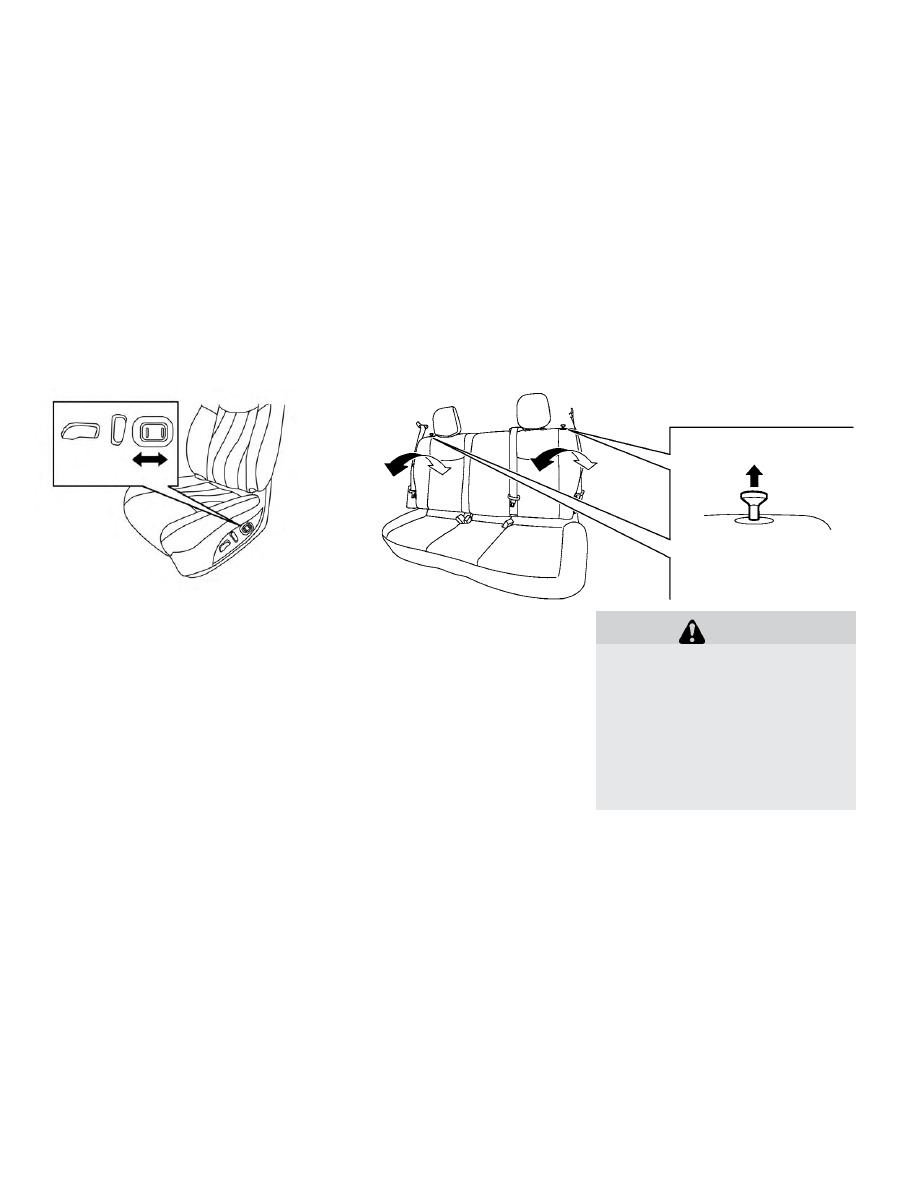

Lumbar support

The lumbar support feature provides ad-
justable lower back support to the driver.
Move the switch as shown to adjust the
seat lumbar area.

REAR SEATS

Folding

Before folding the rear seats:
• Secure the seat belts on the seat belt

hooks located on the side wall. For addi-
tional information, refer to “Seat belt hook”
in this section.

To fold down the seatback, pull the release
knob.

To return the seatback to the seating posi-
tion, lift up each seatback and push it to the
upright position until it is latched.

WARNING

• Do not fold down the rear seats

when occupants are in the rear seat
area or any objects are on the rear
seats.

• Never allow anyone to ride in the

cargo area or on the rear seats when
they are in the folded-down posi-
tion. Use of these areas by passen-
gers without proper restraints could
result in serious injury or death in an
accident or sudden stop.

1-6

Safety–Seats, seat belts and supplemental restraint system

• Properly secure all cargo with ropes

or straps to help prevent it from slid-
ing or shifting. Do not place cargo
higher than the seatbacks. In a sud-
den stop or collision, unsecured
cargo could cause personal injury.

• When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.

WARNING

Head

restraints/headrests

supple-

ment the other vehicle safety systems.
They may provide additional protec-
tion against injury in certain rear end
collisions. Adjustable head restraints/
headrests must be adjusted properly,
as specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraints/headrests.
Do not use the seat if the head
restraint/headrest has been removed.
If the head restraint/headrest was re-
moved, reinstall and properly adjust
the head restraint/headrest before an
occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraint/headrest. This may increase
the risk of serious injury or death in a
collision.

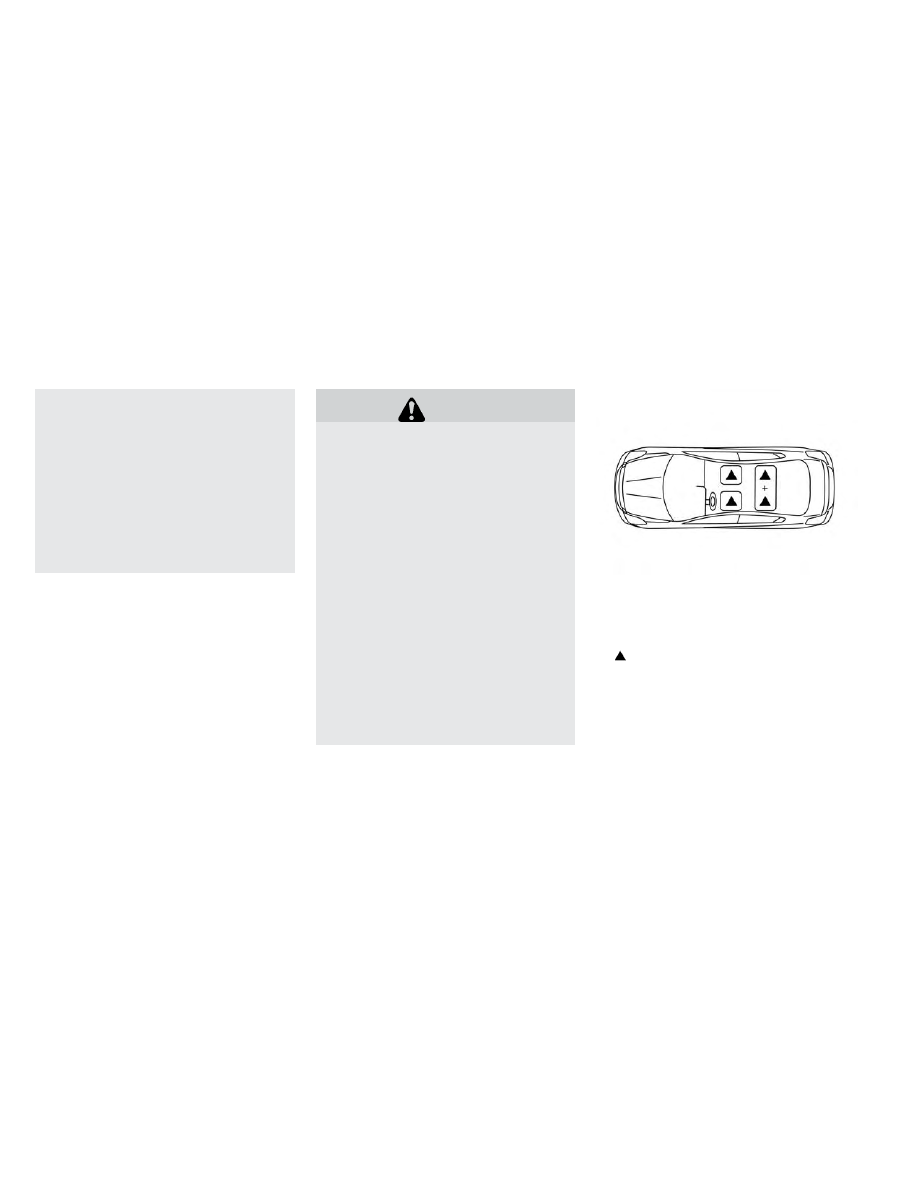

The illustration shows the seating posi-
tions equipped with a head restraint/
headrest.

Indicates the seating position is

equipped with a head restraint.

+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).

• Your vehicle is equipped with a head

restraint/headrest that may be inte-
grated, adjustable or non-adjustable.

HEAD RESTRAINTS/HEADRESTS

Safety–Seats, seat belts and supplemental restraint system

1-7















Content   ..  4  5  6  7   ..
