Nissan Kicks (2018 year). Instruction - part 12

in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system imme-
diately. Ignoring such conditions may
lead to accidents, fire or electrical
shock. It is recommended that you
visit a NISSAN dealer for servicing.

NISSANCONNECT® OWNER’S
MANUAL (if so equipped)

4-2

Monitor, climate, audio, phone and voice recognition systems

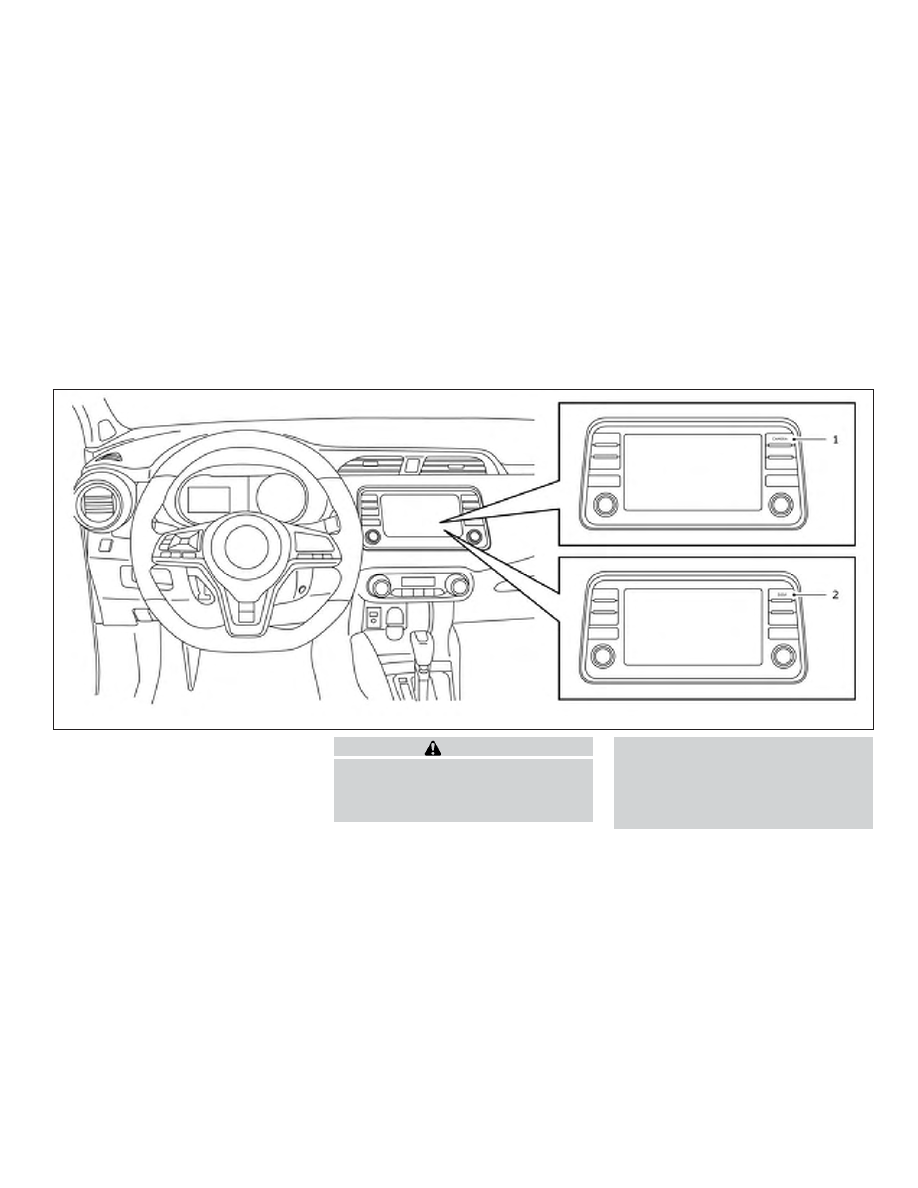

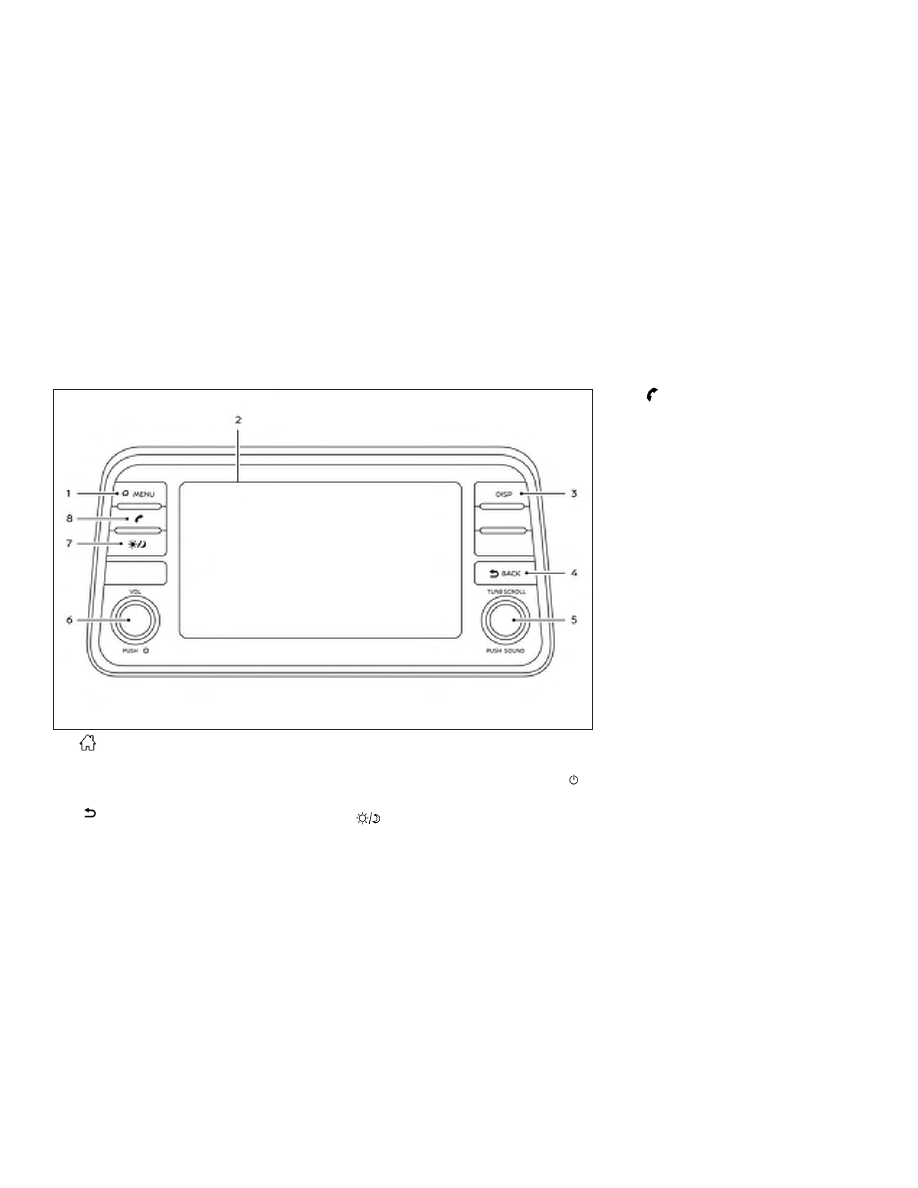

MENU button

2. Display screen

3. DISP button

BACK button

5. TUNE•SCROLL knob / PUSH SOUND

button

6. VOL

(volume)

knob

PUSH

(power) button

(brightness control) button

button*

For

additional

information, refer

“Bluetooth® Hands-Free Phone System” in
this section regarding the Bluetooth®
Hands-Free Phone System control button.

When you use this system, make sure the
engine is running.

If you use the system with the engine not
running for a long time, it will discharge
the battery, and the engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.

LHA4703

CONTROL PANEL BUTTONS

Monitor, climate, audio, phone and voice recognition systems

4-3

HOW TO USE THE TOUCH-SCREEN

CAUTION

∙ The glass display screen may break if

it is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.

∙ To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

∙ Do not splash any liquid such as water

or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction.

To help ensure safe driving, some functions
cannot be operated while driving.

The on-screen functions that are not avail-
able while driving will be “grayed out” or
muted.

WARNING

∙ ALWAYS give your full attention to

driving.

∙ Avoid using vehicle features that

could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.

LHA4700

4-4

Monitor, climate, audio, phone and voice recognition systems

Touch-screen operation

Menu Item

Result

Selecting the item

Touch an item to select. To select the “Phone” key, touch the “Phone” key on the screen. Touch the “

” key to

return to the previous screen.

Adjusting the item

Touch the “+” key or the “

⫺” key to adjust the settings of an item. Touch the up arrow to scroll up the page one

item at a time. Touch the down arrow to scroll down the page one item at a time.

Inputting characters

Touch the number key. There are some options available when inputting characters.

123

Touch to manually enter numbers.

Completes the character input.

Touch-screen maintenance

If you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral deter-
gent with a soft cloth. Never spray the
screen with water or detergent. Dampen
the cloth first and then wipe the screen.

Monitor, climate, audio, phone and voice recognition systems

4-5

HOW TO USE THE

BUTTON

To select and/or adjust several functions,
features and modes that are available for
your vehicle:

1. Press the

MENU button.

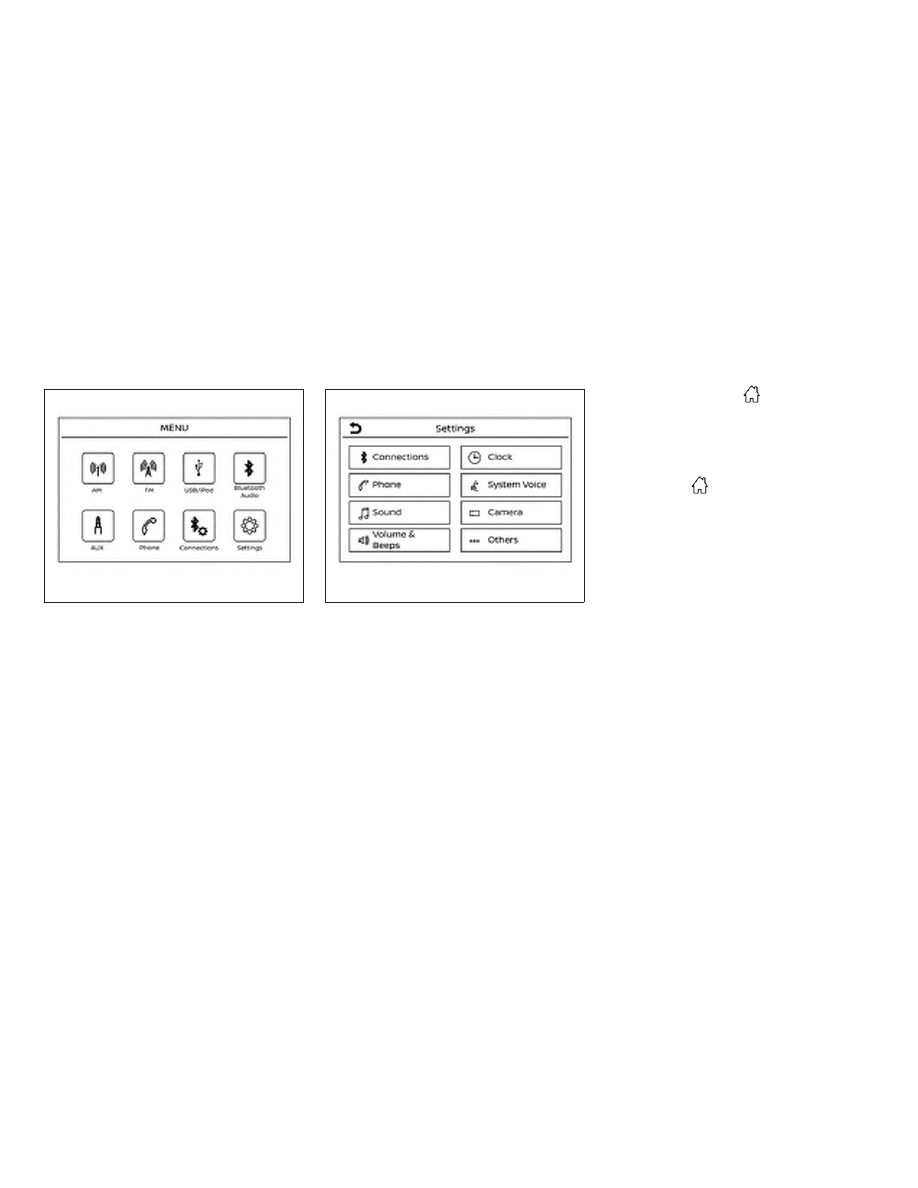

2. Touch the “Settings” key.

3. Touch the desired item.

LHA4706

LHA4700

4-6

Monitor, climate, audio, phone and voice recognition systems

Menu item

Result

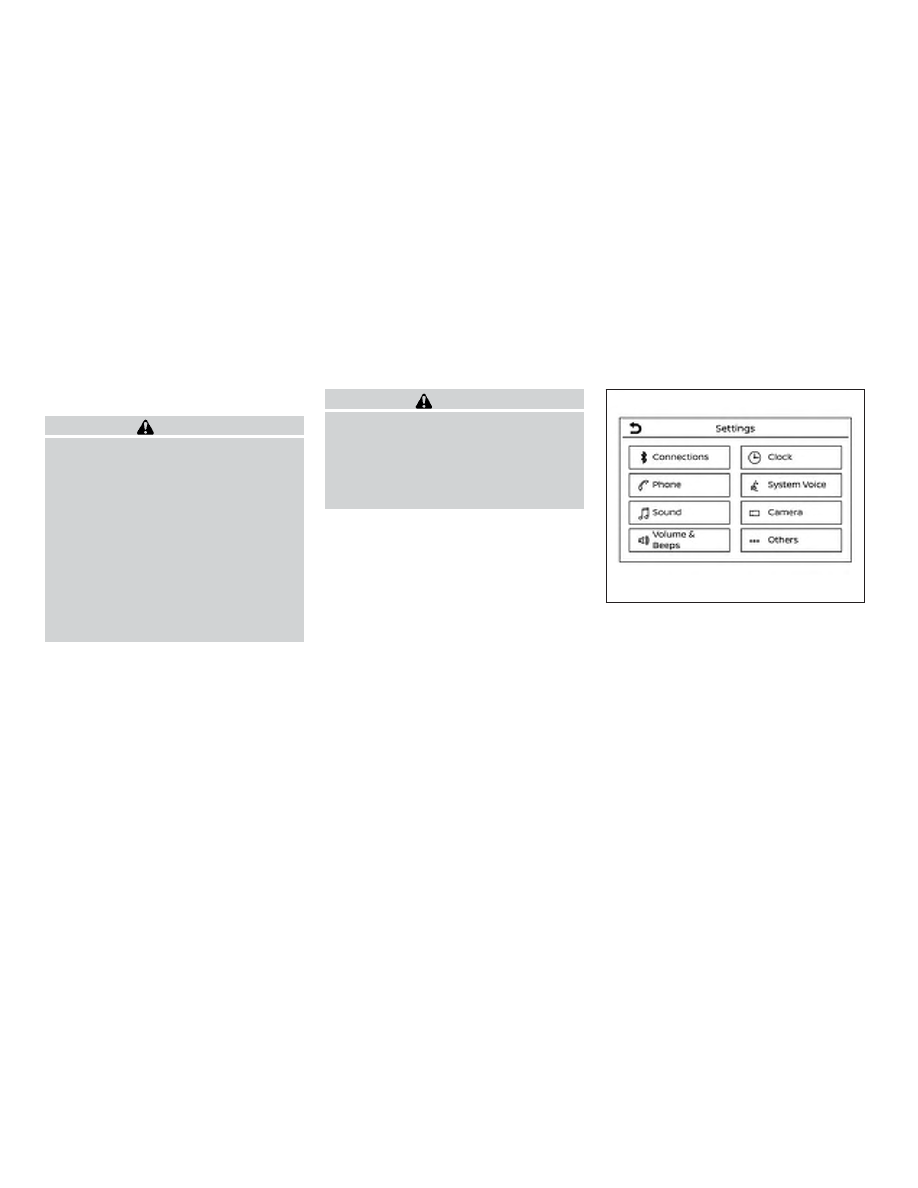

Settings

Touch to change the following settings.

Connections

Touch this key to select either Bluetooth® phone, Bluetooth® audio or USB audio options. For additional
information, refer to “USB connections screen” and “Bluetooth® connections screen” in this section.

Phone

For additional information, refer to “Bluetooth® Hands-Free Phone System” in this section.

Sound

For additional information, refer to “Audio system” in this section.

Volume & Beeps

For additional information, refer to “Volume & beeps” in this section.

Clock

Touch this key to adjust clock settings.

On-screen Clock

Touch to toggle ON or OFF the clock display on the upper right corner of the display screen.

Clock Format

Touch to set the clock to 12–hour or 24–hour format.

Daylight Savings Time

Touch to adjust the daylight savings time to on or off.

Set Clock Manually

Touch to adjust the clock manually; then touch to change between AM and PM, the hour and the
minutes.

System Voice

For additional information, refer to “Settings” in this section.

Camera

Touch this key to change the camera settings.

Others

Touch this key to select and/or adjust various functions of this system. A screen with additional options
will appear.

Display

Touch this key to toggle the display off or to adjust the appearance of the display. For additional
information, refer to “Adjusting the screen” in this section.

Language

Touch this key to change the language on the display.

OSS Licenses

Touch this key to display software licensing information.

Return All Settings To Default

Touch this key to return all settings to default and to clear the memory.

Monitor, climate, audio, phone and voice recognition systems

4-7

(brightness control) BUTTON

To change the display brightness, press
the

button. Pressing the button again

will change the display to the day or the
night display.

Press and hold the

button for more

than 2 seconds to turn the display off. Press
and hold the button again to turn the dis-
play on.

HOW TO USE THE VOL (volume)
KNOB / PUSH

(power)

BUTTON

Press the PUSH

(power) button to

turn audio function on and off. Turn the VOL
(volume) knob to adjust audio volume.

SELECTING MENU FROM LAUNCH
BAR

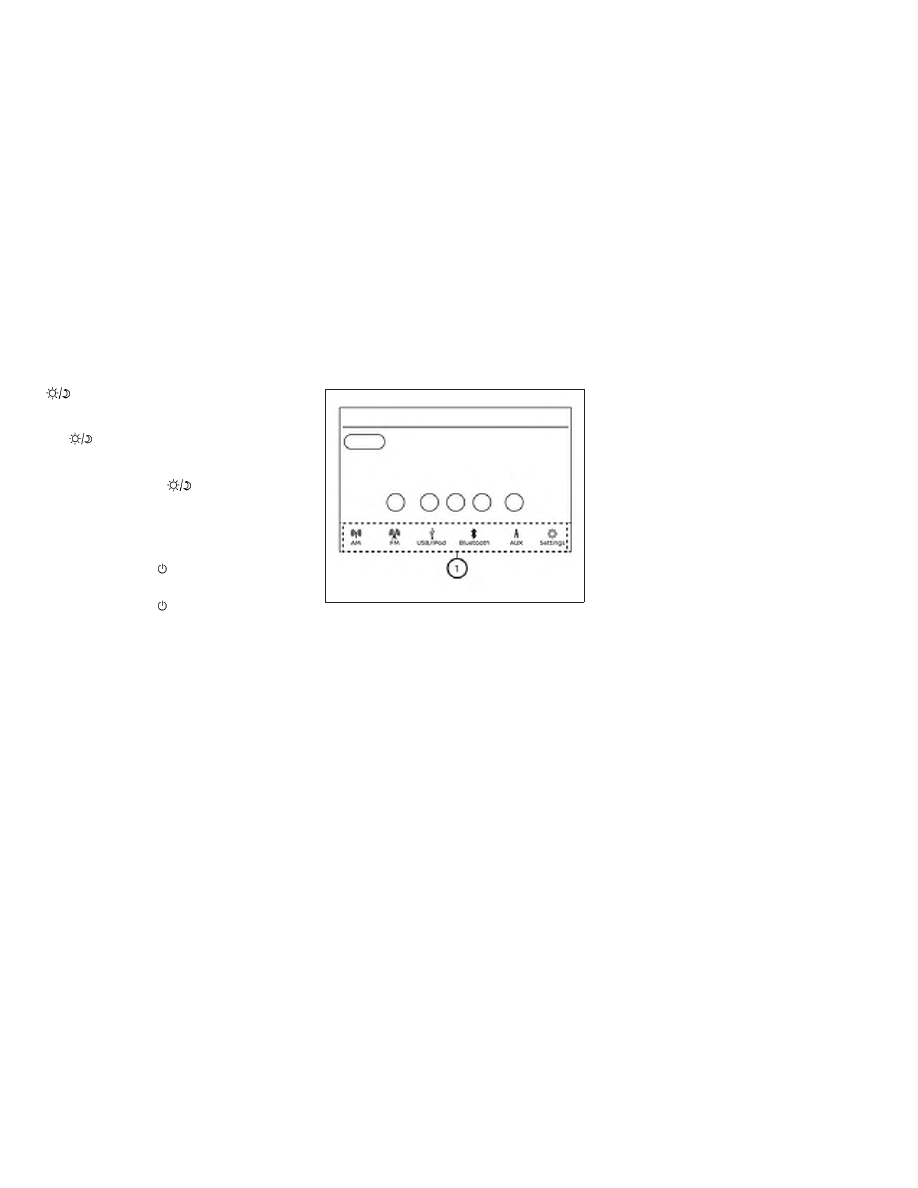

Various system functions can be accessed
by touching the items on the Launch Bar

䊊

which is displayed on most of the main

menu screens (the Launch Bar does not
appear on some screens such as keyboard
screens, camera screens, etc.)

Touch the keys on the Launch Bar to dis-
play the corresponding menu screens.

The following menu items are available on
the Launch Bar:

∙ AM

∙ FM

∙ USB/iPod

∙ Bluetooth

∙ AUX

∙ Settings

LHA4707

4-8

Monitor, climate, audio, phone and voice recognition systems

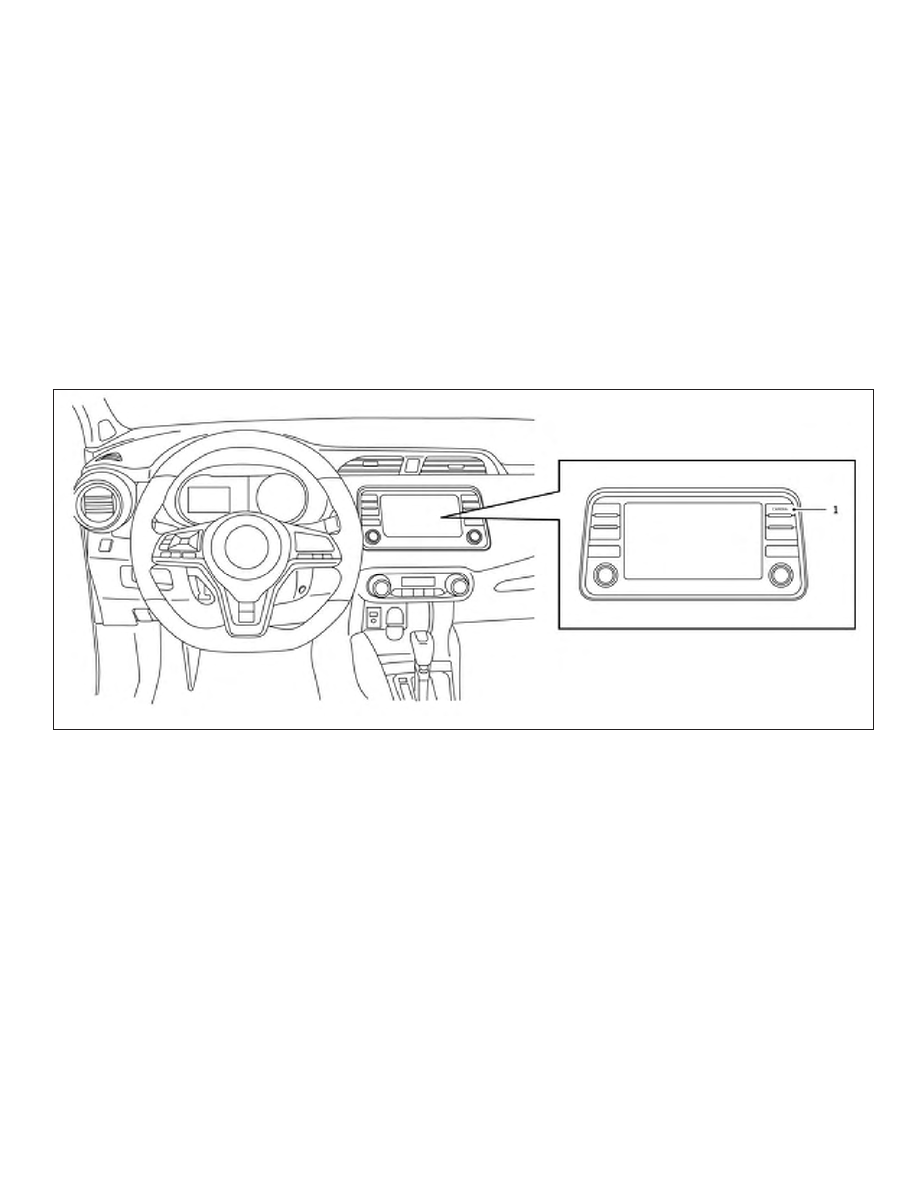

1. CAMERA button

2. DISP button

WARNING

∙ Failure to follow the warnings and in-

structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

∙ RearView Monitor is a convenience fea-

ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.

LHA4681

REARVIEW MONITOR (if so
equipped)

Monitor, climate, audio, phone and voice recognition systems

4-9

∙ The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

∙ The distance guide lines and the ve-

hicle width lines should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position. The radio can still be heard while
the RearView Monitor is active.

To display the rear view, the RearView Moni-

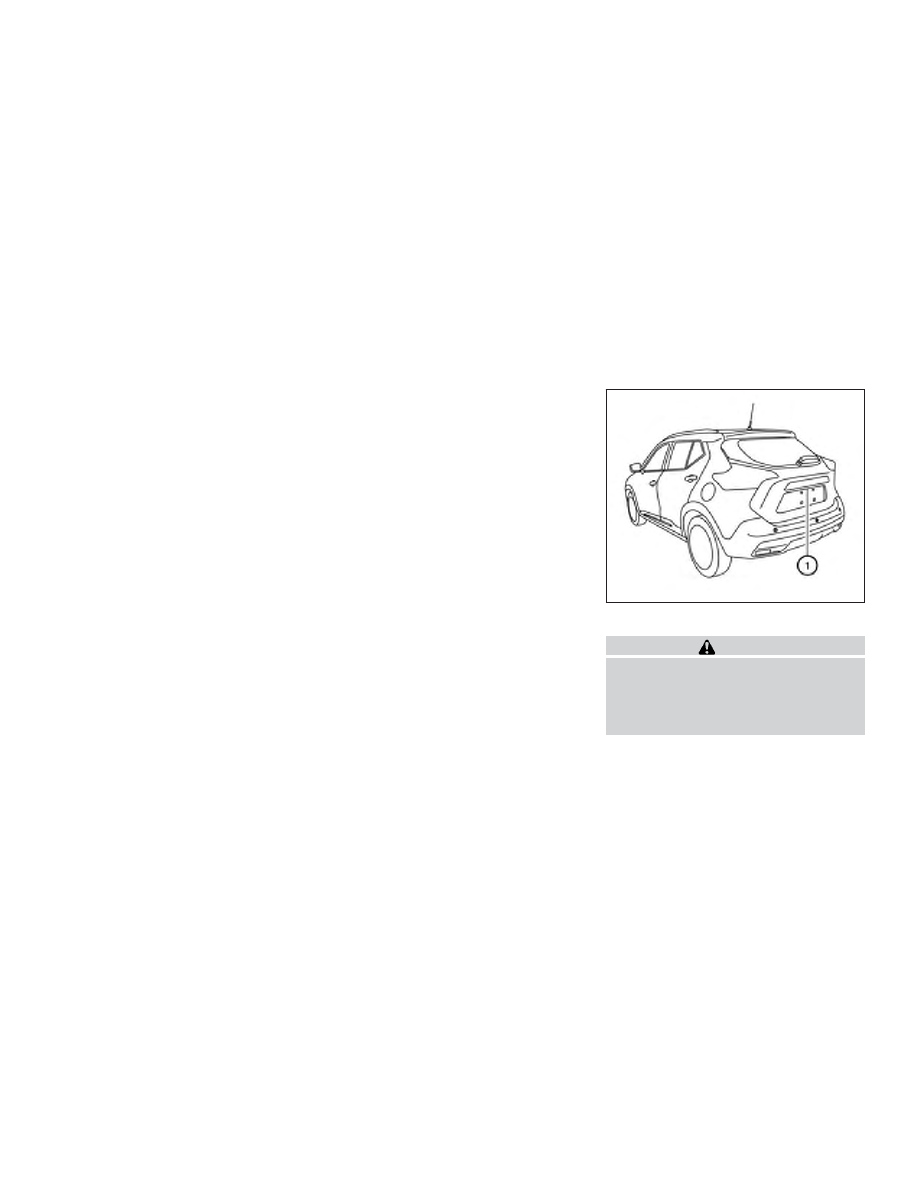

tor system uses a camera located just
above the vehicle’s license plate

䊊

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition to operate the RearView Monitor.

HOW TO READ THE DISPLAYED
LINES

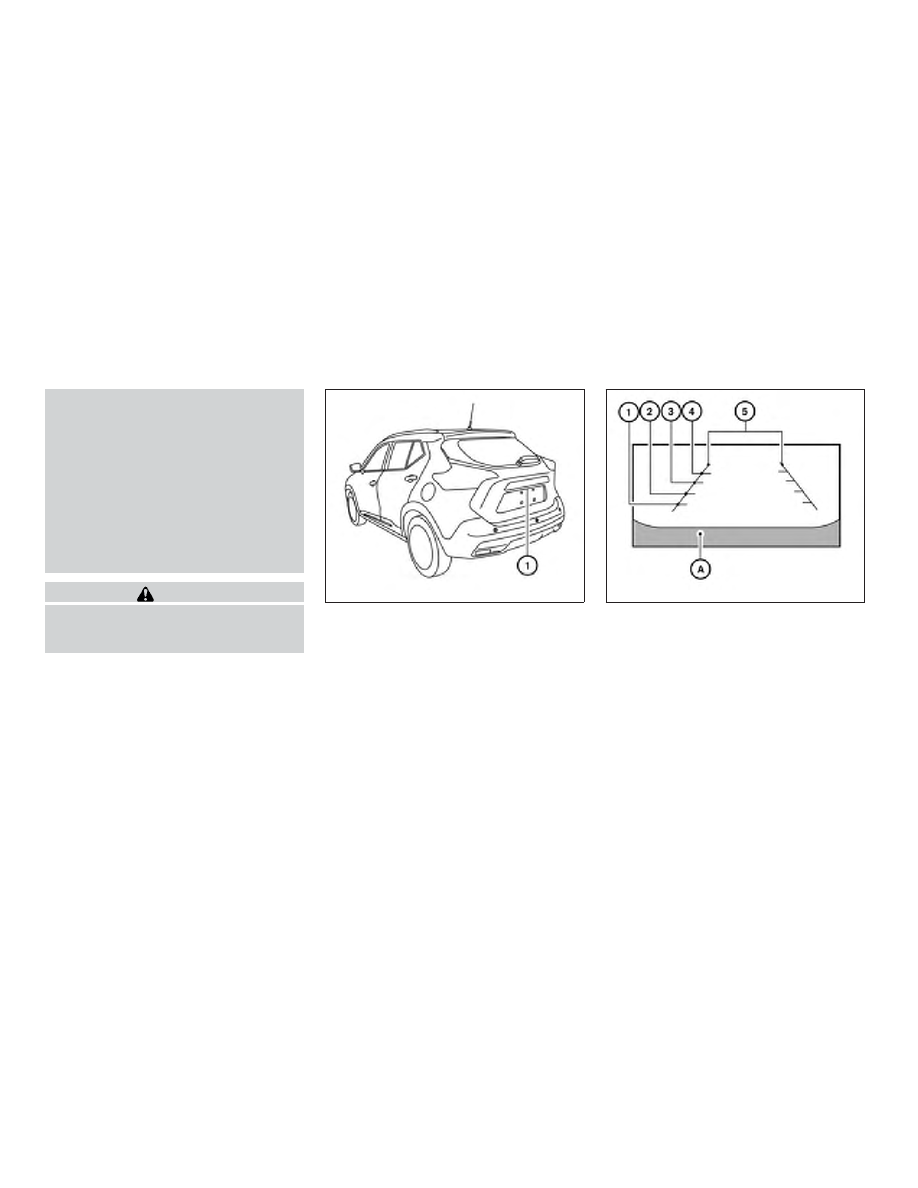

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body.

∙ Red line

䊊

: approx. 1.5 ft (0.5 m)

∙ Yellow line

䊊

: approx. 3 ft (1 m)

∙ Green line

䊊

: approx.7 ft (2 m)

∙ Green line

䊊

: approx. 10 ft (3 m) (if so

equipped)

LHA4109

LHA2745

4-10

Monitor, climate, audio, phone and voice recognition systems

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

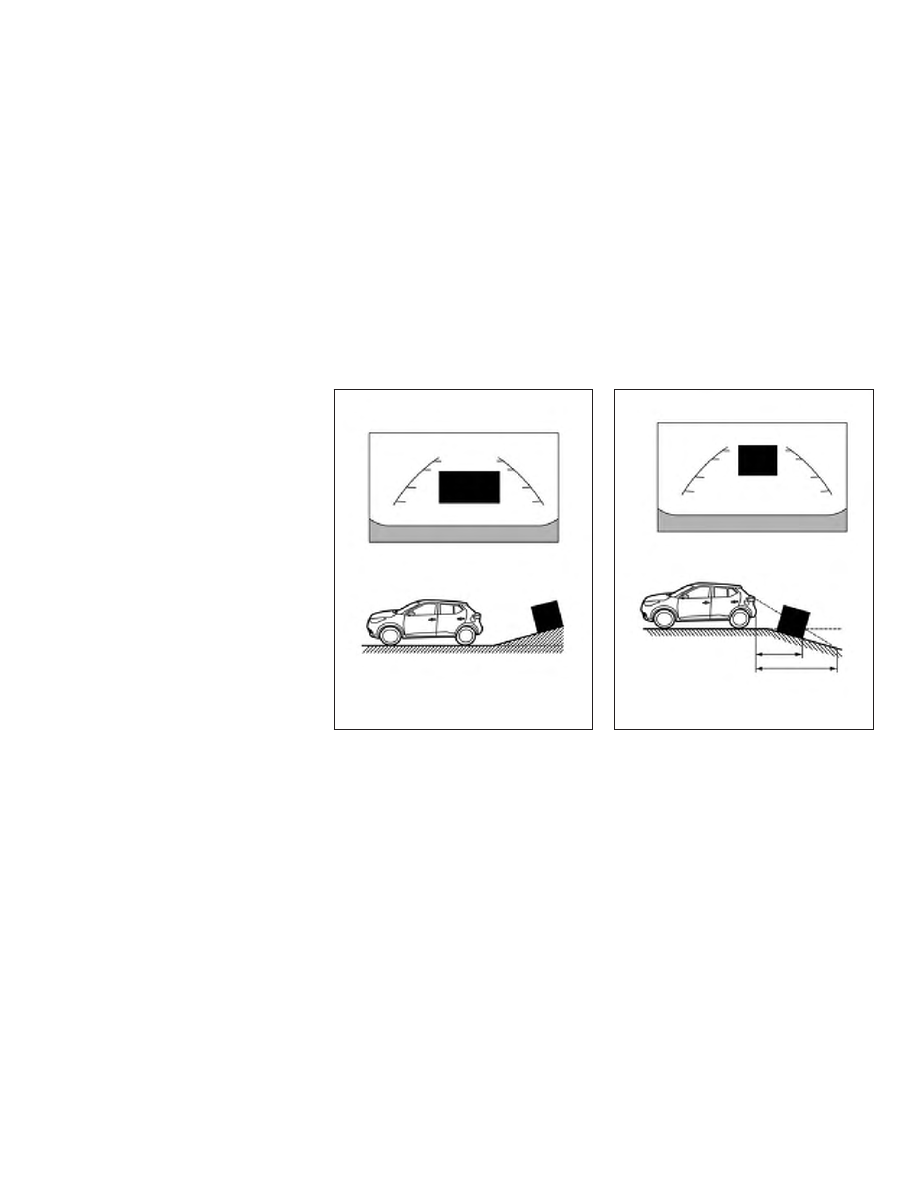

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

LHA4110

LHA4111

Monitor, climate, audio, phone and voice recognition systems

4-11

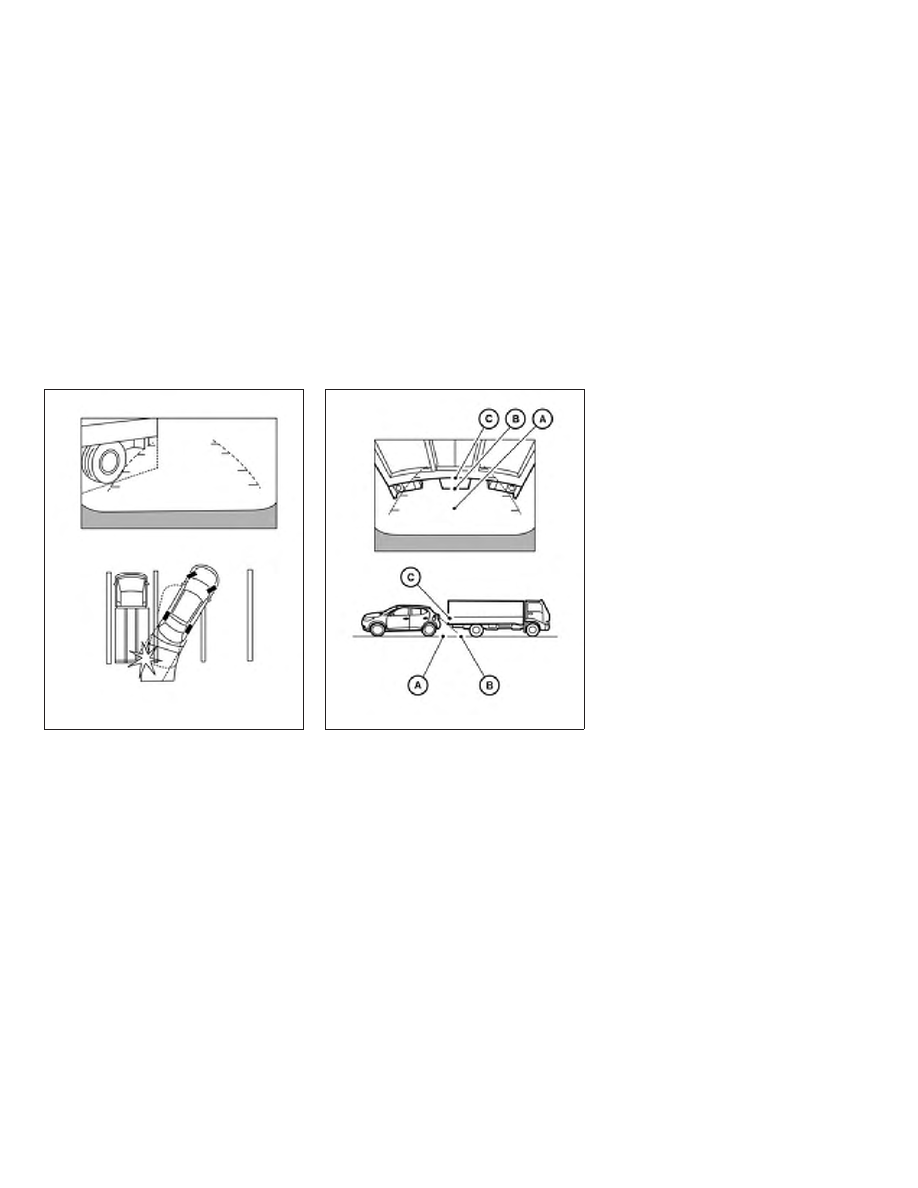

Backing up near a projecting
object

The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

LHA2946

LHA4112

4-12

Monitor, climate, audio, phone and voice recognition systems

ADJUSTING THE SCREEN

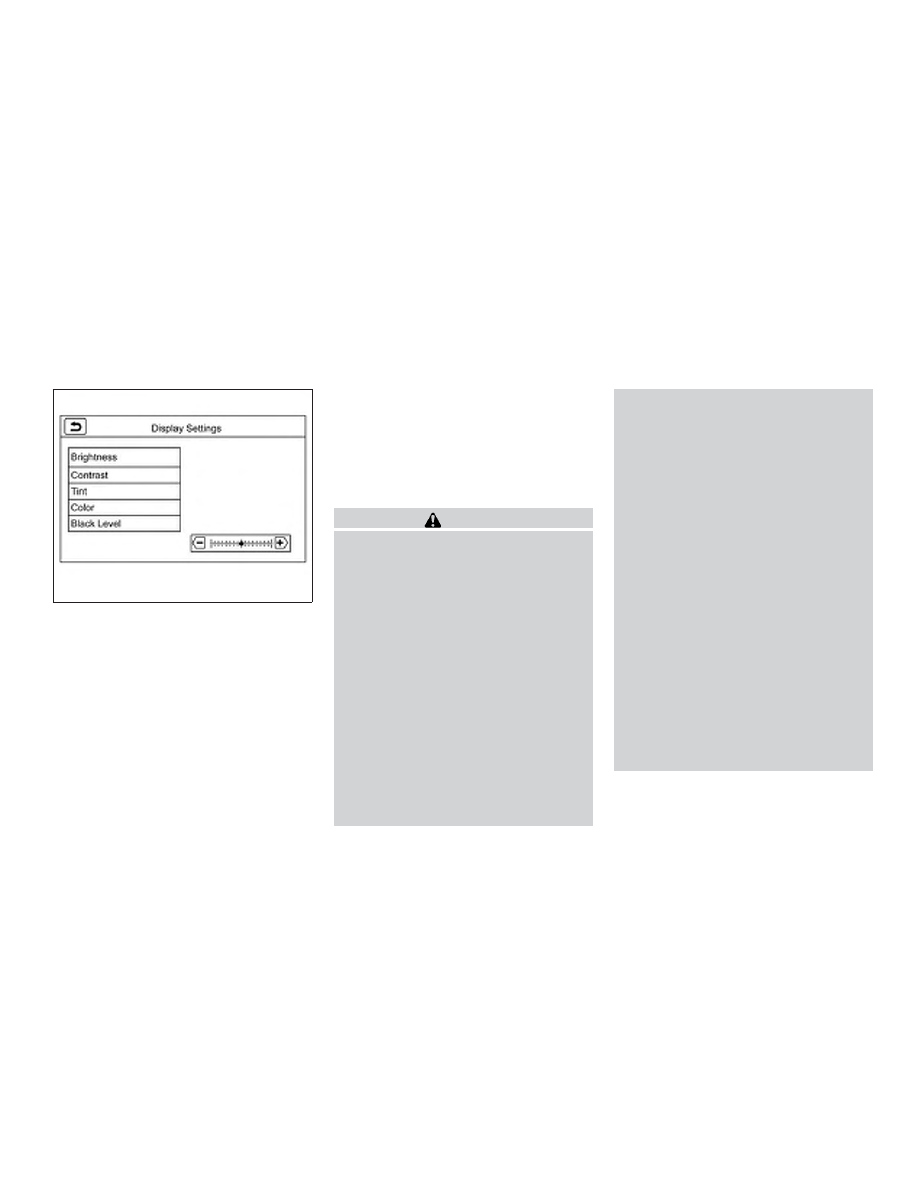

1. While on the main menu screen, touch

the “Settings” key.

2. Touch the “Camera” key.

3. Touch the “Brightness”, “Contrast”, Tint”,

“Color”, or “Black Level” key.

4. Adjust the item by touching the “+” or “–”

key on the touch-screen display.

NOTE:

Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the liftgate is securely

closed when backing up.

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

∙ When washing the vehicle with high

pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.

∙ Do not strike the camera. It is a preci-

sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.

LHA3522

Monitor, climate, audio, phone and voice recognition systems

4-13

The following are operating limitations and
do not represent a system malfunction:

∙ When the temperature is extremely

high or low, the screen may not clearly
display objects.

∙ When strong light directly shines on the

camera, objects may not be displayed
clearly.

∙ Vertical lines may be seen in objects on

the screen. This is due to strong re-
flected light from the bumper.

∙ The screen may flicker under fluores-

cent light.

∙ The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

∙ Objects on the monitor may not be

clear in a dark environment.

∙ There may be a delay when switching

between views.

∙ If dirt, rain or snow accumulate on the

camera, the RearView Monitor may not
display objects clearly. Clean the cam-
era.

∙ Do not use wax on the camera lens.

Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

∙ Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration.

∙ Do not damage the camera as the moni-

tor screen may be adversely affected.

If dirt, rain or snow accumulates on the
camera

䊊

, the RearView Monitor may not

display objects clearly. Clean the camera
by wiping it with a cloth dampened with a
diluted mild cleaning agent and then wip-
ing it with a dry cloth.

LHA4109

4-14

Monitor, climate, audio, phone and voice recognition systems

1. CAMERA button

LHA4682

INTELLIGENT AROUND VIEW
MONITOR (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-15

Content .. 10 11 12 13 ..
