Nissan Cube (2014 year). Instruction - part 7

2-26

Instruments and controls

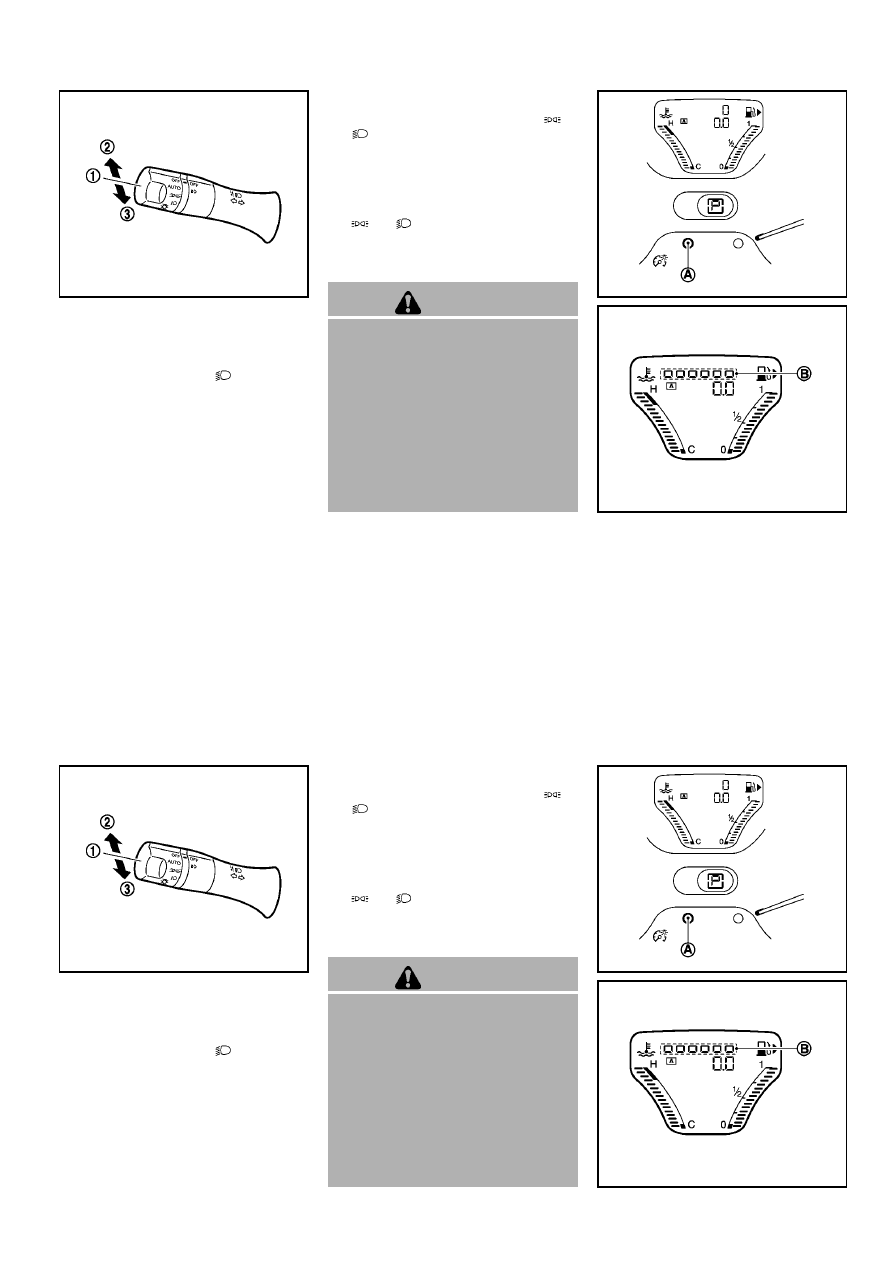

SIC3670

Headlight beam select

To select the low beam, put the lever in the
neutral position as shown.

To select the high beam, push the lever forward
while the switch is in the

position. Pull it

back to select the low beam.

Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.

Battery saver system

. When the headlight switch is in the

position while the ignition switch is in

the ON position, the lights will automatically
turn off after a period of time when the
ignition switch has been placed in the OFF
position.

. When the headlight switch remains in the

position after the lights auto-

matically turn off, the lights will turn on when
the ignition switch is placed in the ON
position.

CAUTION

. When you turn on the headlight

switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.

. Never leave the light switch on

when the engine is not running for
extended periods of time even if the
headlights turn off automatically.

SIC4128

SIC4129

2-26

Instruments and controls

SIC3670

Headlight beam select

To select the low beam, put the lever in the
neutral position as shown.

To select the high beam, push the lever forward
while the switch is in the

position. Pull it

back to select the low beam.

Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.

Battery saver system

. When the headlight switch is in the

position while the ignition switch is in

the ON position, the lights will automatically
turn off after a period of time when the
ignition switch has been placed in the OFF
position.

. When the headlight switch remains in the

position after the lights auto-

matically turn off, the lights will turn on when
the ignition switch is placed in the ON
position.

CAUTION

. When you turn on the headlight

. Never leave the light switch on

when the engine is not running for
extended periods of time even if the
headlights turn off automatically.

SIC4128

SIC4129

Instrument brightness control

The instrument brightness control operates
when the ignition switch is in the ON position.

Push the control knob

to adjust the bright-

ness of the instrument panel lights. The bright-
ness indicator

will be shown briefly in the

vehicle information display when the control is
turned.

When the brightness level reaches the maximum
or minimum, a beep will sound.

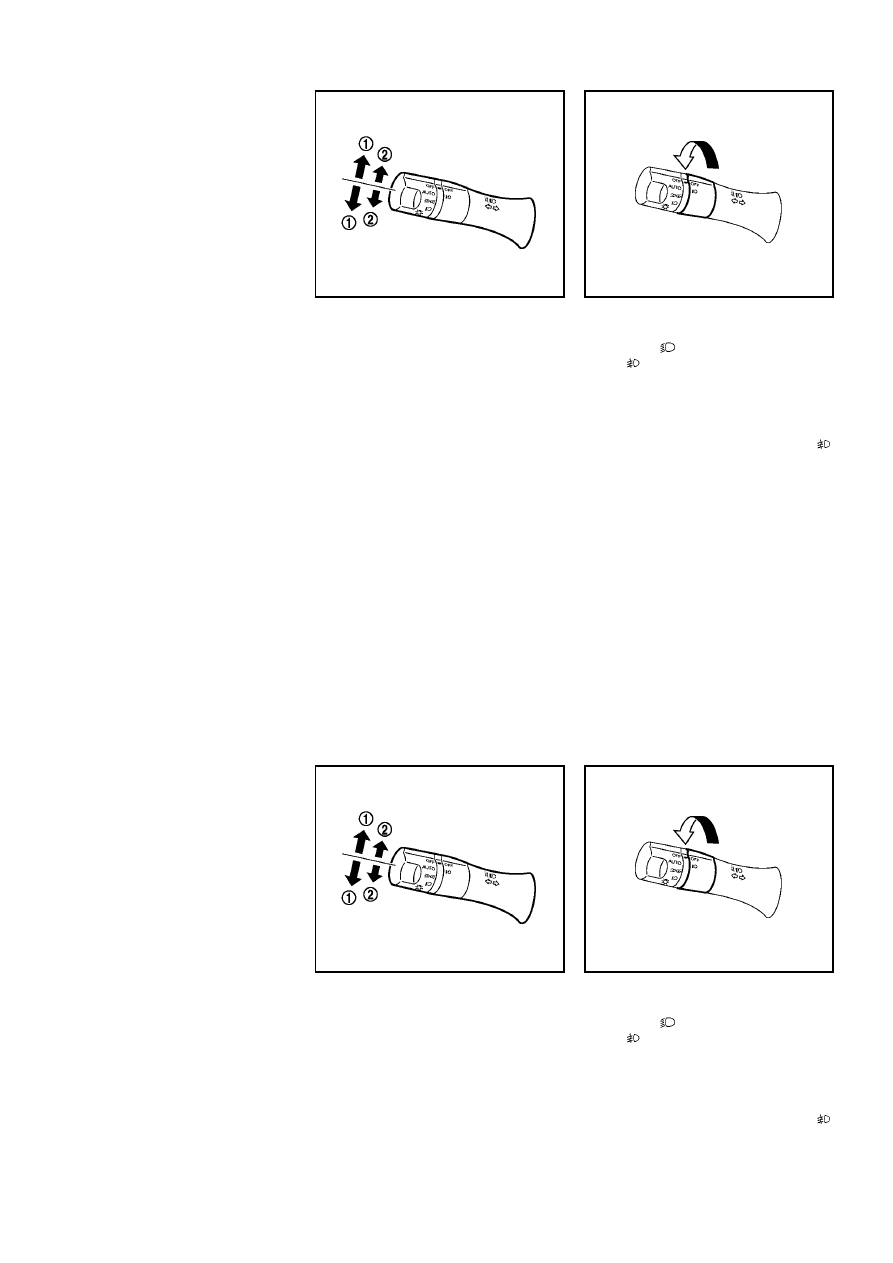

SIC3671

TURN SIGNAL SWITCH

Turn signal

Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.

Lane change signal

To indicate a lane change, move the lever up or
down to the point where lights begin flashing.

SIC3672

FOG LIGHT SWITCH (if so equipped)

To turn the fog lights on, turn the headlight
switch to the

position, then turn the switch

to the

position. To turn them off, turn the

switch to the OFF position.

The headlights must be on for the fog lights to
operate.

When the headlight switch is in the AUTO
position, turning the fog light switch to the
position will turn on the headlights, fog lights
and the other lights while the ignition switch is in
the ON position or the engine is running.

Instruments and controls

2-27

Instrument brightness control

The instrument brightness control operates
when the ignition switch is in the ON position.

Push the control knob

to adjust the bright-

ness of the instrument panel lights. The bright-
ness indicator

will be shown briefly in the

vehicle information display when the control is
turned.

When the brightness level reaches the maximum
or minimum, a beep will sound.

SIC3671

TURN SIGNAL SWITCH

Turn signal

Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.

Lane change signal

To indicate a lane change, move the lever up or
down to the point where lights begin flashing.

SIC3672

FOG LIGHT SWITCH (if so equipped)

To turn the fog lights on, turn the headlight
switch to the

position, then turn the switch

to the

position. To turn them off, turn the

switch to the OFF position.

The headlights must be on for the fog lights to
operate.

Instruments and controls

2-27

2-28

Instruments and controls

SIC4130

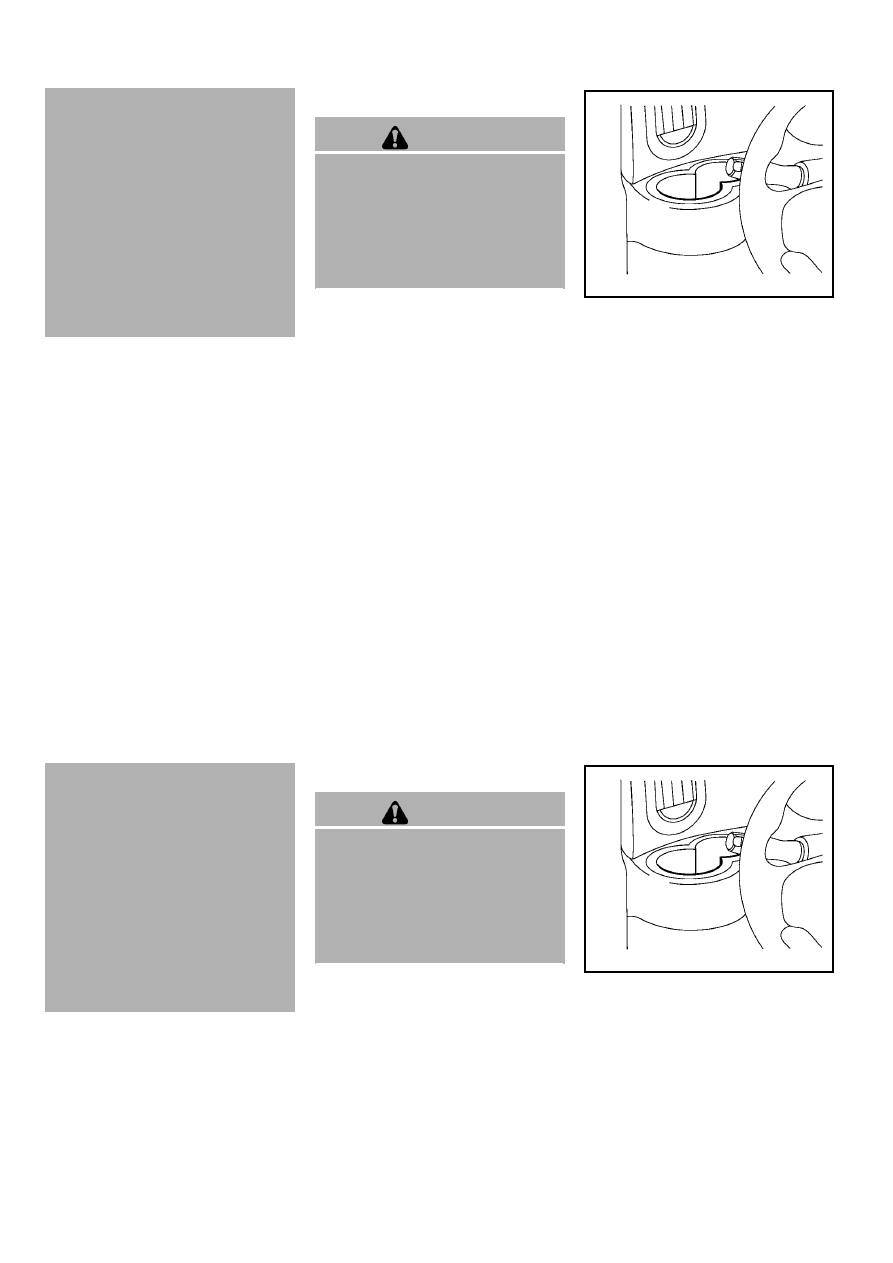

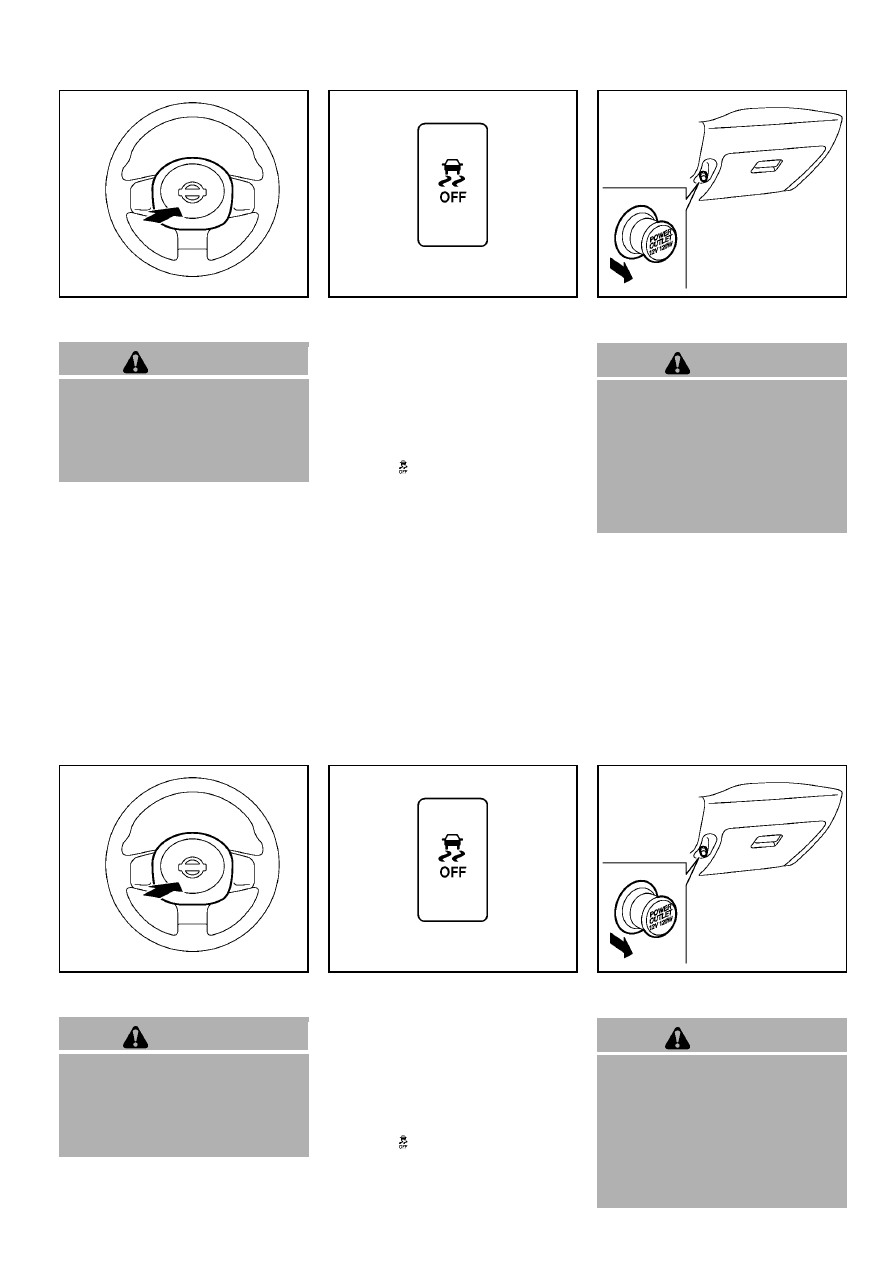

To sound the horn, push the center pad area of
the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.

SIC4740

The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.

If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.

To turn off the VDC system, push the VDC OFF
switch. The

indicator light will illuminate.

Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-29).)

SIC4132

The power outlet is located in the instrument
panel.

CAUTION

. The outlet and plug may be hot

during or immediately after use.

. Do not use with accessories that

exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.

. Use power outlet with the engine

running to avoid discharging the
vehicle battery.

HORN

VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

POWER OUTLET

2-28

Instruments and controls

SIC4130

To sound the horn, push the center pad area of
the steering wheel.

WARNING

SIC4740

The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.

To turn off the VDC system, push the VDC OFF
switch. The

indicator light will illuminate.

Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-29).)

SIC4132

The power outlet is located in the instrument
panel.

CAUTION

. The outlet and plug may be hot

during or immediately after use.

. Do not use with accessories that

exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.

. Use power outlet with the engine

running to avoid discharging the
vehicle battery.

HORN

VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

POWER OUTLET

. Avoid using power outlet when the

air conditioner, headlights or rear
window defroster is on.

. This power outlet is not designed

for use with a cigarette lighter unit.

. Push the plug in as far as it will go.

If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

. Before inserting or disconnecting a

plug, be sure the electrical acces-
sory being used is turned OFF.

. When not in use, be sure to close

the cap. Do not allow water to
contact the outlet.

CUP HOLDERS

CAUTION

. Avoid abrupt starting and braking

when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.

. Use only soft cups in the cup holder.

Hard objects can injure you in an
accident.

SIC4133

Driver’s side instrument panel

Instruments and controls

2-29

STORAGE

. Avoid using power outlet when the

air conditioner, headlights or rear
window defroster is on.

. This power outlet is not designed

for use with a cigarette lighter unit.

. Push the plug in as far as it will go.

If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

. Before inserting or disconnecting a

plug, be sure the electrical acces-
sory being used is turned OFF.

. When not in use, be sure to close

the cap. Do not allow water to
contact the outlet.

CUP HOLDERS

CAUTION

. Avoid abrupt starting and braking

when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.

. Use only soft cups in the cup holder.

Hard objects can injure you in an
accident.

SIC4133

Driver’s side instrument panel

Instruments and controls

2-29

STORAGE

2-30

Instruments and controls

SIC4134

Center console

Front

SIC4135

Rear

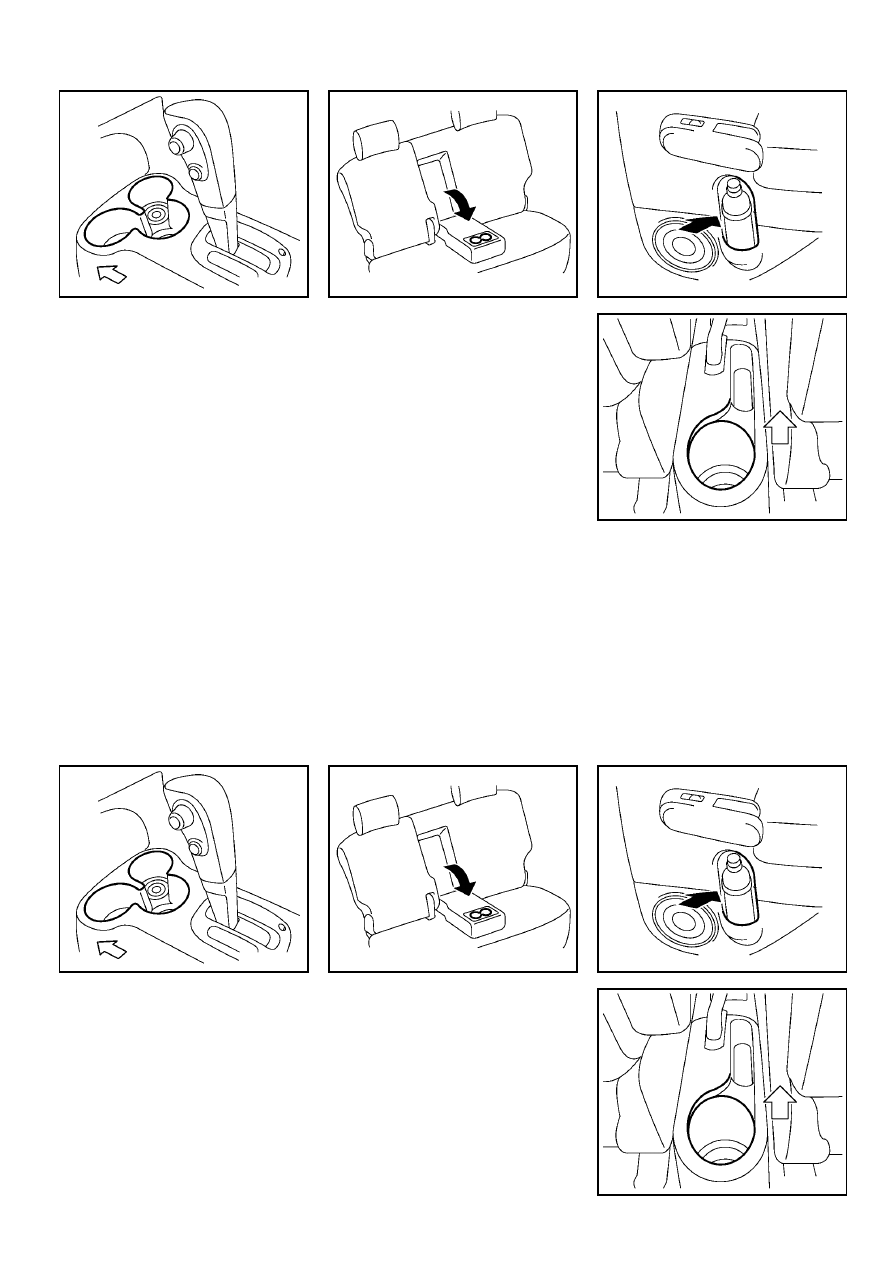

Pull the armrest down until it is horizontal.

SIC4137

Door (front and rear)

SIC4136

Rear of center console

2-30

Instruments and controls

SIC4134

Center console

Front

SIC4135

Rear

Pull the armrest down until it is horizontal.

SIC4137

Door (front and rear)

SIC4136

Rear of center console

Soft bottle holders

CAUTION

. Do not use bottle holder for any

other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.

. Do not use bottle holder for open

liquid containers.

SIC4138

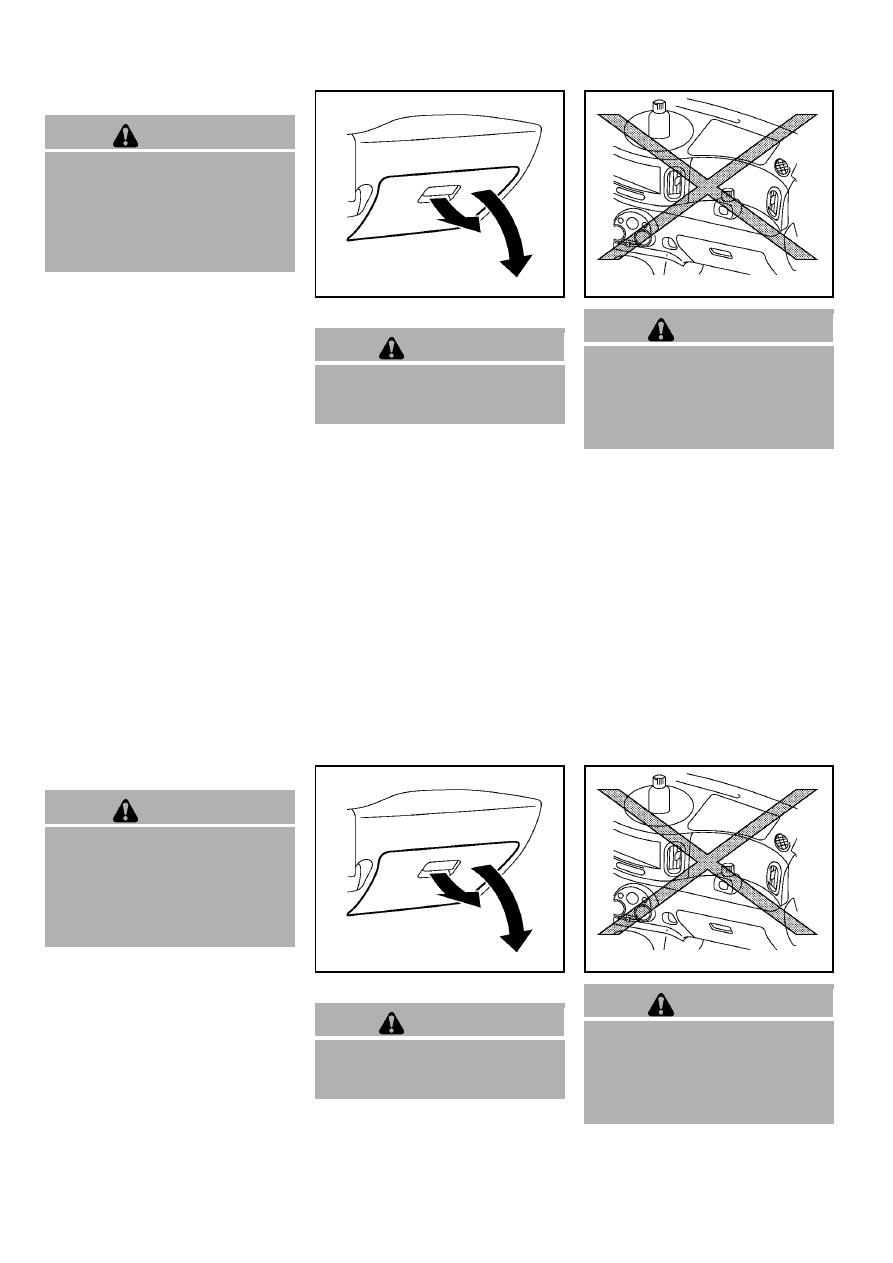

GLOVE BOX

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.

To open the glove box, pull the handle.

To close, push the lid in until the lock latches.

SIC4165

WARNING

Do not store objects on the horizontal
surface just above the glove box or on
top of the instrument panel. Objects
can become projectiles and/or interfere
with passenger air bag deployment
causing serious personal injury.

Instruments and controls

2-31

Soft bottle holders

CAUTION

. Do not use bottle holder for any

other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.

. Do not use bottle holder for open

liquid containers.

SIC4138

GLOVE BOX

WARNING

Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.

To open the glove box, pull the handle.

To close, push the lid in until the lock latches.

SIC4165

WARNING

Instruments and controls

2-31

2-32

Instruments and controls

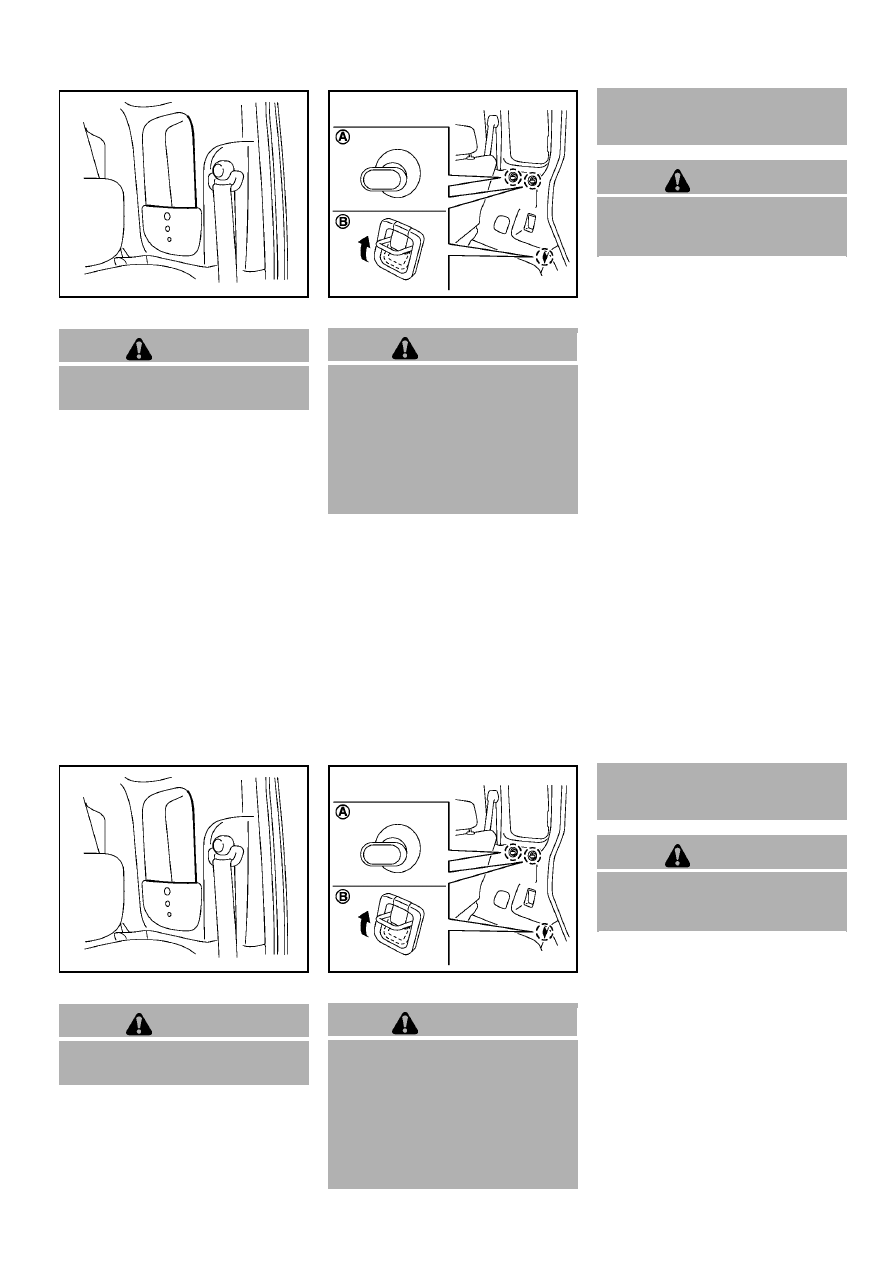

SIC4147

REAR PILLAR POCKET

CAUTION

Do not keep heavy or long objects in
the pocket.

SIC4141

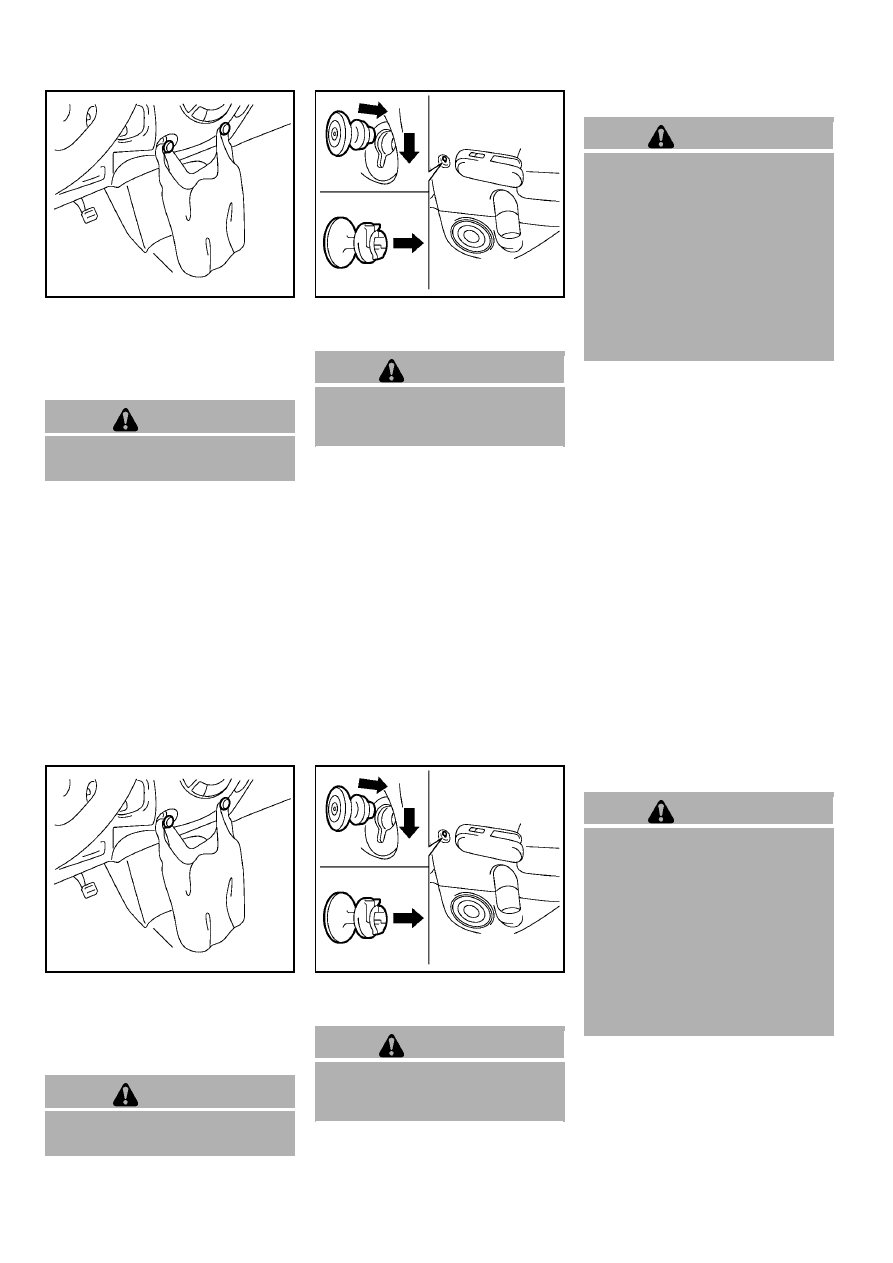

LUGGAGE HOOKS

WARNING

. Do not attach upper tether anchors

to the luggage hooks. The child
restraint will not be properly in-
stalled. Your child could be injured
or killed in a sudden stop or colli-
sion.

. Always make sure that the luggage

is properly secured. Use the suitable
ropes and hooks.

. Unsecured luggage can become

dangerous in an accident or sudden
stop.

CAUTION

Do not apply a total load of more than 7
lb (3 kg)

or 22 lb (10 kg)

to a

single hook.

2-32

Instruments and controls

SIC4147

REAR PILLAR POCKET

CAUTION

Do not keep heavy or long objects in
the pocket.

SIC4141

LUGGAGE HOOKS

WARNING

. Do not attach upper tether anchors

to the luggage hooks. The child
restraint will not be properly in-
stalled. Your child could be injured
or killed in a sudden stop or colli-
sion.

. Always make sure that the luggage

is properly secured. Use the suitable
ropes and hooks.

. Unsecured luggage can become

dangerous in an accident or sudden
stop.

CAUTION

Do not apply a total load of more than 7
lb (3 kg)

or 22 lb (10 kg)

to a

single hook.

SIC4142

Instrument panel

UTILITY HOOKS

Two removable utility hooks are supplied with
your vehicle. The utility hooks can be attached to
or removed from the holes on the instrument
panel and the rear doors.

CAUTION

Do not apply a total load of more than 3
lb (1.5 kg) to a single hook.

To remove the hook from the hole, pull it straight
up. Do not twist or turn the hooks for
installation or removal.

SIC4143

Rear door

The utility hooks can be attached to the holes as
illustrated.

WARNING

CHOKING HAZARD-Small parts. Not for
children under 3 years. Do not allow
children to play with utility hook.

POWER WINDOWS

WARNING

. Make sure that all passengers have

their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.

The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is placed in the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.

Instruments and controls

2-33

WINDOWS

SIC4142

Instrument panel

UTILITY HOOKS

Two removable utility hooks are supplied with
your vehicle. The utility hooks can be attached to
or removed from the holes on the instrument
panel and the rear doors.

CAUTION

Do not apply a total load of more than 3
lb (1.5 kg) to a single hook.

To remove the hook from the hole, pull it straight
up. Do not twist or turn the hooks for
installation or removal.

SIC4143

Rear door

The utility hooks can be attached to the holes as
illustrated.

WARNING

CHOKING HAZARD-Small parts. Not for
children under 3 years. Do not allow
children to play with utility hook.

POWER WINDOWS

WARNING

. Make sure that all passengers have

their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.

Instruments and controls

2-33

WINDOWS

2-34

Instruments and controls

SIC3507

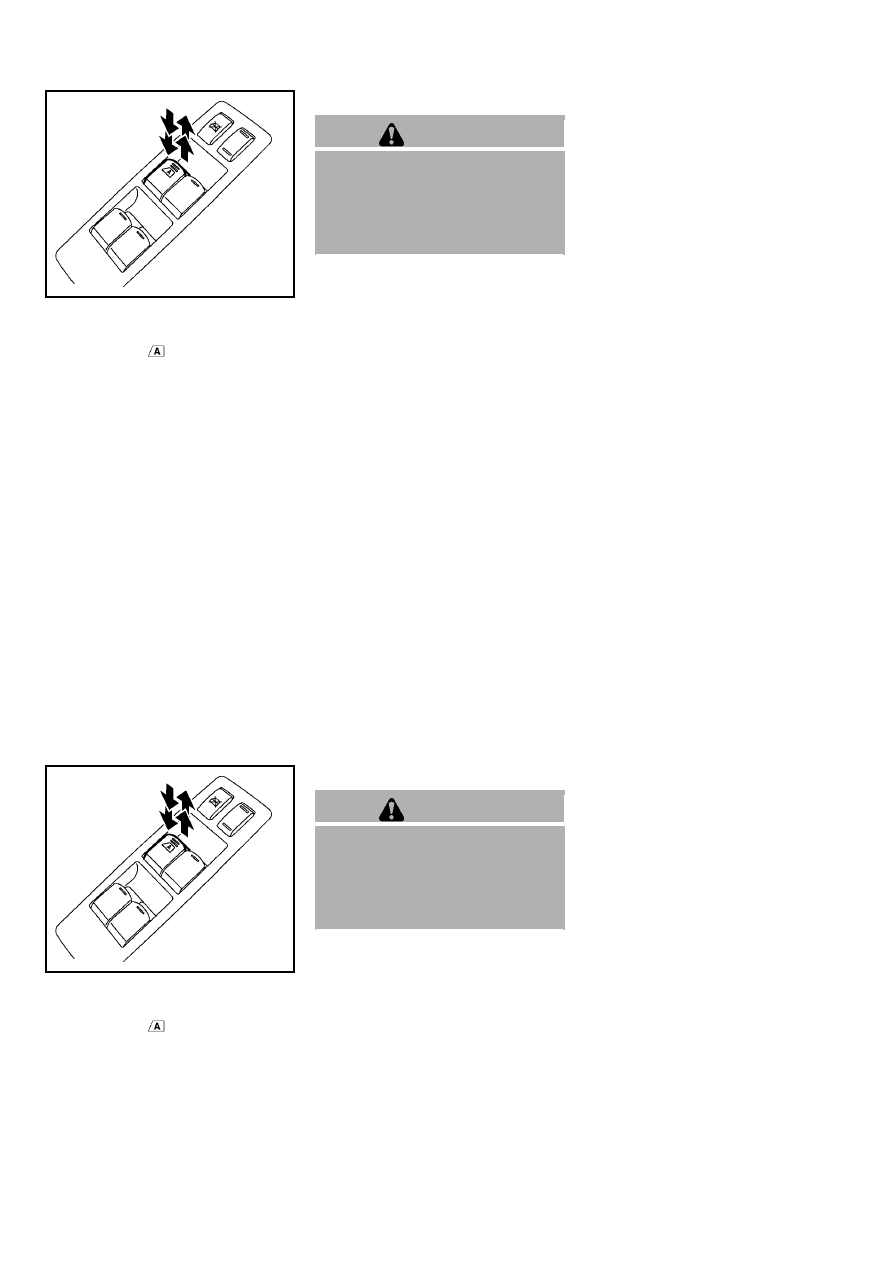

Window lock button

Driver side window

Rear left passenger side window

Front passenger side window

Rear right passenger side window

Main power window switch (driver’s
side)

To open or close the window, push down

pull up

the switch and hold it. The main

switch (driver side switches) will open or close
all the windows.

Locking passengers’ windows

When the lock button

is pushed in, only the

driver side window can be opened or closed.
Push it in again to cancel.

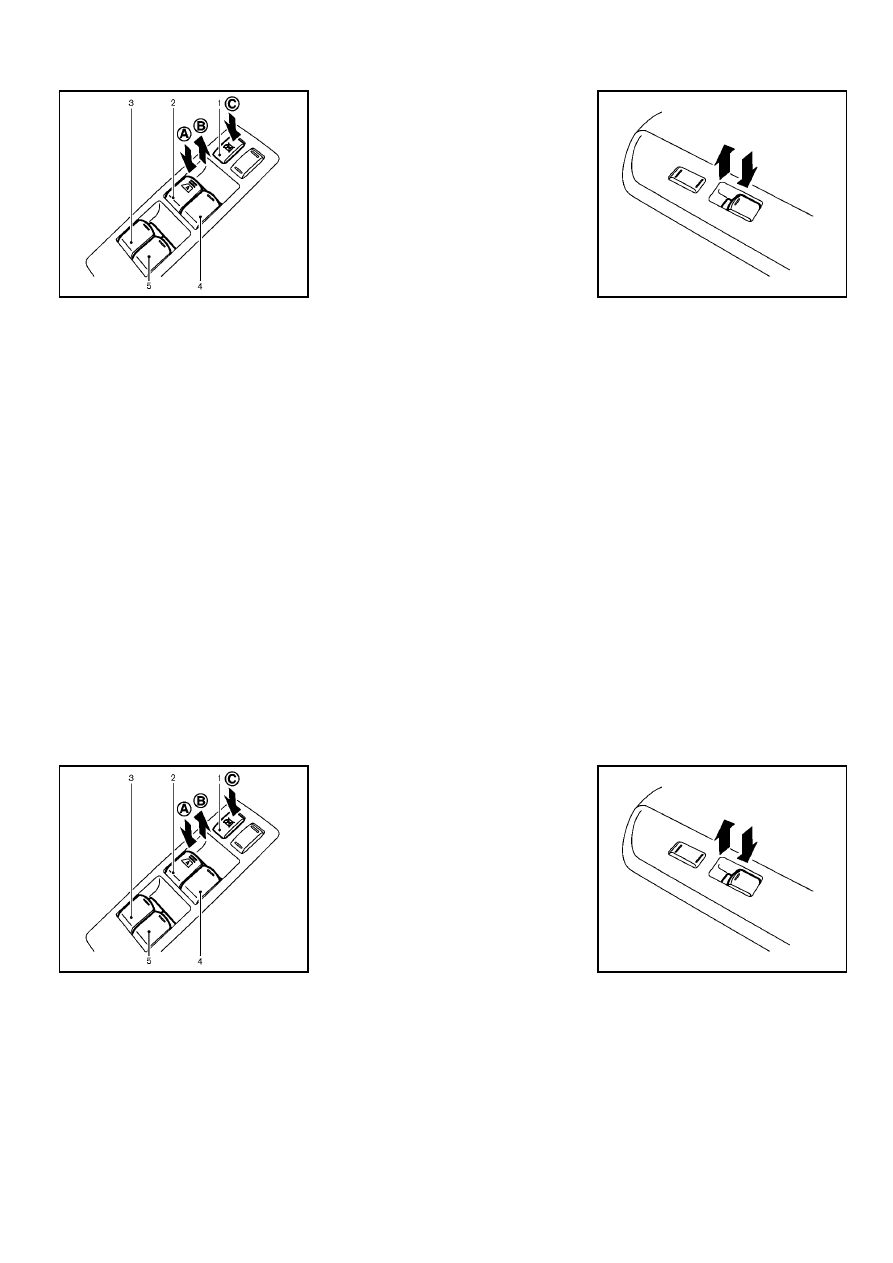

SIC3508

Passenger side power window switch

The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.

2-34

Instruments and controls

SIC3507

Window lock button

Driver side window

Rear left passenger side window

Front passenger side window

Rear right passenger side window

Main power window switch (driver’s
side)

To open or close the window, push down

pull up

the switch and hold it. The main

switch (driver side switches) will open or close
all the windows.

Locking passengers’ windows

When the lock button

is pushed in, only the

driver side window can be opened or closed.
Push it in again to cancel.

SIC3508

Passenger side power window switch

The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.

SIC3509

Automatic operation

The automatic operation is available for the
switch that has an

mark on its surface.

To fully open or close the window, completely
push down or pull up the switch and release it;
the switch need not be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
opposite direction.

A light push or pull on the switch will cause the
window to open or close until the switch is
released.

Auto-reverse function

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.

If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.

The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is placed
in the OFF position.

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

If the windows do not close automatically

If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.

1. Place the ignition switch in the ON position.

2. Close the door.

3. Open the window completely by operating

the power window switch.

4. Pull the power window switch and hold it to

close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.

5. Release the power window switch. Operate

the window by the automatic function to
confirm the initialization is complete.

If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.

Instruments and controls

2-35

SIC3509

Automatic operation

The automatic operation is available for the
switch that has an

mark on its surface.

A light push or pull on the switch will cause the
window to open or close until the switch is
released.

Auto-reverse function

WARNING

There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.

If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

If the windows do not close automatically

If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.

1. Place the ignition switch in the ON position.

2. Close the door.

3. Open the window completely by operating

the power window switch.

4. Pull the power window switch and hold it to

close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.

5. Release the power window switch. Operate

the window by the automatic function to
confirm the initialization is complete.

If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.

Instruments and controls

2-35

2-36

Instruments and controls

CAUTION

Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.

SIC4572

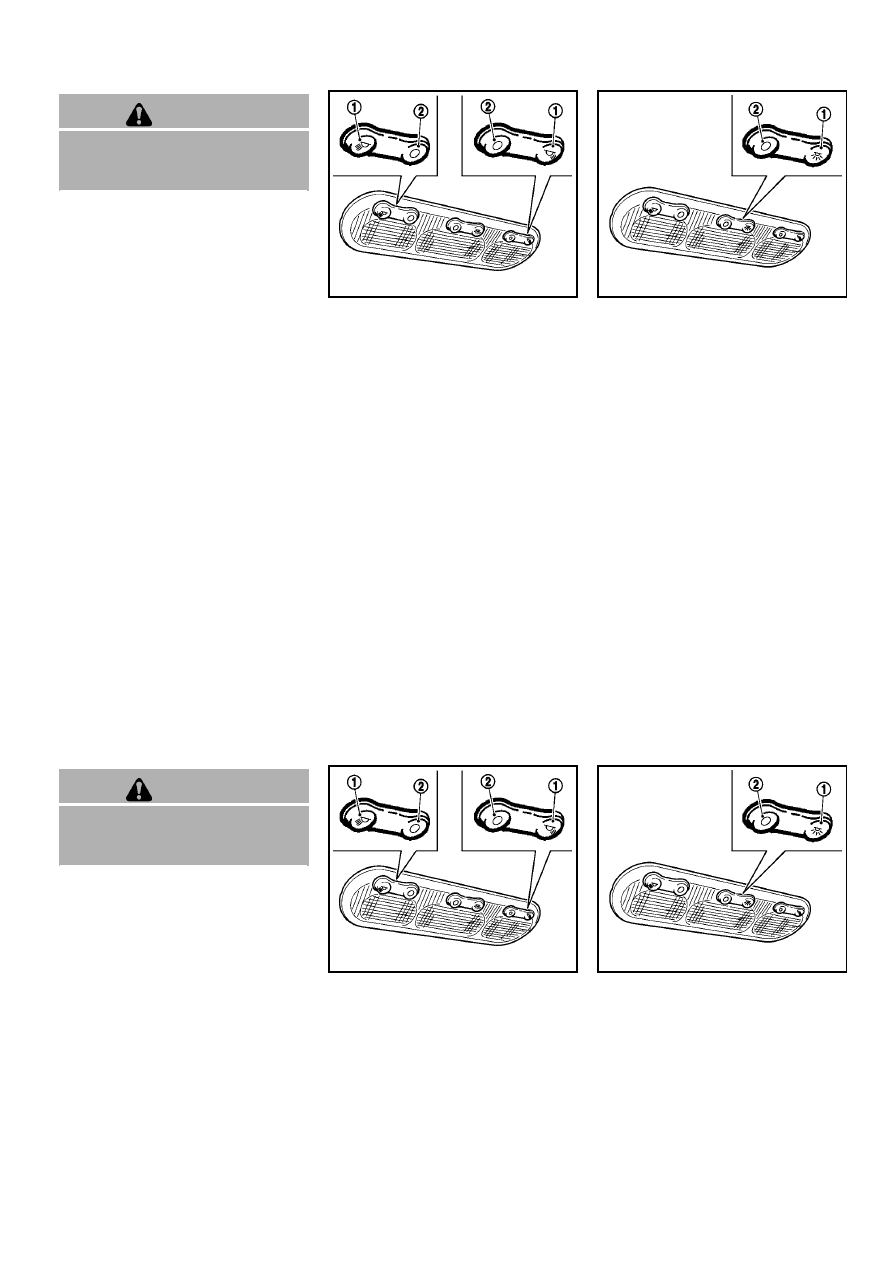

MAP LIGHTS

Operate the map light switch to turn the map
light on or off.

: ON position

: OFF position

SIC4573

MAP LIGHT CONTROL SWITCH

The map lights control switch has three posi-
tions: ON

, OFF

and center.

ON position

When the switch is in the ON position

, the

map lights will illuminate.

OFF position

When the switch is in the OFF position

, the

map lights will not illuminate, regardless of the
condition.

INTERIOR LIGHTS

2-36

Instruments and controls

CAUTION

Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.

SIC4572

MAP LIGHTS

Operate the map light switch to turn the map
light on or off.

: ON position

: OFF position

SIC4573

MAP LIGHT CONTROL SWITCH

The map lights control switch has three posi-
tions: ON

, OFF

and center.

ON position

When the switch is in the ON position

, the

map lights will illuminate.

OFF position

When the switch is in the OFF position

, the

map lights will not illuminate, regardless of the
condition.

INTERIOR LIGHTS

Center position

When the switch is in the center position, the
map lights will illuminate under the following
conditions:
. ignition switch is placed in the OFF position

(models with Intelligent Key system)
— remain on for about 15 seconds.

. the key is removed from the ignition switch

(models without Intelligent Key system)
— remain on for about 15 seconds.

. doors are unlocked by pushing the UN-

LOCK

button (on the keyfob or

Intelligent Key) or the request switch (In-
telligent Key system equipped model), with
the ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed with the

ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened with the ignition switch

in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights go
off.

The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

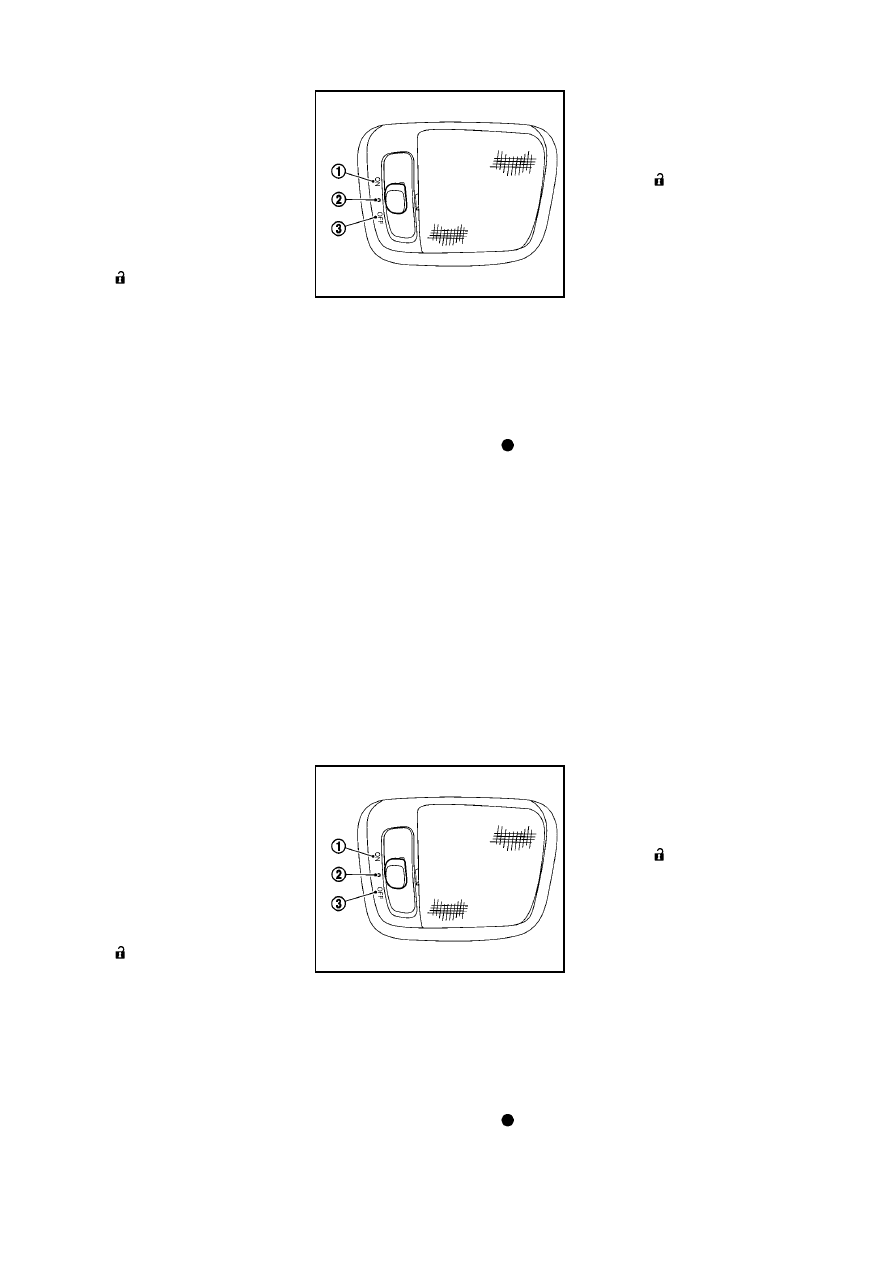

SIC4148

CEILING LIGHT

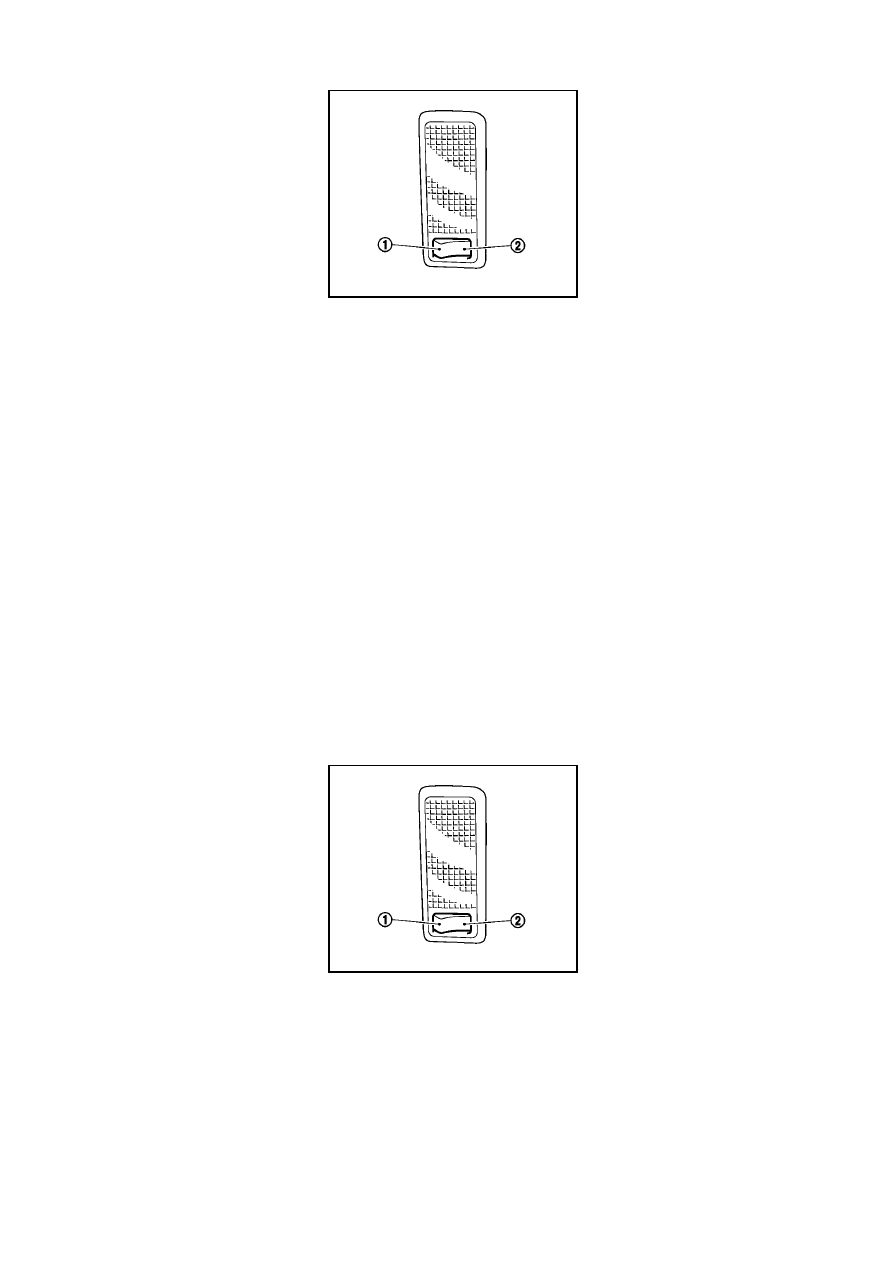

The ceiling light switch has three positions: ON

, center

and OFF

ON position

When the switch is in the ON position

, the

ceiling light will illuminate.

Center position

When the switch is in the center

position

, the ceiling light will illuminate under the

following conditions:
. ignition switch is placed in the OFF position

(models with Intelligent Key system)

— remain on for about 15 seconds.

. the key is removed from the ignition switch

(models without Intelligent Key system)
— remain on for about 15 seconds.

. doors are unlocked by pushing the UN-

LOCK

button (on the keyfob or

Intelligent Key) or the request switch (In-
telligent Key system equipped model), with
the ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed with the

ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened with the ignition switch

in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights go
off.

The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

Instruments and controls

2-37

Center position

When the switch is in the center position, the
map lights will illuminate under the following
conditions:
. ignition switch is placed in the OFF position

(models with Intelligent Key system)
— remain on for about 15 seconds.

. the key is removed from the ignition switch

(models without Intelligent Key system)
— remain on for about 15 seconds.

. doors are unlocked by pushing the UN-

LOCK

button (on the keyfob or

Intelligent Key) or the request switch (In-
telligent Key system equipped model), with
the ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed with the

ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened with the ignition switch

in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights go
off.

The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

SIC4148

CEILING LIGHT

The ceiling light switch has three positions: ON

, center

and OFF

ON position

When the switch is in the ON position

, the

ceiling light will illuminate.

Center position

When the switch is in the center

position

, the ceiling light will illuminate under the

following conditions:
. ignition switch is placed in the OFF position

(models with Intelligent Key system)

— remain on for about 15 seconds.

. the key is removed from the ignition switch

(models without Intelligent Key system)
— remain on for about 15 seconds.

. doors are unlocked by pushing the UN-

LOCK

button (on the keyfob or

Intelligent Key) or the request switch (In-
telligent Key system equipped model), with
the ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed with the

ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened with the ignition switch

in the ACC or ON position
— remain on while the door is opened.

When the door is closed, the lights go
off.

The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

Instruments and controls

2-37

2-38

Instruments and controls

OFF position

When the switch is in the OFF position

, the

ceiling light will not illuminate, regardless of the
condition.

JVI0358X

When the switch is in the ON position

, the

light illuminates while the back door is opened.
When the back door is closed, the light will turn
off.

When the switch is in the OFF position

, the

light will turn off.

CARGO LIGHT

2-38

Instruments and controls

OFF position

When the switch is in the OFF position

, the

ceiling light will not illuminate, regardless of the
condition.

JVI0358X

When the switch is in the ON position

, the

light illuminates while the back door is opened.
When the back door is closed, the light will turn
off.

When the switch is in the OFF position

, the

light will turn off.

CARGO LIGHT

3 Pre-driving checks and adjustments

Keys .............................................................................................. 3-2

NISSAN Vehicle Immobilizer System keys ................... 3-2
Intelligent Keys (if so equipped) ..................................... 3-3

Doors ............................................................................................ 3-4

Locking with key .................................................................. 3-5
Locking with inside lock knob .......................................... 3-5
Locking with power door lock switch ............................ 3-5
Automatic door locks ......................................................... 3-6
Child safety rear door lock ............................................... 3-6

Remote keyless entry system (if so equipped) ................. 3-7

How to use remote keyless entry system ..................... 3-8

Intelligent Key system (if so equipped) ............................ 3-10

Intelligent Key operating range ..................................... 3-12
Door locks/unlocks precaution .................................... 3-12
Intelligent Key operation ................................................. 3-13
Battery saver system ....................................................... 3-14

Warning lights and audible reminders ...................... 3-14
Troubleshooting guide .................................................. 3-15
How to use remote keyless entry function .............. 3-16

Hood ......................................................................................... 3-19
Back door ................................................................................ 3-20
Fuel-filler door ........................................................................ 3-21

Opening the fuel-filler door ......................................... 3-21
Fuel-filler cap .................................................................. 3-21

Tilt steering column .............................................................. 3-23

Tilt operation ................................................................... 3-23

Sun visors ................................................................................ 3-24
Mirrors ..................................................................................... 3-24

Inside mirror ..................................................................... 3-24
Outside mirrors ............................................................... 3-25
Vanity mirror ..................................................................... 3-26

3 Pre-driving checks and adjustments

Keys .............................................................................................. 3-2

NISSAN Vehicle Immobilizer System keys ................... 3-2
Intelligent Keys (if so equipped) ..................................... 3-3

Doors ............................................................................................ 3-4

Remote keyless entry system (if so equipped) ................. 3-7

How to use remote keyless entry system ..................... 3-8

Intelligent Key system (if so equipped) ............................ 3-10

Opening the fuel-filler door ......................................... 3-21
Fuel-filler cap .................................................................. 3-21

Tilt steering column .............................................................. 3-23

Tilt operation ................................................................... 3-23

Sun visors ................................................................................ 3-24
Mirrors ..................................................................................... 3-24

3-2

Pre-driving checks and adjustments

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.

A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.

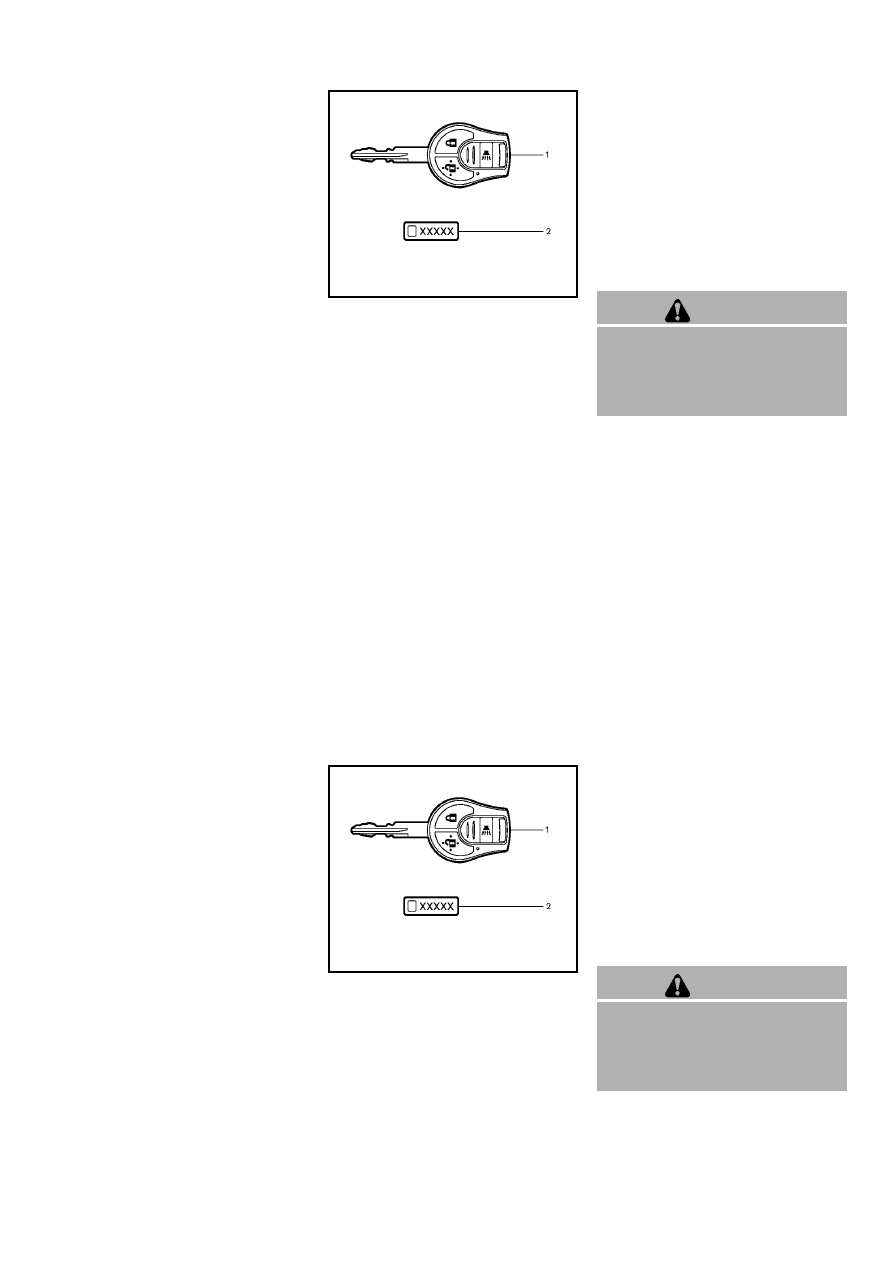

SPA2405

Master key (2)

Key number plate

NISSAN VEHICLE IMMOBILIZER SYS-
TEM KEYS

Your vehicle can only be driven with the master
keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.

Never leave these keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer can

duplicate your existing key. As many as 5 keys
can be used with one vehicle. You should bring
all the registered keys that you have to a
NISSAN dealer for registration. This is because
the registration process will erase the memory of
all key codes previously registered into the
NISSAN Vehicle Immobilizer System. After the
registration process, these components will only
recognize keys coded into the NISSAN Vehicle
Immobilizer System during registration. Any key
that is not given to your dealer at the time of
registration will no longer be able to start your
vehicle.

CAUTION

Do not allow the NISSAN Vehicle Im-
mobilizer System key, which contains
an electrical transponder, to come in
contact with salt water. This could
cause the system to malfunction.

KEYS

3-2

Pre-driving checks and adjustments

A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.

SPA2405

Master key (2)

Key number plate

NISSAN VEHICLE IMMOBILIZER SYS-
TEM KEYS

Your vehicle can only be driven with the master
keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.

Never leave these keys in the vehicle.

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer can

CAUTION

Do not allow the NISSAN Vehicle Im-
mobilizer System key, which contains
an electrical transponder, to come in
contact with salt water. This could
cause the system to malfunction.

KEYS

SPA2406

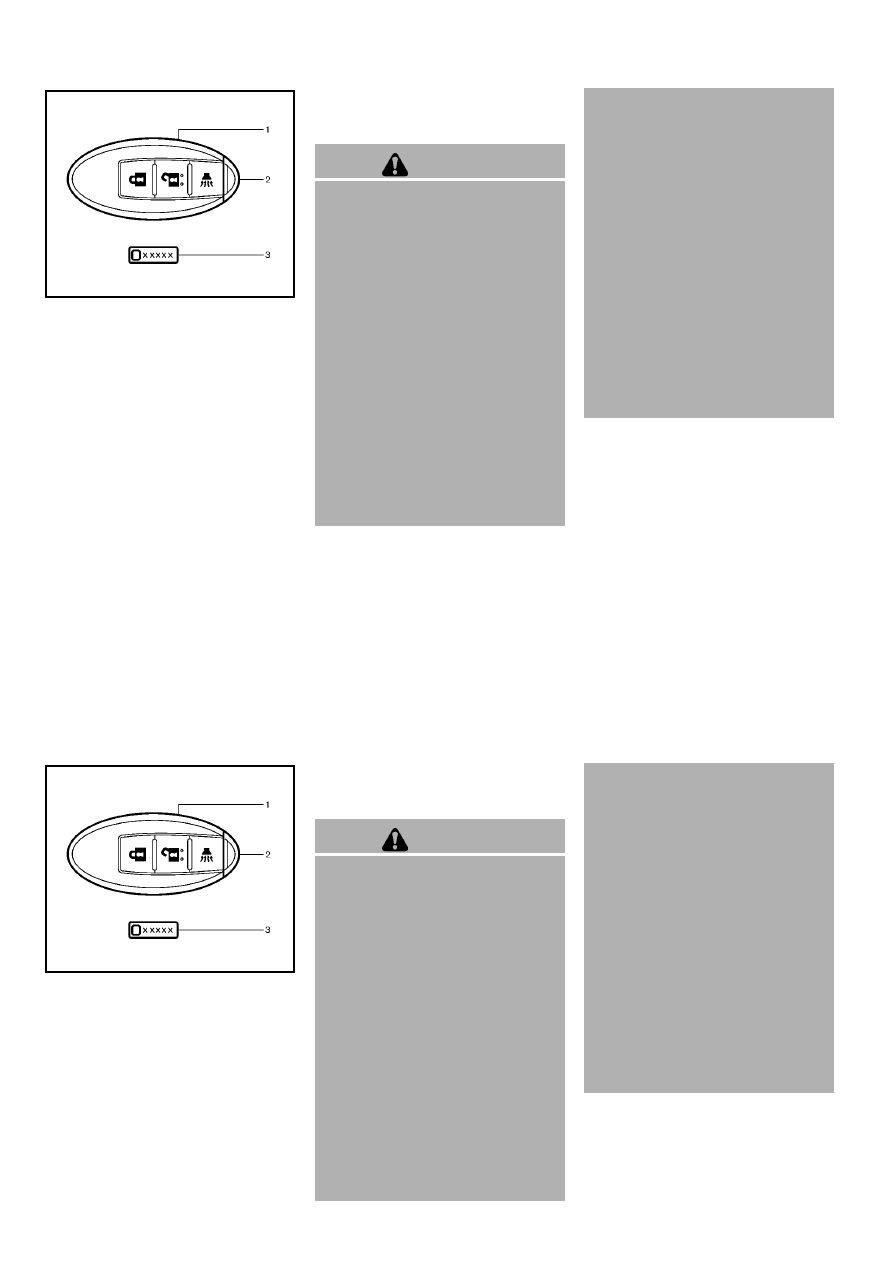

Intelligent Key (2 sets)

Mechanical key (inside Intelligent Key) (2 sets)

Key number plate

INTELLIGENT KEYS (if so equipped)

Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-

nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.

CAUTION

. Be sure to carry the Intelligent Key

with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.

— The Intelligent Key is water

resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is

below 14

8F (−108C) degrees, the

battery of the Intelligent key
may not function properly.

— Do not place the Intelligent Key

for an extended period in a
place where temperatures ex-
ceed 140

8F (608C).

— Do not change or modify the

Intelligent Key.

— Do not use a magnet key holder.

— Do not place the Intelligent Key

near an electric appliance such
as a television set, personal
computer or cellular phone.

— Do not allow the Intelligent Key

to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.

. If an Intelligent Key is lost or stolen,

NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.

Pre-driving checks and adjustments

3-3

SPA2406

Intelligent Key (2 sets)

Mechanical key (inside Intelligent Key) (2 sets)

Key number plate

INTELLIGENT KEYS (if so equipped)

nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.

CAUTION

. Be sure to carry the Intelligent Key

with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.

— The Intelligent Key is water

resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is

below 14

8F (−108C) degrees, the

battery of the Intelligent key
may not function properly.

— Do not place the Intelligent Key

for an extended period in a
place where temperatures ex-
ceed 140

8F (608C).

— Do not change or modify the

Intelligent Key.

— Do not use a magnet key holder.

— Do not place the Intelligent Key

near an electric appliance such
as a television set, personal
computer or cellular phone.

— Do not allow the Intelligent Key

to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.

. If an Intelligent Key is lost or stolen,

Pre-driving checks and adjustments

3-3

Content .. 5 6 7 8 ..
