Safety — Seats, seat belts and supplemental restraint system

sensors to turn the air bag OFF. Always be sure
to be seated and wearing the seat belt properly
for the most effective protection by the seat belt
and supplemental air bag.

NISSAN recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
NISSAN also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible, the
occupant classification sensors are designed to
operate as described above to turn the front
passenger air bag OFF for specified child
restraints. Failing to properly secure child
restraints and to use the Automatic Locking
Retractor (ALR) mode (child restraint mode)
may allow the restraint to tip or move in an
accident or sudden stop. This can also result in
the passenger air bag inflating in a crash instead
of being OFF. (See “Child restraints” (P.1-22)
for proper use and installation.)

If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object being detected by the occupant
classification sensors. Other conditions could
also result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle

occupants are seated and restrained properly.

Using the passenger air bag status light, you can
monitor when the front passenger air bag is
automatically turned OFF with the seat occu-
pied. The light will not illuminate when the front
passenger seat is unoccupied.

If an adult occupant is in the seat but the
passenger air bag status light is illuminated
(indicating that the air bag is OFF), it could be
that the person is a small adult, or is not sitting
on the seat properly.

If a child restraint must be used in the front seat,
the passenger air bag status light may or may
not be illuminated, depending on the size of the
child and the type of child restraint being used. If
the air bag status light is not illuminated
(indicating that the air bag might inflate in a
crash), it could be that the child restraint or seat
belt is not being used properly. Make sure that
the child restraint is installed properly, the seat
belt is used properly and the occupant is
positioned properly. If the air bag status light is
not illuminated, reposition the occupant or child
restraint in a rear seat.

If the passenger air bag status light will not
illuminate even though you believe that the child
restraint, the seat belts and the occupant are
properly positioned, the system may be sensing
an unoccupied seat (in which case the air bag is

OFF). Your NISSAN dealer can check that the
system is OFF by using a special tool. However,
until you have confirmed with your dealer that
your air bag is working properly, reposition the
occupant or child restraint in a rear seat.

The air bag system and passenger air bag status
light will take a few seconds to register a change
in the passenger seat status. However, if the
seat becomes unoccupied, the air bag status
light will remain off.

If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light

, located in the meter and gauges area,

will blink. Have the system checked by a
NISSAN dealer.

Other supplemental front-impact air bag
precautions

WARNING

. Do not place any objects on the

steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause
injury if the front air bags inflate.

1-50

Safety — Seats, seat belts and supplemental restraint system

sensors to turn the air bag OFF. Always be sure
to be seated and wearing the seat belt properly
for the most effective protection by the seat belt
and supplemental air bag.

occupants are seated and restrained properly.

If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light

, located in the meter and gauges area,

will blink. Have the system checked by a
NISSAN dealer.

Other supplemental front-impact air bag
precautions

WARNING

. Do not place any objects on the

. Do not place objects with sharp

edges on the seat. Also, do not
place heavy objects on the seat that
will leave permanent impressions in
the seat. Such objects can damage
the seat or occupant classification
sensors (weight sensors). This can
affect the operation of the air bag
system and result in serious perso-
nal injury.

. Do not use water or acidic cleaners

(hot steam cleaners) on the seat.
This can damage the seat or occu-
pant classification sensors. This can
also affect the operation of the air
bag system and result in serious
personal injury.

. Immediately after inflation, several

front air bag system components
will be hot. Do not touch them; you
may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring
of the supplemental air bag system.
This is to prevent accidental infla-
tion of the supplemental air bag or
damage to the supplemental air bag
system.

. Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the front air bag sys-
tem.

. Tampering with the front air bag

system may result in serious perso-
nal injury. Tampering includes
changes to the steering wheel and
the instrument panel assembly by
placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system.

. Removing or modifying the front

passenger seat may affect the func-
tion of the air bag system and result
in serious personal injury.

. Modifying or tampering with the

front passenger seat may result in
serious personal injury. For exam-
ple, do not change the front seats by
placing material on the seat cushion
or by installing additional trim ma-
terial, such as seat covers, on the
seat that is not specifically designed
to assure proper air bag operation.
Additionally, do not stow any ob-

jects under the front passenger seat
or the seat cushion and seatback.
Such objects may interfere with the
proper operation of the occupant
classification sensors.

. No unauthorized changes should be

made to any components or wiring
of the seat belt system. This may
affect the front air bag system.
Tampering with the seat belt system
may result in serious personal in-
jury.

. Work on and around the front air

bag system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. The
Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the air bag system.

. A cracked windshield should be

replaced immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

Safety — Seats, seat belts and supplemental restraint system

1-51

. Do not place objects with sharp

. Do not use water or acidic cleaners

(hot steam cleaners) on the seat.
This can damage the seat or occu-
pant classification sensors. This can
also affect the operation of the air
bag system and result in serious
personal injury.

. Immediately after inflation, several

front air bag system components
will be hot. Do not touch them; you
may severely burn yourself.

. No unauthorized changes should be

made to any components or wiring
of the supplemental air bag system.
This is to prevent accidental infla-
tion of the supplemental air bag or
damage to the supplemental air bag
system.

. Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the front air bag sys-
tem.

. Tampering with the front air bag

. Removing or modifying the front

passenger seat may affect the func-
tion of the air bag system and result
in serious personal injury.

. Modifying or tampering with the

jects under the front passenger seat
or the seat cushion and seatback.
Such objects may interfere with the
proper operation of the occupant
classification sensors.

. No unauthorized changes should be

made to any components or wiring
of the seat belt system. This may
affect the front air bag system.
Tampering with the seat belt system
may result in serious personal in-
jury.

. Work on and around the front air

. A cracked windshield should be

replaced immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

Safety — Seats, seat belts and supplemental restraint system

1-51

1-52

Safety — Seats, seat belts and supplemental restraint system

*The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.

SSS0978

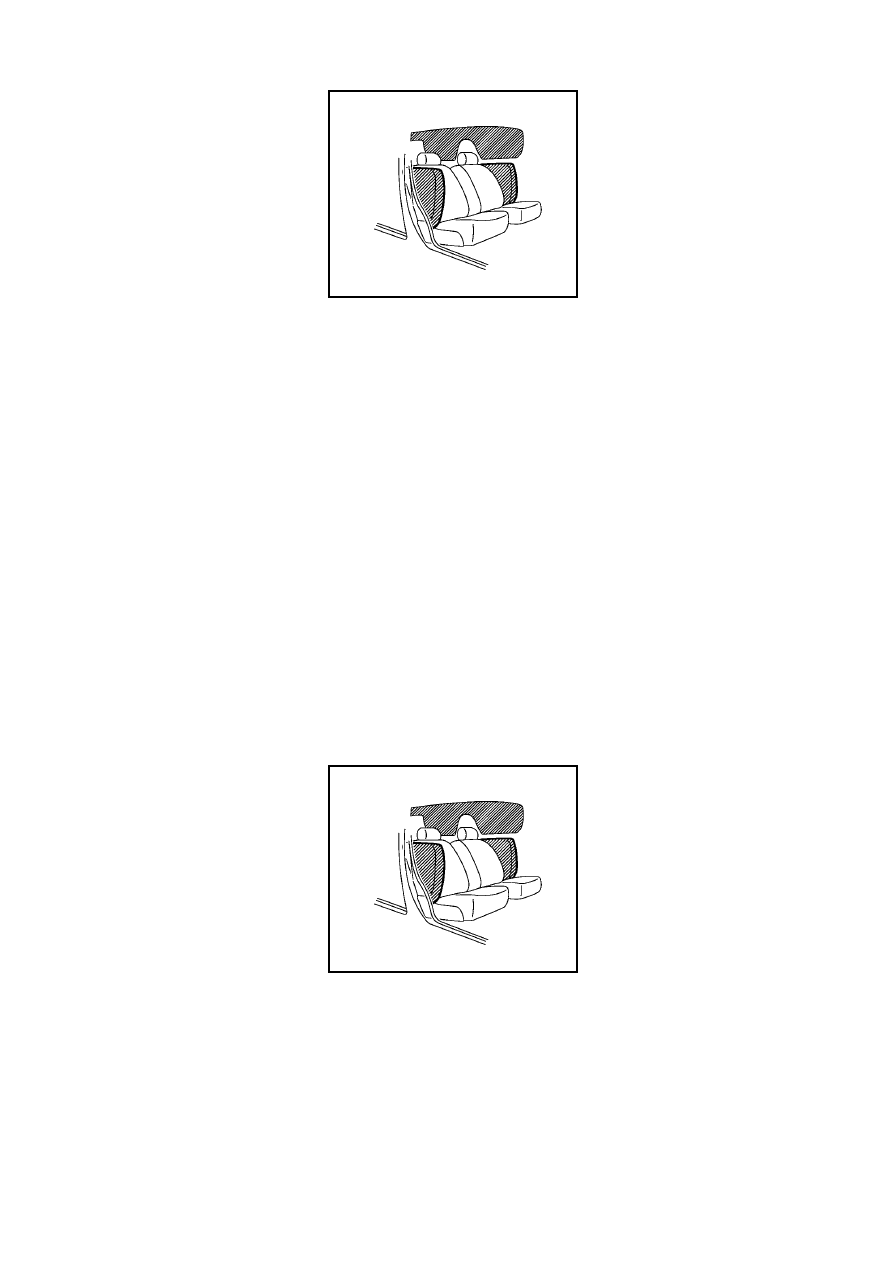

FRONT SEAT-MOUNTED SIDE-IM-
PACT SUPPLEMENTAL AIR BAG AND
ROOF-MOUNTED CURTAIN SIDE-IM-
PACT SUPPLEMENTAL AIR BAG SYS-
TEMS

The side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the side roof rails. All of the
information, cautions and warnings in this
manual still apply and must be followed.
The side air bags and curtain air bags are
designed to inflate in higher severity side
collisions, although they may inflate if the forces
in another type of collision are similar to those of
a higher severity side impact. They are designed

to inflate on the side where the vehicle is
impacted. They may not inflate in certain side
collisions on the side where the vehicle is
impacted.

Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain air
bag operation.

When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, followed
by release of smoke. This smoke is not harmful
and does not indicate a fire. Care should be
taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.

Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvic area of the front occupants. Curtain
air bags help to cushion the impact force to the
head of occupants in the front and rear outboard
seating positions. They can help save lives and
reduce serious injuries. However, side air bags
and curtain air bags may cause abrasions or
other injuries. Side air bags and curtain air bags
do not provide restraint to the lower body.

The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bags. Rear seat
passengers should be seated as far away as
practical from the door finishers and side roof

1-52

Safety — Seats, seat belts and supplemental restraint system

*The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the front air bag system
and guide the buyer to the appropriate sections
in this Owner’s Manual.

SSS0978

FRONT SEAT-MOUNTED SIDE-IM-
PACT SUPPLEMENTAL AIR BAG AND
ROOF-MOUNTED CURTAIN SIDE-IM-
PACT SUPPLEMENTAL AIR BAG SYS-
TEMS

to inflate on the side where the vehicle is
impacted. They may not inflate in certain side
collisions on the side where the vehicle is
impacted.

Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain air
bag operation.

rails. The side air bags and curtain air bags
inflate quickly in order to help protect the
occupants in the outboard seating positions.
Because of this, the force of the side air bags
and curtain air bags inflating can increase the
risk of injury if the occupant is too close to, or is
against, these air bag modules during inflation.
The side air bags and curtain air bags will deflate
quickly after the collision is over.

The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.

WARNING

. Do not place any objects near the

seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door
finisher and the front seat. Such
objects may become dangerous
projectiles and cause injury if a side
air bag inflates.

. Right after inflation, several side air

bag and curtain air bag system
components will be hot. Do not
touch them; you may severely burn
yourself.

. No unauthorized changes should be

made to any components or wiring
of the side air bag and curtain air
bag systems. This is to prevent
damage to or accidental inflation
of the side air bag and curtain air
bag systems.

. Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain air
bag systems.

. Tampering with the side air bag

system may result in serious perso-
nal injury. For example, do not
change the front seats by placing
material near the seatbacks or by
installing additional trim material,
such as seat covers, around the side
air bag.

. Work around and on the side air bag

and curtain air bag systems should
be done by a NISSAN dealer. In-

stallation of electrical equipment
should also be done by a NISSAN
dealer. The Supplemental Restraint
System (SRS) wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices
should not be used on the side air
bag and curtain supplemental air
bag systems.

*The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner’s Manual.

SEAT BELTS WITH PRETENSIONERS
(front seats)

WARNING

. The pretensioners cannot be reused

after activation. They must be re-
placed together with the retractor
and buckle as a unit.

. If the vehicle becomes involved in a

collision but a pretensioner is not

Safety — Seats, seat belts and supplemental restraint system

1-53

The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.

WARNING

. Do not place any objects near the

. Right after inflation, several side air

bag and curtain air bag system
components will be hot. Do not
touch them; you may severely burn
yourself.

. No unauthorized changes should be

made to any components or wiring
of the side air bag and curtain air
bag systems. This is to prevent
damage to or accidental inflation
of the side air bag and curtain air
bag systems.

. Do not make unauthorized changes

to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain air
bag systems.

. Tampering with the side air bag

. Work around and on the side air bag

and curtain air bag systems should
be done by a NISSAN dealer. In-

*The SRS wiring harness connectors are
yellow and orange for easy identification.

When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner’s Manual.

SEAT BELTS WITH PRETENSIONERS
(front seats)

WARNING

. The pretensioners cannot be reused

after activation. They must be re-
placed together with the retractor
and buckle as a unit.

. If the vehicle becomes involved in a

collision but a pretensioner is not

Safety — Seats, seat belts and supplemental restraint system

1-53

1-54

Safety — Seats, seat belts and supplemental restraint system

activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.

. No unauthorized changes should be

made to any components or wiring
of the pretensioner system. This is
to prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso-
nal injury.

. Work around and on the preten-

sioner system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. Un-
authorized electrical test equipment
and probing devices should not be
used on the pretensioner system.

. If you need to dispose of a preten-

sioner or scrap the vehicle, contact a
NISSAN dealer. Correct preten-
sioner disposal procedures are set
forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.

The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor, it
helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.

The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.

When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The
smoke is not harmful and does not indicate a
fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.

After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.

The supplemental air bag warning light

used to indicate malfunctions in the pretensioner
system. (See “Supplemental air bag warning
light” (P.1-55) for more details.) If the operation
of the supplemental air bag warning light
indicates there is a malfunction, have the system
checked by a NISSAN dealer.

When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections

in this Owner’s Manual.

SUPPLEMENTAL AIR BAG WARNING
LABELS

Warning labels about the supplemental front-
impact air bag system are placed in the vehicle
as shown in the illustration.

1-54

Safety — Seats, seat belts and supplemental restraint system

activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.

. No unauthorized changes should be

. Work around and on the preten-

. If you need to dispose of a preten-

The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.

After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.

The supplemental air bag warning light

When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections

in this Owner’s Manual.

SUPPLEMENTAL AIR BAG WARNING
LABELS

Warning labels about the supplemental front-
impact air bag system are placed in the vehicle
as shown in the illustration.

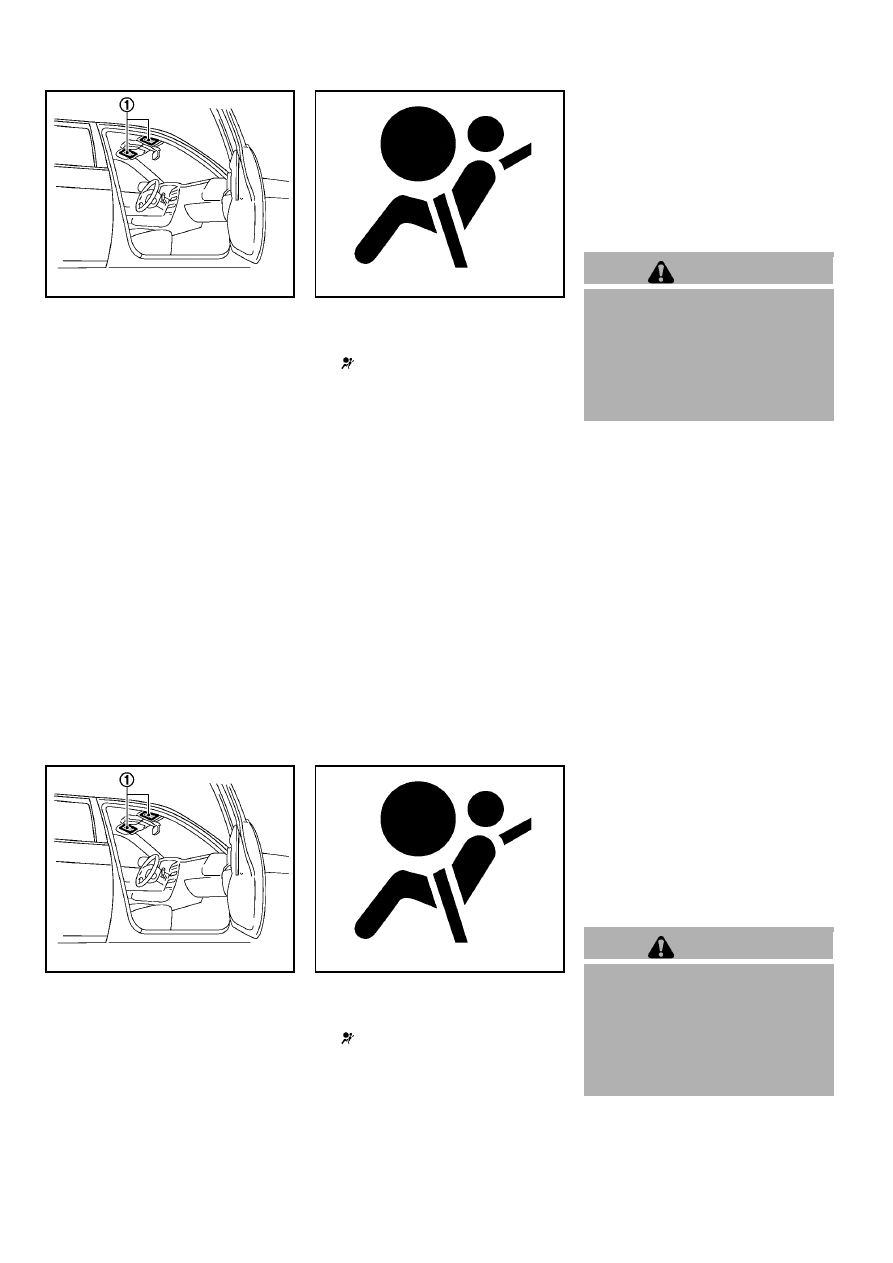

SSS1020

SRS air bag

The warning labels are located on the surface of
the sun visors.

SPA1097

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light, display-
ing

in the instrument panel, monitors the

circuits for the air bag systems, pretensioners
and all related wiring.

When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational.

If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing:

. The supplemental air bag warning light

remains on after approximately 7 seconds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light does

not come on at all.

Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.

WARNING

If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.

Safety — Seats, seat belts and supplemental restraint system

1-55

SSS1020

SRS air bag

The warning labels are located on the surface of
the sun visors.

SPA1097

SUPPLEMENTAL AIR BAG WARNING
LIGHT

The supplemental air bag warning light, display-
ing

in the instrument panel, monitors the

circuits for the air bag systems, pretensioners
and all related wiring.

When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational.

If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing:

. The supplemental air bag warning light

remains on after approximately 7 seconds.

. The supplemental air bag warning light

flashes intermittently.

. The supplemental air bag warning light does

not come on at all.

Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.

WARNING

Safety — Seats, seat belts and supplemental restraint system

1-55

1-56

Safety — Seats, seat belts and supplemental restraint system

REPAIR AND REPLACEMENT PRO-
CEDURE

The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer.

When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags and pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.

WARNING

. Once a front air bag, side air bag or

curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioners must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced by a NISSAN dealer. The
air bag modules and pretensioner
system cannot be repaired.

. The front air bag, side air bag and

curtain air bag systems, and preten-
sioner system should be inspected
by a NISSAN dealer if there is any
damage to the front end or side
portion of the vehicle.

. If you need to dispose of a supple-

mental air bag or pretensioner or
scrap the vehicle, contact a NISSAN
dealer. Correct supplemental air
bag and pretensioner system dis-
posal procedures are set forth in the
appropriate NISSAN Service Man-
ual. Incorrect disposal procedures
could cause personal injury.

1-56

Safety — Seats, seat belts and supplemental restraint system

REPAIR AND REPLACEMENT PRO-
CEDURE

WARNING

. Once a front air bag, side air bag or

. The front air bag, side air bag and

curtain air bag systems, and preten-
sioner system should be inspected
by a NISSAN dealer if there is any
damage to the front end or side
portion of the vehicle.

. If you need to dispose of a supple-

2 Instruments and controls

Cockpit ........................................................................................ 2-2
Instrument panel ........................................................................ 2-3
Meters and gauges ................................................................... 2-4

Speedometer and odometer ............................................ 2-5
Tachometer ........................................................................... 2-7
Engine coolant temperature gauge ................................ 2-7
Fuel gauge ............................................................................ 2-8
Vehicle information display ................................................ 2-8
Outside air temperature (if so equipped) ..................... 2-9
Continuously Variable Transmission (CVT) position
indicator (if so equipped) .................................................. 2-9
Trip computer ....................................................................... 2-9

Warning/indicator lights and audible reminders ............ 2-11

Checking bulbs ................................................................. 2-12
Warning lights ................................................................... 2-12
Indicator lights ................................................................... 2-16
Audible reminders ............................................................ 2-18

Security systems .................................................................... 2-19

Vehicle security system .................................................. 2-19
NISSAN Vehicle Immobilizer System .......................... 2-20

Windshield wiper and washer switch ............................... 2-22
Rear window wiper and washer switch ........................... 2-23

Rear window defroster switch ........................................... 2-24
Headlight and turn signal switch ....................................... 2-24

Headlight switch ............................................................ 2-24
Turn signal switch .......................................................... 2-27
Fog light switch (if so equipped) .............................. 2-27

Horn .......................................................................................... 2-28
Vehicle Dynamic Control (VDC) OFF switch ................. 2-28
Power outlet ............................................................................ 2-28
Storage .................................................................................... 2-29

Cup holders ..................................................................... 2-29
Glove box ......................................................................... 2-31
Rear pillar pocket ........................................................... 2-32
Luggage hooks ............................................................... 2-32
Utility hooks ..................................................................... 2-33

Windows ................................................................................. 2-33

Power windows .............................................................. 2-33

Interior lights .......................................................................... 2-36

Map lights ........................................................................ 2-36
Map light control switch ............................................... 2-36
Ceiling light ...................................................................... 2-37

Cargo light .............................................................................. 2-38

2 Instruments and controls

Warning/indicator lights and audible reminders ............ 2-11

Security systems .................................................................... 2-19

Vehicle security system .................................................. 2-19
NISSAN Vehicle Immobilizer System .......................... 2-20

Windshield wiper and washer switch ............................... 2-22
Rear window wiper and washer switch ........................... 2-23

Rear window defroster switch ........................................... 2-24
Headlight and turn signal switch ....................................... 2-24

Windows ................................................................................. 2-33

Power windows .............................................................. 2-33

Interior lights .......................................................................... 2-36

Cargo light .............................................................................. 2-38

2-2

Instruments and controls

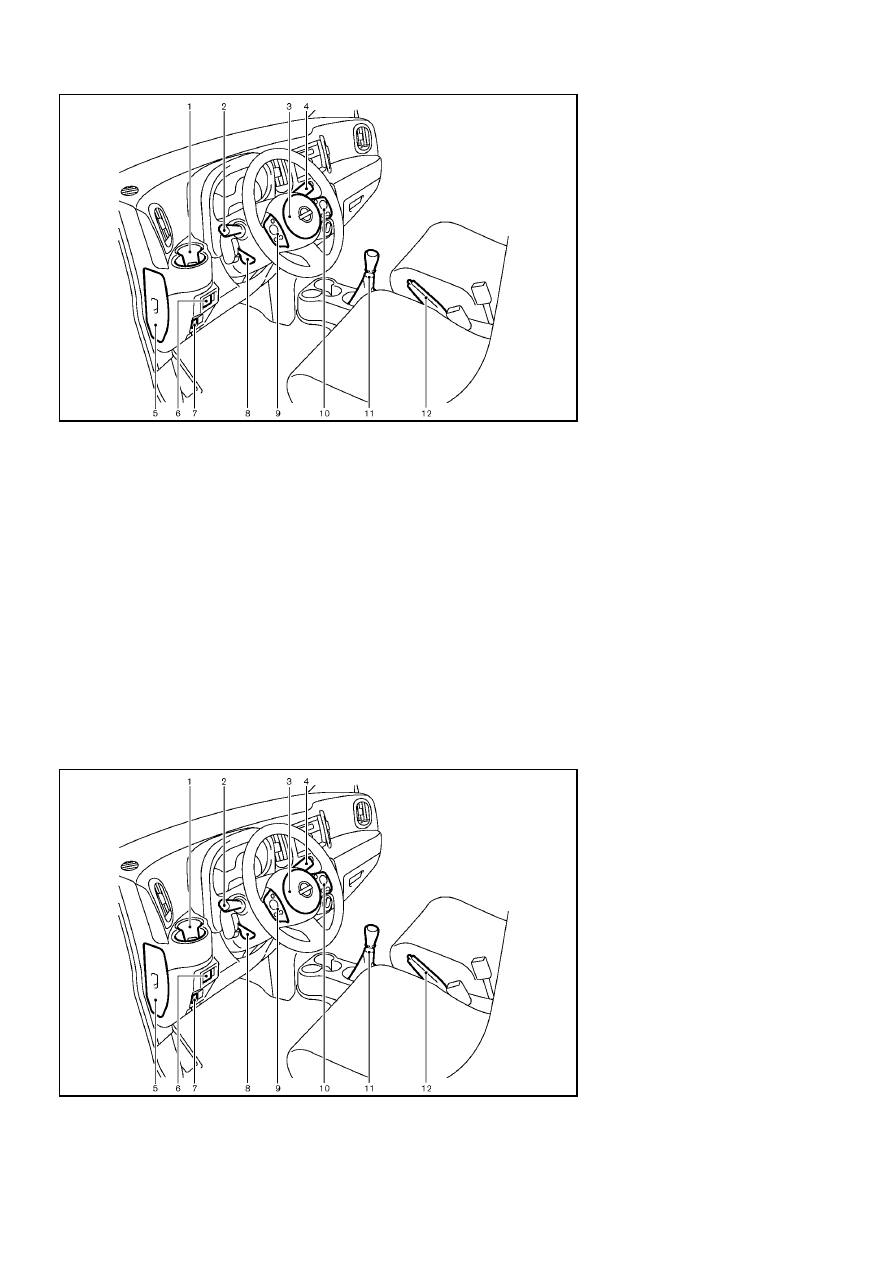

SSI0563

Front cup holders

Headlight, fog light and turn signal switch

Steering wheel
— Horn
— Driver’s supplemental air bag

Wiper and washer switch

Fuse box cover

Outside mirror remote control switch

Vehicle Dynamic Control (VDC) OFF switch

Tilting steering wheel lever

Steering-wheel-mounted controls (left side)
— Audio control
— Bluetooth

Hands-Free Phone System con-

trol

10.

Steering-wheel-mounted controls (right side)
— Cruise control switches

11.

Shift lever
— Continuously Variable Transmission (CVT)
— Manual Transmission (MT)

12.

Parking brake

if so equipped

COCKPIT

2-2

Instruments and controls

SSI0563

Front cup holders

Headlight, fog light and turn signal switch

Steering wheel
— Horn
— Driver’s supplemental air bag

Wiper and washer switch

Fuse box cover

Outside mirror remote control switch

Vehicle Dynamic Control (VDC) OFF switch

Tilting steering wheel lever

Steering-wheel-mounted controls (left side)
— Audio control
— Bluetooth

Hands-Free Phone System con-

trol

10.

Steering-wheel-mounted controls (right side)
— Cruise control switches

11.

Shift lever
— Continuously Variable Transmission (CVT)
— Manual Transmission (MT)

12.

Parking brake

if so equipped

COCKPIT

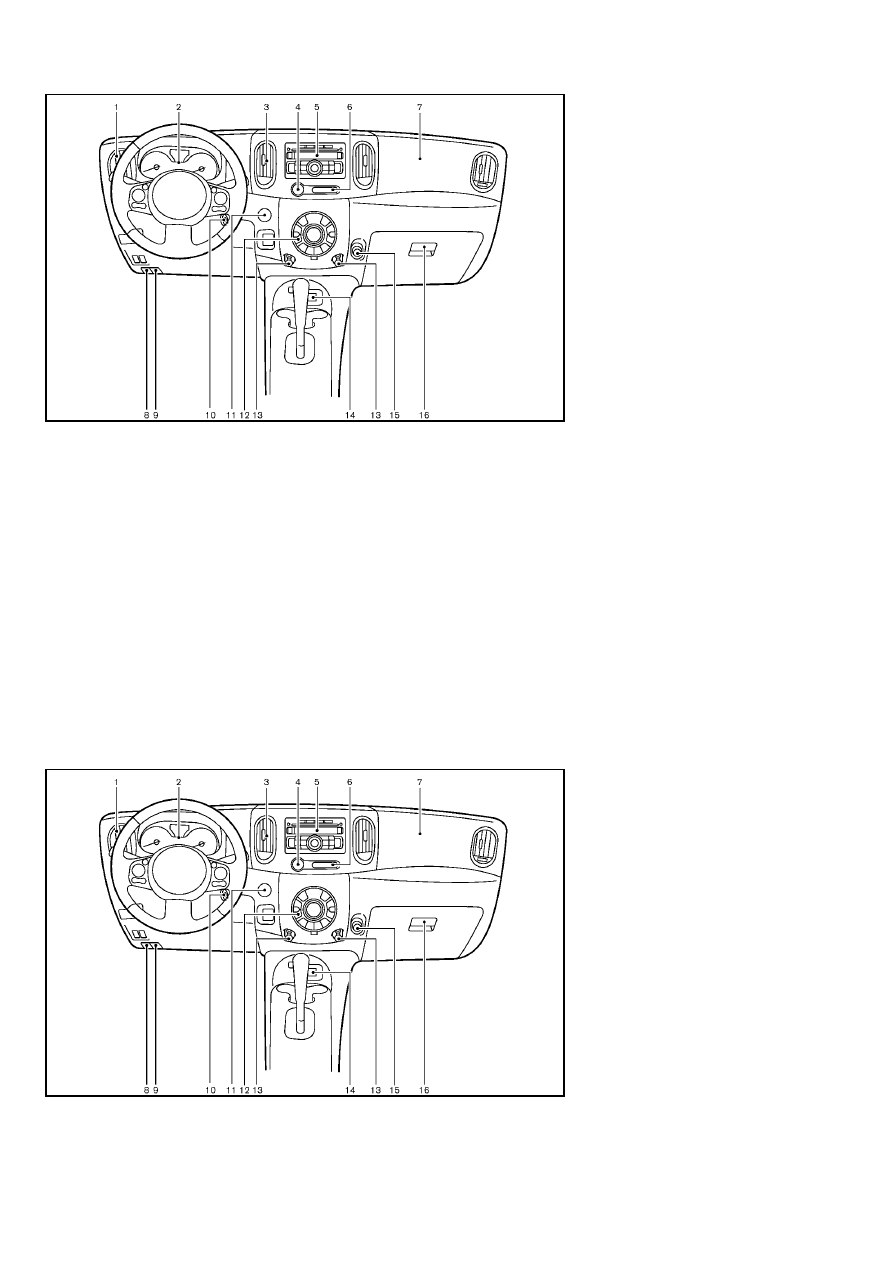

JVC0529X

Side ventilator

Meters and gauges

Center ventilator

Hazard warning flasher switch

Audio system* or Navigation system**
— Clock*

Front passenger air bag status light

Front passenger supplemental air bag

Fuel-filler door release handle

Hood release handle

10.

Ignition switch (models without Intelligent Key
system)

11.

Push-button ignition switch (models with Intel-
ligent Key system)

12.

Heater and air conditioner* control
— Rear window defroster switch

13.

Utility hooks

14.

iPod

connector*/USB connector*

15.

Power outlet

16.

Glove box

if so equipped

**:

Refer to the separate Navigation System Own-
er’s Manual (if so equipped).

Instruments and controls

2-3

INSTRUMENT PANEL

JVC0529X

Side ventilator

Meters and gauges

Center ventilator

Hazard warning flasher switch

Audio system* or Navigation system**
— Clock*

Front passenger air bag status light

Front passenger supplemental air bag

Fuel-filler door release handle

Hood release handle

10.

Ignition switch (models without Intelligent Key
system)

11.

Push-button ignition switch (models with Intel-
ligent Key system)

12.

Heater and air conditioner* control
— Rear window defroster switch

13.

Utility hooks

14.

iPod

connector*/USB connector*

15.

Power outlet

16.

Glove box

if so equipped

**:

Refer to the separate Navigation System Own-
er’s Manual (if so equipped).

Instruments and controls

2-3

INSTRUMENT PANEL

2-4

Instruments and controls

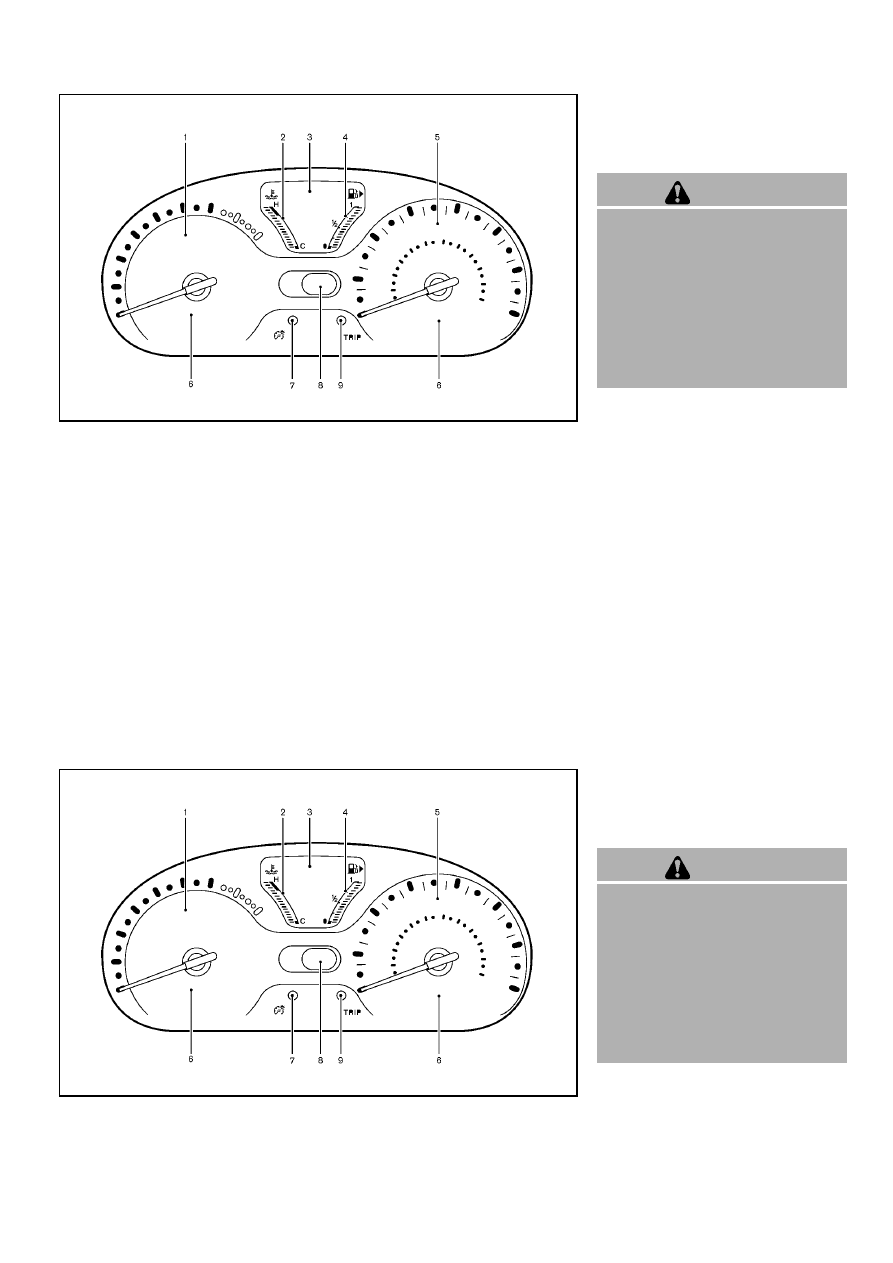

SIC4119

Tachometer

Engine coolant temperature gauge

Vehicle information display
— Odometer/twin trip odometer
— Trip computer
— Outside air temperature*

Fuel gauge

Speedometer

Warning/indicator lights

Instrument brightness control knob

Continuously Variable Transmission (CVT) posi-
tion indicator*

RESET switch for trip odometer/Trip computer
mode switch

if so equipped

The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.

CAUTION

. For cleaning, use a soft cloth, dam-

pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.

. Do not spray any liquid such as

water on the meter lens. Spraying
liquid may cause the system to
malfunction.

METERS AND GAUGES

2-4

Instruments and controls

SIC4119

Tachometer

Engine coolant temperature gauge

Vehicle information display
— Odometer/twin trip odometer
— Trip computer
— Outside air temperature*

Fuel gauge

Speedometer

Warning/indicator lights

Instrument brightness control knob

Continuously Variable Transmission (CVT) posi-
tion indicator*

RESET switch for trip odometer/Trip computer
mode switch

if so equipped

The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.

CAUTION

. For cleaning, use a soft cloth, dam-

pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.

. Do not spray any liquid such as

water on the meter lens. Spraying
liquid may cause the system to
malfunction.

METERS AND GAUGES

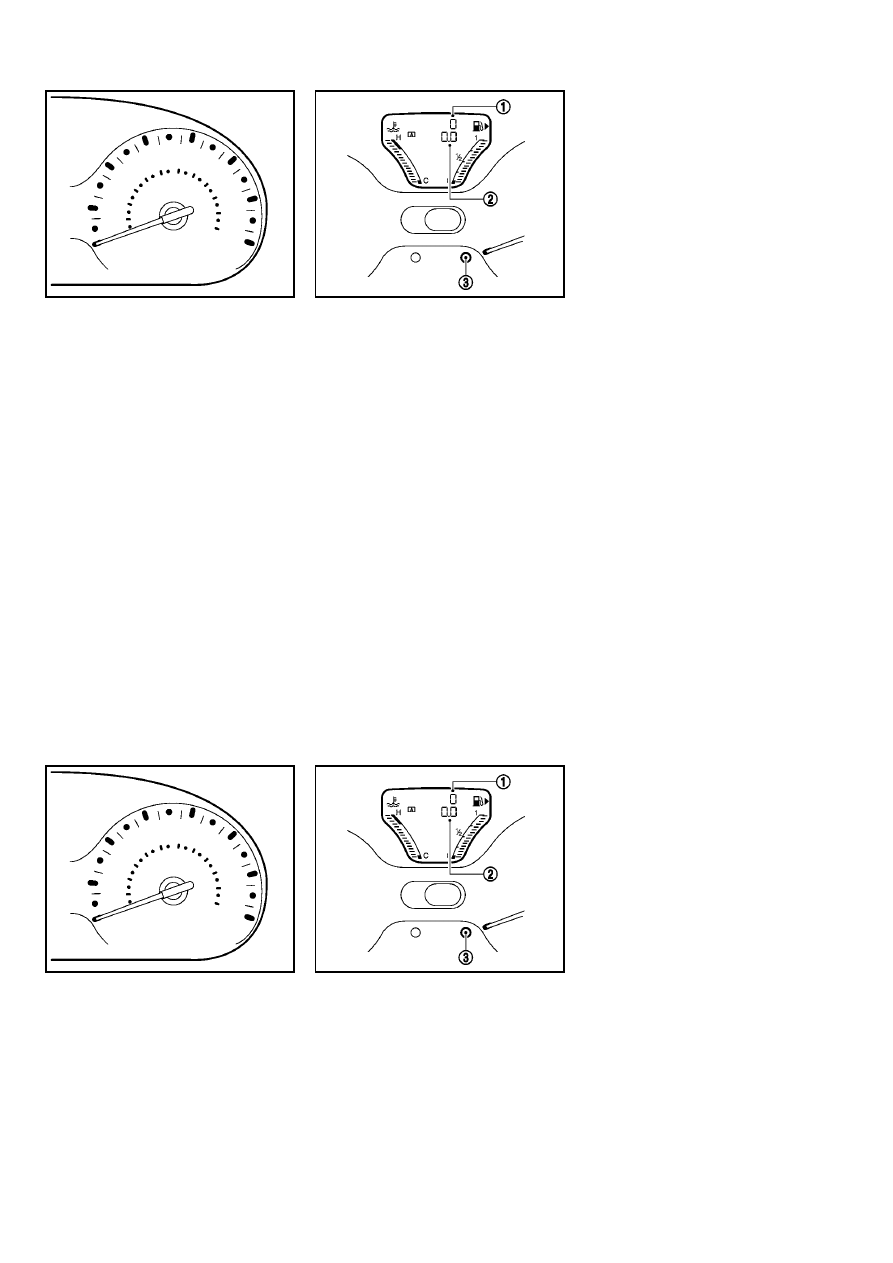

SIC4120

Speedometer

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).

SIC4121

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer

/twin trip odometer

are

displayed when the ignition switch is in the ON
position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the reset switch

located on the

meter panel changes the display as follows:

TRIP A

? TRIP B ? Trip computer mode ?

TRIP A

For trip computer information, see “Trip compu-
ter” (P.2-9).

Resetting the trip odometer:

Pushing the reset switch

for approximately 1

second resets the trip odometer to zero.

Instruments and controls

2-5

SIC4120

Speedometer

SPEEDOMETER AND ODOMETER

Speedometer

The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).

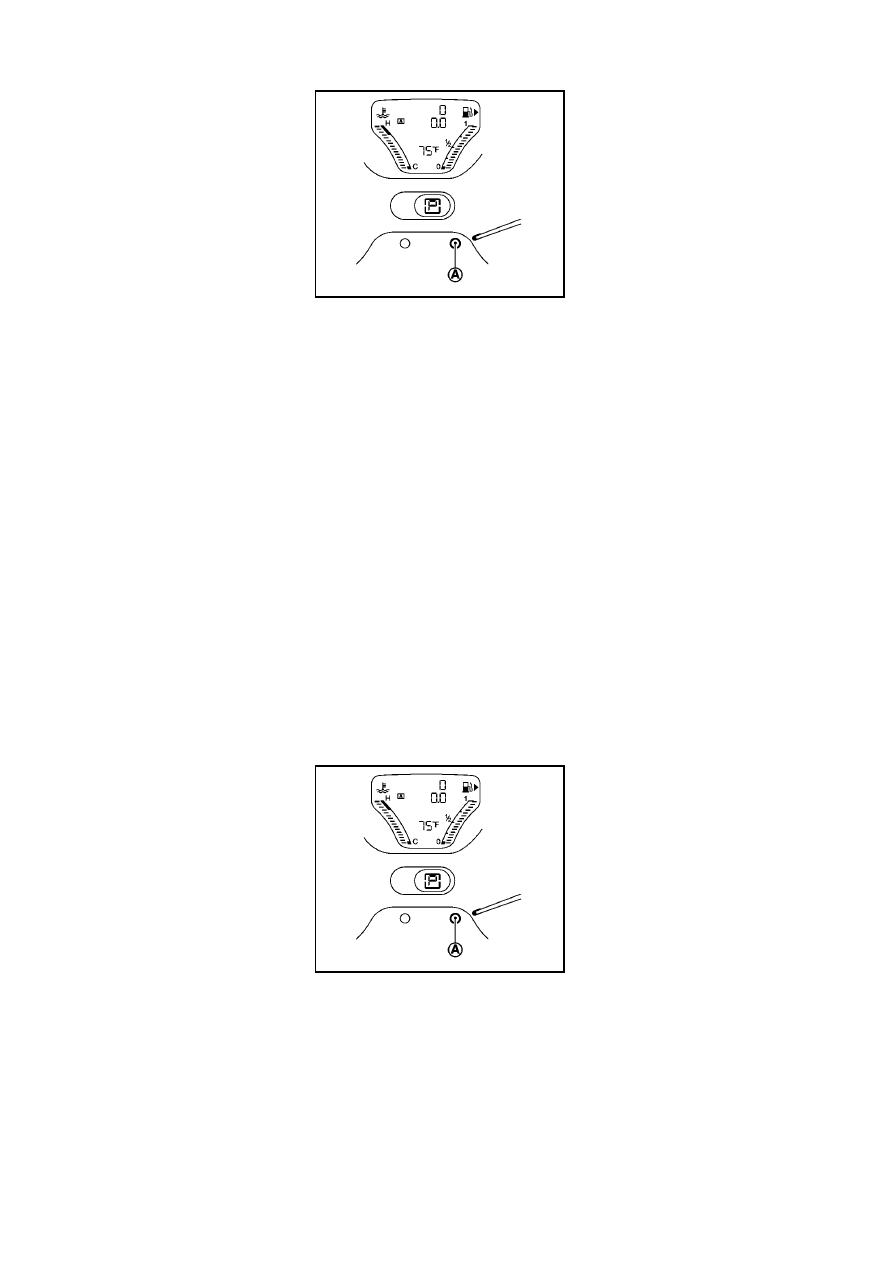

SIC4121

Odometer/twin trip odometer

Odometer/twin trip odometer

The odometer

/twin trip odometer

are

displayed when the ignition switch is in the ON
position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance of
individual trips.

Changing the display:

Pushing the reset switch

located on the

meter panel changes the display as follows:

TRIP A

? TRIP B ? Trip computer mode ?

TRIP A

For trip computer information, see “Trip compu-
ter” (P.2-9).

Resetting the trip odometer:

Pushing the reset switch

for approximately 1

second resets the trip odometer to zero.

Instruments and controls

2-5

2-6

Instruments and controls

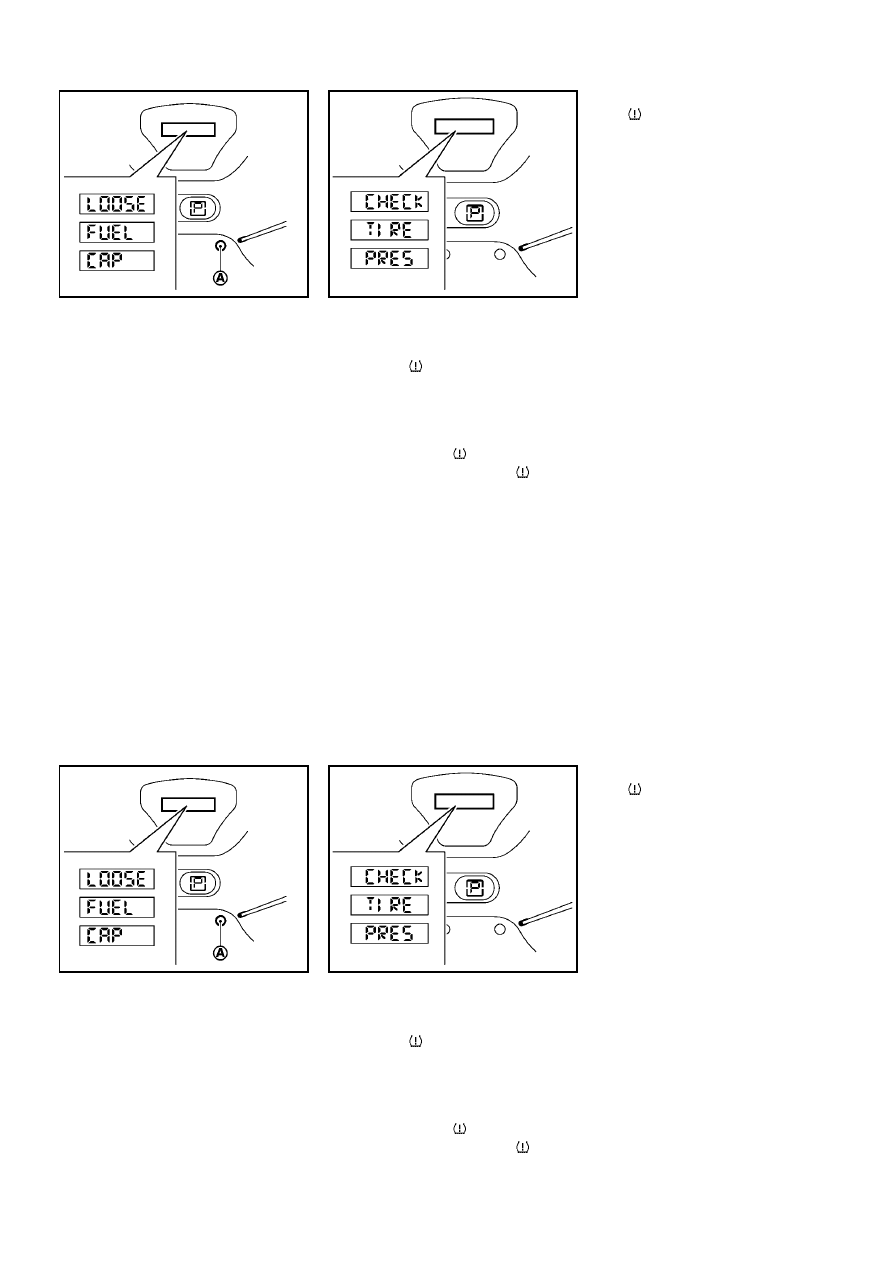

SIC4712

Loose fuel cap warning message

Push the trip computer mode switch

for

more than 1 second to reset the LOOSE FUEL
CAP warning message after the fuel cap has
been tightened. For additional information see
“Fuel-filler cap” (P.3-21) of this manual.

JVI0359X

Check tire pressure warning message

The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light

is illuminated and low tire

pressure is detected. Check and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The CHECK TIRE PRES
warning message turns off when the low tire
pressure warning light

turns off.

The low tire pressure warning light

remains

illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON

position as long as the low tire pressure warning
light

remains illuminated.

For more information see “Low tire pressure
warning light” (P.2-14), “Tire Pressure Monitor-
ing System (TPMS)” (P.5-3), and “Wheels and
tires” (P.8-30).

Extended storage fuse warning message
(if so equipped)

The SHIPPING MODE ON/PUSH STORAGE
FUSE warning message may be displayed if the
extended storage fuse switch is not pushed in
(switched on). When this message is displayed,
push in (switch on) the extended storage fuse
switch to turn off the message. For more
information, see “Extended storage fuse switch”
(P.8-22).

2-6

Instruments and controls

SIC4712

Loose fuel cap warning message

Push the trip computer mode switch

for

more than 1 second to reset the LOOSE FUEL
CAP warning message after the fuel cap has
been tightened. For additional information see
“Fuel-filler cap” (P.3-21) of this manual.

JVI0359X

Check tire pressure warning message

The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light

is illuminated and low tire

turns off.

The low tire pressure warning light

remains

illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON

position as long as the low tire pressure warning
light

remains illuminated.

For more information see “Low tire pressure
warning light” (P.2-14), “Tire Pressure Monitor-
ing System (TPMS)” (P.5-3), and “Wheels and
tires” (P.8-30).

Extended storage fuse warning message
(if so equipped)

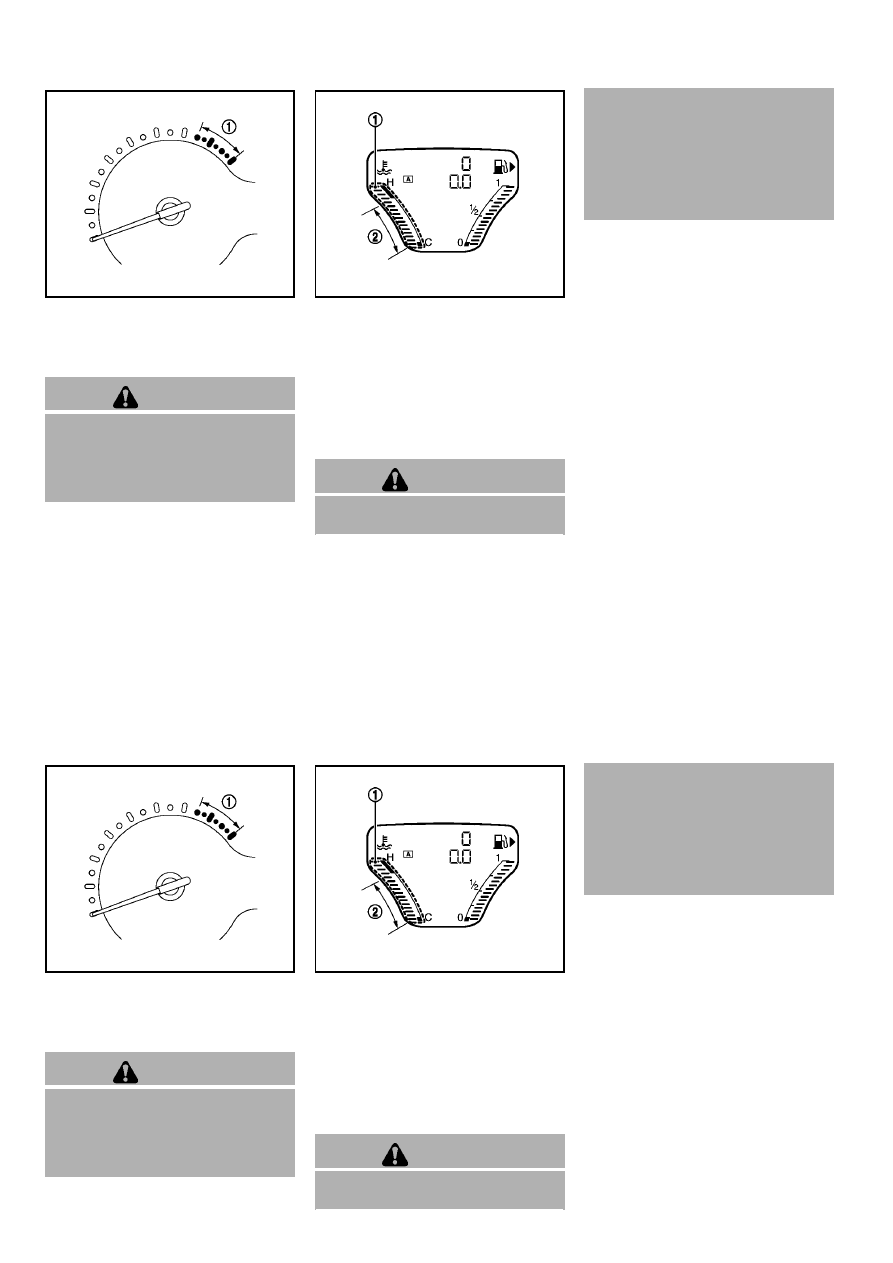

SIC4122

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev the
engine into the red zone

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

SIC4123

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge

indicates the engine coolant

temperature.

The engine coolant temperature is within the
normal range when the gauge is within the zone

shown in the illustration.

The engine coolant temperature varies with the
outside air temperature and driving conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the

normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. See “If your vehicle overheats”
(P.6-12) for immediate action required.

Instruments and controls

2-7

SIC4122

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (RPM). Do not rev the
engine into the red zone

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.

SIC4123

ENGINE COOLANT TEMPERATURE
GAUGE

The gauge

indicates the engine coolant

temperature.

The engine coolant temperature is within the
normal range when the gauge is within the zone

shown in the illustration.

The engine coolant temperature varies with the
outside air temperature and driving conditions.

CAUTION

If the gauge indicates engine coolant
temperature near the hot (H) end of the

Instruments and controls

2-7

2-8

Instruments and controls

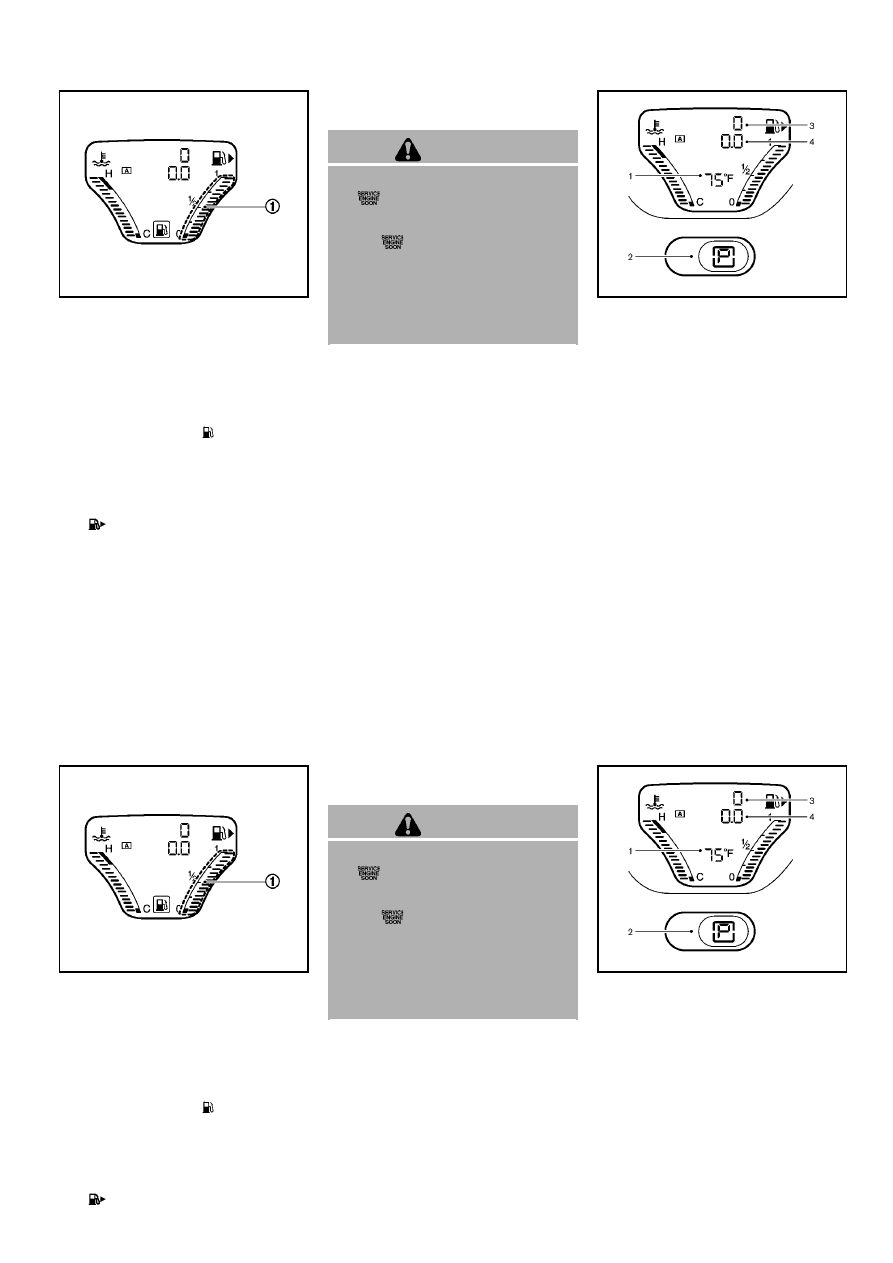

SIC4124

FUEL GAUGE

The gauge

indicates the approximate fuel

level in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

Refill the fuel tank before the gauge
registers 0 (empty).

The low fuel warning light

illuminates when

the amount of fuel in the tank is getting low.
Refuel as soon as it is convenient, preferably
before the gauge reaches 0. There will be a
small reserve of fuel in the tank when the fuel
gauge reaches 0.

The

indicates that the fuel-filler door is

located on the front passenger’s side of the
vehicle.

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light (MIL)

may come on. Refuel as soon as
possible. After a few driving trips,
the

light should turn off. If the

light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.

. For additional information, see

“Malfunction Indicator Light (MIL)”
(P.2-17).

SIC4125

VEHICLE INFORMATION DISPLAY

When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:

Outside air temperature (if so equipped)

Continuously Variable Transmission (CVT) posi-
tion indicator (if so equipped)

Odometer/Instrument brightness control display

Twin trip odometer/Trip computer

2-8

Instruments and controls

SIC4124

FUEL GAUGE

The gauge

indicates the approximate fuel

level in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

Refill the fuel tank before the gauge
registers 0 (empty).

The low fuel warning light

illuminates when

The

indicates that the fuel-filler door is

located on the front passenger’s side of the
vehicle.

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light (MIL)

may come on. Refuel as soon as
possible. After a few driving trips,
the

light should turn off. If the

light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.

. For additional information, see

“Malfunction Indicator Light (MIL)”
(P.2-17).

SIC4125

VEHICLE INFORMATION DISPLAY

When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:

Outside air temperature (if so equipped)

Continuously Variable Transmission (CVT) posi-
tion indicator (if so equipped)

Odometer/Instrument brightness control display

Twin trip odometer/Trip computer

OUTSIDE AIR TEMPERATURE (if so
equipped)

The outside air temperature is displayed in

8F.

When the outside air temperature becomes
37

8F (38C) or lower, the outside air temperature

display blinks to give a warning. The display will
stop blinking after 1 minute or when the outside
air temperature becomes 39

8F (48C) or above.

The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.

CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
(if so equipped)

The Continuously Variable Transmission (CVT)
position indicator indicates the shift lever posi-
tion when the ignition switch is in the ON
position.

SIC4126

TRIP COMPUTER

The switch for the trip computer is located on
the meter panel.

When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch

Each time the trip computer mode switch

pushed, the display will change as follows:

(TRIP A

? TRIP B) ? Current fuel consumption

? Distance to empty (dte) ? Average fuel
consumption

? Average speed (? TRIP A)

Current fuel consumption

The current fuel consumption mode shows the
current fuel consumption.

Distance to empty (dte — miles or km)

The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch

to return to the mode that was selected before
the warning occurred.

When the fuel level drops even lower, the dte
display will change to “----”.
. If the amount of fuel added is small, the

display just before the ignition switch is
turned off may continue to be displayed.

. When driving uphill or rounding curves, the

fuel in the tank shifts, which may momenta-
rily change the display.

Instruments and controls

2-9

OUTSIDE AIR TEMPERATURE (if so
equipped)

The outside air temperature is displayed in

8F.

When the outside air temperature becomes
37

8F (38C) or lower, the outside air temperature

display blinks to give a warning. The display will
stop blinking after 1 minute or when the outside
air temperature becomes 39

8F (48C) or above.

The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.

CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
(if so equipped)

The Continuously Variable Transmission (CVT)
position indicator indicates the shift lever posi-
tion when the ignition switch is in the ON
position.

SIC4126

TRIP COMPUTER

The switch for the trip computer is located on
the meter panel.

When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch

Each time the trip computer mode switch

pushed, the display will change as follows:

(TRIP A

? TRIP B) ? Current fuel consumption

? Distance to empty (dte) ? Average fuel
consumption

? Average speed (? TRIP A)

Current fuel consumption

The current fuel consumption mode shows the
current fuel consumption.

Distance to empty (dte — miles or km)

The display is updated every 30 seconds.

The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch

to return to the mode that was selected before
the warning occurred.

When the fuel level drops even lower, the dte
display will change to “----”.
. If the amount of fuel added is small, the

display just before the ignition switch is
turned off may continue to be displayed.

. When driving uphill or rounding curves, the

fuel in the tank shifts, which may momenta-
rily change the display.

Instruments and controls

2-9

Content .. 3 4 5 6 ..
