Nissan 370Z (2018 year). Instruction - part 5

. The supplemental air bag warning

light remains on after approximately

7 seconds.

. The supplemental air bag warning

light flashes intermittently.

. The supplemental air bag warning

light does not come on at all.

Under these conditions, the air bag and/

or pretensioner systems may not operate

properly. They must be checked and

repaired. It is recommended you visit a

NISSAN dealer for this service.

WARNING

If the supplemental air bag warning

light is on, it could mean that the

front air bag, side air bag, curtain air

bag and/or pretensioner systems

will not operate in an accident. To

help avoid injury to yourself or

others, have your vehicle checked

as soon as possible. It is recom-

mended you visit a NISSAN dealer

for this service.

REPAIR AND REPLACEMENT PRO-

CEDURE

The front air bags, side air bags, curtain

air bags and pretensioners are designed

to activate on a one-time-only basis. As a

reminder, unless it is damaged, the sup-

plemental air bag warning light will re-

main illuminated after inflation has

occurred. These systems should be re-

paired and/or replaced as soon as possi-

ble. It is recommended you visit a NISSAN

dealer for this service.
When maintenance work is required on

the vehicle, the front air bags, side air

bags, curtain air bags, pretensioners and

related parts should be pointed out to the

person conducting the maintenance. The

ignition switch should always be in the

LOCK position when working under the

hood or inside the vehicle.

WARNING

. Once a front air bag, side air bag,

or curtain air bag has inflated, the

air bag module will not function

again and must be replaced. Ad-

ditionally, the activated preten-

sioner must also be replaced. The

air bag module and pretensioner

system should be replaced. It is

recommended you visit a NISSAN

dealer for this service. The air bag

module and pretensioner system

cannot be repaired.

. The front air bag, side air bag and

curtain air bag systems and the

pretensioner system should be

inspected if there is any damage

to the front end or side portion of

the vehicle. It is recommended

you visit a NISSAN dealer for this

service.

. If you need to dispose of the

supplemental air bag or preten-

sioner systems or scrap the vehi-

cle, it is recommended you visit a

NISSAN dealer. Correct supple-

mental air bag and seat belt

pretensioner system disposal

procedures are set forth in the

appropriate NISSAN Service Man-

ual. Incorrect disposal procedures

could cause personal injury.

Safety — Seats, seat belts and supplemental restraint system

1-45

1-46

Safety — Seats, seat belts and supplemental restraint system

MEMO

2 Instruments and controls

Cockpit ................................................................................................... 2-3
Instrument panel ........................................................................... 2-4
Meters and gauges ...................................................................... 2-5

Speedometer and odometer ......................................... 2-6
Tachometer ................................................................................. 2-7
Engine coolant temperature gauge ........................ 2-7
Fuel gauge .................................................................................... 2-8
Triple meter ................................................................................. 2-8

Warning lights, indicator lights and

audible reminders ....................................................................... 2-10

Checking lights ........................................................................ 2-11
Warning lights ........................................................................... 2-11
Indicator lights ........................................................................ 2-15
Audible reminders ................................................................ 2-18

Vehicle information display ................................................. 2-19

Operational indicators ...................................................... 2-19
Warnings and alerts ............................................................ 2-21
Maintenance indicators .................................................. 2-23
Trip computer ......................................................................... 2-23

Security systems ......................................................................... 2-29

Vehicle Security System ................................................. 2-29
NISSAN Vehicle Immobilizer System ..................... 2-30

Wiper and washer switch..................................................... 2-32
Rear window defroster switch......................................... 2-33

Headlight and turn signal switch ................................. 2-34

Xenon headlights .............................................................. 2-34
Headlight switch ................................................................ 2-34
Turn signal switch ............................................................ 2-37
Fog light switch (if so equipped) .......................... 2-38

Instrument pocket (except for navigation

Windows ............................................................................................ 2-46

Power windows .................................................................. 2-46

Interior lights ................................................................................. 2-50

Map lights ................................................................................ 2-50
Interior light control switch ...................................... 2-50

Vanity mirror lights ................................................................... 2-51

Cargo area courtesy light (Roadster models) ...... 2-51
Cargo light (Coupe models) ............................................... 2-52
Trunk light (Roadster models) ......................................... 2-52
HomeLink® Universal Transceiver (if

so equipped) ................................................................................... 2-52

Programming HomeLink® ............................................. 2-53
Programming HomeLink® for Canadian

customers and gate openers .................................... 2-54

Operating the HomeLink®

Universal Transceiver ..................................................... 2-55
Programming troubleshooting .............................. 2-55
Clearing the programmed information ........... 2-55
Reprogramming a single

HomeLink® button ............................................................ 2-55
If your vehicle is stolen ................................................. 2-56

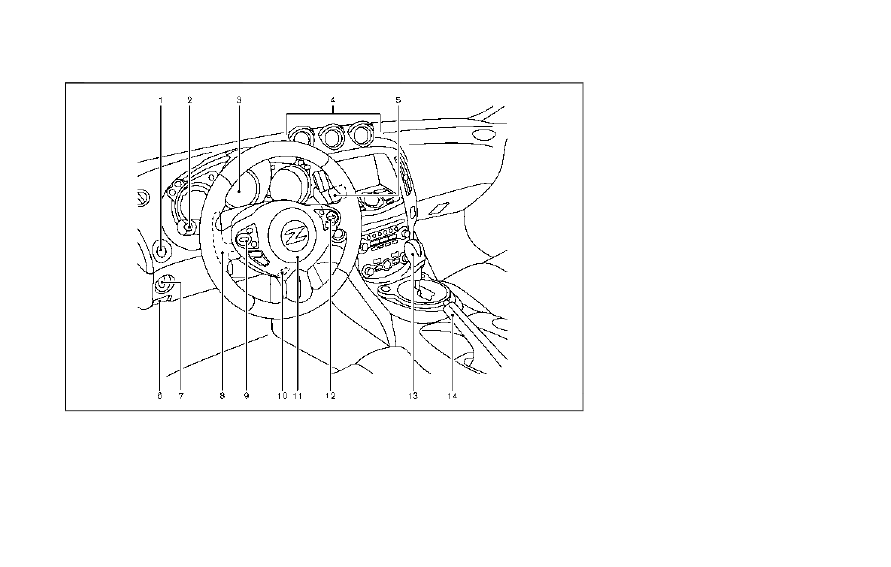

SSI0652

Vehicle Dynamic Control (VDC) OFF switch

(P.5-30)

Headlight, fog light and turn signal switch

(P.2-34)

Meters and Gauges (combimeter) (P.2-5)

Triple meter (P.2-8)

Wiper and washer switch (P.2-32)

Hood release handle (P.3-17)

Intelligent Key port (P.5-10)

Paddle shifter (if so equipped) (P.5-14)

Steering-wheel-mounted controls (left

side)
— Menu control switch or tuning switch

(P.4-73)

— BACK switch (P.4-73)
— Phone switch (if so equipped) (P.4-76)
— Volume control switches (P.4-73)
— Source select switch (P.4-73)

10.

Tilt steering lever (P.3-38)

11.

Steering wheel
— Horn (P.2-38)
— Driver supplemental air bag (P.1-30)

12.

Steering-wheel-mounted controls (right

side)
— Cruise control switches (P.5-22)

13.

Shift lever
— Automatic Transmission (AT) (P.5-12)
— Manual Transmission (MT) (P.5-17)

14.

Parking brake (P.5-21)

Instruments and controls

2-3

COCKPIT

2-4

Instruments and controls

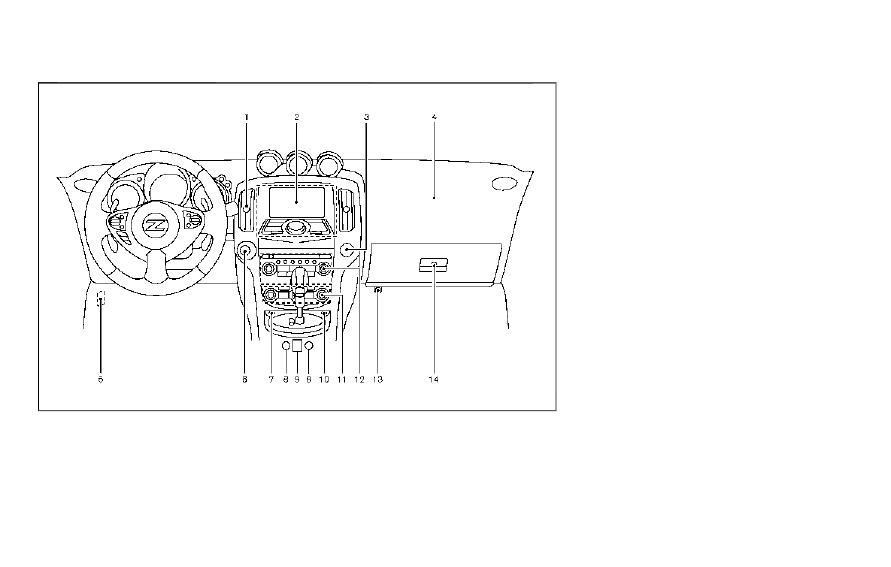

SSI0653

Ventilator (P.4-24)

Center display and multi-function control

panel (if so equipped) (P.4-4) or Instru-

ment pocket (if so equipped) (P.2-43)
— Navigation system* (if so equipped)
— Vehicle information and setting but-

tons (if so equipped) (P.4-8)

— Bluetooth® Hands-Free Phone System

(if so equipped) (P.4-76, P.4-86)

Front passenger air bag status light

(P.1-36)

Front passenger supplemental air bag

(P.1-30)

Fuse box cover (P.8-18)

Push-button ignition switch (P.5-8)

Hazard warning flasher switch (P.6-2)

Seat heater switch (if so equipped)

(P.2-38) or Climate controlled seat switch

(if so equipped) (P.2-40)

Soft top operating switch (for Roadster

models) (P.3-23) or Rear hatch release

switch (for Coupe models) (P.3-19)

10.

SynchroRev Match mode (S-MODE) switch

(if so equipped) (P.5-18)

11.

Heater and air conditioner (P.4-25)
— Rear window defroster switch (P.2-33)

12.

Audio system (P.4-30)

13.

Power outlet (P.2-42)

14.

Glove box (P.2-44)

*: Refer to the separate Navigation Sys-

tem Owner’s Manual.

INSTRUMENT PANEL

SSI0509

ENTER/NEXT switch (P.2-23)

Fuel gauge (P.2-8)

Warning/Indicator lights (P.2-10)

Tachometer (P.2-7)

Speedometer (P.2-6)

Instrument brightness control switch

(P.2-37)

Vehicle information display (P.2-19)

Engine coolant temperature gauge (P.2-7)

Transmission position indicator (if so

equipped) (P.2-18)
— SynchroRev Match mode (S-MODE) in-

dicator (if so equipped) (P.5-18)

SSI0521

10.

Odometer/Twin trip odometer control

knob (P.2-6)

11.

Odometer/Twin trip odometer (P.2-6)

12.

Engine oil temperature gauge (P.2-8)

13.

Voltmeter (P.2-9)

14.

Clock (P.2-9, P.2-27)

CAUTION

. For cleaning, use a soft cloth,

dampened with water. Never use

a rough cloth, alcohol, benzine,

thinner or any kind of solvent or

paper towel with a chemical

cleaning agent. They will scratch

or cause discoloration to the lens.

Instruments and controls

2-5

METERS AND GAUGES

2-6

Instruments and controls

. Do not spray any liquid such as

water on the meter lens. Spraying

liquid may cause the system to

malfunction.

SIC3973

SPEEDOMETER AND ODOMETER
Speedometer

The speedometer indicates vehicle speed

in miles per hour (MPH) and kilometers

per hour (km/h).

Odometer/twin trip odometer

The odometer

and twin trip odometer

are displayed when the ignition switch

is in the ON position.
The odometer records the total distance

the vehicle has been driven.
The twin trip odometer records the dis-

tance of individual trips.
Changing the display:
Pushing the TRIP A/B RESET knob

changes the display as follows:
TRIP A

? TRIP B ? TRIP A

Resetting the trip odometer:
Pushing the TRIP A/B RESET knob

for

more than 1 second resets the trip

odometer to zero.

SIC3974

TACHOMETER

The tachometer indicates engine speed in

revolutions per minute (RPM). Do not rev

the engine into the red zone

CAUTION

When engine speed approaches the

red zone, shift to a higher gear or

reduce engine speed. Operating the

engine in the red zone may cause

serious engine damage.

SIC3975

ENGINE COOLANT TEMPERATURE

GAUGE

The gauge indicates the engine coolant

temperature.
The engine coolant temperature is within

the normal range when the gauge points

within the zone

shown in the illustra-

tion.
The engine coolant temperature varies

with the outside air temperature and

driving conditions.

CAUTION

If the gauge indicates engine coolant

temperature near the hot (H) end of

the normal range, reduce vehicle

speed to decrease temperature. If

gauge is over the normal range, stop

the vehicle as soon as safely possi-

ble. If the engine is overheated,

continued operation of the vehicle

may seriously damage the engine.

See “If your vehicle overheats” (P.6-

17) for immediate action required.

Instruments and controls

2-7

2-8

Instruments and controls

SIC3976

FUEL GAUGE

The gauge indicates the approximate

fuel level in the tank.
The gauge may move slightly during

braking, turning, acceleration, or going

up or down hills.
Refill the fuel tank before the gauge

registers “E” (Empty).
The low fuel warning

appears on the

vehicle information display when the

amount of fuel in the tank is getting low.

Refuel as soon as it is convenient, pre-

ferably before the gauge reaches “E”.

There will be a small reserve of fuel in

the tank when the fuel gauge reaches “E”.

The

indicates that the fuel-filler door

is located on the passenger’s side of the

vehicle.

CAUTION

. If the vehicle runs out of fuel, the

malfunction indicator light

(MIL) may come on. Refuel as

soon as possible. After a few

driving trips, the

light should

turn off. If the light remains on

after a few driving trips, have the

vehicle inspected. It is recom-

mended you visit a NISSAN dealer

for this service.

. For additional information, see

“Malfunction Indicator Light

(MIL)” (P.2-16).

SIC4003

Triple meter

Engine oil temperature gauge

Voltmeter

Clock

TRIPLE METER
Engine oil temperature gauge

Oil temperature, as well as the rate of

temperature change, will vary based on

ambient conditions and driving pat-

terns. Under normal operating condi-

tions, oil temperature will remain below

280°F (140°C).
If the engine oil temperature gauge

indicates more than 280°F (140°C) while

driving, reduce the engine speed (RPM).

When the engine oil temperature is

high, the engine protection mode,

which helps reduce the chance of en-

gine damage, could activate and auto-

matically decrease engine power.

Voltmeter

When the ignition switch is placed in the

ON position, the volt meter

indicates

the battery voltage. When the engine is

running, it indicates the generator vol-

tage.
While cranking the engine, the volts drop

below the normal range. If the needle is

not in the normal range (11 to 15 volts)

while the engine is running, it may

indicate that the charging system is not

functioning properly. Have the system

checked. It is recommended you visit a

NISSAN dealer for this service.

Clock

If necessary, adjust the clock

on the

vehicle information display. (See “Clock”

(P.2-27).)
If the power supply is disconnected, the

clock will not indicate the correct time.

Readjust the time.

Instruments and controls

2-9

2-10

Instruments and controls

Anti-lock Braking System (ABS) warn-

ing light

Master warning light

Rear fog light indicator light (if so

equipped)

Seat belt warning light and chime

Security indicator light

Automatic Transmission check warn-

ing light (if so equipped)

Supplemental air bag warning light

Soft top indicator light (Roadster

models)

Brake warning light

Vehicle Dynamic Control (VDC) warn-

ing light

SynchroRev Match mode (S-MODE)

indicator (if so equipped)

Cruise indicator light

Transmission position indicator (if so

equipped)

Charge warning light

Exterior light indicator

Turn signal/hazard indicator lights

Engine oil pressure warning light

Front passenger air bag status light

Vehicle Dynamic Control (VDC) off

indicator light

Intelligent Key system warning light

High beam indicator light

Low tire pressure warning light

Malfunction Indicator Light (MIL)

WARNING LIGHTS, INDICATOR

LIGHTS AND AUDIBLE REMINDERS

CHECKING LIGHTS

With all doors closed, apply the parking

brake, fasten the seat belts and place the

ignition switch in the ON position without

starting the engine. The following lights (if

so equipped) will come on:

The following lights (if so equipped) come

on briefly and then go off:

If any light does not come on or operates

in a way other than described, it may

indicate a burned-out bulb and/or a

system malfunction. It is recommended

you have the system checked by a

NISSAN dealer.
Some indicators and warnings are also

displayed on the vehicle information dis-

play. (See “Vehicle information display”

(P.2-19).)

WARNING LIGHTS

Anti-lock Braking Sys-

tem (ABS) warning light

When the ignition switch is in the ON

position, the Anti-lock Braking System

(ABS) warning light illuminates and then

turns off. This indicates the ABS is opera-

tional.
If the ABS warning light illuminates while

the engine is running, or while driving, it

may indicate the ABS is not functioning

properly. Have the system checked. It is

recommended you visit a NISSAN dealer

for this service.
If an ABS malfunction occurs, the anti-

lock function is turned off. The brake

system then operates normally, but with-

out anti-lock assistance. (See “Brake sys-

tem” (P.5-27).)

Automatic transmission check

warning light (if so equipped)

When the ignition switch is pushed to the

ON position, the light comes on for 2

seconds. If the light comes on at any

other time, it may indicate the transmis-

sion is not functioning properly. It is

recommended you visit a NISSAN dealer

to check and repair the transmission.

Brake warning light

This light functions for both the parking

brake and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON

position, the light comes on when the

parking brake is applied.
Low brake fluid warning light:
When the ignition switch is in the ON

position, the light warns of a low brake

fluid level. If the light comes on while the

engine is running with the parking brake

not applied, stop the vehicle and perform

the following:
1. Check the brake fluid level. Add brake

fluid as necessary. (See “Brake and

clutch fluid” (P.8-9).)

2. If the brake fluid level is correct, have

the warning system checked. It is

recommended you have this service

performed by a NISSAN dealer.

Anti-lock Braking System (ABS) warning
indicator:
When the parking brake is released and

the brake fluid level is sufficient, if both

the brake warning light and the Anti-lock

Braking System (ABS) warning light illu-

minate, it may indicate the ABS is not

functioning properly. Have the brake

Instruments and controls

2-11

2-12

Instruments and controls

system checked, and if necessary re-

paired. It is recommended you visit a

NISSAN dealer for this service. (See “Anti-

lock Braking System (ABS) warning light”

(P.2-11).)

WARNING

. Your brake system may not be

working properly if the warning

light is on. Driving could be dan-

gerous. If you judge it to be safe,

drive carefully to the nearest

service station for repairs. Other-

wise, have your vehicle towed

because driving it could be dan-

gerous.

. Pressing the brake pedal with the

engine stopped and/or low brake

fluid level may increase your

stopping distance and braking

will require greater pedal effort

as well as pedal travel.

. If the brake fluid level is below the

minimum or MIN mark on the

brake fluid reservoir, do not drive

until the brake system has been

checked. It is recommended you

visit a NISSAN dealer for this

service.

Charge warning light

If the light comes on while the engine is

running, it may indicate the charging

system is not functioning properly. Turn

the engine off and check the alternator

belt. If the belt is loose, broken, missing or

if the light remains on, have your vehicle

serviced immediately. It is recommended

you visit a NISSAN dealer for this service.

CAUTION

Do not continue driving if the alter-

nator belt is loose, broken or miss-

ing.

Engine oil pressure warning

light

This light warns of low engine oil pres-

sure. If the light flickers or comes on

during normal driving, pull off the road in

a safe area, stop the engine immediately

and call a NISSAN dealer or other author-

ized repair shop.
The engine oil pressure warning light is

not designed to indicate a low oil level.

Use the dipstick to check the oil level.

(See “Engine oil” (P.8-6).)

CAUTION

Running the engine with the engine

oil pressure warning light on could

cause serious damage to the engine

almost immediately. Such damage is

not covered by warranty. Turn off the

engine as soon as it is safe to do so.

Intelligent Key system warn-

ing light

After the ignition switch is pushed to the

ON position, this light comes on for about

2 seconds and then turns off.
This light warns of a malfunction with the

Intelligent Key system.
If the light comes on while the engine is

stopped, it may be impossible to start the

engine. If the light comes on while the

engine is running, you can drive the

vehicle. However in these cases, it is

recommended you visit a NISSAN dealer

for repair as soon as possible.

Low tire pressure warning

light

Your vehicle is equipped with a Tire

Pressure Monitoring System (TPMS) that

monitors the tire pressure of all tires

except the spare.
The low tire pressure warning light warns

of low tire pressure or indicates that the

TPMS is not functioning properly.
After the ignition switch is pushed ON,

this light illuminates for about 1 second

and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire

pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also

appears in the vehicle information dis-

play.
When the low tire pressure warning light

illuminates, you should stop and adjust

the tire pressure to the recommended

COLD tire pressure shown on the Tire and

Loading Information label. The low tire

pressure warning light does not automa-

tically turn off when the tire pressure is

adjusted. After the tire is inflated to the

recommended pressure, the vehicle must

be driven at speeds above 16 MPH (25

km/h) to activate the TPMS and turn off

the low tire pressure warning light. Use a

tire pressure gauge to check the tire

pressure.
The CHECK TIRE PRESSURE warning ap-

pears each time the ignition switch is

placed in the ON position as long as the

low tire pressure warning light remains

illuminated.
For additional information, see “Vehicle

information display” (P.2-19), “Tire Pres-

sure Monitoring System (TPMS)” (P.5-3)

and “Tire Pressure Monitoring System

(TPMS)” (P.6-3).
TPMS malfunction:
If the TPMS is not functioning properly,

the low tire pressure warning light will

flash for approximately 1 minute when the

ignition switch is pushed ON. The light will

remain on after the 1 minute. Have the

system checked. It is recommended you

visit a NISSAN dealer for this service.
The CHECK TIRE PRESSURE warning does

not appear if the low tire pressure warn-

ing light illuminates to indicate a TPMS

malfunction.
For additional information, see “Tire Pres-

sure Monitoring System (TPMS)” (P.5-3).

WARNING

. If the light does not illuminate

with the ignition switch pushed

ON, have the vehicle checked as

soon as possible. It is recom-

mended you visit a NISSAN dealer

for this service.

. If the light illuminates while driv-

ing, avoid sudden steering man-

euvers or abrupt braking, reduce

vehicle speed, pull off the road to

a safe location and stop the

vehicle as soon as possible. Driv-

ing with under-inflated tires may

permanently damage the tires

and increase the likelihood of tire

failure. Serious vehicle damage

could occur and may lead to an

accident and could result in ser-

ious personal injury. Check the

tire pressure for all four tires.

Adjust the tire pressure to the

recommended COLD tire pressure

shown on the Tire and Loading

Information label to turn the low

tire pressure warning light OFF. If

the light still illuminates while

driving after adjusting the tire

pressure, a tire may be flat or

the TPMS may be malfunctioning.

Instruments and controls

2-13

2-14

Instruments and controls

If you have a flat tire, replace it

with a spare tire (if so equipped)

or repair it with the tire puncture

repair kit (if so equipped) as soon

as possible. If no tire is flat and all

tires are properly inflated, it is

recommended you consult a

NISSAN dealer.

. Since the spare tire is not

equipped with the TPMS, when a

spare tire is mounted or a wheel

is replaced, the TPMS will not

function and the low tire pressure

warning light will flash for ap-

proximately 1 minute. The light

will remain on after the 1 minute.

Have your tires replaced and/or

TPMS system reset as soon as

possible. It is recommended you

visit a NISSAN dealer for these

services.

. Replacing tires with those not

originally specified by NISSAN

could affect the proper operation

of the TPMS.

CAUTION

. The TPMS is not a substitute for

the regular tire pressure check.

Be sure to check the tire pressure

regularly.

. If the vehicle is being driven at

speeds of less than 16 MPH (25

km/h), the TPMS may not operate

correctly.

. Be sure to install the specified

size of tires to the four wheels

correctly.

Master warning light

When the ignition switch is in the ON

position, the master warning light illumi-

nates if any of the following are displayed

on the vehicle information display:
. No key warning

. Low fuel warning

. Low washer fluid warning

. Parking brake release warning

. Door/rear hatch/trunk open warning

. Loose fuel cap warning

. Check tire pressure warning

. Extended storage fuse warning
See “Vehicle information display” (P.2-19).

Seat belt warning light and

chime

The light and chime remind you to fasten

seat belts. The light illuminates whenever

the ignition switch is pushed to the ON

position, and will remain illuminated until

the driver’s seat belt is fastened. At the

same time, the chime will sound for about

6 seconds unless the driver’s seat belt is

securely fastened.
The seat belt warning light for the front

passenger will illuminate if the seat belt is

not fastened when the front passenger’s

seat is occupied. For approximately 5

seconds after the ignition switch is in

the ON position, the system does not

activate the warning light for the front

passenger.
See “Seat belts” (P.1-10) for precautions on

seat belt usage.

Supplemental air bag warning

light

After pushing the ignition switch to the

ON position, the supplemental air bag

warning light will illuminate. The air bag

warning light will turn off after about 7

seconds if the front air bag, side air bag

and curtain air bag systems and/or pre-

tensioner system are operational.

Content .. 3 4 5 6 ..
