LU-30
< ON-VEHICLE REPAIR >
[VQ35DE]
OIL COOLER
OIL COOLER
Removal and Installation
INFOID:0000000004202518
WARNING:
Be careful not to get burned, engine coolant and engine oil may be hot.
CAUTION:
• When removing oil cooler, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Completely wipe off any engine oil that adheres to the engine and the vehicle.
REMOVAL
1. Drain engine oil. Refer to
2. Drain engine coolant. Refer to
CO-35, "Changing Engine Coolant"
.
• Do not spill coolant on the drive belt.
3. Disconnect water hoses from oil cooler.

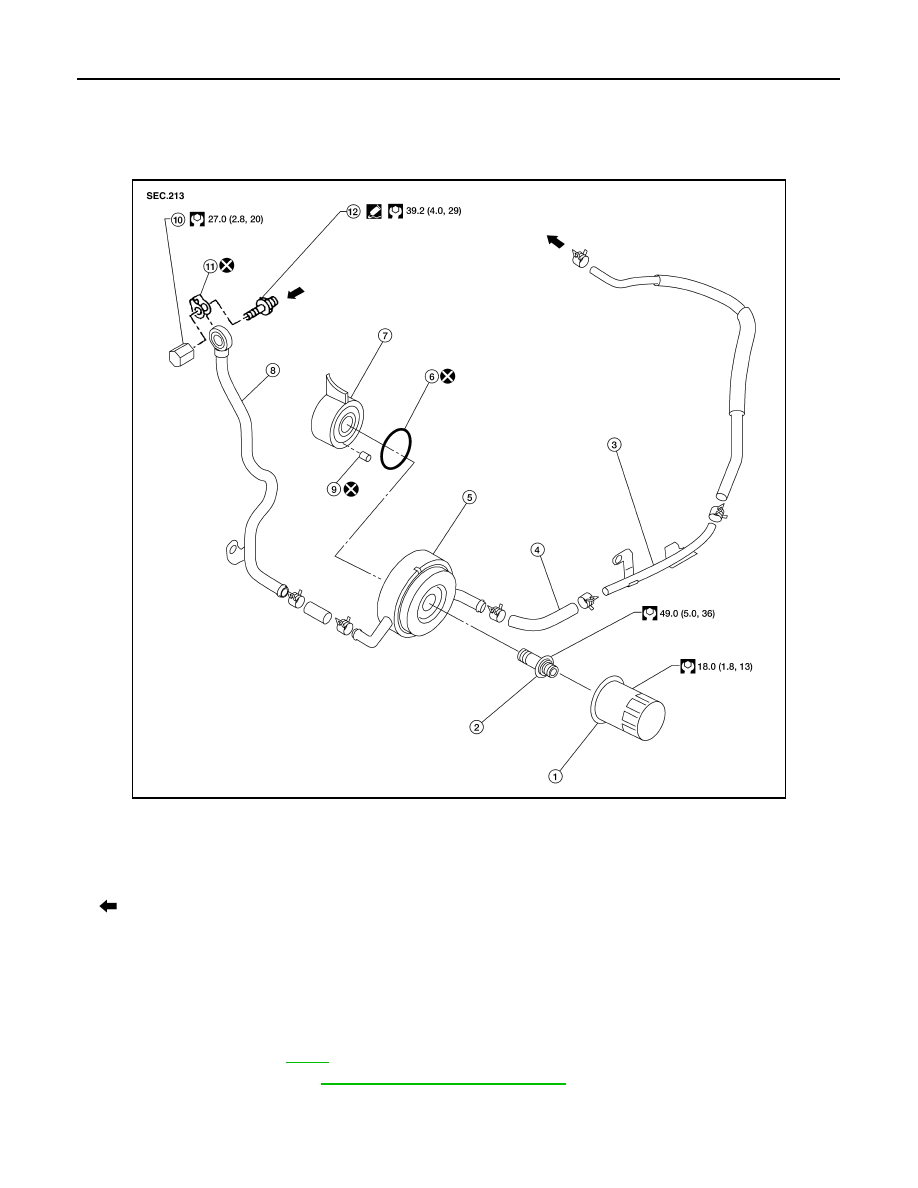

AWBIA0716ZZ
1.
Oil filter
2.
Oil cooler bolt
3.
Water pipe
4.
Water hose
5.
Oil cooler
6.
O-ring
7.
Oil pan
8.
Water pipe
9.
Relief valve
10. Water drain plug
11. Copper gasket
12. Water connector
Coolant flow
