LUBRICATION SYSTEM

FUNCTION DIAGNOSIS

LUBRICATION SYSTEM

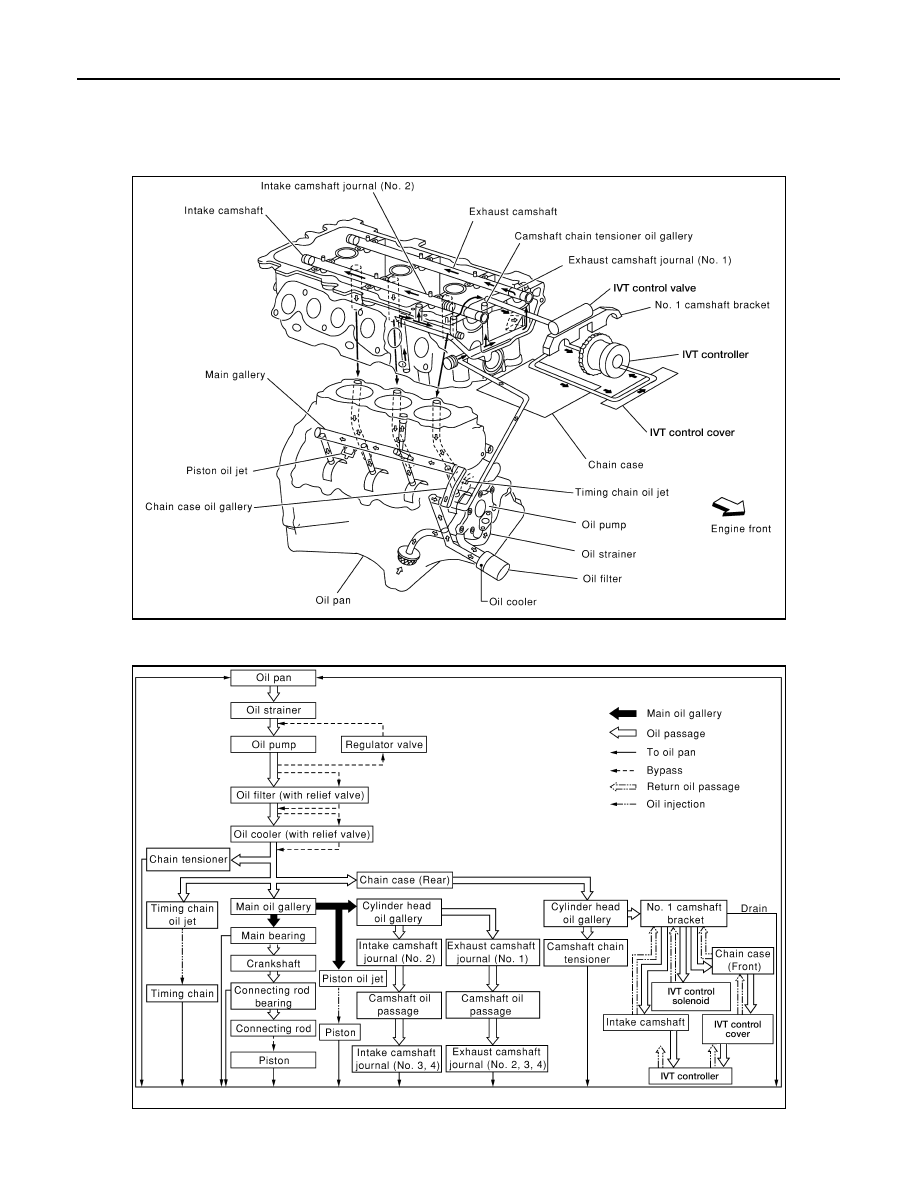

Lubrication Circuit

INFOID:0000000004202511

Schematic

INFOID:0000000004202512

WBIA0140E

WBIA0141E

ENGINE OIL

LU-23

< ON-VEHICLE MAINTENANCE >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

ON-VEHICLE MAINTENANCE

ENGINE OIL

Inspection

INFOID:0000000004202513

OIL LEVEL

NOTE:

• Before starting the engine, check the oil level. If the engine is

already started, stop it and allow 10 minutes before checking.

• Check that the oil level is within the range as indicated on the dip-

stick.

• If it is out of range, add oil as necessary. Refer to

LU-23

.

ENGINE OIL APPEARANCE

• Check engine oil for white milky or excessive contamination.

• If engine oil becomes milky, it is highly probable that it is contaminated with engine coolant. Repair or

replace damaged parts.

OIL LEAKAGE

Check for oil leakage around the following areas:

• Oil  pan

• Oil pan drain plug

• Oil pressure switch

• Oil filter

• Oil cooler

• IVTC cover

• Front cover

• Mating surface between cylinder block and cylinder head

• Mating surface between cylinder head and rocker cover

• Crank oil seal (front and rear)

OIL PRESSURE CHECK

WARNING:

• Be careful not to burn yourself, as engine oil may be hot.

• For M/T models, put the gearshift lever in the Neutral "N" position. For CVT models, put the selector

lever in the Park “P” position.

1. Check the oil level.
2. Remove undercover using power tool.
3. Disconnect oil pressure switch harness connector at the oil

pressure switch. Remove oil pressure switch and install Tools.

CAUTION:

Do not drop or shock oil pressure switch.

4. Start the engine and warm it up to normal operating temperature.
5. Check oil pressure with engine running under no-load, using Tool. Refer to

LU-32, "Oil Pressure"

.

If difference is extreme, check oil passage and oil pump for oil leaks.

JMA122D

Tool numbers : ST25051001 (J-25695-1)

: ST25052000 (J-25695-2)

WBIA0571E

LU-24

< ON-VEHICLE MAINTENANCE >

[VQ35DE]

ENGINE OIL

6. After the inspections, install the oil pressure switch as follows:
a. Remove the old sealant adhering to oil pressure switch and engine.
b. Apply thread sealant and tighten the oil pressure switch to specification.

Use Genuine High Performance Thread Sealant, or equivalent. Refer to

GI-15, "Recommended

Chemical Products and Sealants"

.

c.

After warming up engine, make sure there are no leaks of engine oil with engine running.

Changing Engine Oil

INFOID:0000000004202514

WARNING:

• Be careful not to burn yourself, as the engine oil may be hot.

• Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin

contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as

possible.

1. Position the vehicle so it is level on the hoist.
2. Warm up the engine and check for oil leaks from the engine.
3. Stop engine and wait for 10 minutes.
4. Remove the oil pan drain plug and oil filler cap.
5. Drain the engine oil.
6. Install the oil pan drain plug with a new washer and refill the engine with new engine oil.

CAUTION:

• Be sure to clean the oil pan drain plug and install with a new washer.

• The refill capacity depends on the oil temperature and drain time. Use these specifications for

reference only. Always use the dipstick to determine when the proper amount of oil is in the

engine.

7. Warm up the engine and check around the oil pan drain plug and oil filter for oil leaks.
8. Stop engine and wait for 10 minutes.
9. Check the engine oil level using the dipstick.

CAUTION:

Do not overfill the engine oil.

Oil pressure switch : 14.7 N·m (1.5 kg-m, 11 ft-lb)

Oil specification and viscosity : Refer to

MA-12, "Engine Oil Recommendation"

.

Oil pan drain plug

: Refer to

EM-139, "Removal and Installation"

.

OIL FILTER

LU-25

< ON-VEHICLE MAINTENANCE >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL FILTER

Removal and Installation

INFOID:0000000004202515

REMOVAL

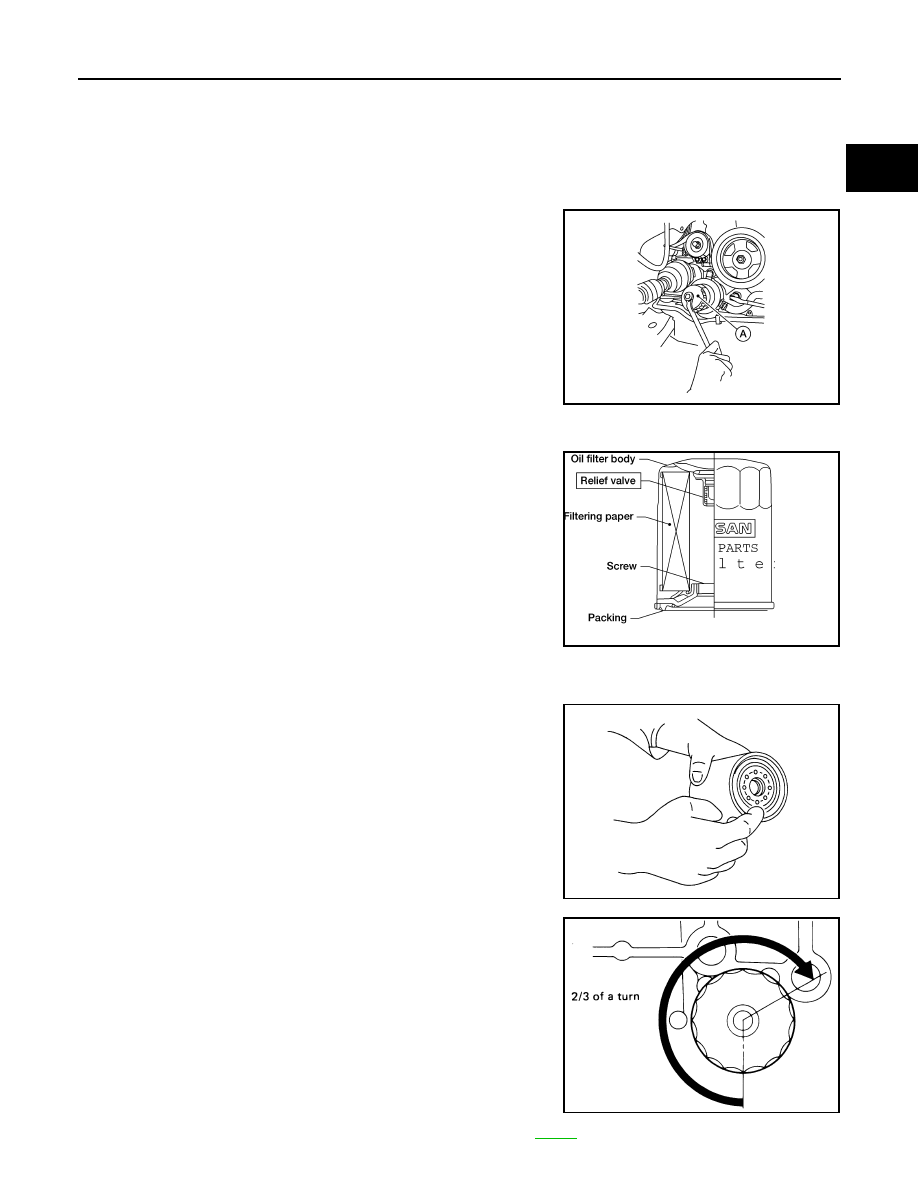

1. Remove the engine undercover.
2. Remove the oil filter using Tool (A) as shown.

WARNING:

• Be careful not to get burned, the engine and engine oil

may be hot.

CAUTION:

• When removing, prepare a shop cloth to absorb any oil

leakage or spillage.

• Do not allow engine oil to adhere to the drive belts.

• Completely wipe off any oil that adheres to the engine and

the vehicle.

• The oil filter has a built in pressure relief valve. Use a gen-

uine NISSAN oil filter or equivalent

INSTALLATION

1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply clean engine oil to the oil seal contact surface of the new

oil filter.

3. Screw the oil filter manually until it touches the installation sur-

face, then tighten it by 2/3 turn. Or tighten to specification below.

4. Check the oil level and add engine oil as necessary. Refer to

LU-23

.

Tool number

: KV10115801 (J-38956)

ALBIA0617GB

ALC094

SMA010

Oil filter

: 18.0 N·m (1.8 kg-m, 13 ft-lb)

SMA229B
