FRONT FOG LAMP

FRONT FOG LAMP

Bulb Replacement

INFOID:0000000004201559

REMOVAL

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it.

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

• Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. may

affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.

1. Position the front fender protector aside. Refer to

EXT-19, "Removal and Installation"

.

2. Disconnect the fog lamp electrical connector.

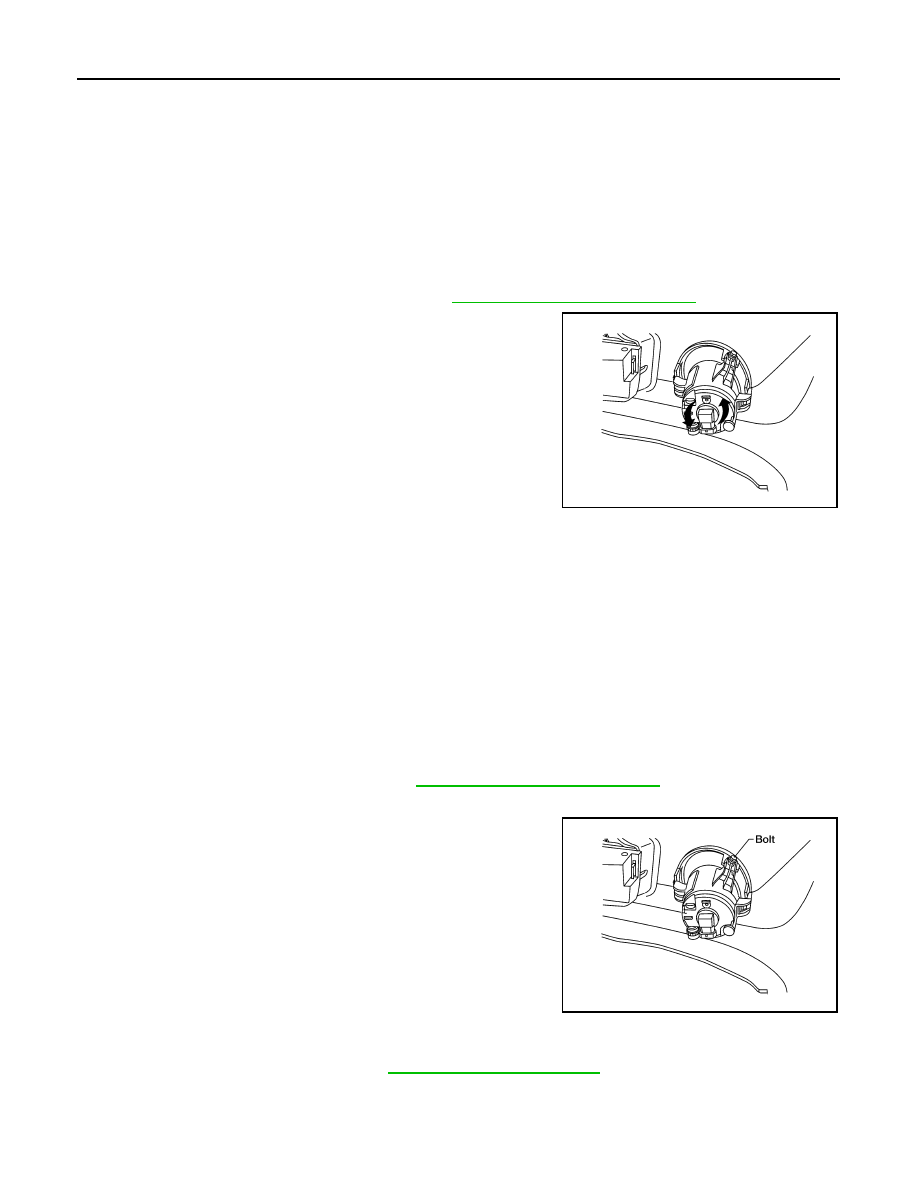

3. Turn the fog lamp bulb counterclockwise to remove it.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000004201560

REMOVAL

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.

CAUTION:

• Do not leave fog lamp assembly without bulb for a long period of time. Dust, moisture, smoke, etc.

entering the fog lamp body may affect the performance. Remove the bulb from the headlamp assem-

bly just before replacement bulb is installed.

• Grasp only the plastic base when handling the bulb. Never touch the glass envelope. Touching the

glass could significantly affect the bulb life and/or fog lamp performance.

1. Remove inner splash shield.
2. Position the fender protector aside. Refer to

EXT-19, "Removal and Installation"

.

3. Disconnect the fog lamp electrical connector.
4. Remove bolt from top of fog lamp.
5. Remove fog lamp.

INSTALLATION

Installation is in the reverse order of removal.

Check fog lamp aiming adjustment. Refer to

EXL-252, "Aiming Adjustment"

.

WKIA1066E

WKIA1067E

STOP LAMP

EXL-257

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

STOP LAMP

Bulb Replacement

INFOID:0000000004523254

STOP LAMP

Removal

1. Remove rear combination lamp. Refer to

EXL-257, "Removal and Installation"

.

2. Turn bulb socket counterclockwise to unlock and remove from combination lamp assembly.
3. Turn bulb counterclockwise to remove from bulb socket.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000004523255

HIGH MOUNTED STOP LAMP (with rear spoiler)

The high-mounted stop lamp uses an LED circuit board instead of a bulb. The LED circuit board is not service-

able and the high-mounted stop lamp must be replaced as an assembly. Refer to

EXT-47, "Removal and

Installation"

.

HIGH-MOUNTED STOP LAMP (with parcel shelf)

Removal

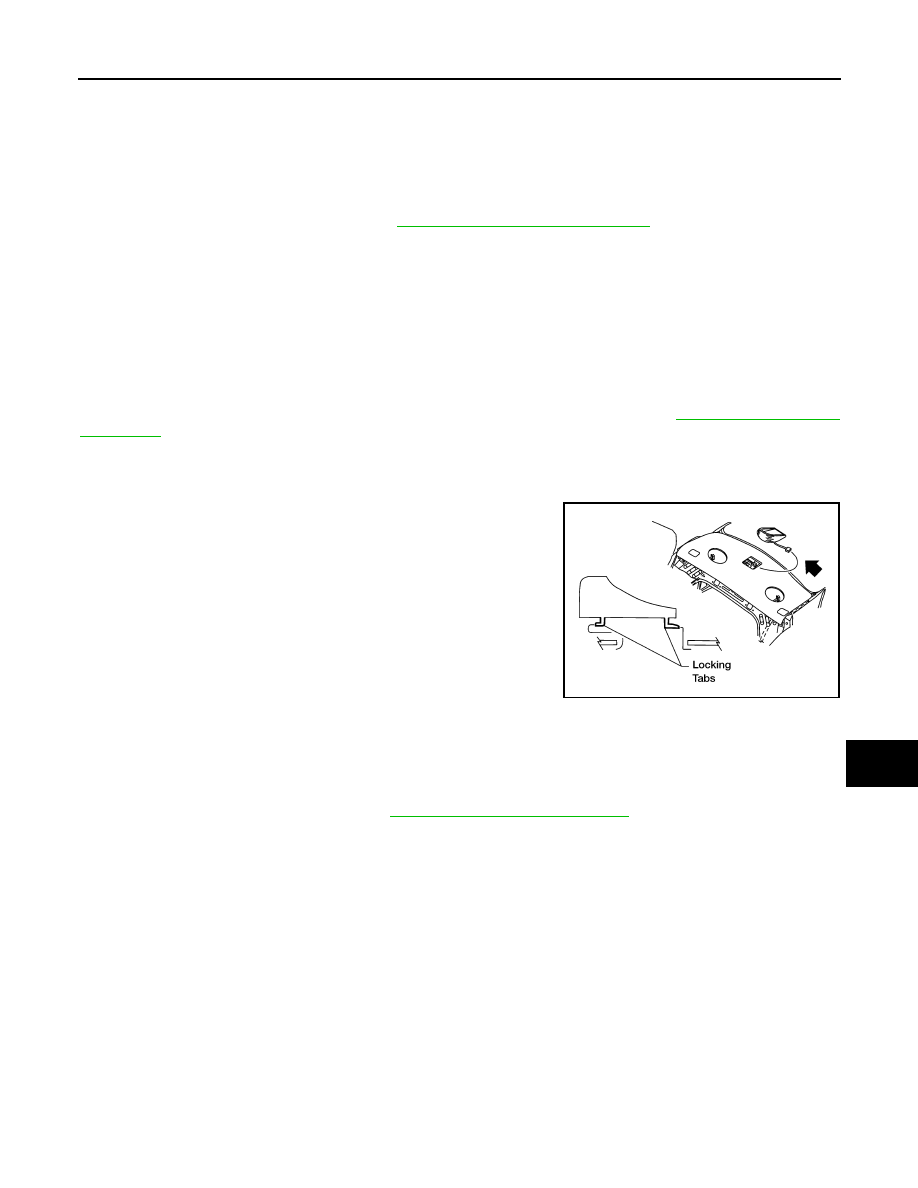

1. Slide the high-mounted stop lamp assembly rearward on the

parcel shelf to give clearance to the front tabs.

2. Lift the front of the lamp assembly up and slide it forward to give

clearance to the rear tabs.

3. Disconnect the high-mounted stop lamp connector and remove.

Installation

Installation is in the reverse order of removal.

REAR COMBINATION LAMP

Removal

1. Remove the trunk side finisher. Refer to

INT-46, "Removal and Installation"

.

2. From inside the trunk, remove the rear combination lamp assembly nuts.
3. Disconnect the connectors and remove the rear combination lamp assembly.

Installation

Installation is in the reverse order of removal.

LKIA0063E

EXL-258

< ON-VEHICLE REPAIR >

BACK-UP LAMP

BACK-UP LAMP

Bulb Replacement

INFOID:0000000004201563

Removal

1. Remove the rear combination lamp. Refer to

EXL-260, "Removal and Installation"

.

2. Turn back-up lamp bulb socket counterclockwise to unlock and remove.

3. Pull back-up lamp bulb from socket to remove.

Installation

Installation is in the reverse order of removal.

LICENSE PLATE LAMP

EXL-259

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000004201564

REMOVAL

1. Position trunk lid finisher aside.

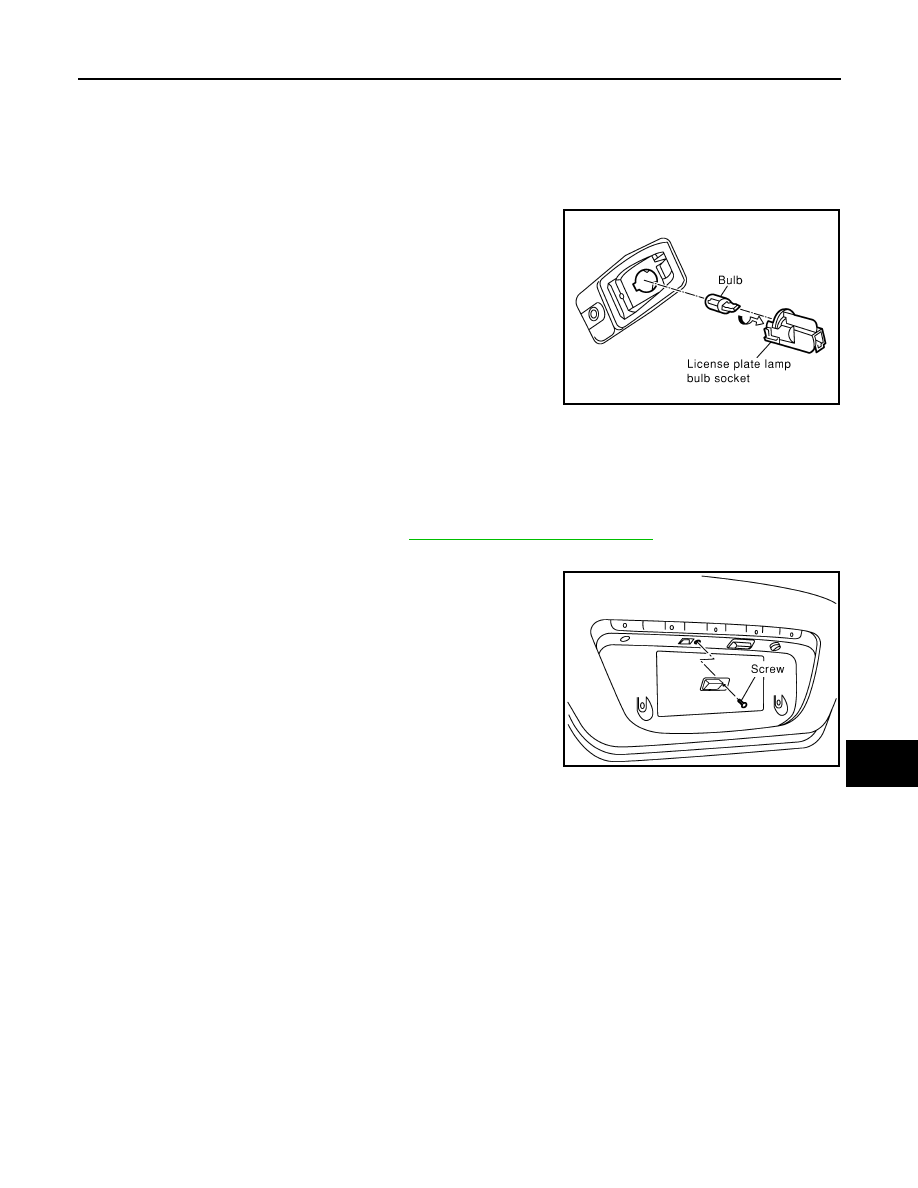

2. Turn license plate lamp bulb socket counterclockwise to unlock

and remove.

3. Pull license plate lamp bulb to remove from socket.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000004201565

REMOVAL

1. Remove the license lamp finisher. Refer to

EXT-23, "Removal and Installation"

.

2. Disconnect the license plate lamp connector.
3. Remove the license plate lamp screw and remove the license

plate lamp.

INSTALLATION

Installation is in the reverse order of removal.

WKIA3384E

PKIA0059E
