Nissan Altima L32. Manual - part 742





EXL-252

< ON-VEHICLE MAINTENANCE >

FRONT FOG LAMP

FRONT FOG LAMP

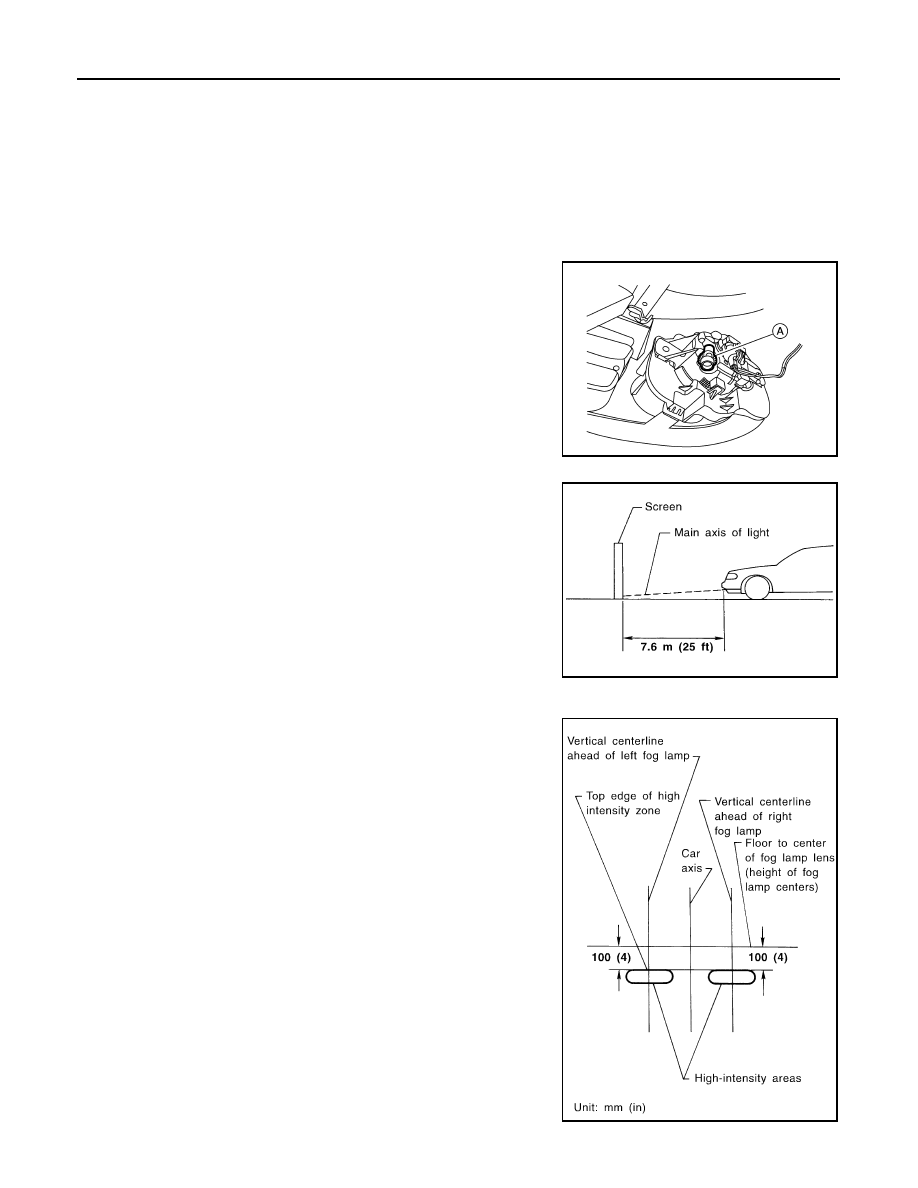

Aiming Adjustment

INFOID:0000000004201555

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming

adjustment, make sure of the following.

• Keep all tires inflated to correct pressure.

• Place vehicle on level ground.

• See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and

tools). Have the driver or equivalent weight placed in driver seat.

• Adjust aiming in the vertical direction by turning the adjusting

screw (A).

• When performing adjustment, if necessary, cover the headlamps

and opposite fog lamp.

1. Set the distance between the screen and the center of the fog

lamp lens as shown.

2. Turn front fog lamps ON.
3. Adjust front fog lamps using adjusting screw so that the top edge

of the high intensity zone is 100 mm (4 in) below the height of

the fog lamp centers as shown.

ALLIA0035ZZ

MEL327G

MEL328G

HEADLAMP

EXL-253

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ON-VEHICLE REPAIR

HEADLAMP

Bulb Replacement

INFOID:0000000004201556

HEADLAMP

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb. Do not touch bulb by hand while it is lit or right after being turned off, burning may result.

Removal

1. Disconnect negative battery terminal.
2. Position the fender protector aside. Refer to

EXT-19, "Removal and Installation"

3. Turn the headlamp bulb sockets counterclockwise to unlock and remove them (halogen).
4. Remove the plastic cover, disconnect the ignitor, unlock the retaining spring to unlock and remove the

bulb (xenon only).

5. Turn the high beam lamp bulb socket counterclockwise to unlock and remove it.

Installation

CAUTION:

After installing the bulb, be sure to install the plastic cap securely to ensure watertightness.

Installation is in the reverse order of removal.

FRONT TURN SIGNAL LAMP

Removal

1. Turn the bulb socket counterclockwise to unlock it.
2. Pull the bulb to remove it.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing a headlamp bulb, be sure to install the bulb socket securely to ensure watertightness.

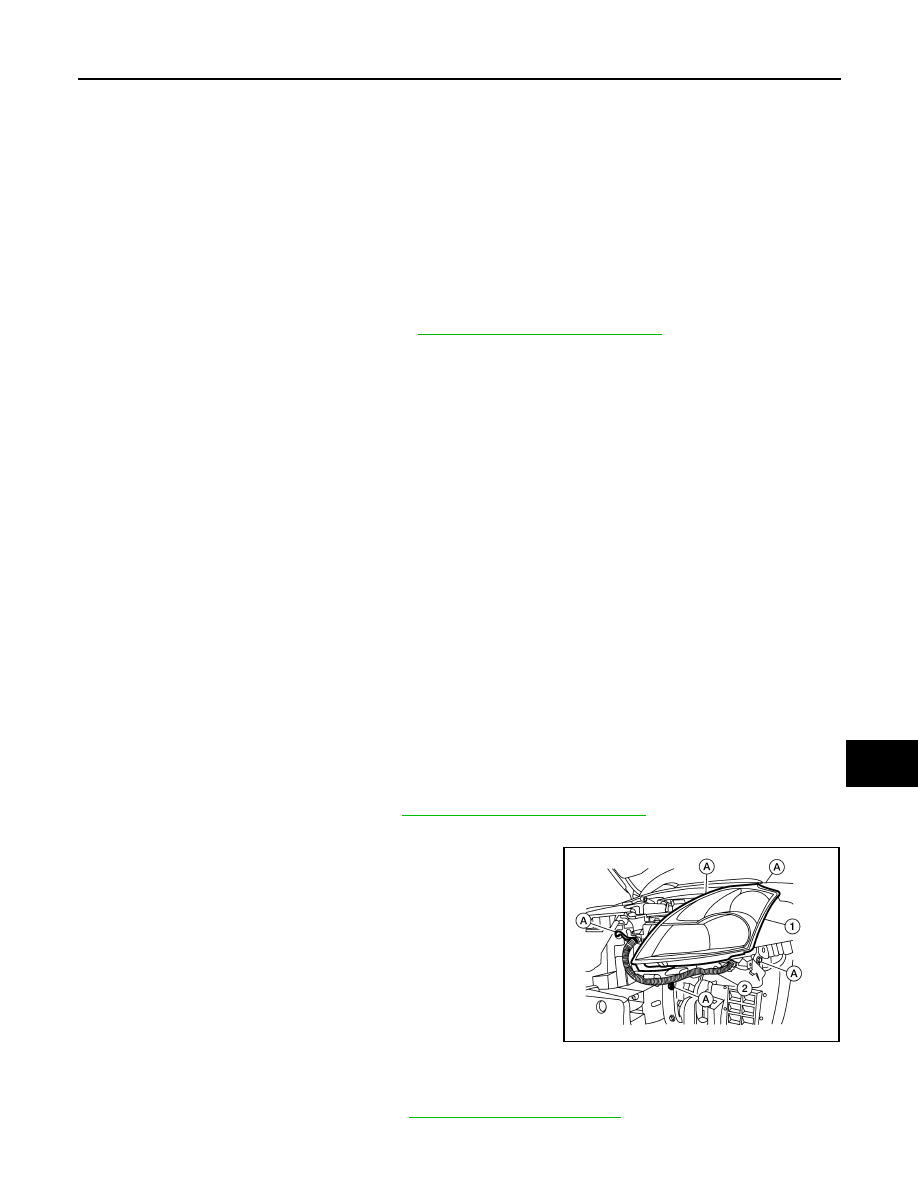

Removal and Installation

INFOID:0000000004201557

COMBINATION LAMP

Removal

1. Disconnect battery negative terminal.
2. Remove the front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

3. Ensure lighting switch is OFF.
4. Remove the headlamp bolts (A).
5. Pull the headlamp assembly (1) toward the front of the vehicle,

detach the headlamp harness (2) from the headlamp assembly,

disconnect the bulb connectors and remove.

Installation

Installation is in the reverse order of removal.

NOTE:

Confirm headlamp aiming adjustment. Refer to

EXL-248, "Aiming Adjustment"

.

ALLIA0036ZZ

EXL-254

< ON-VEHICLE REPAIR >

HEADLAMP

Disassembly and Assembly

INFOID:0000000004201558

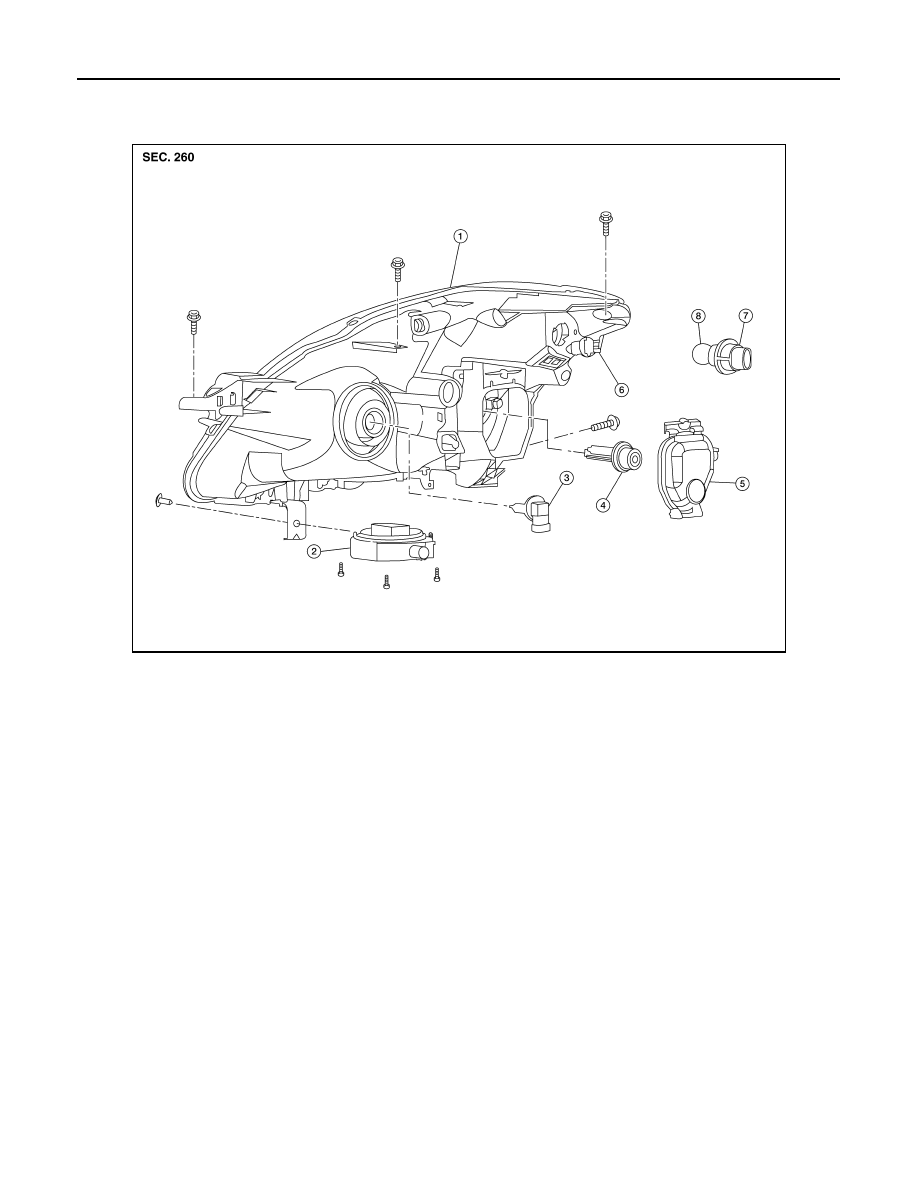

COMBINATION LAMP - XENON TYPE

Disassembly

CAUTION:

• Do not touch the glass of the bulb directly by hand. Keep grease and other oily substances away

from bulb. Do not touch bulb while it is lit or right after being turned off, burning may result.

1. Remove the plastic cover, disconnect the xenon bulb connector, unlock the retaining spring to remove the

xenon bulb.

2. Turn the halogen bulb (high beam) lamp socket counterclockwise to unlock and remove it.
3. Turn the front turn signal lamp bulb socket counterclockwise to unlock and remove it.
4. Pull the front turn signal lamp bulb from its socket.
5. Turn the park/side marker lamp bulb socket counterclockwise to unlock and remove it.
6. Pull the park/side marker lamp bulb from its socket.

Assembly

Assembly is in the reverse order of disassembly.

CAUTION:

• After installing the xenon bulb, be sure to install plastic cover securely to ensure watertightness.

ALLIA0040ZZ

1.

Headlamp assembly

2.

Ballast

3.

Halogen bulb (high beam)

4.

Xenon bulb

5.

Plastic cover

6.

Park/side marker lamp bulb

7.

Front turn signal lamp bulb socket

8.

Front turn signal lamp bulb

HEADLAMP

EXL-255

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

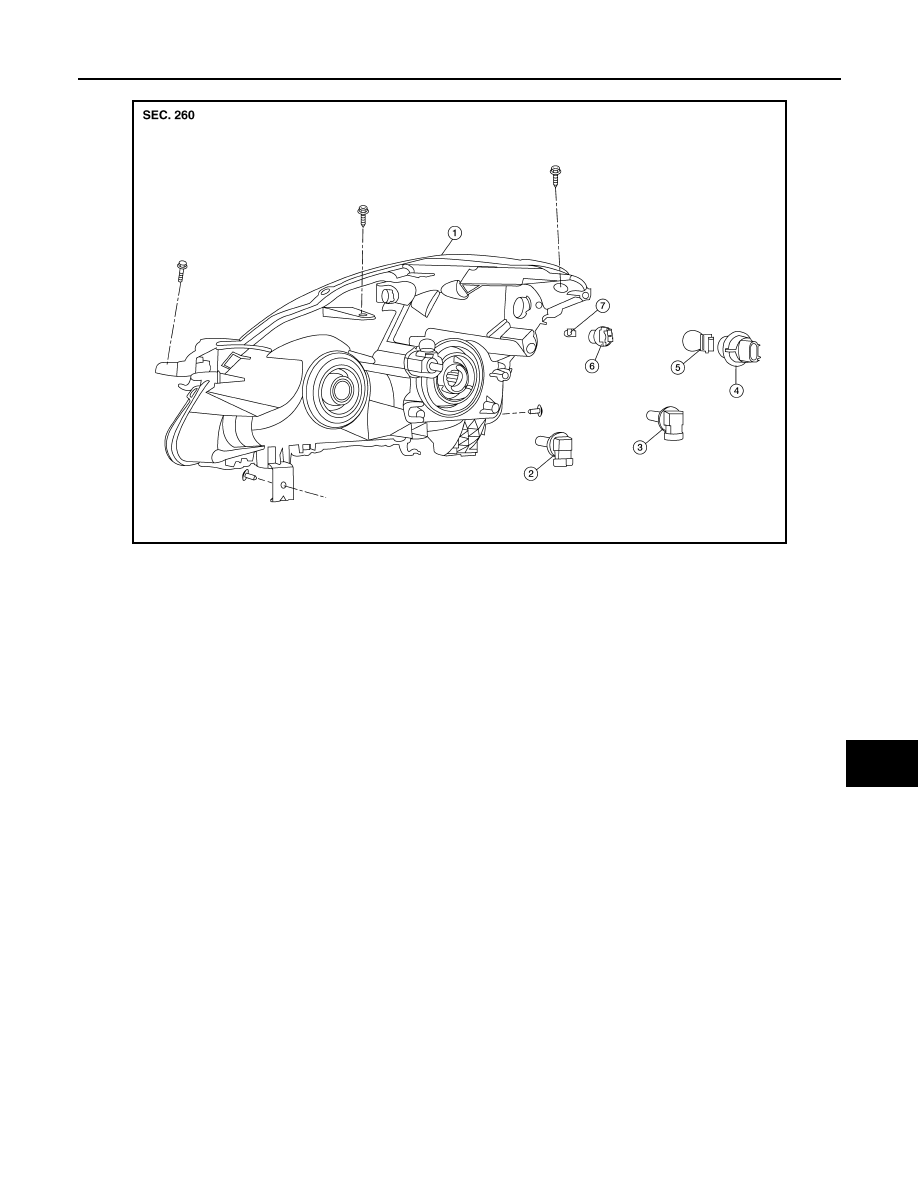

COMBINATION LAMP - HALOGEN

Disassembly

CAUTION:

• Do not touch the glass of the bulb directly by hand. Keep grease and other oily substances away

from bulb. Do not touch bulb while it is lit or right after being turned off, burning may result.

1. Turn the halogen lamp bulb (low beam) counterclockwise to unlock and remove it.
2. Turn the halogen lamp bulb (high beam) socket counterclockwise to unlock and remove it.
3. Turn the front turn signal lamp bulb socket counterclockwise to unlock and remove it.
4. Pull the front turn signal lamp bulb from its socket.
5. Turn the park/side marker lamp bulb socket counterclockwise to unlock and remove it.
6. Pull the park/side marker lamp bulb from its socket.

Assembly

Assembly is in the reverse order of disassembly.

ALLIA0038ZZ

1.

Headlamp assembly

2. Halogen lamp bulb (high beam)

3. Halogen lamp bulb (low beam)

4.

Front turn signal lamp bulb socket

5. Front turn signal lamp bulb

6. Park/side marker lamp bulb socket

7.

Park/side marker lamp bulb
