HEADLAMP (LO) CIRCUIT

1. Select "EXTERNAL LAMP" of IPDM E/R active test item.

2. With operating the test items, check that the headlamp is turned ON.

Is the headlamp turned ON?

YES

>> Headlamp (LO) is normal.

NO

>> Refer to

EXL-44, "HEADLAMP (XENON) : Diagnosis Procedure"

.

HEADLAMP (XENON) : Diagnosis Procedure

INFOID:0000000004201497

1.

CHECK HEADLAMP (LO) FUSES

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

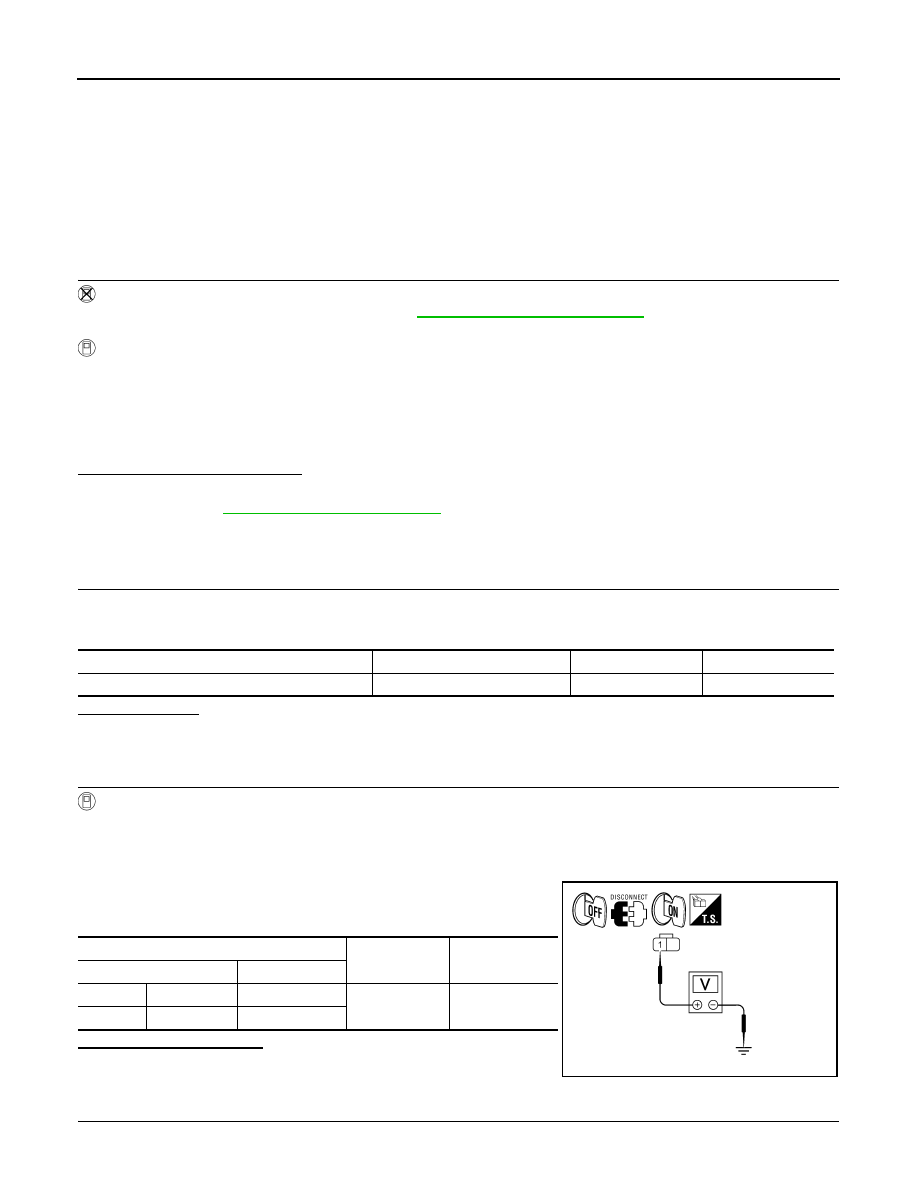

CHECK HEADLAMP (LO) OUTPUT VOLTAGE

CONSULT-III

1. Turn the ignition switch OFF.

2. Disconnect the front combination lamp connector.

3. Turn the ignition switch ON.

4. Select "EXTERNAL LAMP" of IPDM E/R active test item.

5. With EXTERNAL LAMP ON, check the voltage between the

combination lamp connector and ground.

Is battery voltage present?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK HEADLAMP (LO) CIRCUIT FOR OPEN

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between the IPDM E/R harness connector and

the front combination lamp harness connector.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

LO

: Headlamp ON

OFF

: Headlamp OFF

Unit

Location

Fuse No.

Capacity

Headlamp LO (LH)

IPDM E/R

51

15A

Headlamp LO (RH)

IPDM E/R

52

15A

(+)

(

−)

Voltage

Connector

Terminal

RH

E223

1

Ground

Battery voltage

LH

E212

1

AWLIA0568ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

RH

E200

83

E223

1

Yes

LH

84

E212

1

AWLIA0569ZZ

HEADLAMP (LO) CIRCUIT

EXL-45

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

4.

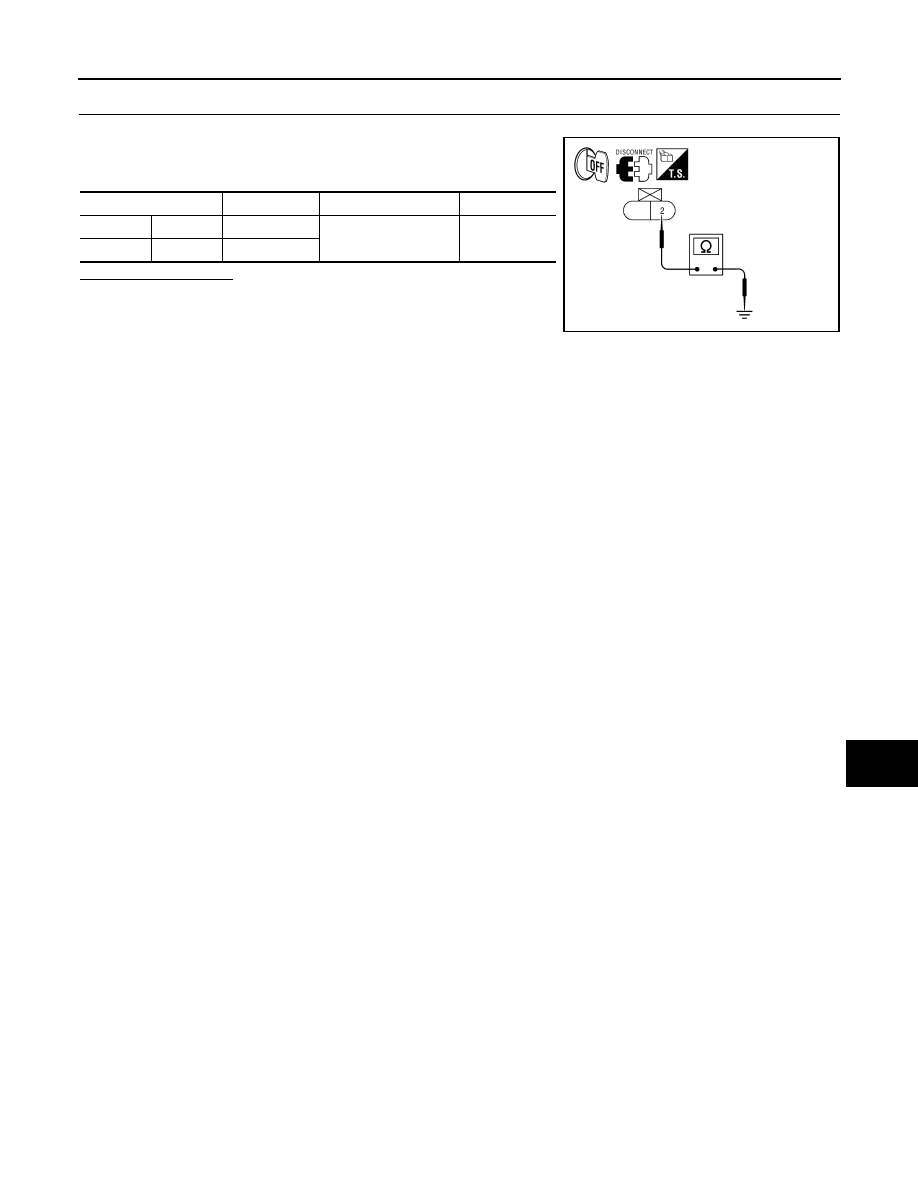

CHECK FRONT COMBINATION LAMP (LO) GROUND CIRCUIT

1. Disconnect the front combination lamp connector.

2. Check continuity between the front combination lamp harness

connector terminal and ground.

Does continuity exist?

YES

>> Inspect the headlamp bulb.

NO

>> Repair the harness.

Connector

Terminal

—

Continuity

RH

E223

2

Ground

Yes

LH

E212

2

AWLIA0570ZZ

EXL-46

< COMPONENT DIAGNOSIS >

FRONT FOG LAMP CIRCUIT

FRONT FOG LAMP CIRCUIT

Description

INFOID:0000000004201498

The IPDM E/R (intelligent power distribution module engine room) controls the front fog lamp relay based on

inputs from the BCM over the CAN communication lines. When the front fog lamp relay is energized, power

flows from the front fog lamp relay in the IPDM E/R to the front fog lamps.

Component Function Check

INFOID:0000000004201499

1.

CHECK FRONT FOG LAMP OPERATION

WITHOUT CONSULT-III

1. Activate IPDM E/R auto active test. Refer to

PCS-14, "Diagnosis Description"

.

2. Check that the front fog lamp is turned ON.

CONSULT-III

1. Select "EXTERNAL LAMP" of IPDM E/R active test item.

2. With operating the test items, Check that the front fog lamp is turned ON.

Is the front fog lamp turned ON?

YES

>> Front fog lamp circuit is normal.

NO

>> Refer to

EXL-46, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004201500

1.

CHECK FRONT FOG LAMP FUSE

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2

2.

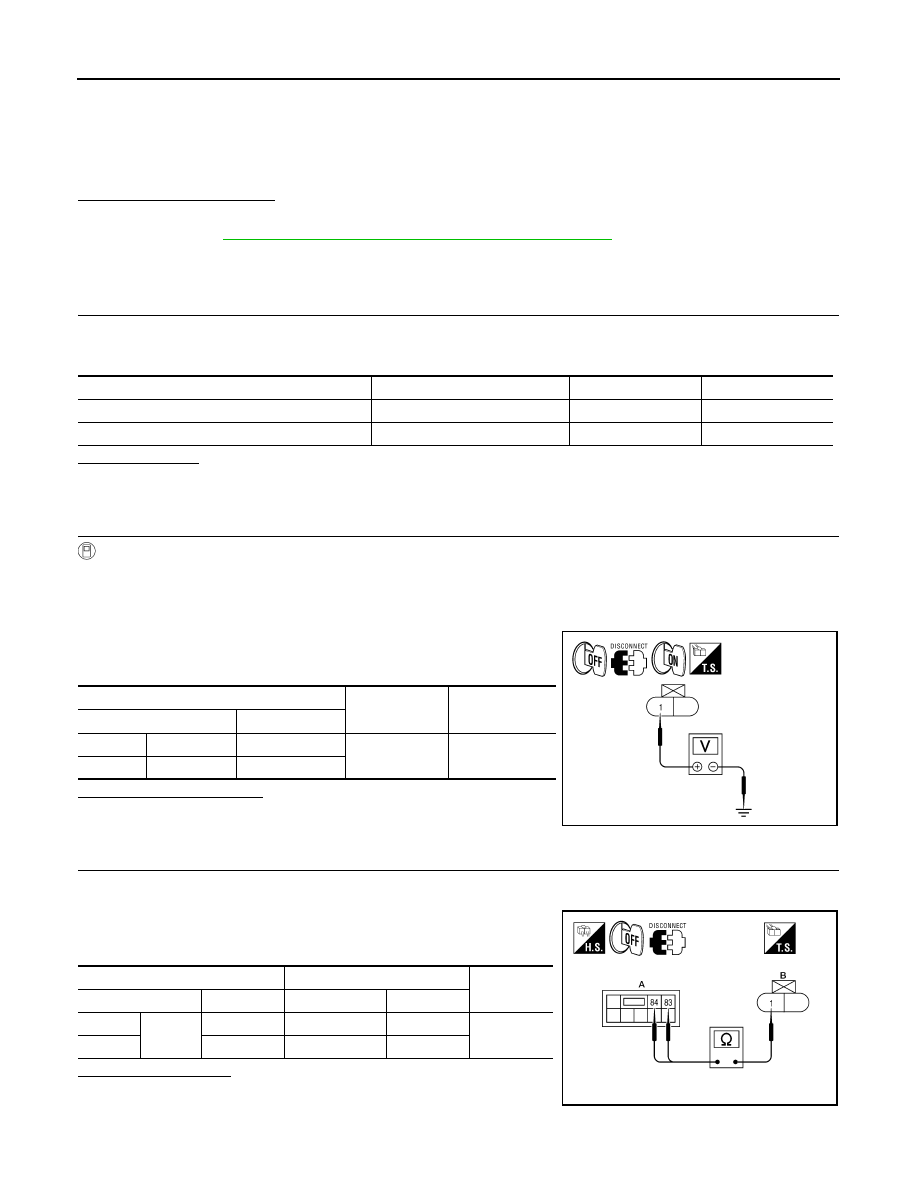

CHECK FRONT FOG LAMP OUTPUT VOLTAGE

CONSULT-III

1. Turn the ignition switch OFF.

2. Disconnect the front fog lamp connector.

3. Turn the ignition switch ON.

4. Select "EXTERNAL LAMP" of IPDM E/R active test item.

5. With EXTERNAL LAMP ON, check the voltage between the fog

lamp connector and ground.

Is battery voltage present?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK FRONT FOG LAMP OPEN CIRCUIT

1. Turn the ignition switch OFF.

FOG

: Front fog lamp ON

OFF

: Front fog lamp OFF

Unit

Location

Fuse No.

Capacity

Front fog lamp

IPDM E/R

53

15A

(+)

(

−)

Voltage

Connector

Terminal

LH

E214

1

Ground

Battery voltage

RH

E227

1

ALLIA0119ZZ

FRONT FOG LAMP CIRCUIT

EXL-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2. Disconnect IPDM E/R connector.

3. Check continuity between the IPDM E/R harness connector and

the front fog lamp harness connector.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair the harnesses or connectors.

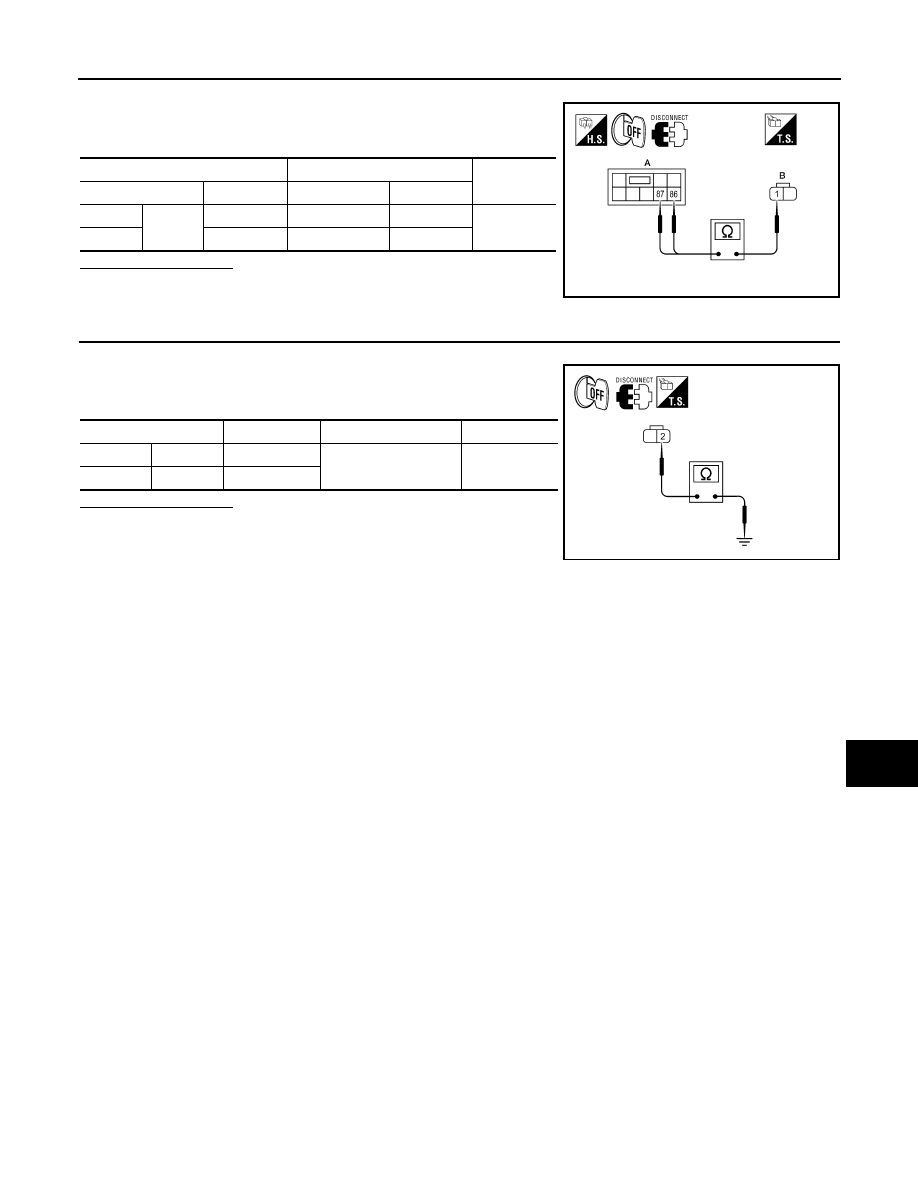

4.

CHECK FRONT FOG LAMP GROUND CIRCUIT

1. Disconnect the front fog lamp connector.

2. Check continuity between the front fog lamp harness connector

terminal and ground.

Does continuity exist?

YES

>> Inspect the fog lamp bulb.

NO

>> Repair the harness.

A

B

Continuity

Connector

Terminal

Connector

Terminal

RH

E200

86

E227

1

Yes

LH

87

E214

1

ALLIA0123ZZ

Connector

Terminal

—

Continuity

RH

E227

2

Ground

Yes

LH

E214

2

ALLIA0121ZZ
