EXL-36

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (IPDM E/R)

ACTIVE TEST

Test item

FR FOG REQ
[Off/On]

×

Displays the status of the front fog light request signal received from BCM via
CAN communication.

FR WIP REQ
[Stop/1LOW/Low/Hi]

×

Displays the status of the front wiper request signal received from BCM via CAN
communication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[Off/BLOCK]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

IGN RLY1 -REQ
[Off/On]

Displays the status of the ignition switch ON signal received from BCM via CAN
communication.

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by IPDM E/R.

PUSH SW
[Off/On]

Displays the status of the push-button ignition switch judged by IPDM E/R.

INTER/NP SW
[Off/On]

Displays the status of the clutch interlock switch (M/T models) or CVT shift posi-
tion (CVT models) judged by IPDM E/R.

ST RLY CONT
[Off/On]

Displays the status of the starter relay status signal received from BCM via CAN
communication.

IHBT RLY -REQ
[Off/On]

Displays the status of the starter control relay signal received from BCM via CAN
communication.

ST/INHI RLY
[Off/ ST /INHI]

Displays the status of the starter relay and starter control relay judged by IPDM
E/R.

DETENT SW
[Off/On]

Displays the status of the CVT device (detention switch) judged by IPDM E/R.

S/L RLY -REQ
[Off/On]

Displays the status of the electronic steering column lock relay request received
from BCM via CAN communication.

S/L STATE
[LOCK/UNLK/UNKWN]

Displays the status of the electronic steering column lock judged by IPDM E/R.

DTRL REQ
[Off]

NOTE:
This item is displayed, but cannot be monitored.

OIL P SW
[Open/Close]

Displays the status of the oil pressure switch judged by IPDM E/R.

THFT HRN REQ
[Off/On]

Displays the status of the theft warning horn request signal received from BCM
via CAN communication.

HORN CHIRP
[Off/On]

Displays the status of the horn reminder signal received from BCM via CAN com-
munication.

CRNRNG LMP REQ
[Off]

NOTE:
This item is displayed, but cannot be monitored.

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

Test item

Operation

Description

CORNERING LAMP

Off

NOTE:
This item is displayed, but cannot be monitored.

LH

RH

HORN

On

Operates horn relay 1 and horn relay 2 for 20 ms.

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-37

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

MOTOR FAN

1

OFF

2

Outputs 50% pulse duty signal (PWM signal) to the cooling fan control module.

3

Outputs 80% pulse duty signal (PWM signal) to the cooling fan control module.

4

Outputs 100% pulse duty signal (PWM signal) to the cooling fan control module.

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

Test item

Operation

Description

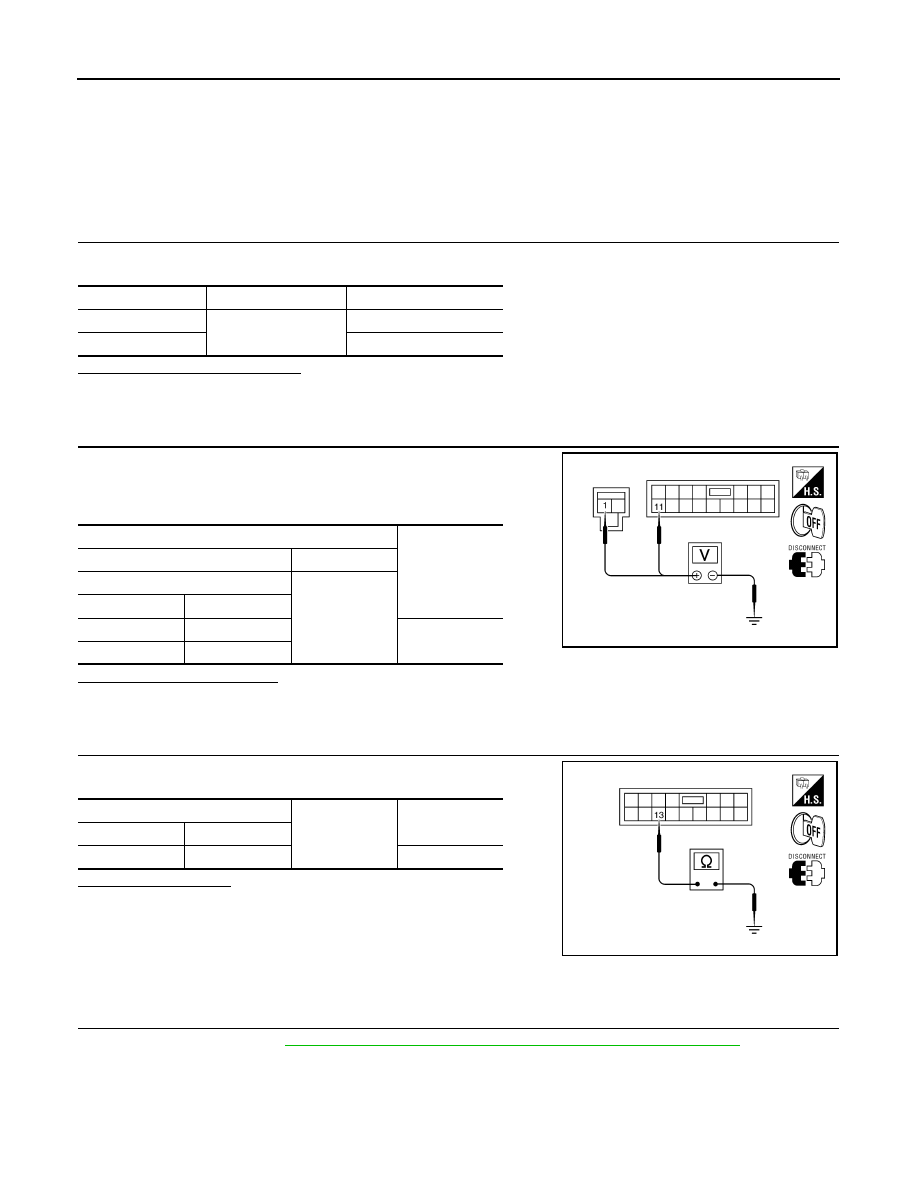

EXL-38

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM (BODY CONTROL MODULE)
BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000004498177

1.

 CHECK FUSE AND FUSIBLE LINK

Check if the following BCM fuse or fusible link are blown.

Is the fuse or fusible link blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM (BODY CONTROL MODULE) : Special Repair Requirement

INFOID:0000000004498178

1.

 REQUIRED WORK WHEN REPLACING BCM

Initialize control unit. Refer to

BCS-6, "CONFIGURATION (BCM) : Special Repair Requirement"

.

>> Work End.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Terminal No.

Signal name

Fuse and fusible link No.

1

Battery power supply

H

11

10

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

M16

1

Battery voltage

M17

11

ALCIA0025ZZ

BCM

Ground

Continuity

Connector

Terminal

M17

13

Yes

ALCIA0024ZZ

POWER SUPPLY AND GROUND CIRCUIT

EXL-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

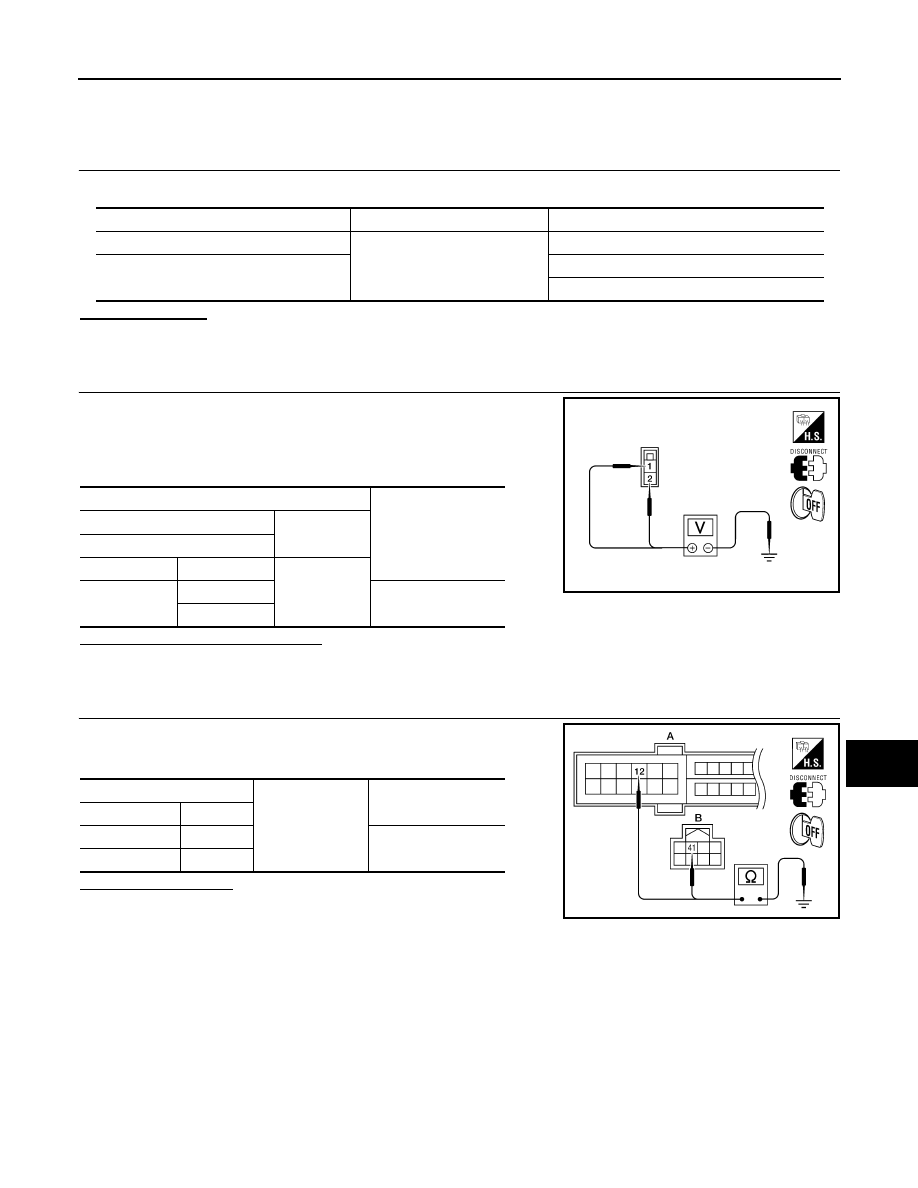

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) : Di-
agnosis Procedure

INFOID:0000000004498179

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R connectors.

3. Check voltage between IPDM E/R harness connector and

ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

 CHECK GROUND CIRCUIT

Check continuity between IPDM E/R harness connectors and

ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair harness or connector.

Terminal No.

Signal name

Fuses and fusible link No.

1, 2

Battery power supply

B, D

—

42

43

Terminals

Voltage (V)

(Approx.)

(+)

(

−)

IPDM E/R

Connector

Terminal

Ground

E16

1

Battery voltage

2

ALCIA0033ZZ

IPDM E/R

Ground

Continuity

Connector

Terminal

A: E18

12

Yes

B: E17

41

ALCIA0034ZZ
