P0222, P0223 TP SENSOR

EC-1281

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

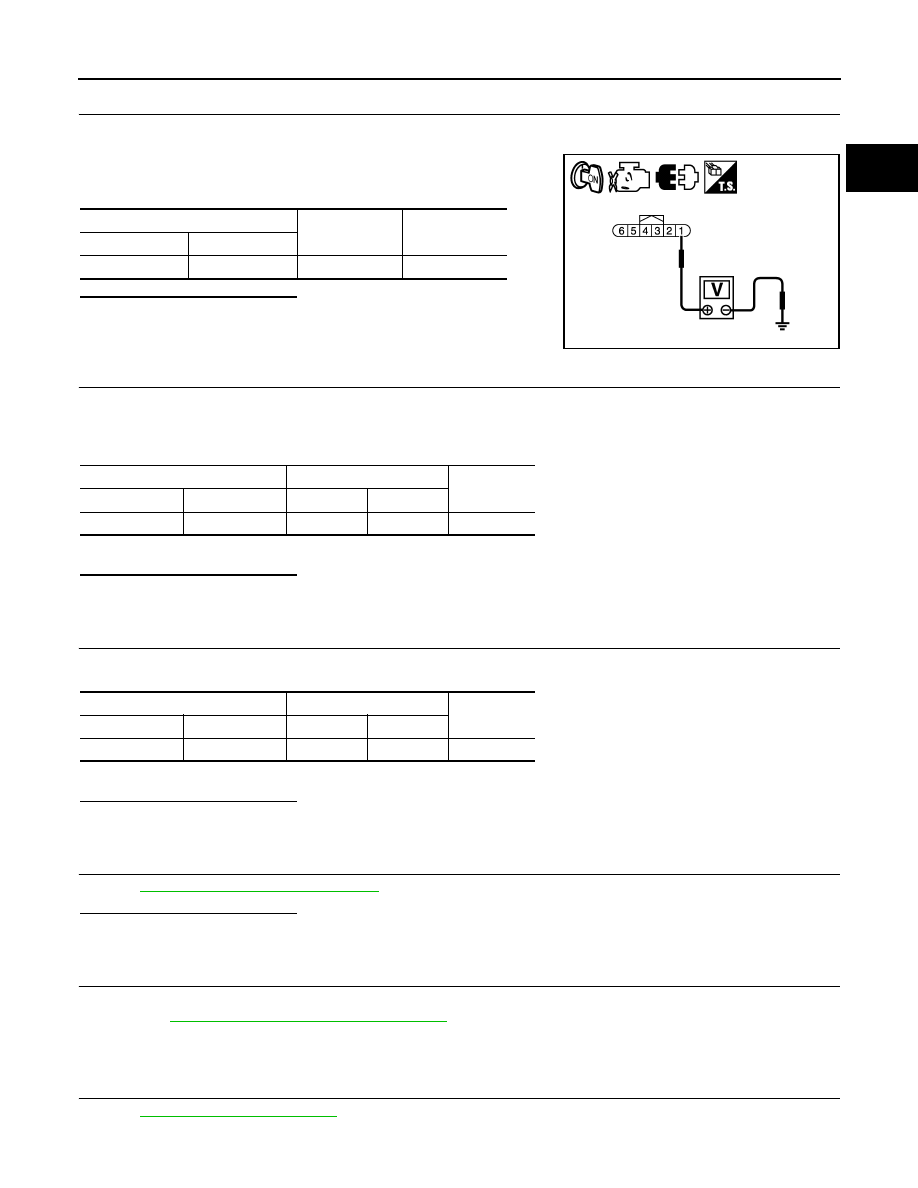

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-I

1. Disconnect electric throttle control actuator harness connector.

2. Turn ignition switch ON.

3. Check the voltage between electric throttle control actuator har-

ness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in

harness or connectors.

3.

CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK THROTTLE POSITION SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Check the continuity between electric throttle control actuator and ECM harness connector.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

5.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-1282, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace electric throttle control actuator.

2. Refer to

EC-1282, "Special Repair Requirement"

.

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Electric throttle control actuator

Ground

Voltage

Connector

Terminal

F57

1

Ground

Approx. 5 V

PBIB3484E

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F57

4

F13

36

Existed

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F57

2

F13

37

Existed

EC-1282

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0222, P0223 TP SENSOR

>> INSPECTION END

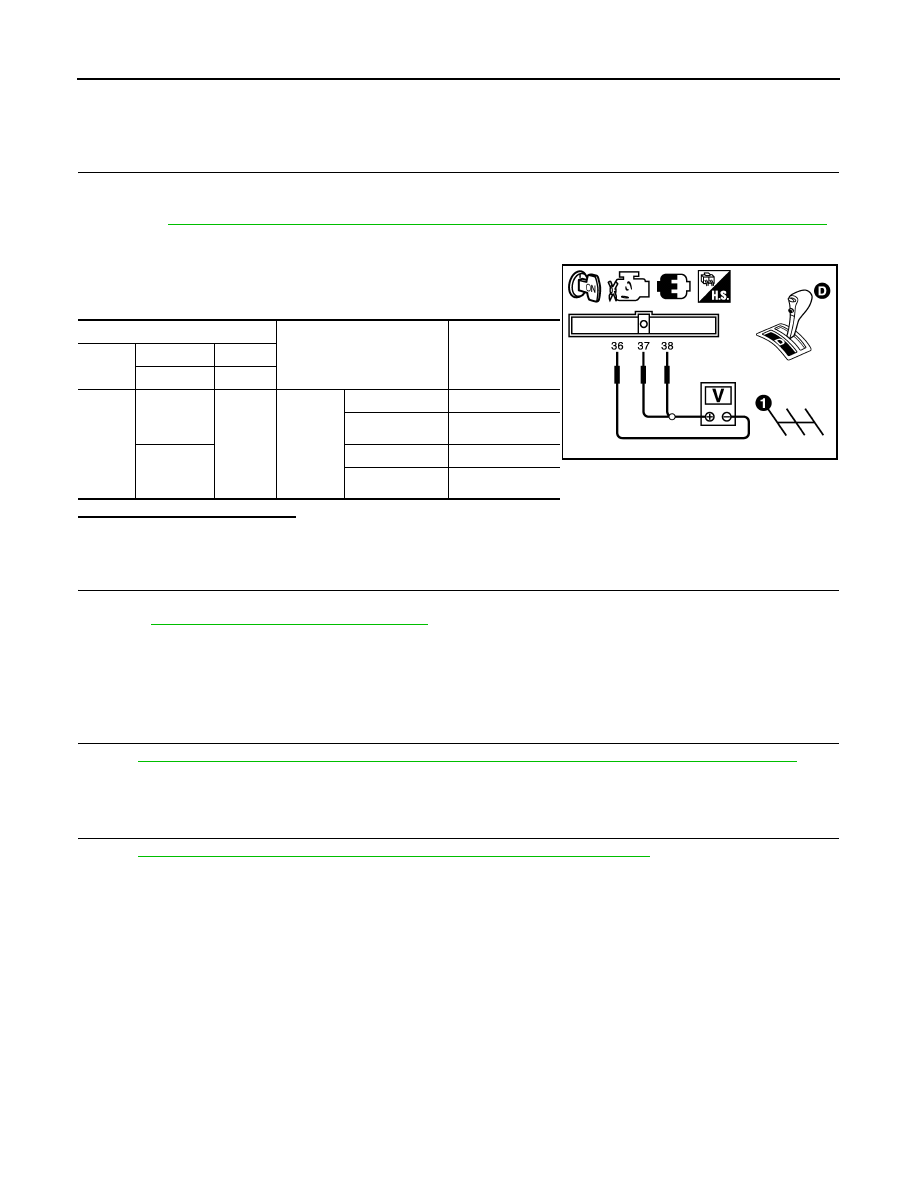

Component Inspection

INFOID:0000000004362132

1.

CHECK THROTTLE POSITION SENSOR

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Perform

EC-1053, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

4. Turn ignition switch ON.

5. Set selector lever position to D (CVT) or 1st position (M/T).

6. Check the voltage between ECM harness connector terminals

under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace electric throttle control actuator.

2. Go to

EC-1217, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000004362133

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-1053, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-1053, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END

ECM

Condition

Voltage

Con-

nector

+

–

Terminal

Terminal

F13

37

(TP sensor

1 signal)

36

(Sensor
ground)

Accelera-

tor pedal

Fully released

More than 0.36 V

Fully depressed

Less than 4.75 V

38

(TP sensor

2 signal)

Fully released

Less than 4.75 V

Fully depressed More than 0.36 V

JMBIA1953ZZ

P0300, P0301, P0302, P0303, P0304, P0305, P0306 MISFIRE

EC-1283

< COMPONENT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0300, P0301, P0302, P0303, P0304, P0305, P0306 MISFIRE

DTC Logic

INFOID:0000000004362134

DTC DETECTION LOGIC

When a misfire occurs, engine speed will fluctuate. If the engine speed fluctuates enough to cause the crank-

shaft position (CKP) sensor (POS) signal to vary, ECM can determine that a misfire is occurring.

The misfire detection logic consists of the following two conditions.
1. One Trip Detection Logic (Three Way Catalyst Damage)

On the 1st trip, when a misfire condition occurs that can damage the three way catalyst (TWC) due to

overheating, the MIL will blink.

When a misfire condition occurs, the ECM monitors the CKP sensor signal every 200 engine revolutions

for a change.

When the misfire condition decreases to a level that will not damage the TWC, the MIL will turn off.

If another misfire condition occurs that can damage the TWC on a second trip, the MIL will blink.

When the misfire condition decreases to a level that will not damage the TWC, the MIL will remain on.

If another misfire condition occurs that can damage the TWC, the MIL will begin to blink again.

2. Two Trip Detection Logic (Exhaust quality deterioration)

For misfire conditions that will not damage the TWC (but will affect vehicle emissions), the MIL will only

illuminate when the misfire is detected on a second trip. During this condition, the ECM monitors the CKP

sensor signal every 1,000 engine revolutions.

A misfire malfunction can be detected in any one cylinder or in multiple cylinders.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-I

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Restart engine and let it idle for approximately 15 minutes.

6. Check 1st trip DTC.
Is 1st trip DTC detected?

Sensor

Input signal to ECM

ECM function

Crankshaft position sensor (POS)

Engine speed

On board diagnosis of misfire

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0300

Multiple cylinder misfires detected

Multiple cylinders misfire.

• Improper spark plug
• Insufficient compression
• Incorrect fuel pressure
• The fuel injector circuit is open or shorted
• Fuel injector
• Intake air leakage
• The ignition signal circuit is open or shorted
• Lack of fuel
• Signal plate
• A/F sensor 1
• Incorrect PCV hose connection

P0301

No. 1 cylinder misfire detected

No. 1 cylinder misfires.

P0302

No. 2 cylinder misfire detected

No. 2 cylinder misfires.

P0303

No. 3 cylinder misfire detected

No. 3 cylinder misfires.

P0304

No. 4 cylinder misfire detected

No. 4 cylinder misfires.

P0305

No. 5 cylinder misfire detected

No. 5 cylinder misfires.

P0306

No. 6 cylinder misfire detected

No. 6 cylinder misfires.

EC-1284

< COMPONENT DIAGNOSIS >

[VQ35DE]

P0300, P0301, P0302, P0303, P0304, P0305, P0306 MISFIRE

YES

>> Go to

EC-1284, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-II

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Start engine and drive the vehicle under similar conditions to (1st trip) Freeze Frame Data for a certain

time. Refer to the table below.

Hold the accelerator pedal as steady as possible.

Similar conditions to (1st trip) Freeze Frame Data mean that the following conditions should be satisfied at

the same time.

CAUTION:

Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws when

driving.

Driving time varies according to the engine speed in the freeze frame data.

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-1284, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004362135

1.

CHECK FOR INTAKE AIR LEAKAGE AND PCV HOSE

1. Start engine and run it at idle speed.

2. Listen for the sound of the intake air leakage.

3. Check PCV hose connection.
Is intake air leakage detected?

YES

>> Discover air leakage location and repair.

NO

>> GO TO 2.

2.

CHECK FOR EXHAUST SYSTEM CLOGGING

Stop engine and visually check exhaust tube, three way catalyst and muffler for dents.
Is the inspection result normal?

YES-1 >> With CONSULT-III: GO TO 3.

YES-2 >> Without CONSULT-III: GO TO 4.

NO

>> Repair or replace malfunctioning part.

3.

PERFORM POWER BALANCE TEST

 With CONSULT-III

1. Start engine.

2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

Engine speed

Engine speed in the freeze frame data

± 400 rpm

Vehicle speed

Vehicle speed in the freeze frame data

± 10 km/h (6 MPH)

Basic fuel schedule

Basic fuel schedule in freeze frame data

× (1 ± 0.1)

Engine coolant temperature (T)
condition

When the freeze frame data shows lower than 70

°C (158°F),

T should be lower than 70

°C (158°F).

When the freeze frame data shows higher than or equal to 70

°C (158°F),

T should be higher than or equal to 70

°C (158°F).

Engine speed

Time

Around 1,000 rpm

Approximately 10 minutes

Around 2,000 rpm

Approximately 5 minutes

More than 3,000 rpm

Approximately 3.5 minutes
