ENGINE CONTROL SYSTEM

EC-1057

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

FUNCTION DIAGNOSIS

ENGINE CONTROL SYSTEM

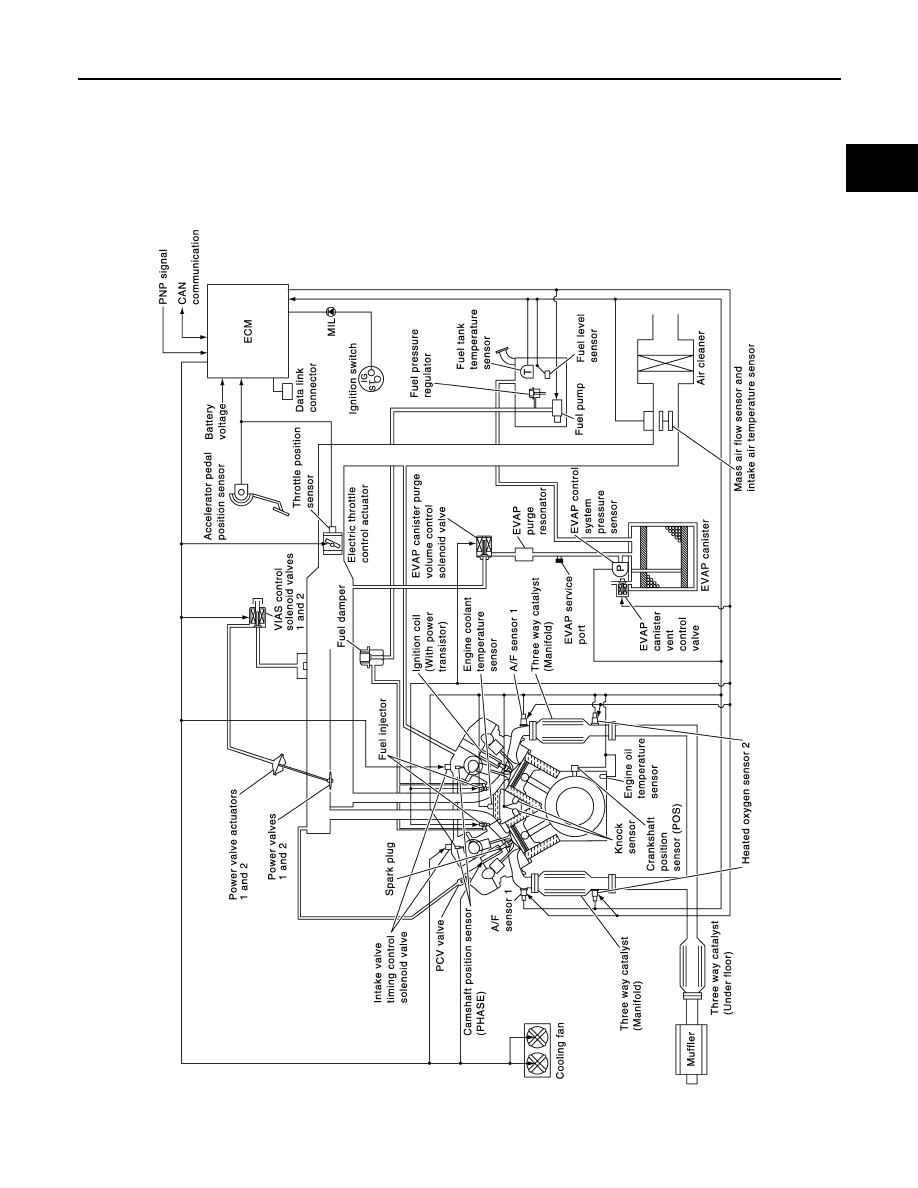

System Diagram

INFOID:0000000004361961

JMBIA1136GB

EC-1058

< FUNCTION DIAGNOSIS >

[VQ35DE]

ENGINE CONTROL SYSTEM

System Description

INFOID:0000000004361962

ECM performs various controls such as fuel injection control and ignition timing control.

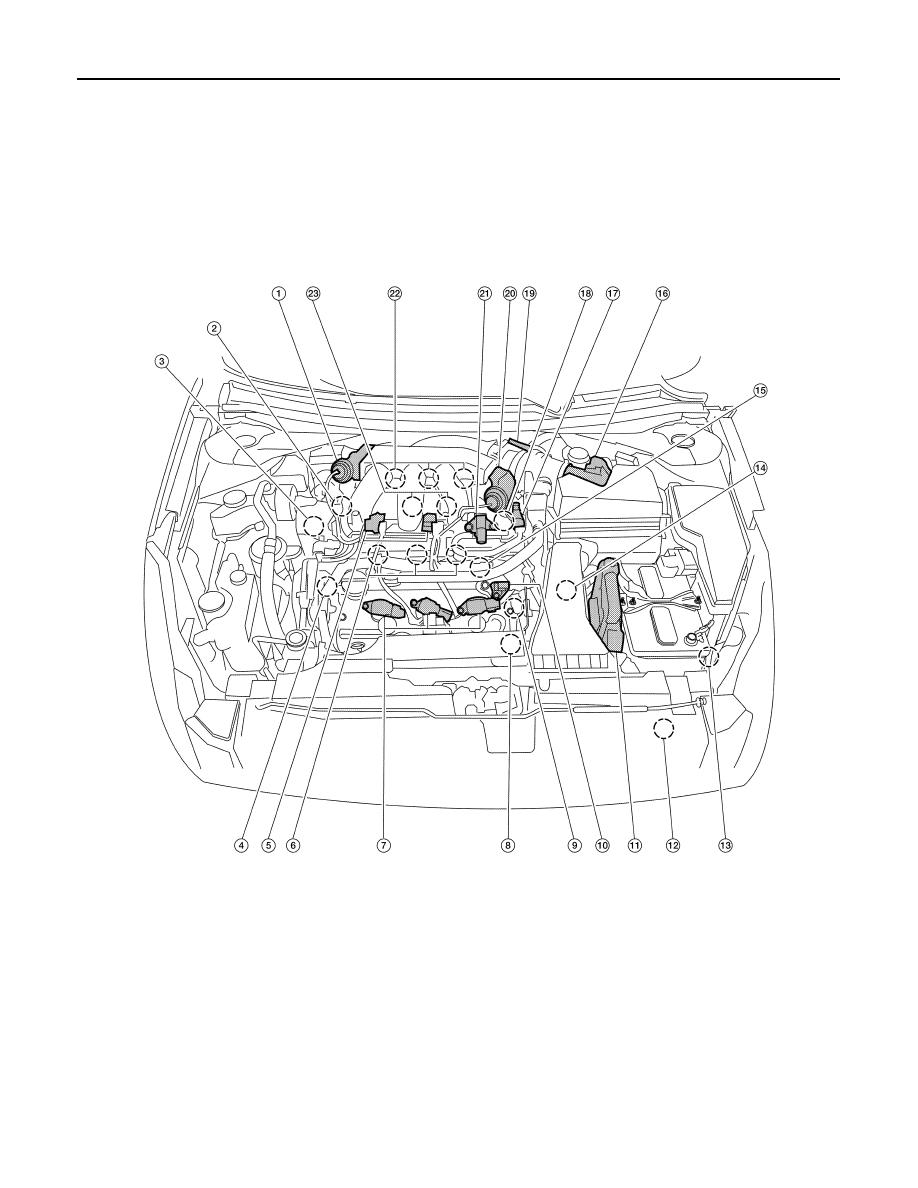

Component Parts Location

INFOID:0000000004404402

1.

Power valve actuator 1

2.

Intake valve timing control solenoid
valve (bank 1)

3.

Power steering pressure sensor

4.

Intake valve timing control solenoid
valve (bank 2)

5.

VIAS control solenoid valves 1 and 2 6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor)
and spark plug (bank 2)

8.

Crankshaft position sensor (POS)

9.

Engine coolant temperature sensor

10. Camshaft position sensor (PHASE)

(bank 2)

11. ECM

12. Refrigerant pressure sensor

13. Battery current sensor

14. PNP switch

15. Condenser-2

16. Mass air flow sensor (with intake air

temperature sensor)

17. EVAP service port

18. Camshaft position sensor (PHASE)

(bank 1)

ALBIA0110ZZ

ENGINE CONTROL SYSTEM

EC-1059

< FUNCTION DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

19. Electric throttle control actuator

20. Power valve actuator 2

21. EVAP canister purge volume control

solenoid valve

22. Ignition coil (with power transistor)

and spark plug (bank 1)

23. Knock sensor

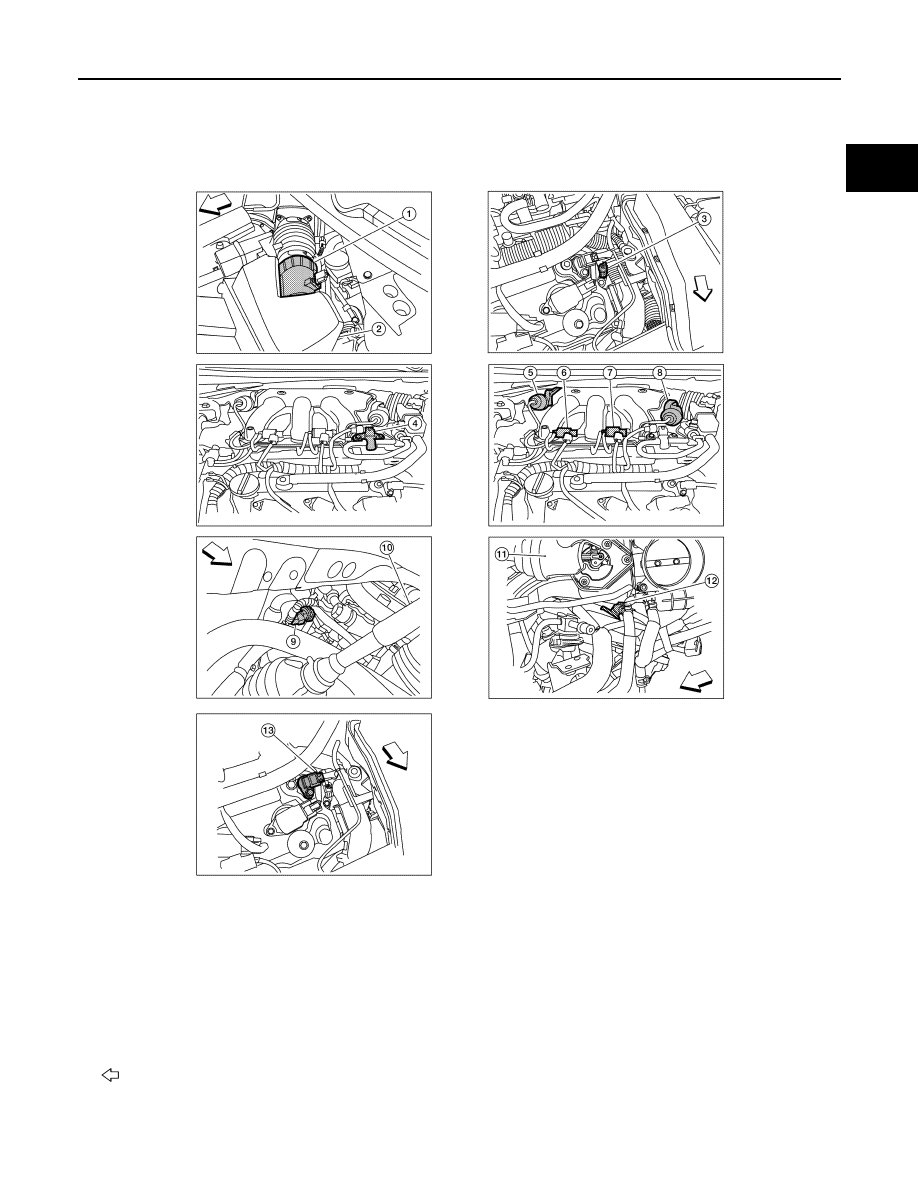

1.

Mas air flow sensor (with intake air
temperature sensor)

2.

Air cleaner case

3.

Engine coolant temperature sensor

4.

EVAP canister purge volume control
solenoid valve

5.

Power valve actuator 1

6.

VIAS control solenoid valve 1

7.

VIAS control solenoid valve 2

8.

Power valve actuator 2

9.

Power steering pressure sensor

10. Tie rod (RH)

11. Power valve actuator 2

12. Camshaft position sensor (PHASE)

(bank 1)

13. Camshaft position sensor (PHASE)

(bank 2)
: Vehicle front

ALBIA0101ZZ

EC-1060

< FUNCTION DIAGNOSIS >

[VQ35DE]

ENGINE CONTROL SYSTEM

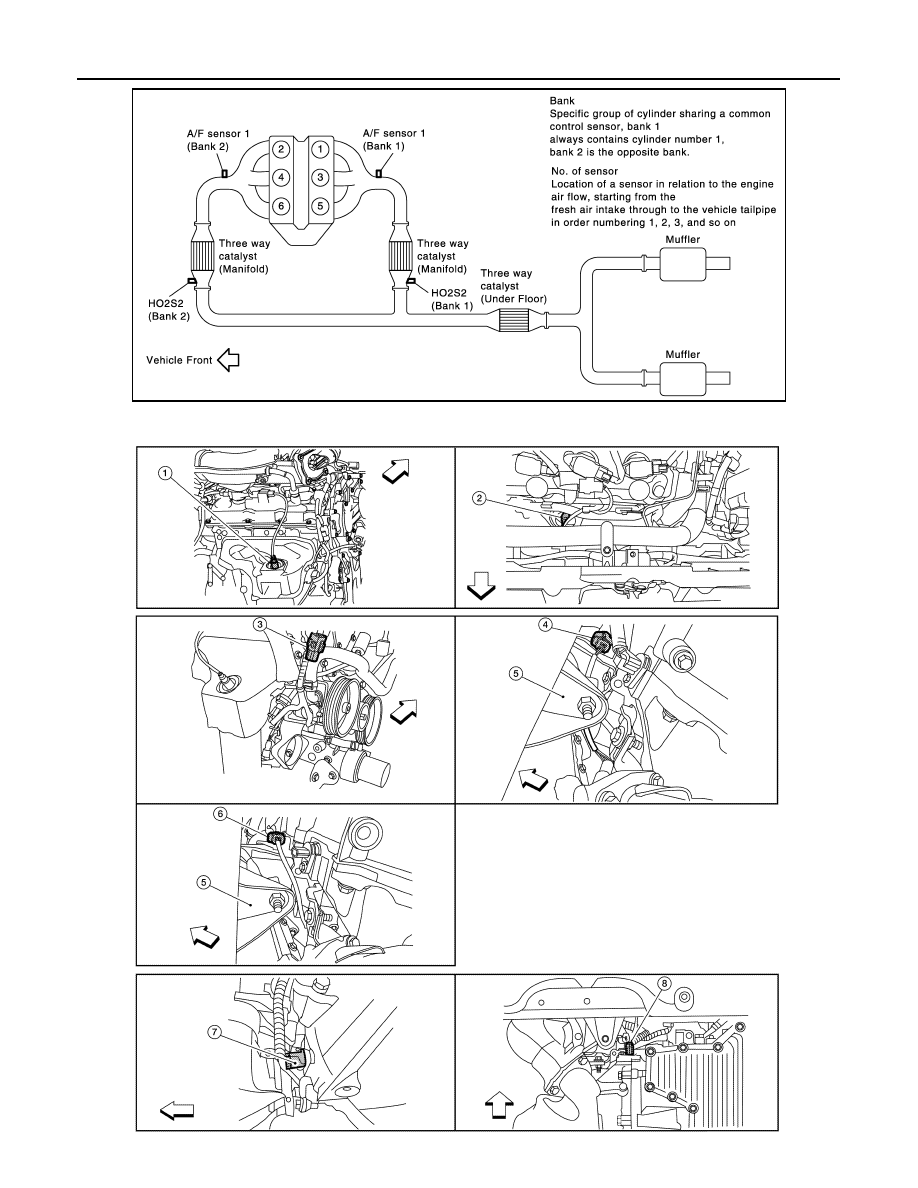

JMBIA1832GB

ALBIA0102ZZ
