2.

PERFORM VIN REGISTRATION

With CONSULT-III

1. Turn ignition switch ON and engine stopped.

2. Select “VIN REGISTRATION” in “WORK SUPPORT” mode.

3. Follow the instruction of CONSULT-III display.

>> END

ACCELERATOR PEDAL RELEASED POSITION LEARNING
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Description

INFOID:0000000004361951

Accelerator Pedal Released Position Learning is a function of ECM to learn the fully released position of the

accelerator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each

time the harness connector of the accelerator pedal position sensor or ECM is disconnected.

ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Re-
quirement

INFOID:0000000004361952

1.

START

1. Check that accelerator pedal is fully released.

2. Turn ignition switch ON and wait at least 2 seconds.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON and wait at least 2 seconds.

5. Turn ignition switch OFF and wait at least 10 seconds.

>> END

THROTTLE VALVE CLOSED POSITION LEARNING
THROTTLE VALVE CLOSED POSITION LEARNING : Description

INFOID:0000000004361953

Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle

valve by monitoring the throttle position sensor output signal. It must be performed each time the harness con-

nector of electric throttle control actuator or ECM is disconnected.

THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement

INFOID:0000000004361954

1.

START

1. Check that accelerator pedal is fully released.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

Check that throttle valve moves during the above 10 seconds by confirming the operating sound.

>> END

IDLE AIR VOLUME LEARNING
IDLE AIR VOLUME LEARNING : Description

INFOID:0000000004361955

Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps engine idle speed within

the specific range. It must be performed under the following conditions:

• Each time the electric throttle control actuator or ECM is replaced.

• Idle speed or ignition timing is out of the specification.

IDLE AIR VOLUME LEARNING : Special Repair Requirement

INFOID:0000000004361956

1.

PRECONDITIONING

Check that all of the following conditions are satisfied.

EC-1054

< BASIC INSPECTION >

[VQ35DE]

INSPECTION AND ADJUSTMENT

Learning will be cancelled if any of the following conditions are missed for even a moment.

• Battery voltage: More than 12.9 V (At idle)

• Engine coolant temperature: 70 - 100

°C (158 - 212°F)

• Selector lever position: P or N

• Electric load switch: OFF

(Air conditioner, head lamp, rear window defogger)

On vehicles equipped with daytime light systems, if the parking brake is applied before the engine is

started the head lamp will not illuminate.

• Steering wheel: Neutral (Straight-ahead position)

• Vehicle speed: Stopped

• Transmission: Warmed-up

- CVT models

• With CONSULT-III: Drive vehicle until “ATF TEMP SEN” in “DATA MONITOR” mode of “CVT” system indi-

cates less than 0.9 V.

• Without CONSULT-III: Drive vehicle for 10 minutes.

- M/T models

• Drive vehicle for 10 minutes.
Will CONSULT-III be used?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

PERFORM IDLE AIR VOLUME LEARNING

With CONSULT-III

1. Perform

EC-1053, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair

Requirement"

.

2. Perform

EC-1053, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

3. Start engine and warm it up to normal operating temperature.

4. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.

5. Touch “START” and wait 20 seconds.
Is “CMPLT” displayed on CONSULT-III screen?

YES

>> GO TO 4.

NO

>> GO TO 5.

3.

PERFORM IDLE AIR VOLUME LEARNING

Without CONSULT-III

NOTE:

• It is better to count the time accurately with a clock.

• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has

a malfunction.

1. Perform

EC-1053, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair

Requirement"

.

2. Perform

EC-1053, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

3. Start engine and warm it up to normal operating temperature.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

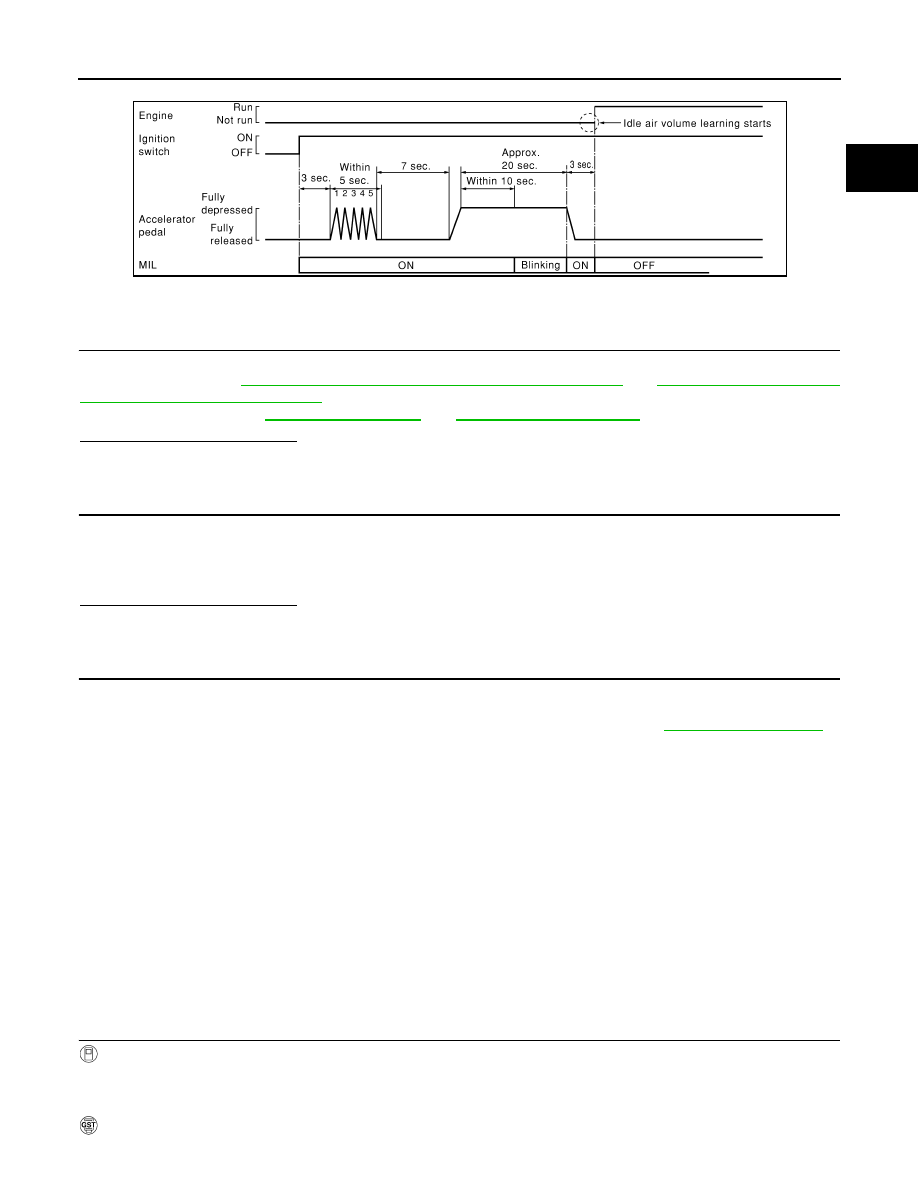

6. Repeat the following procedure quickly 5 times within 5 seconds.

-

Fully depress the accelerator pedal.

-

Fully release the accelerator pedal.

7. Wait 7 seconds, fully depress the accelerator pedal for approx. 20 seconds until the MIL stops blinking

and turns ON.

8. Fully release the accelerator pedal within 3 seconds after the MIL turns ON.

9. Start engine and let it idle.

INSPECTION AND ADJUSTMENT

EC-1055

< BASIC INSPECTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

10. Wait 20 seconds.

>> GO TO 4.

4.

CHECK IDLE SPEED AND IGNITION TIMING

Rev up the engine two or 3 times and check that idle speed and ignition timing are within the specifications.

For procedure, refer to

EC-1052, "IDLE SPEED : Special Repair Requirement"

 and

EC-1052, "IGNITION TIM-

ING : Special Repair Requirement"

.

For specifications, refer to

EC-1585, "Idle Speed"

 and

EC-1585, "Ignition Timing"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART-I

Check the following

• Check that throttle valve is fully closed.

• Check PCV valve operation.

• Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace malfunctioning part.

6.

DETECT MALFUNCTIONING PART-II

Engine component parts and their installation condition are questionable. Check and eliminate the cause of

the incident.

It is useful to perform “TROUBLE DIAGNOSIS - SPECIFICATION VALUE”. Refer to

EC-1167, "Description"

.

If any of the following conditions occur after the engine has started, eliminate the cause of the incident and

perform Idle Air Volume Learning again:

• Engine stalls.

• Incorrect idle.

>> INSPECTION END

MIXTURE RATIO SELF-LEARNING VALUE CLEAR
MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Description

INFOID:0000000004361959

This describes show to erase the mixture ratio self-learning value. For the actual procedure, follow the instruc-

tions in “Diagnosis Procedure”.

MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Special Repair Requirement

INFOID:0000000004361960

1.

START

With CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.

3. Clear mixture ratio self-learning value by touching “CLEAR”.

With GST

SEC897C

EC-1056

< BASIC INSPECTION >

[VQ35DE]

INSPECTION AND ADJUSTMENT

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF.

3. Disconnect mass air flow sensor harness connector.

4. Restart engine and let it idle for at least 5 seconds.

5. Stop engine and reconnect mass air flow sensor harness connector.

6. Select Service $03 with GST. Check that DTC P0102 is detected.

7. Select Service $04 with GST to erase the DTC P0102.

>> END
