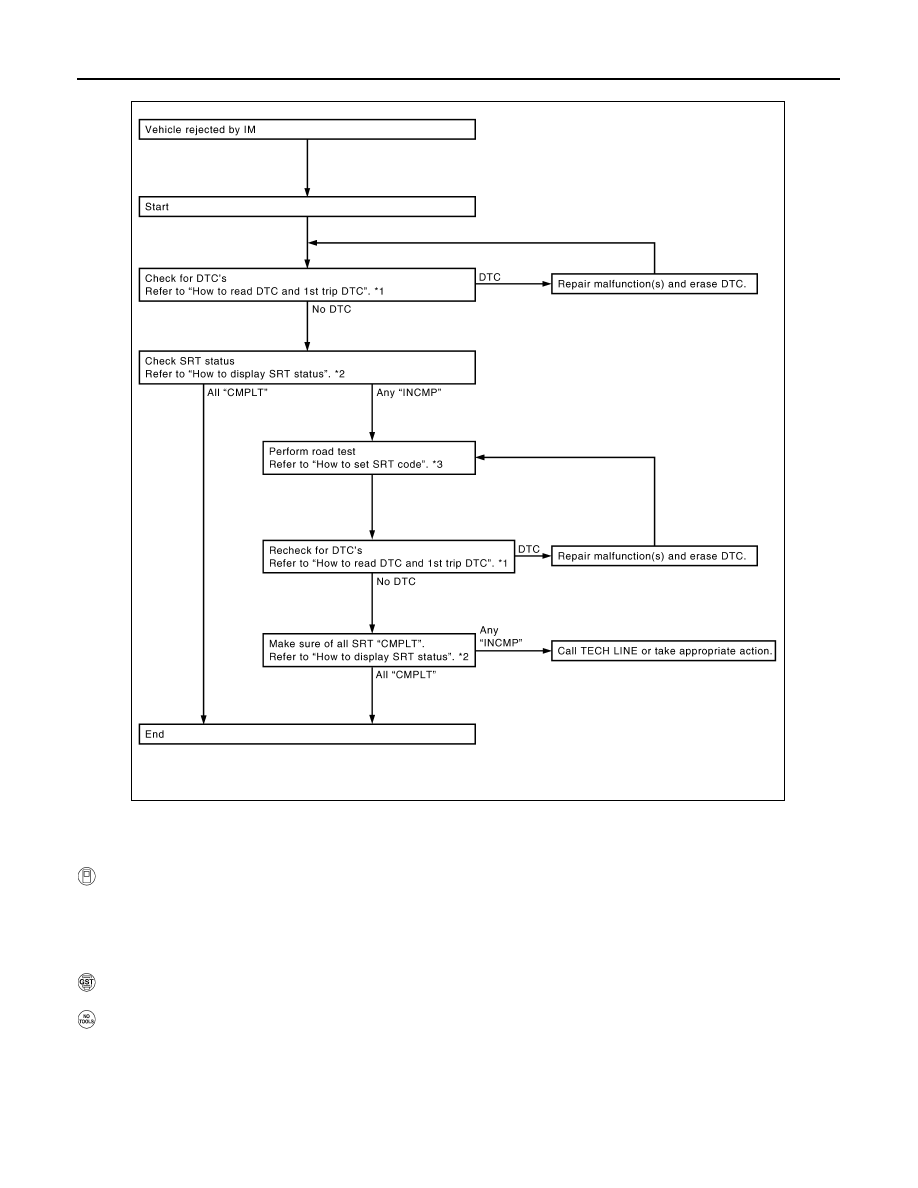

ON BOARD DIAGNOSTIC (OBD) SYSTEM EC-645 < FUNCTION DIAGNOSIS > [QR25DE EXCEPT FOR CALIFORNIA] C D E F G H I J K L M A EC N P O When all SRT related self-diagnoses showed OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will indicate “CMPLT”. → Case 1 above When all SRT related self-diagnoses showed OK results through several different cycles, the SRT will indicate “CMPLT” at the time the respective self-diagnoses have at least one OK result. → Case 2 above If one or more SRT related self-diagnoses showed NG results in 2 consecutive cycles, the SRT will also indi- cate “CMPLT”. → Case 3 above The table above shows that the minimum number of cycles for setting SRT as “INCMP” is one (1) for each self-diagnosis (Case 1 & 2) or two (2) for one of self-diagnoses (Case 3). However, in preparation for the state emissions inspection, it is unnecessary for each self-diagnosis to be executed twice (Case 3) for the following reasons: • The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result. • The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results. • When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagnosis memory must be erased from ECM after repair. • If the 1st trip DTC is erased, all the SRT will indicate “INCMP”. NOTE: SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out prior to the state emission inspection even though the SRT indicates “CMPLT”. SRT Service Procedure If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review the flowchart diagnostic sequence on the next figure. |
