Nissan Altima L32. Manual - part 259





P0031, P0032 A/F SENSOR 1 HEATER

EC-157

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

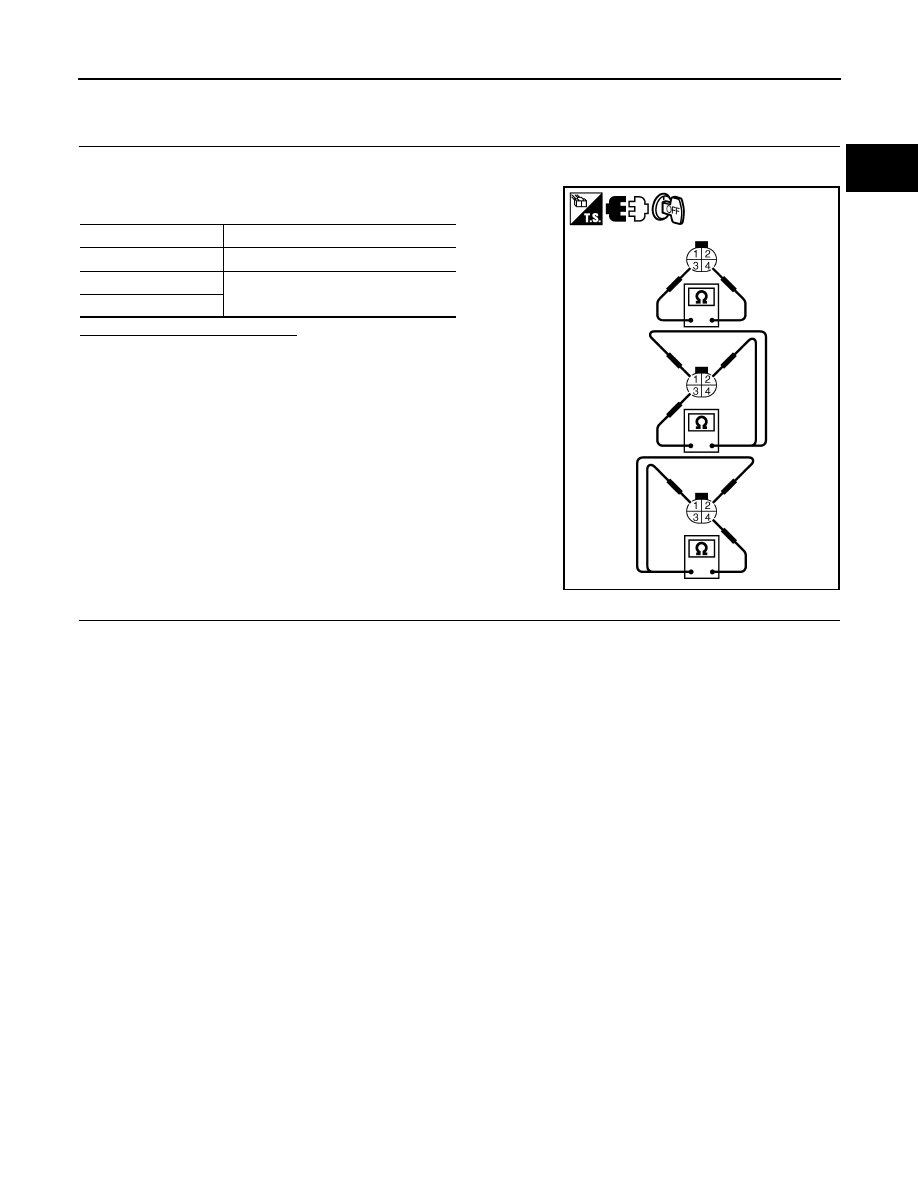

Component Inspection

INFOID:0000000004349199

1.

CHECK AIR FUEL RATIO (A/F) SENSOR 1

1. Turn ignition switch OFF.

2. Disconnect A/F sensor 1 harness connector.

3. Check resistance between A/F sensor 1 terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace air fuel ratio (A/F) sensor 1.

CAUTION:

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard

surface such as a concrete floor; use a new one.

• Before installing new sensor, clean exhaust system threads using oxygen sensor thread cleaner

[commercial service tool (J-43897-18 or J-43897-12)] and approved anti-seize lubricant (commercial

service tool).

>> INSPECTION END

Terminals

Resistance

3 and 4

1.98 - 2.66

Ω [at 25°C (77°F)]

3 and 1, 2

∞ Ω

(Continuity should not exist)

4 and 1, 2

PBIB3309E

EC-158

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

P0037, P0038 HO2S2 HEATER

P0037, P0038 HO2S2 HEATER

Description

INFOID:0000000004349200

SYSTEM DESCRIPTION

The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,

amount of intake air and engine coolant temperature.

OPERATION

DTC Logic

INFOID:0000000004349201

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-III

1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.

2. Start engine and warm it up to the normal operating temperature.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

5. Let engine idle for 1 minute.

6. Check 1st trip DTC.

 With GST

Follow the procedure “With CONSULT-III” above.

Sensor

Input signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)

Engine speed

Heated oxygen sensor 2
heater control

Heated oxygen sensor 2 heater

Engine coolant temperature sensor

Engine coolant temperature

Mass air flow sensor

Amount of intake air

Engine speed

Heated oxygen sensor 2 heater

Above 3,600 rpm

OFF

Below 3,600 rpm after the following conditions are met.
• Engine: After warming up
• Keeping the engine speed between 3,500 and 4,000 rpm for 1

minute and at idle for 1 minute under no load

ON

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P0037

Heated oxygen
sensor 2 heater
control circuit low

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

• Harness or connectors

(The heated oxygen sensor 2 heater circuit is
open or shorted.)

• Heated oxygen sensor 2 heater

P0038

Heated oxygen
sensor 2 heater
control circuit high

The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

• Harness or connectors

(The heated oxygen sensor 2 heater circuit is
shorted.)

• Heated oxygen sensor 2 heater

P0037, P0038 HO2S2 HEATER

EC-159

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is 1st trip DTC detected?

YES

>> Go to

EC-159, "Diagnosis Procedure"

.

NO

>> INSPECTION END

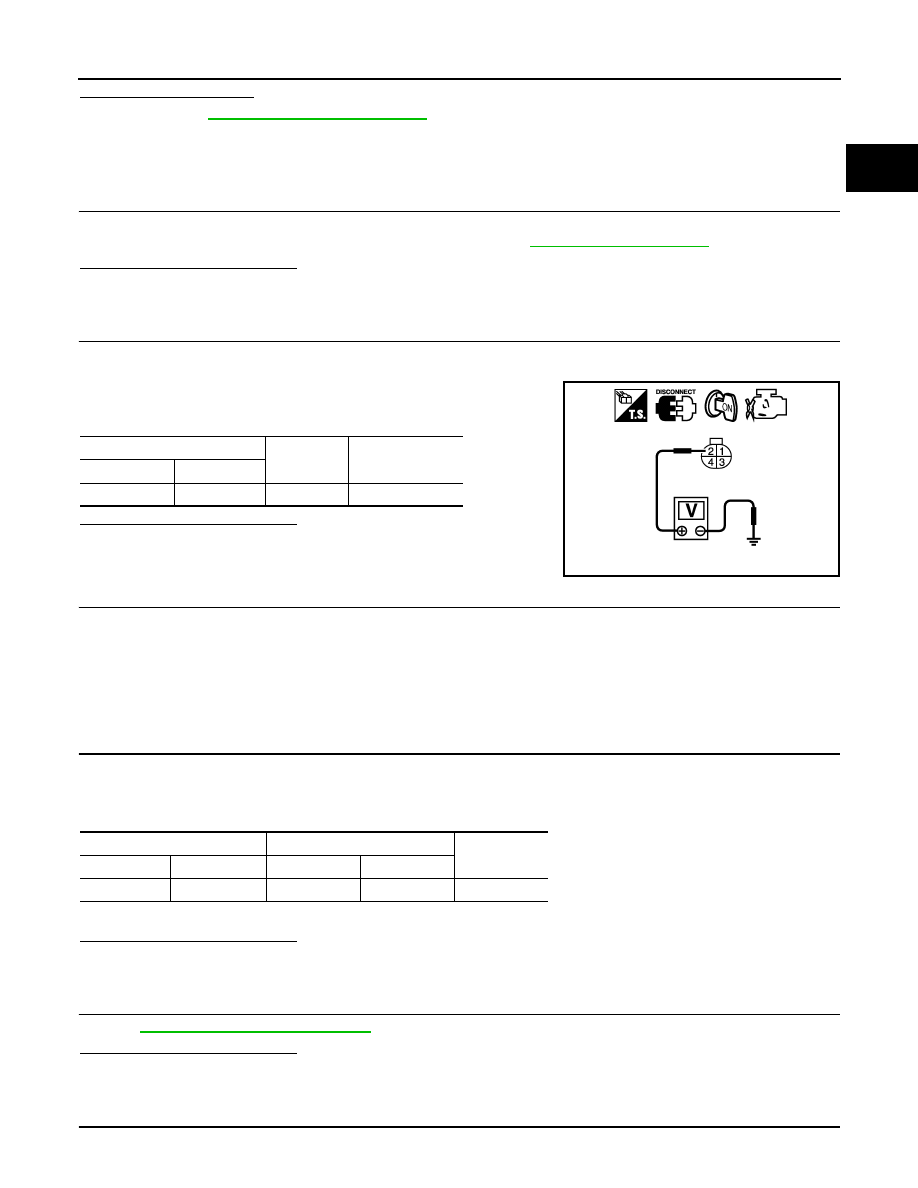

Diagnosis Procedure

INFOID:0000000004349202

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-45, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK HO2S2 POWER SUPPLY CIRCUIT

1. Disconnect heated oxygen sensor 2 harness connector.

2. Turn ignition switch ON.

3. Check the voltage between HO2S2 harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

• IPDM E/R connector F10

• 15A fuse (No. 37)

• Harness for open or short between heated oxygen sensor 2 and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between HO2S2 harness connector and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK HEATED OXYGEN SENSOR 2 HEATER

Refer to

EC-160, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2.

HO2S2

Ground

Voltage

Connector

Terminal

F42

2

Ground

Battery voltage

MBIB0186E

HO2S2

ECM

Continuity

Connector

Terminal

Connector

Terminal

F42

3

F14

13

Existed

EC-160

< COMPONENT DIAGNOSIS >

[QR25DE FOR CALIFORNIA]

P0037, P0038 HO2S2 HEATER

CAUTION:

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard

surface such as a concrete floor; use a new one.

• Before installing new sensor, clean exhaust system threads using oxygen sensor thread cleaner

[commercial service tool (J-43897-18 or J-43897-12)] and approved anti-seize lubricant (commercial

service tool).

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

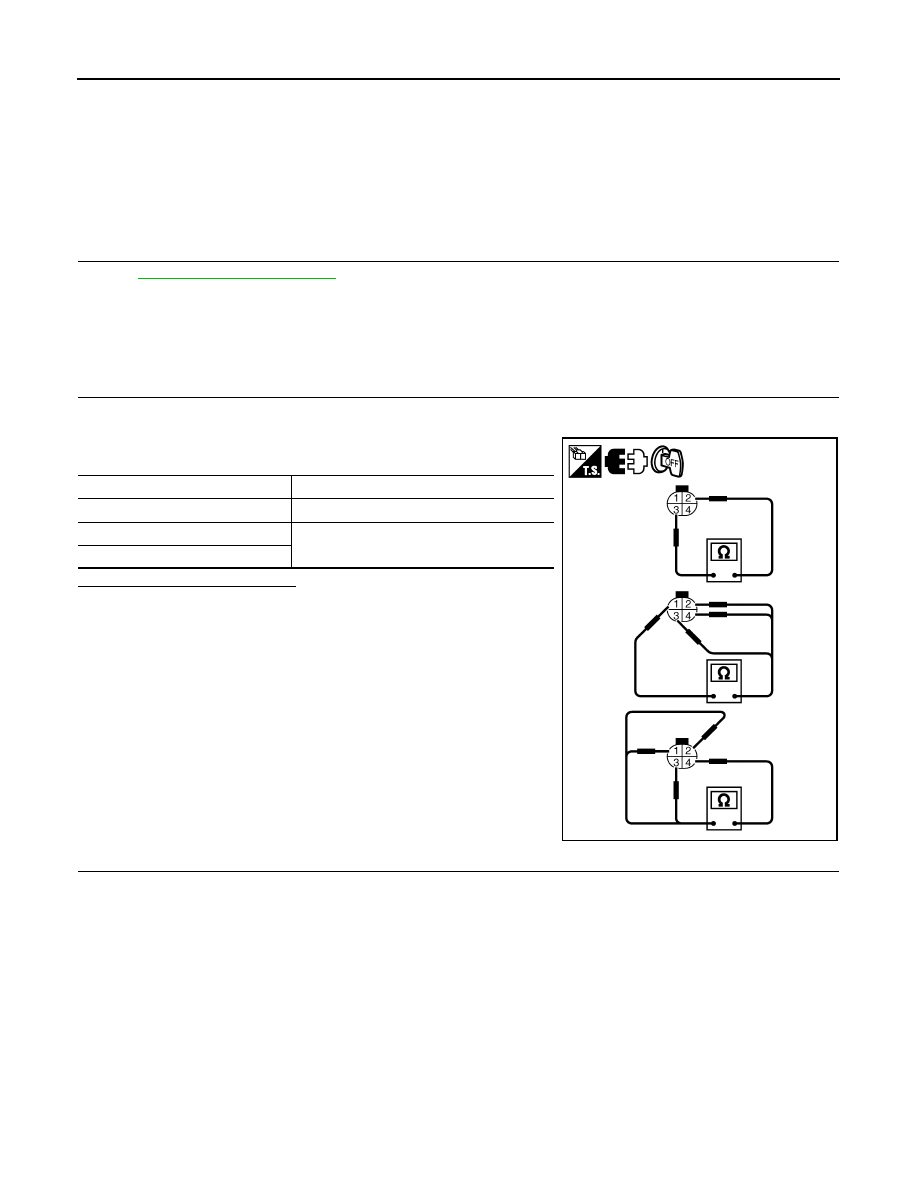

Component Inspection

INFOID:0000000004349203

1.

CHECK HEATED OXYGEN SENSOR 2 HEATER

1. Turn ignition switch OFF.

2. Disconnect heated oxygen sensor 2 harness connector.

3. Check resistance between HO2S2 terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2.

CAUTION:

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard

surface such as a concrete floor; use a new one.

• Before installing new sensor, clean exhaust system threads using oxygen sensor thread cleaner

[commercial service tool (J-43897-18 or J-43897-12)] and approved anti-seize lubricant (commercial

service tool).

>> INSPECTION END

Terminals

Resistance

2 and 3

3.4 - 4.4

Ω [at 25°C (77°F)]

1 and 2, 3, 4

∞ Ω

(Continuity should not exist)

4 and 1, 2, 3

PBIB3310E
