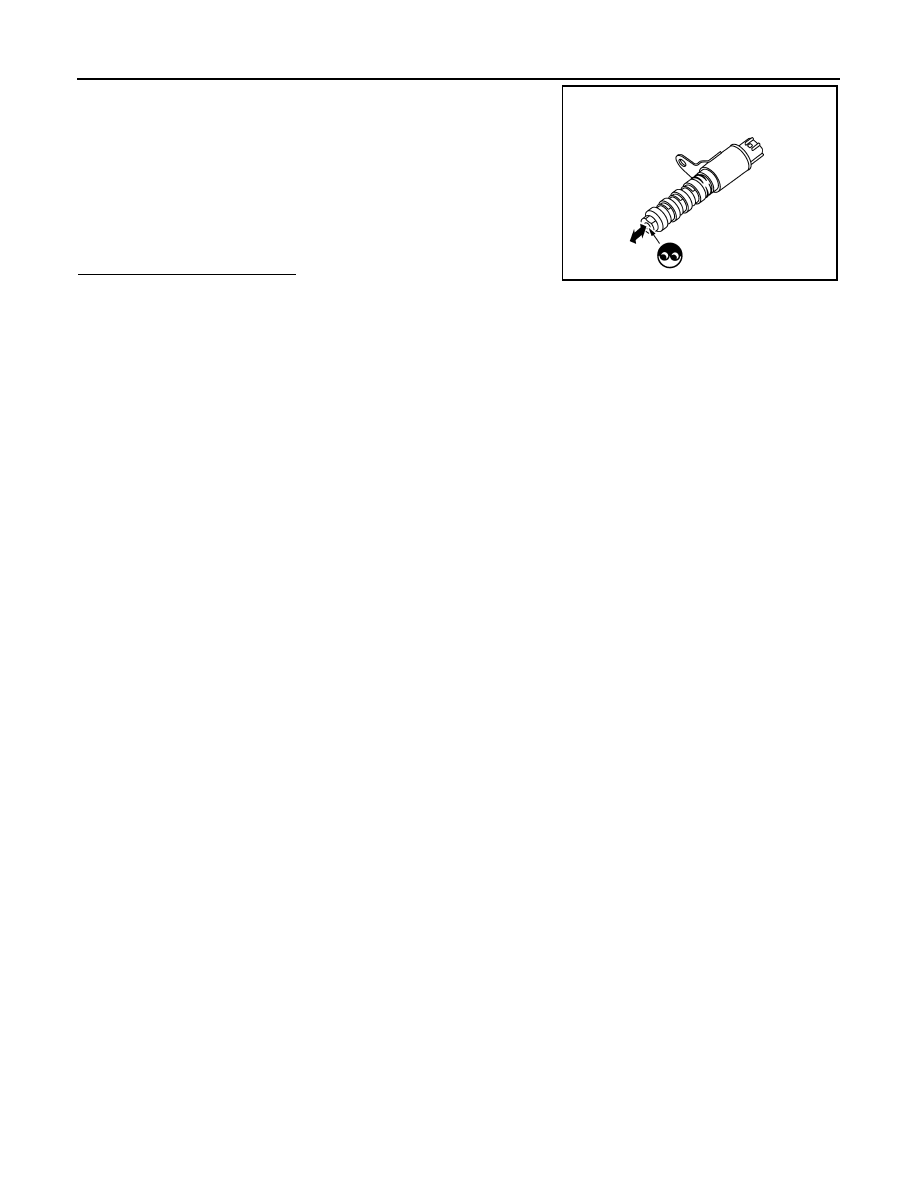

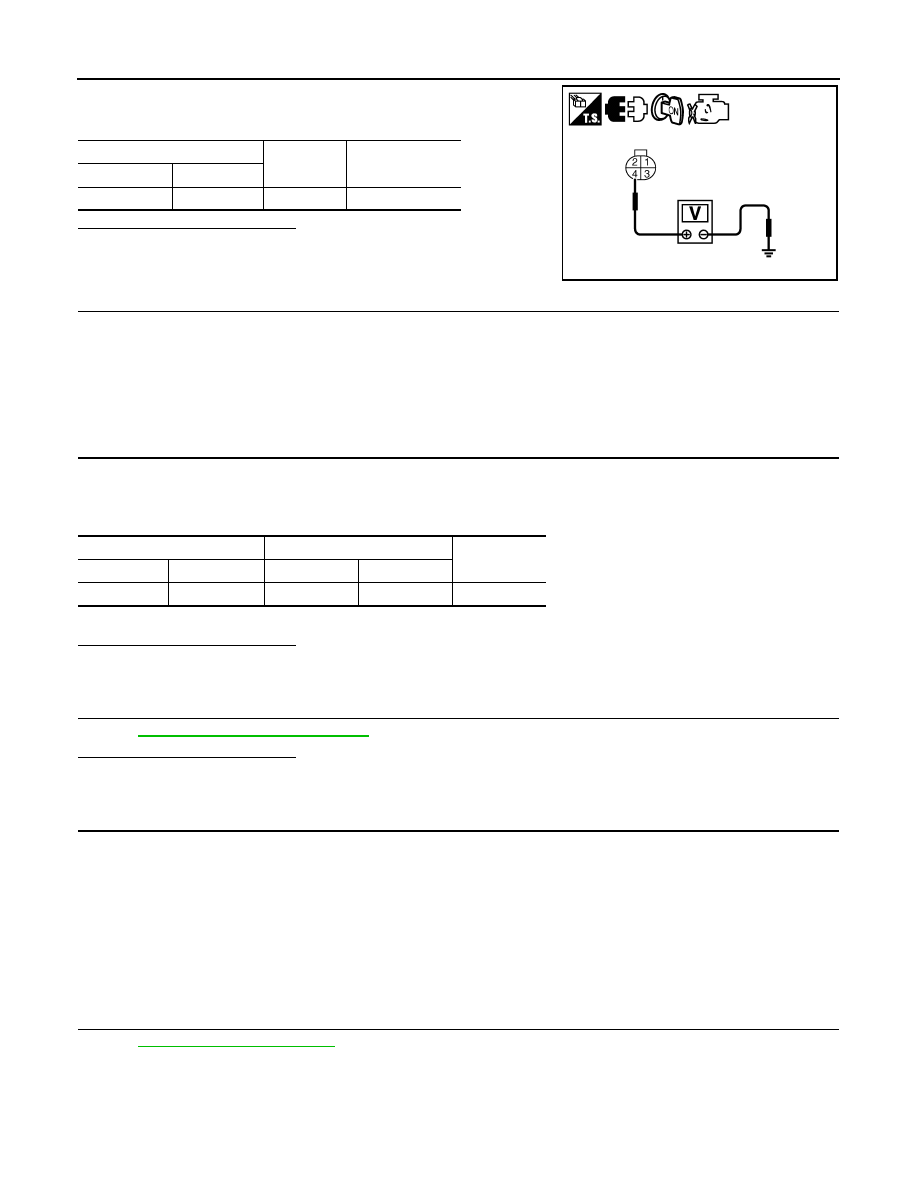

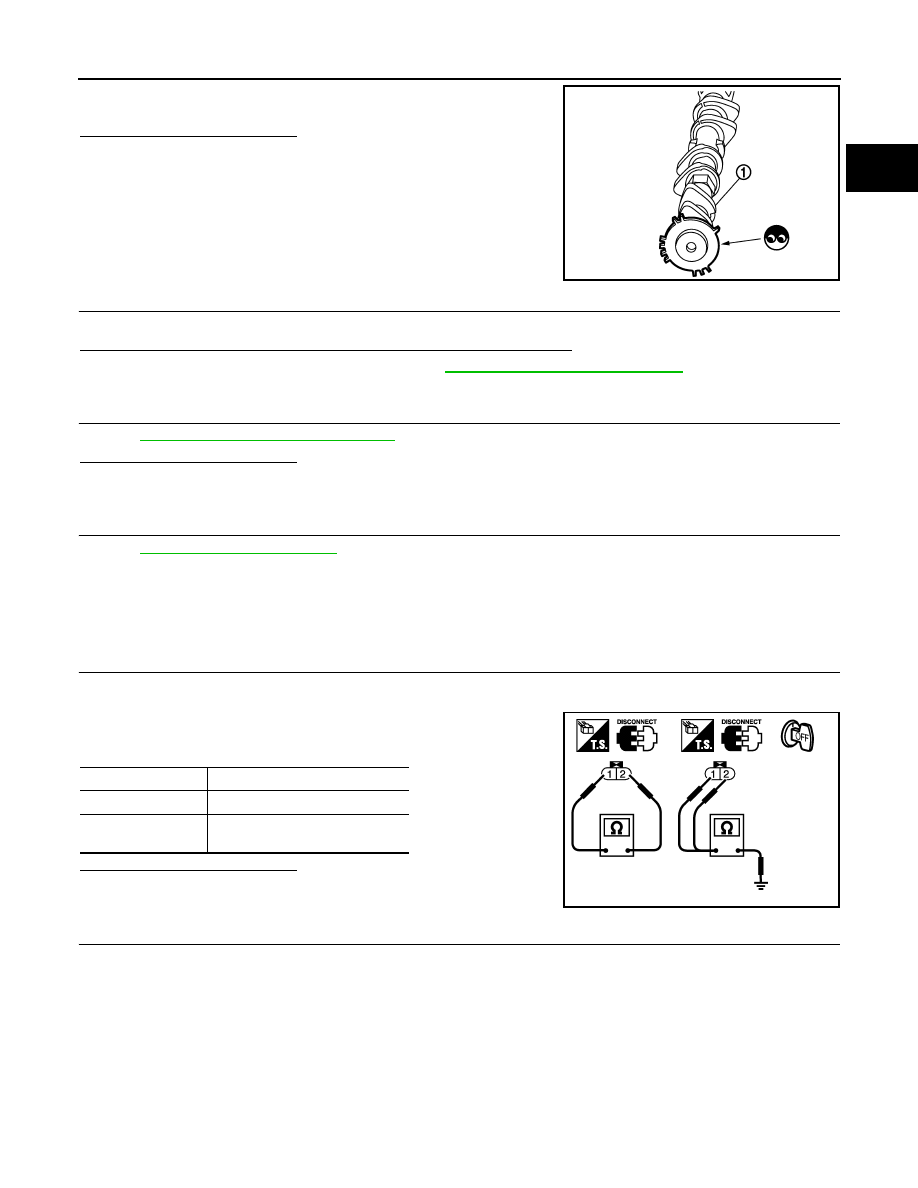

P0011 IVT CONTROL EC-153 < COMPONENT DIAGNOSIS > [QR25DE FOR CALIFORNIA] C D E F G H I J K L M A EC N P O • Accumulation of debris to the signal plate of camshaft (1) rear end • Chipping signal plate of camshaft rear end YES >> GO TO 6. NO >> Remove debris and clean the signal plate of camshaft rear end or replace camshaft. 6. CHECK TIMING CHAIN INSTALLATION Check service records for any recent repairs that may cause timing chain misaligned. YES >> Check timing chain installation. Refer to EM-52, "Removal and Installation" NO >> GO TO 7. 7. CHECK LUBRICATION CIRCUIT EM-48, "Inspection After Installation" Is the inspection result normal? YES >> GO TO 8. NO >> Clean lubrication line. 8. CHECK INTERMITTENT INCIDENT GI-42, "Intermittent Incident" . >> INSPECTION END Component Inspection INFOID:0000000004349195 1. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I 1. Turn ignition switch OFF. 2. Disconnect intake valve timing control solenoid valve harness connector. 3. Check resistance between intake valve timing control solenoid valve terminals as follows. Is the inspection result normal? YES >> GO TO 2. NO >> Replace intake valve timing control solenoid valve. 2. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II 1. Remove intake valve timing control solenoid valve. JMBIA0096ZZ Terminals Resistance 1 and 2 7.0 - 7.5 Ω [at 20°C (68°F)] 1 or 2 and ground ∞ Ω (Continuity should not exist) PBIB0193E |
