2. Remove wiper arms. Refer to

WW-116, "FRONT WIPER ARMS : Removal and Installation"

.

3. Remove the cowl top cover. For Sedan Refer to

EXT-39, "Removal and Installation"

. For Coupe Refer to

EXT-18, "Removal and Installation"

.

4. Remove the strut brace bolts (A), detach the wiper drive assem-

bly harness clips, then remove the strut brace (1).

5. Detach the wiper drive harness clip from the wiper drive assembly frame.
6. Remove the front wiper drive assembly bolts (A), disconnect the

wiper drive motor connector (B) and remove the front wiper drive

assembly (1).

INSTALLATION

1. Install the front wiper drive assembly.
2. Connect wiper motor connector. Turn wiper switch ON to operate wiper motor, then turn wiper switch OFF

(auto stop).

3. Attach the wiper drive harness clip to the wiper drive assembly frame.
4.  Install the strut brace, then attach the wiper drive assembly harness clips.
5. Install the cowl top cover. For Sedan Refer to

EXT-39, "Removal and Installation"

. For Coupe Refer to

EXT-18, "Removal and Installation"

6. Attach the wiper arms. Refer to

WW-116, "FRONT WIPER ARMS : Removal and Installation"

.

7. Adjustment of wiper arm stop location. Refer to

WW-116, "FRONT WIPER ARMS : Removal and Installa-

tion"

.

ALLIA0026ZZ

ALLIA0027ZZ

WW-118

< ON-VEHICLE REPAIR >

FRONT WASHER

FRONT WASHER

WASHER TUBE
WASHER TUBE : Layout

INFOID:0000000004202220

FRONT WASHER NOZZLE
FRONT WASHER NOZZLE : Removal and Installation

INFOID:0000000004202221

REMOVAL

1. Remove the cowl top cover For Sedan Refer to

EXT-39, "Removal and Installation"

. For Coupe Refer to

EXT-18, "Removal and Installation"

2. Push washer nozzle tab (A), to release the washer nozzle (1)

from the cowl top cover, then disconnect the washer nozzle

hose (2).

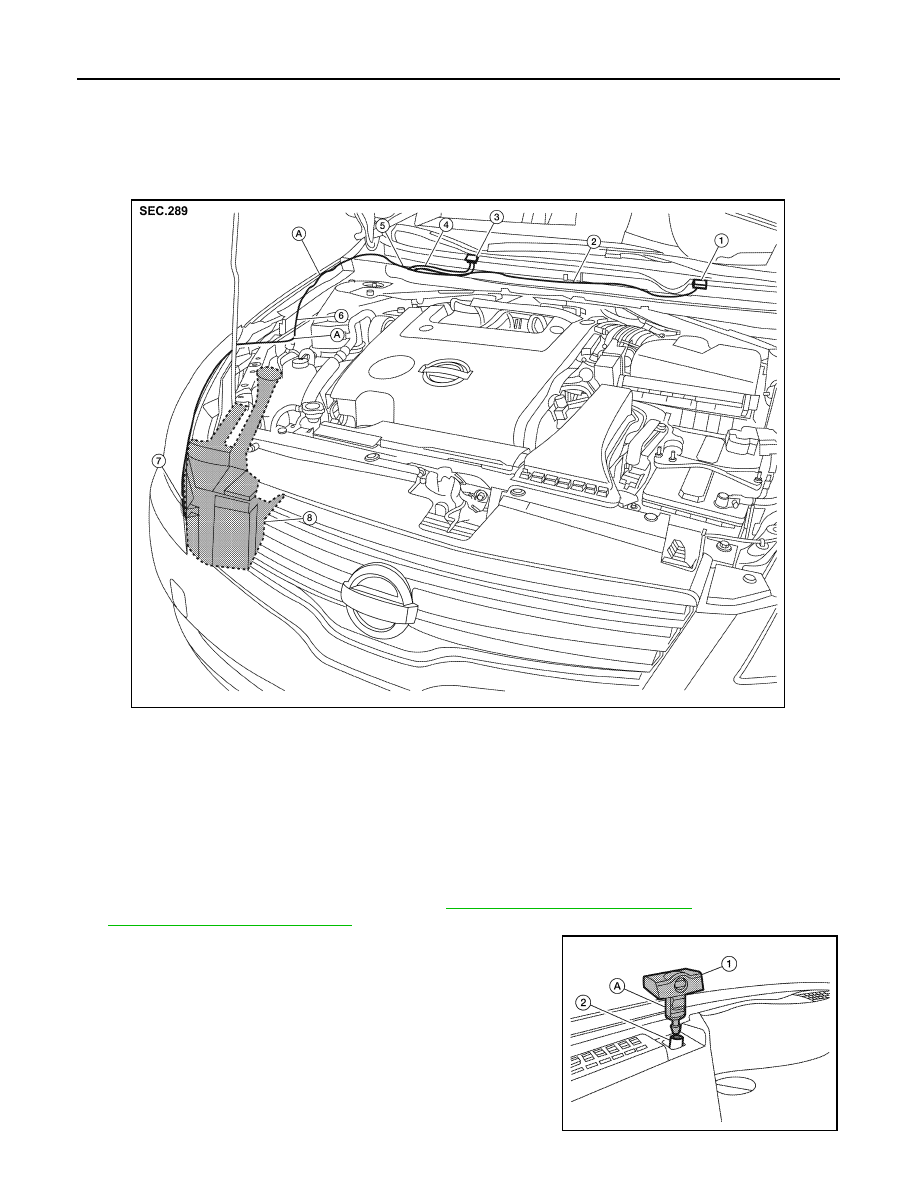

1.

Washer nozzle LH

2.

Washer nozzle hose LH

3.

Washer nozzle RH

4.

Washer nozzle hose RH

5.

Y-tube connector

6.

Clip

7.

Washer tank hose

8.

Washer tank

A.

Tube connectors

ALLIA0033ZZ

ALLIA0652ZZ

FRONT WASHER

WW-119

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

INSTALLATION

1. Installation is in the reverse order of removal.
2. Adjust nozzle spray location. Refer to

WW-119, "FRONT WASHER NOZZLE : Adjustment"

.

FRONT WASHER NOZZLE : Adjustment

INFOID:0000000004202222

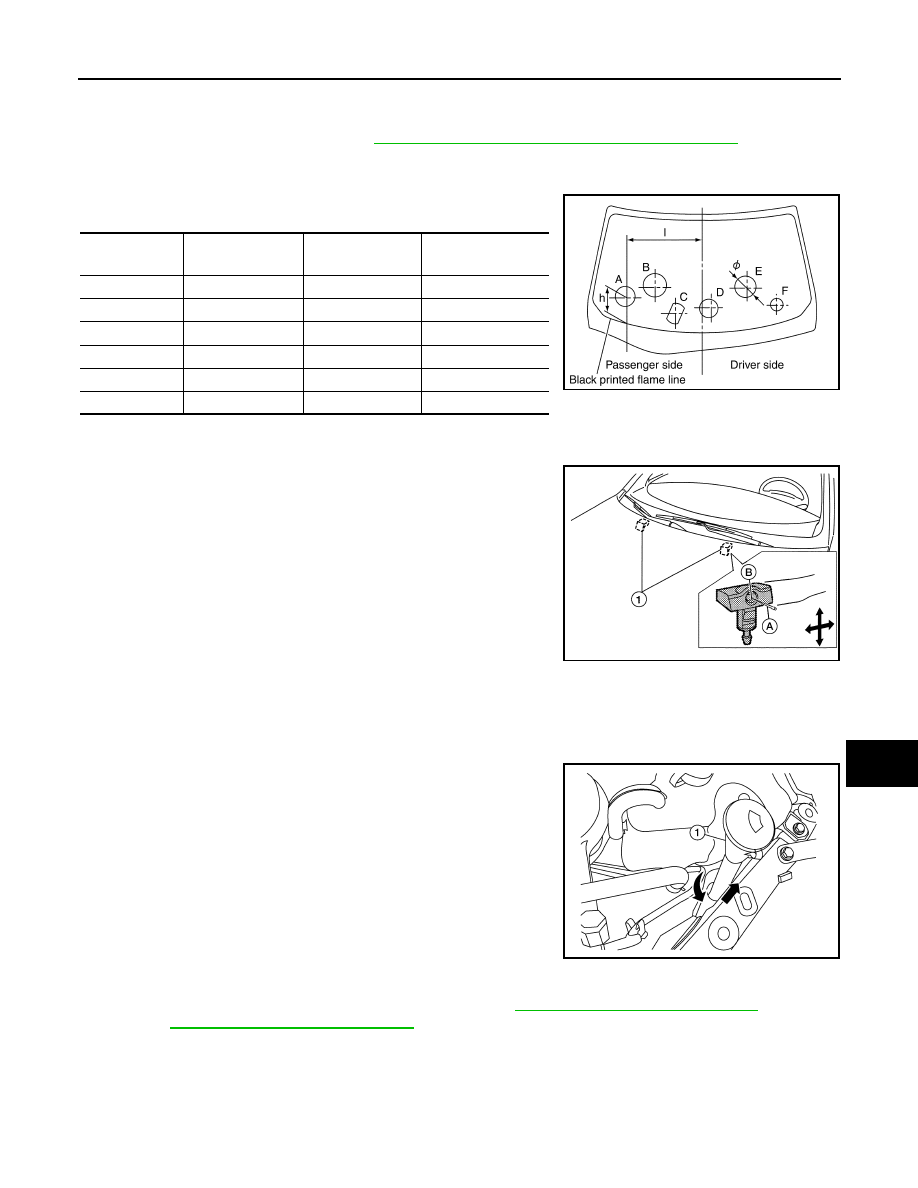

Adjust spray positions to match the positions as shown.

Unit: mm (in)

*1: Spray positions are aiming targets, heights are allowable spray patterns above the target points.

Insert a suitable tool (A) into the nozzle hole (B) and move up/down

and left/right to adjust the spray position of the nozzle (1).

WASHER TANK
WASHER TANK : Removal and Installation

INFOID:0000000004202223

REMOVAL

1. Remove the washer tank filler tube (1).

2. Remove engine under cover.
3. Position the RH fender protector back. For Sedan Refer to

EXT-40, "Removal and Installation"

. For Coupe

Refer to

EXT-19, "Removal and Installation"

 .

Spray position

h (height)

l (width)

Height

*1

(spray point area)

A

193.1 (7.53)

487.5 (7.53)

233 (9.17)

B

277.0 (10.91)

318.1 (19.59)

368 (14.49)

C

333.6 (13.13)

115.5 (4.55)

256 (10.08)

D

230.0 (9.06)

81.0 (3.19)

350 (13.78)

E

283.9 (11.18)

280.7 (11.05)

319 (12.56)

F

330.4 (13.01)

483.0 (19.03)

282 (11.10)

SKIB4232E

ALLIA0779ZZ

ALLIA0029ZZ

WW-120

< ON-VEHICLE REPAIR >

FRONT WASHER

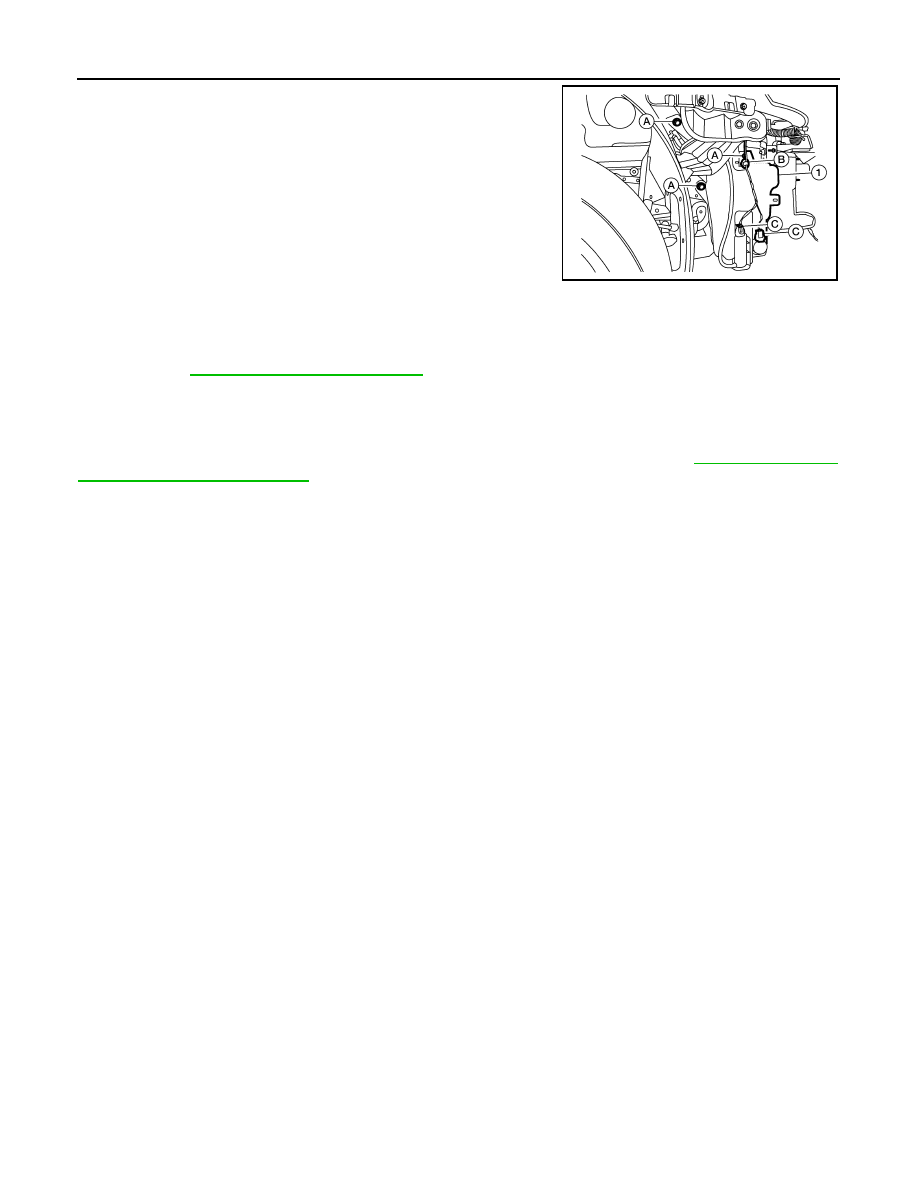

4. Disconnect the washer pump and washer fluid level sensor con-

nectors (C), then detach the connector harness clip (B).

5. Remove the washer tank nuts (A), disconnect the washer pump

hose and remove the washer tank (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, add Nissan specified fluid up to the upper level of washer tank inlet, and check for

leaks. Refer to

MA-12, "Fluids and Lubricants"

.

FRONT WASHER PUMP
FRONT WASHER PUMP : Removal and Installation

INFOID:0000000004202224

Front washer pump is not available seperately, it is part of the washer tank. Refer to

WW-119, "WASHER

TANK : Removal and Installation"

.

ALLIA0030ZZ
