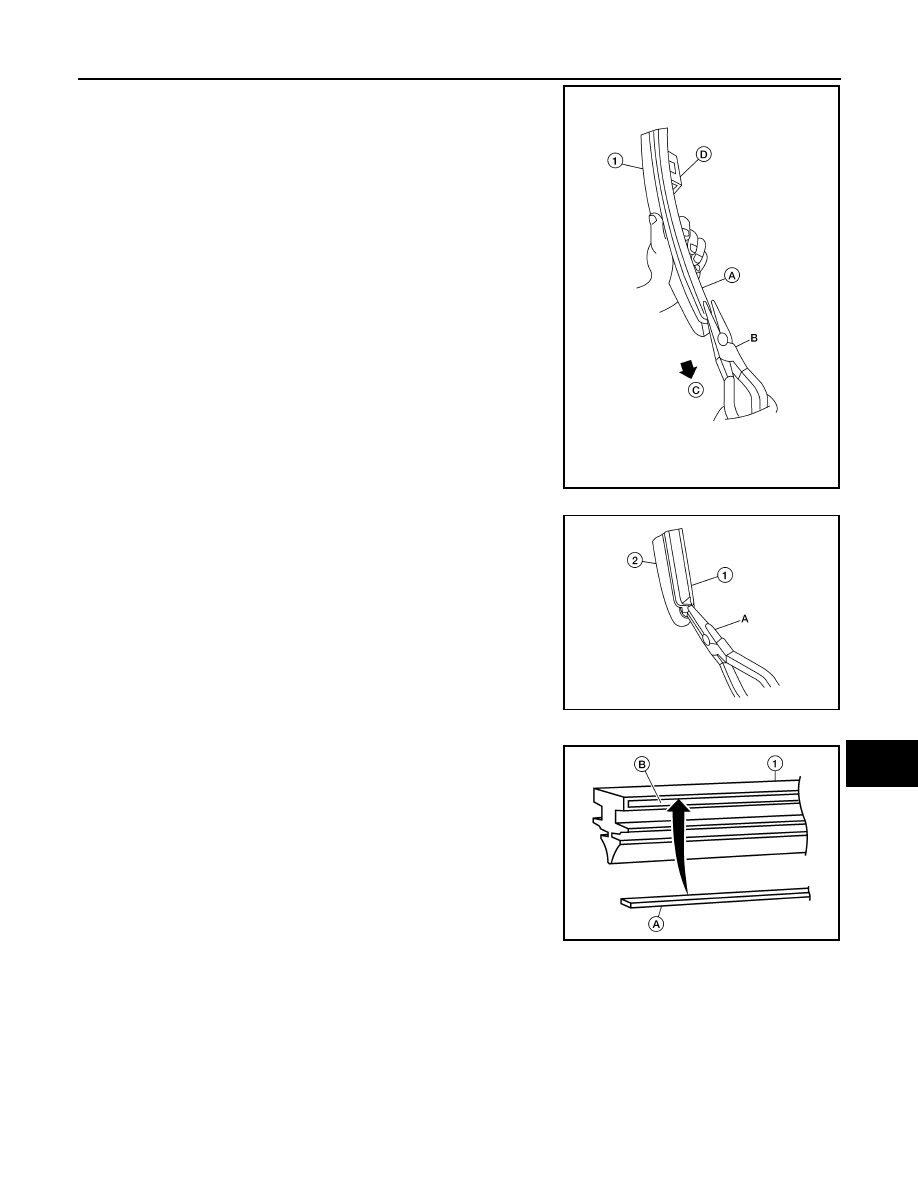

2. Hold the wiper blade refill lip at the end (A) of the front wiper

blade (1) with a suitable tool (B) as shown, and pull it firmly in

the direction (C).

• U clip (part of the front wiper blade assembly) (D)

• If the wiper blade refill lip is torn due to wear, insert a suitable

tool (A) into the space between the end of the wiper blade refill

(1) and the front wiper blade (2) and pull the wiper blade refill

(1) out as shown.

INSTALLATION

1. If the rib (A) has become detached from the wiper blade refill (1),

check that the curve of the rib (A) is in the same direction as the

curve of the wiper blade refill (1) and insert the rib (A) into the slit

(B) in the wiper blade refill (1) as shown.

ALLIA0860ZZ

ALLIA0861ZZ

ALLIA0866ZZ

WW-114

< ON-VEHICLE REPAIR >

FRONT WIPER

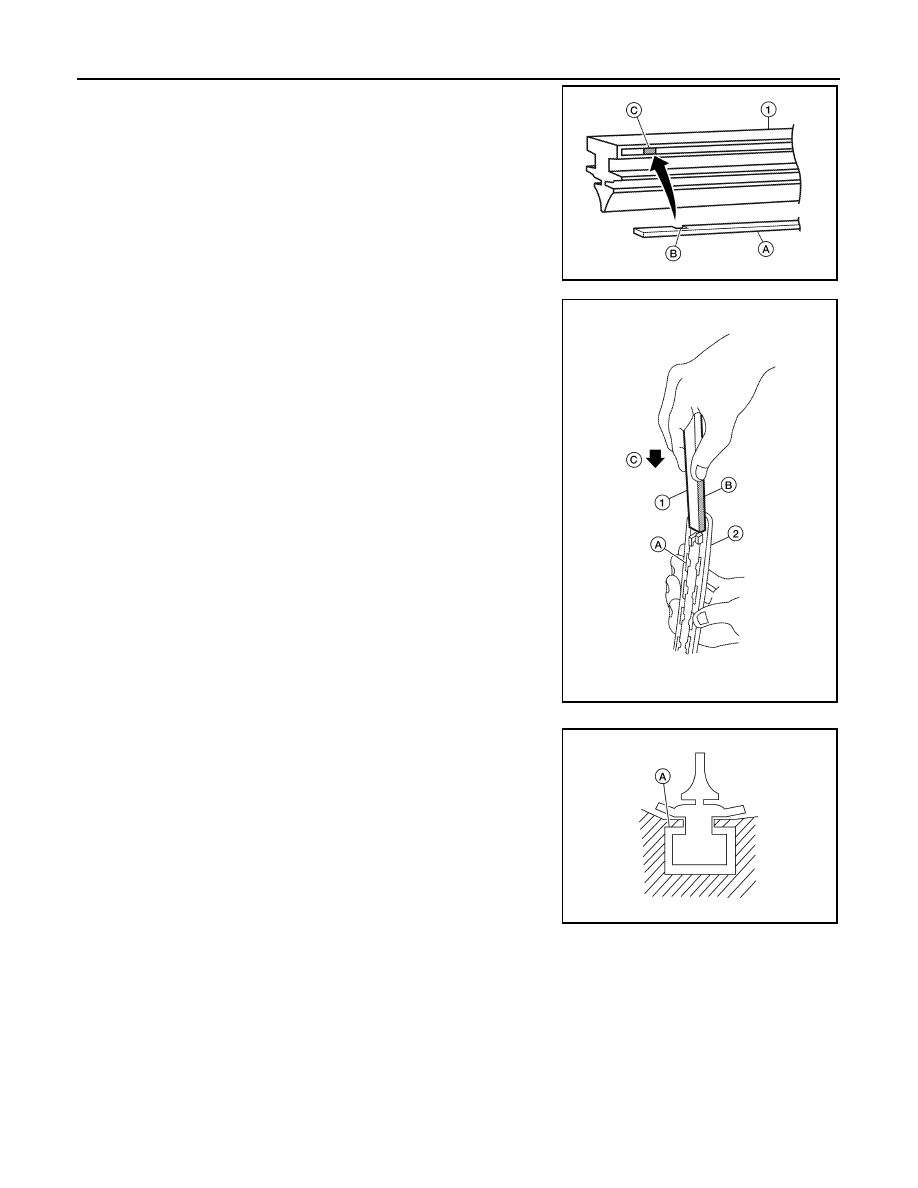

• If the rib (A) has a notch (B), insert the rib (A) into the wiper

blade refill (1) so the notch (B) fits over the protrusion (C) in

the wiper blade refill (1) as shown.

2. Insert the wiper blade refill (1) tip into the end of the front wiper

blade (2) in the direction (C). Push the wiper blade refill (1) in

while pressing it into the end of the front wiper blade (2) as

shown. After the wiper blade refill is fully inserted, remove the

holder (B).

• Tab [part of front wiper blade (2)] (A)

• Make sure to slide the refill into the front wiper blade so that

the wiper blade refill is held by the tabs (A) on the front wiper

blade as shown.

ALLIA0867ZZ

ALLIA0862ZZ

ALLIA0863ZZ

FRONT WIPER

WW-115

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

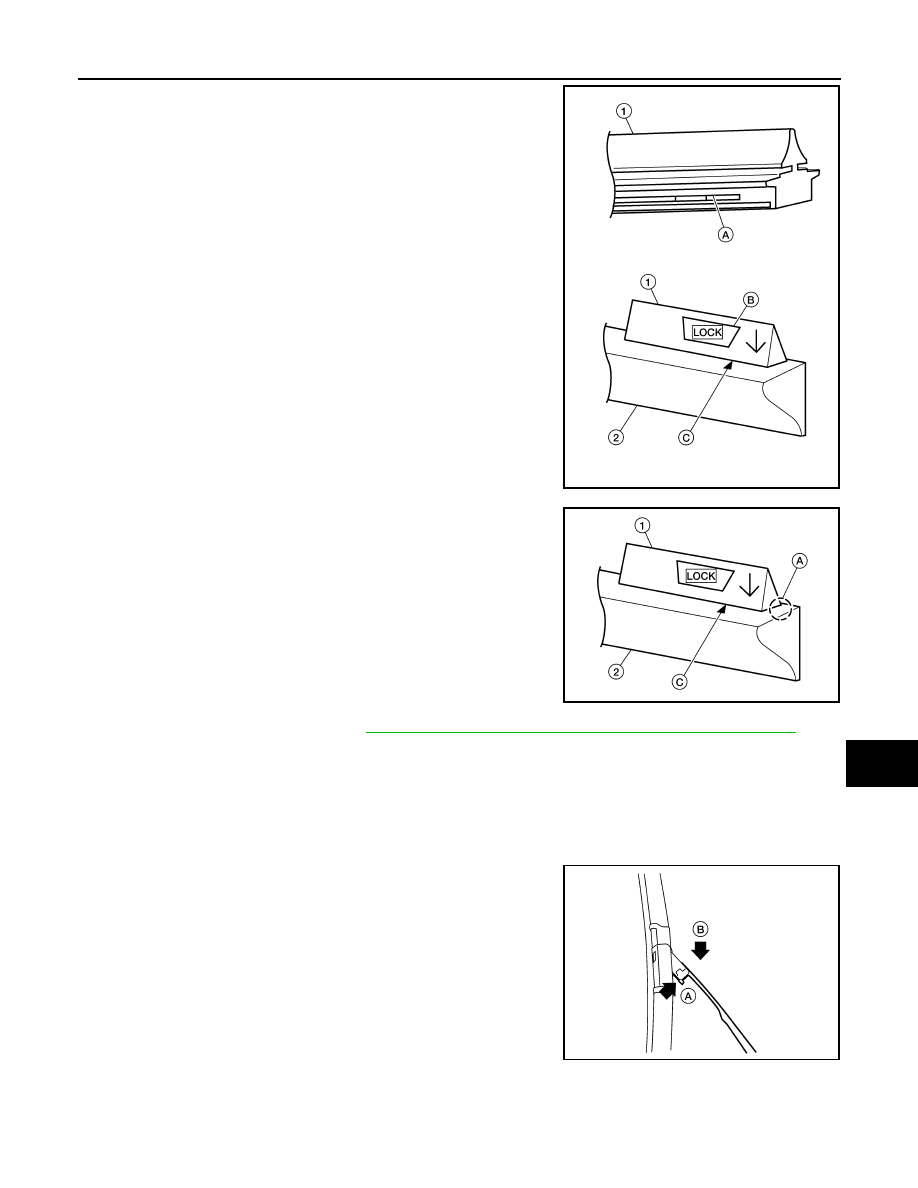

3. Push the wiper blade refill (1) until the tabs on the front wiper

blade (2) fit into the stoppers (A) in the end of the wiper blade

refill (1). Make sure the LOCK mark (B) on the wiper blade refill

(1) is aligned with the lock point symbol (C) on the front wiper

blade (2) as shown.

4. Before installing the front wiper blade assembly, make sure that

the wiper blade refill (1) end is fully covered by the front wiper

blade (2) in area (A) as shown.

5. Install the front wiper blade. Refer to

WW-115, "FRONT WIPER BLADE : Removal and Installation"

.

FRONT WIPER BLADE
FRONT WIPER BLADE : Removal and Installation

INFOID:0000000004202217

REMOVAL

1. Lift the front wiper arm and wiper blade assembly away from the windshield.
2. Rotate the front wiper blade assembly and push the release tab

(A), then move the front wiper blade assembly down (B) the

front wiper arm.

3. Remove the front wiper blade assembly.

INSTALLATION

CAUTION:

• After the front wiper blade assembly installation, return the front wiper arm to the original position

on the windshield to prevent damage when the hood is opened.

ALLIA0864ZZ

ALLIA0865ZZ

AWLIA1565ZZ

WW-116

< ON-VEHICLE REPAIR >

FRONT WIPER

• Check that the front wiper blade assembly contacts the windshield properly; otherwise the front

wiper arm may be damaged from wind pressure while driving.

1. Insert the front wiper blade assembly onto the front wiper arm and slide it up until it clicks into place.
2. Rotate the front wiper blade assembly so the dimple is in the groove.
3. Lay the front wiper arm and front wiper blade assembly back down on the windshield.

FRONT WIPER ARMS
FRONT WIPER ARMS : Removal and Installation

INFOID:0000000004202218

REMOVAL

1. Turn wiper switch ON to operate wiper motor, and then turn wiper switch OFF (auto stop).
2. Open hood, remove arm caps, and remove wiper arm nuts.
3. Raise wiper arm, and remove wiper arm from the vehicle.

INSTALLATION

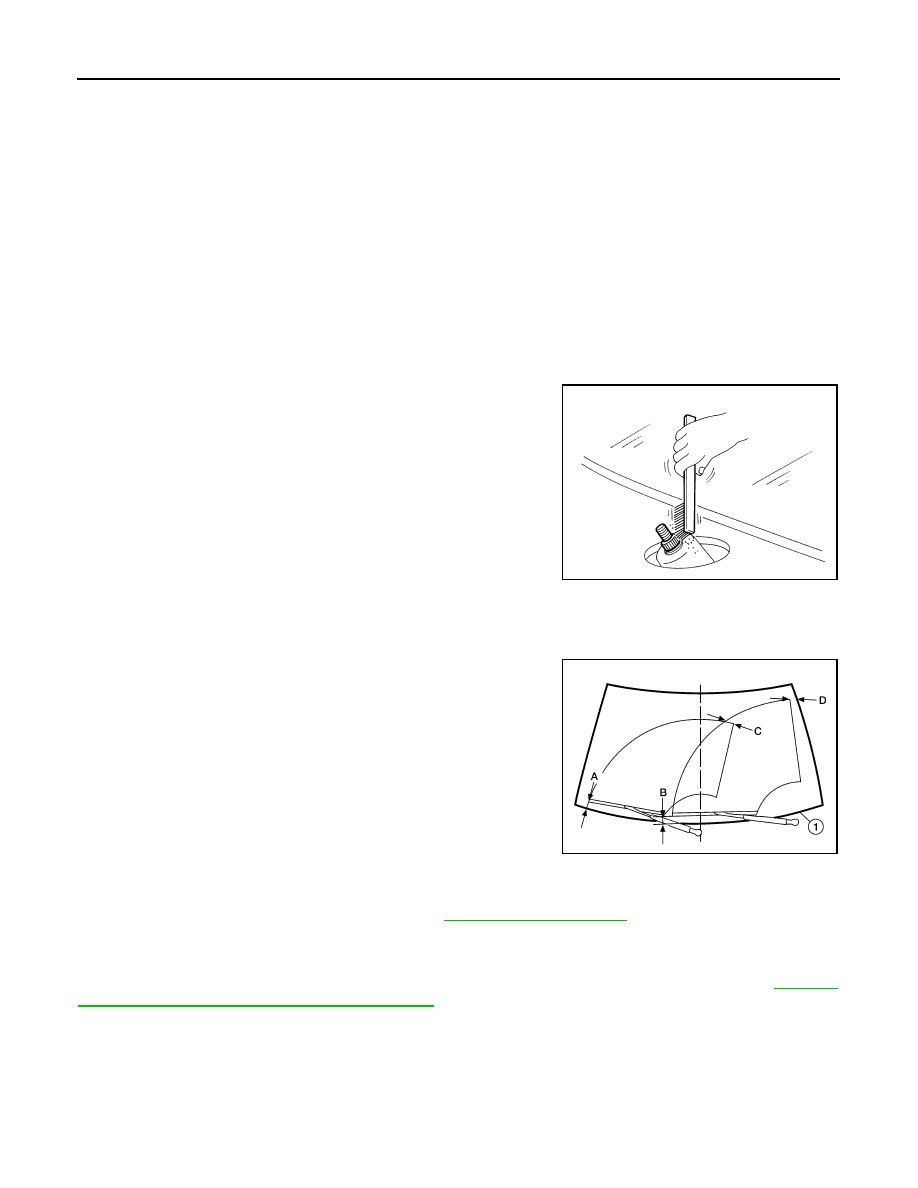

1. Clean up the pivot area as shown. This will reduce possibility of

wiper arm looseness.

2. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it “OFF” (auto

stop).

3. Push wiper arm onto pivot shaft, paying attention to blind spline.
4. Lift the blade up and then set it down onto glass surface to set

the blade center to clearance "A", "B", "C" and "D" immediately

before temporarily tightening the wiper arm nuts.

5. Spray washer fluid. Turn on wiper switch to operate wiper motor

and then turn it “OFF”.

6. Make sure that wiper blades stop within clearance "A", "B", "C"

and "D".

7. Tighten wiper arm nuts to specification. Refer to

WW-112, "Exploded View"

.

8. Attach wiper arm caps.

ADJUSTMENT

To adjust the wiper arm stop location, the wiper arm must be removed and installed. Refer to

WW-116,

"FRONT WIPER ARMS : Removal and Installation"

.

FRONT WIPER DRIVE ASSEMBLY
FRONT WIPER DRIVE ASSEMBLY : Removal and Installation

INFOID:0000000004202219

REMOVAL

1. Operate front wiper motor, and stop at the auto stop position.

SEL024J

Clearance “A”

: 41.3

± 7.5 mm (1.626 ± 0.295 in)

Clearance “B”

: 65.5

± 7.5 mm (2.579 ± 0.295 in)

Clearance “C”

: 27.8 mm (1.094 in)

Clearance “D”

: 53.7 mm (2.114 in)

BKIA0254E
