TM-268

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

CVT SYSTEM

FUNCTION DIAGNOSIS

CVT SYSTEM

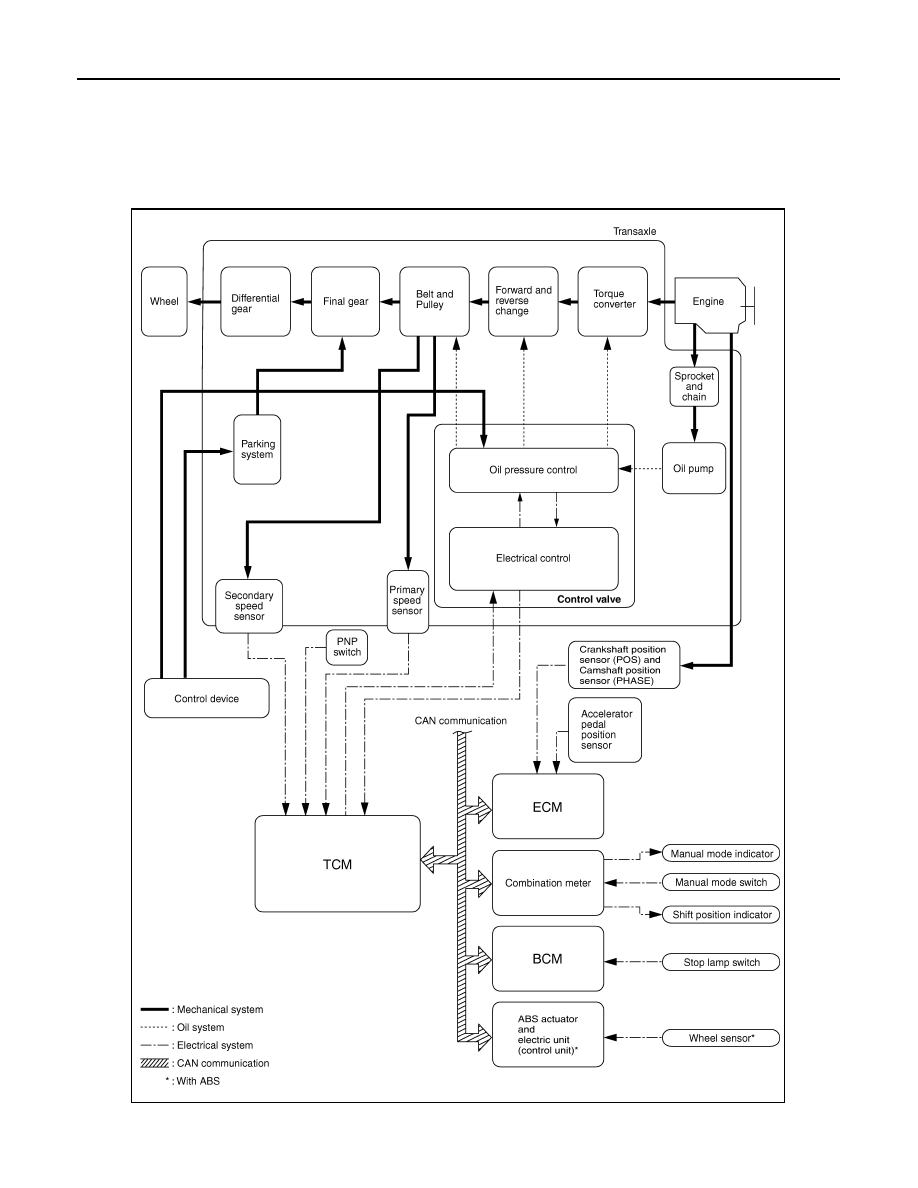

System Diagram

INFOID:0000000004201826

JSDIA0170GB

CVT SYSTEM

TM-269

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

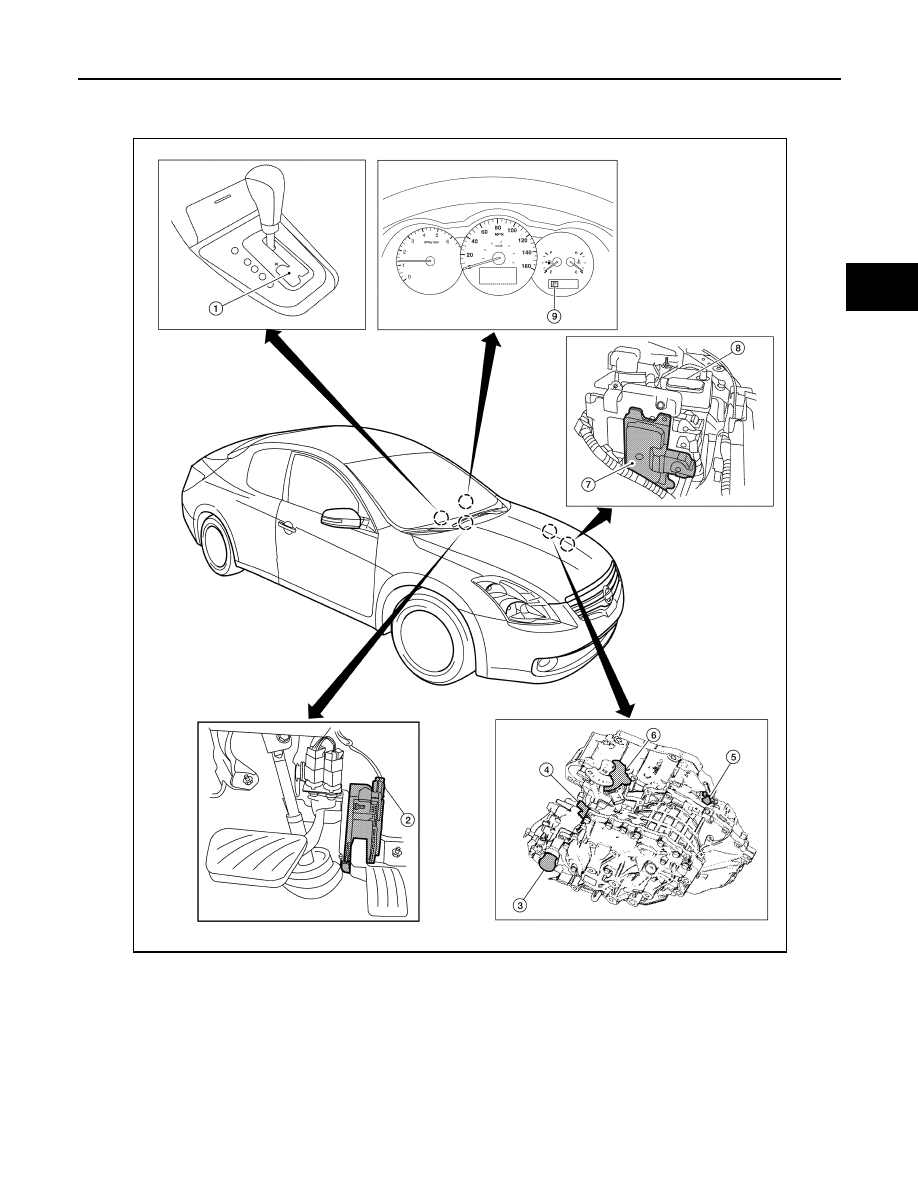

Component Parts Location - Coupe

INFOID:0000000004201827

1.

Control device assembly

2.

Accelerator pedal position sensor

3.

CVT unit harness connector

4.

Primary speed sensor

5.

Secondary speed sensor

6.

PNP switch

7.

TCM

8.

Battery

9.

Shift position indicator
Manual mode indicator

AWDIA0167ZZ

TM-270

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

CVT SYSTEM

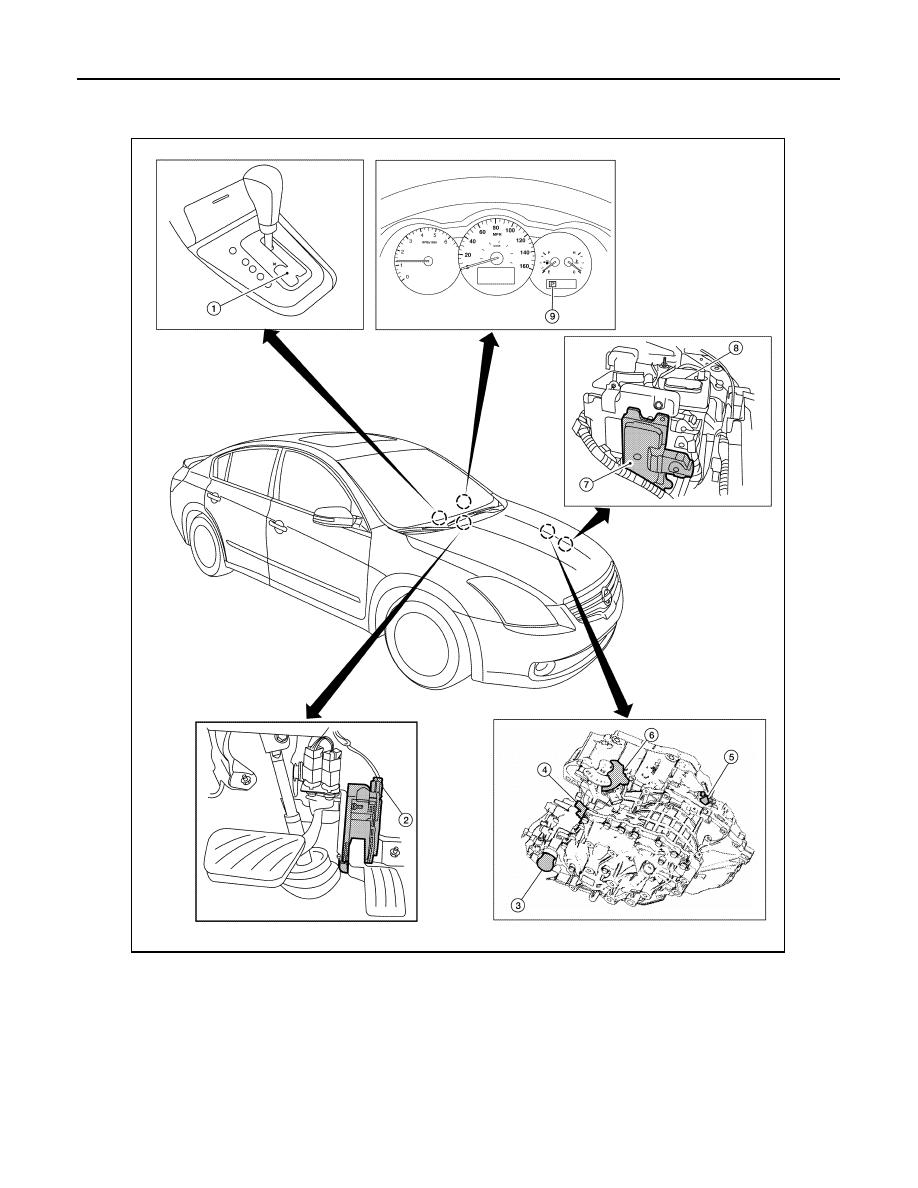

Component Parts Location - Sedan

INFOID:0000000004201828

1.

Control device assembly

2.

Accelerator pedal position sensor

3.

CVT unit harness connector

4.

Primary speed sensor

5.

Secondary speed sensor

6.

PNP switch

7.

TCM

8.

Battery

9.

Shift position indicator
Manual mode indicator

AWIIA0002ZZ

MECHANICAL SYSTEM

TM-271

< FUNCTION DIAGNOSIS >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

MECHANICAL SYSTEM

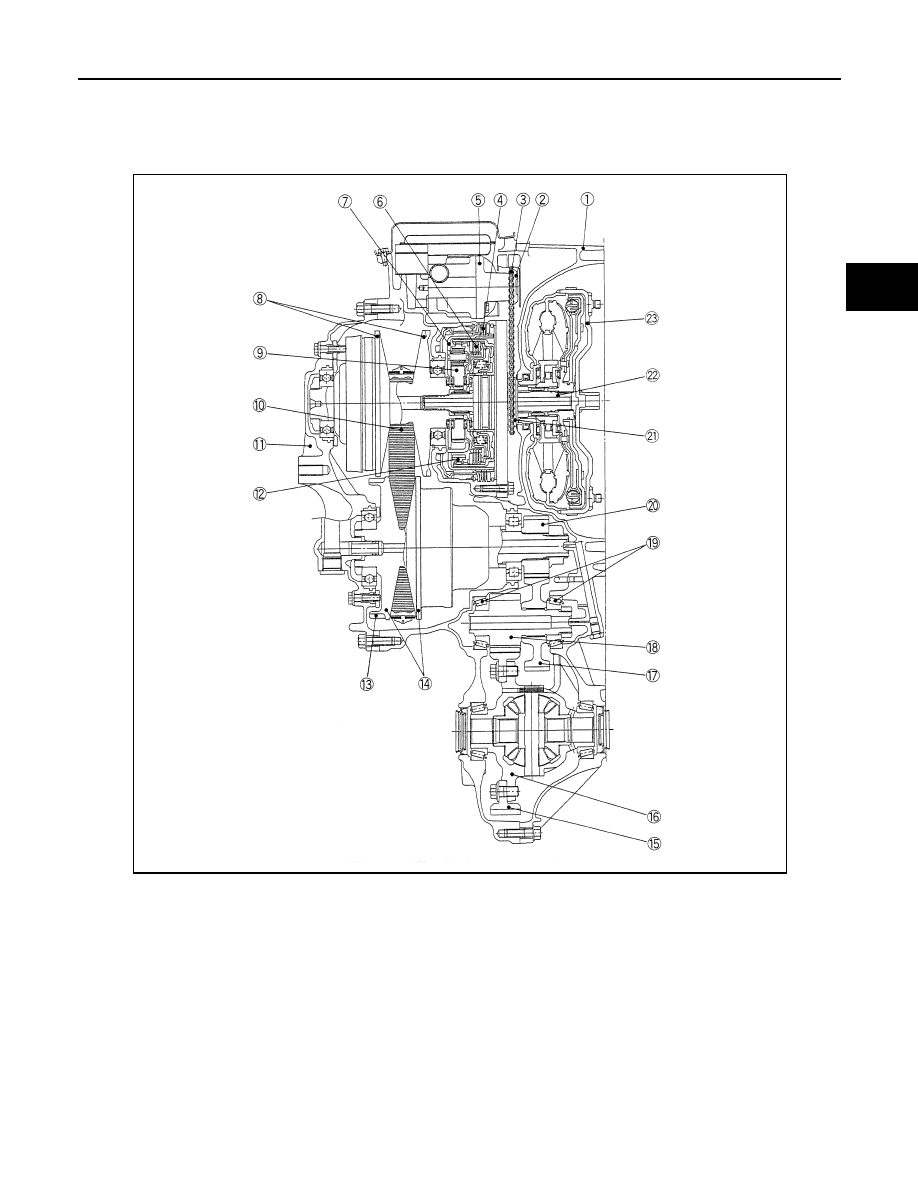

Cross-Sectional View

INFOID:0000000004201829

1.

Converter housing

2.

Driven sprocket

3.

Chain

4.

Reverse brake

5.

Oil pump

6.

Forward clutch

7.

Planetary carrier

8.

Primary pulley

9.

Sun gear

10. Steel belt

11. Side cover

12. Internal gear

13. Parking gear

14. Secondary pulley

15. Final gear

16. Differential case

17. Idler gear

18. Reduction gear

19. Taper roller bearing

20. Output gear

21. Drive sprocket

22. Input shaft

23. Torque converter

SCIA7792J
