TM-260

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

TRANSAXLE ASSEMBLY

3. Remove the harness from the transaxle.
4. Remove the transaxle to engine and engine to transaxle bolts.
5. Remove the CVT fluid charging pipe.
6. Separate the transaxle from the engine.
7. If necessary, remove the following from the CVT:

• Fluid cooler tube

• Air breather hose

• Brackets

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing an engine or transaxle you must make sure any dowels are installed correctly during

re-assembly

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive

train components.

• Do not reuse O-rings.

• When turning crankshaft, turn it clockwise as viewed from the front of the engine.

• When tightening the nuts for the torque converter while securing the crankshaft pulley bolt, be sure

to confirm the tightening torque of the crankshaft pulley bolt. Refer to

EM-52, "Removal and Installa-

tion"

.

• After converter is installed to drive plate, rotate crankshaft several turns to check that CVT rotates

freely without binding.

• When installing the CVT to the engine, align the matching mark on the drive plate with the matching

mark on the torque converter.

• When installing CVT assembly to the engine assembly, attach the

bolts in accordance with the following standard.

• When installing the drive plate to torque converter nuts, tighten them temporarily. then tighten the nuts to the

specified torque.

• After completing installation, check for fluid leakage, fluid level, and the positions of CVT. Refer to

TM-240,

"Inspection"

 and

TM-253, "Inspection and Adjustment"

.

• When replacing the CVT assembly, erase EEP ROM in TCM.

Inspection

INFOID:0000000004201813

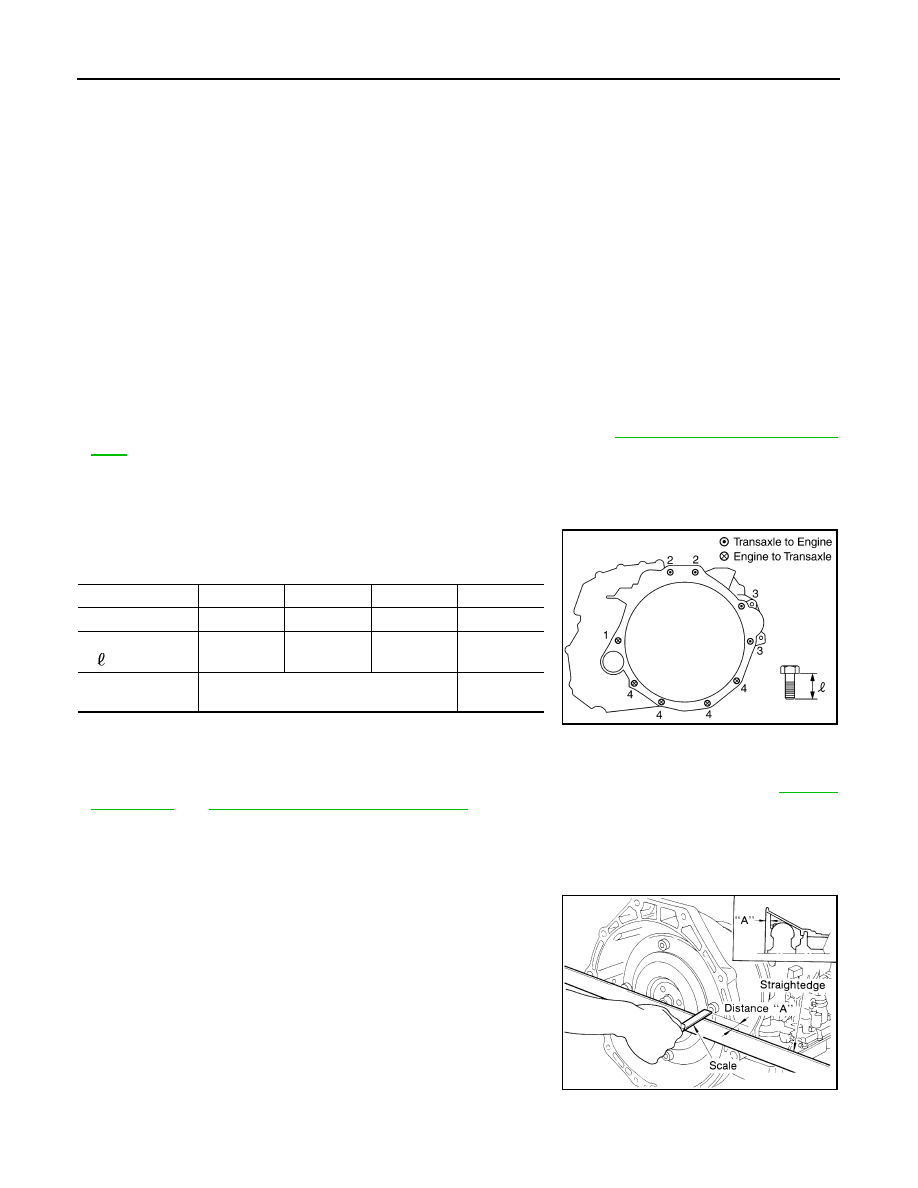

Installation and Inspection of Torque Converter

• After inserting the torque converter to the CVT, be sure to check

distance “A” to ensure it is within specifications.

Bolt No.

1

2

3

4

Number of bolts

1

2

2

4

Bolt length
 “ ”mm (in)

55 (2.17)

34 (1.54)

108 (4.25)

45 (1.77)

Tightening torque
N·m (kg-m, ft-lb)

75 (7.7, 55)

43

(4.4, 32)

SCIA6882E

Distance “A”

: 14.0 mm (0.55 in) or more

SCIA5694E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-261

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000004201814

*1: Refer to

MA-12, "Fluids and Lubricants"

.

Vehicle Speed When Shifting Gears

INFOID:0000000004201815

Numerical value data are reference values.

CAUTION:

Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).

Stall Speed

INFOID:0000000004201816

Line Pressure

INFOID:0000000004201817

*1: Reference values

Applied model

VQ35DE engine

2WD

CVT model

RE0F09B

CVT assembly

Model code number

1XE1B

Transmission gear ratio

D position

Variable

Reverse

1.750

Final drive

5.173

Recommended fluid

NISSAN CVT Fluid NS-2

*1

Fluid capacity

10.2 liter (10-6/8 US qt, 9 Imp qt)

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Do not mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and CVT durability, and may dam-

age the CVT, which is not covered by the warranty.

Engine type

 Throttle position

Shift pattern

Engine speed (rpm)

At 40 km/h (25 MPH)

At 60 km/h (37 MPH)

VQ35DE

8/8

“D” position

 2,900 – 4,100

 3,900 – 5,600

2/8

 900 – 2,000

 1,000 – 2,000

Stall speed

 2,700 – 3,250 rpm

Engine speed

 Line pressure kPa (kg/cm

2

, psi)

“R”, “D” positions

At idle

750 (7.65, 108.8)

At stall

5,700 (58.14, 826.5)

*1

TM-262

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F09B]

SERVICE DATA AND SPECIFICATIONS (SDS)

Solenoid Valves

INFOID:0000000004201818

CVT Fluid Temperature Sensor

INFOID:0000000004201819

Primary Speed Sensor

INFOID:0000000004201820

Secondary Speed Sensor

INFOID:0000000004201821

Removal and Installation

INFOID:0000000004201822

Name

Resistance (Approx.)

Terminal

Pressure control solenoid valve B (secondary
pressure solenoid valve)

3.0 – 9.0

Ω

3

Pressure control solenoid valve A (line pressure
solenoid valve)

2

Torque converter clutch solenoid valve

12

Lock-up select solenoid valve

6 – 19

Ω

13

Name

Condition

CONSULT-III “DATA MONITOR” (Approx.)

Resistance (Approx.)

ATF TEMP SEN

20

°C (68°F)

1.8 – 2.0 V

6.5 k

Ω

80

°C (176°F)

0.6 – 1.0 V

0.9 k

Ω

Name

Condition

Data (Approx.)

Primary speed sensor

When driving [“M

1

” position, 20 km/h (12 MPH)]

660 Hz

Name

Condition

Data (Approx.)

Secondary speed sensor

When driving [“D” position, 20 km/h (12 MPH)]

400 Hz

Distance between end of converter housing and torque converter

14.0 mm (0.55 in) or more

DIAGNOSIS AND REPAIR WORKFLOW

TM-263

< BASIC INSPECTION >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000004201823

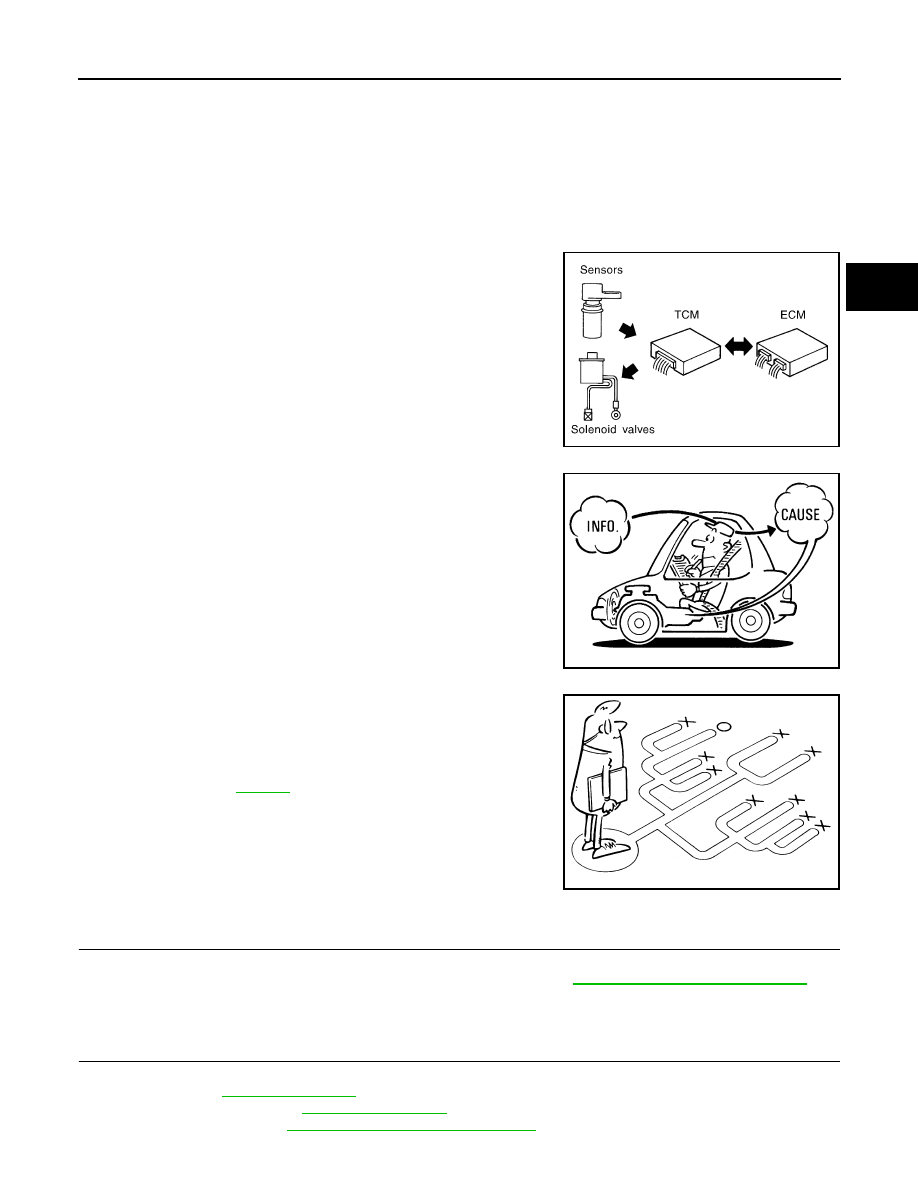

INTRODUCTION

The TCM receives a signal from the vehicle speed sensor, PNP switch and provides shift control or lock-up

control via CVT solenoid valves.

The TCM also communicates with the ECM by means of a signal

sent from sensing elements used with the OBD-related parts of the

CVT system for malfunction-diagnostic purposes. The TCM is capa-

ble of diagnosing malfunctioning parts while the ECM can store mal-

functions in its memory.

Input and output signals must always be correct and stable in the

operation of the CVT system. The CVT system must be in good

operating condition and be free of valve seizure, solenoid valve mal-

function, etc.

It is much more difficult to diagnose an error that occurs intermit-

tently rather than continuously. Most intermittent errors are caused

by poor electric connections or improper wiring. In this case, careful

checking of suspected circuits may help prevent the replacement of

good parts.

A visual check only may not find the cause of the errors. A road test

with CONSULT-III (or GST) or a circuit tester connected should be

performed. Follow the “DETAILED FLOW”.

Before undertaking actual checks, take a few minutes to talk with a

customer who approaches with a driveability complaint. The cus-

tomer can supply good information about such errors, especially

intermittent ones. Find out what symptoms are present and under

what conditions they occur. A “Diagnostic Work Sheet” as shown on

the example (Refer to

TM-264

) should be used.

Start your diagnosis by looking for “conventional” errors first. This will

help troubleshoot driveability errors on an electronically controlled

engine vehicle.

Also check related Service bulletins.

DETAILED FLOW

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred) using diagnosis worksheet. Refer to

TM-264, "Diagnostic Work Sheet"

.

>> GO TO 2.

2.

CHECK SYMPTOM 1

Check the following items based on the information obtained from the customer.

• Fail-safe. Refer to

TM-397, "Fail-safe"

.

• CVT fluid inspection. Refer to

TM-416, "Inspection"

.

• Line pressure test. Refer to

TM-423, "Inspection and Judgment"

.

SAT631IB

SAT632I

SEF234G
