TM-44

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

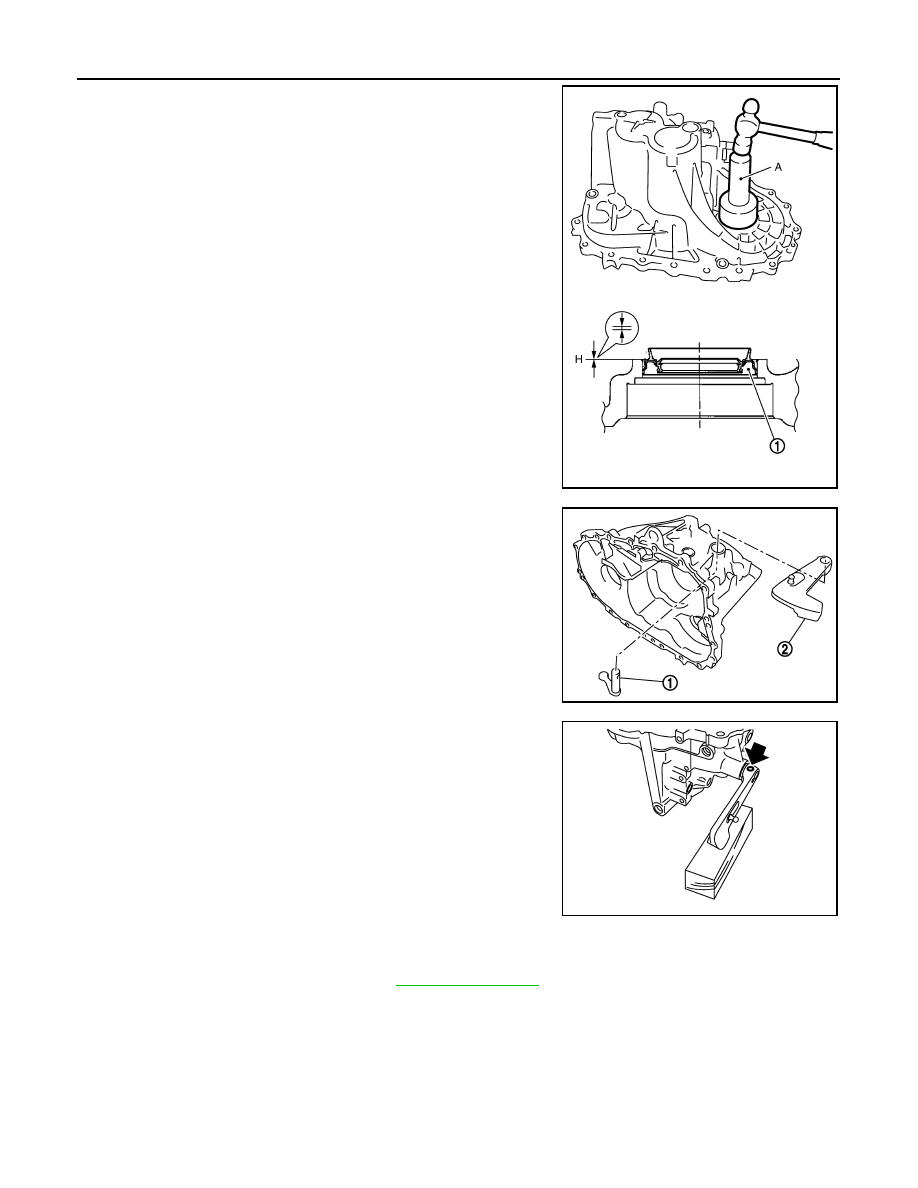

23. Install differential side oil seal (1) to transaxle case using Tool

(A) [SST: ST30720000 (J-25405)].

CAUTION:

• Do not reuse differential side oil seal.

• When installing, do not incline differential side oil seal.

• Do not damage transaxle case.

24. Install shifter lever B (1) and shifter lever A (2) to transaxle case.

CAUTION:

Be careful with the orientation of shifter lever B and shifter

lever A.

25. Install retaining pin to shifter lever A.

CAUTION:

• Do not reuse retaining pin.

• Assemble retaining pin from the direction shown until it

becomes flush with the end surface of shifter lever A.

26. Install transaxle case according to the following:
a. Install selected mainshaft rear bearing adjusting shim into transaxle case.

• For selection of adjusting shim, refer to

TM-49, "Adjustment"

.

Dimension “H”

: -0.5 - 0.5 mm (-0.020 - 0.020 in)

Tool number

: ST30720000 (J-25405)

PCIB1878E

PCIB1843E

PCIB1844E

TRANSAXLE ASSEMBLY

TM-45

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

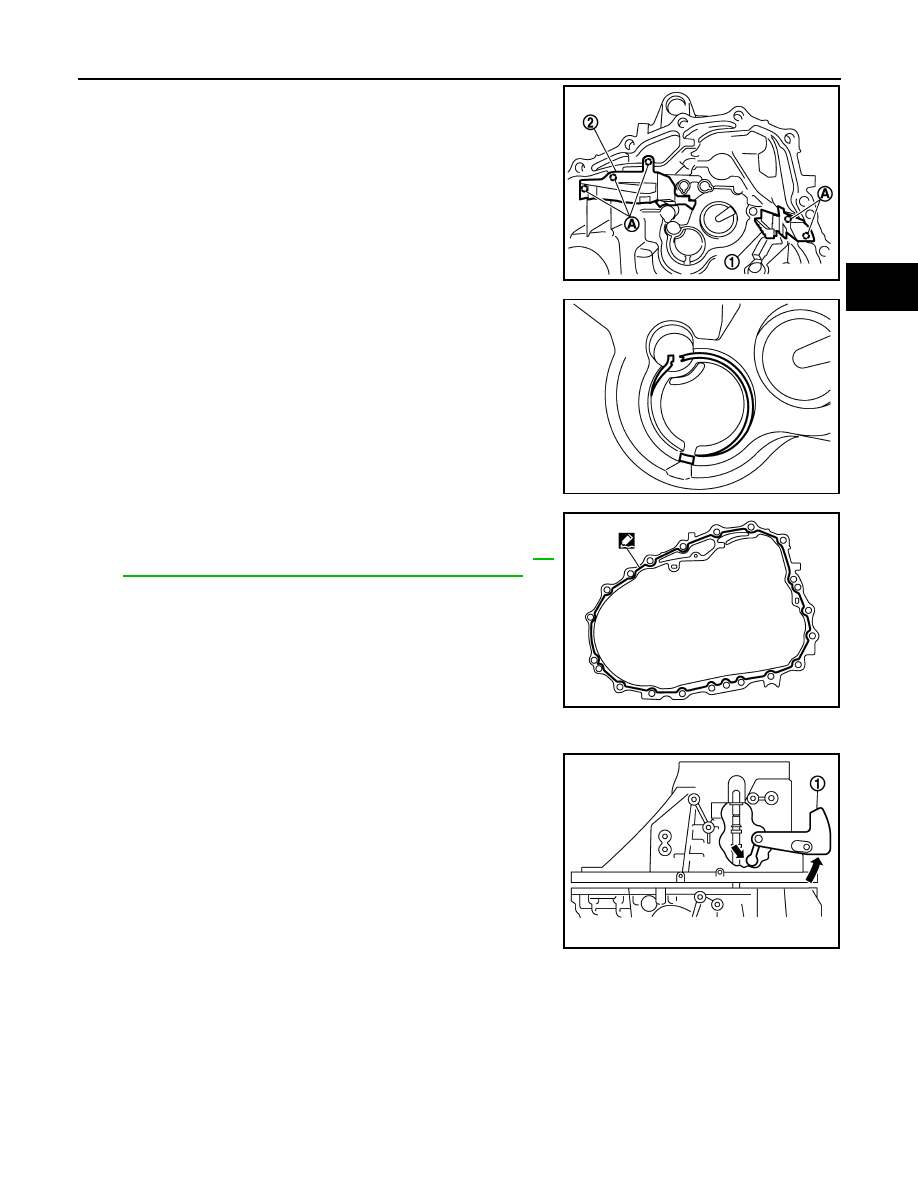

b. Install oil gutter A (1) and oil gutter B (2) to transaxle case.

CAUTION:

Insert the tab (A) of oil gutter A and oil gutter B into tran-

saxle case.

c. Temporarily install snap ring of mainshaft rear bearing into tran-

saxle case.

CAUTION:

Do not reuse snap ring.

d. Apply recommended sealant to mating surface of clutch housing

as shown.

• Use Genuine Silicone RTV or an equivalent. Refer to

GI-

15, "Recommended Chemical Products and Sealants"

.

CAUTION:

• Remove old sealant adhering to the mounting surfaces.

Also remove any moisture, oil, or foreign material adher-

ing to both mounting surfaces.

• Apply sealant so as not to break the bead.

• The width of sealant bead is 1 - 2 mm (0.04 - 0.08 in).

• The height of sealant bead is 0.4 - 1 mm (0.016 - 0.04 in).

• The overlap length of both ends of sealant bead is 3 - 5

mm (0.12 - 0.20 in).

e. With shifter lever A (1) held in the position shown, temporarily

assemble transaxle case to clutch housing.

CAUTION:

Do not damage striking rod oil seal.

NOTE:

Make sure to hold shifter lever A in the position shown. Other-

wise transaxle case cannot be installed to clutch housing.

PCIB1841E

PCIB1842E

PCIB1807E

PCIB1808E

TM-46

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

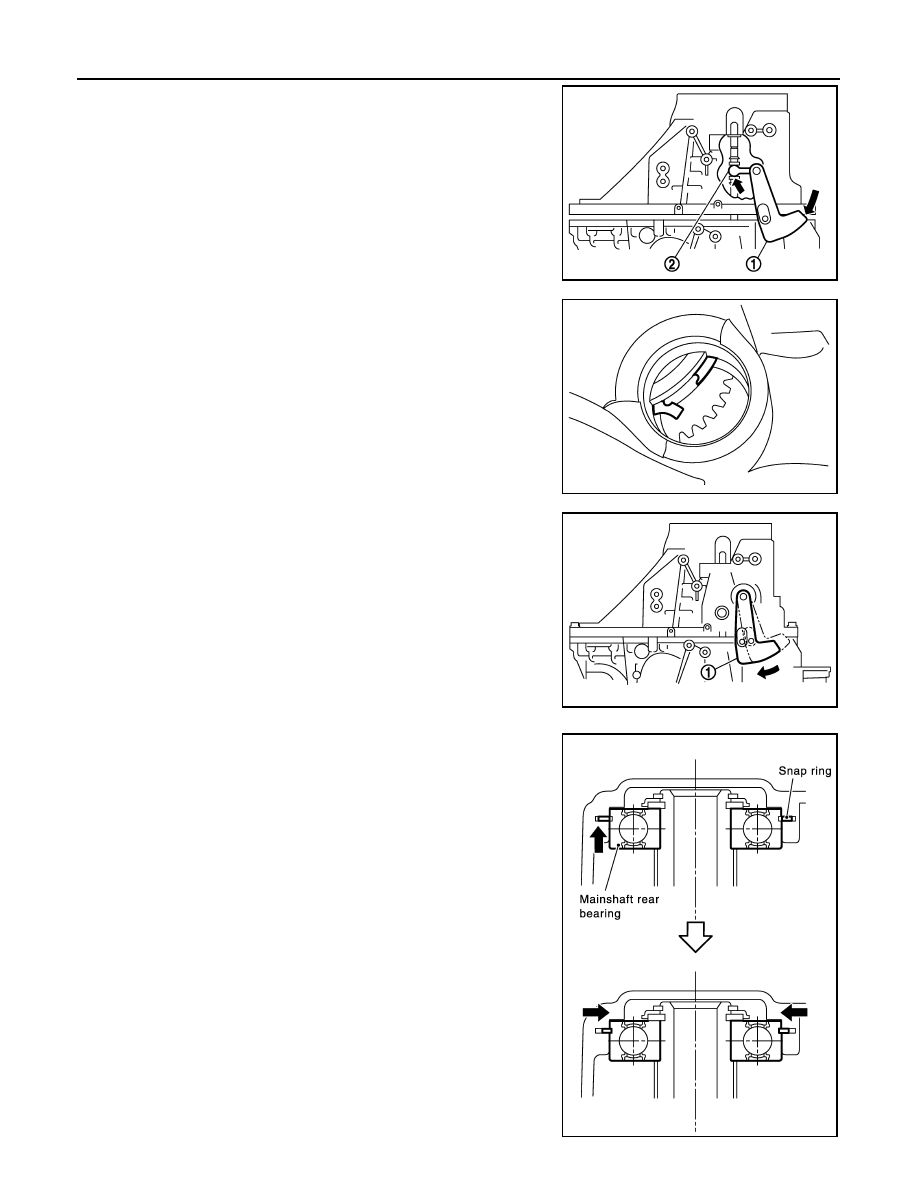

f.

While rotating shifter lever A (1) in the direction shown, assem-

ble transaxle case to clutch housing.

g. Accessing from the bore plug hole, expand snap ring at main-

shaft rear bearing so that the ring catches the periphery of main-

shaft rear bearing.

h. Temporarily tighten transaxle case bolts.

i.

Shift the shifter lever A (1) to 2nd gear position.

NOTE:

• The 2nd gear position is attained when shifter lever A is in the

position shown.

• When transaxle is shifted to the 2nd gear position, mainshaft

assembly is lifted.

j.

Seat snap ring in the groove on mainshaft rear bearing. If snap

ring is not seated in the groove on mainshaft rear bearing,

remove transaxle case and repeat the procedure from step d.

2

: Shifter lever B

PCIB1929E

PCIB1840E

PCIB1809E

SCIA0893E

TRANSAXLE ASSEMBLY

TM-47

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

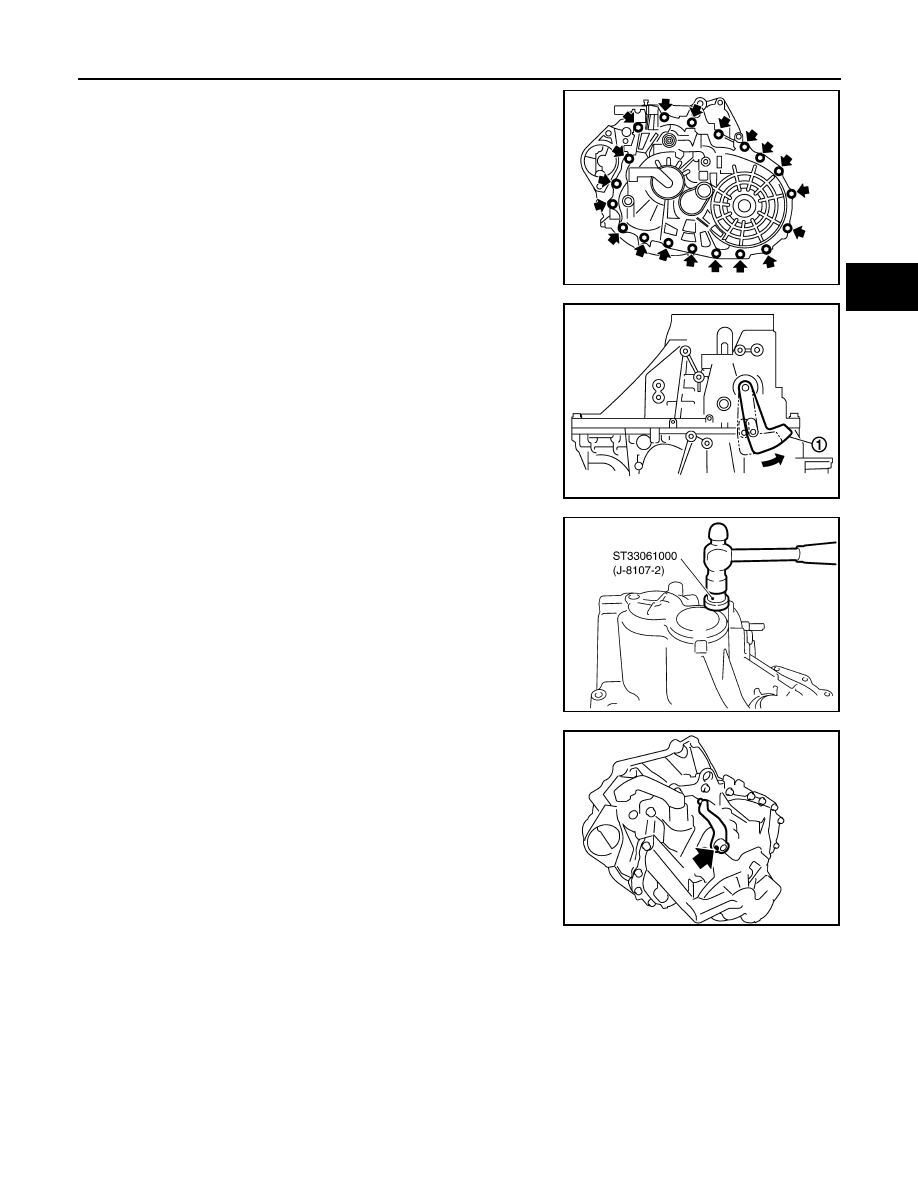

k. Tighten transaxle case bolts to the specified torque.

l.

Shift the shifter lever A (1) to neutral position.

NOTE:

The neutral position is attained when shifter lever A is in the

position shown.

27. Install bore plug to transaxle case using Tool.

CAUTION:

Do not reuse bore plug.

28. Install selector lever to transaxle case and then install retaining

pin to selector lever.

CAUTION:

• Do not reuse retaining pin.

• Assemble retaining pin from the direction shown until it

becomes flush with the end surface of selector lever.

PCIB1838E

PCIB1930E

Tool number

: ST33061000 (J-8107-2)

PCIB0941E

PCIB1837E
